The 2020 Genesis Fugio 30 with bigger volume tyres on smaller wheels is a versatile gravel road bike, equipped with a Shimano GRX 1x groupset and Shimano BR-810 hydraulic disc brakes.
The 2020 Genesis Fugio 30 with bigger volume tyres on smaller wheels is a versatile gravel road bike, equipped with a Shimano GRX 1x groupset and Shimano BR-810 hydraulic disc brakes.
Genesis

Genesis Fugio 30 Mens Gravel Road Bike 2020 in Orange

£2,174.00 £2,899.99 25% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Genesis Fugio 30 Mens Gravel Road Bike 2020 in Orange

Season:2020

Brand:Genesis

Code:VARGN2027ORG

The Genesis Fugio 30, sees the frame upgraded to Reynolds 725 tubing, which Reynolds mandrel butt and heat-treat, so that thinner walls can be used compared to non-heat-treated steels. Up front, the fork is now full carbon to save a little weight and further enhance the ride quality. the Fugio is a where the Croix de Fer bike would go if you opened your mind. The bike that will take its time on the boring bits and come alive just as things get interesting.That might mean turning a bump into an opportunity to get the wheels off the ground, or flicking the back wheel through some turns. The range-topping model is adorned with Shimano's all-new GRX groupset that provides a wide range from a 1x setup. Tubeless compatible wheels and 47c tyres, along with a dropper post round out a complete package for fun evening rides and weekend escapades.

Key Features & Benefits

  • Reynolds 725 heat treated Cromoly butted frame and carbon fork, the Fugio 30's new asymmetric chainstays keep the rear end close for handling and comfort.

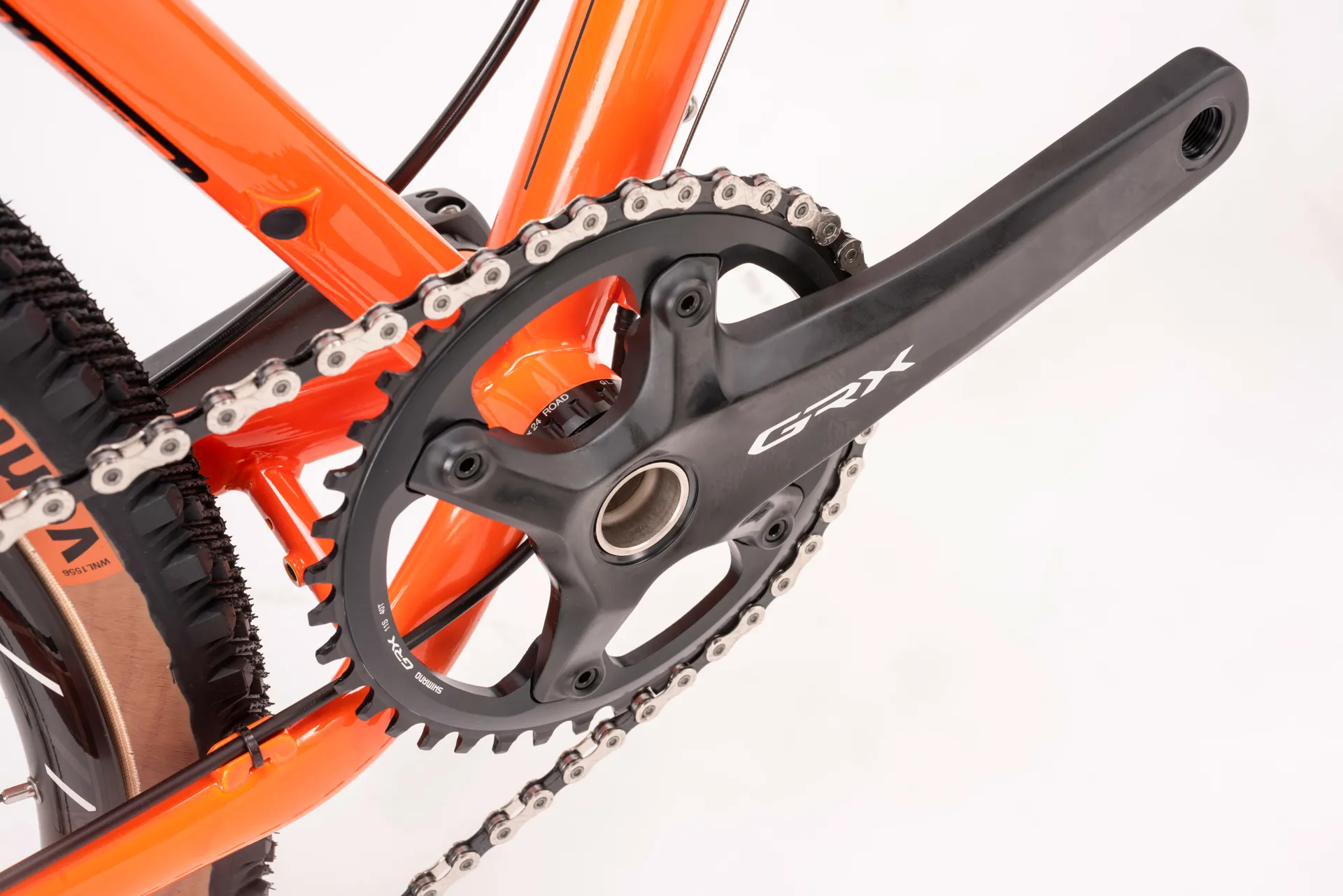

  • Shimano GRX 1x drivetrain, combined with Shiman, BR-810 hydraulic brakes, provide a highly dependable drivetrain with all of the benefits and simplicity of a 1x set up. The powerful Shimano hydraulic brakes ensure great stopping whatever the conditions.
  • Multiple Rack & Bottle mounts, with 3 sets of bottle cage mounts, front and rear carrier bosses and internal dynamo cable routing, the Fugio 30 can be loaded up to tackle global adventures.

Full Specification

  • Frame: Reynolds 725 Heat-Treated Chromoly
  • Fork: Carbon Road Plus w/ 1-1/2"-1-1/8" Tapered Alloy Steerer
  • Number of Gears: 11
  • Gear Shifters: Shimano GRX ST-R810 / 1x11 speed
  • Chainset: Shimano GRX FC-R8101 / 40T / XS-S, 170mm / M-L, 172.5mm / XL, 175mm
  • Chainrings: 40T
  • Rear Cassette: Shimano CS-M8000 / 11-42T
  • Chain: KMC x11
  • Front Derailleur: N/A
  • Rear Derailleur: Shimano GRX RD-812 / GS cage
  • Bottom Bracket: Shimano BB-R60
  • Pedals: N/A
  • Rims: Jalco HD490 / 32h TR
  • Front Hub: Formula RX-812 32h 6-Bolt
  • Rear Hub: Formula RX-300 32h 6-Bolt
  • Front Tyre: WTB Venture 650x47c TCS w/skinwall
  • Rear Tyre: WTB Venture 650x47c TCS w/skinwall
  • Brakes: Shimano BR-R810 hydraulic brakes w/ Shimano SM-RT800 160mm rotors
  • Handlebars: Genesis X-Race Aero / 8deg Flare / XS, 400mm / S-M, 420mm / L-XL, 440mm
  • Handlebar Tape: Velo Black Cork w/ VexGel
  • Headset: Prestine F-17-A 1-1/8" - 1-1/2" tapered
  • Stem: Genesis AS-007 / + - 7deg / 100mm
  • Saddle: Genesis Road Comfort
  • Seatpost: X-Fusion Manic Gravel 27.2mm / 50mm Travel
  • Accessories: N/A
  • Weight: Not Available

Road Bike Sizing Guide

Road bikes as the name implies are for road use. There are a growing number of “gravel” or “adventure” bikes which are based on road bicycles, but feature wider and more versatile tyres and disc brakes, so you can also do light trail riding such as towpaths. They are also more pothole resistant!

Sizing is normally in cm, and is a measurement from the centre of the chain-wheel axle (The BB or bottom bracket) and the top of the frame seat tube. Some are measured to the centre of the seat tube where it meets the top tube (otherwise known as the crossbar).

That measurement is on road bikes normally in CM – and no-one really knows why! Some road bikes will use “T-Shirt Sizing” so S, M, L, XL etc. but there will be a geometry chart that then shows the measurement in CM.


What is your height? Your suggested bicycle size
Feet/Inches Centimetres Suggested Size
4'10" - 5'0" 148cm - 152cm XX-Small (47-48cm)
5'0" - 5'3" 152cm - 160cm X-Small (49-50cm)
5'3" - 5'6" 160cm - 168cm Small (51-53cm)
5'6" - 5'9" 168cm - 175cm Medium (54-55cm)
5'9" - 6'0" 175cm - 183cm Large (56-58cm)
6'0" - 6'3" 183cm - 191cm X-Large (58-60cm)
6'3" - 6'6" 191cm - 198cm XX-Large (61-63cm)


If you need any more advice on bike sizing for road bikes please contact us and we can help you make the right choice.

Technical Information

Geometry for Genesis Fugio 30 Gravel Road Bike

Genesis Fugio 30 Gravel Road Bike Geometry Chart

Dimensions in mm unless stated

  XS S M L XL
Seat Tube 470 500 530 550 580
Top Tube 535 551 567 583 598
Frame Reach 365 375 385 395 405
Frame Stack 556 575 594 613 631
Heat Tube 125 145 165 185 205
Head Angle 70.5° 70.5° 70.5° 70.5° 70.5°
Seat Angle 73° 73° 73° 73° 73°
Chainstay 425 425 425 425 425
BB Drop 65 65 65 65 65
Wheelbase 1012 1029 1045 1062 1077
Fork Offset 50 50 50 50 50
Fork Trail 69 69 69 69 69
Standover 756 779 801 820 843
Stem 100 100 100 100 100
Handlebar 400 420 420 440 440
Crankarm 165 170 172.5 172.5 175
