Giant Revolt 2 is a versatile aluminium gravel bike with composite fork, adjustable wheelbase, and D-Fuse system for smooth, stable rides on diverse terrain including dirt and gravel.
Giant Revolt 2 is a versatile aluminium gravel bike with composite fork, adjustable wheelbase, and D-Fuse system for smooth, stable rides on diverse terrain including dirt and gravel.
Giant

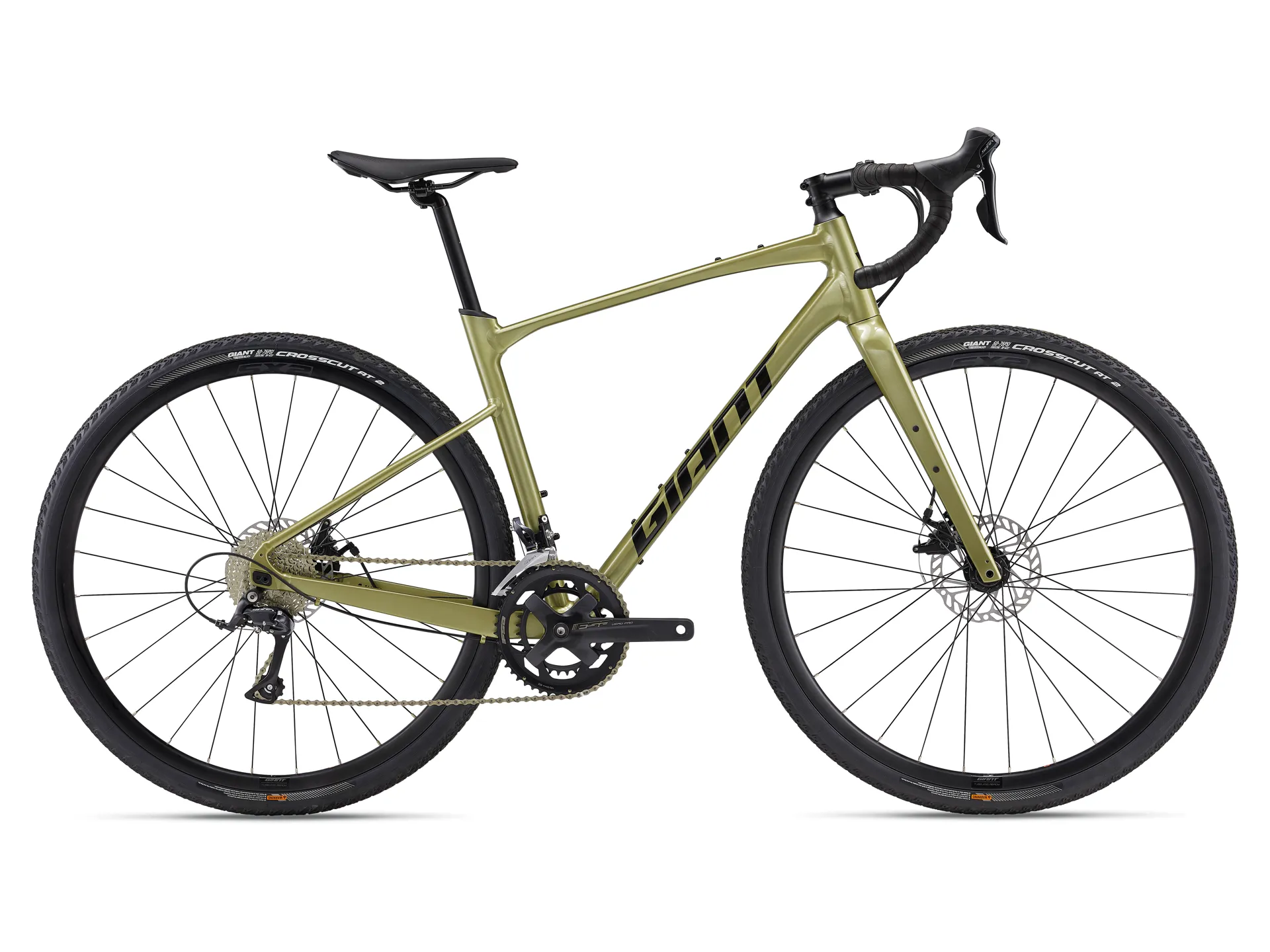

Giant Revolt 2 Gravel Bike 2025 in Bay Leaf

£1,169.00 £1,299.00 10% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Giant Revolt 2 Gravel Bike 2025 in Bay Leaf

Season:2025Sale

Brand:Giant

Code:9079003BayLeaf

Ride roads, gravel or dirt with this versatile aluminium all-rounder. A composite fork gives it a smooth ride, and a flip chip lets you adjust wheelbase and tyre clearance.

Whether you ride dirt roads, trails, gravel or a mix of everything, you want a bike that floats right through it, keeps you in control, and is comfortable for long days in the saddle. The Revolt delivers on all accounts.

Key Features & Benefits:

  • Confident Handling:Frame is designed with endurance positioning and shorter chainstays for precise handling, agility and control. A longer reach, shorter stem and lower bottom bracket drop improves stability on rugged terrain.
  • Tuned Compliance:Dropped seatstays with thin tubing absorb road shocks and vibrations. The D-Fuse handlebar and seatpost work as a system to add compliance without sacrificing stiffness while cornering, sprinting or climbing.
  • All-rounder Efficiency:A flip chip on the rear dropout adjusts the wheelbase short for quicker handling and acceleration, or long for improved stability at speed. The long setting allows for larger diameter tyres up to 53mm. You can choose the included D-Fuse seatpost for maxim

Full Specification:

  • Frame:ALUXX-Grade Aluminum, 12x142mm thru-axle, disc, flip chip dropout
  • Fork:Advanced-Grade Composite, full-composite OverDrive steerer, 12mm thru-axle, disc
  • Gear Shifters:Shimano Sora, 2x9
  • Chainset:FSA Vero Pro, 32/48 S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Chainrings:31/48 teeth
  • Rear Cassette:Shimano HG400, 11x34
  • Chain:KMC X9 with Missing Link
  • Front Derailleur:Shimano Sora
  • Rear Derailleur:Shimano Sora Long cage
  • Bottom Bracket:FSA BSA cartridge
  • Pedals:Not supplied:Shop pedals here
  • Rims:GiantS-X2 Disc wheelset
  • Front Hub:Giant S-X2 Disc wheelset
  • Rear Hub:Giant S-X2 Disc wheelset
  • Front Tyre:Giant CrossCut AT 2, 700x38c, tubeless
  • Rear Tyre:Giant CrossCut AT 2, 700x38c, tubeless
  • Brakes:Tektro MD-C550 mechanical, Giant MPH rotors [F]160mm, [R]160mm
  • Handlebars:GiantContact XR Ergo-Control, 31.8mm S:42cm, M:44cm, M/L:44cm, L:46cm, XL:46cm
  • Handlebar Tape:Velo cork tape with gel
  • Stem:GiantContact, 8-degree S:60mm, M:70mm, M/L:80mm, L:80mm, XL:90mm
  • Saddle:Giant Approach
  • Seatpost:Giant D-Fuse, Alloy, 14mm offset
  • Accessories:Factory tubeless set up, 53mm max tyre size in "long" flip chip position, 42mm max tyre size in "short" flip chip position
  • Weight:N/A
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Giant Revolt & Revolt Advanced

Frame SizeRider Height (cm)
XS155 - 166
S159 - 171
M169 - 181
ML174 - 186
L179 - 191
XL189 - 200

Geometry Chart for Giant Revolt


SMMLLXL
SHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONG
ASEAT TUBE LENGTH(mm)450470490510530
BSEAT TUBE ANGLE73.5°73.5°73.0°73.0°73.0°
CTOP TUBE LENGTH(mm)550560575585600
DHEAD TUBE LENGTH(mm)135150165180195
EHEAD TUBE ANGLE71.0°71.5°72.0°72.0°72.0°
FFORK RAKE(mm)5050505050
GTRAIL(mm)72|7568|7265|6865|6865|68
HWHEELBASE(mm)1025|10351030|10401035|10451045|10551061|1071
ICHAIN STAY LENGTH(mm)430|440430|440430|440430|440430|440
JBOTTOM BRACKET DROP(mm)80|8180|8180|8180|8180|81
KSTACK(mm)570586602616630
LREACH(mm)381387391397407
MSTAND OVER HEIGHT(mm)734|741752|759769|776786|793801|810
NHANDLEBAR WIDTH(mm)420440440460460
OSTEM LENGTH(mm)8090100100110
PCRANK LENGTH(mm)170172.5172.5175175
QWHEEL SIZE700C700C700C700C700C

Geometry Chart for Giant Revolt Advanced

SMMLLXL
SHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONG
ASEAT TUBE LENGTH(mm)450470490510530
BSEAT TUBE ANGLE73.5°73.5°73.0°73.0°73.0°
CTOP TUBE LENGTH(mm)550560575585600
DHEAD TUBE LENGTH(mm)135150165180195
EHEAD TUBE ANGLE71.0°71.5°72.0°72.0°72.0°
FFORK RAKE(mm)5050505050
GTRAIL(mm)72|7568|7265|6865|6865|68
HWHEELBASE(mm)1020|10301026|10361031|10411041|10511056|1066
ICHAIN STAY LENGTH(mm)425|435425|435425|435425|435425|435
JBOTTOM BRACKET DROP(mm)80|8180|8180|8180|8180|81
KSTACK(mm)570586602616630
LREACH(mm)381387391397407
MSTAND OVER HEIGHT(mm)740|747757|764774|780791|797807|814
NHANDLEBAR WIDTH(mm)420440440460460
OSTEM LENGTH(mm)6070808090
PCRANK LENGTH(mm)170172.5172.5175175
QWHEEL SIZE700C700C700C700C700C

Warranty Information for Giant

ComponentWarranty Period
Bicycle frame (Downhill excluded)Lifetime
Rigid Forks10 Years
Downhill frame3 Years
Giant own brand components, Pedals, grips, bar tape, saddle, Paint & Decals2 Years
Electronic E-bike components including battery2 Years (or 600 charge cycles)

For full warranty policy please visit giant-bicycles.com
