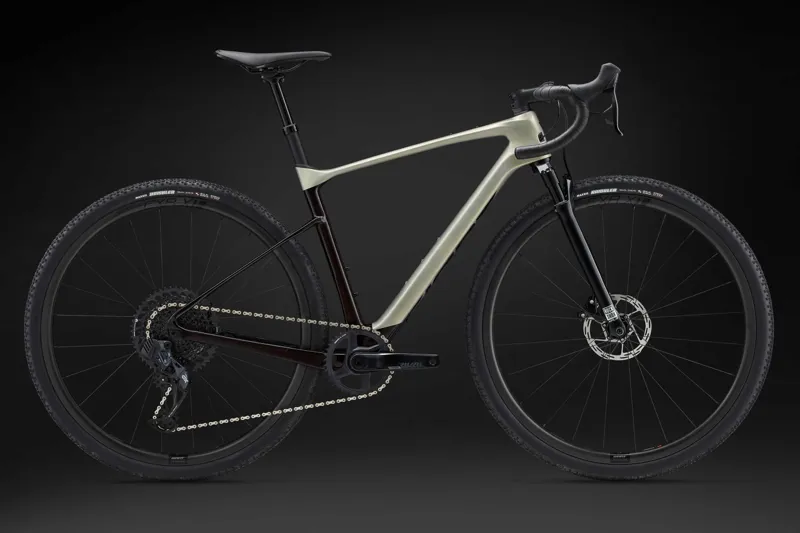

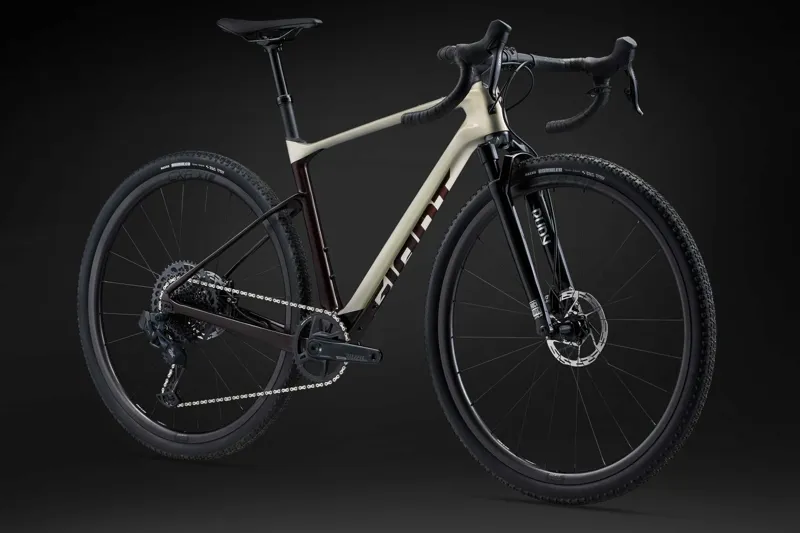

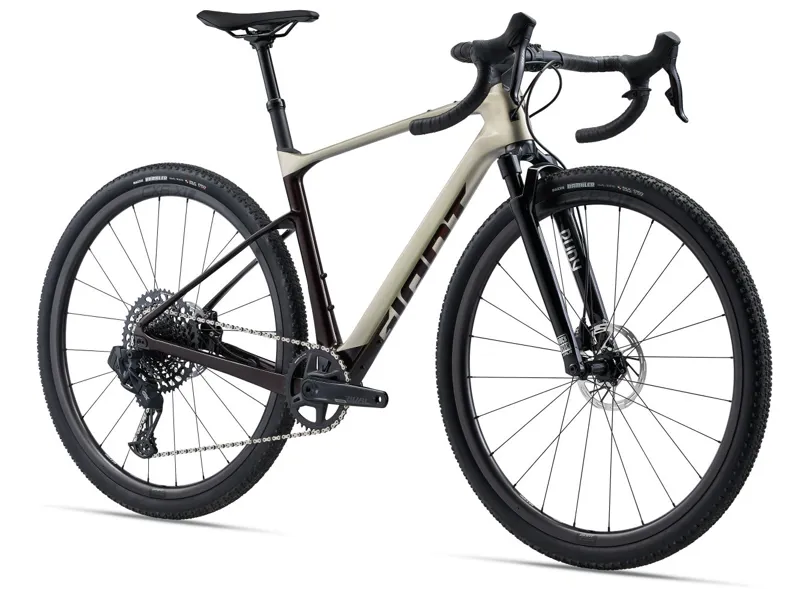

Giant Revolt X Advanced Pro 1 Gravel Bike 2025 in Golden Haze/Cordovan

Season:2025Sale

Brand:Giant

Code:9080003GLDenHazeCordovan

Washboard descents, sketchy dirt, gravel and rocks of all shapes and sizes. You never know what you’ll get on a gravel ride. This composite gravel machine has front suspension and engineered compliance to help you float through it all with speed and control.

Composite frameset is designed specifically for front suspension. With 40mm of travel, the fork absorbs impacts so you can ride smoother and faster on rugged gravel and dirt.

Lowered seatstays with smaller diameter tubes absorb road shocks and vibrations. A Contact SL XR D-Fuse handlebar adds more compliance without sacrificing the stiffness needed for cornering, sprinting or climbing.

A flip chip on the rear dropout adjusts the wheelbase short for quicker handling, or long for improved stability at speed. The long setting also allows for larger diameter tyres up to 53mm.

Key Features & Benefits:

  • Advanced-grade Carbon Fibre Frame:Super lightweight & durable.
  • SRAM Rival/GX Eagle AXS 12 Speed:Quality wireless shifting with a wide range for all terrain.
  • Giant Carbon Wheelset:With tubeless technology for increased grip & reduced risk of punctures.

Full Specification:

  • Frame:Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout
  • Fork:RockShox Rudy Ultimate XPLR, 40mm, Charger Race Day damper 12x100mm thru-axle
  • Number of Gears:12
  • Gear Shifters:SRAM Rival eTap AXS, 1x12
  • Chainset:SRAM Rival D1 DUB, 40t XS:170mm, S:170mm, M:172.5mm, M/L:172.5mm, L:175mm, XL:175mm
  • Chainrings:40T
  • Rear Cassette:SRAM XG-1275, 12-speed, 10x52
  • Chain:SRAM GX Eagle
  • Front Derailleur:N/A
  • Rear Derailleur:SRAM GX Eagle AXS
  • Bottom Bracket:SRAM DUB, press fit
  • Pedals:Not supplied:Shop pedals here
  • Rims:Giant CXR 1 X1 Carbon Disc WheelSystem, [F] 25.8mm, [R] 25.8mm
  • Front Hub:Giant CXR X alloy, CenterLock, 12mm thru-axle
  • Rear Hub:Giant CXR X alloy, 60t ratchet driver, CenterLock, 12mm thru-axle
  • Front Tyre:Maxxis Rambler, 700x45c, tubeless
  • Rear Tyre:Maxxis Rambler, 700x45c, tubeless
  • Brakes:SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]160mm
  • Handlebars:Giant Contact SL XR D-Fuse, 31.8mm XS:44cm, S:44cm, M:46cm, M/L:46cm, L:48cm, XL:48cm
  • Handlebar Tape:Stratus Lite 3.0
  • Stem:Giant Contact, 8-degree XS:50mm, S:50mm, M:60mm, M/L:70mm, L:70mm, XL:80mm
  • Saddle:Giant Approach SL
  • Seatpost:Post Moderne, dropper, 30.9mm with 30mm of suspension XS:365mm / 75mm drop S:415mm / 100mm drop
  • Accessories:Tubeless prepared, 53mm max tyre size in "long" flip chip position, 45mm max tyre size in "short" flip chip position
  • Weight:Not Available
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Giant Revolt X

Frame SizeRider Height (cm)
S159 - 171
M169 - 181
ML174 - 186
L179 - 191
XL189 - 200

Geometry Chart forGiant Revolt X


SMMLLXL
SHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONGSHORT|LONG
ASEAT TUBE LENGTH(mm)450470490510530
BSEAT TUBE ANGLE73.5°|73.4°73.5°|73.4°73.0°|72.9°73.0°|72.9°73.0°|72.9°
CTOP TUBE LENGTH(mm)553560575585600
DHEAD TUBE LENGTH(mm)100115130145160
EHEAD TUBE ANGLE71.0°|70.9°71.5°|71.4°72.0°|71.9°72.0°|71.9°72.0°|71.9°
FFORK RAKE(mm)4545454545
GTRAIL(mm)76.9|80.373.5|76.870.1|73.470.1|73.470.1|73.4
HWHEELBASE(mm)1024|10341026|10361031|10411041|10511057|1067
ICHAIN STAY LENGTH(mm)425|435425|435425|435425|435425|435
JBOTTOM BRACKET DROP(mm)68|6968|6968|6968|6968|69
KSTACK(mm)560576592607621
LREACH(mm)387389393399410
MSTAND OVER HEIGHT(mm)736|743755|761772|778790|796808|814
NHANDLEBAR WIDTH(mm)440460460480480
OSTEM LENGTH(mm)6070808080
PCRANK LENGTH(mm)170172.5172.5175175
QWHEEL SIZE700c700c700c700c700c

Warranty Information for Giant

ComponentWarranty Period
Bicycle frame (Downhill excluded)Lifetime
Rigid Forks10 Years
Downhill frame3 Years
Giant own brand components, Pedals, grips, bar tape, saddle, Paint & Decals2 Years
Electronic E-bike components including battery2 Years (or 600 charge cycles)

For full warranty policy please visit giant-bicycles.com
