The Gestalt X is the mountain biker’s dropbar bike with reliable and simple 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
The Gestalt X is the mountain biker’s dropbar bike with reliable and simple 1x drivetrains, large tire clearance, and dropper post routing for better off road control, and on road descending stability.
Marin

Marin Gestalt X10 Gravel Bike 2025 in Gloss Blue

£1,329.00 £1,469.00 10% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

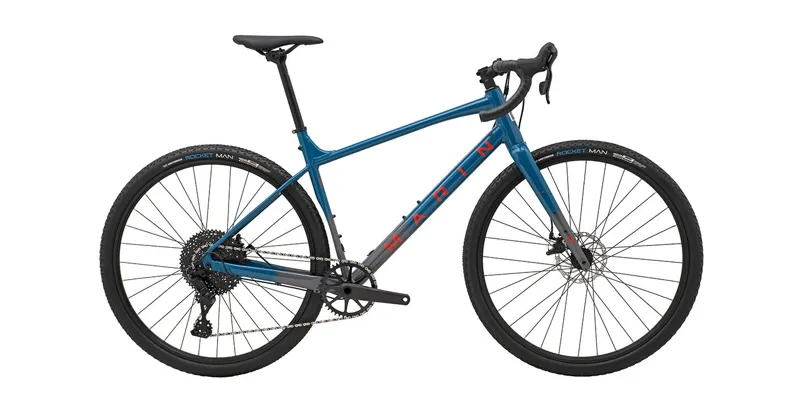

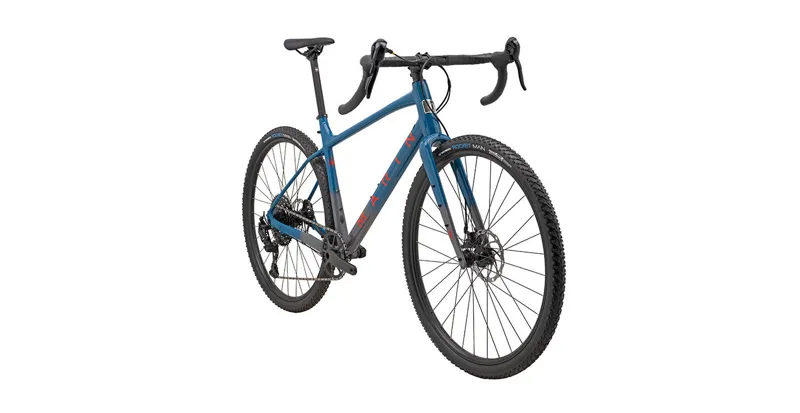

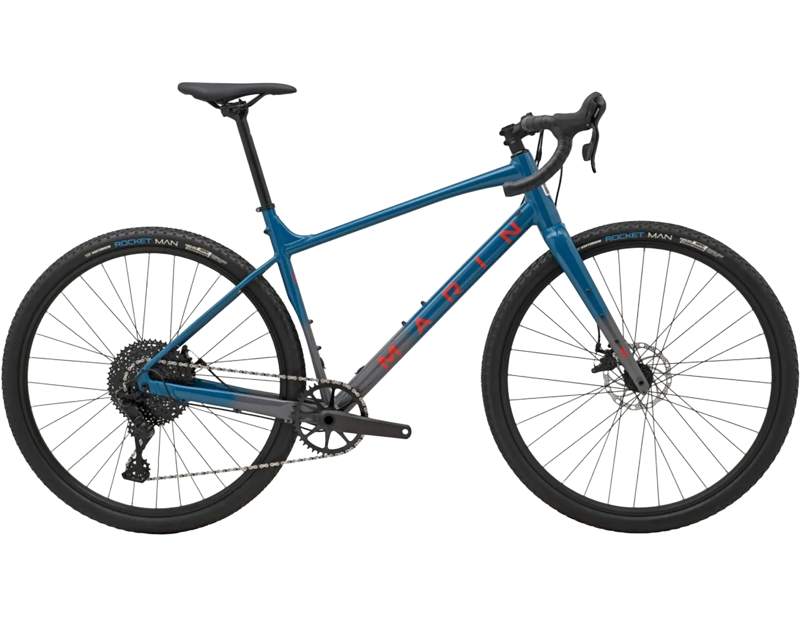

Marin Gestalt X10 Gravel Bike 2025 in Gloss Blue

Season:2025Sale

Brand:Marin

Code:736046GESTALTX10700CWGLO

The Gestalt X is the mountain biker’s dropbar bike with reliable and simple 1x drivetrains, large tire clearance, and dropper post routing for better off-road control, and on-road descending stability.
Updated for 2023 with an all-new frame, with mountain bike inspired geometry, featuring 10mm longer chainstays and a 67.5° headtube angle for a more stable ride when getting off the beaten path. Tire clearance is increased, and the frame will now accommodate tires up to 700x50mm or 27.5 x 2.1".

Key Features & Benefits:

  • Series 3 Aluminium frame:Internal routing, 142x12mm thru-axles, flat mount disc brakes, and rack and fender eyelets.
  • Powerful Disc brakes:For minimal maintenance and all-conditions stopping power.
  • Adventure-ready tyre clearance:The Gestalt frame and fork has clearance for up to 700 x 50mm or 27.5 x 2.1" tyres.

Full Specification:

  • Frame:Series 3 Beyond Road, 6061 Aluminium, Tapered Head Tube, Relieved BB, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
  • Fork:Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
  • Number of Gears:10
  • Gear Shifters:MicroSHIFT Advent X 10-Speed
  • Chainset:Forged Alloy 1x10, Hollow CrMo Spindle, Narrow Wide 42T
  • Chainrings:42T
  • Rear Cassette:SunRace 10-Speed, 11-51T
  • Chain:KMC X10
  • Front Derailleur:N/A
  • Rear Derailleur:MicroSHIFT Advent X 10-Speed Wide-Range
  • Bottom Bracket:External Sealed Cartridge Bearings
  • Pedals:Not Supplied
  • Rims:Marin, Aluminum Double Wall, 25mm Inner, 18mm Tall, Disc Specific
  • Front Hub:Forged Aluminum Alloy, Disc, 32H
  • Rear Hub:Forged Aluminum Alloy, Disc, 32H
  • Front Tyre:Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible
  • Rear Tyre:Vee Tire Co., Rocket Man, 700x44, Tubeless Compatible
  • Brakes:Tektro MD-C500 Dual Piston Road Mechanical Disc, 160mm Rotor
  • Handlebar Grips/Tape:Marin Shock Absorbing Perforated Tape
  • Handlebar:Marin Butted Alloy, Compact 16º Flared Drop
  • Headset:FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
  • Stem:Marin 3D Forged Alloy
  • Saddle:Marin Beyond Road Concept
  • Seatpost:Marin Alloy, 27.2mm
  • Weight:N/A

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Marin Gestalt

SizeRider height range
50cm5' - 5'3"
52cm5'3" - 5'6"
54cm5'6" - 5'9"
56cm5'9" - 6'
58cm6' - 6'2"
60cm6'2" - 6'5"

Sizing Chart for Marin Gestalt X and XR

SizeRider height range
S5'3"to5'6"
M5'6"to5'10"
L5'10"to6'2"
XL6'2"to6'4"

Geometry Information for Marin Gestalt and Gestalt 1

505254565860
A STACK552568582601620641
B REACH367372377387402404
C HEADTUBE ANGLE71°71.5°71.5°71.5°71.5°71.5°
D HEADTUBE LENGTH120135150170190210
E SEATTUBE ANGLE74.5°74°73.5°73.5°73.5°73°
F SEATTUBE LENGTH460480500520540560
G TOPTUBE EFFECTIVE520535550565585600
H BB HEIGHT276276276276276276
I BB DROP787878787878
J CHAINSTAY432432432432432432
K WHEELBASE100810141024104010601070
L STANDOVER HEIGHT714732755775794814
M FORK OFFSET505050505050
SEATPOST DIAMETER27.227.227.227.227.227.2
HANDLEBAR WIDTH420420440440460460
STEM LENGTH70709090110110
CRANK LENGTH170170175175175175

Geometry Information for Marin Gestalt 2 and 2.5

505254565860
A STACK542.5560.4574.7593.7612.7633.8
B REACH369.6374.3374.8389.1397.7406.2
C HEADTUBE ANGLE71°72°72°72°72°72.5°
D HEADTUBE LENGTH120135150170190210
E SEATTUBE ANGLE74.5°74°73.5°73.5°73°73°
F SEATTUBE LENGTH470490510530550570
G TOPTUBE EFFECTIVE520535545565585600
H BB HEIGHT271271271271271271
I BB DROP727272727272
J CHAINSTAY415415415415415415
K WHEELBASE993.1994.3999.41019.91034.61044.5
L STANDOVER HEIGHT713732751774793813
M FORK OFFSET505050505050
SEATPOST DIAMETER27.227.227.227.227.227.2
HANDLEBAR WIDTH400400420420440440
STEM LENGTH70709090110110
CRANK LENGTH170170175175175175

Geometry Information for Marin Gestalt X and XR

SMLXL
ASTACK547.6566589.1621.5
BREACH400420440460
CHEADTUBE ANGLE67.5°67.5°67.5°67.5°
DHEADTUBE LENGTH130150175210
ESEATTUBE ANGLE75°74°74°74°
FSEATTUBE LENGTH460485505530
GTOPTUBE EFFECTIVE546.7582.3608.9638.2
HBB HEIGHT282.5282.5282.5282.5
IBB DROP80808080
JCHAINSTAY425425425425
KWHEELBASE1065.21092.81122.41155.6
LSTANDOVER HEIGHT678.6687.7708.6734.5
MFORK OFFSET50505050
SEATPOST DIAMETER27.227.227.227.2
HANDLEBAR WIDTH440460480480
STEM LENGTH50505050
CRANK LENGTH170170175175

Warranty Information for Marin:

Marin Mountain Bikes, Inc. ("Marin") warrants to the original retail purchaser ("you") that the Marin product for which you received this warranty is free from defects in material and workmanship for the periods below

FRAMES WARRANTY PERIOD (From date of purchase)
Carbon Fiber Frames and Forks: 5 Years
Rigid Frames and Forks: Lifetime
Full Suspension Frames: 5 Years
COMPLETE BICYCLE
The complete bicycle is warranted for one year (from date of purchase), including all original parts on the bicycle except tires, tubes, chains and other wear & tear items. Paint and decals are covered under this warranty.
This warranty does NOT cover suspension forks, and rear shocks on full suspension bikes. These items are covered by the suspension component manufacturer’s warranty. Please contact the suspension component manufacturer for any warranty needs.
For full warranty policy please visit marinbikes.com
