Carbon full-suspension gravel bike with 60/55mm travel, SRAM Force AXS 13-speed, carbon wheels, wireless dropper & bikepacking mounts
Carbon full-suspension gravel bike with 60/55mm travel, SRAM Force AXS 13-speed, carbon wheels, wireless dropper & bikepacking mounts
Trek

Trek CheckOUT SL 7 Gravel Bike 2026 in Era White/Blue Sage

£6,500.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek CheckOUT SL 7 Gravel Bike 2026 in Era White/Blue Sage

Season:2026

Brand:Trek

Code:57828WT-GN

The CheckOUT SL 7 is a full-suspension gravel bike built for exploring rowdy roads, singletrack and anything else you throw its way. Its carbon frame delivers 55 mm of rear travel from a RockShox SIDluxe IsoStrut shock, while a RockShox Rudy XL fork smooths rowdy roads and trails with 60 mm of travel. It gets upgrades where they matter most, like Bontrager Aeolus Pro 3V carbon wheels, a SRAM Force AXS E1 wireless 13-speed drivetrain and a wireless RockShox Reverb AXS dropper post.

Key Features & Benefits:

  • Full Suspension:Unlike Trek's other gravel models, CheckOUT is a full-suspension gravel bike with 55mm rear wheel travel and 60mm fork travel.
  • Clearance for 29 x 2.2 Tyres:Means that you can add extra traction and cushion for rowdy gravel roads.

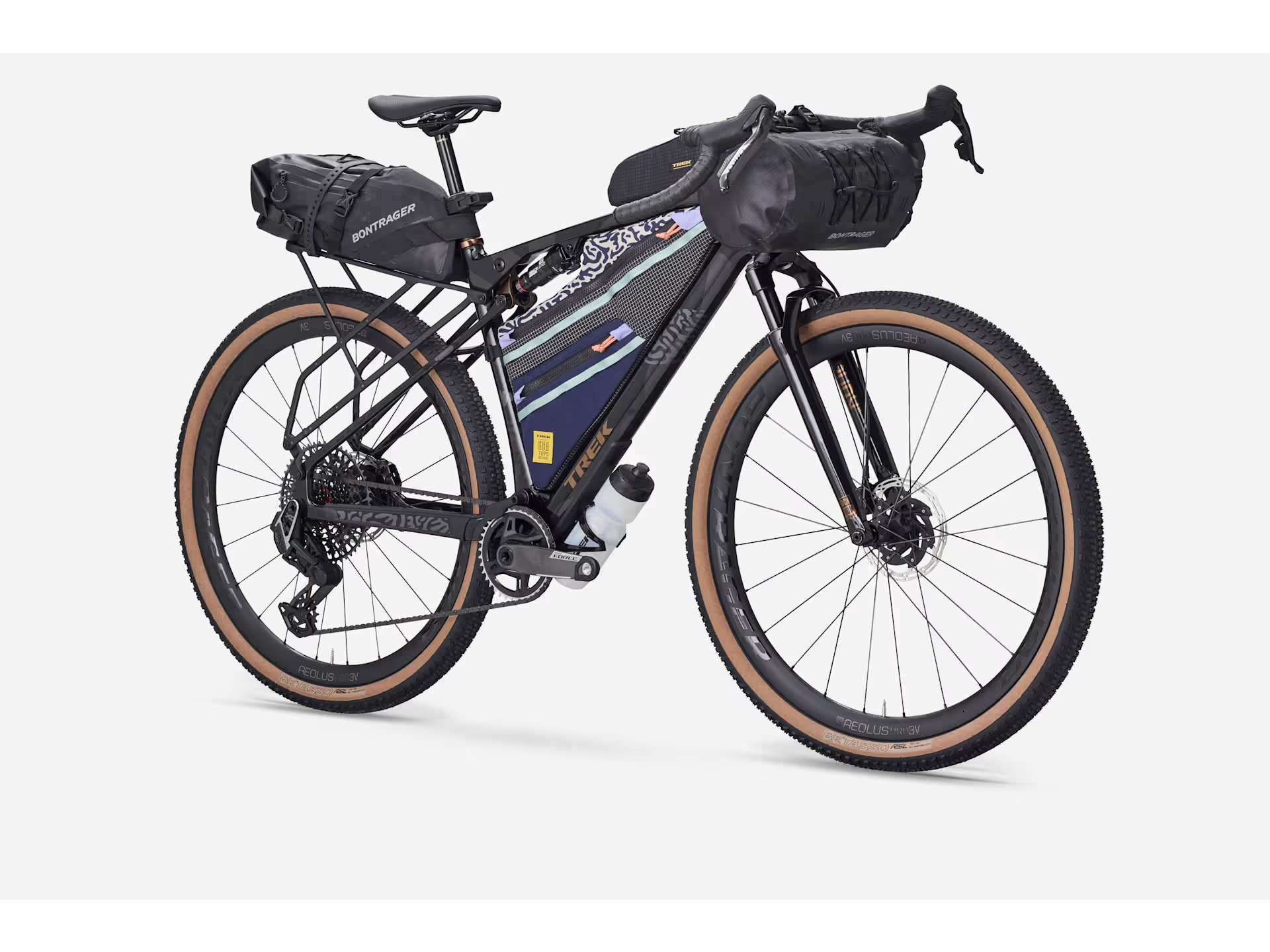

  • Integrated bikepacking storage:With a proprietary rear rack that works with the rear suspension and dropper post and a new Adjustable Multi Mount to add even more gear/hydration within the frame. It has up to 15 mounts on the frame to add integrated bags designed for the bike

Full Specification:

  • Frame:500 Series OCLV Carbon, integrated frame bag mounts, integrated rack, T47, UDH, 142x12 mm chamfered thru axle, 55 mm travel
  • Fork:RockShox Rudy XL Ultimate, Charger Race Day 2 Solo Air spring, tapered steerer, 45 mm offset, 12x100 mm thru axle, 60 mm travel
  • Shock:RockShox SIDluxe Ultimate 3P, 170 mm x 27.5 mm
  • Number of Gears:12
  • Gear Shifters:SRAM AXS
  • Chainset:SRAM Force 1 XPLR E1, 38T, DUB wide - S 165mm, M/ML 170mm, L/XL 172.5mm
  • Chainrings:38T
  • Rear Cassette:SRAM Eagle XS-1295, T-Type, 10-52, 12-speed
  • Chain:SRAM X0 Eagle, T-Type, 12-speed
  • Front Derailleur:N/A
  • Rear Derailleur:SRAM X0 Eagle AXS, T-Type
  • Bottom Bracket:Praxis T47 threaded, internal bearing
  • Pedals:Not supplied:Shop pedals here
  • Rims:Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width
  • Front Tyre:Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x50 mm
  • Rear Tyre:Bontrager Betasso RSL GX, Tubeless ready, aramid bead, 60 tpi, 700x50 mm
  • Brakes:SRAM
  • Handlebars:Bontrager GR Checkout. S 42cm, M 44cm, ML/L 46cm, XL 48 cm
  • Handlebar Grips:Bontrager Supertack Perf tape
  • Headset:FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Stem:Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, S/M 60mm length, ML/L 70mm, XL 80mm
  • Saddle:Bontrager Verse Short Elite, 145mm, Magnesium Rails
  • Seatpost:RockShox Reverb AXS, 100 mm travel, wireless, 31.6 mm, 337 mm length
  • Extras:Checkout Rear Rack
  • Weight:ML - 12.04 kg / 26.55 lbs (with TLR sealant, no tubes)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek CheckOUT

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
SizeRider Height (cm)Rider Height (")Inseam (cm)Inseam (")
S (49cm)158 - 164 cm5'2" - 5'5"74 - 77 cm29" - 30"
M (52-54cm)164 - 177 cm5'5" - 5'10"77 - 83 cm30" - 33"
ML (56cm)177 - 188 cm5'10" - 6'2"83 - 88 cm33" - 35"
L (58cm)188 - 194 cm6'2" - 6'4"88 - 91 cm35" - 36"
XL (61cm)194 - 203 cm6'4" - 6'8"91 - 95 cm36" - 37"

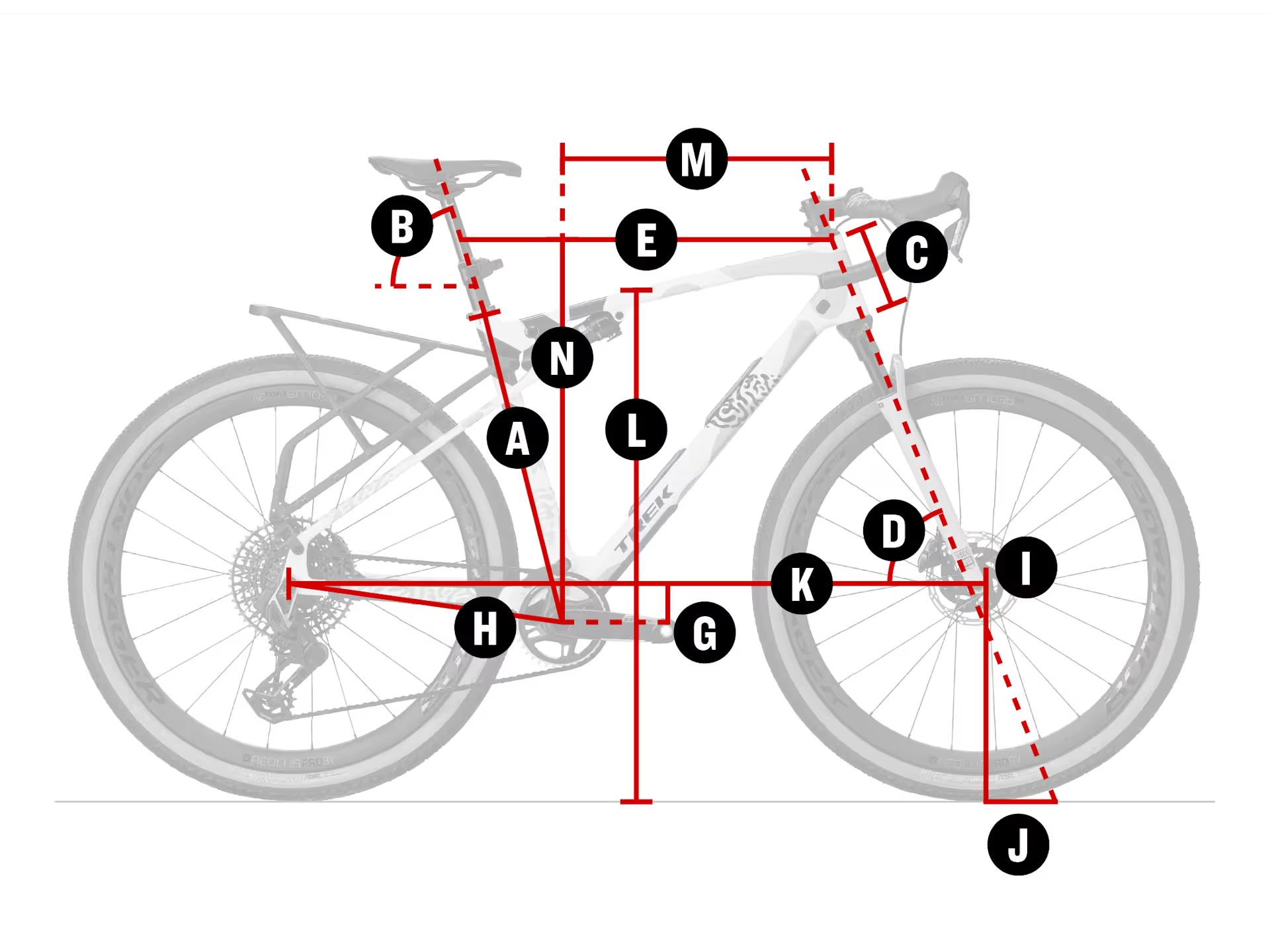

Geometry for Trek CheckOUT


Frame size letterSMMLLXL
Wheel size700c700c700c700c700c
A —Seat tube4447525456
B —Seat tube angle74.6°74.2°73.7°73.0°72.6°
C —Head tube length8.312.213.815.918.2
D —Head angle68.8°69.0°69.4°69.5°69.4°
E —Effective top tube56.458.959.761.362.8
G —Bottom bracket drop7776.86.8
H —Chainstay length44.244.244.244.244.2
I —Offset4.84.84.84.84.8
J —Trail9.29.18.88.88.8
K —Wheelbase108.1110.5111.7113.5115
L —Standover77.280.48486.186.1
M —Frame reach39.540.741.742.743.5
N —Frame stack5861.763.465.267.3

This bike also has compatible accessories. They are:


Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
