The Trek Checkpoint SL 5 Carbon Fibre Gravel Road Bike features an isospeed decoupler which cuts down on fatiguing bumps in gravel so you can wander more, reach new places and stay stronger for longer.
The Trek Checkpoint SL 5 Carbon Fibre Gravel Road Bike features an isospeed decoupler which cuts down on fatiguing bumps in gravel so you can wander more, reach new places and stay stronger for longer.
Trek

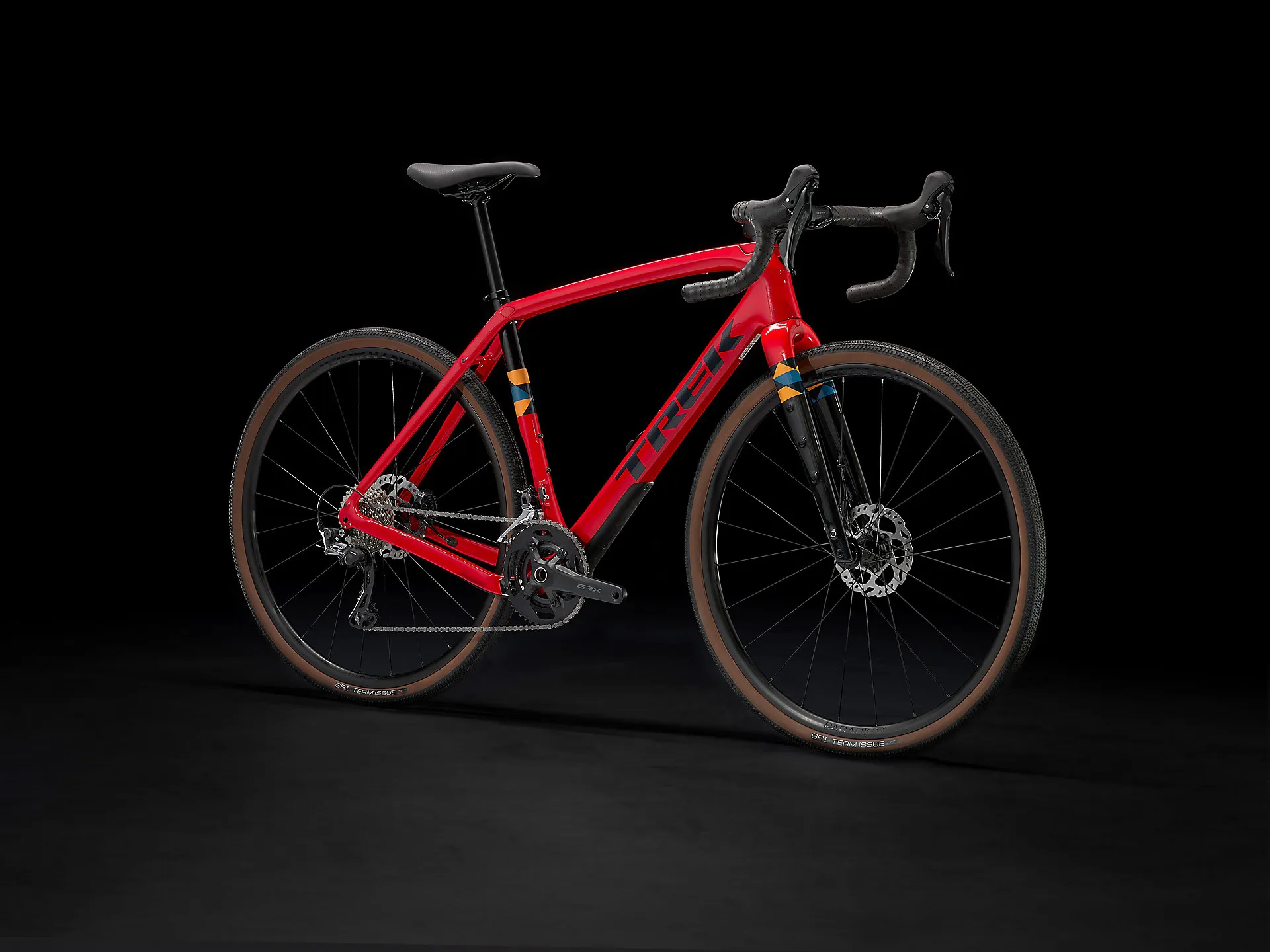

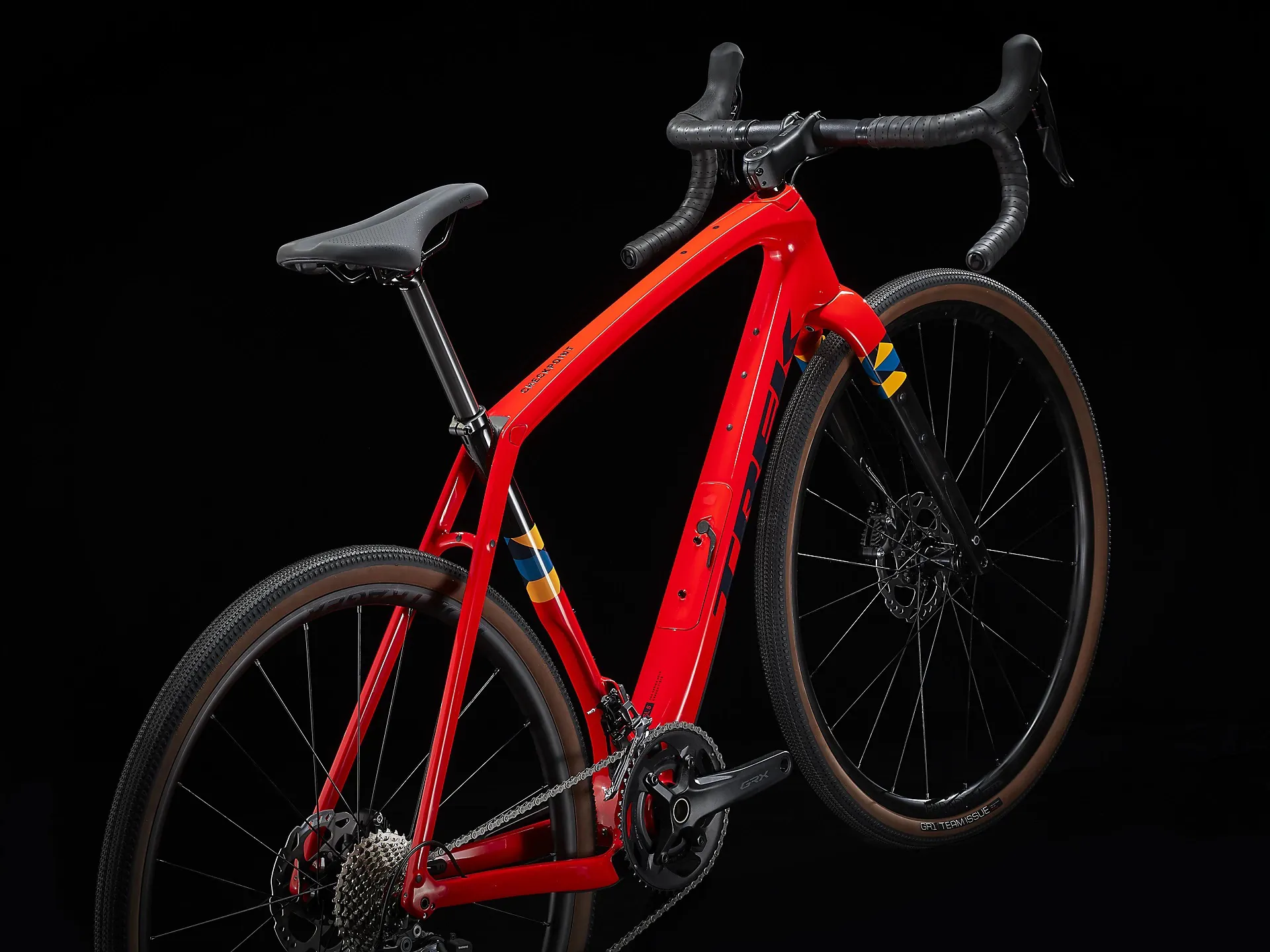

Trek Checkpoint Sl 5 Gravel Road Bike 2023 in Red/Nautical Navy

£3,428.00 £3,700.00 7% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Checkpoint Sl 5 Gravel Road Bike 2023 in Red/Nautical Navy

Season:2024

Brand:Trek

Code:35169REDNauticalNVY

Checkpoint SL 5 is a carbon gravel bike made for epic all-road adventures. It's built with lightweight OCLV Carbon, terrain-smoothing damped IsoSpeed, nimble-yet-stable progressive geometry, internal storage and loads of mounts. All of that adds up to a rad gravel bike capable of crushing the longest, roughest rides and the most ambitious bikepacking trips.

The damped, controlled rebound of the isospeed decoupler soaks up fatiguing bumps without bouncing you around;all-new progressive geometry is quick and nimble yet keeps you stable and in control on fast, choppy descents;a sleek internal storage compartment gives you a versatile spot to stow tools and gear;massive tyre clearance means you can use tyres up to 45 c for extra traction and stability in any conditions;

Key Features & Benefits:

  • Carbon Fibre Frame:Super Lightweight & dampens road vibrations for a more comfortable ride.
  • Hydraulic Disc Brakes:Powerful braking ability to keep you fully in control, whatever the weather.
  • 22 Shimano GRX Gears:Wide range of reliable shifting gears to make light work of hills.

Full Specification:

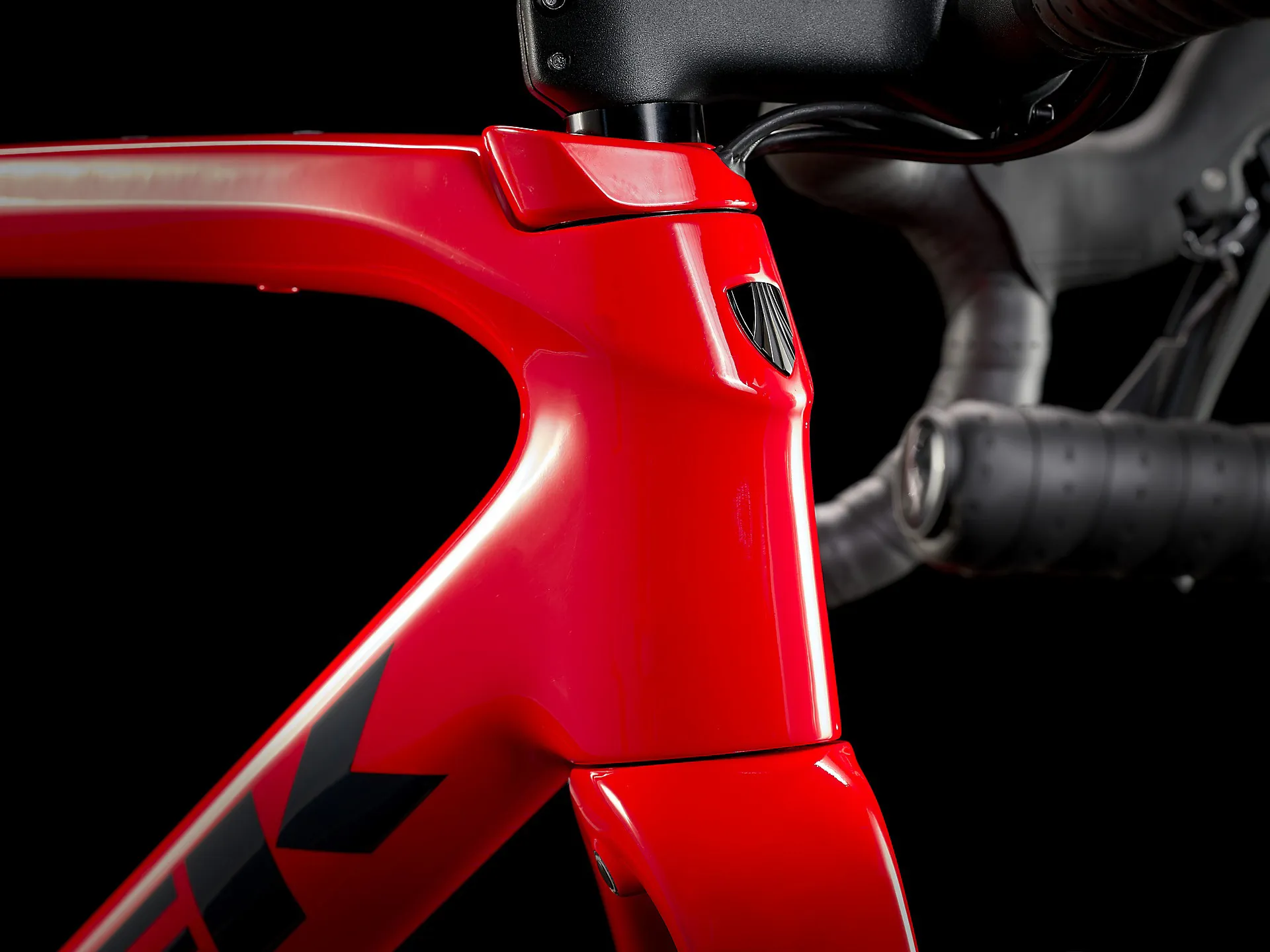

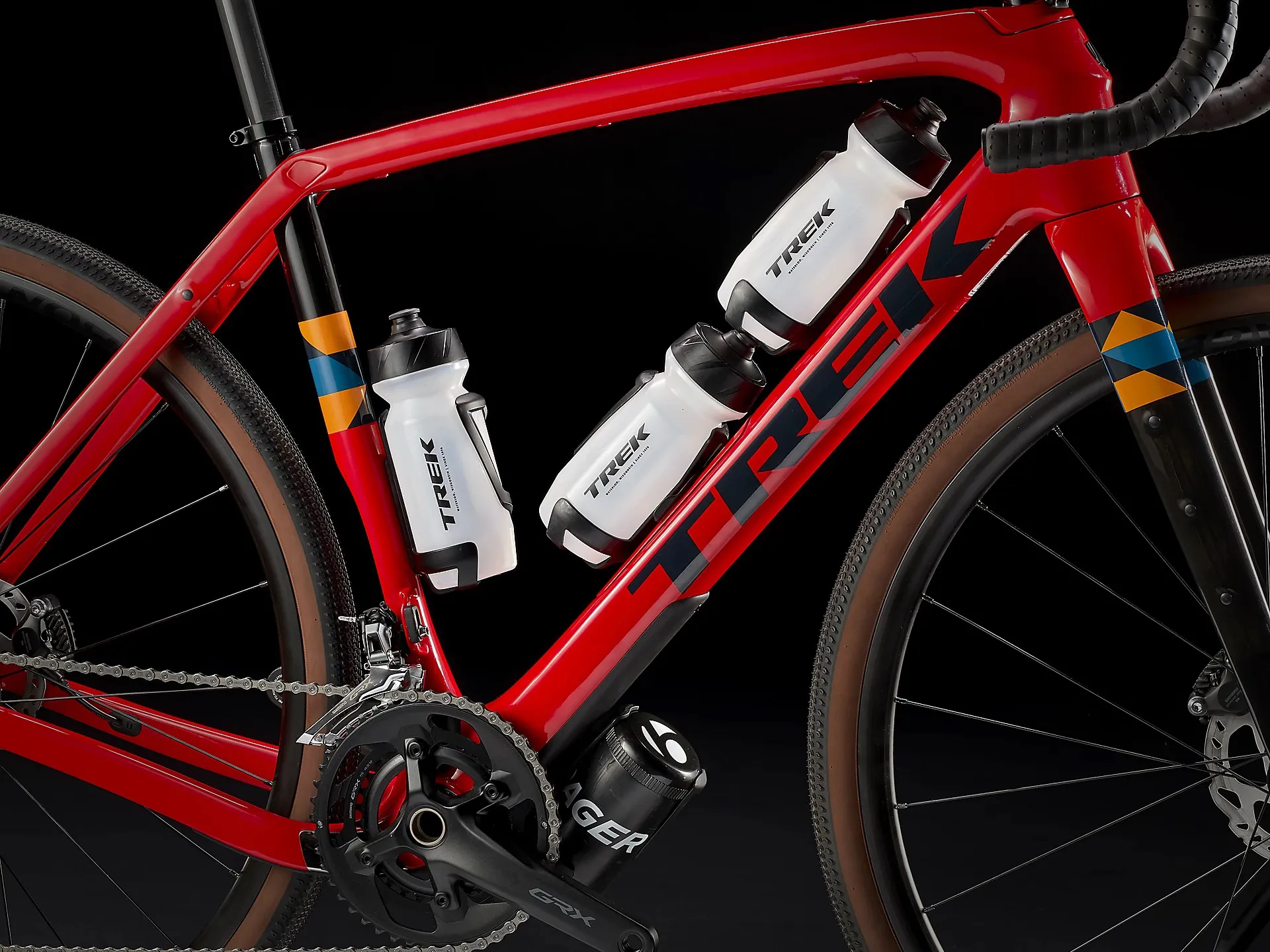

  • Frame:500 Series OCLV Carbon, IsoSpeed, tapered head tube, Control Freak internal routing, 3S chain keeper, rack and mudguard mounts, flat-mount disc, Stranglehold dropouts, 142x12 mm thru axle
  • Fork:Checkpoint carbon, tapered carbon steerer, rack mounts, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Number of Gears:22
  • Gear Shifters: Shimano GRX RX600
  • Chainset: Shimano GRX RX600
  • Chainrings:46/30T
  • Rear Cassette:Shimano 105 HG700-11, 11-34, 11-speed
  • Chain:Shimano 105 HG601, 11-speed
  • Front Derailleur:Shimano GRX RX810, braze-on
  • Rear Derailleur:Shimano GRX RX810, long cage, 34T max cog
  • Bottom Bracket: Praxis t47 threaded
  • Pedals:Not Included
  • Rims: Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Front Hub:Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Rear Hub:Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
  • Front Tyre: Bontrager GR1 Team Issue. 700x40C Team Issue, tubeless ready
  • Rear Tyre: Bontrager GR1 Team Issue. 700x40C Team Issue, tubeless ready
  • Brakes:Shimano GRX hydraulic disc
  • Handlebars: Bontrager Elite Gravel
  • Handlebar Tape:Bontrager Supertack Perf tape
  • Headset:FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Stem:Bontager Elite 31.8mm
  • Saddle: Bontrager P3 Verse Comp, steel rails
  • Seatpost: Bontrager carbon 27.2, 8 mm offset, 330mm length

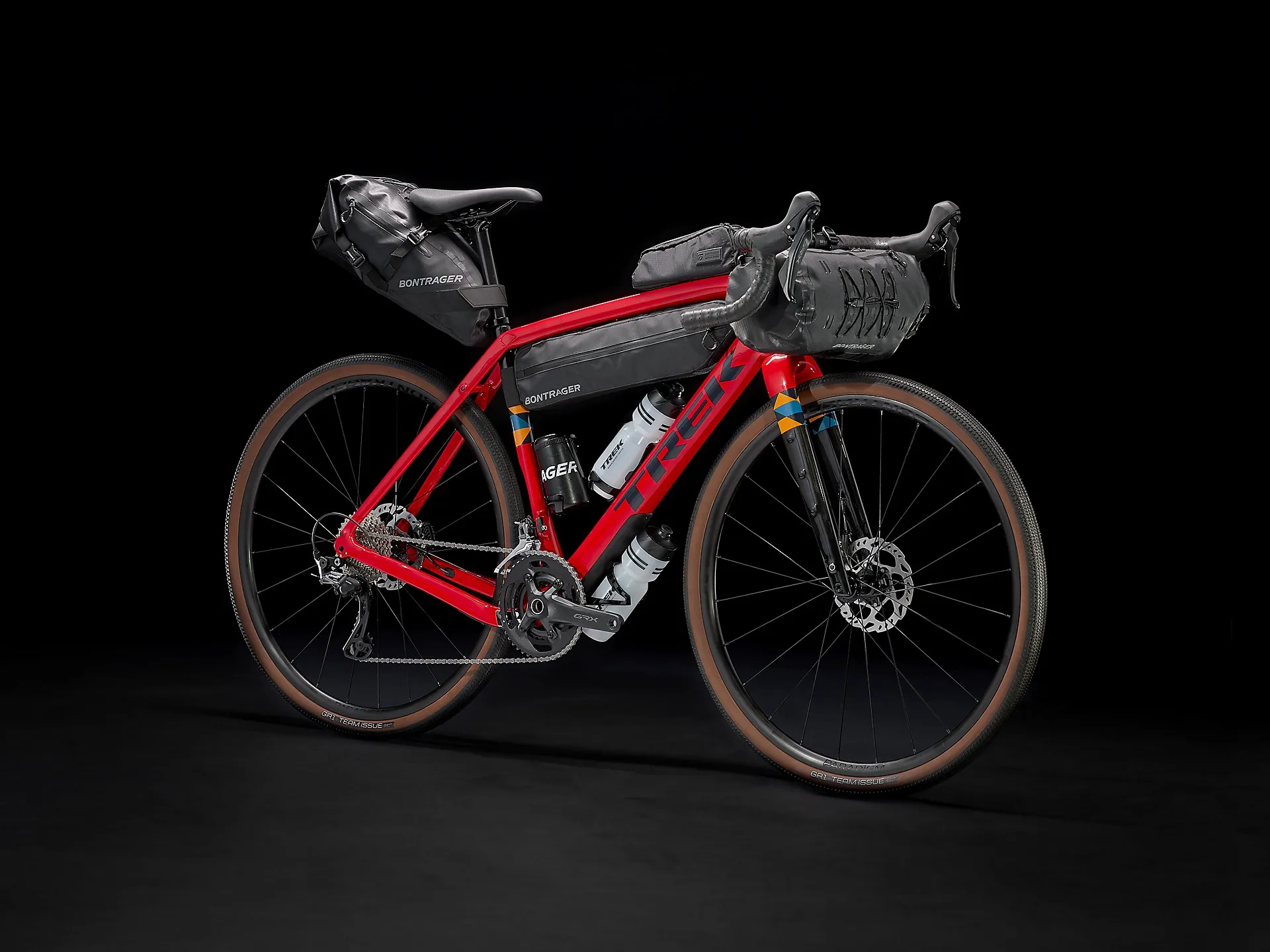

  • Accessories: Bontrager BITS Internal Frame Storage Bag
  • Weight: 9.7kg
  • Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Checkpoint

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
49156 - 163 cm5'1" - 5'4"74 - 77 cm29" - 30"
52163 - 168 cm5'4" - 5'6"76 - 79 cm30" - 31"
54168 - 174 cm5'6" - 5'9"78 - 82 cm31" - 32"
56174 - 180 cm5'9" - 5'11"81 - 85 cm32" - 33"
58180 - 185 cm5'11" - 6'1"84 - 87 cm33" - 34"
61185 - 191 cm6'1" - 6'3"86 - 90 cm34" - 35"

Geometry for Trek Checkpoint AL, ALR, SL

Frame size number49 cm52 cm54 cm56 cm58 cm61 cm
Wheel size700c700c700c700c700c700c
A — Seat tube495254565861
B — Seat tube angle74.1°73.7°73.2°72.8°72.5°72.1°
C — Head tube length910.512.514.516.519.5
D — Head angle71.2°71.6°71.8°72.2°72.3°72.6°
E — Effective top tube54.155.55758.459.761.7
G — Bottom bracket drop7.87.87.67.67.47.4
H — Chainstay length43.543.543.543.543.543.5
I — Offset4.54.54.54.54.54.5
J — Trail7.47.176.76.66.5
K — Wheelbase102.5103.3104.1104.8105.8107
L — Standover73.576.578.980.982.985.9
M — Frame reach39.339.940.340.741.141.7
N — Frame stack53.855.357.159.260.963.9
Stem length7080809090100

Geometry for Trek Checkpoint SLR

Frame size number49 cm52 cm54 cm56 cm58 cm61 cm
Wheel size700c700c700c700c700c700c
A — Seat tube495254565861
B — Seat tube angle74.1°73.7°73.2°72.8°72.5°72.1°
C — Head tube length910.512.514.516.519.5
D — Head angle71.2°71.6°71.8°72.2°72.3°72.6°
E — Effective top tube54.155.55758.459.761.7
G — Bottom bracket drop7.87.87.67.67.47.4
H — Chainstay length43.543.543.543.543.543.5
I — Offset4.54.54.54.54.54.5
J — Trail7.47.176.76.66.5
K — Wheelbase102.5103.3104.1104.8105.8107
L — Standover73.576.578.980.982.985.9
M — Frame reach39.339.940.340.741.141.7
N — Frame stack53.855.357.159.260.963.9
Stem length7080809090100
Saddle rail height min (w/short mast)57.561.564676972
Saddle rail height max (w/short mast)63.567.570737578
Saddle rail height min (w/tall mast)60.564.567707275
Saddle rail height max (w/tall mast)66.570.573767881

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
