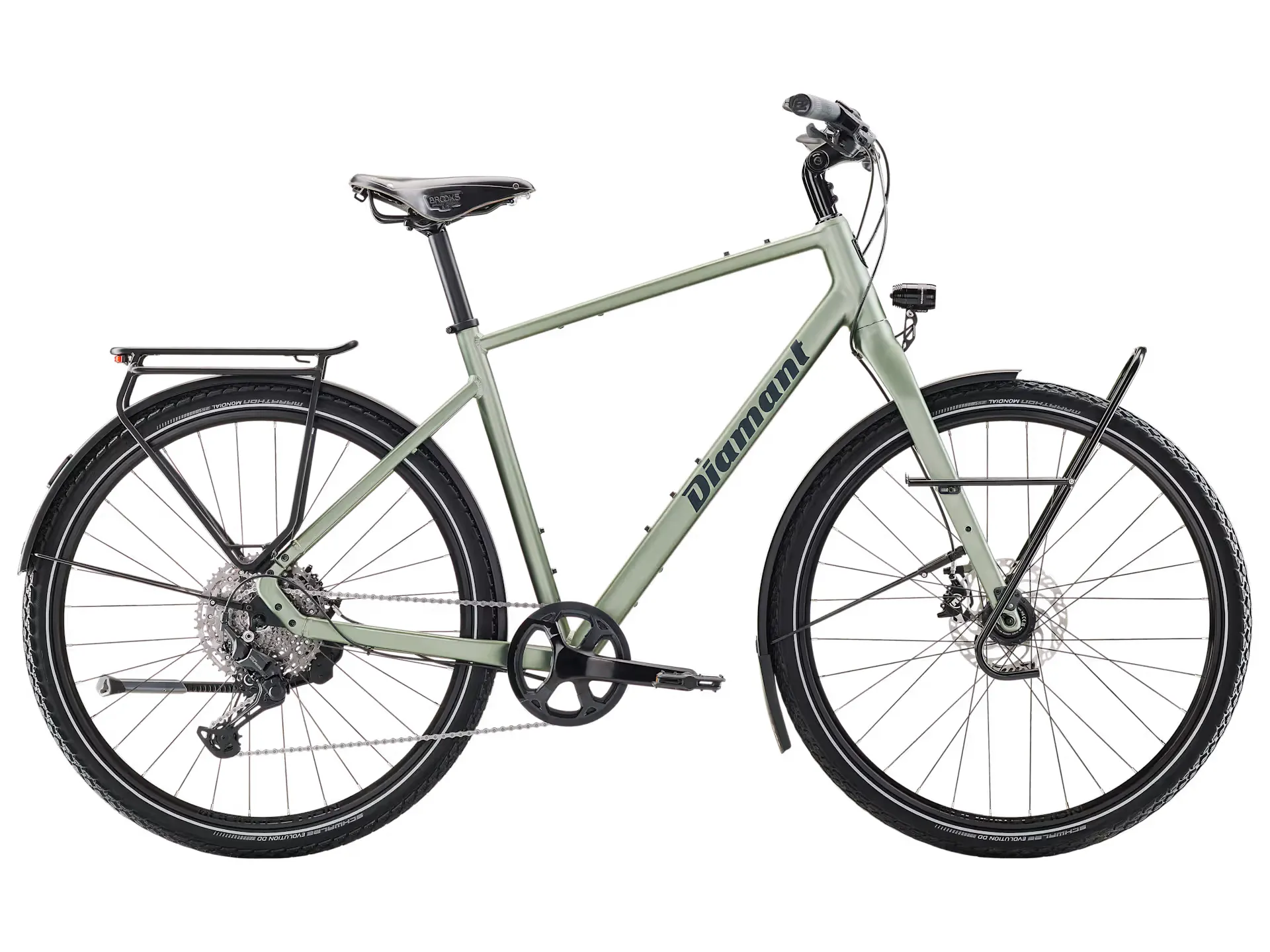

Diamant Mahon World Standover Hybrid Bike 2026 in Hey Green

Season:2026

Brand:Diamant

Code:49647GRN

The Mahon World: A perfect companion for long bike trips and adventures, which doesn’t stay in the basement for the rest of the year but masters everyday life as well. The multifunctional yet lightweight frame allows for almost unlimited customizations and is ideal for everyone who wants to embark on extended bike tours. The standard equipment includes the Clever Rack by Diamant, which works great not only for bike touring but also in everyday life.

The fork allows for the individual use of very large tires up to 29"x2.0" and very wide tyres up to 27.5"x2.6". From the factory, the excellent Schwalbe Marathon Mondial with a width of 50 mm are already installed.

Key Features & Benefits:

  • Equipped trekking Bike:The Mahon can be flexibly upgraded and customized throughout its life using Clever-Frame technology.
  • Hydraulic Disc Brakes:Reliable braking performance to keep you in control, whatever the weather.
  • 11-speed Shimano CUES: With reliable Shimano Hubs.

Full Specification:

  • Frame:Alpha Smooth Aluminum, internal cable routing, post-mount disc, replaceable dropouts, belt split, ringlock mount
  • Fork:Alloy disc touring with accessory mounts, 100x5 mm ThruSkew
  • Number of Gears:11
  • Gear Shifters:Shimano U6000, 11-speed
  • Chainset:ProWheel alloy, 42T, 175 mm
  • Chainrings:.

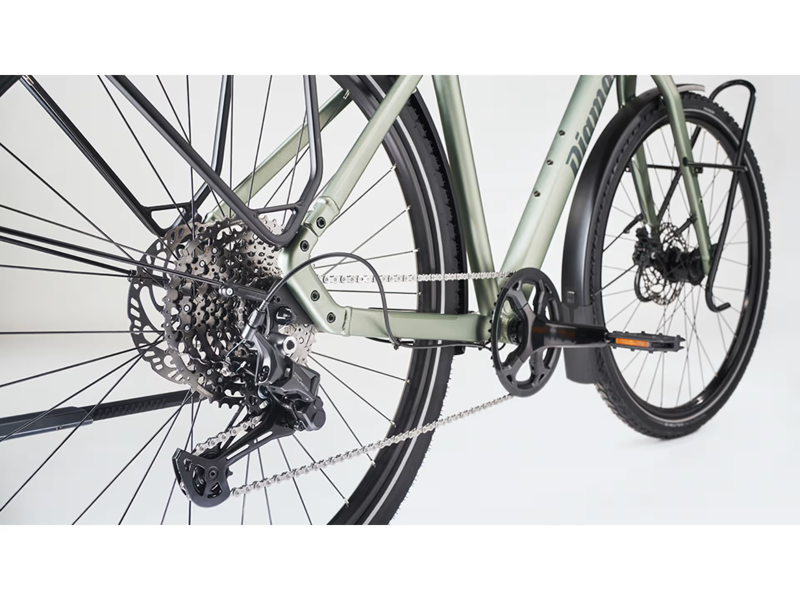

  • Rear Cassette:Shimano CUES LG400, LINKGLIDE, 11-50, 11-speed
  • Chain:Shimano LG500, 9/10/11-speed
  • Front Derailleur:N/A
  • Rear Derailleur:Shimano CUES U6000 GS
  • Bottom Bracket:N/A
  • Pedals:VP-536 nylon platform
  • Rims:Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
  • Front Hub:Shimano dynamo hub, DH-3D72, 6V, 3W, 100 mm QR
  • Rear Hub:Shimano QC400, 32-hole, centerlock, 135x5 mm QR
  • Front Tyre:Bontrager Girona Comp, sub tread puncture protection, Black Sidewall, Reflective stripe, 700x42C, made with recycled content
  • Rear Tyre:Bontrager Girona Comp, sub tread puncture protection, Black Sidewall, Reflective stripe, 700x42C, made with recycled content
  • Brakes: Magura MT Thirty, 4-piston hydraulic disc, Magura MDR-C, 180 mm Rotor
  • Handlebars:Ergotec Ergo Series XXL, 31.8 mm, 30 mm rise, 16 degree sweep
  • Handlebar Grips:Ergotec EG Active Flex, lock on, flex adjustment
  • Headset:FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Stem:Bontrager alloy, 31.8 mm clamp, adjustable rise, Blendr-compatible, 85-105 mm length
  • Saddle:Brooks B17
  • Seatpost:Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
  • Front Light:Supernova E3 Pro 2, LED
  • Rear Light:Spanninga Pimento Large, with standard light function
  • Kickstand:Pletscher Comp Flex 40 kickstand
  • Weight:L - 15.90 kg / 35 lbs .96 oz
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Diamant Nhoma and Mahon

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S155 – 1655’1″ – 5’5″72 - 7828 - 31
M165 - 1755’5″ – 5’9”77 - 8330 - 33
L175 – 1865’9” – 6’1″82 - 8832 - 35
XL186 – 1976’1” – 6’5″87 - 9334 - 37
XXL197 – 2036’6” – 6’8″92 - 9536 - 37

Geometry Information Diamant Nhoma and Mahon

Frame size number50cm54cm58cm62cm
Frame size letterMLXLXXL
Wheel size29"29"29"29"
A —Seat tube50545862
B —Seat tube angle73.0°73.0°73.0°73.0°
C —Head tube length14.5172020
D —Head angle69.0°69.0°69.0°69.0°
E —Effective top tube58.259.76263.3
F —Bottom bracket height29.129.129.129.1
G —Bottom bracket drop7777
H —Chainstay length46.846.846.846.8
I —Offset4.54.54.54.5
J —Trail9999
K —Wheelbase111.7113.4115.8117.1
L —Standover78.982.486.387.4
M —Frame reach38.539.340.742
N —Frame stack57.559.862.662.6

Geometry Information Diamant Mahon Mid-Step

Frame size number45cm50cm55cm
Frame size letterSML
Wheel size29"29"29"
A — Seat tube455055
B — Seat tube angle73.0°73.0°73.0°
C — Head tube length12.514.517
D — Head angle69.0°69.0°69.0°
E — Effective top tube57.358.259.8
F — Bottom bracket height29.129.129.1
G — Bottom bracket drop777
H — Chainstay length46.846.846.8
I — Offset4.54.54.5
J — Trail999
K — Wheelbase110.6111.7113.4
L — Standover63.564.565.1
M — Frame reach38.238.539.4
N — Frame stack55.657.459.8

Warranty Information for Diamant:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
