EX DEMO Trek Top Fuel 9.9 XX1 AXS Full suspension Mountain Bike Large 2023 in Red
EX DEMO Trek Top Fuel 9.9 XX1 AXS Full suspension Mountain Bike Large 2023 in Red
Trek

EX DEMO Trek Top Fuel 9.9 XX1 AXS Full suspension Mountain Bike Large 2023 in Red

£4,480.00 £11,200.00 60% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

EX DEMO Trek Top Fuel 9.9 XX1 AXS Full suspension Mountain Bike Large 2023 in Red

Season:2024

Brand:Trek

Code:D5263274B

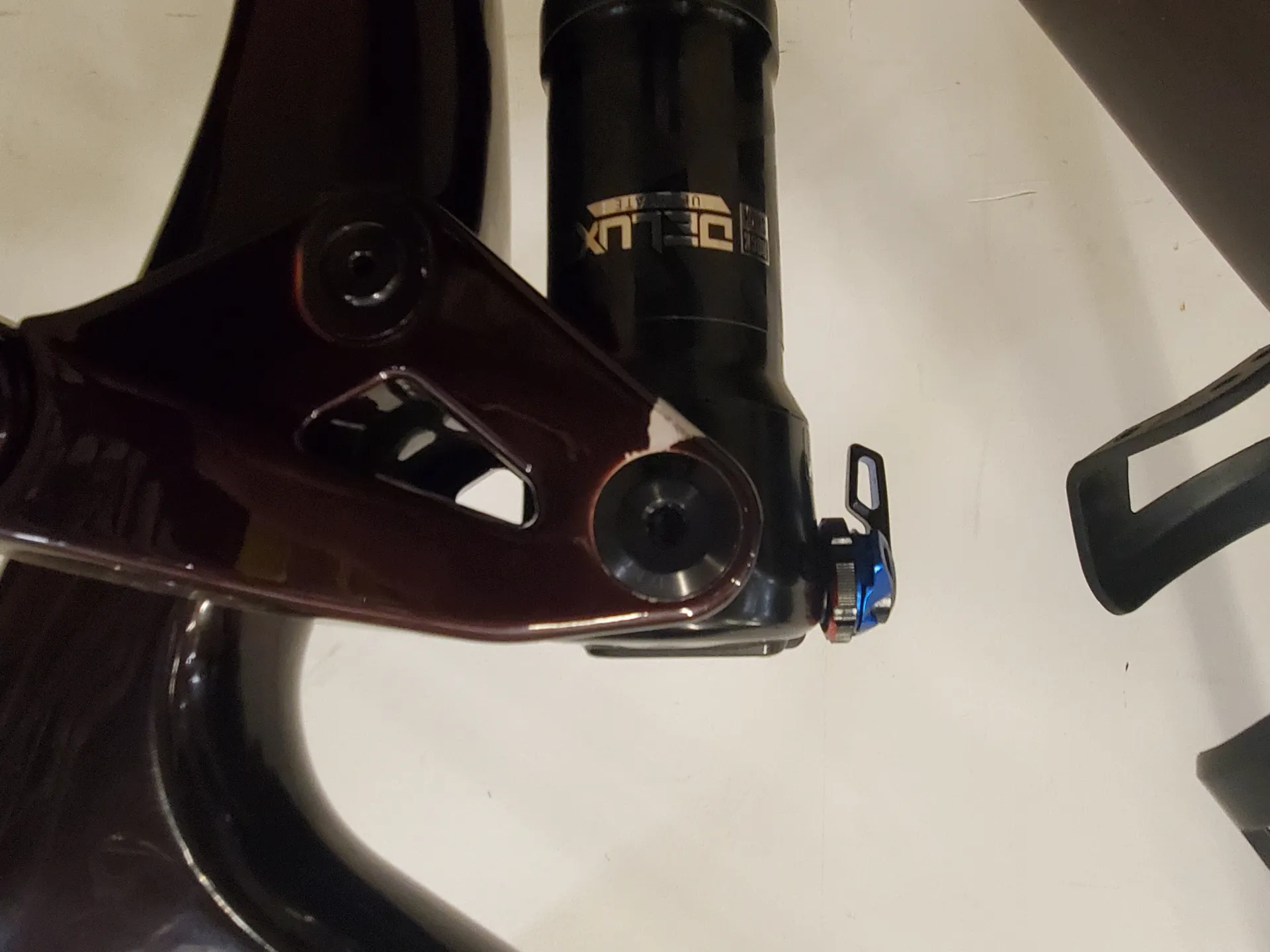

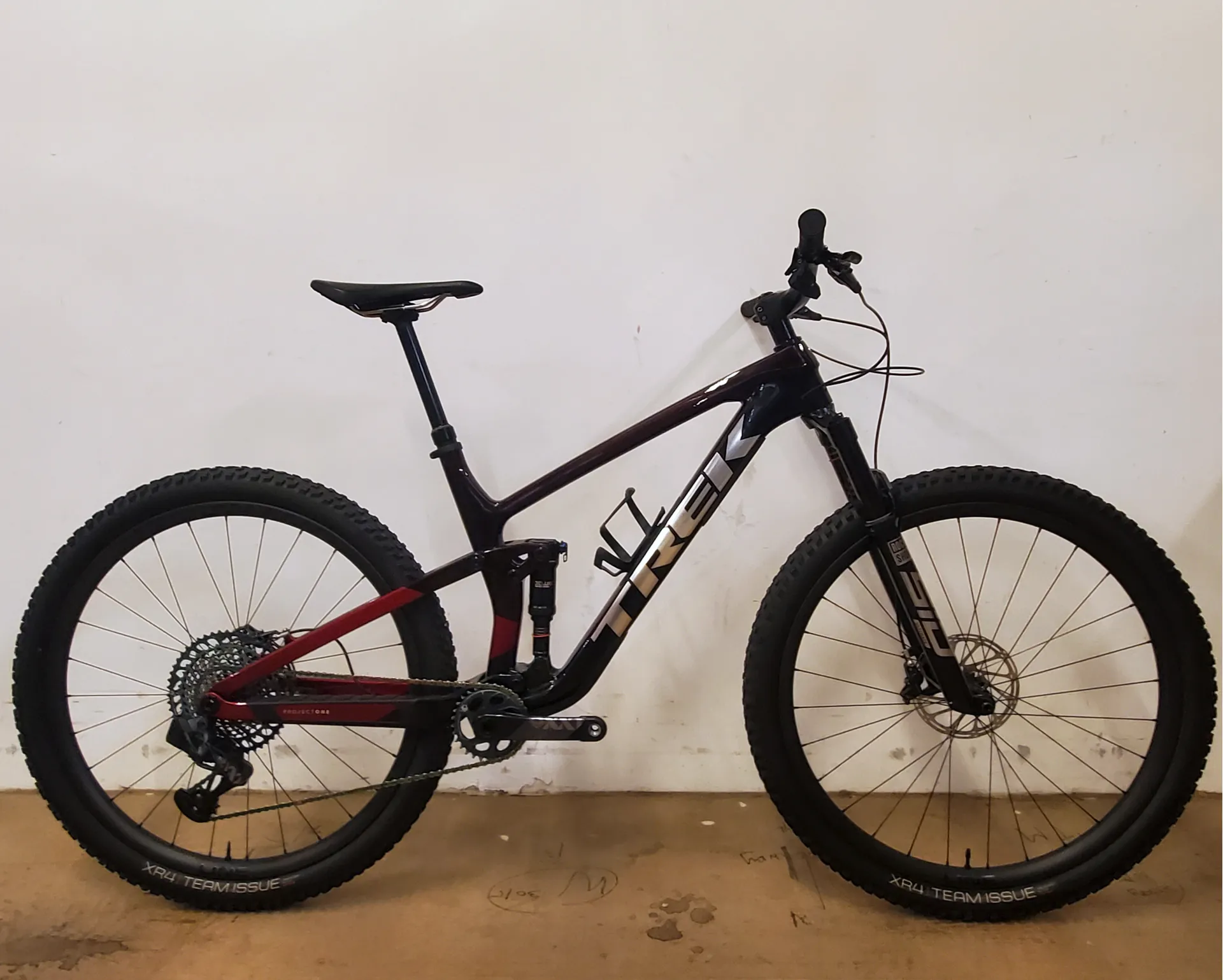

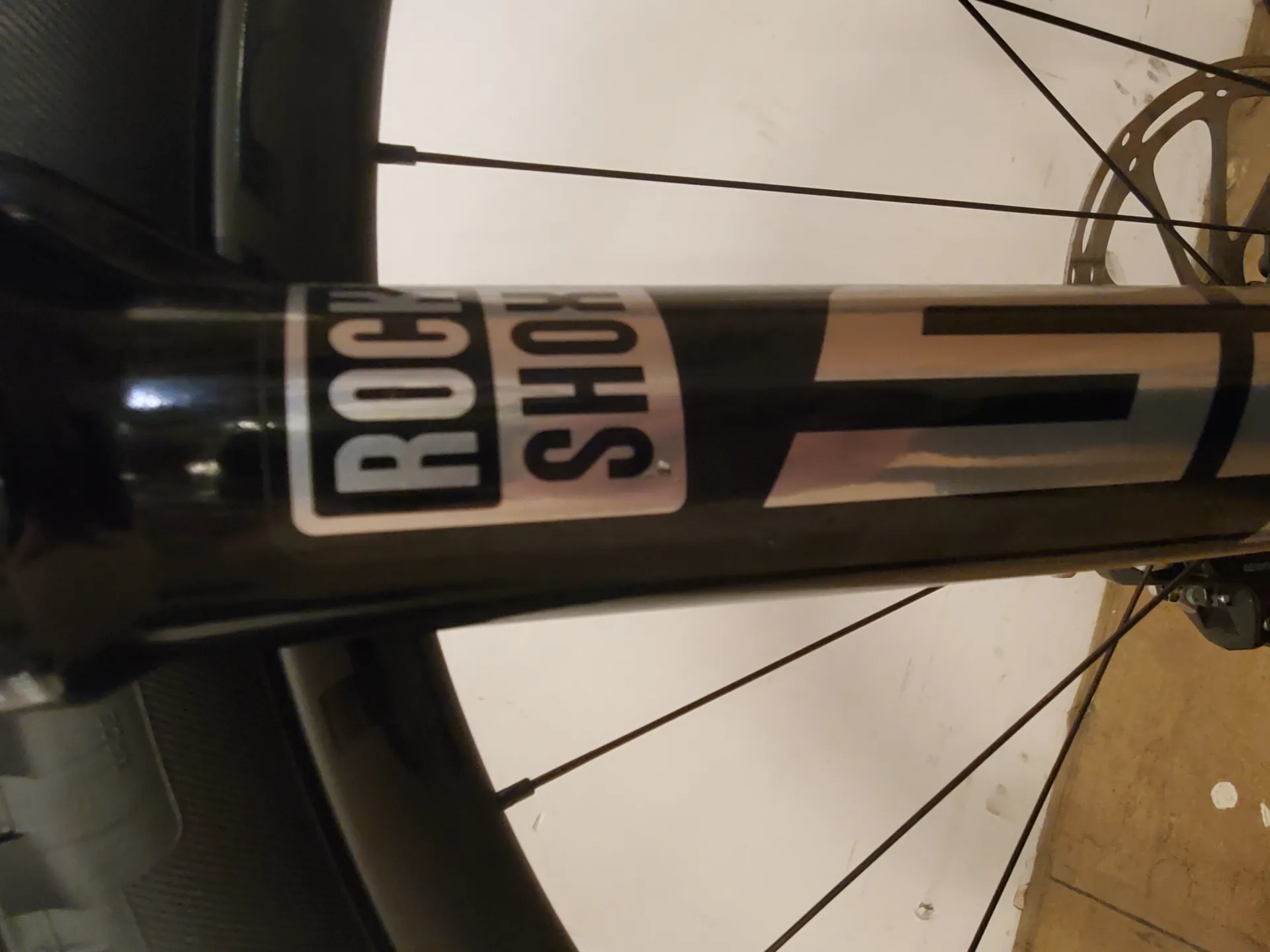

This Trek Top Fuel 9.9 XX1 AXS in Large is an ex-demo bike, it may have some light cosmetic damage, it has wear on the drivetrain and brakes but otherwise the bike is as new. It has a paint chip near the rear shock, and some components may differ from original specification, the seatpost is not rockshox. Please see the photos for the condition of the bike.

Our ex display bikes are fully serviced and checked to ensure your riding experience is the same as a new bike - we offer full manufacturers warranty on all our ex display and ex demo bikes.

The Sram XX1 eagle AXS drivetrain is smart, smooth and completely wireless; the OCVL carbon RSL integrated bar/stem is ultra-light and ultra-comfortable, and it looks awesome; a sleek internal storage compartment gives you a versatile spot to stow tools and gear; wider line Pro 30 wheels provide better tyre support so you can run lower pressure and get more traction.

A full carbon frame, and a super-plush 130 mm RockShox SID Ultimate fork with a Charger Race Day damper that gives you more adjustment. 120 mm of rear travel with a SID Luxe shock, and a fully wireless Sram XX1 Eagle AXS drivetrain. Plus, wide carbon Bontrager Line Pro 30 wheels with a 108-tooth Rapid Drive hub for instant engagement, wireless RockShox Reverb AXS dropper and Sram Level Ultimate brakes with carbon levers.

Key Features & Benefits:

  • Hydraulic Disc Brakes:Accurate and powerful braking capacity to keep you in control in all weather conditions.
  • Carbon Frame:The OCLV Carbon RSL integrated bar/stem is ultra-light and ultra-comfortable, and it looks awesome
  • Sram 12 speed:The Sram XX1 Eagle AXS drivetrain is smart, smooth and completely wireless

Full Specification:

  • Frame:OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel
  • Rear Shock:RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
  • Fork:RockShox SID Ultimate, DebonAir spring, Charger Race Day damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel
  • Number of Gears:12
  • Gear Shifters:Sram Eagle AXS, wireless, 12 speed
  • Chainset:Sram XX1 Eagle, DUB
  • Chainrings:30T
  • Rear Cassette:Sram Eagle XG-1299, 10-52, 12-speed
  • Chain:Sram XX1 Eagle, 12-speed
  • Rear Derailleur:Sram XX1 Eagle AXS
  • Bottom Bracket:Sram DUB MTB Wide, 73 m, BSA threaded
  • Pedals:Not Supplied
  • Wheelset:NEW Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt
  • Front Tyre:Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 TPI, 29.x2.40"
  • Rear Tyre:Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 TPI, 29.x2.40"
  • Brakes:Sram G2 Ultimate hydraulic disc, carbon levers, 160/180
  • Handlebars:Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise
  • Handlebar Grips:Bontrager
  • Headset:Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Stem:Bontrager RSL Integrated handlebar/stem, 0-degree stem rise
  • Saddle:Bontrager Arvada, austenite rails, 138 mm width
  • Seatpost:
  • Weight:N/A
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Top Fuel

SizeRider HeightRider HeightInseamInseam
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
M/L173 - 180 cm5'8" - 5'11"81 - 86 cm32" - 34"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"
2XL195 - 203 cm6'5" - 6'8"91 - 97 cm36" - 38"

Geometry Information for Trek Top Fuel 5, 7, & 8

Frame size number15.5"15.5"17.5"17.5"18.5"18.5"19.5"19.5"21.5"21.5"21.5"23.0"23.0"
Frame size letterSSMMMLMLLLXLXLXLXXLXXL
Geometry positionHighLowHighLowHighLowHighLowHighHighLowHighLow
Wheel size29"29"29"29"29"29"29"29"29"29"29"29"29"
A — Seat tube39.539.5424243.543.545455050505454
B — Seat tube angle70.4°70.0°70.4°70.0°70.4°70.0°70.4°70.0°70.4°70.4°70.0°70.4°70.0°
Effective seat tube angle76.4°76.0°76.4°76.0°76.4°76.0°76.4°76.0°76.4°76.4°76.0°76.4°76.0°
C — Head tube length1010101010.510.5111112.512.512.513.513.5
D — Head angle66.4°66.0°66.4°66.0°66.4°66.0°66.4°66.0°66.4°66.4°66.0°66.4°66.0°
E — Effective top tube56.756.859.759.861.461.56363.165.365.365.467.567.6
F — Bottom bracket height34.333.834.333.834.333.834.333.834.334.333.834.333.8
G — Bottom bracket drop3.13.63.13.63.13.63.13.63.13.13.633.6
H — Chainstay length43.443.543.443.543.443.543.443.543.443.443.543.443.5
I — Offset4.44.44.44.44.44.44.44.44.44.44.44.44.4
J — Trail11.511.811.511.811.511.811.511.811.511.511.811.511.8
K — Wheelbase115115.1118118.1119.7119.8121.4121.5124124124.1126.5126.5
L — Standover71.971.57473.574.5747574.5767675.57776.5
M — Frame reach42.44245.44546.946.548.44850.450.45052.452
N — Frame stack59.259.559.259.559.76060.160.561.561.561.862.462.7

Geometry Information for Trek Top Fuel Carbon Frames

Frame size number15.5"15.5"17.5"17.5"18.5"18.5"19.5"19.5"21.5"21.5"
Frame size letterSSMMMLMLLLXLXL
Geometry positionHighLowHighLowHighLowHighLowHighLow
Wheel size29"29"29"29"29"29"29"29"29"29"
A — Seat tube39.539.5424243.543.545455050
B — Seat tube angle69.9°69.5°69.9°69.5°69.9°69.5°69.9°69.6°69.9°69.6°
Effective seat tube angle75.9°75.5°75.9°75.5°75.9°75.5°75.9°75.6°75.9°75.6°
C — Head tube length1010101010.510.5111112.512.5
D — Head angle65.9°65.5°65.9°65.5°65.9°65.5°65.9°65.6°65.9°65.6°
E — Effective top tube56.95759.96061.561.663.163.265.465.5
F — Bottom bracket height34.634.134.634.134.634.134.634.134.634.1
G — Bottom bracket drop2.73.22.73.32.73.32.73.32.73.3
H — Chainstay length43.443.543.443.543.443.543.443.543.443.5
I — Offset4.34.34.34.34.34.34.34.34.34.3
J — Trail1212.31212.31212.31212.31212.3
K — Wheelbase115.3115.4118.3118.4120120.1121.7121.8124.4124.4
L — Standover72.471.974.473.974.974.475.474.976.475.9
M — Frame reach41.941.544.944.546.44647.947.549.949.5
N — Frame stack59.659.959.659.96060.460.560.861.962.2

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Sizing Information
Professional Opinion
Question(s) answered about EX DEMO Trek Top Fuel 9.9 XX1 AXS Full suspension Mountain Bike Large 2023 in Red
Ask a question
Question(s) asked regarding EX DEMO Trek Top Fuel 9.9 XX1 AXS Full suspension Mountain Bike Large 2023 in Red

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close
  • s this the only paint damage as the picture appears to show other damage but that might be the picture lighting?
    Question asked by Mark on 06/07/2024 20:32:46
    Please see the product details for a full description with regards to our ex-demo bikes, here you will find the relevant details. Unfortunately, this bike is no longer available.
