EX DISPLAY Cube Aim Pro Mountain Bike Medium 2023 in Grey Flashyellow

£399.00 £499.00 20% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

EX DISPLAY Cube Aim Pro Mountain Bike Medium 2023 in Grey Flashyellow

Season:2024

Brand:Cube

Code:SD60130018

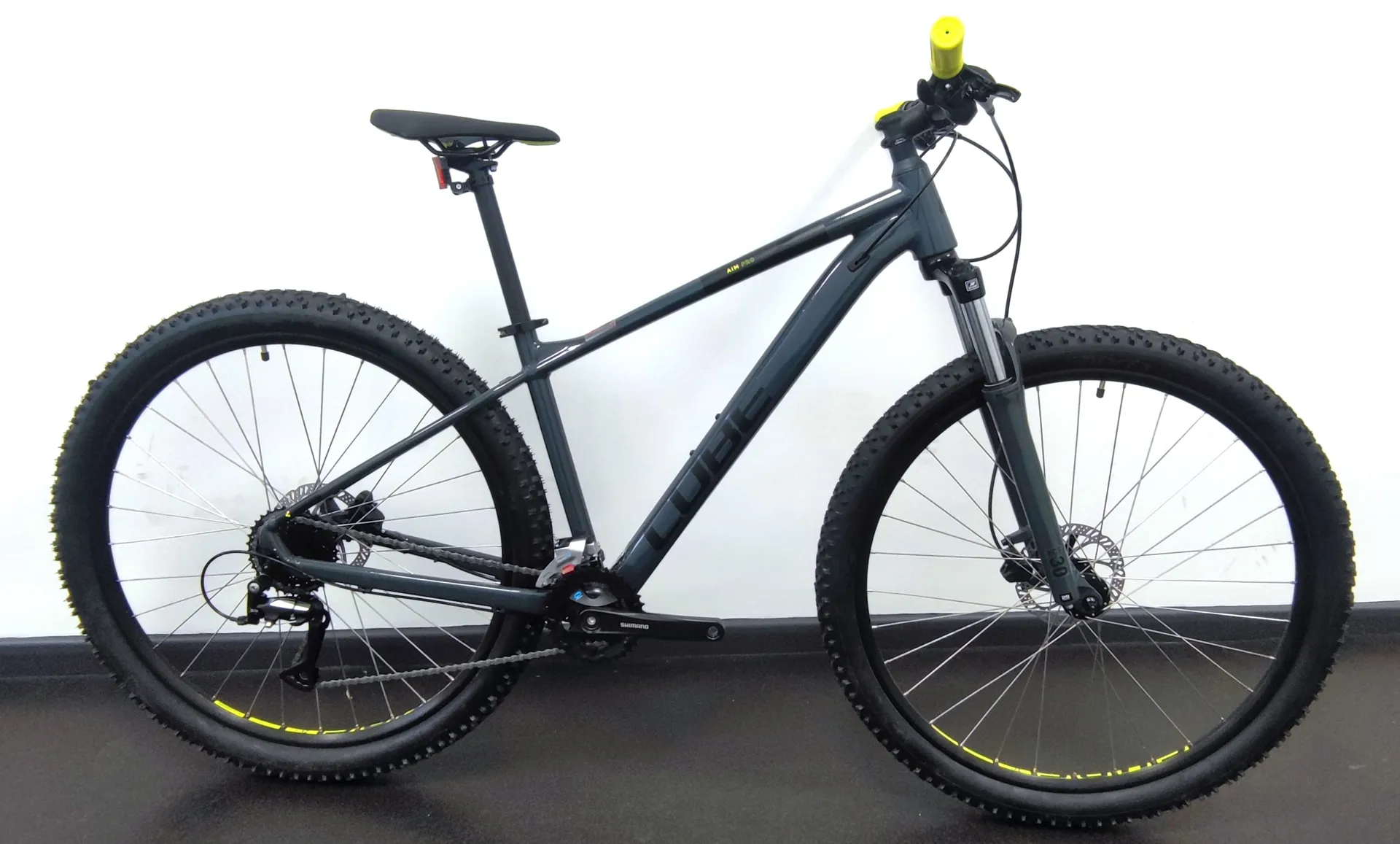

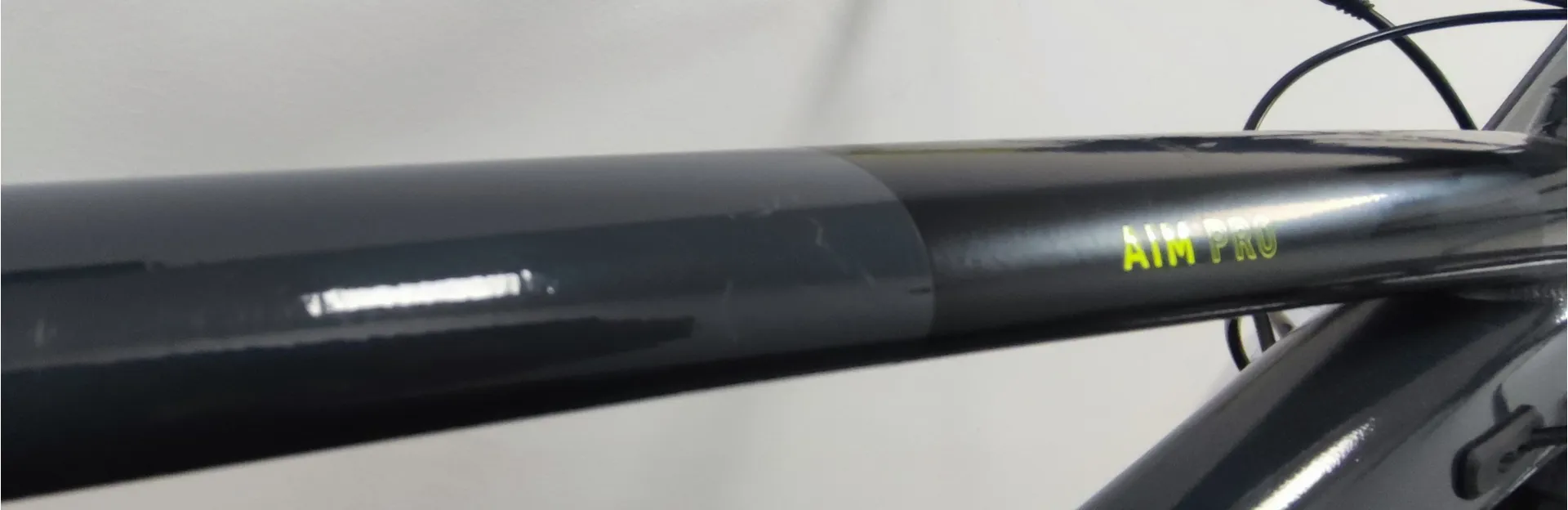

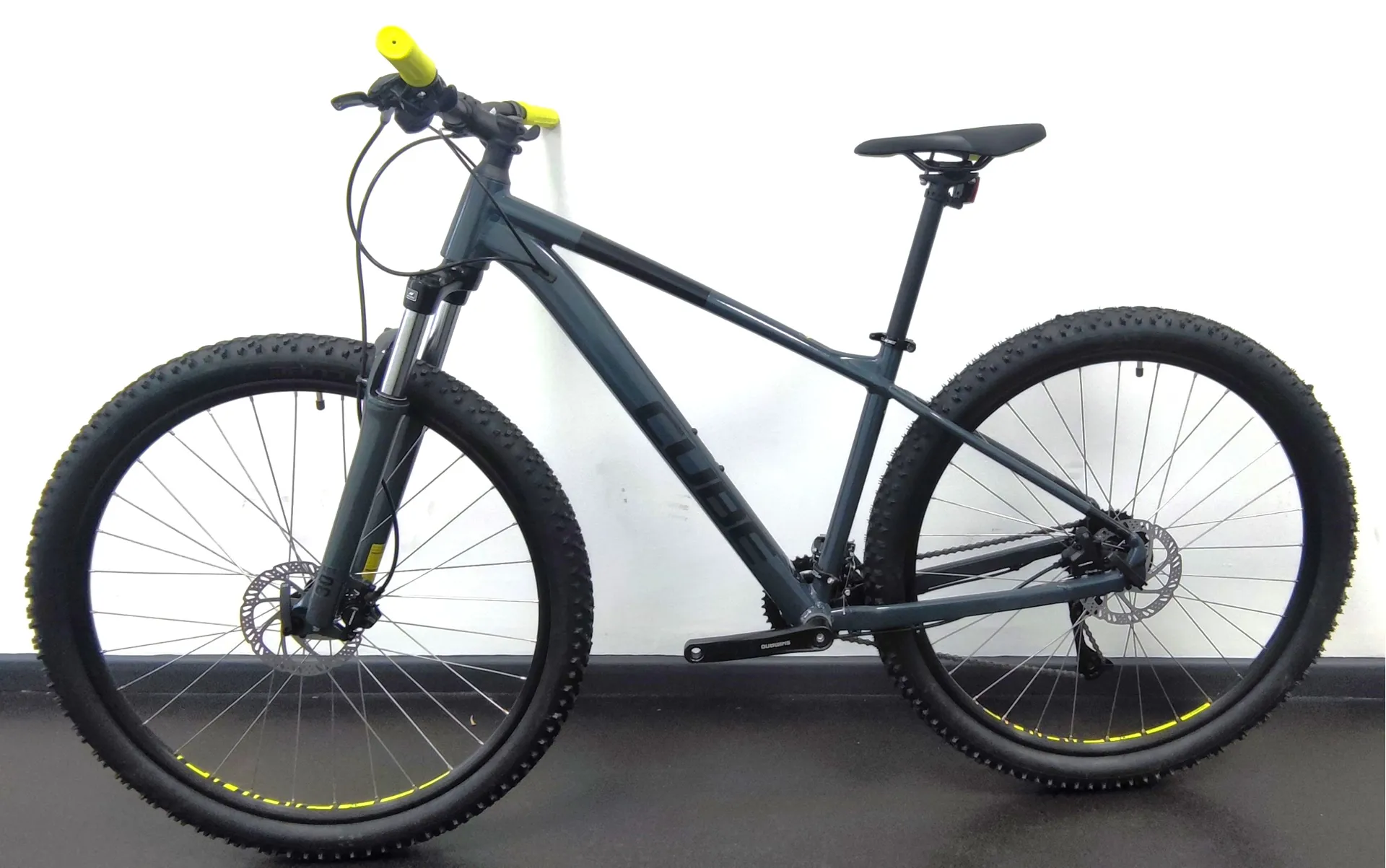

This Cube Aim Pro Mountain Bike in Size Medium is an ex-display bike, it may have some light cosmetic damage with scratches on the top tube and seat stay, but otherwise the bike is as new. See images for the condition of the bike.

Our ex display bikes are fully serviced and checked to ensure your riding experience is the same as a new bike - we offer full manufacturers warranty on all our ex display and ex demo bikes.

Beauty is more than skin deep.


The Aim's sleek looks are thanks to its Smooth Welded head tube and seat tube junctions. It incorporates a threaded bottom bracket and internal cable routing for long-lasting service and simple maintenance. There's even a flat disc mount that integrates seamlessly with our kickstand mount, and integrated mounting points for ACID mudguards and carrier. Updated geometry includes a lower top tube for more confident handling, and there's plenty of room to run wide, grippy and comfortable 2.25in tyres.

Cube's SizeSplit system has an expanded range, too, so however tall you are there'll be an Aim that fits perfectly.

Key Features & Benefits:

  • SR Suntour XCT, 100mm suspension fork:For comfort and control.
  • Disc brakes:For reliable stopping in all conditions.
  • Shimano 8 speed gears:To get you up the steepest of hills.

Full Specification:

  • Frame:Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Flat Mount Brake, SIC Mount, FM Kickstand Mount
  • Fork:SR Suntour XCE, 100mm
  • Number of Gears:8
  • Gear Shifters:Shimano SL-M315, Rapidfire-Plus
  • Chainset:Shimano FC-M315, 36x22T, 170mm
  • Chainrings:36/22T
  • Rear Cassette:Shimano CS-HG31, 11-34T
  • Chain:KMC Z8.3
  • Front Derailleur:Shimano FD-M315, Top Swing, 31.8mm Clamp
  • Rear Derailleur:Shimano RD-M3020, 8-Speed
  • Bottom Bracket:Feimin FP-B902N, 73mm BSA
  • Pedals:CUBE PP MTB
  • Rims:CUBE ZX20, 32H, Disc
  • Front Hub:Shimano DH-3D32, Hub Dynamo, QR
  • Rear Hub:CUBE Alloy Light, QR, 6-Bolt
  • Front Tyre:CUBE IMPAC Smartpac, 2.25
  • Rear Tyre:CUBE IMPAC Smartpac, 2.25
  • Brakes:Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160)
  • Handlebars:CUBE Rise Trail Bar, 680mm
  • Handlebar Grips:CUBE Acid React
  • Headset:CUBE FPH863, Semi-Integrated
  • Stem:CUBE Performance Stem SL, 31.8mm
  • Saddle:Natural Fit Venec Lite
  • Seatpost:CUBE Performance Post, 27.2mm
  • Accessories:
  • Weight:14.7 kg

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

If you are unsure which size Cube bike would be best for you, Cube do provide an online sizing calculator on each bike product page, which requires you to enter your height and inside leg. This can give a recommendation on which size may be best for you, however for the best results, please visit your local Balfe’s store for a personal consultation and test ride.

Geometry for Cube Aim

14" / 27.5 / XS16" / 27.5 / S18" / 29 / M20" / 29 / L22" / 29 / XL24" / 29 / XXL
Length seat post350350400400400400
Diameter seatpost27.227.227.227.227.227.2
Angle stem666666
Crank length170170170170170170
Diameter tire maximum708708747747747747
Stem length454560607575
Handlebar width680680680680680680
Seat tube340370420470515560
Top Tube Horizontal555575595615635655
Seat angle7473.573.573.573.573.5
Head tube angle68.568.568.568.568.568.5
Chainstays427427450450450450
Head tube108.2111111121.8141.8156.8
Wheelbase1067.51082.11125.41146.41168.21189.6
BB-Height to Hub51.551.565656565
Protrusion height - 80mm707720759792824858
Reach384.4398409.2426.2440.7456.6
Stack595597.6627.3637.4656669.9

Warranty Information for Cube:

Your CUBE bike is warranted to be free from manufacturing defects for 2 years with effect from the date of sale. In addition, we provide our customers with the following warranty in the event of frame breakage outside the statutory warranty period as follows:
For all frames and rigid forks from model year 2012 and onwards Cube guarantee from the date of sale from the dealer:
Aluminium: 6-year guarantee
Carbon fibre, aluminium-carbon fibre: 3-year guarantee
If a break occurs during this period (from date of sale), Cube will replace the item with the same or similar.
BOSCH Warranty (E-Bikes): The warranty period is 24 months.
For full warranty policy please visit cube.eu

Technical Information
  • FRAME
    Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
  • FRAME
    Aluminium Lite, AMF, Double Butted, Internal Cable Routing, Tapered Head Tube, Flat Mount Brake, SIC Mount, FM Kickstand Mount
  • SIZE
    Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")
  • SIZE
    Size Split: 27.5: XS (14"), S (16") // 29: M (18"), L (20"), XL (22"), XXL (24")
  • SUSPENSION FORK
    SR Suntour XCT Disc, 100mm
  • SUSPENSION FORK
    SR Suntour XCT Disc, 100mm
  • BRAKE SYSTEM
    Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160)
  • BRAKE SYSTEM
    Tektro HD-M275 / TKD-150, Hydr. Disc Brake (160/160)
  • REAR DERAILLEUR
    Shimano RD-M3020, 8-Speed
  • REAR DERAILLEUR
    Shimano RD-M3020, 8-Speed
  • FRONT DERAILLEUR
    Shimano FD-M315, Top Swing, 31.8mm Clamp
  • FRONT DERAILLEUR
    Shimano FD-M315, Top Swing, 31.8mm Clamp
  • SHIFTERS
    Shimano SL-M315, Rapidfire-Plus
  • SHIFTERS
    Shimano SL-M315, Rapidfire-Plus
  • BOTTOM BRACKET
    Feimin FP-B902N, 73mm BSA
  • BOTTOM BRACKET
    Feimin FP-B902N, 73mm BSA
  • CRANKSET
    Shimano FC-M315, 36x22T, 170mm
  • CRANKSET
    Shimano FC-M315, 36x22T, 170mm
  • CASSETTE
    Shimano CS-HG31, 11-34T
  • CASSETTE
    Shimano CS-HG31, 11-34T
  • CHAIN
    KMC Z8.3
  • CHAIN
    KMC Z8.3
  • HANDLEBAR
    CUBE Rise Trail Bar, 680mm
  • HANDLEBAR
    CUBE Rise Trail Bar, 680mm
  • STEM
    CUBE Performance Stem Pro, 31.8mm
  • STEM
    CUBE Performance Stem Pro, 31.8mm
  • GRIPS
    ACID React
  • GRIPS
    ACID React
  • HEADSET
    CUBE FPH868, Semi-Integrated
  • HEADSET
    CUBE FPH868, Semi-Integrated
  • FRONT HUB
    CUBE Alloy Light, QR, 6-Bolt
  • FRONT HUB
    CUBE Alloy Light, QR, 6-Bolt
  • REAR HUB
    CUBE Alloy Light, QR, 6-Bolt
  • REAR HUB
    CUBE Alloy Light, QR, 6-Bolt
  • RIMS
    CUBE ZX20, 32H, Disc
  • RIMS
    CUBE ZX20, 32H, Disc
  • TYRES
    CUBE IMPAC Smartpac, 2.25
  • TYRES
    CUBE IMPAC Smartpac, 2.25
  • SEAT POST
    CUBE Performance Post, 27.2mm
  • SEAT POST
    CUBE Performance Post, 27.2mm
  • SADDLE
    Natural Fit Venec Lite
  • SADDLE
    Natural Fit Venec Lite
  • PEDALS
    CUBE PP MTB
  • PEDALS
    CUBE PP MTB
  • WEIGHT
    14,7 kg
  • WEIGHT
    14,7 kg
