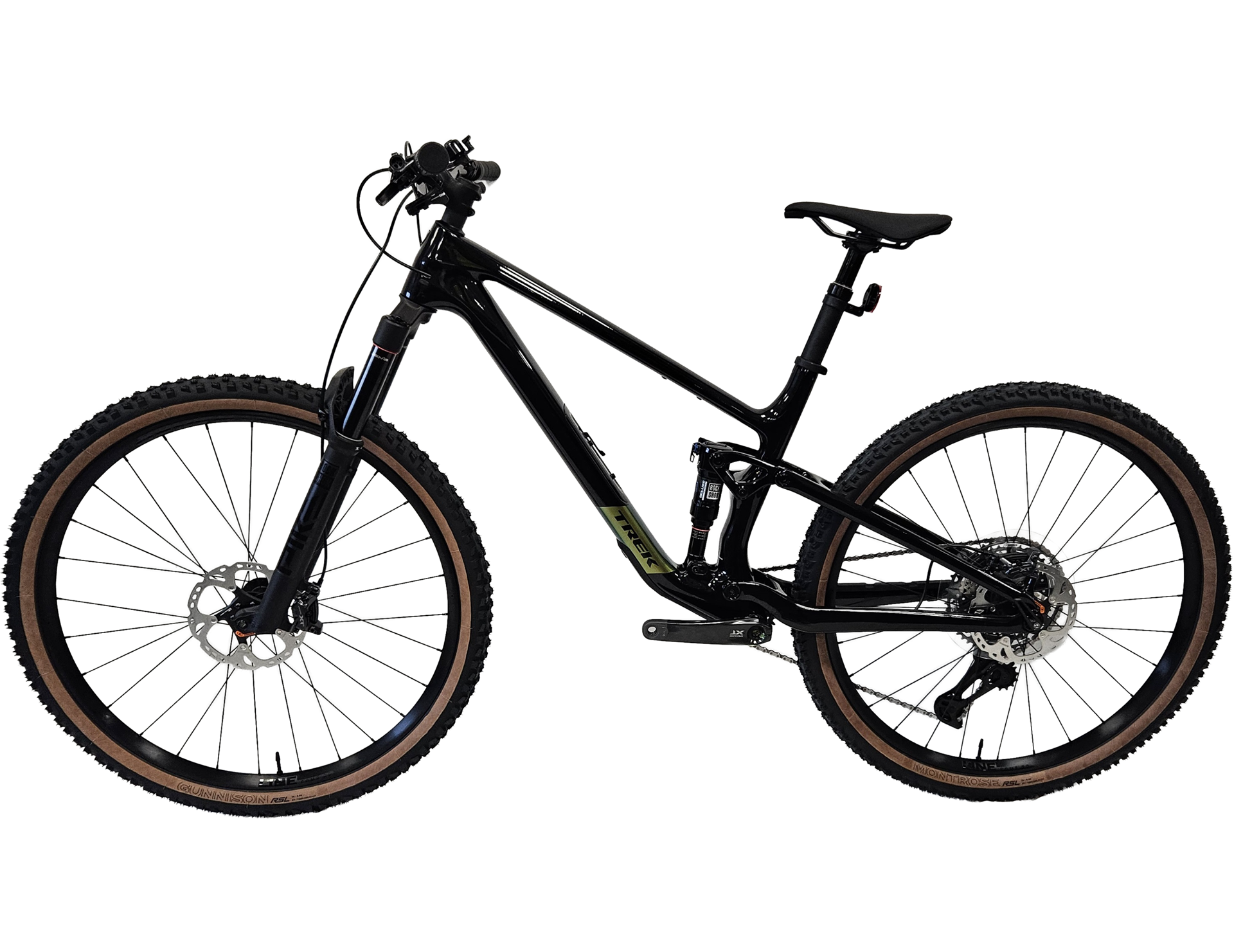

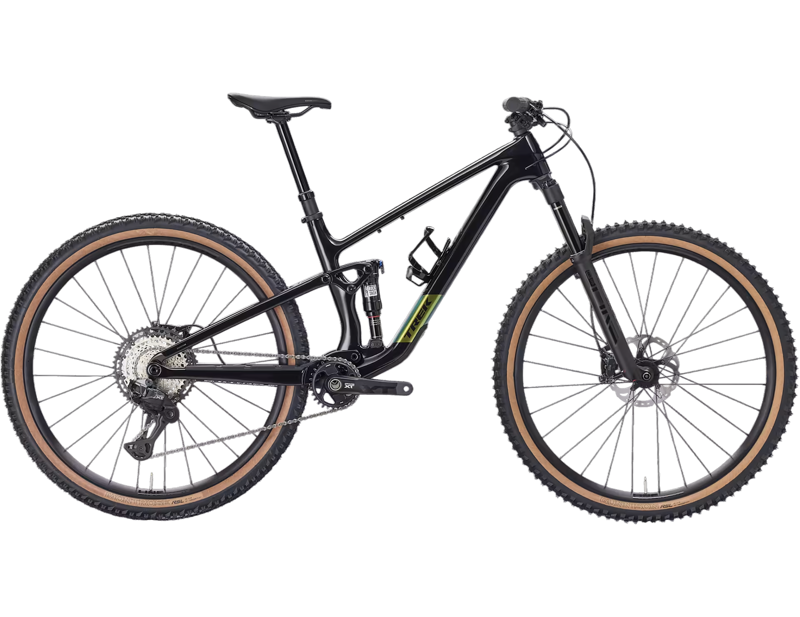

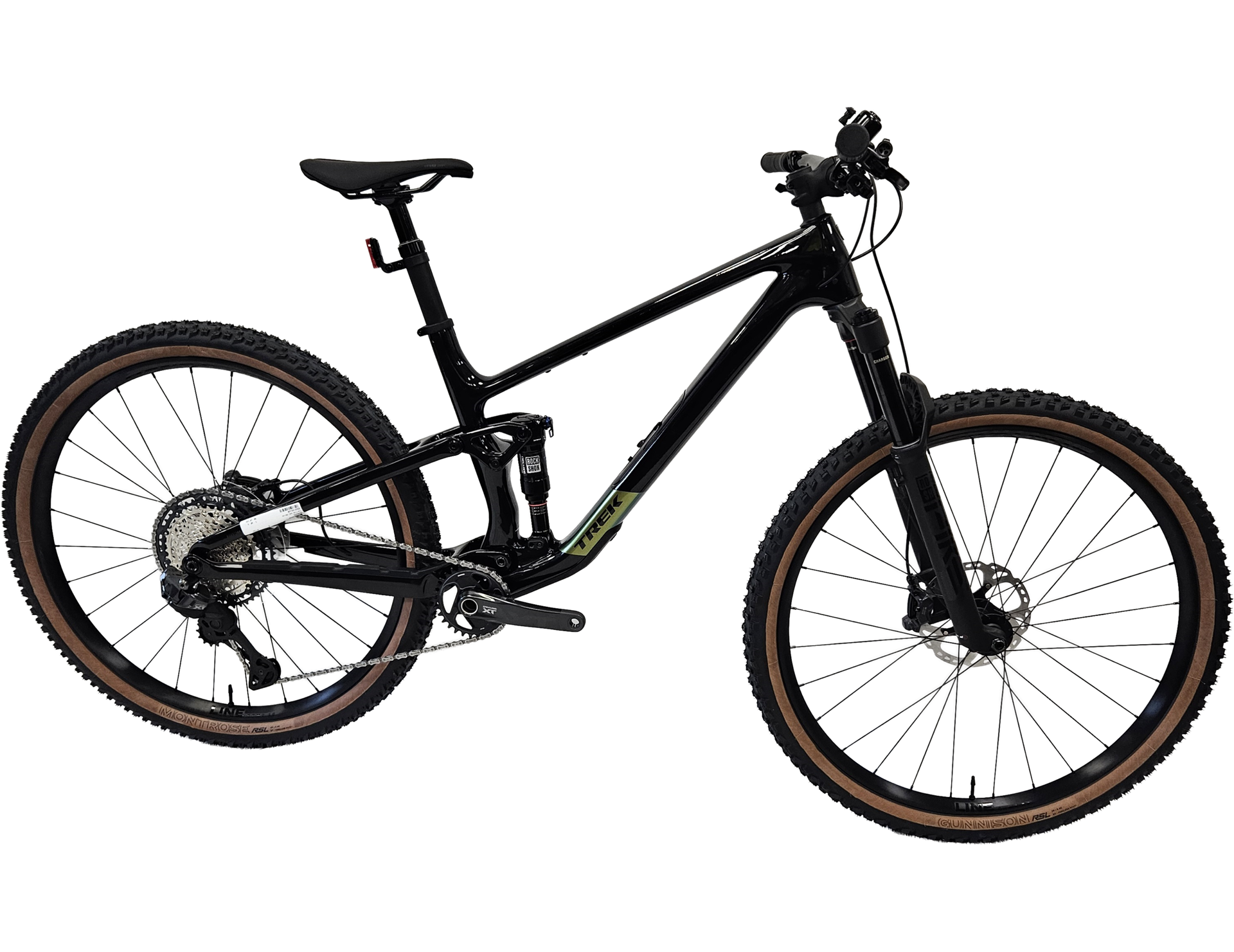

This Trek Top Fuel 9.8 XT Di2 Gen 4 in size Large is an ex-display bike, this bike has been built up on the shop floor, the bike is brand new and unused.All bikes are fully inspected to ensure they are free of any damage, and we offer full manufacturer's warranty on all bikes.The Top Fuel 9.8 XT Gen 4 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents. It gives you the confidence you want through roots and rocks, thanks to a 120 mm/130 mm RockShox suspension package with a Pike Select+ fork and Deluxe Ultimate shock. Plus, you get clean shifts from a 12-speed Shimano XT Di2 drivetrain.
It's right for you if...You're after a carbon trail bike that keeps weight to a minimum without compromising on capability. You like to ride everything – long alpine climbs, rooty aspen slalom, fast XC singletrack and you want a bike that can keep up on the ups and hold its own on the downs. Keeping things light with a carbon frame is important to you, and you want the light yet precise shifting of a Shimano XT drivetrain.
The tech you getAn OCLV Mountain Carbon frame with a 4-way Mino Link lower shock mount for tweaking geometry and suspension leverage rate. A 130 mm RockShox Pike Select+ fork with DebonAir spring, and Charger 3.1 RC2 damper, plus 120 mm of rear travel from a RockShox Deluxe Ultimate RCT shock. A Shimano XT 12-speed drivetrain, Shimano XT 4-piston hydraulic brakes, Bontrager Line dropper post and tubeless-ready Bontrager Line Comp 30 wheels.
The final wordIf you're after a light carbon trail bike that balances a playful and capable ride, reach for Top Fuel 9.8 XT Gen 4. Its ultra-lightweight frame pairs with a 4-way Mino Link lower suspension mount for taking control of your geometry and suspension feel. Plus, you get clean shifts from a Shimano XT drivetrain and a sweet RockShox suspension package.
Key Features & Benefits:
- Carbon Fibre Frame:Keeps weight to a minimum without compromising on capability.
- Frame Storage:In-frame storage with an improved BITS bag system makes it easy to stash tools, tubes and snacks
- RockShox Suspension:With 120 mm rear and 130 mm front RockShox suspension, you get a well-balanced ride that stays efficient on the ups and playful on descents
Full Specification:
- Frame:OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, OCLV Next rocker link, Mino 4 link, ABP, Boost148, 120 mm travel
- Rear Shock:RockShox Deluxe Ultimate RCT, 185 mm x 50 mm
- Fork:RockShox Pike Select+ 130mm fork with DebonAir spring, and Charger 3.1 RC2 damper,
- Number of Gears:12

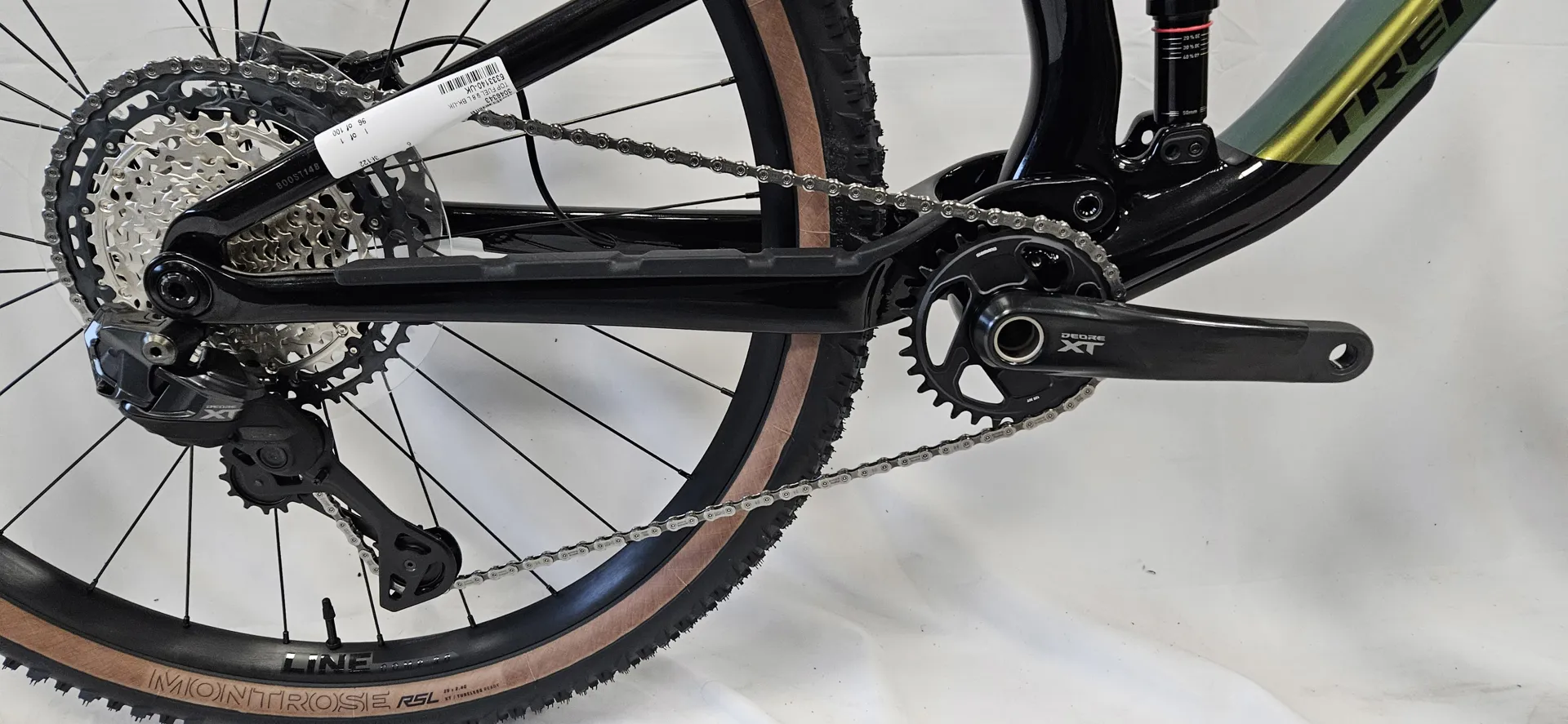

- Gear Shifters:Shimano XT M8250 Di2, 12-speed
- Chainset:Shimano XT 8200, 30T, 55 mm chain-line, 170 mm length
- Chainrings:30T (max: 34T)
- Rear Cassette:Shimano XT M8200, 10-51, 12-speed
- Chain:Shimano XT M8100, 12-speed
- Rear Derailleur:Shimano XT M8250, long cage
- Bottom Bracket:Shimano BB-MT501 BSA
- Pedals:Not supplied:Shop pedals here
- Rims:Bontrager Line Comp 30
- Front Hub:
- Rear Hub:
- Front Tyre:Size: S - Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40", Size: M, ML, L, XL - Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"
- Rear Tyre:Size: S - Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40", Size: M, ML, L, XL - Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"
- Brakes:ShimanoXT M8200 4-piston hydraulic disc, Shimano RT86, 6-bolt, 180 mm
- Handlebars:Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
- Handlebar Grips: Trek Line Elite, Lock On
- Stem:Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length
- Saddle:Verse Short Comp, steel rails, 145 mm width
- Seatpost:Size: S - Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length, Size: M, ML - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length, L, XL - Bontrager Line Dropper, 200 mm
- Weight:M - 13.68 kg / 30.66 lbs (with TLR sealant, no tubes), This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
