The SCOTT Voltage YZ 0.1 is our Pro riders replica bike built around a high-end Alloy dirtjump mountain bike frame.
The SCOTT Voltage YZ 0.1 is our Pro riders replica bike built around a high-end Alloy dirtjump mountain bike frame.
Scott

SCO Bike Voltage YZ 0. 1 Dirt Jump Bike one size 2024 in Green

£760.00 £1,299.00 41% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

SCO Bike Voltage YZ 0. 1 Dirt Jump Bike one size 2024 in Green

Season:2024

Brand:Scott

Code:290160222

The SCOTT Voltage YZ 0.1 is our Pro riders replica bike built around a high-end Alloy dirtjump mountain bike frame.

Equipped with ultashort adjustable chain stays, a tapered headtube and high-end components, this bike is perfect for hitting the pumptrack, the dirtjumps, or jibbin' through the streets.

Voltage Alloy Frame
X-Fusion Slant DJ 100mm Fork
Single Speed
Tektro HDM275 Disc Brakes
Kenda K-RAD 26"x 2.3" Tires

Key Features & Benefits:

  • X-Fusion Fork:With 100mm of travel.
  • Hydraulic Disc Brake:Tektro HD-M275 brakes.
  • Kenda K-RAD:Find grip anywhere- street, dirt, or at the skatepark.

Full Specification:

  • Frame:Voltage YZ DJ 6061 Alloy, Hydroformed tubing, Disc Dropout / horizontal for 135x10mm single speed
  • Fork:X-Fusion Slant DJ, 100mm travel / Air / Lo Comp / Rebound
  • Number of Gears:1
  • Gear Shifters:N/A
  • Chainset:SCOTT Cr-Mo 3-piece cranks, 170mm / 25T Alloy BMX sprocket
  • Chainrings:30T
  • Rear Cassette:Formula, 12t
  • Chain:KMC Z510
  • Rear Derailleur:N/A
  • Bottom Bracket:Jien-Yuan BB92 / 19mm Axle
  • Pedals:Wellgo
  • Rims:Syncros MD25 Disc / 32H
  • Front Hub:Formula DHL-51 / 110x15mm / thru axle
  • Rear Hub:Formula DC42-N, single speed, with tracknut
  • Front Tyre:Kenda K905 K-RAD 30TPI / wire / 26x2.3"
  • Rear Tyre:Kenda K905 K-RAD 30TPI / wire / 26x2.3"
  • Brakes:Tektro HD-M275, hydraulic disc brake, 160 rotor
  • Handlebars:Syncros Hixon 2.0 Rise, width: 800mm, 20mm rise
  • Handlebar Grips/Tape:Syncros Pro DH lock-on grips
  • Headset:Syncros OE Press Fit E2 / Tapered 1.5"-1 1/8", OD 50/62mm / ID 44/56mm
  • Stem:Syncros XM, 1.5, 40mm
  • Saddle:Syncros DJ1.5, pivotal
  • Weight:12.8kg (27 lb, 8.9 oz)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

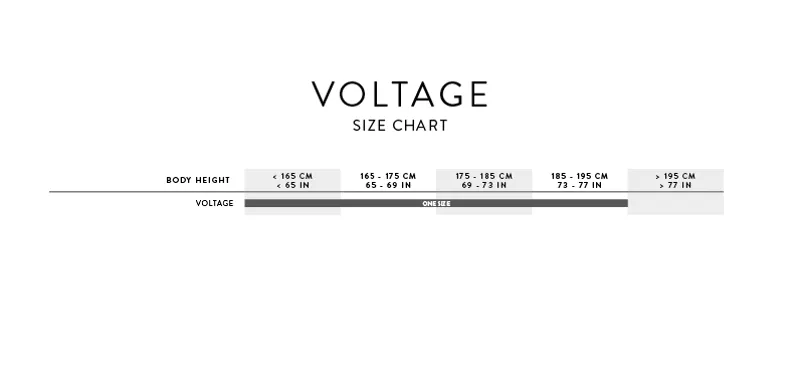

Scott Voltage Size Guide


Jump bikes primarily use a 26” wheel with the frame only available in one size, to suit riders taller than 4’5” or 137cm.

Some manufacturers offer a long or short length bike. Riders over 5’10” or 178cm will prefer the longer option.

Scott Voltage Geometry Guide
Geometry

Ahead tube angle68.5 °
Bhead tube length120.0 mm
Ctop tube horizontal600.0 mm
Dstandover height702.0 mm
EBB offset-15.0 mm
FBB height324.0 mm
Gwheel base1,047.0 mm
HBB center to toptube center261.1 mm
IBB center to top of seattube315.0 mm
Jseat angle71.0 °
Kchainstay380.0 mm
Lreach403.4 mm
Mstack570.9 mm
Nstem length40.0 mm

Warranty Information for Scott:

The manufacturer's guarantee is only granted to the first-time buyer of a SCOTT bicycle who has purchased it from an authorized SCOTT dealer. The manufacturer's guarantee only applies if the bicycle is registered to the first buyer at www.scott-sports.com within ten days of purchase.
The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the SCOTT bicycle is not serviced at least once a year by an authorized SCOTT dealer.
For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by SCOTT, the duration of the manufacturer's guarantee is limited to two years.
For full warranty policy please visit scott-sports.com

Technical Information
  • Frame
    Voltage YZ DJ 6061 AlloyHydroformed tubingDisc Dropout / horizontal for 135x10mm single speed
  • Fork
    X-Fusion Slant DJ100mm travel / Air / Lo Comp / Rebound
  • Crankset
    SCOTT Cr-Mo 3-piece cranks170mm / 25T Alloy BMX sprocket
  • BB-Set
    Jien-Yuan BB92 / 19mm Axle
  • Chain
    KMC Z510
  • Cassette
    Sprocket / 12 T
  • Brakes
    Tektro HDM275 Hydr. Disc
  • Rotor
    Tektro / 6 Bolt / 160mm
  • Handlebar
    Syncros Hixon 2.0 Rise31.8mm / 800mm / 20mm RiseSyncros Pro DH lock-on grips
  • H'stem
    Syncros XM1.531.8mm / 40mm / 0°
  • Seatpost
    Syncros DJ1.5 / Pivotal / 31.6mm
  • Seat
    Syncros DJ1.5 / Pivotal
  • Headset
    Syncros OE Press Fit E2 Tapered 1.5"-1 1/8"OD 50/62mm / ID 44/56mm
  • Hub (Front)
    Formula DC-51 / 100x15mm / thru axle
  • Hub (Rear)
    Formula DC42-Nw/tracknut / single Speed
  • Spokes
    Stainless 14G / black / 2.0mm
  • Rims
    Syncros MD25 Disc / 32H
  • Front Tire
    Kenda K905 K-RAD30TPI / wire / 26x2.3"
  • Rear Tire
    Kenda K905 K-RAD30TPI / wire / 26x2.3"
  • Pedals
    Wellgo B107.N flat
  • Approx weight in KG
    12.8 (with tubes)
  • Approx weight in LBS
    28.22 (with tubes)
  • Max. System Weight
    128kgThe overall weight includes the bike, the rider, the equipment, and possible additional luggage.
