The Fuel EX 9.8 XT is an outstanding all-around mountain bike for endurance racing and ripping every kind of trail, complete with a full carbon frame, quality parts build and advanced suspension.
The Fuel EX 9.8 XT is an outstanding all-around mountain bike for endurance racing and ripping every kind of trail, complete with a full carbon frame, quality parts build and advanced suspension.
Trek

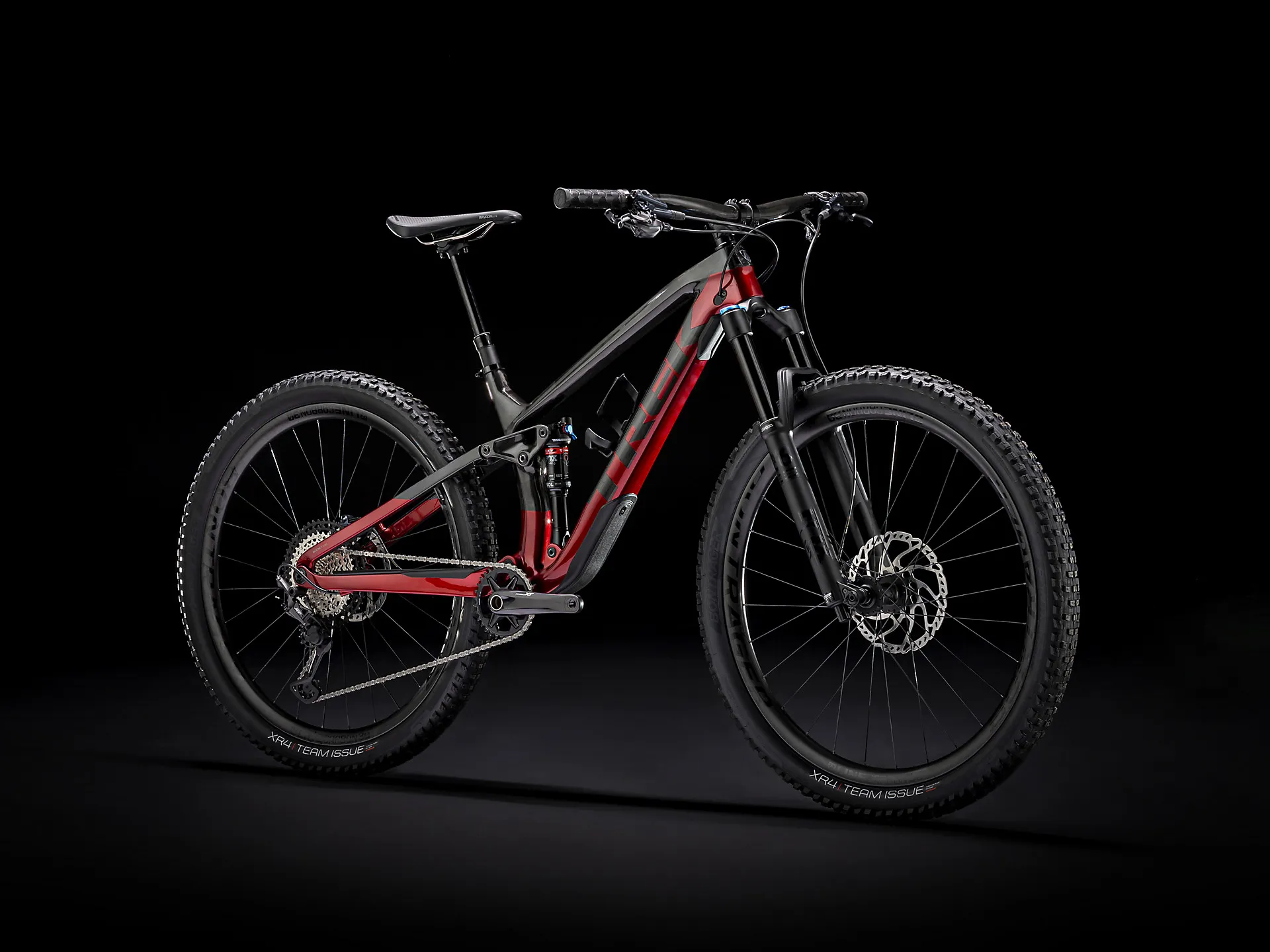

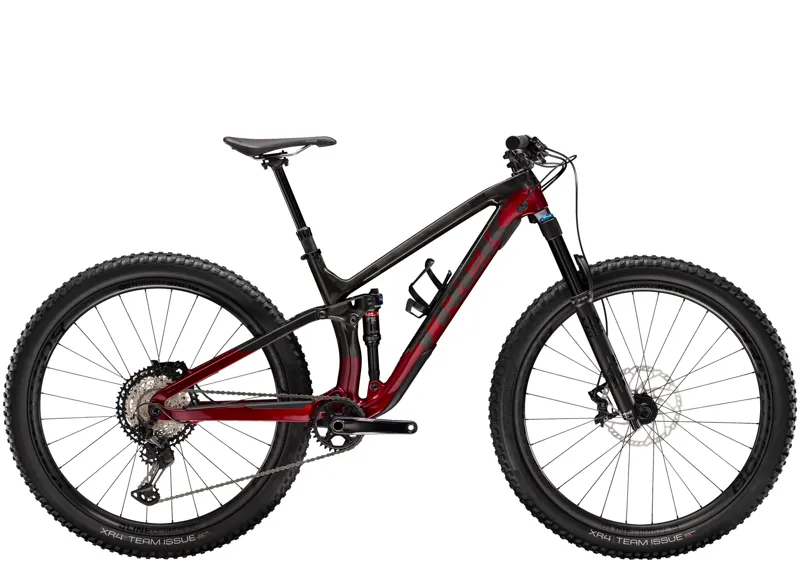

Trek Fuel EX 9.8 XT Mens Full Suspension Mountain Bike in Red Rage

£4,750.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Fuel EX 9.8 XT Mens Full Suspension Mountain Bike in Red Rage

Season:2020

Brand:Trek

Code:310572020RawCBNRageRED

The Trek Fuel EX 9.8 XT Mens Full Suspension Mountain Bike is perfect if you like going fast, getting rowdy and clearing every obstacle on the first try. With high-quality parts, a carbon frame and dialled suspension this bike can handle any trail, from burly technical descents to single track and even endurance races.

A lightweight full OCLV Mountain Carbon frame, 1x12 Shimano XT drivetrain, carbon wheels, and FOX Performance Float suspension with Trek's exclusive RE:aktiv with Thru Shaft shock make it the perfect choice for all-mountain shredders who want a single bike that does it all. Fuel EX 9.8 is the definitive mountain bike, and a great choice if you're going to invest in a single bike for all kinds of terrain.

Key Features & Benefits:

Carbon Fibre Frame: Super lightweight & improved absorption of trail vibration.

12 Shimano Gears: Perfect for all terrain.

Hydraulic Disc Brakes: Incredible stopping power, with 4 pistons for better modulation.

Full Specification:

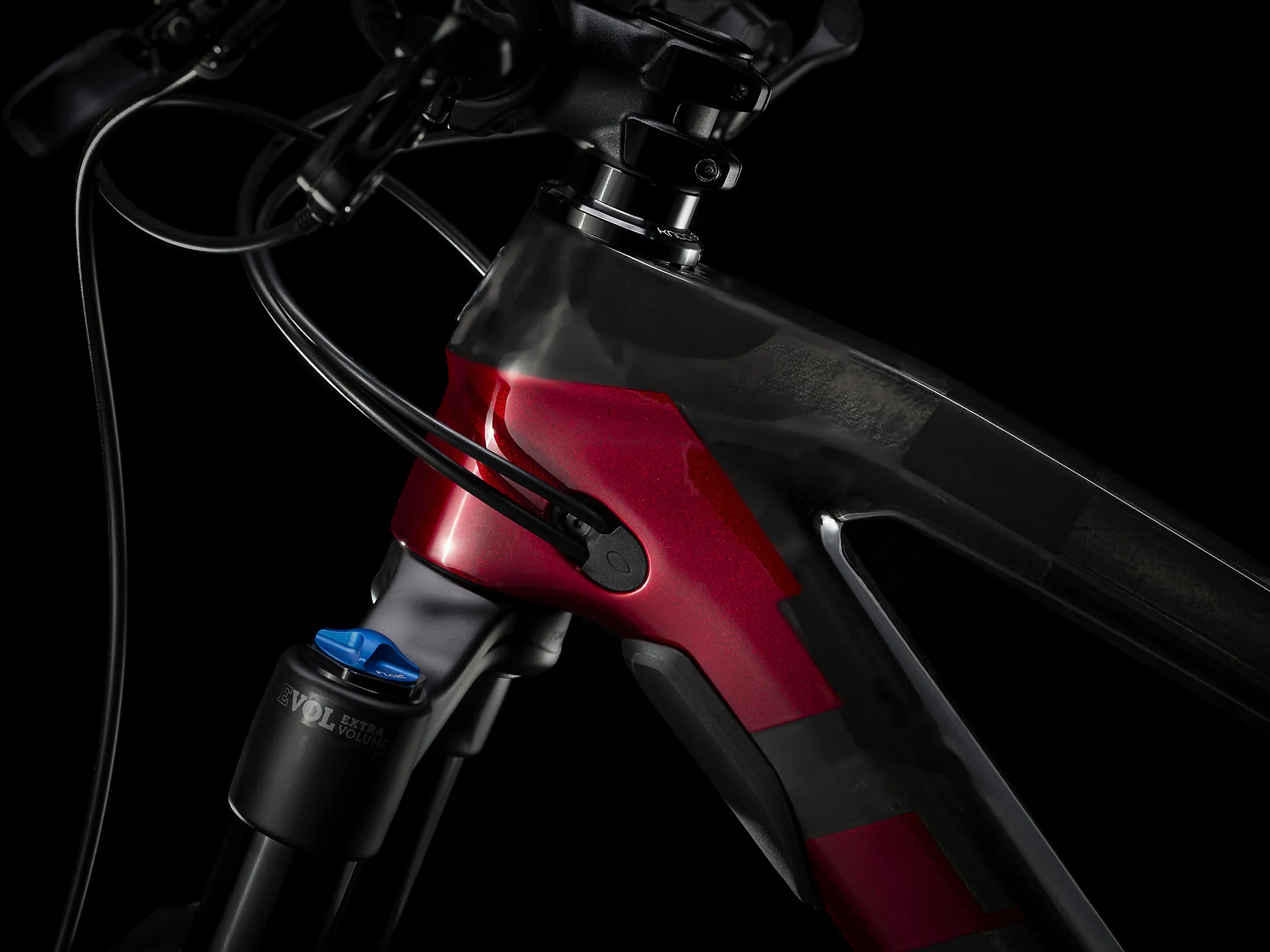

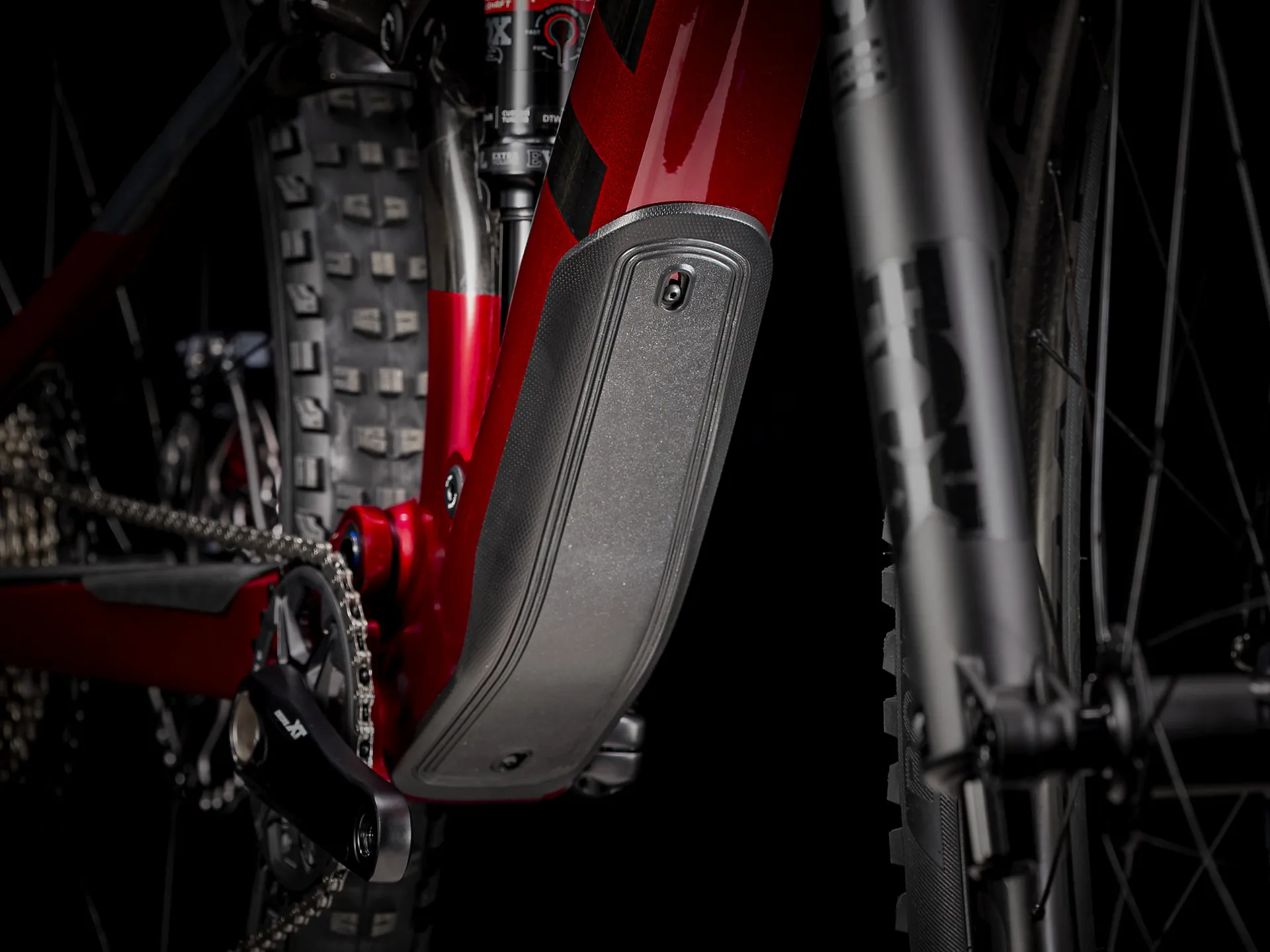

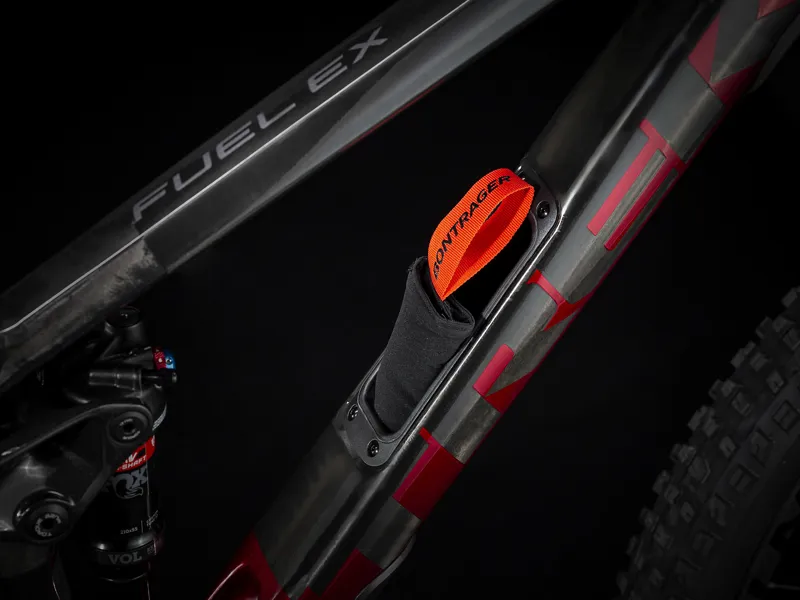

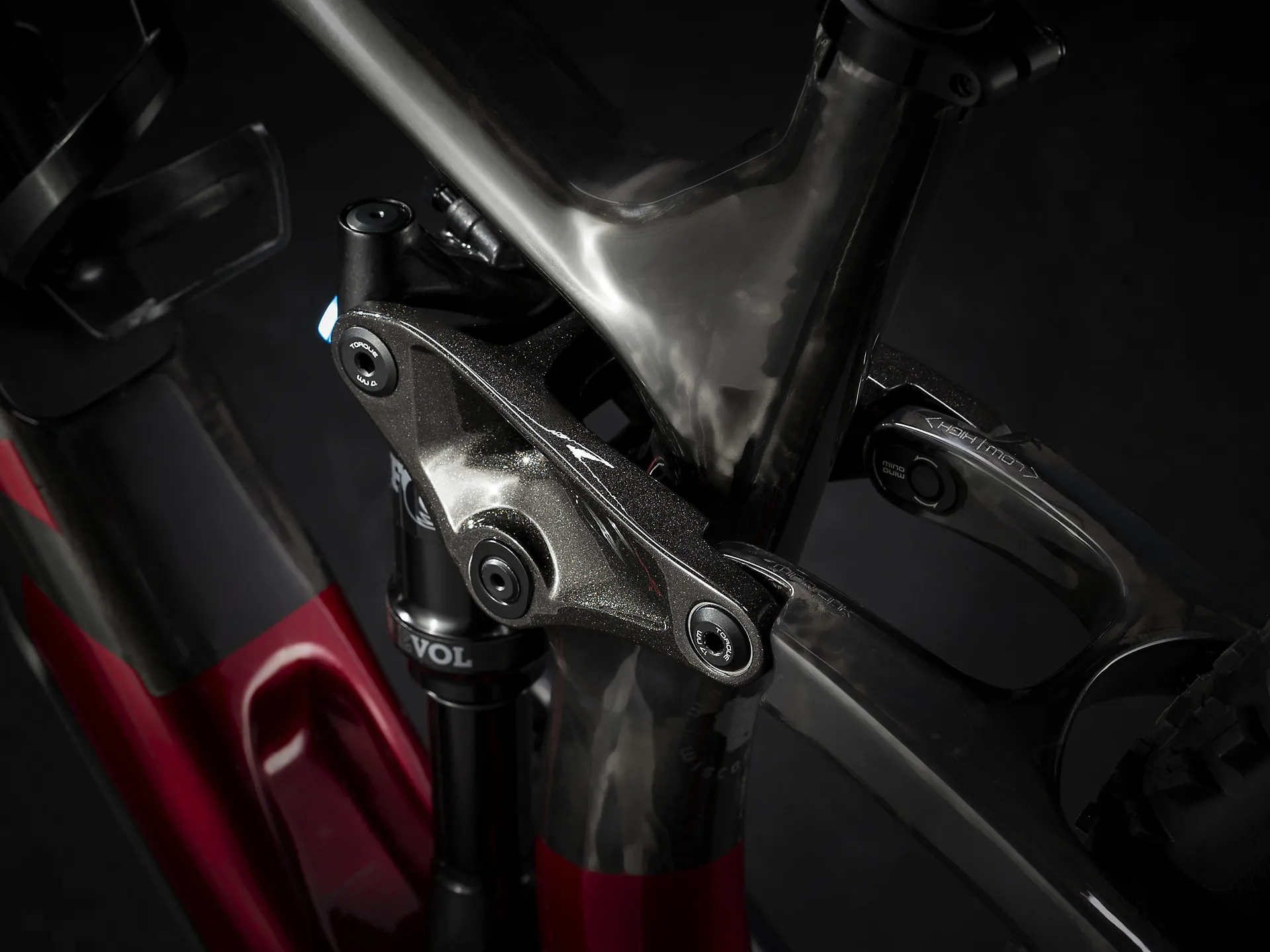

  • Frame:  OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block, Control Freak internal routing, Carbon Armour, ISCG 05, magnesium rocker link, Mino Link, ABP, Boost148, 130 mm travel

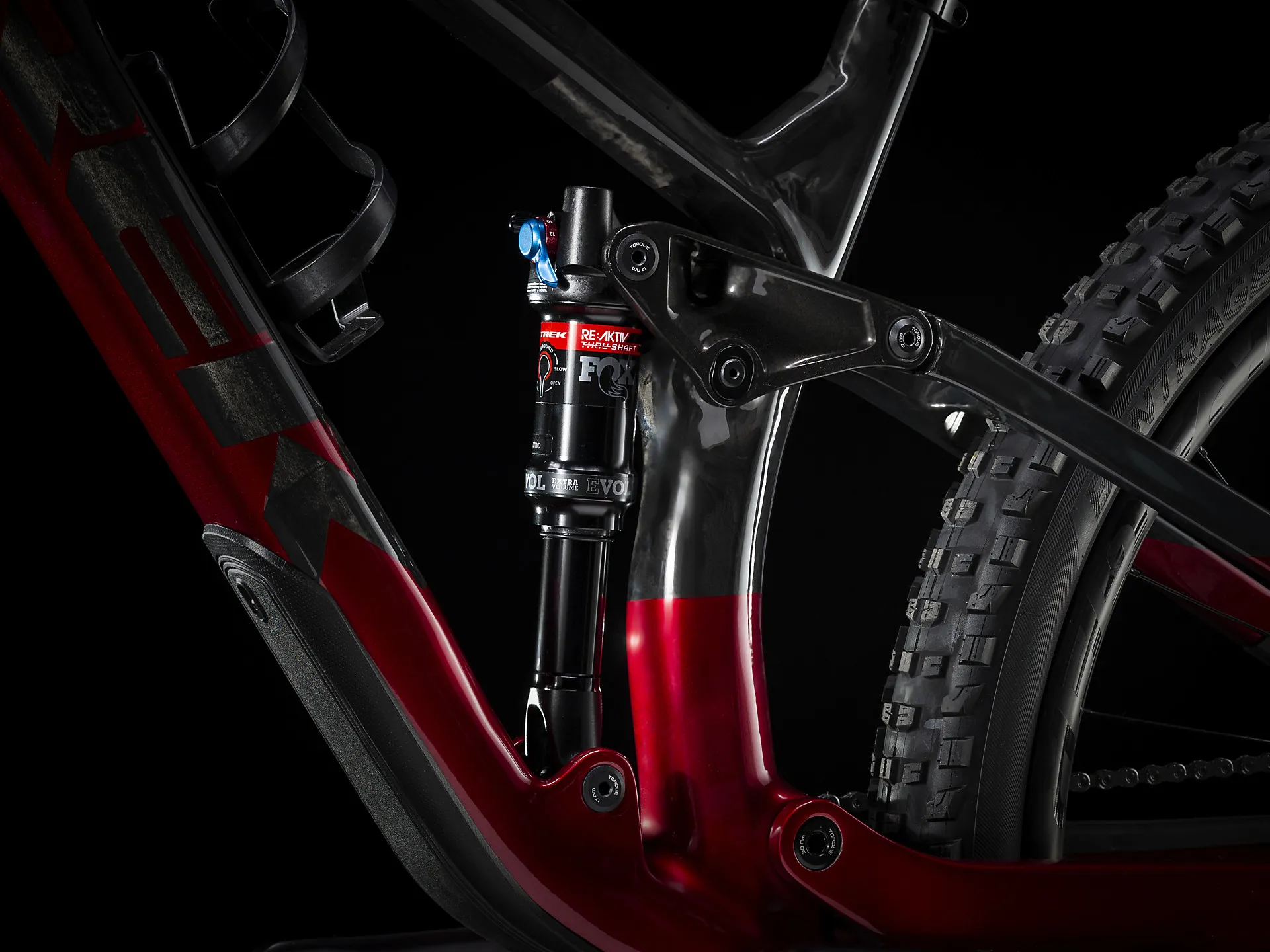

  • Rear Shock (If Applicable):  Fox Performance Float EVOL, RE:aktiv with Thru Shaft 3-position damper, tuned by Trek Suspension Lab
  • Fork:  Fox Performance 36, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boo
  • Number of Gears:  12
  • Gear Shifters:  Shimano XT M8100, 12-speed

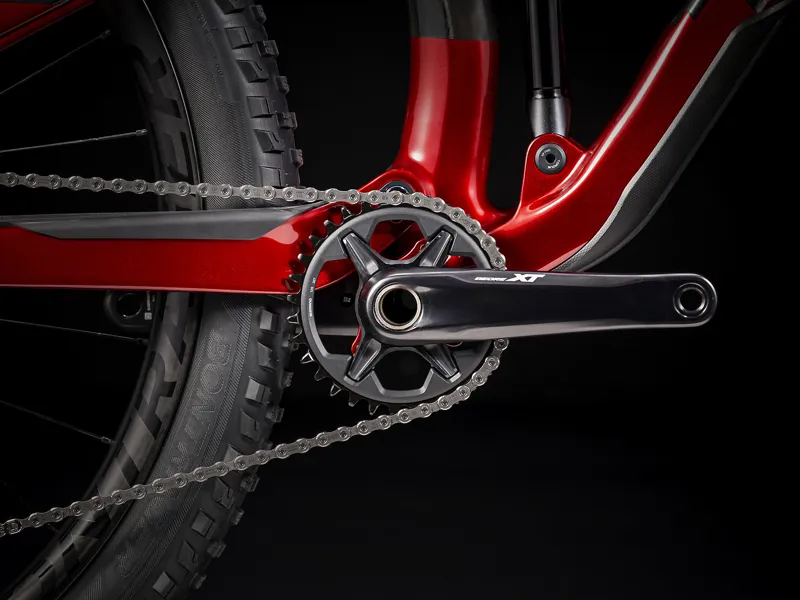

  • Chainset:  Shimano XT M8100, Boost
  • Chainrings:  32T alloy ring
  • Rear Cassette:  Shimano XT M8100, 10-51, 12-speed
  • Chain:  Shimano XT M8100, 12-speed
  • Front Derailleur:  N/A

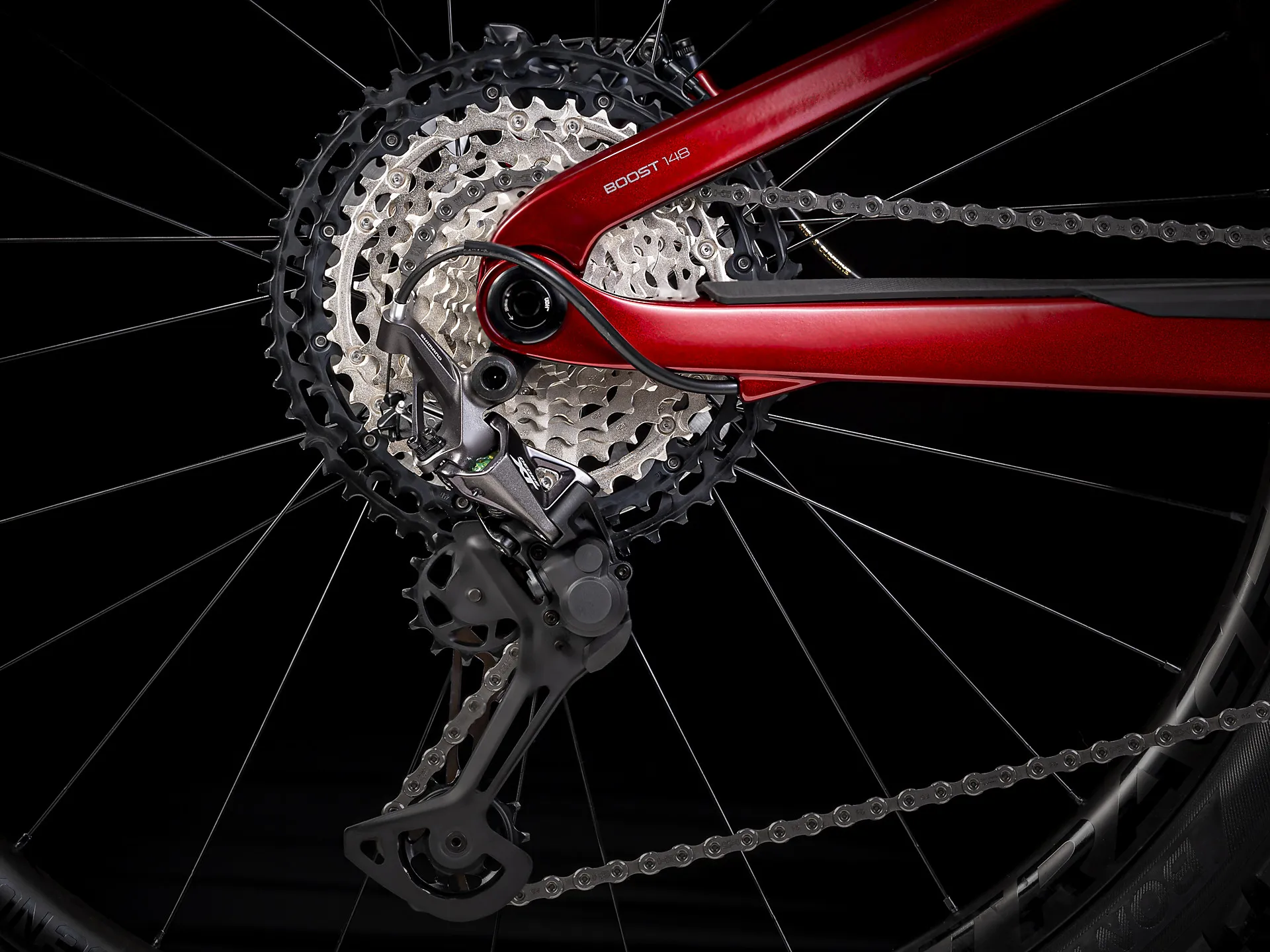

  • Rear Derailleur:  Shimano XT M8100, long cage, 51T max cog
  • Bottom Bracket:  Shimano MT500, 92 mm, PressFit
  • Pedals:  Not Included
  • Rims:  Bontrager Line Carbon 30, Tubeless Ready,
  • Front Hub:  Bontrager Line Carbon 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
  • Rear Hub:  Bontrager Line Carbon 30, 54T Rapid Drive, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle
  • Front Tyre:  Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi
  • Rear Tyre:  Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi

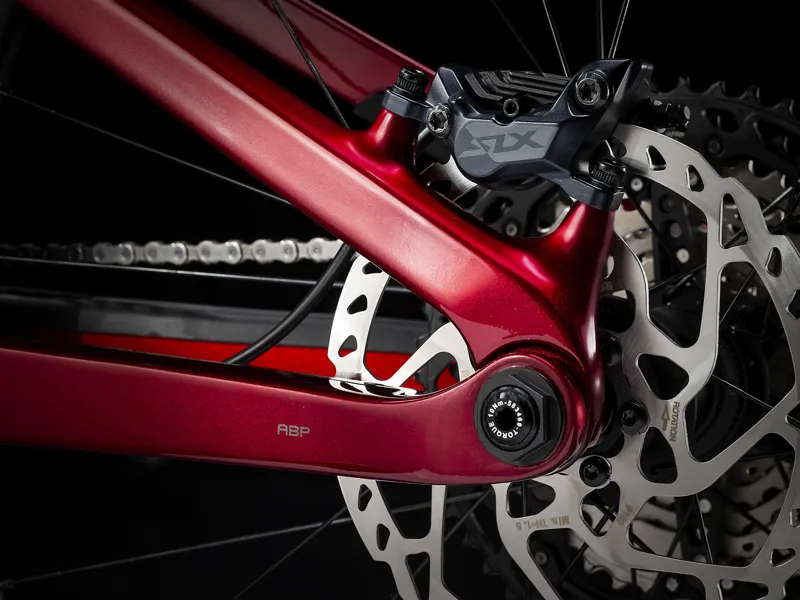

  • Brakes:  Shimano SLX M7120 4-piston hydraulic disc, 180 mm rotor
  • Handlebars:  Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise
  • Handlebar Grips:  Bontrager XR Trail Elite, alloy lock-on
  • Headset:  Knock Block Integrated, sealed cartridge bearing, 1-1/8"" to

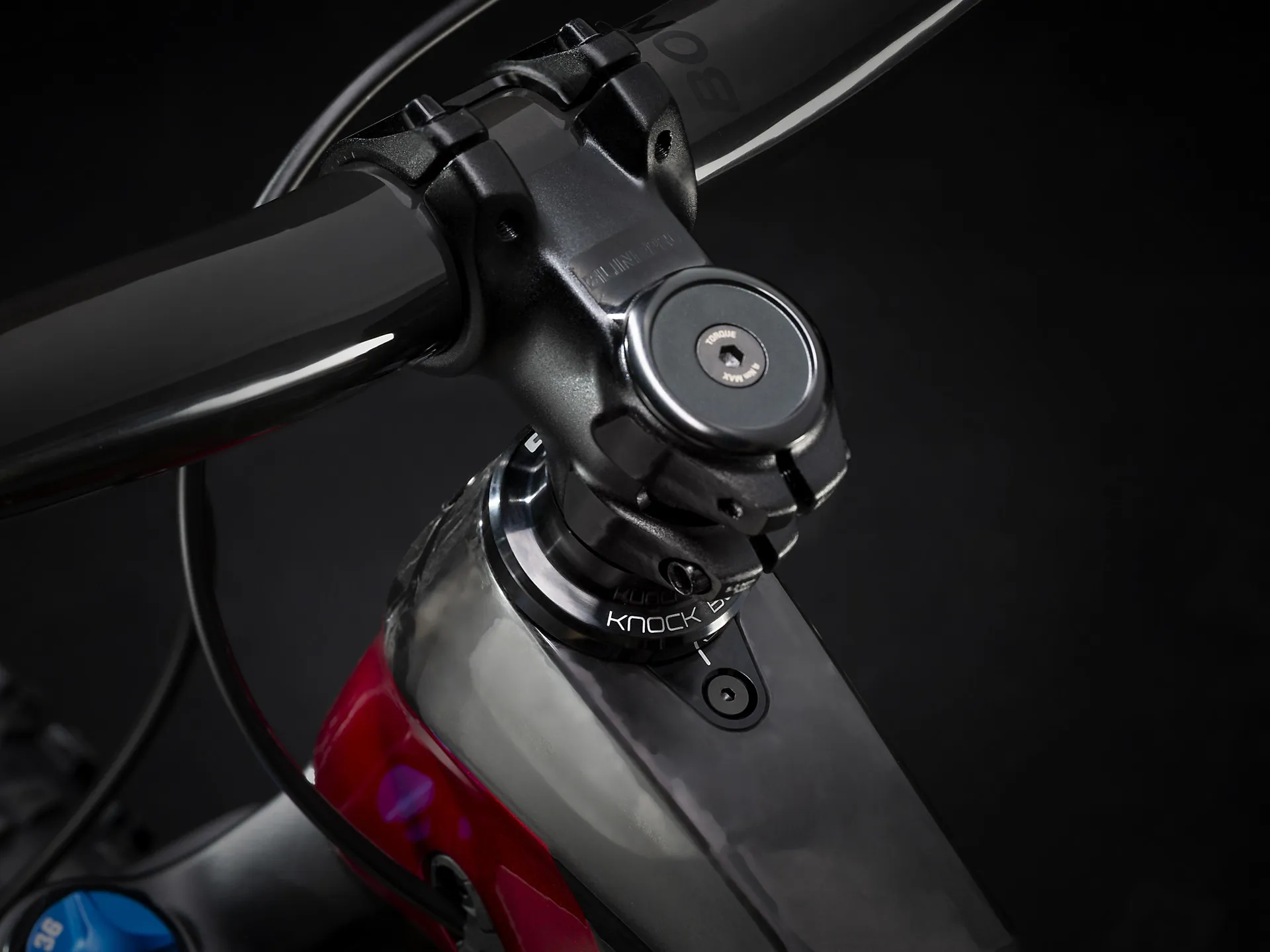

  • Stem:  Bontrager Line Pro, 35 mm, Knock Block, 0-degree
  • Saddle:  Bontrager Arvada, austenite rails, 138 mm width
  • Seatpost:  Bontrager Line Elite Dropper, internal routing, 31.6 mm
  • Accessories:  N/A
  • Weight:  M - 13.59 kg / 29.96 lbs (with tubes)

Trek Full Suspension Mountain Bikes: Fuel EX Range

Technical Information

Geometry for Trek Fuel EX 9.8 XT Full Suspension Mountain Bike

All measurements provided in cm unless otherwise stated.

Trek Fuel EX 9.8 XT Full Suspension Mountain Bike Geometry Chart

Frame Size Number 13.5 13.5 15.5 15.5 15.5 15.5 17.5 17.5 18.5 18.5 19.5 19.5 21.5 21.5
Wheel Size  XS XS S S S S M M ML ML L L XL XL
Geometry Position High Low High Low High Low High Low High Low High Low High Low
Wheel Size 27.5" 27.5" 27.5" 27.5" 29" 29" 29" 29" 29" 29" 29" 29" 29" 29"
A - Seat Tube 35.5 35.6 35.5 39.5 39.5 39.5 42.0 42.0 43.5 43.5 45.0 45.0 50.0 50.0
B - Seat Tube Angle 75.5° 70.0° 75.5° 70.0° 75.5° 70.0° 75.5° 70.0° 75.5° 70.0° 75.5° 70.0° 75.5° 70.0°
C -  Head Tube Length 9.0 9.0 10.0 10.0 10.0 10.0 10.0 10.0 10.5 10.5 10.5 10.5 12.0 12.0
D -  Head Angle 66.5° 66.0° 66.5° 66.0° 66.5° 66.0° 66.5° 66.0° 66.5° 66.0° 66.5° 66.0° 66.5° 66.0°
E - Effective Top Tube 54.5 55.0 56.7 56.8 57.7 57.8 60.2 60.3 61.8 61.9 63.3 63.4 66.1 66.3
F - Bottom Bracket Height 34.1 33.5 34.1 33.5 34.6 33.9 34.6 33.9 34.6 33.9 34.6 33.9 34.6 33.9
G - Bottom Bracket Drop 1.4 2.1 1.4 2.1 2.8 3.4 2.8 3.4 2.7 3.4 2.7 3.4 2.7 3.4
H - Chainstay Length  43.5 43.7 43.5 43.7 43.5 43.7 43.5 43.7 43.5 43.7 43.5 43.7 43.5 43.7
I - Offset 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3 4.3
J - Trail 10.7 11.1 10.8 11.1 11.5 11.9 11.6 11.9 11.6 11.6 11.9 11.6 11.9 11.6
K - Wheelbase 111.9 112.0 114.3 114.4 115.3 115.4 117.8 117.9 119.5 119.6 121.0 121.1 124.1 124.2
L - Standover 70.0 69.5 70.7 70.2 70.7 70.2 74.7 74.1 75.2 74.6 75.4 74.8 77.6 77.0
M - Frame Reach 40.0 39.5 42.0 41.5 42.0 41.5 44.5 44.0 46.0 45.5 47.5 47.0 50.0 49.5
N - Frame Stack 55.9 56.3 56.8 57.2 60.5 60.8 60.5 60.8 60.9 61.3 60.9 61.3 62.3 62.7
