The Trek Marlin 5 is a versatile hardtail that can be rough on trails but doubles perfectly as a commuter bike, with mounts for a rack and kickstand, so you get more for your money.
The Trek Marlin 5 is a versatile hardtail that can be rough on trails but doubles perfectly as a commuter bike, with mounts for a rack and kickstand, so you get more for your money.
Trek

Trek Marlin 5 Hardtail Mountain Bike 2021 in Factory Orange

£396.00 £495.00 20% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Marlin 5 Hardtail Mountain Bike 2021 in Factory Orange

Season:2024

Brand:Trek

Code:YRGmuihtiLGROyrotcaF12026

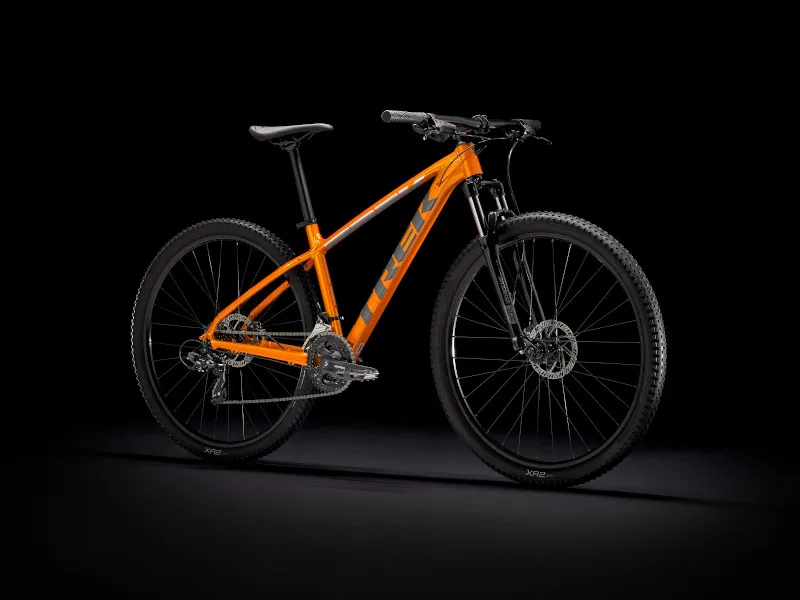

The Trek Marlin 5 is a trail-worthy daily rider that's perfectly suited for everyday adventures, on and off the trail. A suspension fork, 21 speeds and mounts for a rack and kickstand make it an ideal choice for new trail riders or anyone looking for a comfortable, stable commuter with the ruggedness of a real mountain bike.
The Marlin 5 features a lightweight aluminium frame with internal shift cable and brake hose routing to protect your cables and add to the bike's sleek look and a suspension fork that takes the edge off bumps and rough terrain. The smaller frame sizes (XS and S) have short-reach brake levers that make it easier and more comfortable for riders with smaller hands to brake confidently and a curved top tube and a lower standover height that makes it easier for smaller riders to mount and dismount, so you get a bike perfectly moulded to your size.

This versatile hardtail delivers a great ride for all your adventures, but also doubles perfectly as a commuter bike so you can get the best of both worlds!

Key Features & Benefits:

SR Suntour suspension fork: For comfort and control.

Hydraulic disc brakes: For reliable stopping in all conditions.

Shimano 21 speed gears: To get you up the steepest of hills.

Full Specification:

  • Frame: Alpha Silver Aluminium, internal routing, chainstay disc-brake mount, rack and kickstand mount, 135x5 mm QR
  • Rear Shock (If Applicable): N/A

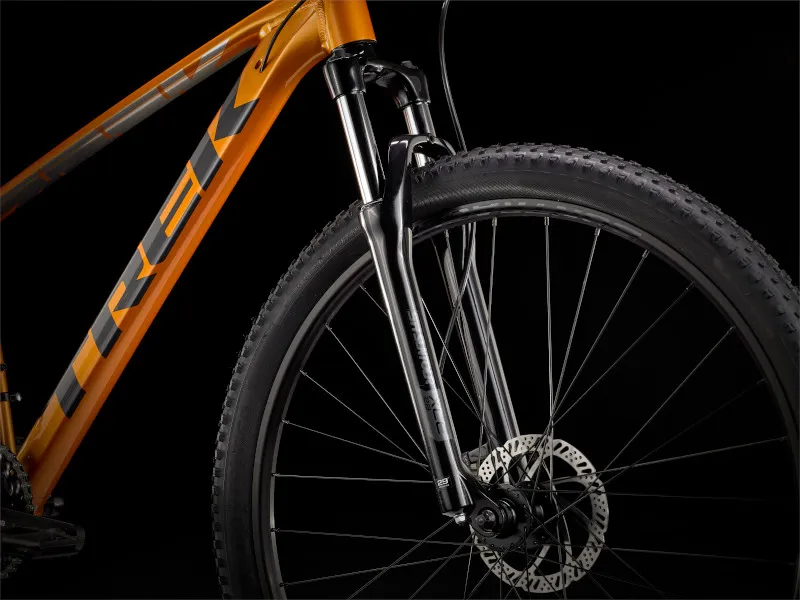

  • Fork: SR Suntour XCE 28, coil spring, preload, 80 or 100 mm travel, depensing on wheel size
  • Number of Gears: 21
  • Gear Shifters: Shimano Altus M315, 7-speed

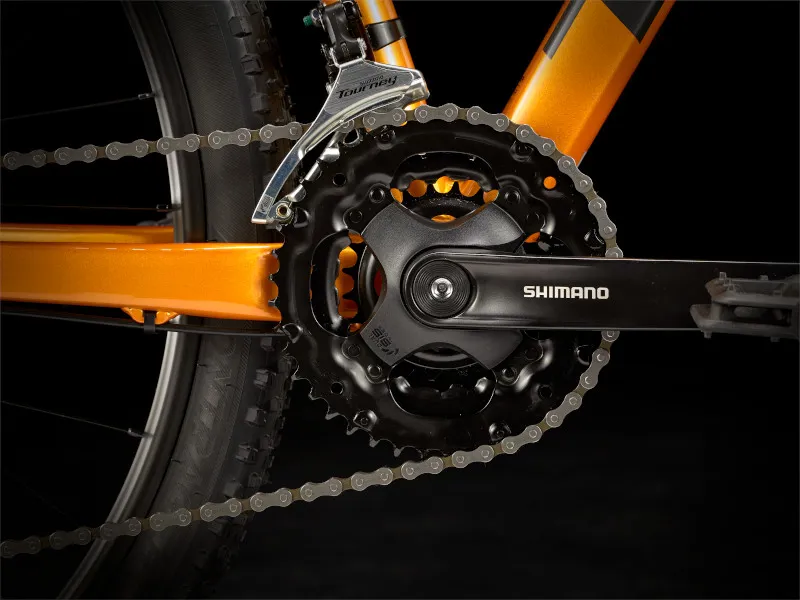

  • Chainset: Shimano Tourney TY301
  • Chainrings: 42/34/24
  • Rear Cassette: Shimano HG200, 12-32, 7-speed
  • Chain: KMC Z7, 7-speed
  • Front Derailleur: Shimano Tourney TY300, 34.9 mm clamp, down swing, down pull

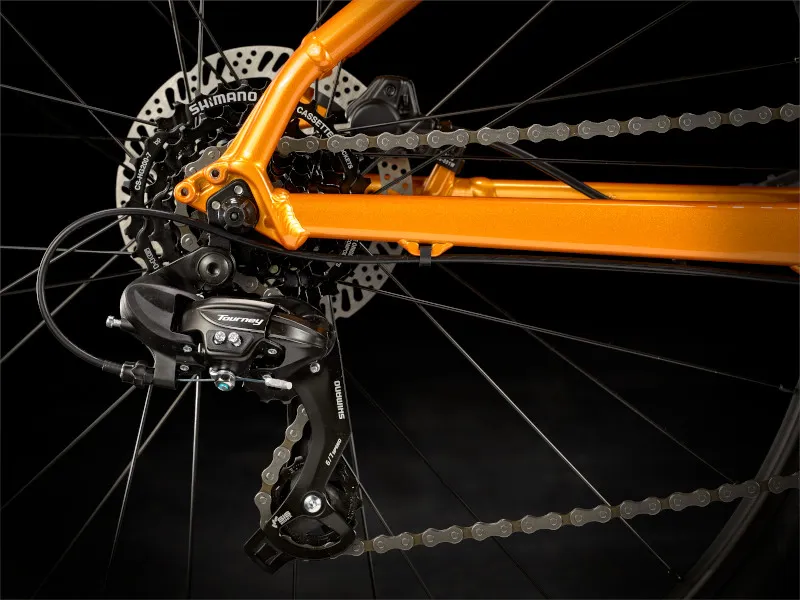

  • Rear Derailleur: Shimano Tourney TY300, long cage, 34T max cog
  • Bottom Bracket: VP BC73, 73 mm, threaded cartridge
  • Pedals: VP-536 nylon platform

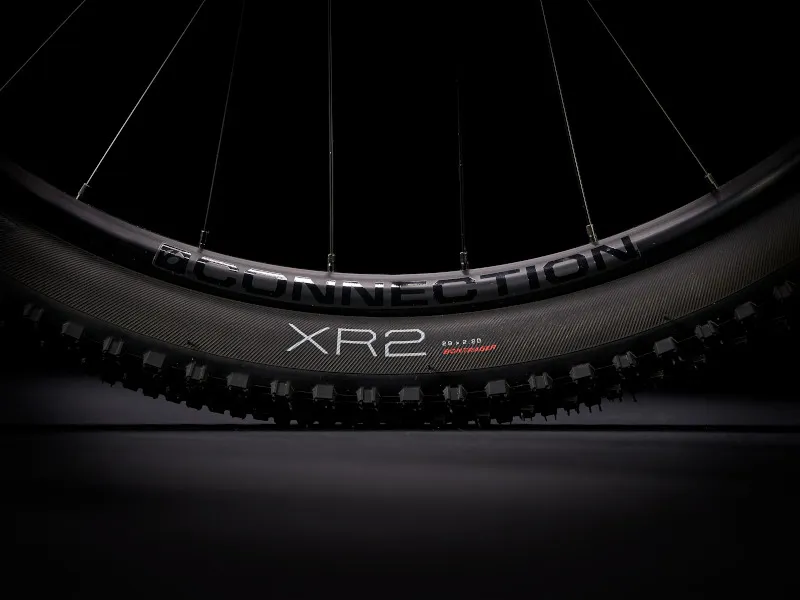

  • Rims: Bontrager Connection, double-wall, 32-hole, 20 mm width, Schrader valve
  • Front Hub: Formula DC-20, alloy, 6-bolt, 5x100 mm QR
  • Rear Hub: Formula DC-27, alloy, 6-bolt, 7sp freehub, 135x5 mm QR
  • Front Tyre: Bontrager XR2 Comp Size XS, S 27.5x2.2", Sizes M, ML, L, XL, XXL 29x2.2"
  • Rear Tyre: Bontrager XR2 Comp Size XS, S 27.5x2.2", Sizes M, ML, L, XL, XXL 29x2.2"

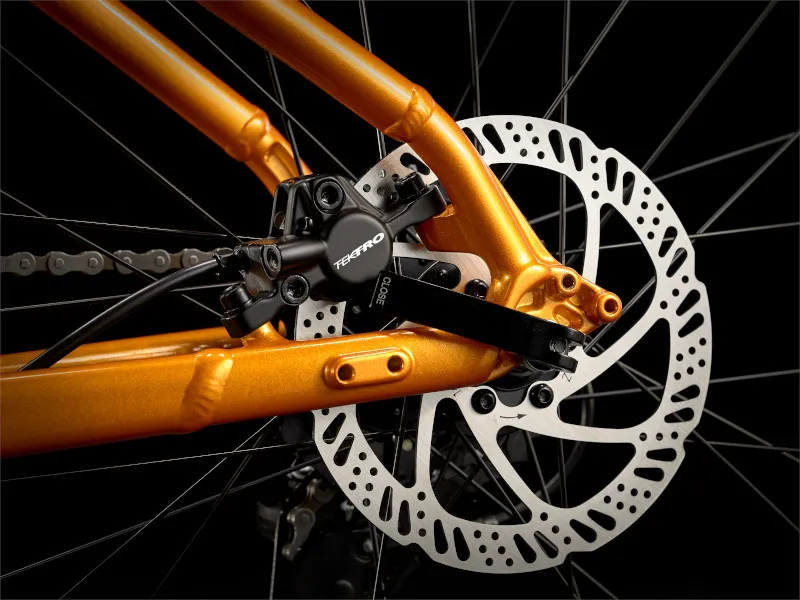

  • Brakes: Tektro HD-M275 or M276 hydraulic disc
  • Handlebars: Bontrager alloy, 31.8 mm, 5 mm rise, 690 mm width
  • Handlebar Grips: Bontrager XR Endurance Comp
  • Headset: Semi-integrated, 1-1/8"
  • Stem: Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree

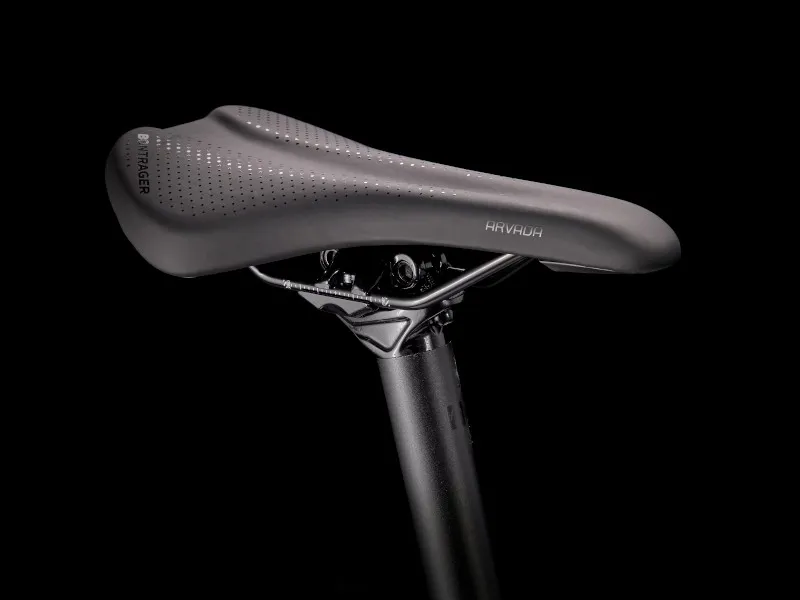

  • Saddle: Bontrager Arvada, steel rails, 138 mm width
  • Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset
  • Accessories: N/A
  • Weight: M - 14.44 kg / 31.84 lb (with tubes)
Technical Information

Geometry for Trek Domane AL 5 Disc Sportive Road Bike

All measurements provided in cm unless otherwise stated.

Trek Domane AL 5 Disc Sportive Road Race Bike Geometry Chart

Frame Size Number 44 49 52 54 56 58 61
Wheel Size  700c 700c 700c 700c 700c 700c 700c
A - Seat Tube 39.0 44.0 47.5 50.0 52.5 54.8 57.6
B - Seat Tube Angle 74.6° 74.6° 74.2° 73.7° 73.3° 73.0° 72.7°
C -  Head Tube Length 9.5 12.3 14.5 16.0 17.5 19.5 23.5
D -  Head Angle 70.3° 70.8° 71.3° 71.3° 71.9° 72.0° 72.1°
E - Effective Top Tube 50.7 51.6 53.0 54.2 55.4 56.7 58.6
G - Bottom Bracket Drop 8.0 8.0 8.0 8.0 7.8 7.8 7.5
H - Chainstay Length  42.0 42.5 42.0 42.0 42.0 42.5 42.5
I - Offset 5.3 5.3 5.3 5.3 4.8 4.8 4.8
J - Trail 6.6 6.6 5.9 5.9 6.1 6.0 6.3
K - Wheelbase 98.3 100.1 100.3 101.0 100.8 102.2 103.8
L - Standover 65.7 71.7 73.5 75.4 77.6 79.6 84.2
M - Frame Reach 36.0 36.8 37.1 37.4 37.7 38.0 38.5
N - Frame Stack 51.0 54.0 56.1 57.5 59.1 61.1 64.6



Sizing Information
Professional Opinion
Question(s) answered about Trek Marlin 5 Hardtail Mountain Bike 2021 in Factory Orange
Ask a question
Question(s) asked regarding Trek Marlin 5 Hardtail Mountain Bike 2021 in Factory Orange

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close
  • Question asked by Mindaugas on 17/05/2021 13:11:37
    Hi, I would recommend a Size Large which is recommended for riders between 177cm - 188cm. I hope this helps,

    Thanks,
    Balfe's Bikes
  • Hi is it come in box or ready to ride?
    Question asked by Anna on 13/02/2021 14:48:13
    Hi there,

    If the bike is home delivered, it will be sent out in a bike box, however it will be fully built. The only procedures you will need to carry out is fitting the pedals and aligning the handlebars.

    Please see the delivery page for more information: https://www.balfesbikes.co.uk/pages/delivery/
