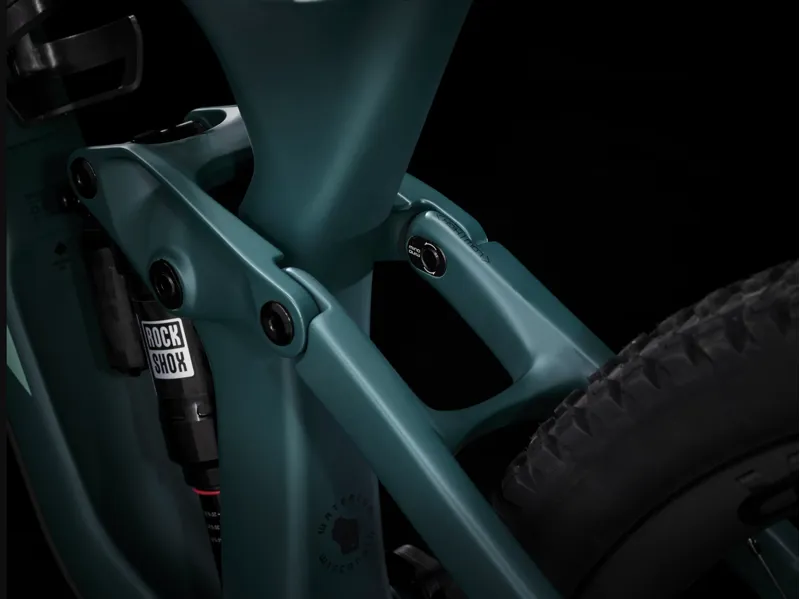

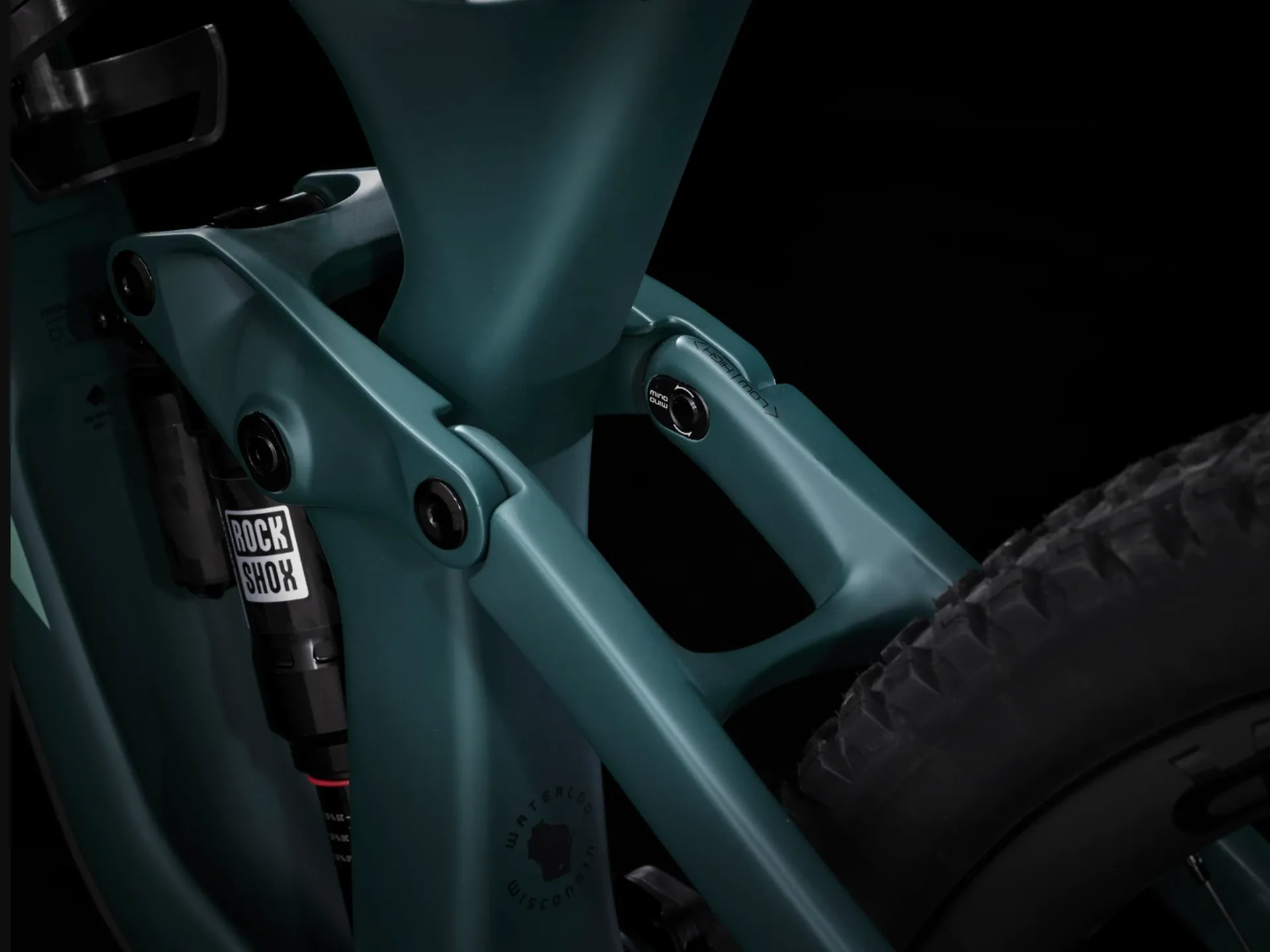

Frame
OCLV Mountain Carbon main frame and stays, internal storage, tapered head tube, Knock Block 2.0, Control Freak internal routing, Carbon Armour, shuttle guard, threaded BB, ISCG 05, 34.9 mm seat tube, magnesium rocker link, Mino Link, ABP, Boost148, 160 mm travel

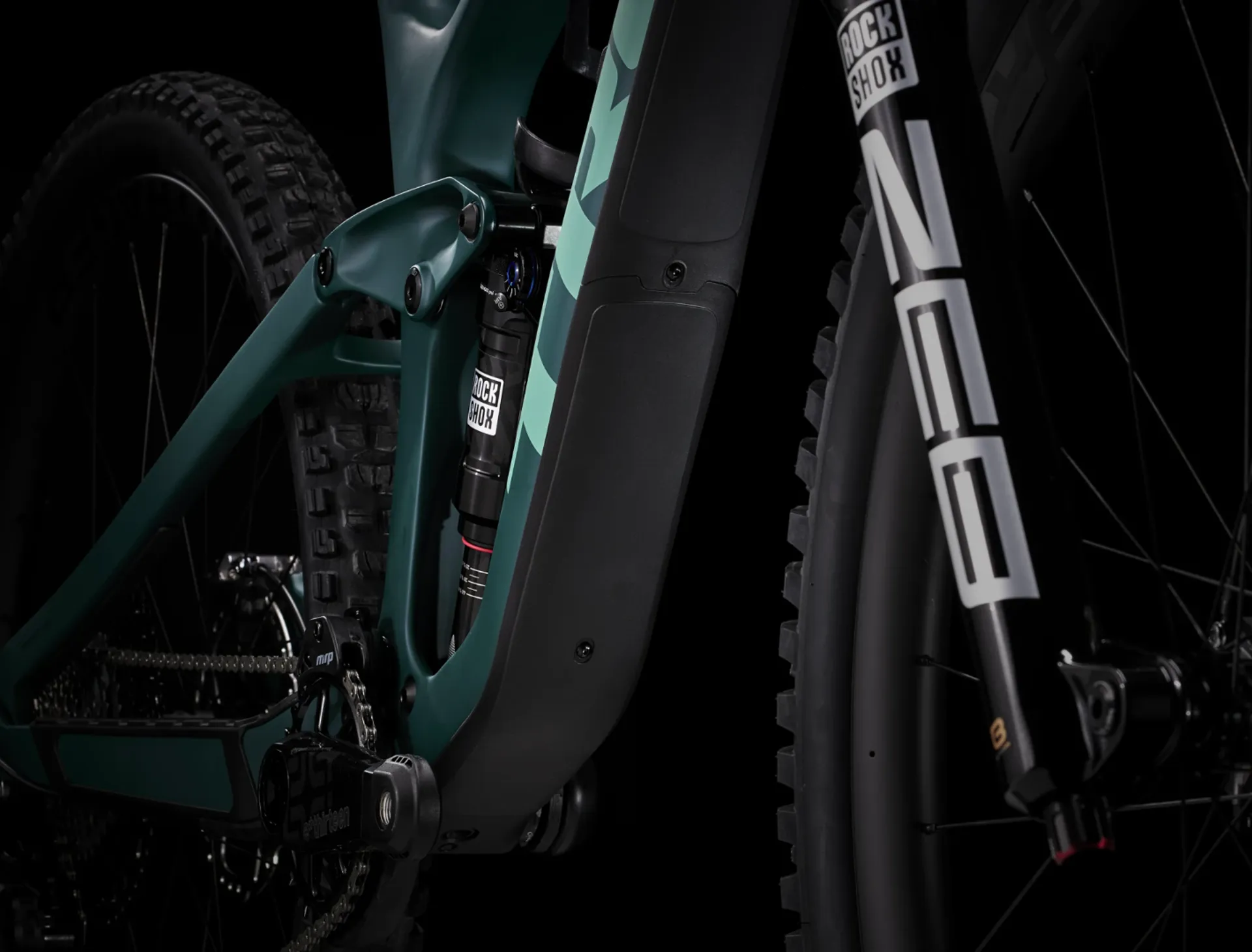

Fork
RockShox Zeb Ultimate, DebonAir spring, Charger 3 RC2 damper, 44 mm offset, Boost110, Maxle Stealth, 170 mm travel

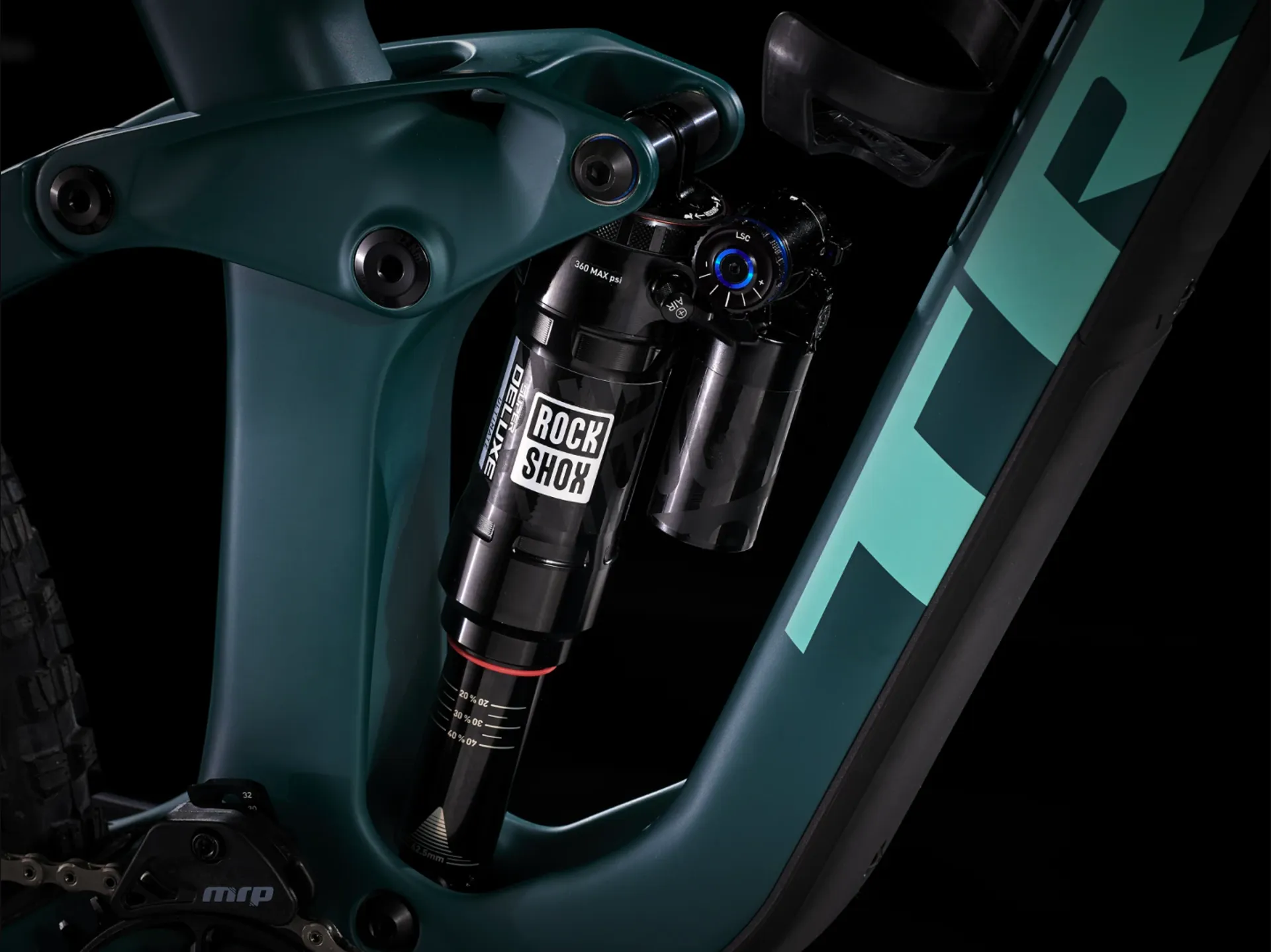

Shock
RockShox Super Deluxe Ultimate RCT2, AirWiz, 230 mm x 62.5 mm
Max compatible fork travel
180 mm (596 mm axle-to-crown)
Wheel front
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless-Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost 148, 12 mm thru axle
Rim
Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready
Tyre
Size: S , M , ML , L , XL
Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Size: S , M , ML , L , XL
Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 tpi, 29x2.50"
Rim strip
Bontrager TLR
Max tyre size
Frame: 29x2.50"
Shifter
Shimano XTR M9100, 12-speed

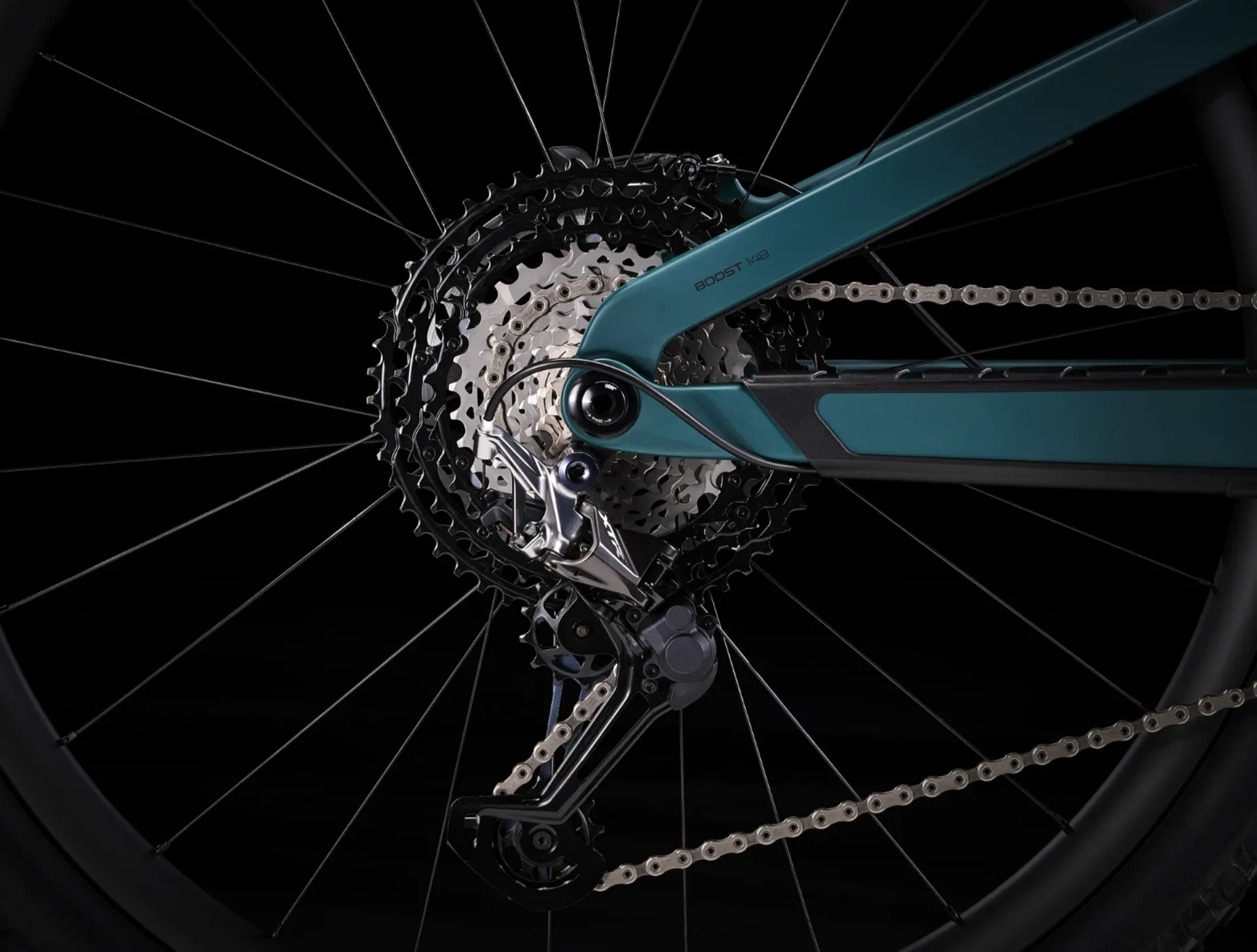

Rear derailleur
Shimano XTR M9100, Shadow Plus, long cage, 51-T max cog

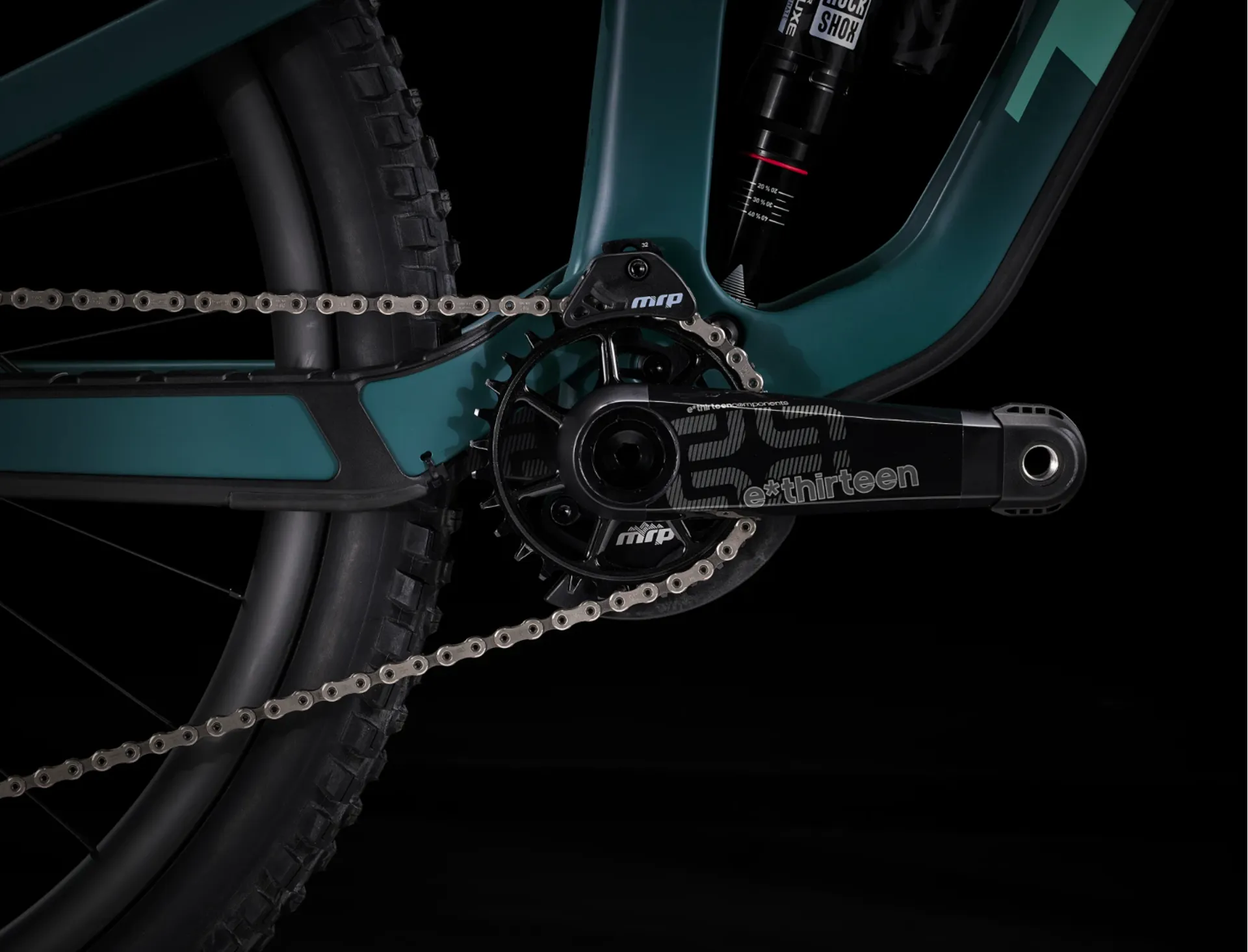

Crank
E*thirteen LG1 Race Carbon, 30T, 55 mm chainline, 170 mm length
Bottom bracket
E*thirteen BB20-P, BSA threaded, 73 mm width
Cassette
Shimano XTR M9101, 10-51, 12-speed
Chain
Shimano Dura-Ace/XTR M9100, 12-speed
Max. chainring size
Max: 34T, Min 28T

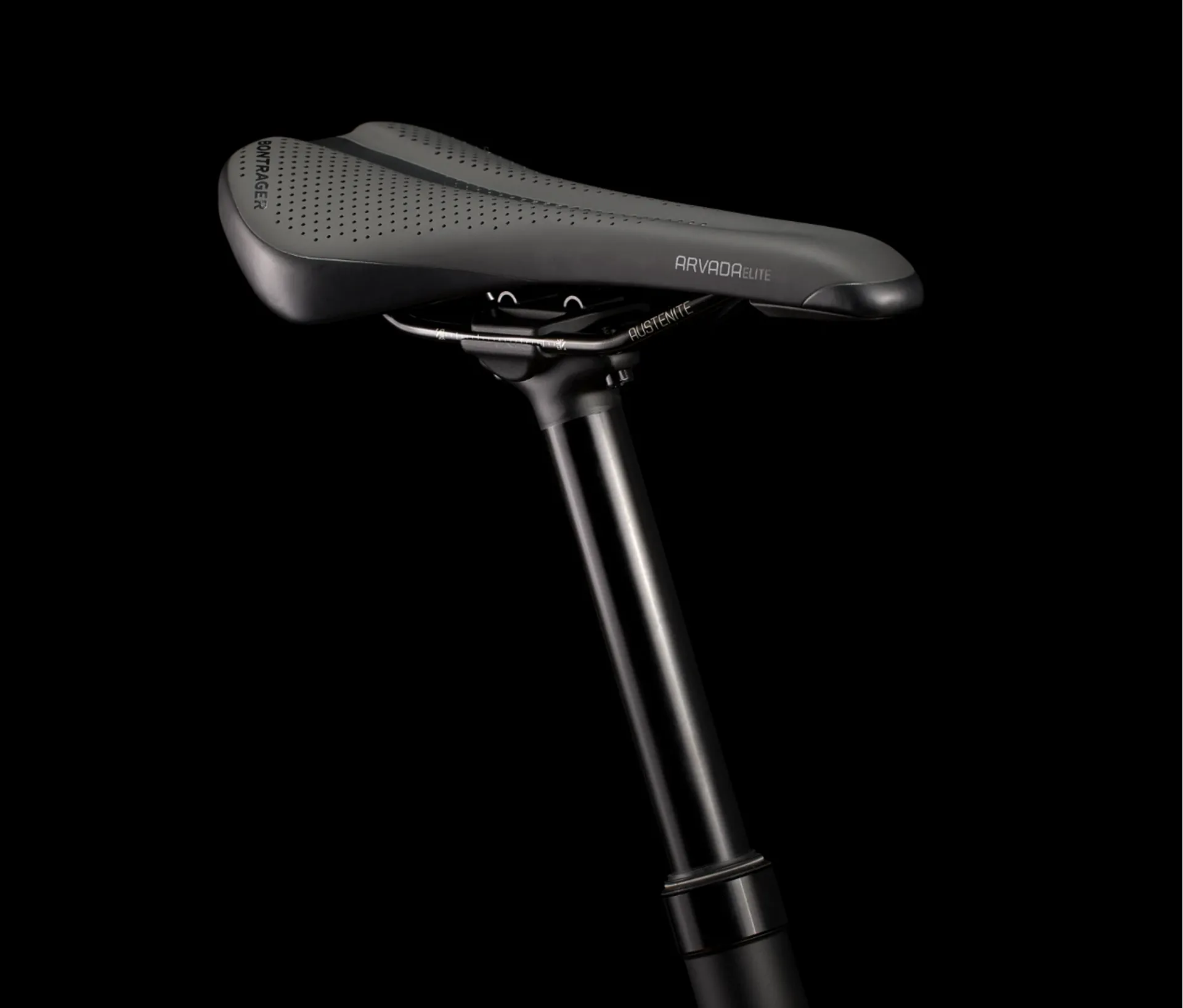

Saddle
Bontrager Arvada, austenite rails, 138 mm width
Seatpost
Size: S
Bontrager Line Elite Dropper, 100 mm travel, MaxFlow, internal routing, 34.9 mm, 345 mm length
Size: M , ML
Bontrager Line Elite Dropper, 150 mm travel, MaxFlow, internal routing, 34.9 mm, 440 mm length
Size: L
Bontrager Line Elite Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 485 mm length
Size: XL
Bontrager Line Elite Dropper, 200 mm travel, MaxFlow, internal routing, 34.9 mm, 550 mm length
Integrated Bar Stem
Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 27.5 mm handlebar rise, 820 mm width, 0-degree stem rise, 35 mm stem length
Grips
Bontrager XR Trail Pro, alloy lock-on
Head set
Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom

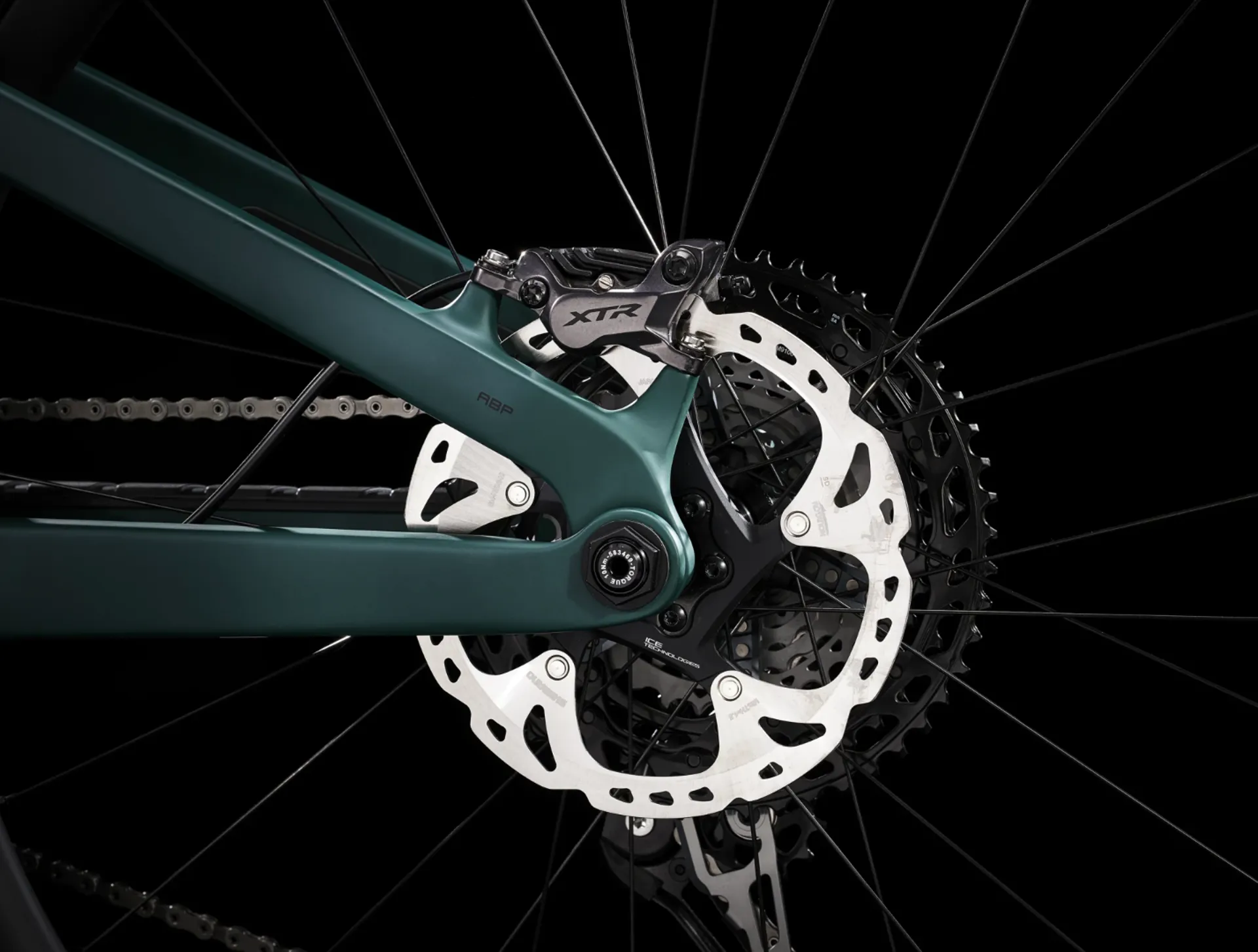

Brake
Shimano XTR M9120 4-piston hydraulic disc
Brake rotor
Size: S , M , ML , L , XL
Shimano RT86, 6-bolt, 180 mm
Size: S , M , ML , L , XL
Shimano RT86, 6-bolt, 203 mm
Rotor size
Max brake rotor sizes: Front see fork manufacturer, rear 200 mm

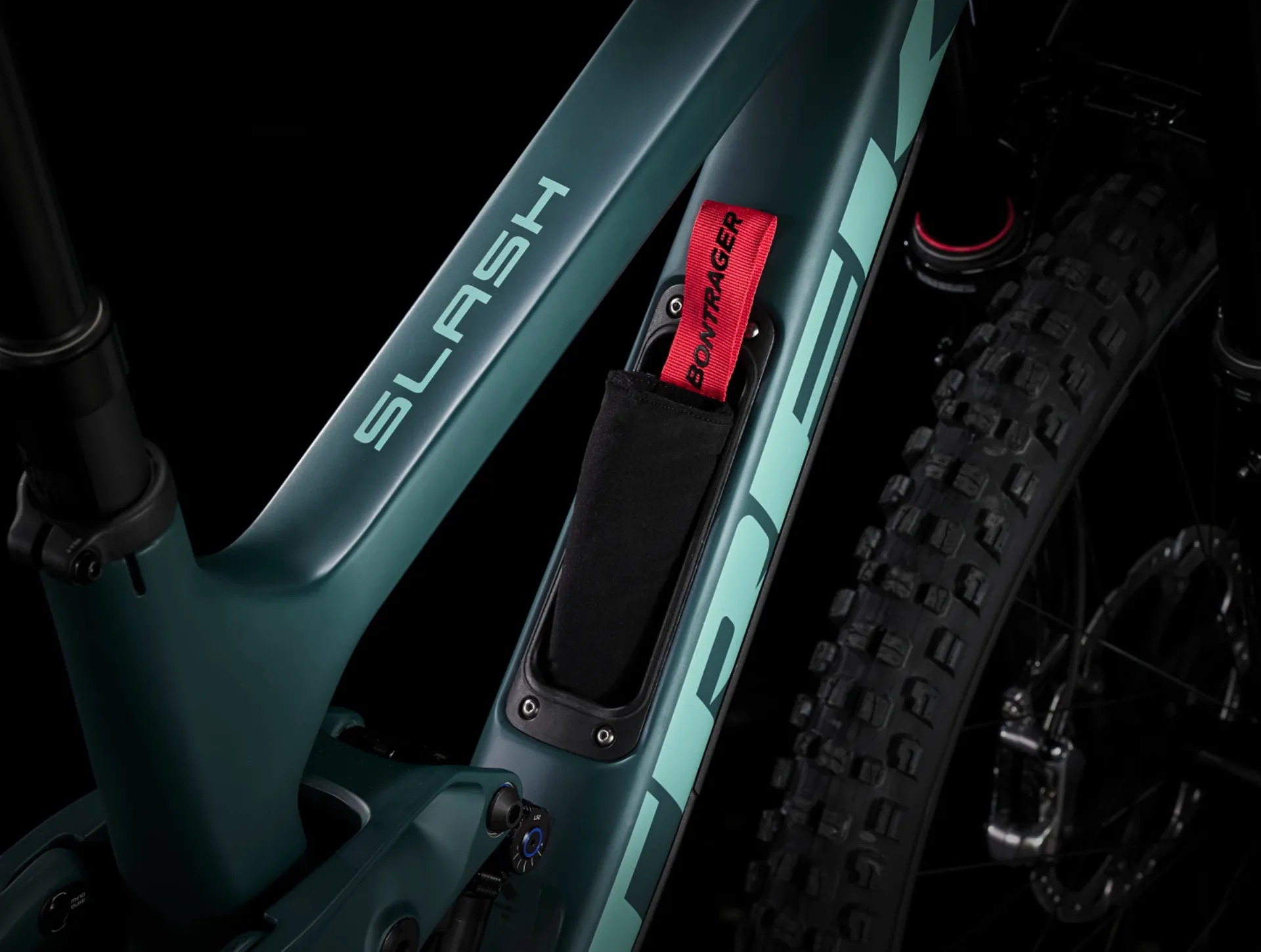

Bag
Bontrager BITS Internal Frame Storage Bag
Weight
M - 14.05 kg / 30.98 lbs (with TLR sealant, no tubes)
Weight limit
This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb)
