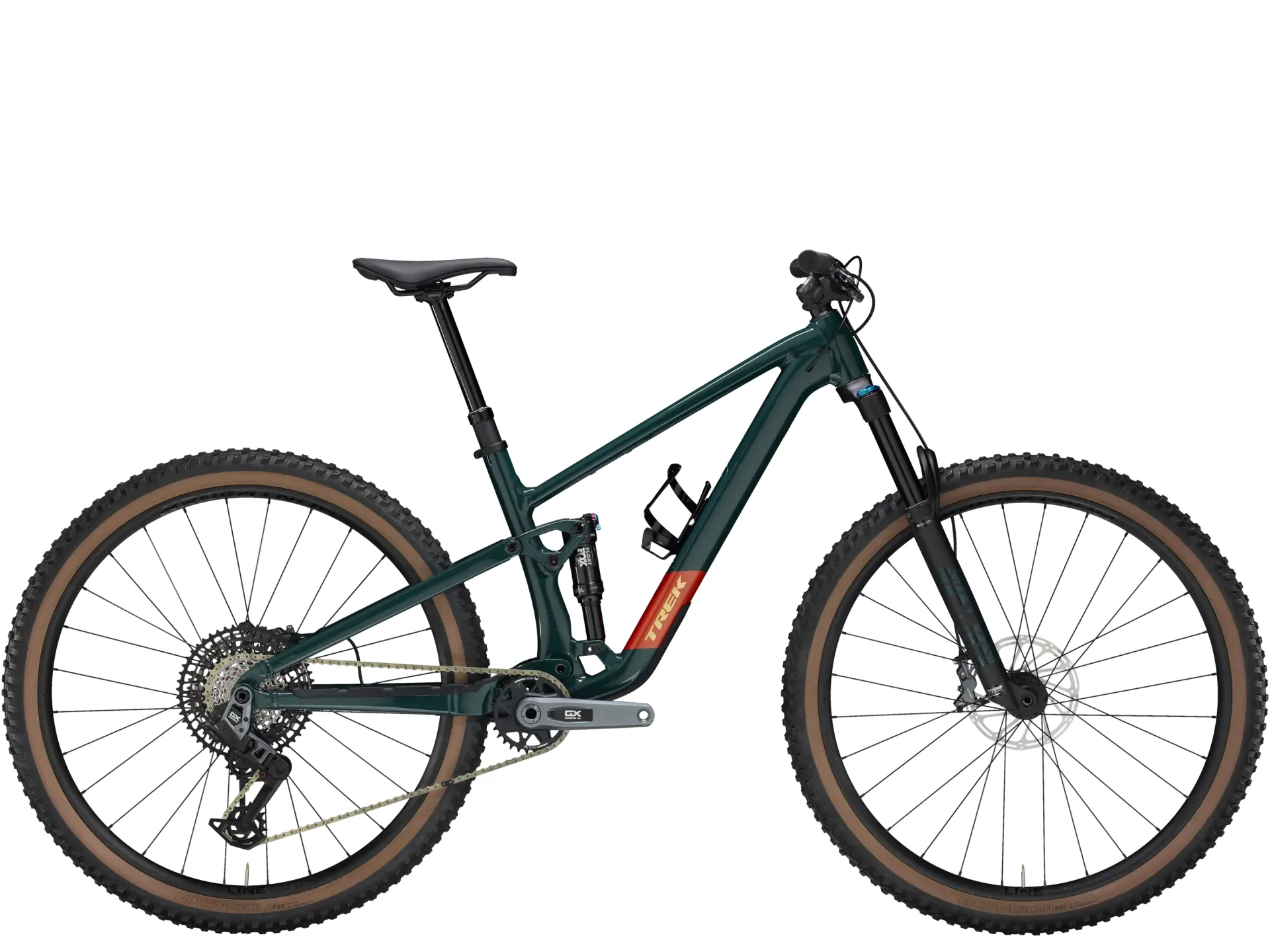

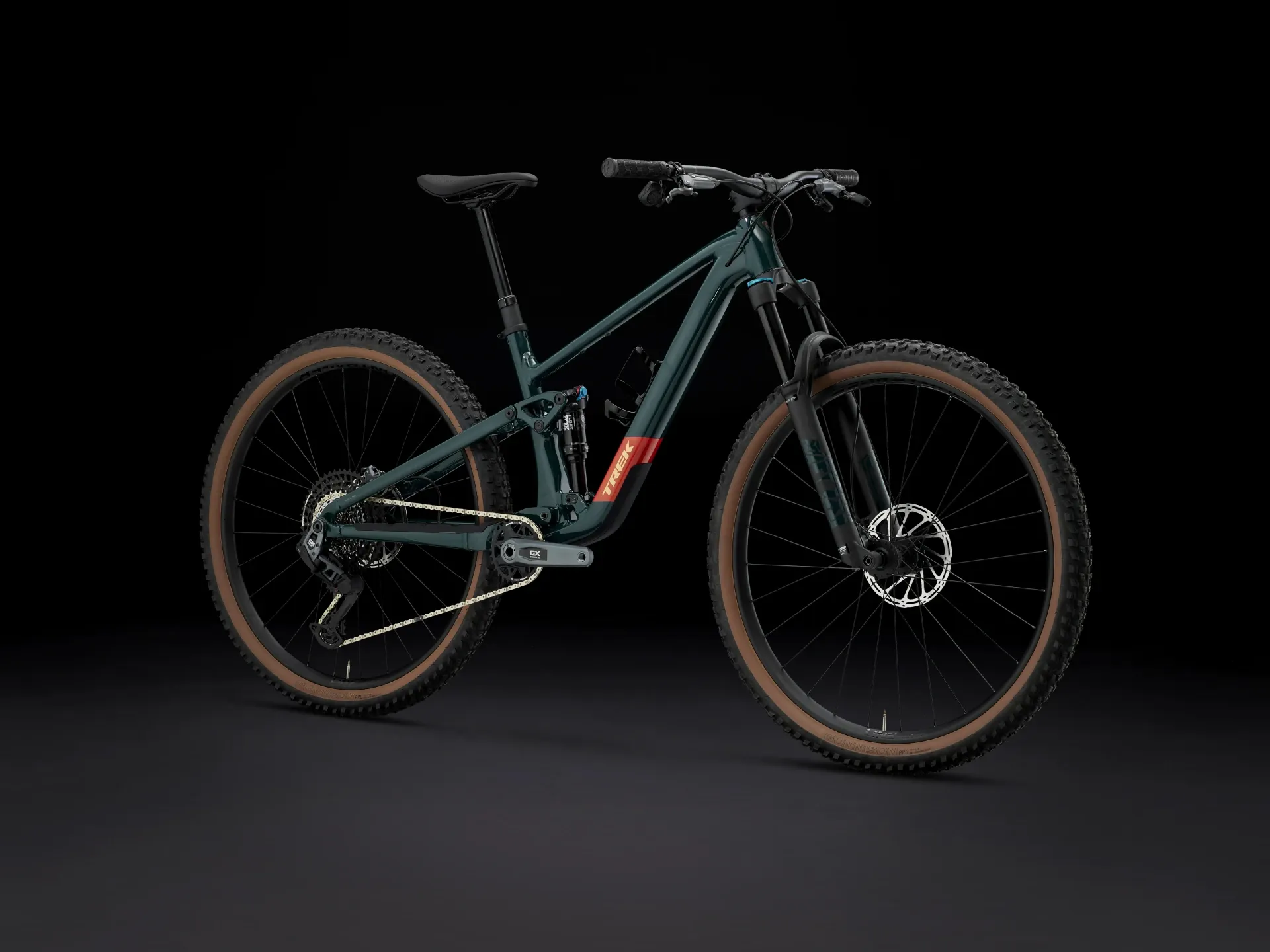

The Top Fuel 9 Gen 4 is an alloy trail bike that's ready to billy-goat up long climbs and rip back to the bottom for another lap. It gives you the rugged benefits of a lightweight aluminium frame, plus the upgrades you crave, like fully wireless shifting from SRAM's GX Eagle AXS transmission, 4-piston hydraulic brakes and a 120 mm/130 mm FOX suspension package.
It's right for you if...You like balance in most things you do – a combination of climbing power and descending confidence, nimble handling and full-suspension comfort, bike budget and component performance. You like the durability and affordability that an alloy frame offers and want upgrades where they matter most.
The tech you getAn Alpha Platinum Aluminium frame equipped with a 4-way Mino Link lower shock mount for tweaking geometry and suspension leverage rate. A 130 mm FOX Rhythm 34 fork with Float EVOL air spring and GRIP damper, plus 120 mm of rear travel from a Fox Performance Float DPS shock with a 3-position damper. It's topped off with a wireless electronic SRAM GX Eagle transmission, 4-piston hydraulic disc brakes, a Bontrager Line dropper post and Tubeless Ready Bontrager Line Comp 30 wheels.
The final wordThe Top Fuel 9 Gen 4 is built for those who want the best of both worlds. It's a great choice for all-around trail riders who may start the day with a pedal fest, but end it with long descents. It delivers on upgrades where you want them most, like your suspension and group set, but keeps the price down with an alloy frame.
Key Features & Benefits:
- Hydraulic Disc Brakes:Accurate and powerful braking capacity to keep you in control in all weather conditions.
- All-mountain ripper:The sweetest alloy build with a fully wireless SRAM transmission, upgraded suspension and a light yet rugged frame
- Mino Link:4-way Mino Link makes it easy to adjust your geometry or leverage rate for how and where you want to ride
Full Specification:
- Frame:Alpha Platinum Aluminium, internal storage, tapered head tube, internal guided routing, downtube guard, OCLV Next rocker link, Mino 4 link, ABP, Boost148, 120 mm travel

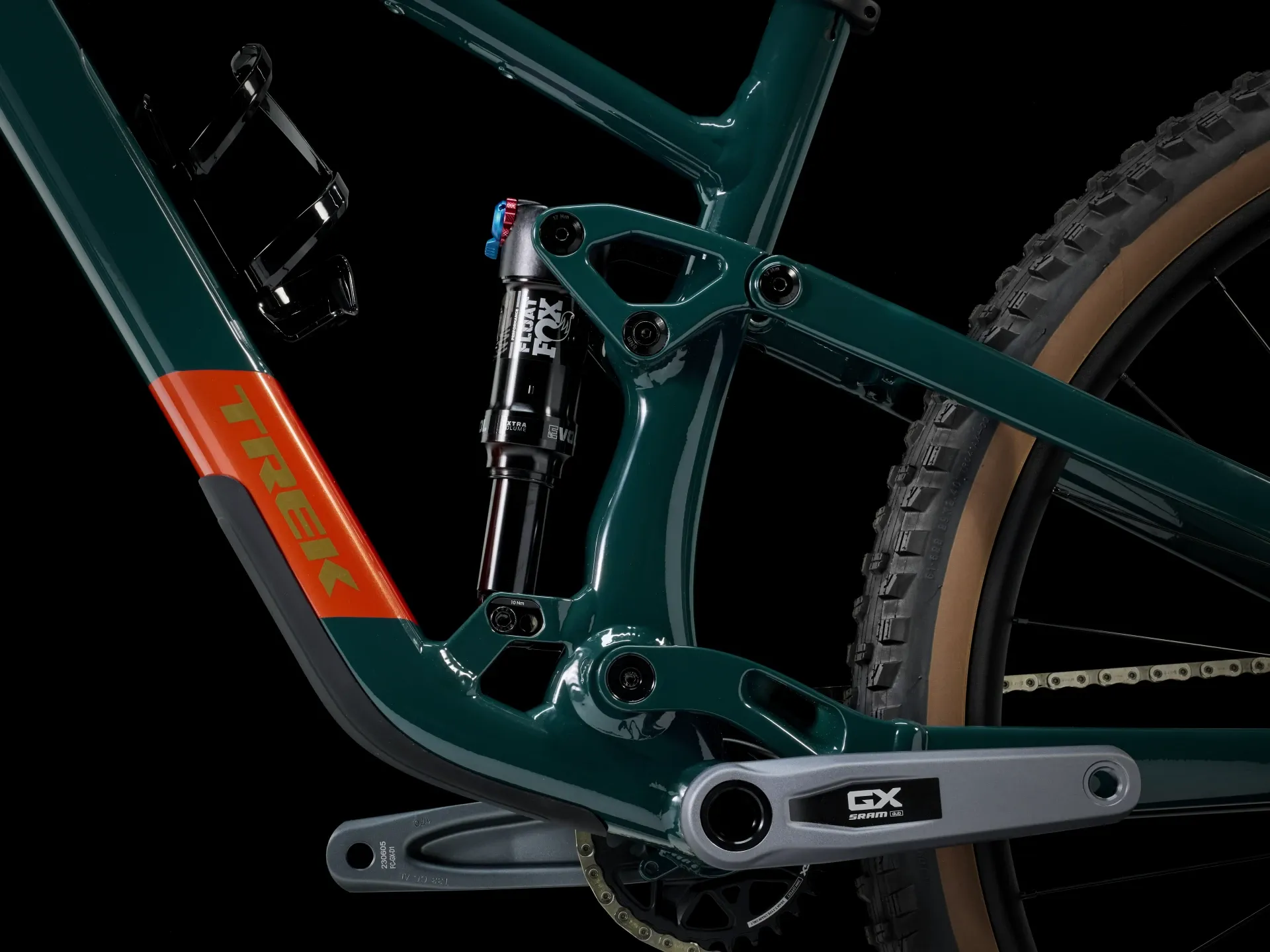

- Rear Shock:Fox Performance Float DPS, 2-position damper, 185 mm x 50 mm

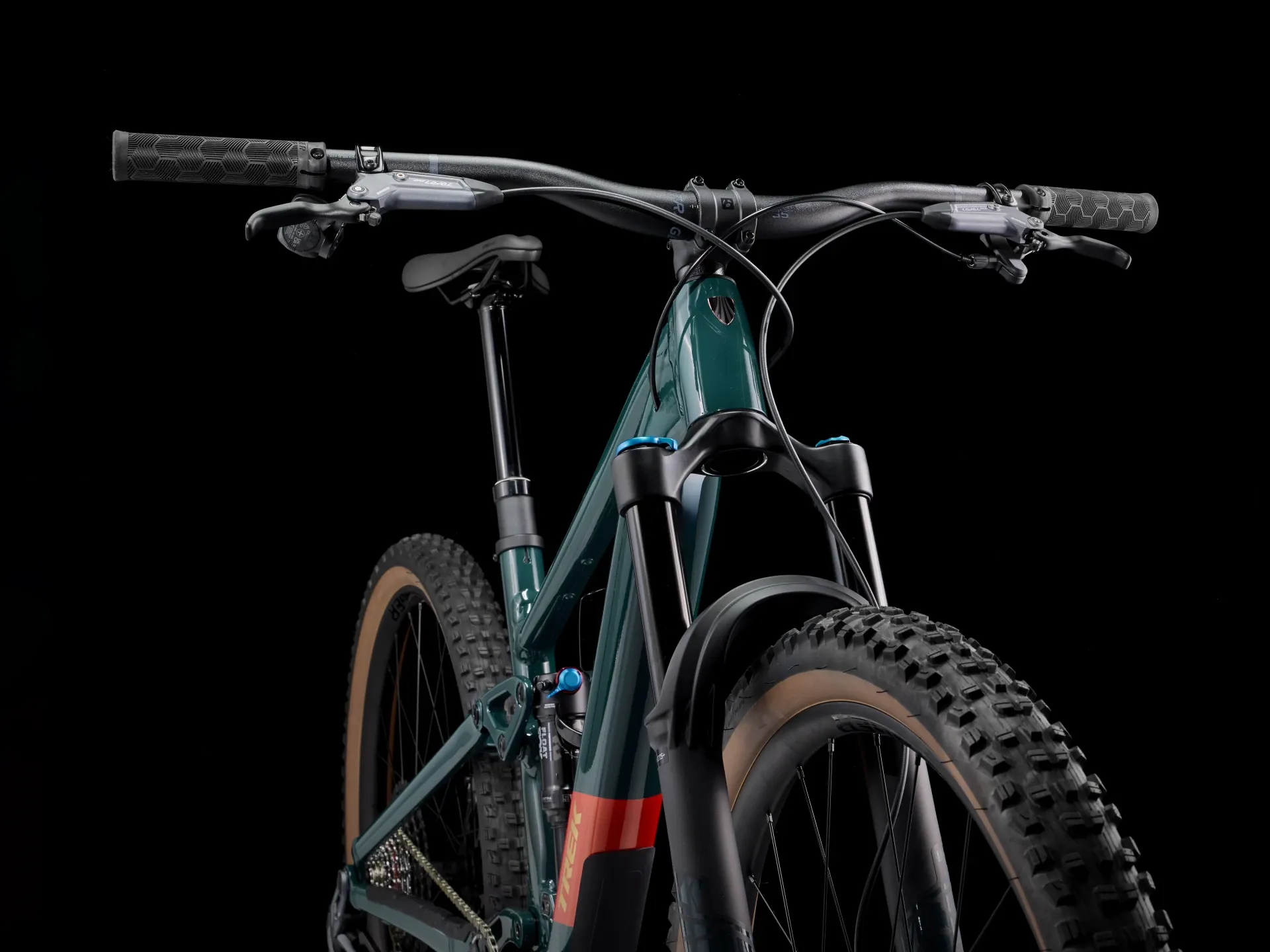

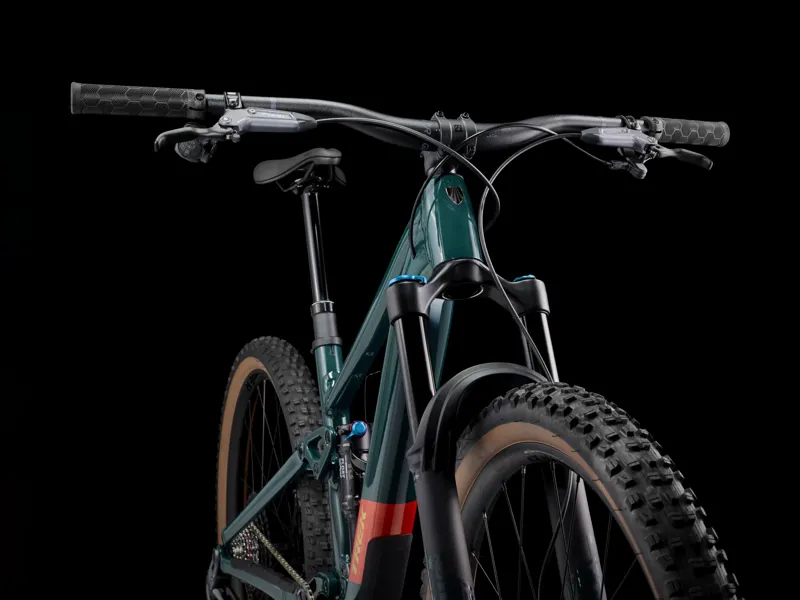

- Fork:Fox Rhythm 34, Float EVOL air spring, GRIP damper, tapered steerer, 44 mm offset, Boost110, 15 mm Kabolt axle, 130 mm travel
- Number of Gears:12
- Gear Shifters:SRAM AXS POD

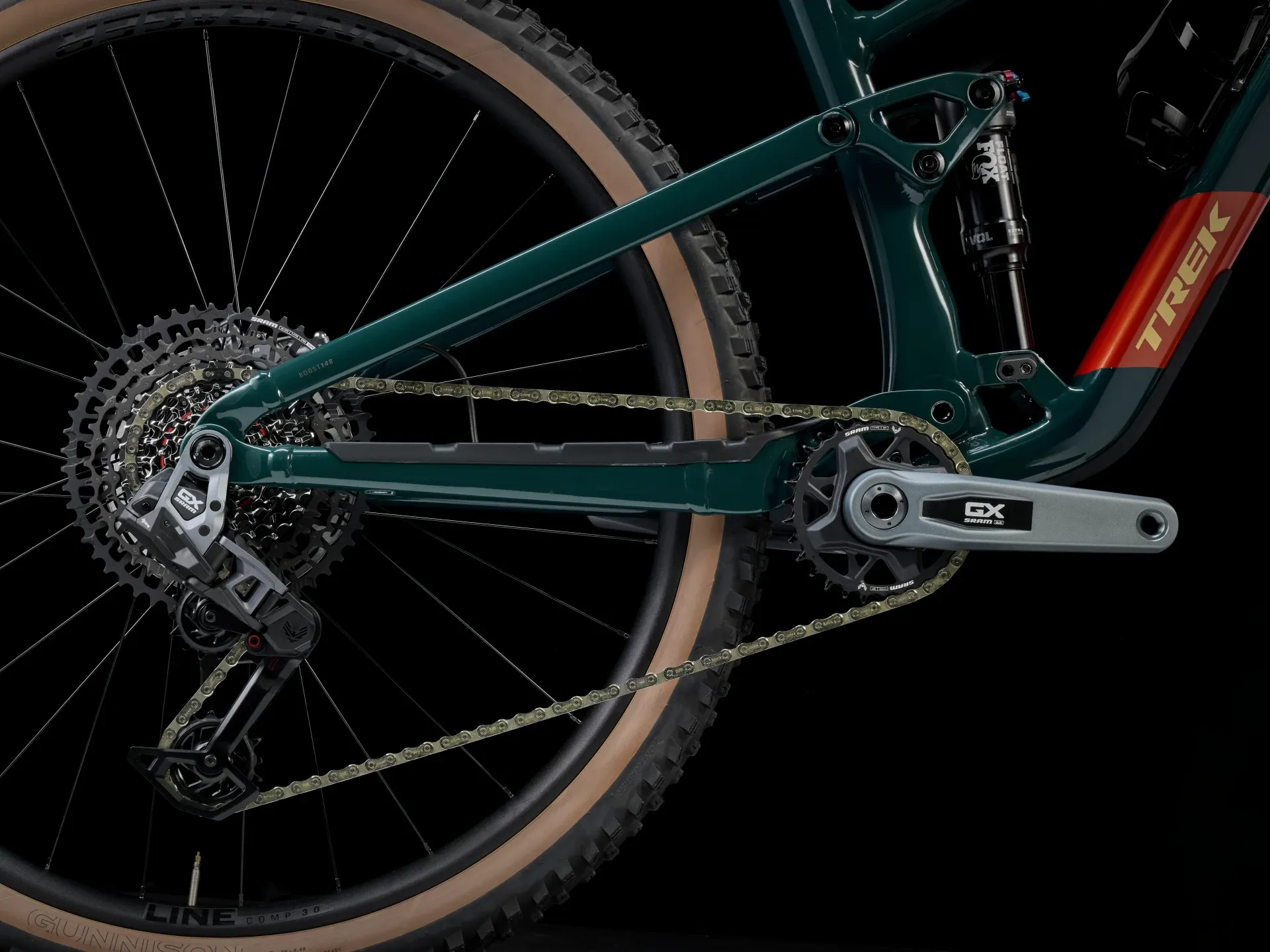

- Chainset:SRAM GX Eagle, T-Type, DUB, 30T, 55 mm chain line, 170 mm length
- Chainrings:30T
- Rear Cassette:SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
- Chain:SRAM GX Eagle, T-Type, 12-speed
- Rear Derailleur:SRAM GX Eagle AXS, T-Type
- Bottom Bracket:SRAM DUB MTB Wide, 73 m, BSA threaded
- Pedals:Not supplied:Shop pedals here
- Rims:Bontrager TLR
- Front Hub:Size: S - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 27.5", Size: M, ML, L, XL - Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
- Rear Hub:Bontrager Line Comp 30, Tubeless-Ready, Rapid Drive 54, 6-bolt, Boost148, 12 mm thru axle
- Front Tyre:Size: S - Bontrager Gunnison Pro XR, Tubeless-Ready, wire bead, 60 tpi, 27.5x2.40", Size: M, ML, L, XL - Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"
- Rear Tyre:Size: S - Bontrager Gunnison Pro XR, Tubeless-Ready, wire bead, 60 tpi, 27.5x2.40", Size: M, ML, L, XL -Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi, 29x2.40"
- Brakes:SRAM Level Bronze 4-piston hydraulic disc

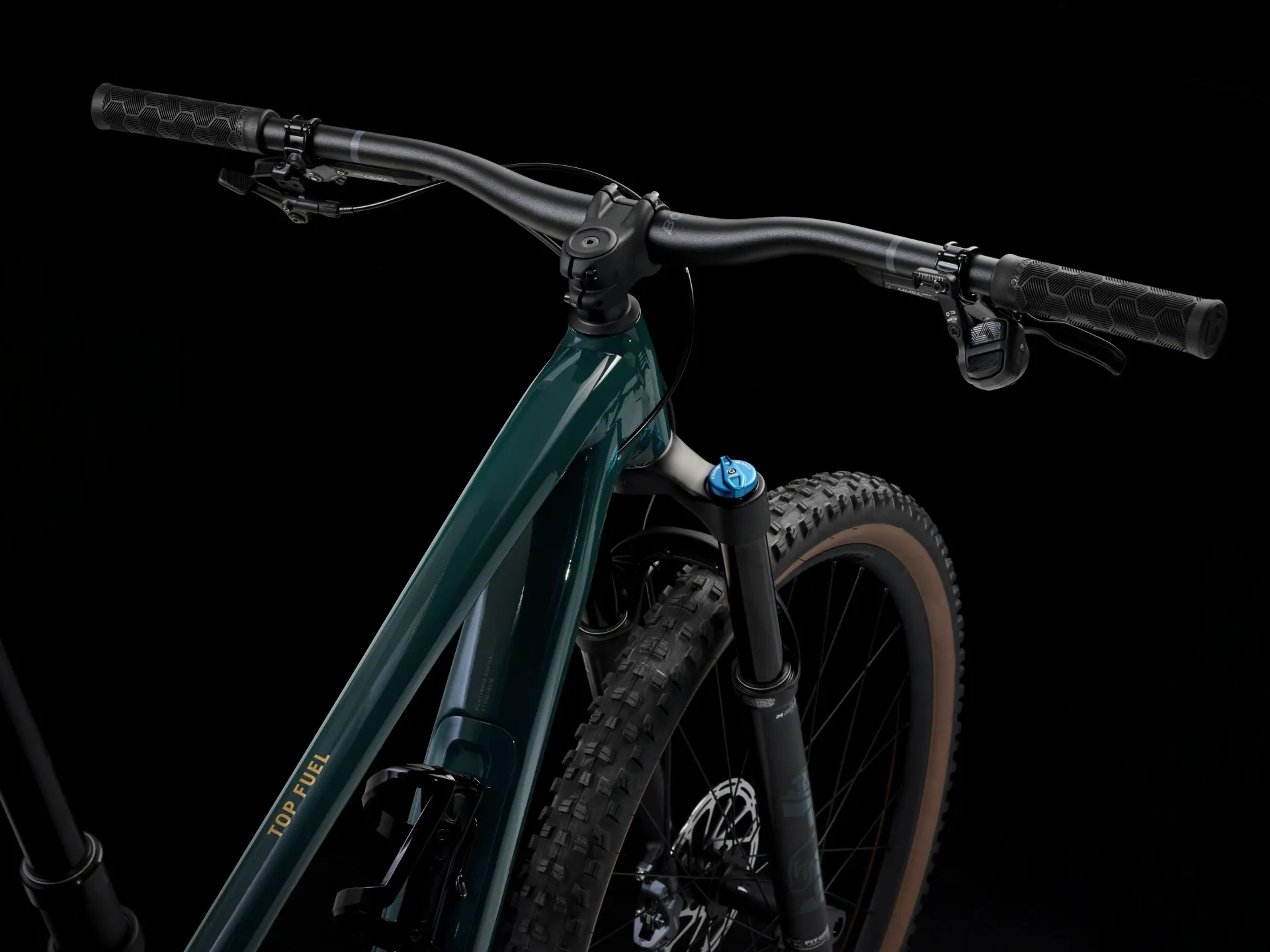

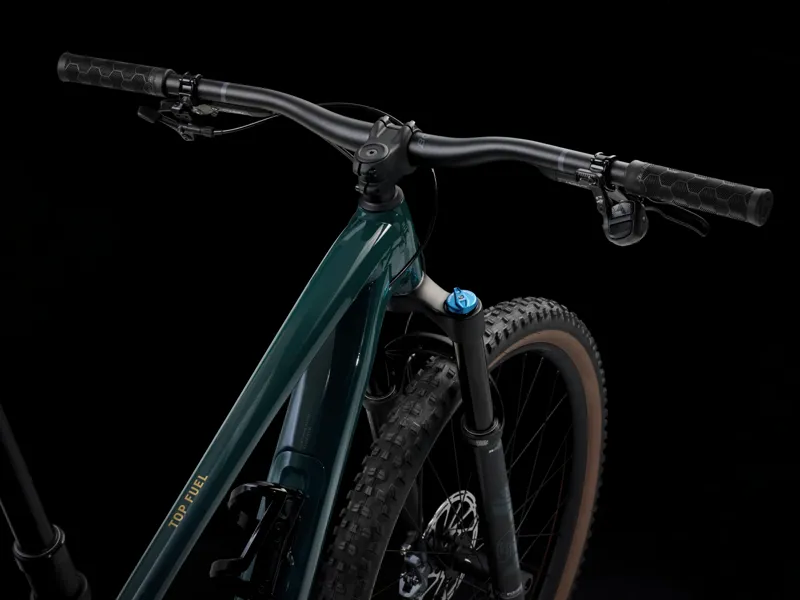

- Handlebars:Bontrager Line, alloy, 35 mm, 27.5 mm rise, 780 mm width
- Handlebar Grips:Bontrager XR Trail Comp, nylon lock-on
- Stem:Bontrager Elite, 35 mm, 0-degree, 45 mm length
- Saddle:Verse Short Comp, steel rails, 145 mm width
- Seatpost:Size: S - Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9 mm, 310mm length, Size: M, ML, L, XL - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 34.9 mm, 450 mm length
- Weight:M - 14.38 kg / 31.71 lbs (with TLR sealant, no tubes), This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
