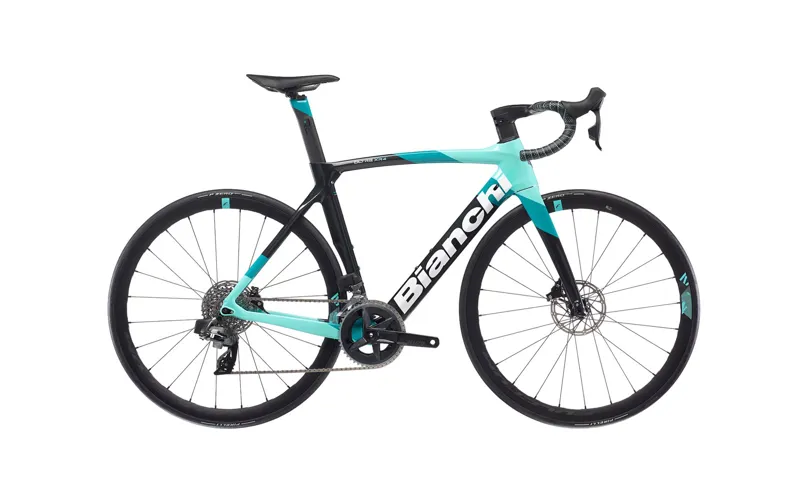

The Oltre XR4 is a bike driven to perform. Its precision handling, combined with vibration-cancelling Bianchi cv system, provides incomparable control. Perfect power transfer means every watt you push through the pedals takes you closer to the win. If you want it bad enough, the oltre xr4 is the tool to take you to the top.
The Bianchi engineers used Computational Fluid Dynamic (CFD), to refine and optimize every aspect of the Oltre XR4 frameset, to ensure the new XR4 Disc is a masterpiece of aerodynamic design.
Aero efficiency is key to the Oltre XR4 Disc, and this extends to the new Metron 5D ACR aero handlebar featuring fully-enclosed cable routing through the handlebar itself and stem – for the hydraulic brake hoses and the gear cables.
The Metron 5D ACR bar and stem gives the Oltre XR4 the cleaner, more aero front end for added speed and efficiency.
Oltre is engineered with the Bianchi CV System to cancel the road vibration. The result is in a smooth ride and a racer who can stay focused in his fastest, most efficient aerodynamic position for longer.
Bianchi CV system cancels 80% of road vibration thanks to the use of a unique composite material integrated in Bianchi’s high-performance carbon frames and forks. The Bianchi CV vibration cancelling system combines viscoelastic material together with a special carbon fiber architecture to dissipate vibration.
Advantages for the rider are more control, less muscle fatigue and more energy.
Traditional passive damping in frames using superficial rubber inserts and isolators are marginally effective compared to the integrated vibration cancelling system developed by Bianchi for cycling and proven in the extreme conditions.
Key Features and Benefits:
- CFD optimised frameset: to ensure the new XR4 Disc is a masterpiece of aerodynamic design
- SRAM RIVAL 12 speed gears: The most affordable and reliable 12 speed groupset on the market
- Disc brakes: Reliable stopping in all conditions
Full Specification:
- Frame: Oltre xr4 carbon with Bianchi cv, mechanical/electronic shifting compatible, headset 1.5", pressfit 86,5x41mm bb, disc brake internal cable routing, flat mount caliper, thru axle 12x142mm
- Fork: Bianchi full carbon with Bianchi cv, 1.5" integrated head, disc brake internal cable, flat mount caliper, thru axle 12x100mm
- Number of Gears:24
- Gear Shifters:SRAM Rival ETAP AXS 2X12SP
- Chainset: SRAM Rival D1 DUB 170 - 172,5 - 175, 46/33, Crank Length: 170mm-47/54cm, 172.5mm-55/59cm, 175mm-61cm
- Chainrings: 46X33T
- Rear Cassette:SRAM Rival CS XG 1250 D1 10-36T
- Chain:Sram 12 speed
- Front Derailleur: SRAM Rival ETAP AXS 2X12SP
- Rear Derailleur:SRAM Rival ETAP AXS 2X12SP MAX 36T
- Bottom Bracket:SRAM PRESSFIT ROAD 86,5X41MM
- Pedals:Not Included
- Rims:Fulcrum Racing 400 disc brake, 622x19c, 2 WAY FIT tubeless ready
- Front Hub:Fulcrum Racing 400
- Rear Hub:Fulcrum Racing 400
- Front Tyre:Pirelli P ZERO™ Race , 26-622, 127TPI, Aramid breaker
- Rear Tyre:Pirelli P ZERO™ Race , 26-622, 127TPI, Aramid breaker
- Brakes: SRAM RIVAL, Sram Rotor centerlock centerline Road 160mm
- Handlebars:Reparto Corse by Vision Metron 5D ACR Disc Integrated Aero bar, Bar/stem Integrated, material UD Weave Carbon, drop 125mm, reach 80mm, Di2 compatible, RC'21 graphics, Ext: 100x400mm-47/50cm, 110x420mm-53/55cm, 120x420mm-57/59cm, 130x440mm-61cm
- Handlebar Tape: Black soft Microfiber tapes w/shockproof Eva-139
- Stem:see handlebar
- Saddle:Fi'zi:k Argo Vento R1, nylon carbon reinforced shell w/WingFlex, carbon braided 7x10 rail, 260x140mm
- Seatpost: Reparto Corse Full Carbon Aero special dimension; special Clamp type with alloy head adjustable and reversible +/- 35mm;
- Accessories:NA
- Weight:NA
