The EX DISPLAY Trek Domane AL 3 is the perfect bike to get you into road riding, and reliable components ensure you have a safe and enjoyable ride, no matter the weather.
The EX DISPLAY Trek Domane AL 3 is the perfect bike to get you into road riding, and reliable components ensure you have a safe and enjoyable ride, no matter the weather.
Trek

EX-DISPLAY Trek Domane AL 3 Disc Sportive Road Bike 54 2022 in Crystal White and Red

£842.00 £1,100.00 23% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

EX-DISPLAY Trek Domane AL 3 Disc Sportive Road Bike 54 2022 in Crystal White and Red

Season:2024

Brand:Trek

Code:SD1045508-A

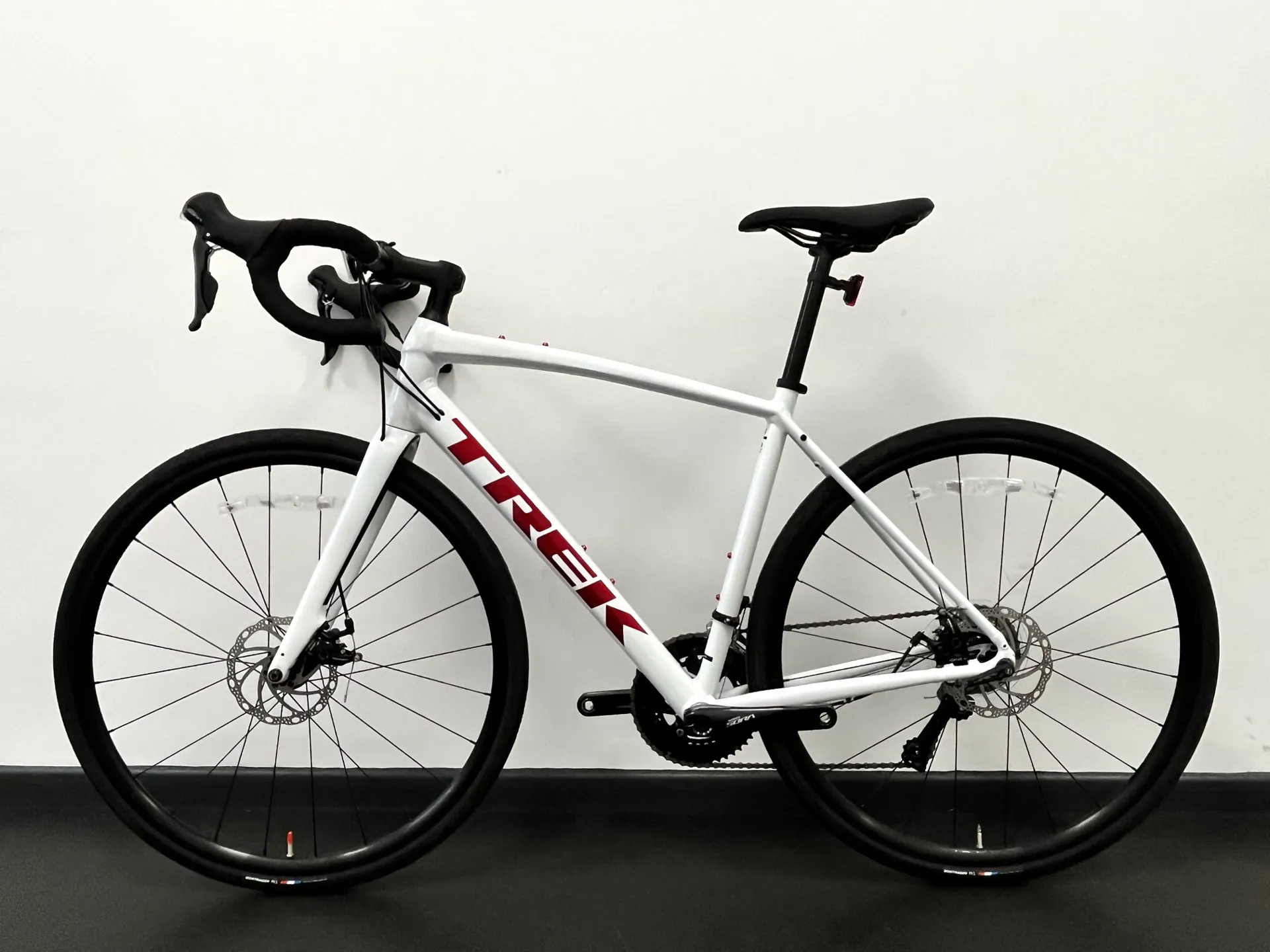

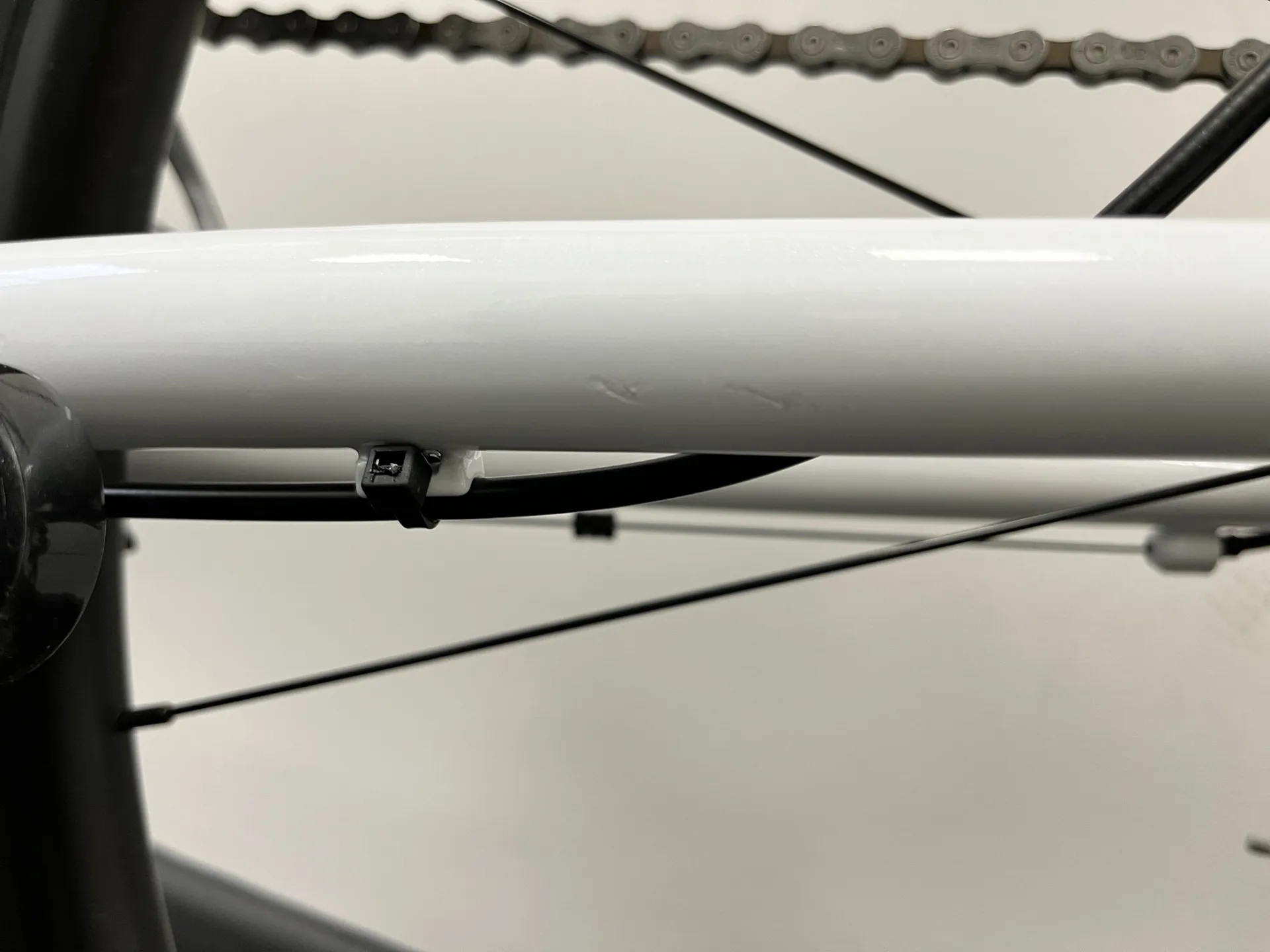

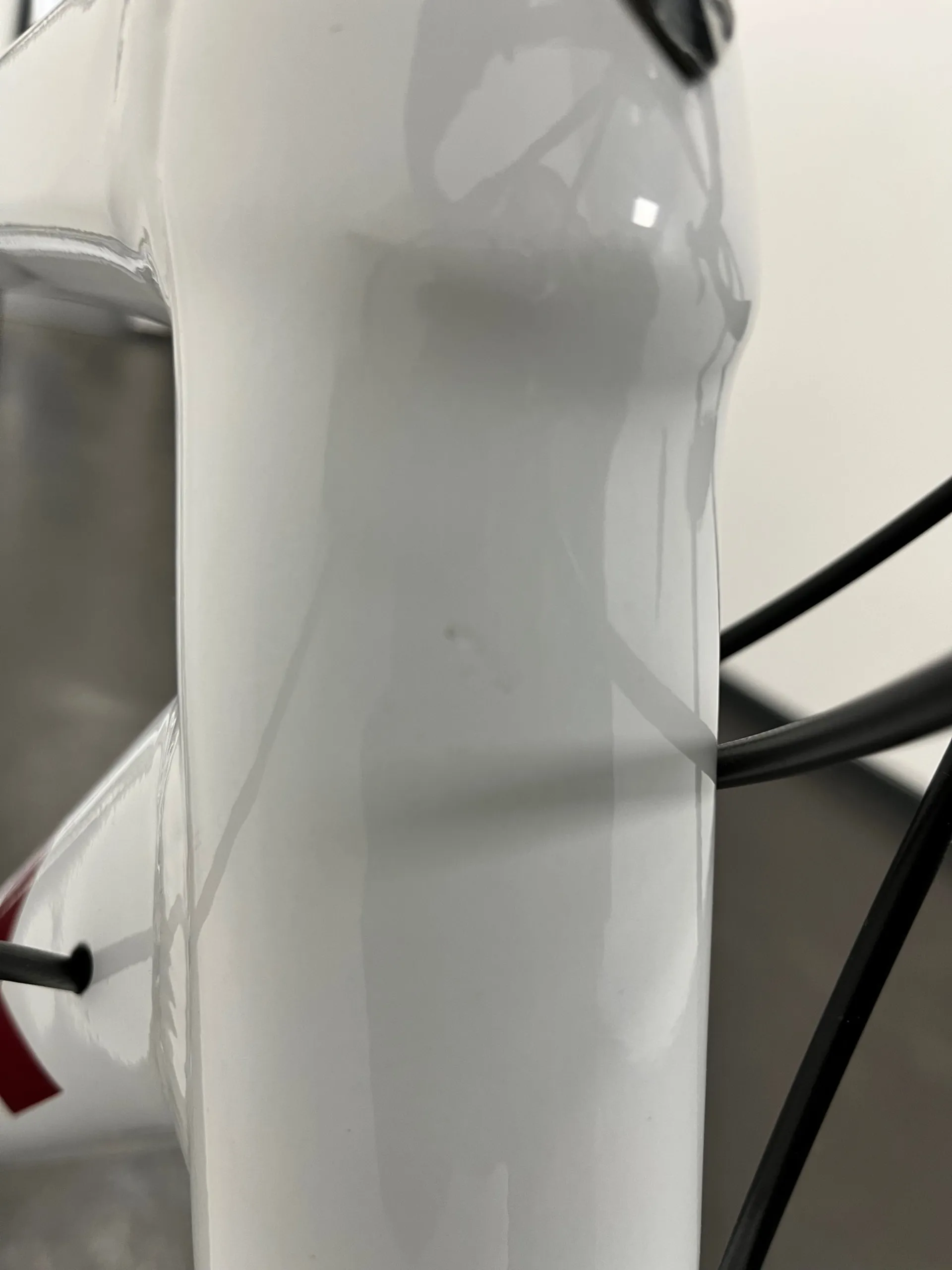

This Trek Domane AL 3 Road Bike in Size 54 is an ex-display bike, it may have some light cosmetic damage, but otherwise the bike is as new. Please see photos for condition of the bike.

Our ex display bikes are fully serviced and checked to ensure your riding experience is the same as a new bike - we offer full manufacturers warranty on all our ex display and ex demo bikes.
The Trek Domane AL 3 Road Bike is perfect for you if you’re just getting into road cycling or are looking to upgrade from an older road bike and want a fantastic ride without an eye-popping price. This bike has quality parts and powerful disc brakes that will keep up with you for miles to come.
The Domane AL 3 Disc is a smooth, stable and super fun road bike. It's a blast on everything from longer loops to group rides and even light gravel trails. The lightweight and comfortable frame features a road-smoothing carbon fork, quality parts and a wide range of gears ready for bigger adventures. This bike’s smooth, capable ride will get (and keep) you excited to go on longer rides and DuoTrap S compatibility makes it easy to wirelessly track your rides, so you can set goals and watch yourself reach them

Key Features & Benefits:

  • 18 Shimano Gears: Wide range of reliable gears which are great for climbing.
  • Aluminium Frame: Lightweight & stable, with Endurance Geometry for a confident ride.
  • IsoSpeed Carbon Fork: Absorbs vibrations from the road so your arms won't fatigue as quickly.

Full Specification:

  • Frame: 100 Series Alpha Aluminium, tapered head tube, internal routing, mudguard mounts, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
  • Fork: Domane AL carbon, tapered alloy steerer, internal brake routing, mudguard mounts, flat-mount disc, 12x100 mm thru axle
  • Number of Gears: 18
  • Gear Shifters: Shimano Sora R3000, 9-speed
  • Chainset: Shimano Sora R3000
  • Chainrings: 50/34
  • Rear Cassette: Shimano Sora HG400, 11-32, 9-speed
  • Chain: Shimano Sora HG53, 9-speed
  • Front Derailleur: Shimano Sora R3000, 31.8 mm clamp
  • Rear Derailleur: Shimano Sora R3000, mid cage, 34T max cog
  • Bottom Bracket: Shimano RS500, 68 mm, threaded external
  • Pedals: Not Included
  • Rims: Bontrager Affinity Disc, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Front Hub: Formula RX-512 alloy, 6-bolt, 100x12 mm thru axle
  • Rear Hub: Formula RX-142 alloy, 6-bolt, Shimano 11-speed freehub, 142x12 mm thru axle
  • Front Tyre: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c
  • Rear Tyre: Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x32 c
  • Brakes: Tektro C550 mechanical disc brake, dual piston, flat-mount, 160 mm rotor
  • Handlebars: Bontrager Comp VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop
  • Handlebar Tape: Bontrager Supertack Perf tape
  • Headset: FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Stem: Bontrager Elite 31.8 Blend-r compatble, 7-Degree
  • Saddle: Bontrager P3 Verse Comp, steel rails
  • Seatpost: Bontrager Comp alloy, 27.2 mm, 12 mm offset
  • Accessories: N/A
  • Weight: 56 - 10.74 kg / 23.68 lbs
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Domane AL Unisex Road Bike

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
44150-1534'11.1" - 5'0.2"71-7328-28.7
49156-1625'1.4" - 5'3.8"74-7729.1-31.1
52163-1685'4.2" - 5'6.1"76-7929.9-31.1
54168-1745'6.1" - 5'8.5"78-8230.7-32.3
56174-1805'8.5" - 5'10.9"81-8531.9-33.5
58180-1855'10.9" - 6'0.8"84-8733.1-34.3
61185-1916'0.8" - 6'3.2"86-9033.9-35.4

Geometry for Trek Domane AL Unisex Road Bike

Frame size number44 cm49 cm52 cm54 cm56 cm58 cm61 cm
Wheel size700c700c700c700c700c700c700c
A — Seat tube394447.55052.554.857.6
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.7°
C — Head tube length9.512.314.51617.519.523.5
D — Head angle70.3°70.8°71.3°71.3°71.9°72.0°72.1°
E — Effective top tube50.751.65354.255.456.758.6
G — Bottom bracket drop88887.87.87.5
H — Chainstay length4242.542424242.542.5
I — Offset5.35.35.35.34.84.84.8
J — Trail6.66.65.95.96.166.3
K — Wheelbase98.3100.1100.3101101.8102.2103.8
L — Standover65.771.773.575.477.679.684.2
M — Frame reach3636.837.137.437.73838.5
N — Frame stack515456.157.559.161.164.6
Stem length70809090100100110

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
