The Trek Madone SLR 6 Disc has all the aero advantages of madone, plus the added capability to clip on aero bars for triathlons and time trials
The Trek Madone SLR 6 Disc has all the aero advantages of madone, plus the added capability to clip on aero bars for triathlons and time trials
Trek

EX DISPLAY Trek Madone SL 6 Carbon Road Bike 56 2022 in White

£3,951.00 £4,800.00 18% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

EX DISPLAY Trek Madone SL 6 Carbon Road Bike 56 2022 in White

Season:2024

Brand:Trek

Code:SD5261013

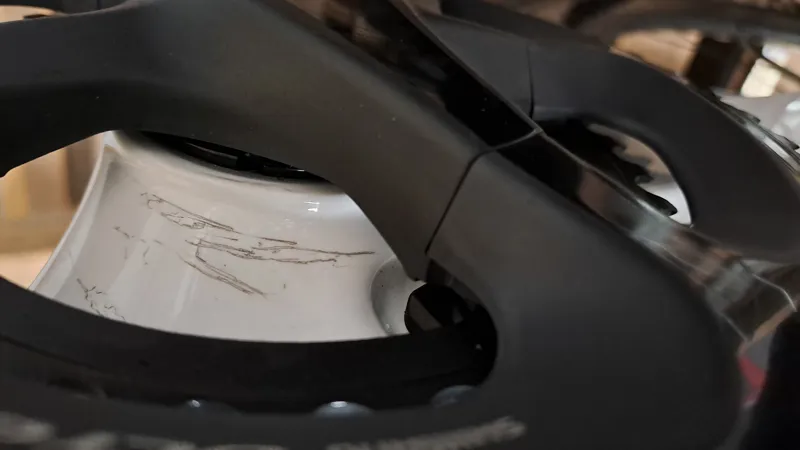

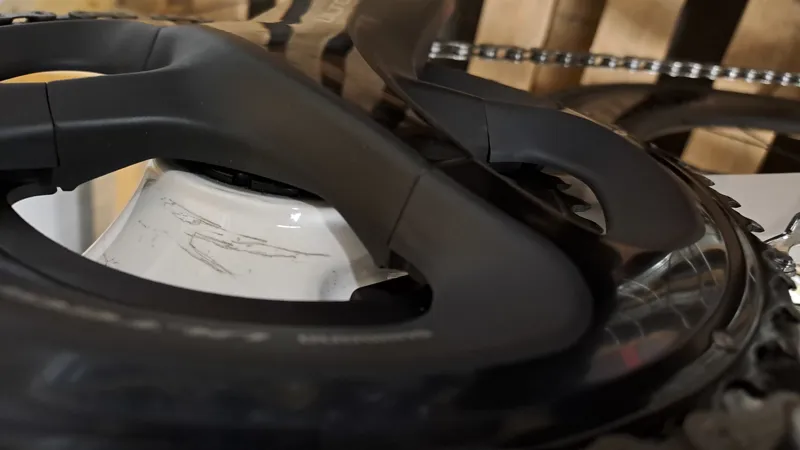

This Trek Madone SL6 Carbon Road Bike in Size 56 is an ex-display bike, it has some cosmetic damage on the bottom bracket area of the frame, but otherwise the bike is as new. Please see photos for condition of the bike.

Our ex display bikes are fully serviced and checked to ensure your riding experience is the same as a new bike - we offer full manufacturers warranty on all our ex display and ex demo bikes.

The Madone SL 6 Disc carries forward the advanced aerodynamic performance and all-around ride quality as other Madone road bike models, but it keeps the price in check with a standard stem and aero bar set up for adjustability. It's the ultimate racing bike at great value, with extraordinary race performance, aero wheels, a road-smoothing IsoSpeed decoupler, powerful hydraulic disc brakes and the sleek look that screams for speed.

Key Features & Benefits

  • 500 Series OCLV Carbon fibre frame,which achieves a superb balance of lightweight, strength and stiffness
  • H 1.5 Geometry,developed in conjunction with the Trek Segafredo and Drops pro cycling teams, puts the rider in the optimal aero race position and is featured on the Madone SLR family. It is the sweet spot for what racers want
  • Shimano Ultegra Groupset,mechanical version race proven over a vast number of year

Full Specification

  • Frame:500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, adjustable top tube IsoSpeed, invisible cable routing, control center, micro-adjust seatmast, precision water bottle placement, 3S aero chain keeper, flat mount disc, Duo Trap S compatible, 14
  • Fork:Madone KVF full carbon, tapered carbon steerer, invisible cable routing, flat mount disc,
  • Number of Gears:22
  • Gear Shifters:Shimano Ultegra R8020, 11 speed
  • Chainset:Shimano Ultegra R8000
  • Chainrings:50/34T
  • Rear Cassette:Shimano Ultegra R8000, 11-30, 11 speed
  • Chain:Shimano Ultegra HG701, 11-speed
  • Front Derailleur:Shimano Ultegra R8000, braze-on
  • Rear Derailleur:Shimano Ultegra R8000, short cage, 30T max cog
  • Bottom Bracket:Praxis, T47 threaded, internal bearing
  • Pedals:Not Included
  • Rims:Bontrager Aeolus Comp 5 Disc, 50mm deep 18mm wide, Tubeless Ready
  • Front Hub:Bontrager Aeolus Comp 5 Disc, 100x12 mm thru axle
  • Rear Hub:Bontrager Aeolus Comp 5 Disc, Shimano 11-speed freehub,142x12 mm thru axle
  • Front Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
  • Rear Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25c
  • Brakes:Shimano Ultegra R8070 hydraulic disc
  • Handlebars:Bontrager Elite Aero VR-CF, alloy, 31.8mm, invisible cable r
  • Handlebar Tape:Bontrager Supertack Perf tape
  • Headset:Madone integrated, stainless cartridge bearings, sealed, 1-3
  • Stem:Bontrager Pro, 31.8mm, Blendr compatible, 7 degree
  • Saddle:Bontrager Aeolus Comp, steel rails
  • Seatpost:Madone aero carbon seatmast cap, integrated light mount, 5mm offset
  • Accessories:N/A
  • Weight:Not Available
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Madone SL/SLR Bikes

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152 - 158 cm5'0" - 5'2"71 - 75 cm28" - 30"
50158 - 163 cm5'2" - 5'4"74 - 77 cm29" - 30"
52163 - 168 cm5'4" - 5'6"76 - 79 cm30" - 31"
54168 - 174 cm5'6" - 5'9"78 - 82 cm31" - 32"
56174 - 180 cm5'9" - 5'11"81 - 85 cm32" - 33"
58180 - 185 cm5'11" - 6'1"84 - 87 cm33" - 34"
60185 - 190 cm6'1" - 6'3"86 - 90 cm34" - 35"
62190 - 195 cm6'3" - 6'5"89 - 92 cm35" - 36"

Geometry Information for Trek Madone SL/SLR Bikes

Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size700c700c700c700c700c700c700c700c
A — Seat tube42.445.348.349.652.555.357.359.3
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C — Head tube length1011.112.113.115.117.119.121.1
D — Head angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E — Effective top tube51.252.153.454.355.957.458.659.8
G — Bottom bracket drop7.27.27.2776.86.86.8
H — Chainstay length414141414141.141.141.2
I — Offset4.54.54.54.54444
J — Trail6.86.25.85.65.85.75.65.6
K — Wheelbase97.297.497.798.198.399.2100.1101
L — Standover69.271.173.274.476.879.381.182.9
M — Frame reach37.337.838.338.639.139.639.940.3
N — Frame stack50.752.153.354.156.358.160.162
Saddle rail height min (w/short mast)55.558.561.56467697173
Saddle rail height max (w/short mast)61.564.567.57073757779
Saddle rail height min (w/tall mast)59626567.570.572.574.576.5
Saddle rail height max (w/tall mast)65687173.576.578.580.582.5

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
