Giant TCR Advanced Pro 1 Disc AXS Road Bike 2023 in Black Diamond
Giant TCR Advanced Pro 1 Disc AXS Road Bike 2023 in Black Diamond
Giant

Giant TCR Advanced Pro 1 Disc AXS Road Bike 2023 in Black Diamond

£3,899.00 £4,899.00 20% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Giant TCR Advanced Pro 1 Disc AXS Road Bike 2023 in Black Diamond

Season:2024

Brand:Giant

Code:2210305BLKDiamond

Climb, Corner And Descend With Speed And Efficiency. From The Mountains To The Flats, In All Types Of Conditions, This Lightweight Composite Road Racer Takes You To The Next Level.

This podium-seeking road racer is engineered with an Advanced-grade composite frame that boasts an outstanding stiff-to-weight ratio, along with aerodynamic tube shaping in the headtube, downtube and fork. It also features added frame and fork clearance for larger diameter tires up to 32mm, making it a versatile race machine for all types of road conditions. With its proven Compact Road geometry, OverDrive 2 front end, flat-mount disc-brake integration and smooth-riding Variant seatpost, it’s a race-tuned performer that excels in all aspects of road riding.

Key Features & Benefits:

  • Carbon Fibre Frame:Super lightweight & durable.
  • SRAM Rival eTap AXS Groupset:Time tested & proven reliable for many years.
  • Giant Wheelset:With tubeless technology for increased grip & reduced risk of punctures.

Full Specification:

  • Frame:Advanced-Grade Composite, Disc
  • Fork:Advanced-Grade Composite, full-composite OverDrive 2 steerer, disc
  • Number of Gears:24
  • Gear Shifters:SRAM Rival eTap AXS 2x12
  • Chainset:SRAM Rival D1 DUB, 35/48 with Giant Power Halo power meter
  • Chainrings:35/48T
  • Rear Cassette:SRAM Rival, 12-speed, 10x30
  • Chain:SRAM Rival D1
  • Front Derailleur:SRAM Rival eTap AXS
  • Rear Derailleur:SRAM Rival eTap AXS max 36T
  • Bottom Bracket:SRAM DUB, press fit
  • Pedals:Not supplied:Shop pedals here
  • Rims:Giant SLR 1 42 Carbon Disc Hookless WheelSystem (19mm inner rim width)
  • Front Hub:Giant SLR 1
  • Rear Hub:Giant SLR 1
  • Front Tyre:Giant Gavia Course 1, tubeless, 700x25c (effective width 28mm), folding
  • Rear Tyre:Giant Gavia Course 1, tubeless, 700x25c (effective width 28mm), folding
  • Brakes:SRAM Rival eTap AXS hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm
  • Handlebars:Giant Contact SL
  • Handlebar Tape:Stratus Lite 2.0
  • Stem:Giant Contact SL
  • Saddle:Giant Fleet SL
  • Seatpost:Giant Variant, composite, -5/+15mm offset
  • Accessories:Computer mount, factory tubeless set up including sealant, 32mm max tyre size
  • Weight:Not Available
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

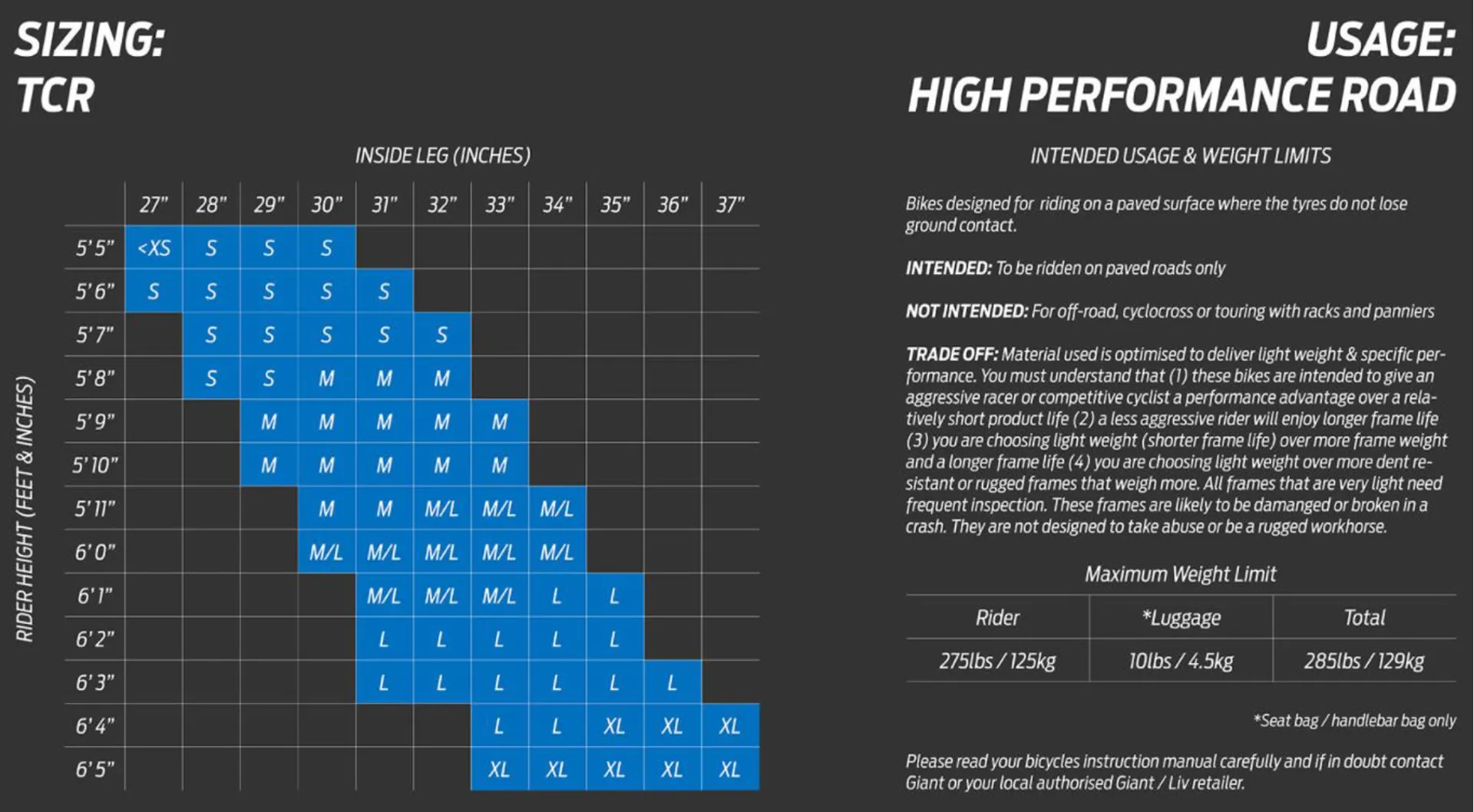

Sizing Chart for Giant TCR

Frame SizeRider Height (cm)
S165 – 175
M171 – 181
ML177 – 187
L183 – 193
XL189 – 199

Geometry Information for Giant TCR

bike diagram with measurements referenced in table that follows
SMMLLXL
ASEAT TUBE LENGTH(mm)445470500530560
BSEAT TUBE ANGLE74.0°73.5°73.0°73.0°72.5°
CTOP TUBE LENGTH(mm)535550565580600
DHEAD TUBE LENGTH(mm)130145165185200
EHEAD TUBE ANGLE72.3°73.0°73.0°73.0°73.0°
FFORK RAKE(mm)4545454545
GTRAIL(mm)6459.259.259.259.2
HWHEELBASE(mm)97798099110061020
ICHAIN STAY LENGTH(mm)405405405405405
JBOTTOM BRACKET DROP(mm)7070676767
KSTACK(mm)528545562581596
LREACH(mm)383388393402412
MSTAND OVER HEIGHT(mm)725747773800816
NHANDLEBAR WIDTH(mm)400420420440440
OSTEM LENGTH(mm)90100110110120
PCRANK LENGTH(mm)170172.5172.5175175
QWHEEL SIZE700C700C700C700C700C

Geometry Information for Giant TCR SL (integrated seatpost)

SMMLL
ASEAT TUBE LENGTH(mm)710740770800
BSEAT TUBE ANGLE74.0°73.5°73.0°73.0°
CTOP TUBE LENGTH(mm)535550565580
DHEAD TUBE LENGTH(mm)130145165185
EHEAD TUBE ANGLE72.3°73.0°73.0°73.0°
FFORK RAKE(mm)45454545
GTRAIL(mm)6459.259.259.2
HWHEELBASE(mm)9779809911006
ICHAIN STAY LENGTH(mm)405405405405
JBOTTOM BRACKET DROP(mm)69.569.56767
KSTACK(mm)528545562581
LREACH(mm)383388393402
MSTAND OVER HEIGHT(mm)725747773800
NHANDLEBAR WIDTH(mm)400420420440
OSTEM LENGTH(mm)90100110110
PCRANK LENGTH(mm)170172.5172.5175
QWHEEL SIZE700C700C700C700C


Warranty Information for Giant

ComponentWarranty Period
Bicycle frame (Downhill excluded)Lifetime
Rigid Forks10 Years
Downhill frame3 Years
Giant own brand components, Pedals, grips, bar tape, saddle, Paint & Decals2 Years
Electronic E-bike components including battery2 Years (or 600 charge cycles)
For full warranty policy please visit giant-bicycles.com
