The Émonda SLR 9 Disc eTap is an ultralight and aerodynamic carbon road bike designed to be the fastest climbing bike Trek have ever made.
The Émonda SLR 9 Disc eTap is an ultralight and aerodynamic carbon road bike designed to be the fastest climbing bike Trek have ever made.
Trek

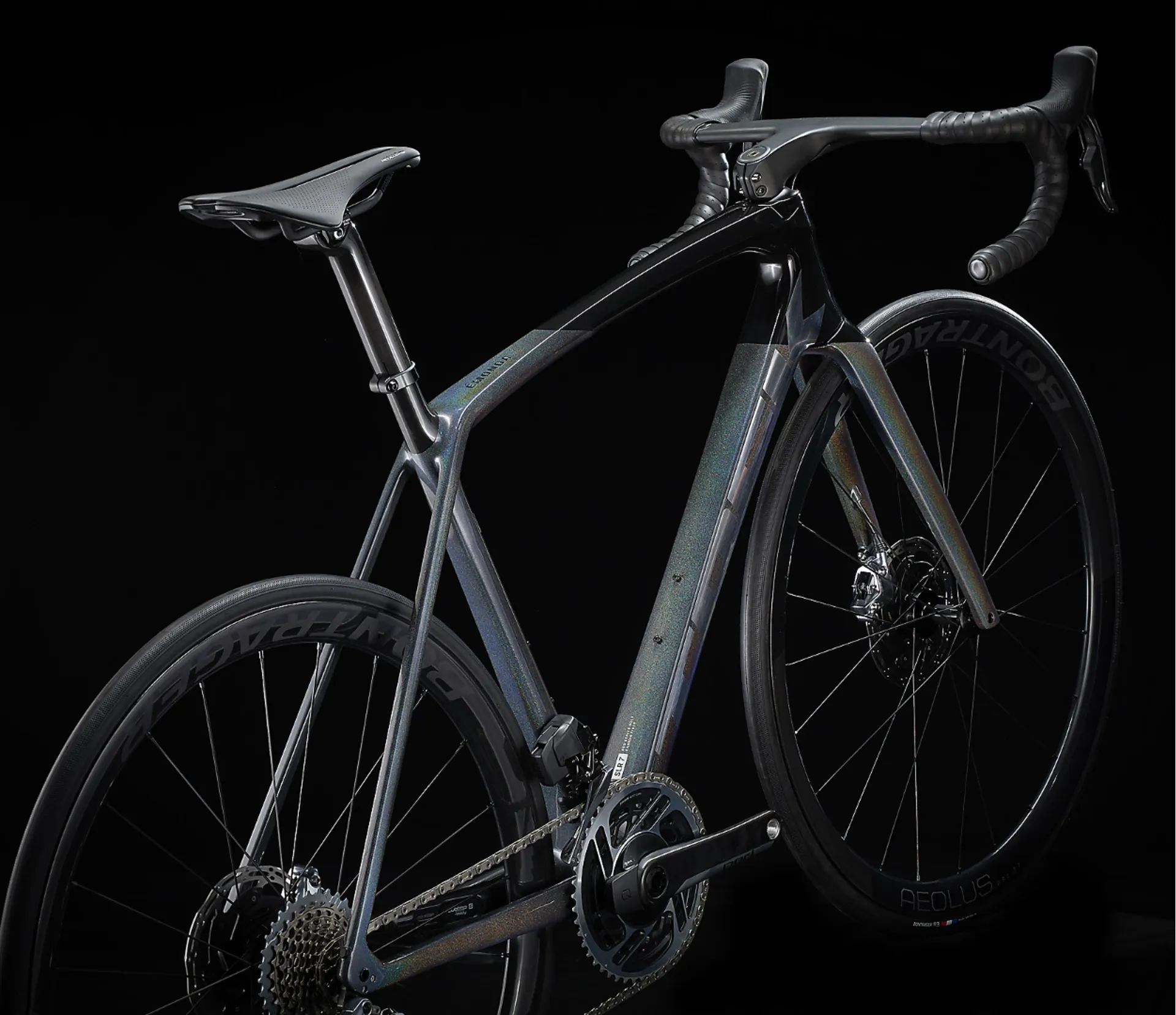

Trek Emonda SLR 9 AXS Carbon Road Bike 2024 in Prismatic/Black

£6,995.00 £12,250.00 43% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Emonda SLR 9 AXS Carbon Road Bike 2024 in Prismatic/Black

Season:2024

Brand:Trek

Code:33140PrismaticBLK

The Émonda SLR 9 Disc eTap is an ultralight and aerodynamic carbon road bike designed to be the fastest climbing bike Trek have ever made.

This race bike offers Émonda’s legendary ride quality and lightweight design with more speed than ever before, thanks to aero tubes built from Trek's lightest OCLV lay-up ever. As an official Trek-Segafredo race team replica bike, you get premium features like ultralight wheels and an advanced SRAM RED eTap AXS wireless electronic drivetrain with power meter to push your performance to the limit.

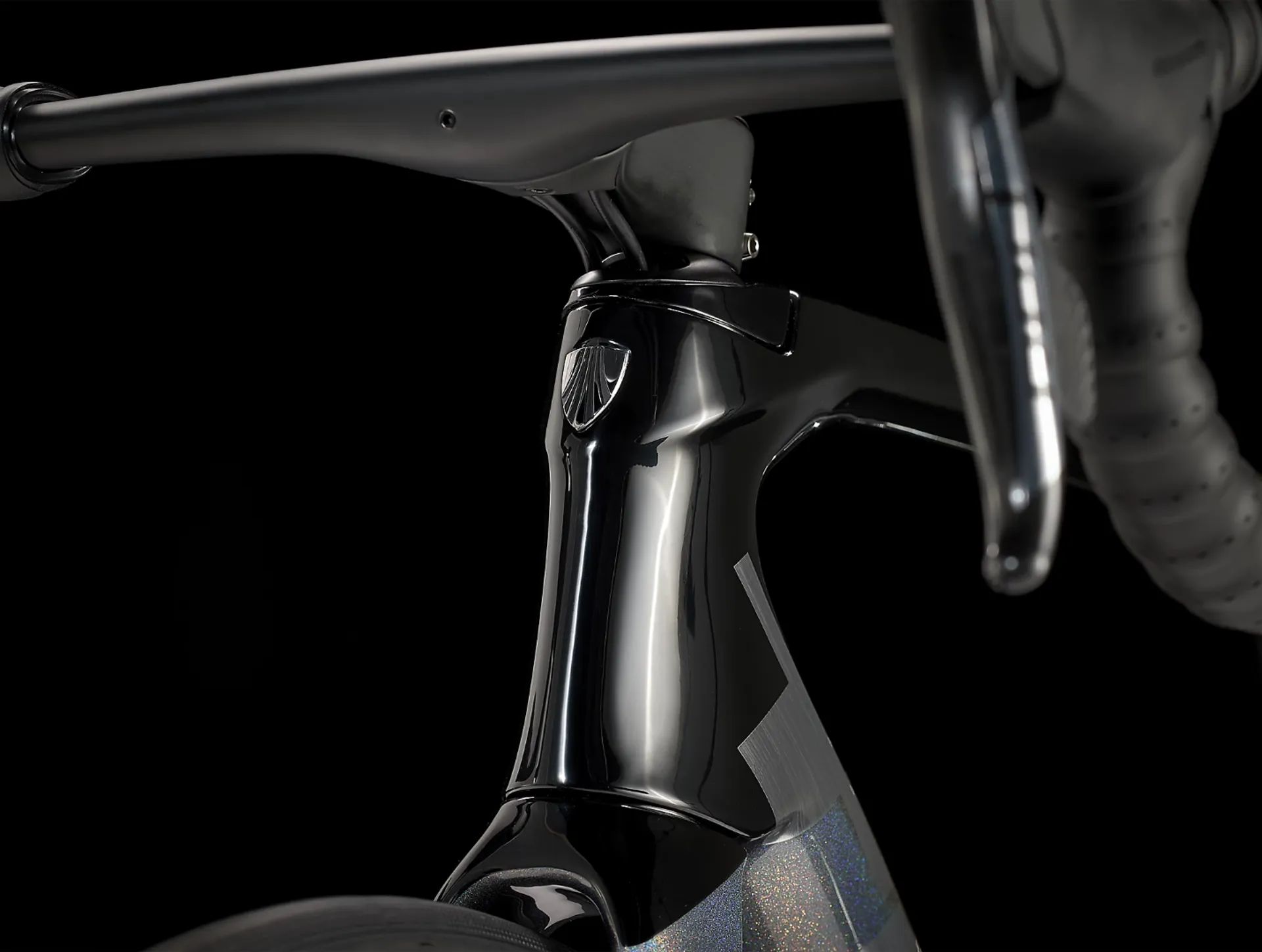

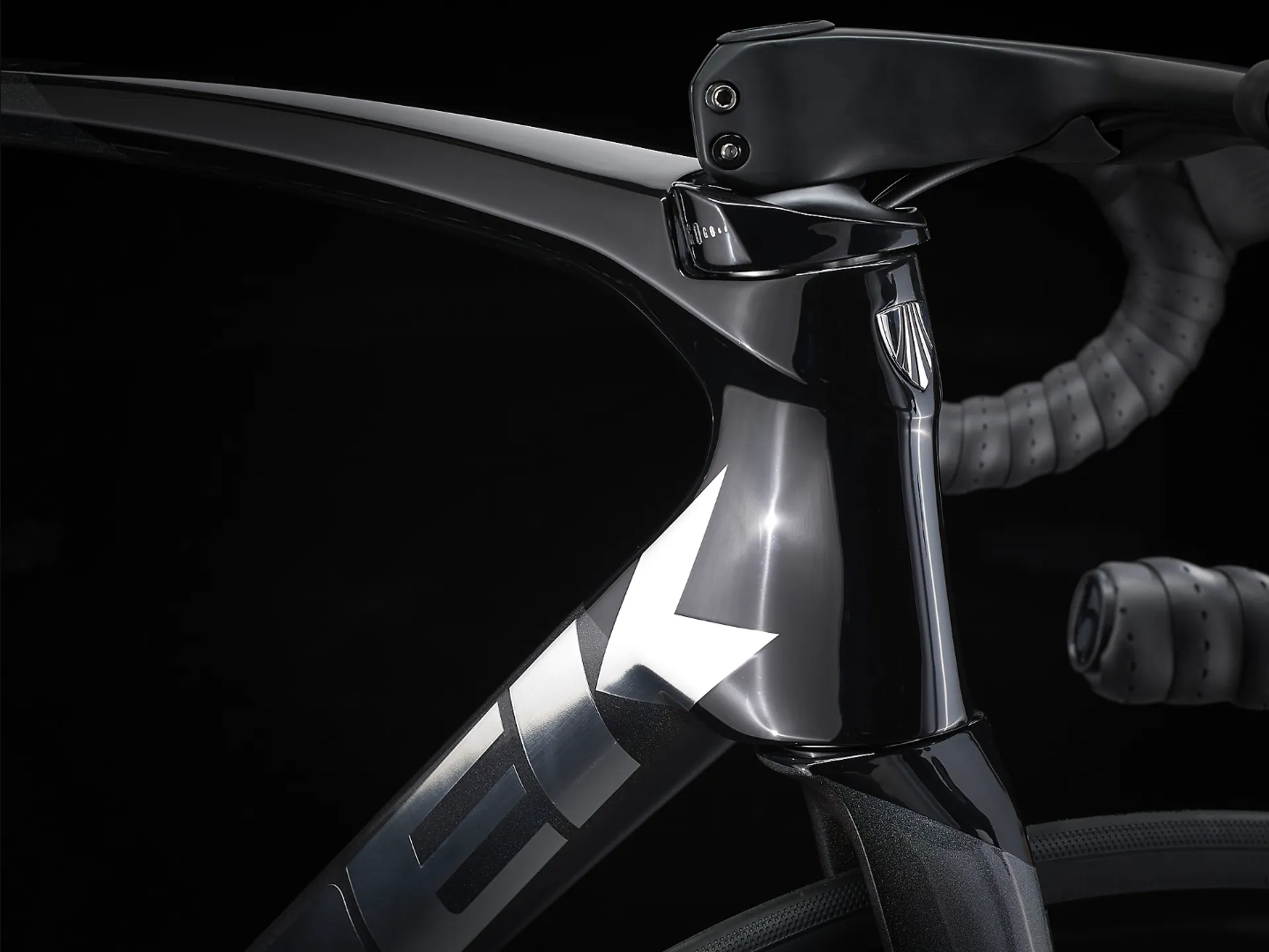

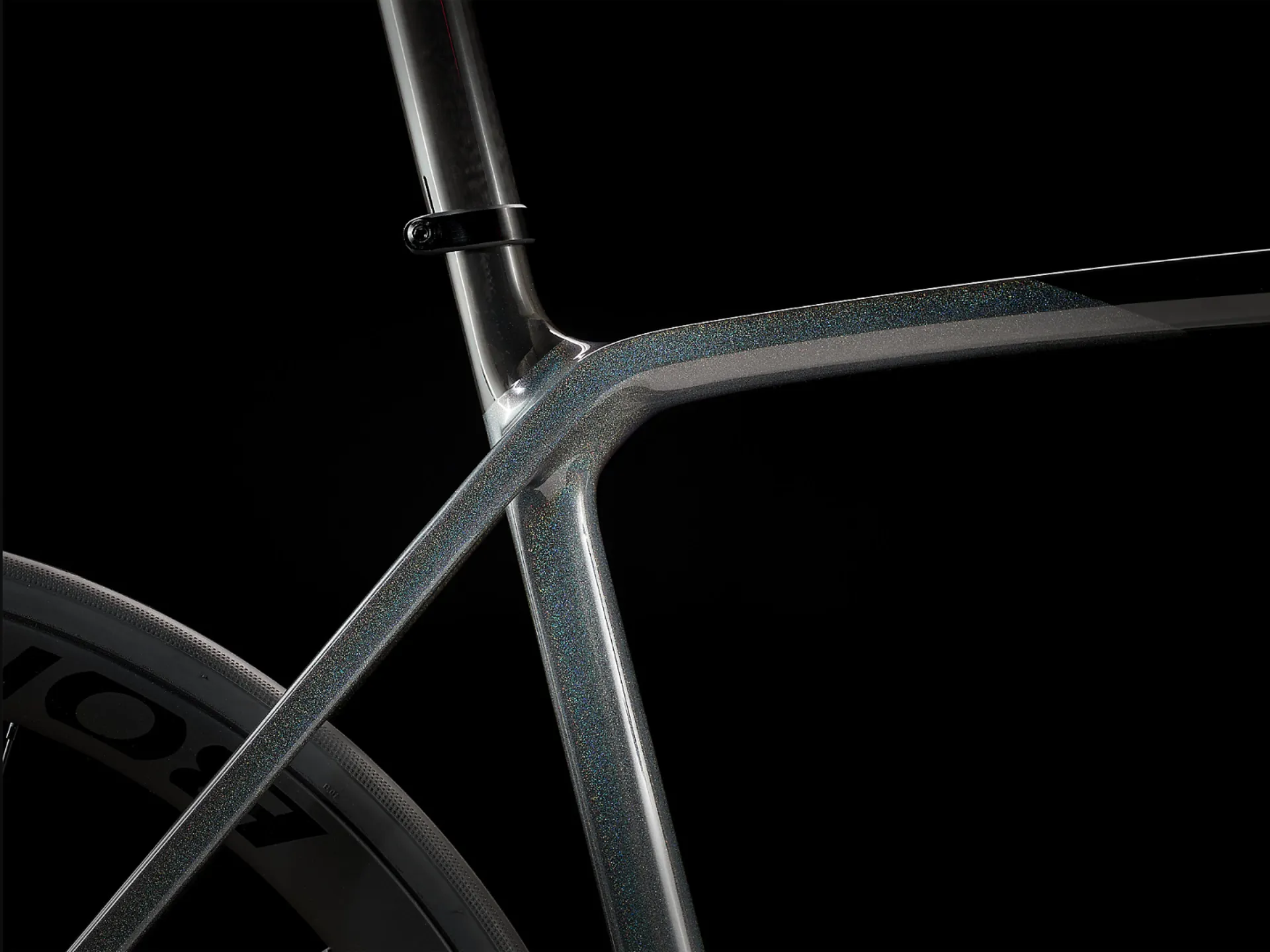

An ultra-light and aerodynamic 800 Series OCLV Carbon frame that weighs under 700 grams, a 2x12 SRAM RED AXS wireless electronic drivetrain, ultra-light, fast and stable Bontrager Aeolus RSL 37 OCLV Carbon tubeless-ready wheels, an Aeolus RSL OCLV Carbon integrated aero bar/stem, SRAM RED AXS power meter and powerful hydraulic disc brakes.

You have big dreams for road racing, and want a featherweight road bike to chase them down... and then dream bigger. You want the same tech that the pros of Trek-Segafredo race on, decked out with carbon wheels and SRAM's highest-level SRAM RED AXS wireless electronic drivetrain.

Feather-light, lightning-fast, first up every climb. This bike delivers incredible ride quality and aerodynamic advantage. And, the wireless SRAM RED AXS drivetrain delivers a quieter ride and smaller jumps between gears for super-smooth shifts.

Faster on climbs, faster on the flats. The aero tube shapes on the all-new Émonda give you an advantage wherever you’re riding. Plus, Émonda SLR is equipped with a sleek new Aeolus RSL bar/stem for front-end aero performance.
It takes more material to make aero shapes, but Trek refused to compromise on weight – so they developed the all-new 800 Series OCLV Carbon for Émonda SLR.
Every rider – regardless of gender, body type, riding style or ability – deserves a great bike. The all-new Émonda is equipped with size-specific components that deliver a great fit to competitive riders of all gender

Key Features & Benefits:

  • Carbon Fibre Frame:Ultra lightweight, weighing under 700g, to give you a competitive advantage.
  • SRAM Red eTap AXS Drive Train:Wireless for less clutter & delivers a quieter ride and smaller jumps between gears for super smooth shifts.
  • SRAM Red eTap AXS Hydraulic Disc Brakes:Consistent braking performance for better control and confidence in race conditions.

Full Specification:

  • Frame:Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
  • Fork:Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle
  • Number of Gears:24
  • Gear Shifters:SRAM RED eTap AXS, 12-speed

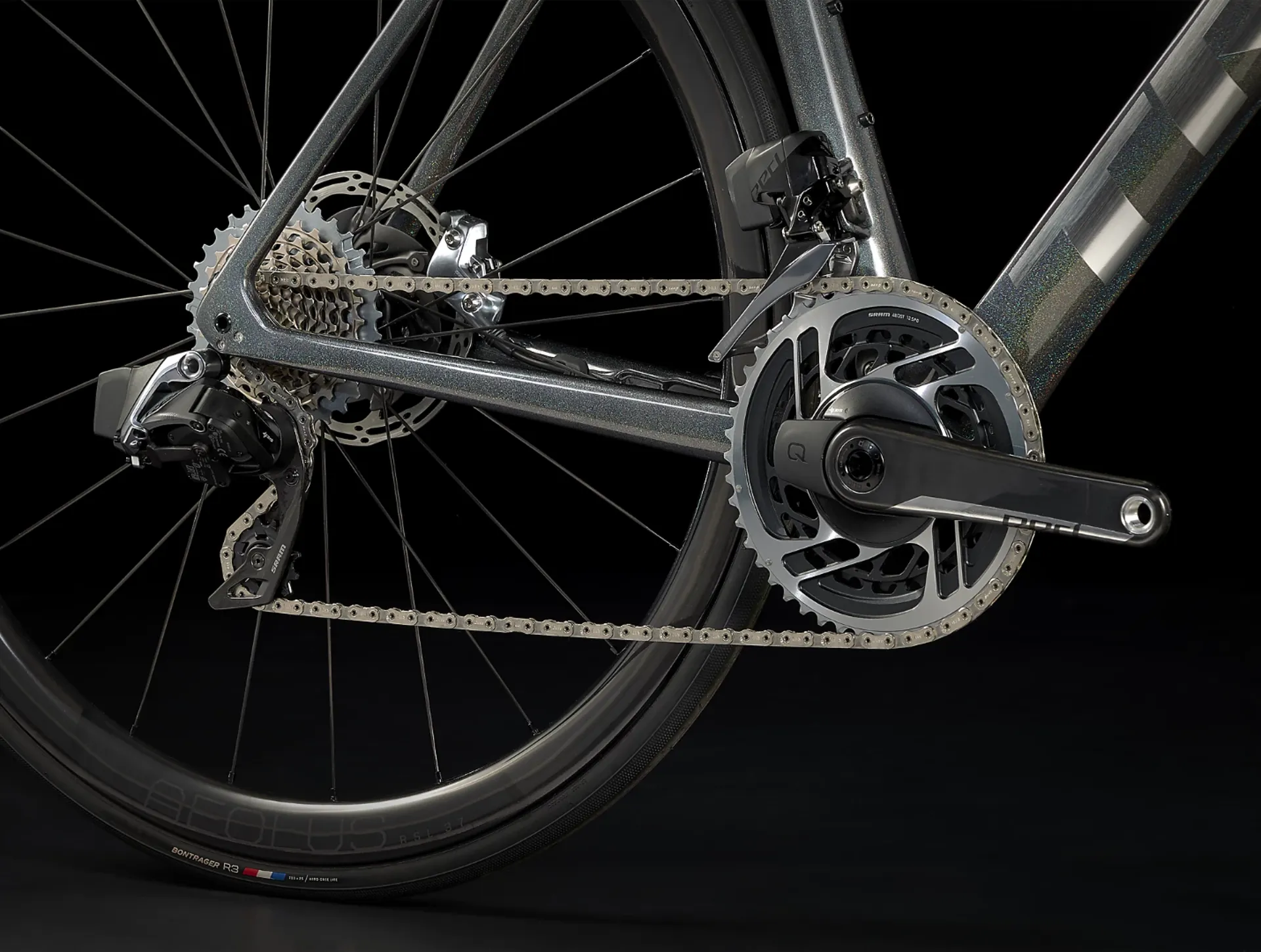

  • Chainset:SRAM RED AXS Power Meter, DUB Spindle
  • Chainrings:48/35
  • Rear Cassette:SRAM RED XG-1290, 10-33, 12-speed
  • Chain:SRAM RED D1, 12-speed
  • Front Derailleur:SRAM RED eTap AXS, braze-on
  • Rear Derailleur:SRAM RED eTap AXS, 36T max cog
  • Bottom Bracket:SRAM DUB, T47 threaded, internal bearing
  • Pedals:Not supplied:Shop pedals here
  • Rims:Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37 mm rim depth
  • Front Hub:Bontrager Aeolus RSL 37, 100x12 mm thru axle
  • Rear Hub:Bontrager Aeolus RSL 37, Shimano 11/12 freehub, 142x12mm thru axle
  • Front Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
  • Rear Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c

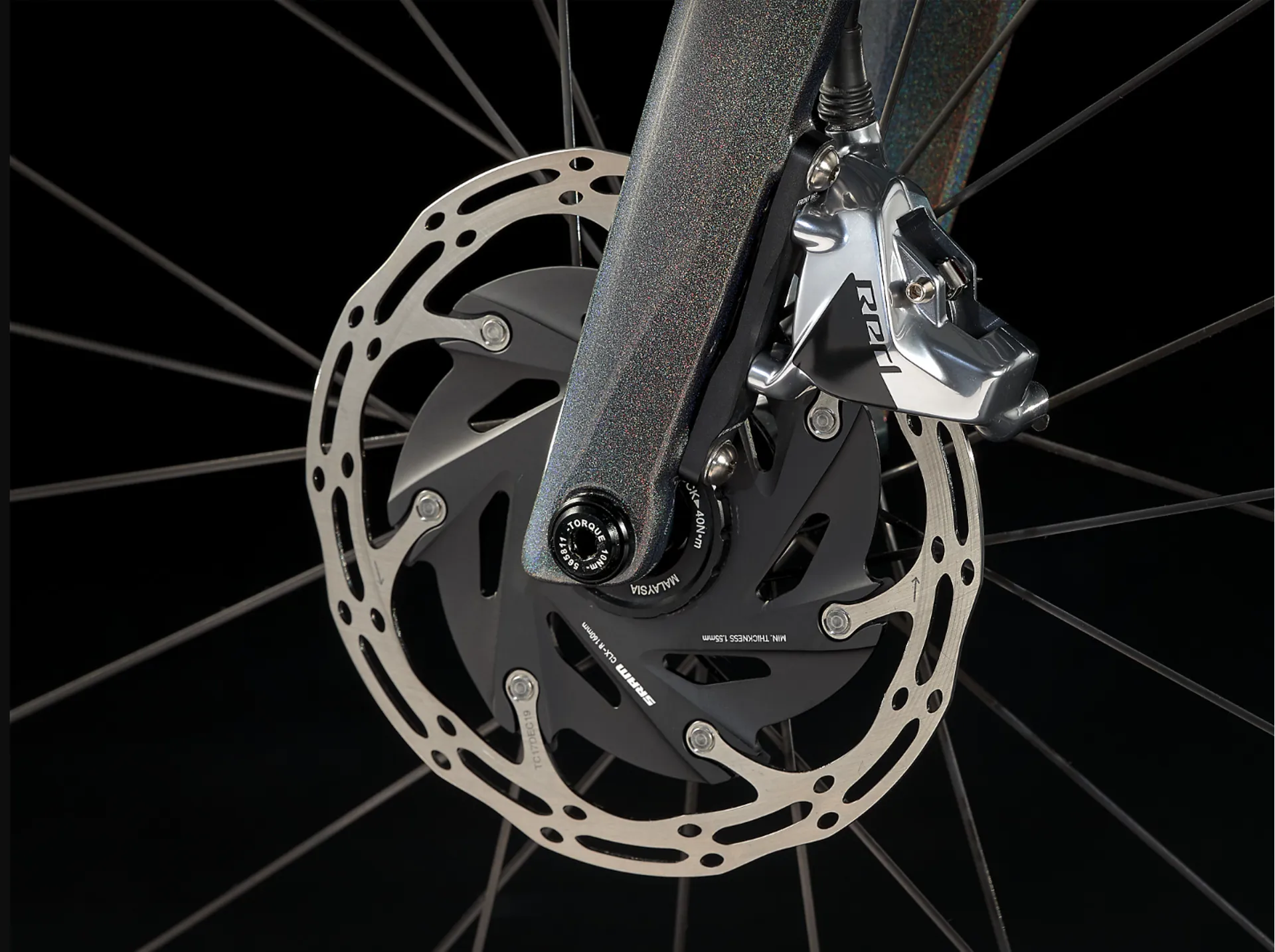

  • Brakes:SRAM Red eTap AXS hydraulic disc

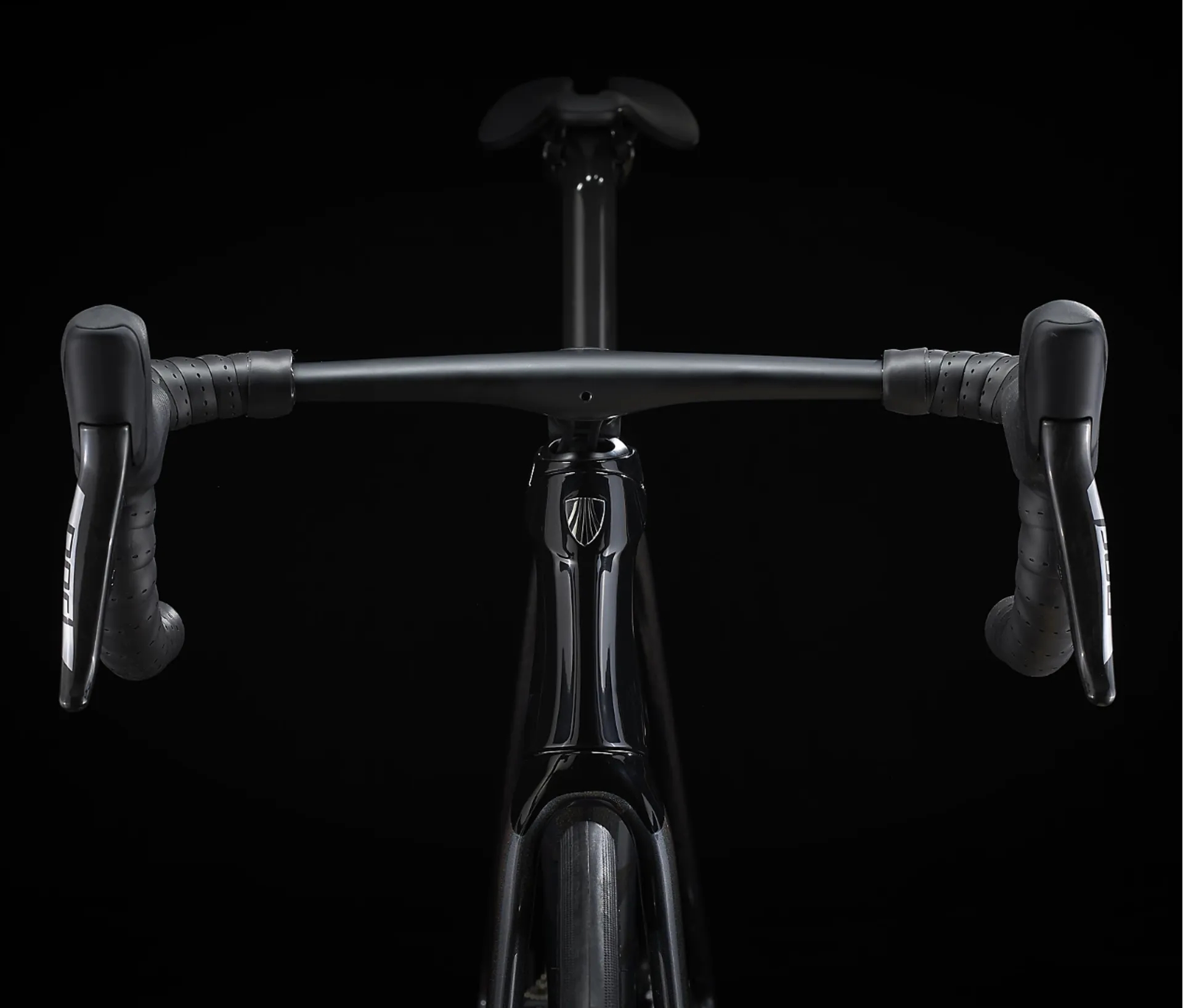

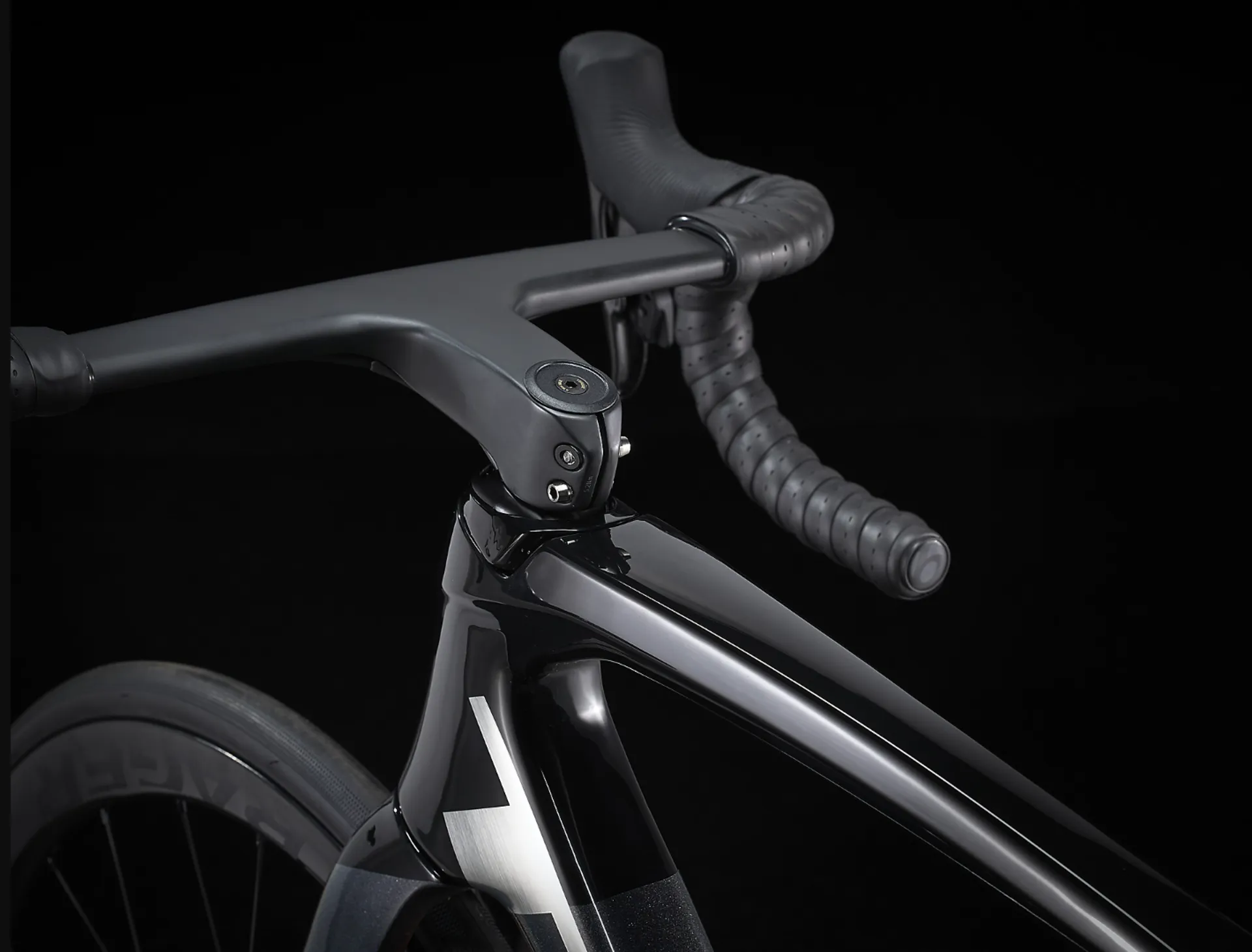

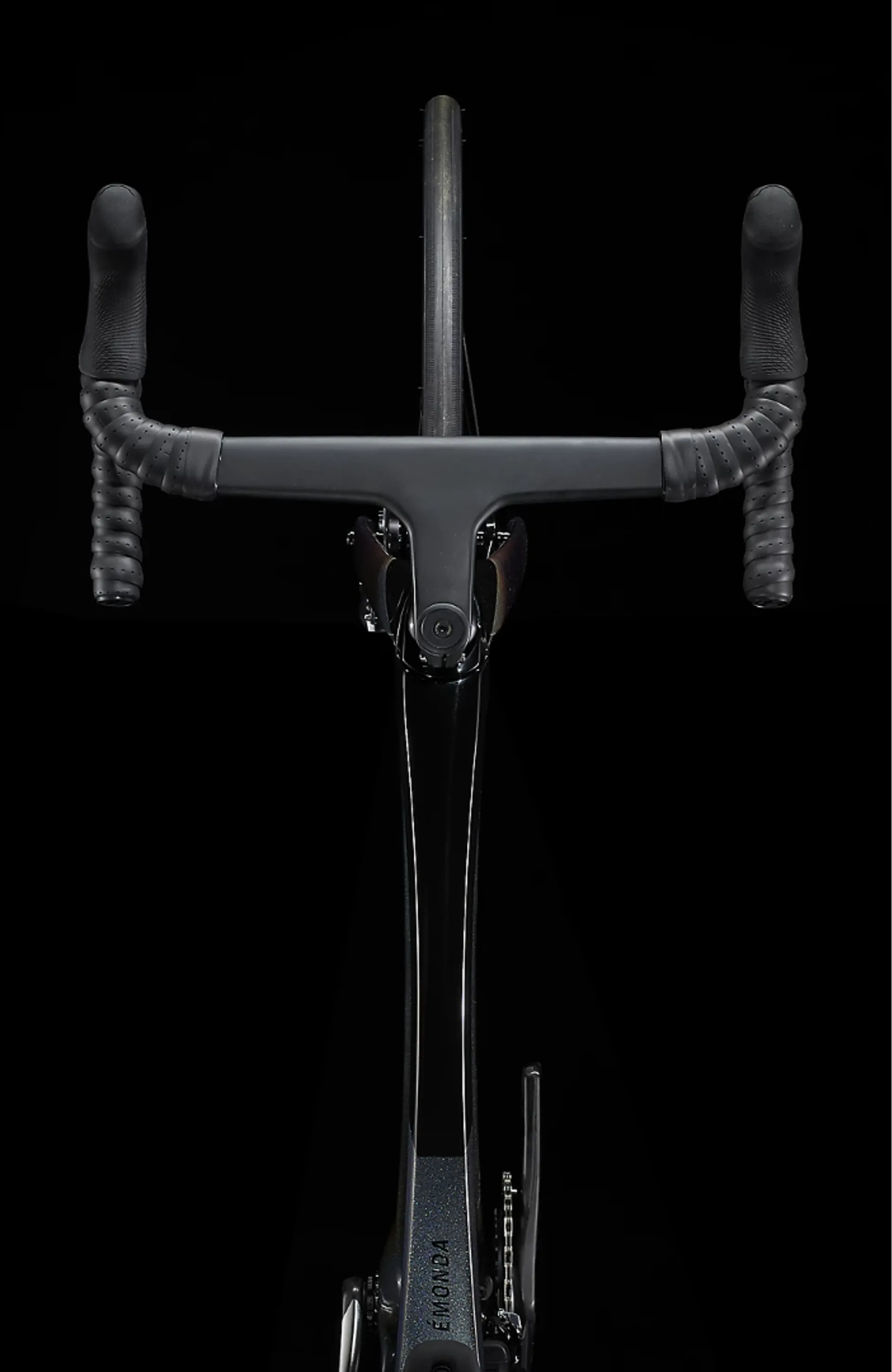

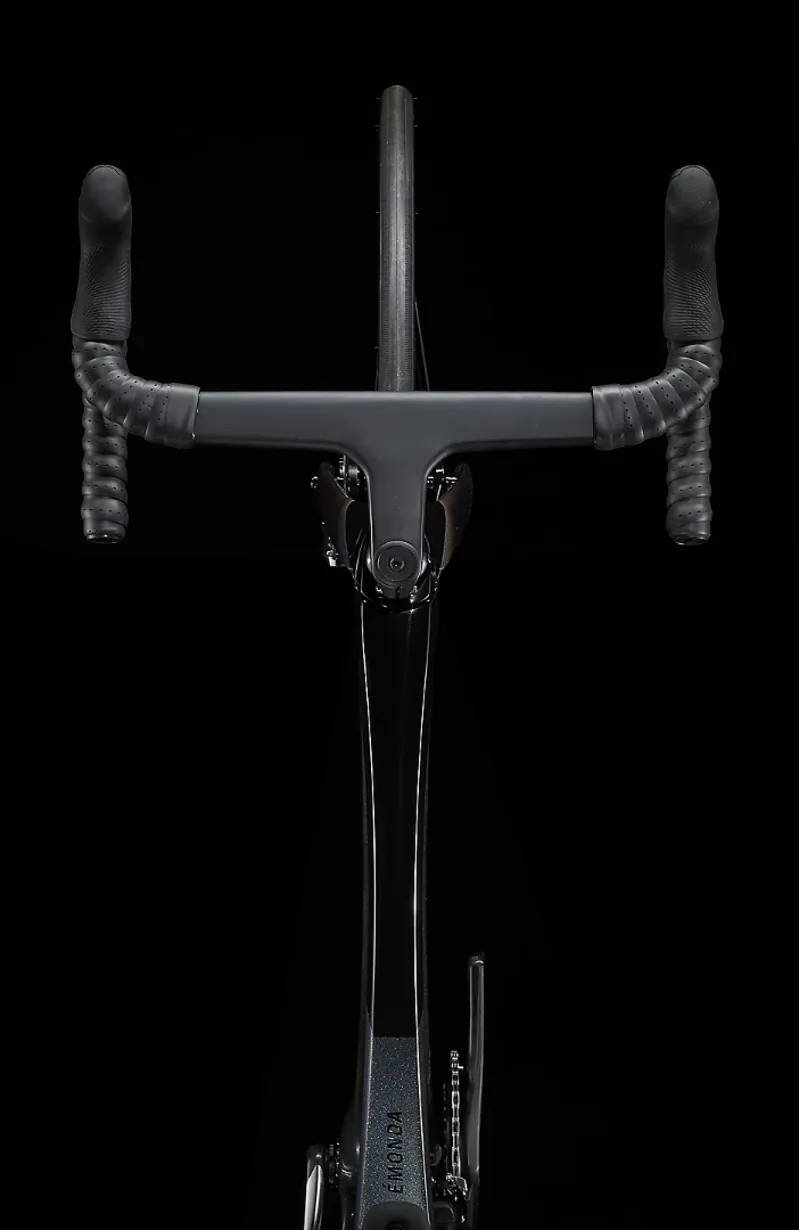

  • Handlebars:Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop
  • Handlebar Tape:Bontrager Supertack Perf tape
  • Headset:Integrated
  • Stem:Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing
  • Saddle:Bontrager Aeolus Pro, carbon rails, 145 - 155 mm width
  • Seatpost:Bontrager carbon seat mast cap, 20 mm offset
  • Accessories:N/A
  • Weight:56 - 6.75 kg/14.89 lb
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Emonda SL & SLR Disc Road Bike

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152-1584'11.8" - 5'2.2"71-7528-29.5
50158-1635'2.2" - 5'4.2"74-7729.1-30.3
52163-1685'4.2" - 5'6.1"76-7929.9-31.1
54168-1745'6.1" - 5'8.5"78-8230.7-32.3
56174-1805'8.5" - 5'10.9"81-8531.9-33.5
58180-1855'10.9" - 6'0.8"84-8733.1-34.3
60185-1906'0.8" - 6'2.8"86-8933.9-35.4
62190-1956'2.8" - 6'4.8"89-9235.0-36.2

Geometry for Trek Emonda SL & SLR Unisex Carbon Road Bike

All measurements in cm unless stated otherwise

Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size700c700c700c700c700c700c700c700c
A — Seat tube42.445.348.349.652.555.357.359.3
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C — Head tube length1011.112.113.115.117.119.121.1
D — Head angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E — Effective top tube51.252.153.454.355.957.458.659.8
G — Bottom bracket drop7.27.27.2776.86.86.8
H — Chainstay length414141414141.141.141.2
I — Offset4.54.54.54.54444
J — Trail6.86.25.85.65.85.75.65.6
K — Wheelbase97.297.497.798.198.399.2100.1101
L — Standover69.271.173.274.476.879.381.182.9
M — Frame reach37.337.838.338.639.139.639.940.3
N — Frame stack50.752.153.354.156.358.160.162
Stem length70809090100110110110
Saddle rail height min (w/short mast)55.558.561.56467697173
Saddle rail height max (w/short mast)61.564.567.57073757779
Saddle rail height min (w/tall mast)59626567.570.572.574.576.5
Saddle rail height max (w/tall mast)65687173.576.578.580.582.5

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information
  • Frame
    Ultralight 800 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle
  • Fork
    Emonda SLR full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru-axle
  • Frame fit
    H1.5 Race
  • Wheel front
    Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, 100x12mm thru axle
  • Wheel rear
    Bontrager Aeolus RSL 37, OCLV Carbon, Tubeless Ready, 37mm rim depth, Shimano 11/12 freehub, 142x12mm thru axle
  • Skewer front
    Bontrager Switch thru axle, removable lever
  • Skewer rear
    Bontrager Switch thru-axle, removable lever
  • Size:47, 50, 52, 54, 56, 58, 60, 62
    Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 c
  • Size:47, 50, 52, 54, 56, 58, 60, 62
    Bontrager R4 320, 700x25c
  • Rim strip
    Bontrager Aeolus XXX rim strip
  • Max tyre size
    28c
  • Shifter
    SRAM RED eTap AXS, 12-speed
  • Front derailleur
    SRAM RED eTap AXS, braze-on
  • Rear derailleur
    SRAM RED eTap AXS, 36T max cog
  • Size:47
    SRAM RED AXS Power Meter, 48/35, DUB spindle, 165 mm length
  • Size:50, 52
    SRAM RED AXS Power Meter, 48/35, DUB, 170mm length
  • Size:54, 56, 58
    SRAM RED AXS Power Meter, 48/35, DUB, 172.5mm length
  • Size:60, 62
    SRAM RED AXS Power Meter, 48/35, DUB, 175mm length
  • Bottom bracket
    SRAM DUB, T47 threaded, internal bearing
  • Cassette
    SRAM XG-1290, 10-33, 12-speed
  • Chain
    SRAM RED D1, 12-speed
  • Max. chainring size
    1x: 50T, 2x: 53/39
  • Size:47, 50, 52
    Bontrager Aeolus P2 Pro, carbon rails, 155mm width
  • Size:47, 50, 52
    Aeolus P2 RSL, carbon rails, 155mm width
  • Size:54, 56, 58, 60, 62
    Bontrager Aeolus Pro, carbon rails, 145 mm width
  • Size:54, 56, 58, 60, 62
    Aeolus P2 RSL, carbon rails, 145mm width
  • Size:47, 50, 52, 54
    Bontrager carbon seat mast cap, 20 mm offset, short length
  • Size:56, 58, 60, 62
    Bontrager carbon seat mast cap, 20 mm offset, tall length
  • Size:47, 50
    Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 38 cm width, 80 mm stem length
  • Size:52
    Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 40 cm width, 90 mm stem length
  • Size:54
    Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 90 mm stem length
  • Size:56
    Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 100 mm stem length
  • Size:58
    Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 42 cm width, 110 mm stem length
  • Size:60, 62
    Bontrager Aeolus RSL Integrated bar/stem, OCLV Carbon, Di2 routing, 100 mm reach, 124 mm drop, 44 cm width, 110 mm stem length
  • Handlebar tape
    Bontrager Supertack Perf tape
  • Brake
    SRAM Red eTap AXS hydraulic disc
  • Brake rotor
    SRAM CenterLine X, CenterLock, round edge, 160 mm
  • Rotor size
    Max brake rotor sizes: 160 mm front and rear
  • Battery
    SRAM eTap battery pack (with charger)
  • Weight
    56 – 6.75 kg/14.89 lb
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
Sizing Information
Professional Opinion
Question(s) answered about Trek Emonda SLR 9 AXS Carbon Road Bike 2024 in Prismatic/Black
Ask a question
Question(s) asked regarding Trek Emonda SLR 9 AXS Carbon Road Bike 2024 in Prismatic/Black

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close
  • Which store has this bike
    Question asked by Jon on 11/10/2024 09:38:21
    To discover which store stocks your prefered size of bicycle please select the required size and then enter your postcode in the Click & Collect box.
    This will then show which stores have your selected item in stock.
  • Crank length and bar width please for 56cm.
    Question asked by Jon on 10/10/2024 07:13:34
    Size 56:
    Crank length: 172.5mm
    Bar width: 420mm
    Stem length:100mm
