The Madone SLR 7 AXS is the ultimate race machine.
The Madone SLR 7 AXS is the ultimate race machine.
Trek

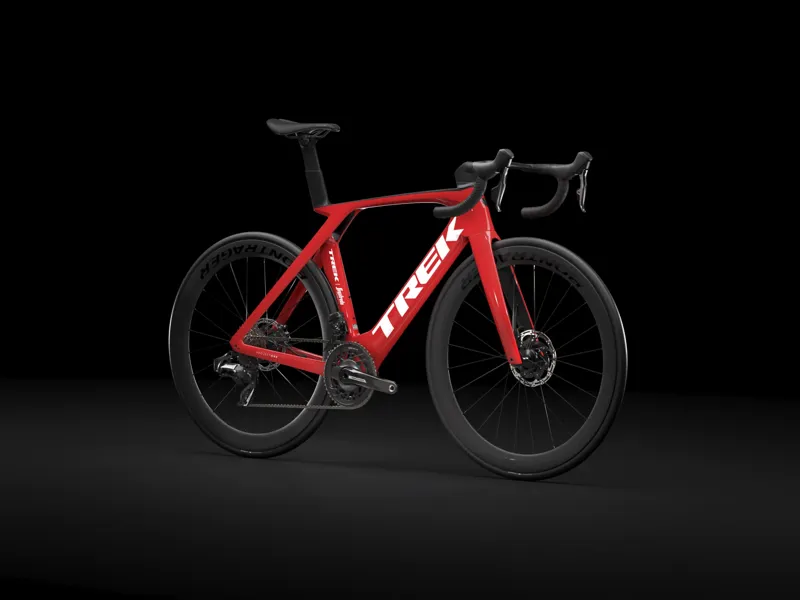

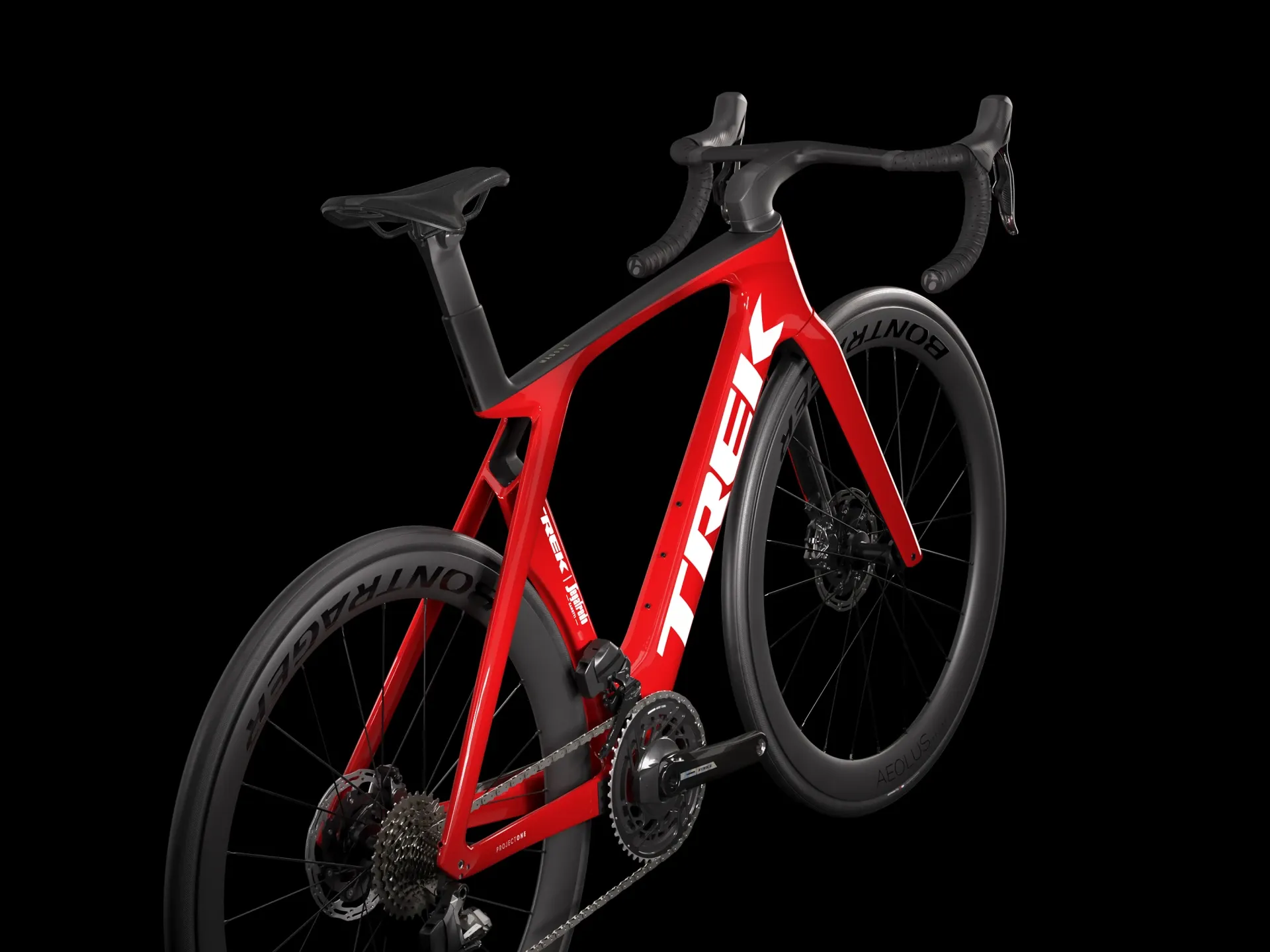

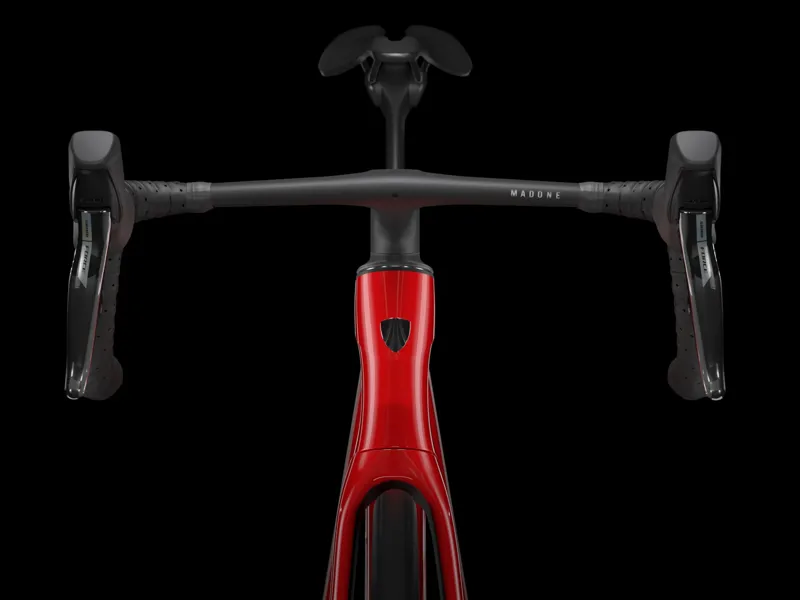

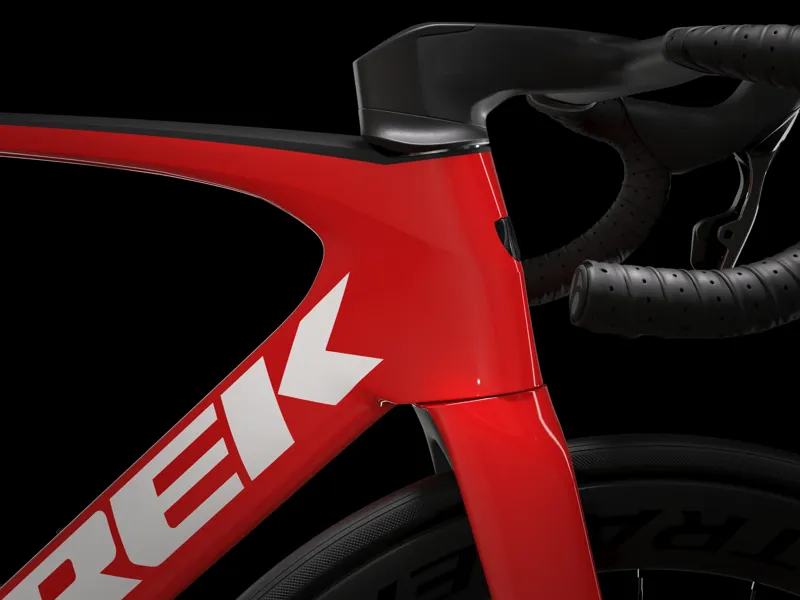

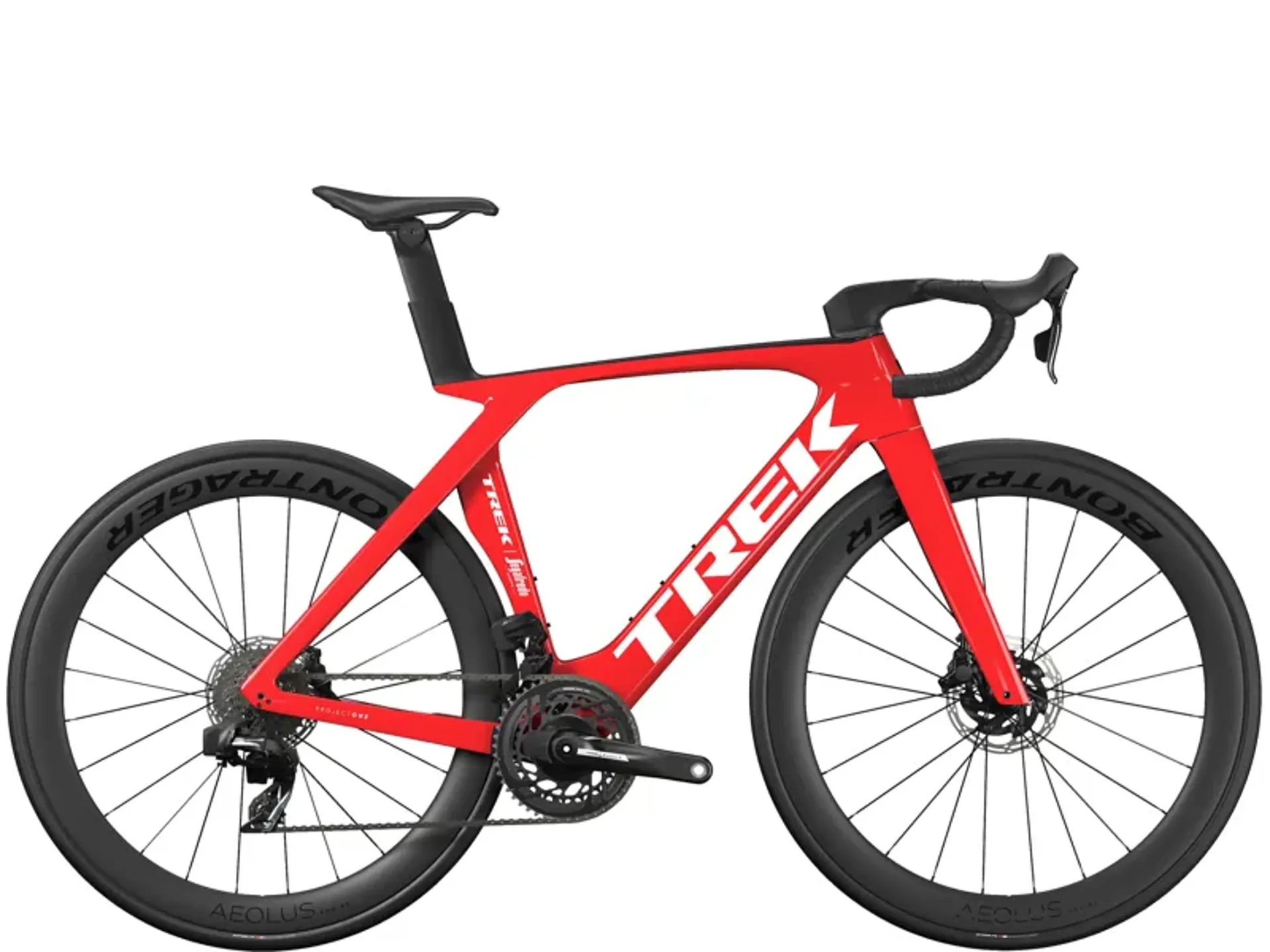

Trek Madone SLR 7 AXS Gen 7 Road Bike 2024 in Viper Red

£9,500.00 £10,650.00 11% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Madone SLR 7 AXS Gen 7 Road Bike 2024 in Viper Red

Season:2024

Brand:Trek

Code:41759RED

The Madone SLR 7 AXS is the ultimate race machine.

An 800 Series OCLV Carbon frame with exclusive IsoFlow technology adds an aerodynamic advantage, cuts weight and smooths the road ahead. It's built from the ground up with cherry-picked components for a smooth and light ride, like SRAM's Force AXS D2 wireless electronic 12-speed drivetrain and carbon wheels with a deep rim for aerodynamic gains.

Speed is your top priority, and you want a super-light aero road-racing frame with all-new aero IsoFlow comfort tech to shed grams and watts. You care about the finer things, like a clean wireless cockpit and the customised tunability of SRAM's Force AXS D2 electronic drivetrain.

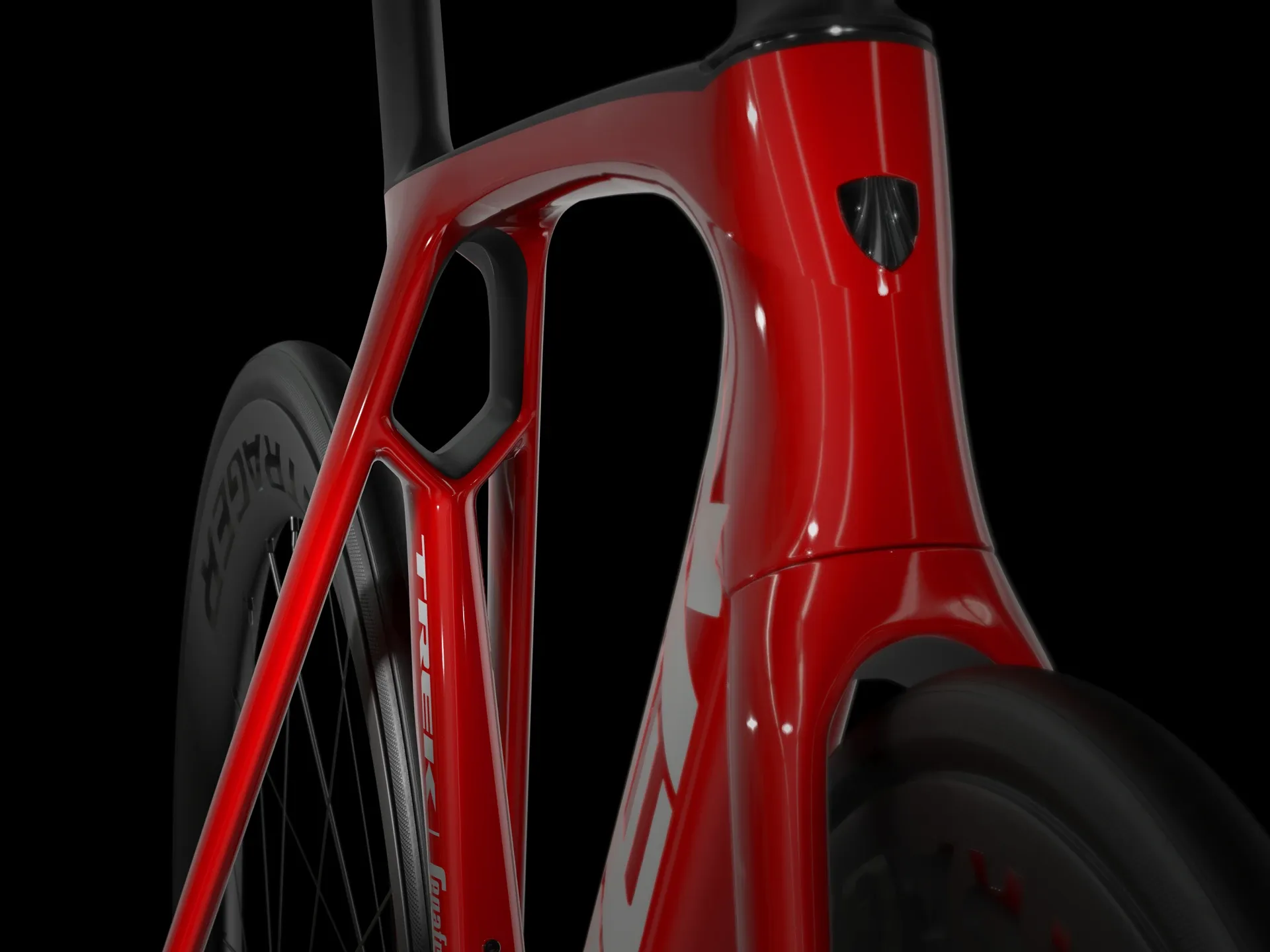

A lightweight frame with our highest-level 800 Series OCLV Carbon, all-new generation of Kammtail aerodynamic tube shaping, aerodynamic and road-smoothing IsoFlow technology and invisible cable routing. A wireless electronic 2x12 SRAM Force AXS drivetrain and flat-mount hydraulic disc brakes, power meter cranks for monitoring performance metrics, tubeless-ready Bontrager Aeolus Pro 51 carbon wheels and an integrated OCLV Carbon bar/stem combo.

The Madone SLR AXS 7 features an insanely fast road race frame paired with race-focused IsoFlow technology for a compliant ride with impressive aerodynamics.

Key Features & Benefits:

  • 800 Series OCLV Carbon Frame:Trek's lightest carbon laminate combines aero performance with low weight
  • BontragerAeolus Pro 51Wheels: Tubeless-ready, 51mm deep-section wheels to slice through the air
  • SRAM Force AXS Electronic Drivetrain:Keeps your cockpit clean and tidy while allowing customised tuning – plus, it comes equipped with power meter cranks to track performance metrics.

Full Specification:

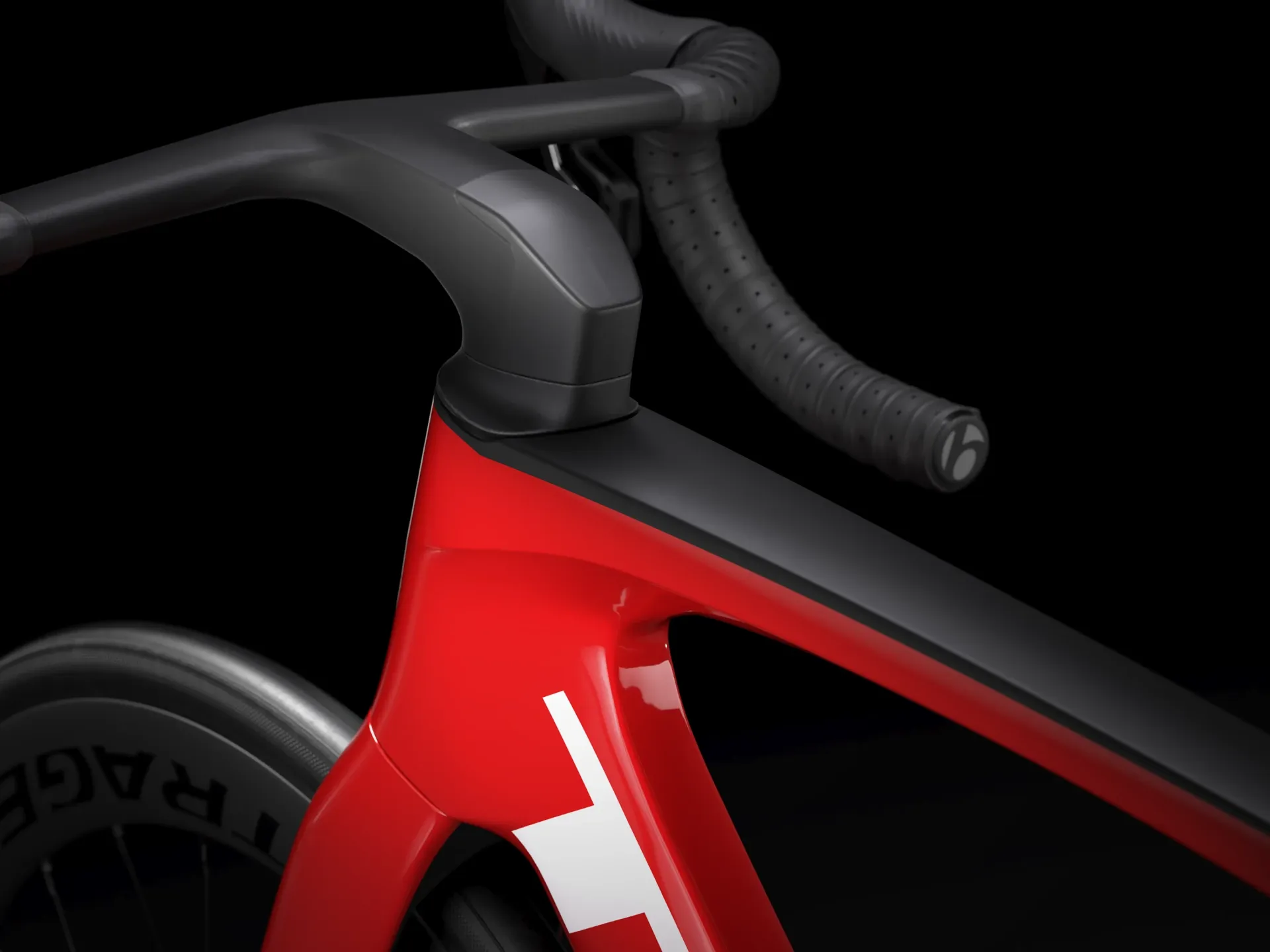

  • Frame:800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12 mm thru axle
  • Fork:Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
  • Number of Gears:24
  • Gear Shifters:SRAM Force AXS D2, 12-speed

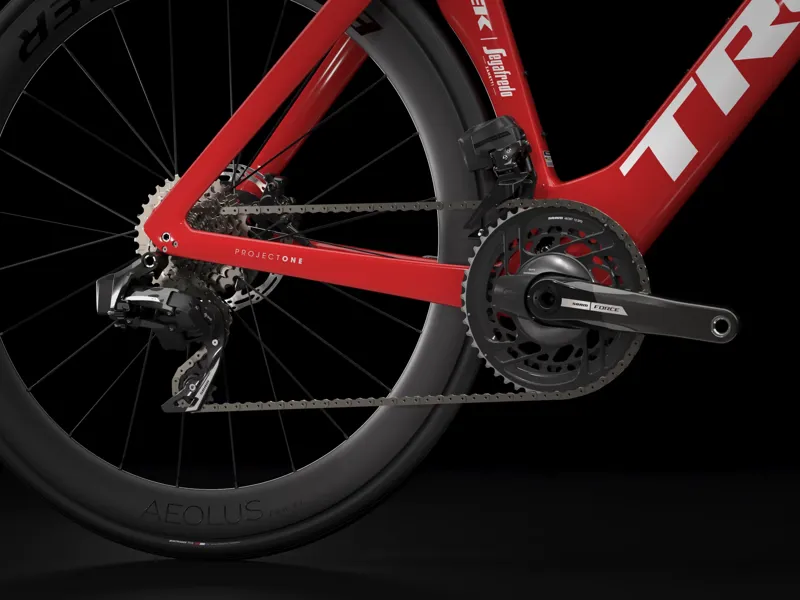

  • Chainset:SRAM Force AXS D2, power meter, 48/35, DUB, 165 - 172.5 mm length
  • Chainrings:48/35 T
  • Rear Cassette:SRAM Force XG-1270, 10-33, 12 speed
  • Chain:SRAM Force, 12-speed
  • Front Derailleur:SRAM Force AXS D2, braze-on
  • Rear Derailleur:SRAM Force AXS D2, 36T max cog
  • Bottom Bracket:SRAM DUB, T47 threaded, internal bearing
  • Pedals:Not supplied:Shop pedals here
  • Front Wheel:Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12mm thru axle
  • Rear Wheel:Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru axle
  • Front Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm
  • Rear Tyre:Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm
  • Brakes:SRAM Force AXS hydraulic disc

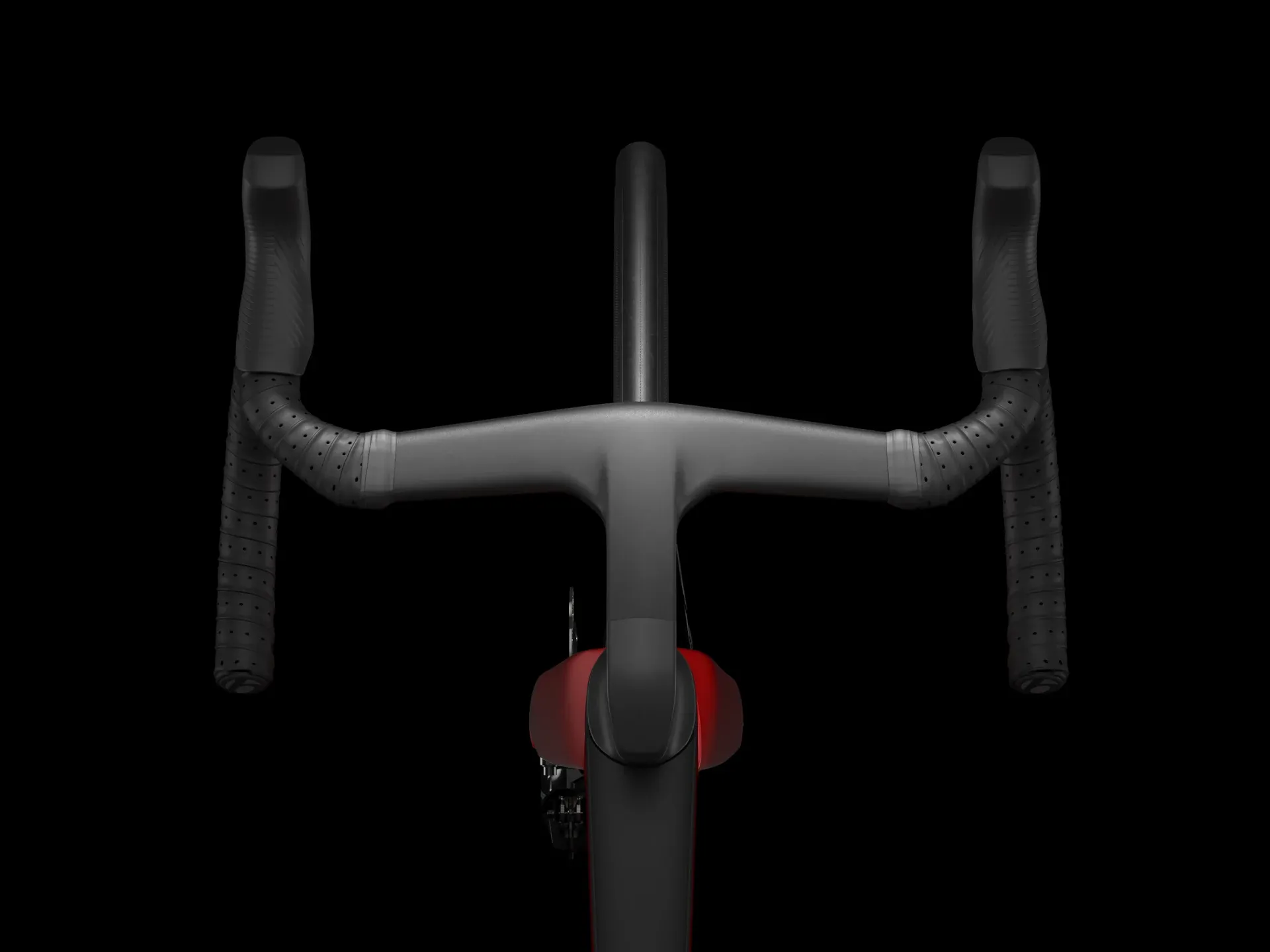

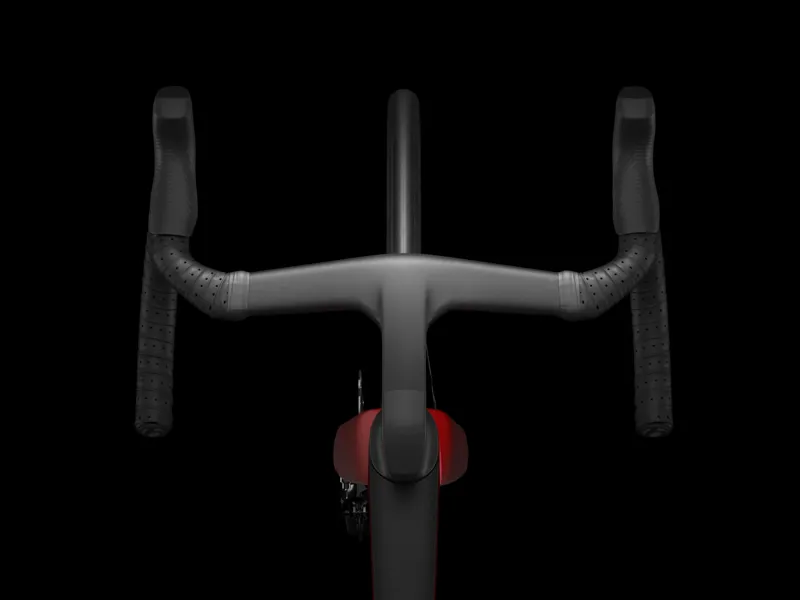

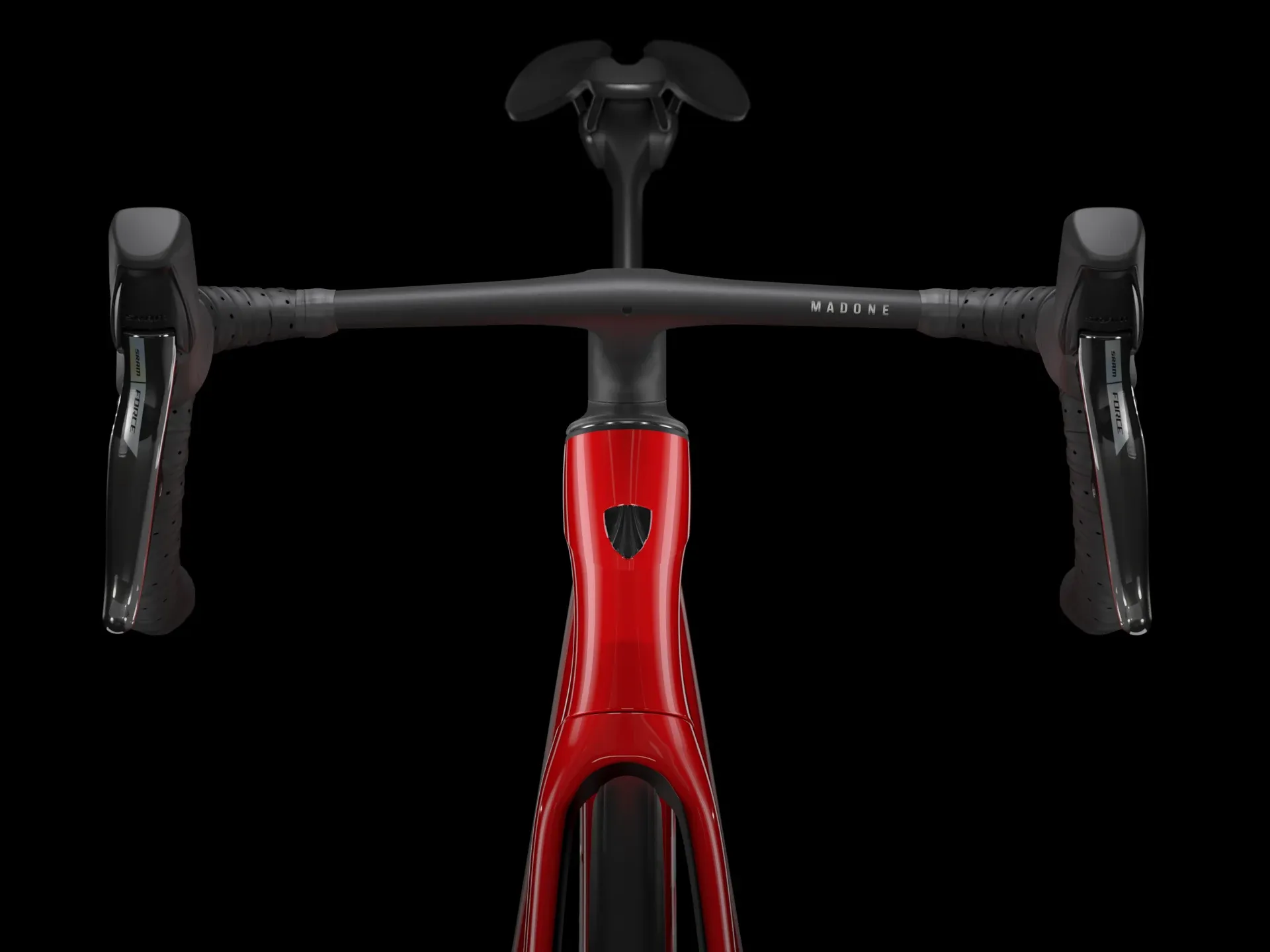

  • Handlebars:Madone Integrated handlebar/stem, OCLV Carbon, 80 mm reach, 124 mm drop, 35 - 41 cm control width, 38 - 44 cm drop width, 80 - 110 mm stem length
  • Handlebar Grips:Bontrager Supertack Perf tape
  • Stem:Madone Integrated handlebar/stem, OCLV Carbon, 80 mm reach, 124 mm drop, 35 - 41 cm control width, 38 - 44 cm drop width, 80 - 110 mm stem length
  • Saddle:Bontrager Aeolus Elite, austenite rails
  • Seatpost:Madone aero carbon seat post, 0 mm offset, short/long length
  • Weight:N/A
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Madone SL/SLR Bikes

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152 - 158 cm5'0" - 5'2"71 - 75 cm28" - 30"
50158 - 163 cm5'2" - 5'4"74 - 77 cm29" - 30"
52163 - 168 cm5'4" - 5'6"76 - 79 cm30" - 31"
54168 - 174 cm5'6" - 5'9"78 - 82 cm31" - 32"
56174 - 180 cm5'9" - 5'11"81 - 85 cm32" - 33"
58180 - 185 cm5'11" - 6'1"84 - 87 cm33" - 34"
60185 - 190 cm6'1" - 6'3"86 - 90 cm34" - 35"
62190 - 195 cm6'3" - 6'5"89 - 92 cm35" - 36"

Geometry Information for Trek Madone SL/SLR Bikes


Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size700c700c700c700c700c700c700c700c
A — Seat tube42.445.348.349.652.555.357.359.3
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C — Head tube length1011.112.113.115.117.119.121.1
D — Head angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E — Effective top tube51.252.153.454.355.957.458.659.8
G — Bottom bracket drop7.27.27.2776.86.86.8
H — Chainstay length414141414141.141.141.2
I — Offset4.54.54.54.54444
J — Trail6.86.25.85.65.85.75.65.6
K — Wheelbase97.297.497.798.198.399.2100.1101
L — Standover69.271.173.274.476.879.381.182.9
M — Frame reach37.337.838.338.639.139.639.940.3
N — Frame stack50.752.153.354.156.358.160.162
Stem length80909090100100110110
Saddle rail height min (w/short mast)55586163.566.568.570.573
Saddle rail height max (w/short mast)62656870.57375.577.580.5
Saddle rail height min (w/tall mast)58.561.564.56770727476.5
Saddle rail height max (w/tall mast)65.568.571.57476.5798184

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information
  • Frame: 800 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, IsoFlow seat tube, invisible cable routing, 3S aero chain keeper, T47 BB, flat mount disc, 142x12mm thru axle
  • Fork: Madone KVF full carbon, tapered carbon steerer, internal brake routing, flat mount disc, carbon dropouts, 12x100mm thru axle
  • Weight limit: This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
  • Battery: SRAM eTap battery pack (with charger)
  • Shifter: SRAM Force AXS D2, 12-speed
  • Front derailleur: SRAM Force AXS D2, braze-on
  • Rear derailleur: SRAM Force AXS D2, 36T max cog
  • *Crank:
    • Size: 47 - SRAM Force AXS D2 w/ power meter, 48/35, DUB, 165 mm length
    • Size: 50, 52 - SRAM Force AXS D2 w/ power meter, 48/35, DUB, 170 mm length
    • Size: 54, 56, 58, 60, 62 - SRAM Force AXS D2 w/ power meter, 48/35, DUB, 172.5 mm length
  • Bottom bracket: SRAM DUB, T47 threaded, internal bearing
  • Cassette: SRAM Force XG-1270, 10-33, 12 speed
  • Chain: SRAM Force, 12-speed
  • Max. chainring size: 1x: 50T, 2x: 54/40
  • Wheel front: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, 100x12 mm thru axle
  • Wheel rear: Bontrager Aeolus Pro 51, OCLV Carbon, Tubeless Ready, SRAM XD-R driver, 142x12 mm thru axle
  • Skewer front: Bontrager Switch thru-axle, removable lever
  • Skewer rear: Bontrager Switch thru-axle, removable lever
  • Tyre: Bontrager R3 Hard-Case Lite, aramid bead, 120 tpi, 700x25 mm
  • Max tyre size: 32mm (as measured, see manual for details)
  • *Saddle:
    • Size: 47, 50, 52 - Bontrager Aeolus P2 Elite, 155 mm width
    • Size: 54, 56, 58, 60, 62 - Bontrager Aeolus Elite, austenite rails, 145 mm width
  • Seatpost:
    • Size: 47, 50, 52, 54 - Madone aero carbon seat post, integrated light mount, 0 mm offset, long length
    • Size: 56, 58, 60, 62 - Madone aero carbon seatpost, integrated light mount, 0mm offset, long length
  • *Handlebar/stem (integrated):
    • Size: 47 - Madone Integrated handlebar/stem, OCLV Carbon, 380 mm width, 80 mm stem length
    • Size: 50, 52 - Madone Integrated handlebar/stem, OCLV Carbon, 400 mm width, 90 mm stem length
    • Size: 54 - Madone Integrated handlebar/stem, OCLV Carbon, 420 mm width, 90 mm stem length
    • Size: 56, 58 - Madone Integrated handlebar/stem, OCLV Carbon, 420 mm width, 100 mm stem length
    • Size: 60, 62 - Madone Integrated handlebar/stem, OCLV Carbon, 440 mm width, 110 mm stem length
  • Handlebar tape: Bontrager Supertack Perf tape

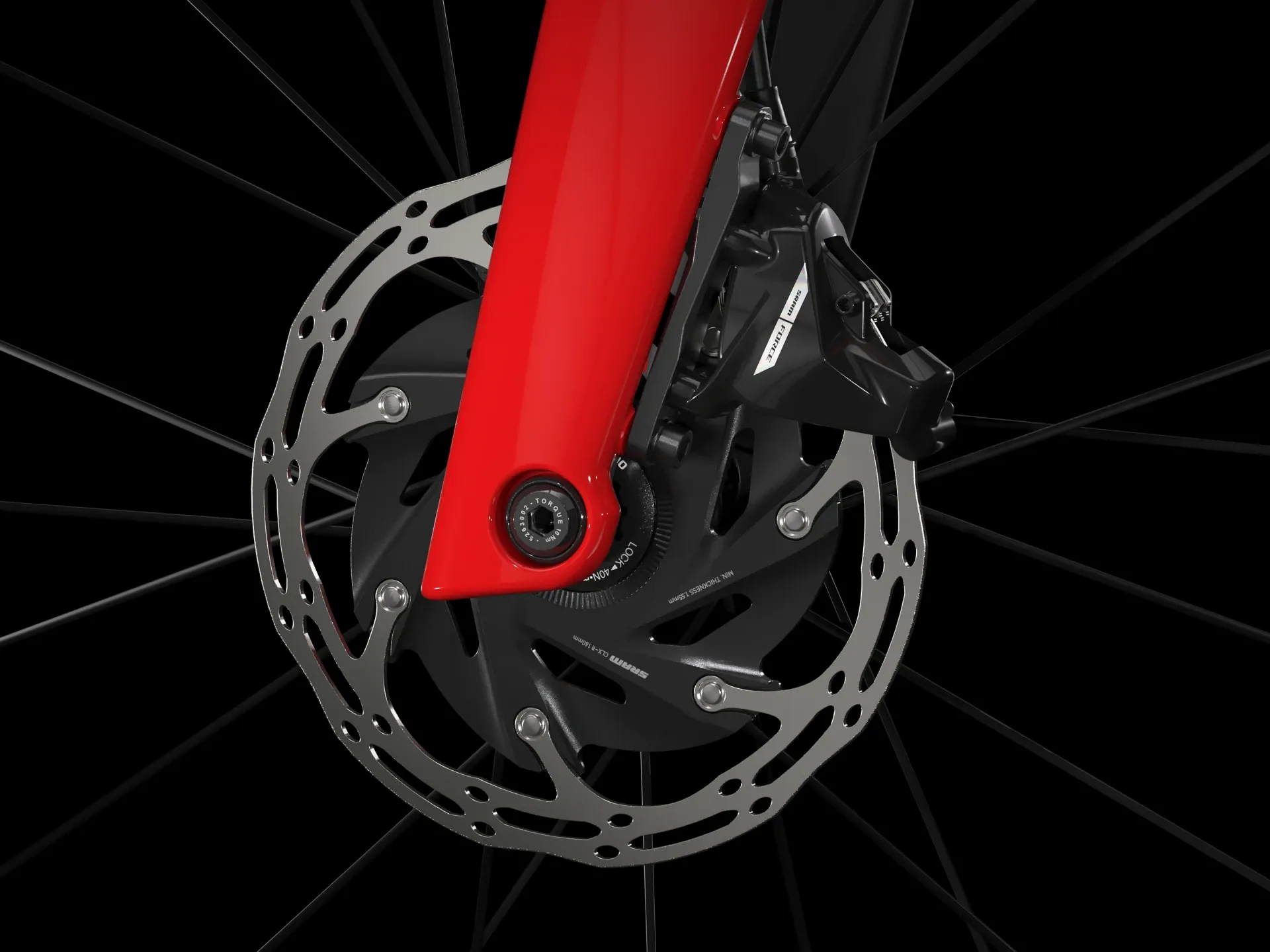

  • Brake rotor: SRAM CentreLine X, CentreLock, round edge, 160 mm
  • Rotor size: Max brake rotor sizes: 160mm front & rear
