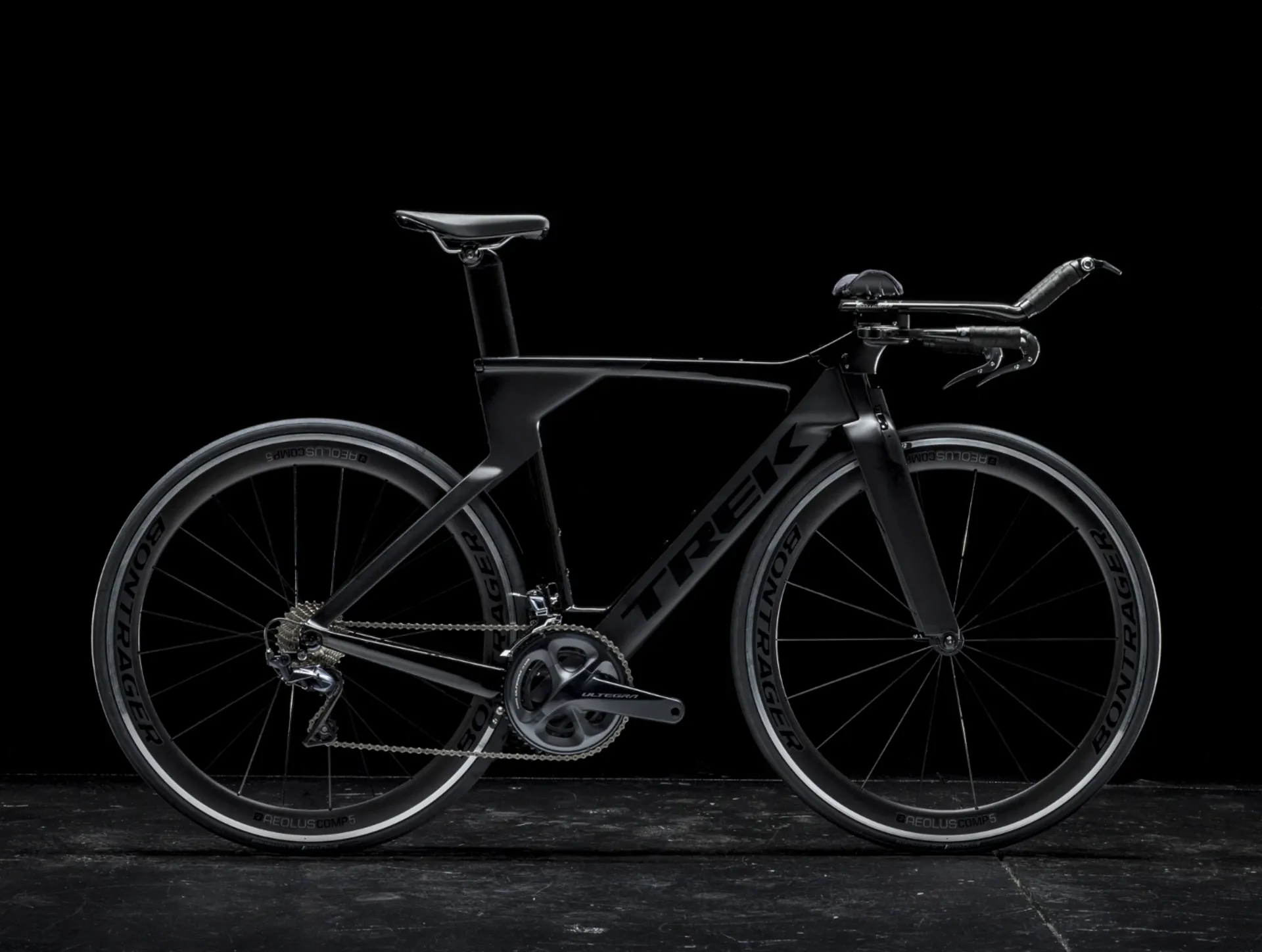

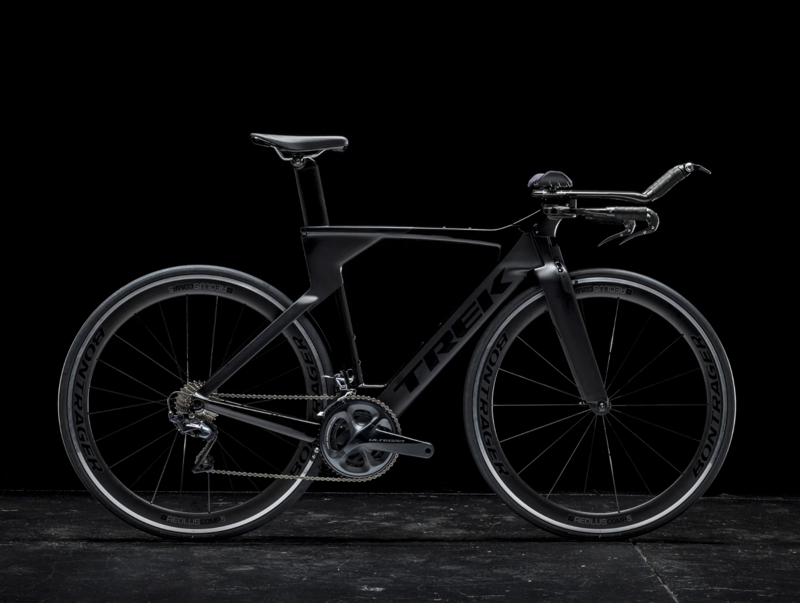

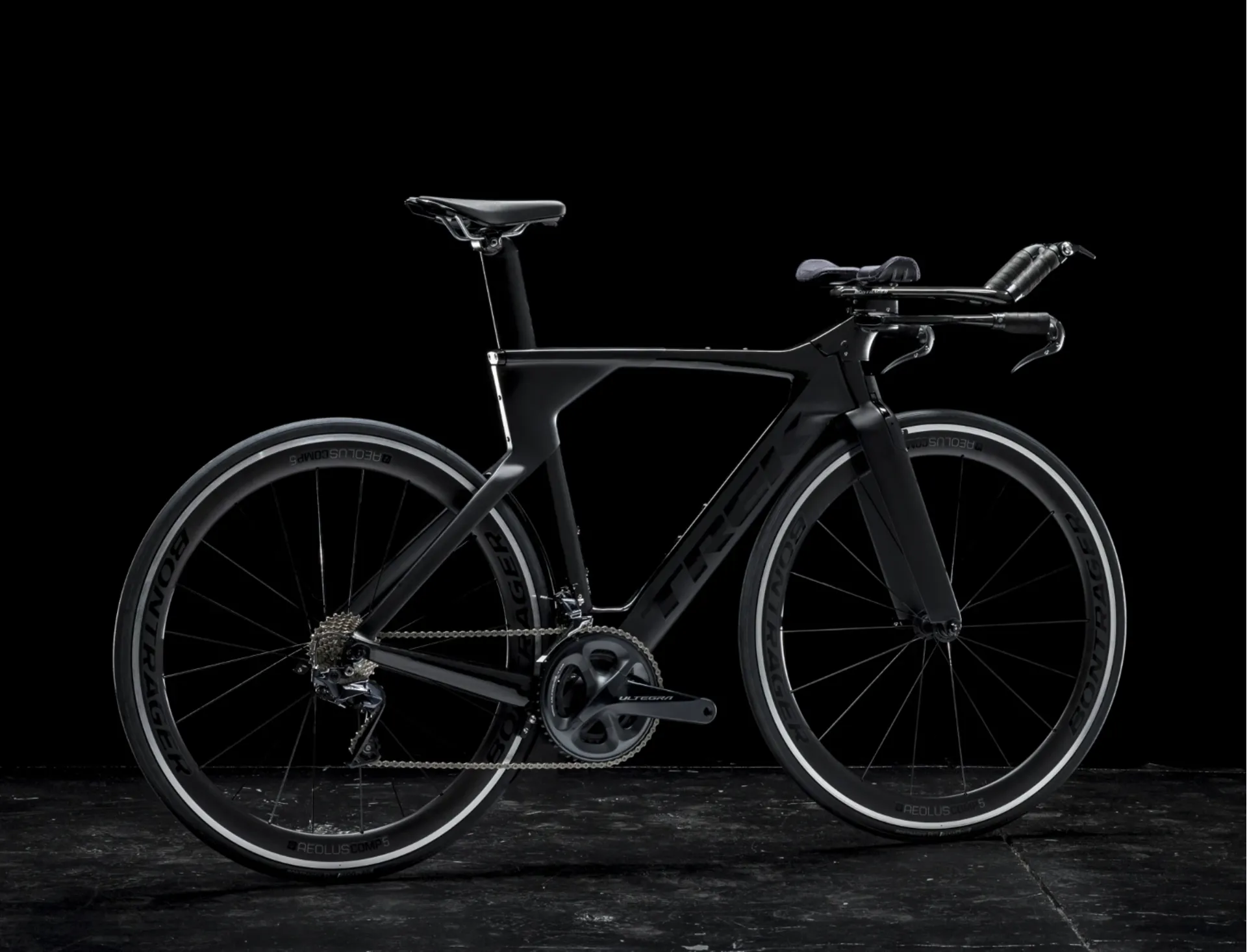

Trek Speed Concept Time Trial/Triathlon Road Bike X-Large 2021
Trek Speed Concept Time Trial/Triathlon Road Bike X-Large 2021
Trek

Trek Speed Concept Time Trial/Triathlon Road Bike X-Large 2021 in Trek Black

£4,222.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Speed Concept Time Trial/Triathlon Road Bike X-Large 2021 in Trek Black

Season:2024

Brand:Trek

Code:554990

Speed Concept is a lot of things, but above all, it’s fast.

It's Trek's most aerodynamic bike, which makes it an ideal triathlon bike and a great choice for TT enthusiasts who know every second matters. Plus, it's an exceptional value: adjustability, integration, customisation options, aero wheels and an 11-speed drive train – all in a super aero bike built for flat-out speed.

You're out to win and you're looking for the aero advantage other triathlon bikes simply can't provide. You understand fit is a crucial part of going fast and you want a bike that's infinitely customisable to your perfect aero position.

Lightweight 500 Series OCLV Carbon frame, drag-reducing Kammtail Virtual Foil (KVF) tube shaping, Speed Concept full foil carbon fork, full Shimano Ultegra 11-speed drivetrain with Dura-Ace bar end shifters, Bontrager Speed Limit integrated brake set, fully integrated handlebar and stem, Bontrager Hilo Comp triathlon-specific saddle for an aggressive and aero position, and aerodynamic Bontrager Aeolus Comp OCLV Carbon TLR wheels.

When you ride Speed Concept, you're gonna go fast.A lightweight carbon frame, aero tube shaping, carbon wheels and an 11-speed Shimano Ultegra drivetrain mean speed and efficiency where it counts. Triathletes, time trialists, general speed demons – this one's for you.

Key Features & Benefits:

  • Hydraulic Disc Brakes:Superb Braking Power.
  • Shimano Ultegra:Full Shimano Ultegra 11-speed drivetrain with Dura-Ace bar end shifters
  • 500 Series OCLV Carbon Fibre Frame:Super Lightweight & Durable, with drag-reducing Kammtail Virtual Foil (KVF) tube shaping,

Full Specification:

  • Frame:500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, BB90, Speed Fin compatible, Duotrap-compatible, SC Draft Box 2 and SC Speed Box 2 compatible

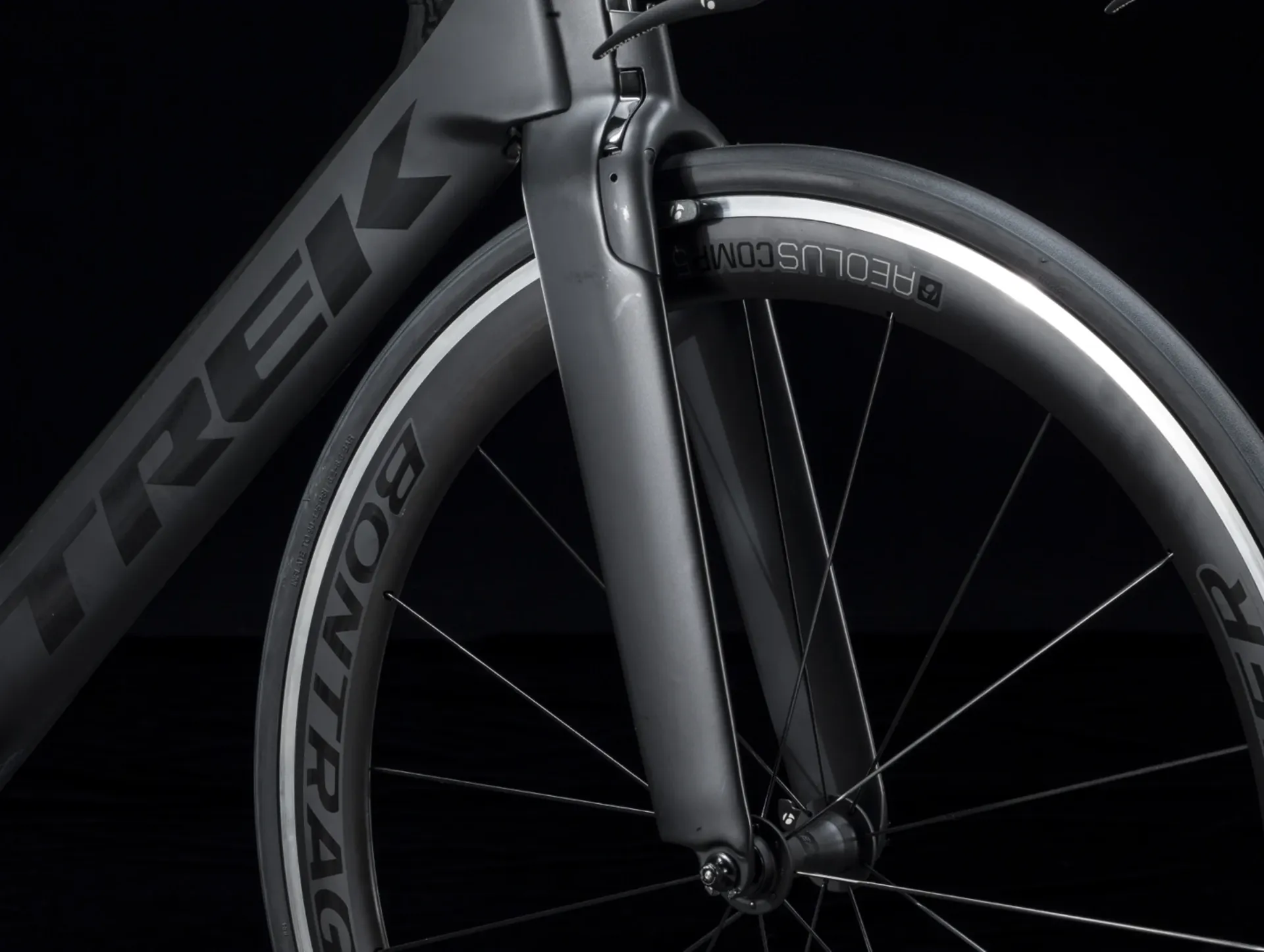

  • Fork:SC full foil carbon, integrated brake & stem
  • Number of Gears:22
  • Gear Shifters:Shimano Dura-Ace, bar end, 11-speed
  • Chainset:Shimano Ultegra R8000, 50/34 (compact)
  • Chainrings:50/34T
  • Rear Cassette:Shimano Ultegra R8000, 11-28, 11 speed
  • Chain:Shimano Ultegra HG701, 11 speed
  • Front Derailleur:Shimano Ultegra R8000, braze-on
  • Rear Derailleur:Shimano Ultegra R8000, short cage, 30T max cog
  • Bottom Bracket:Trek BB90
  • Pedals:Not supplied:Shop pedals here
  • Rims:Bontrager Aeolus Comp, OCLV Carbon, Tubeless Ready
  • Front Hub:Bontrager Aeolus Comp, 100x5 mm QR
  • Rear Hub:Shimano 11/12-speed freehub, 130x5 mm QR
  • Front Tyre:Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x25 c
  • Rear Tyre:Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x25 c
  • Brakes:Bontrager Speed Limit integrated brakes, Bontrager Race Lite aero levers

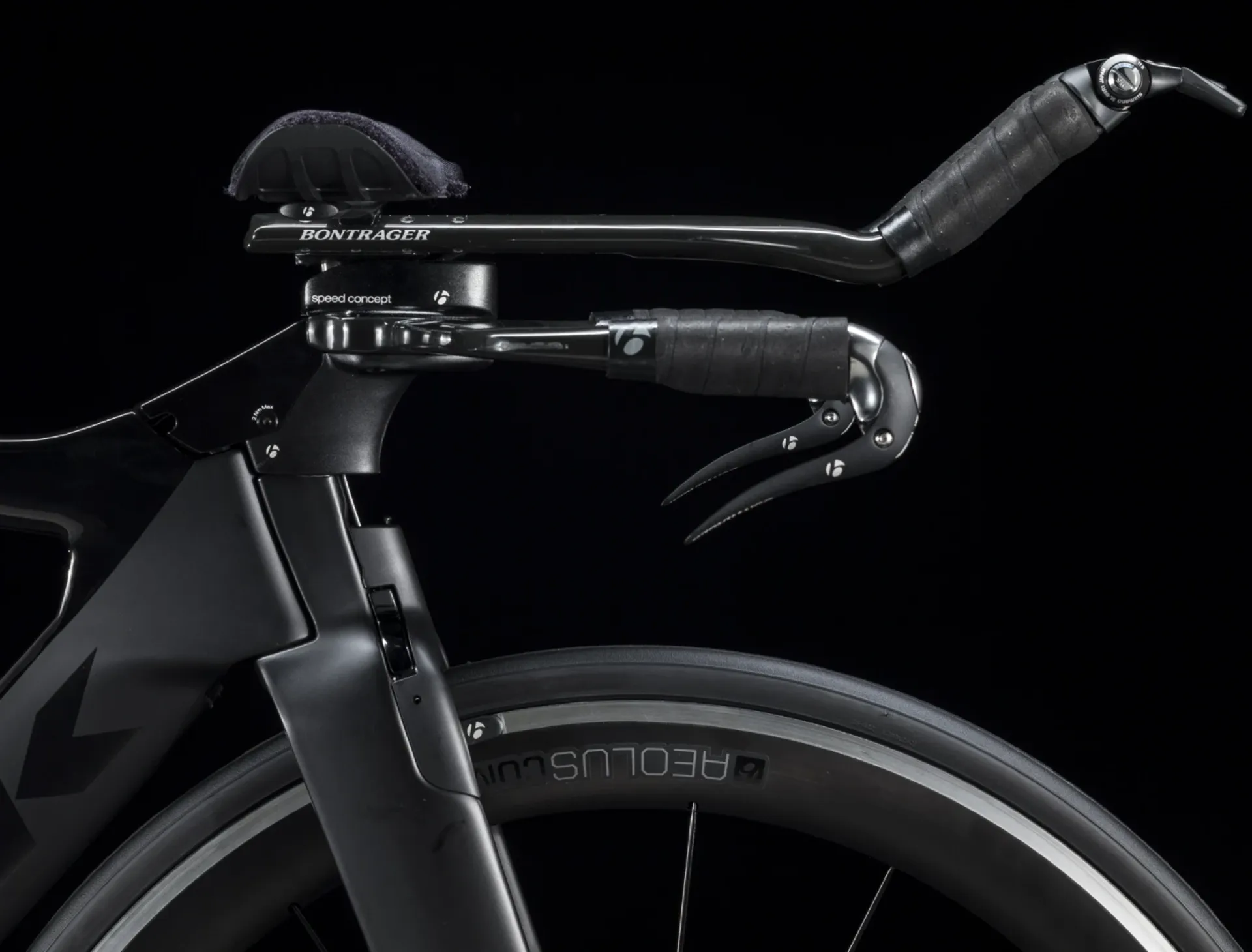

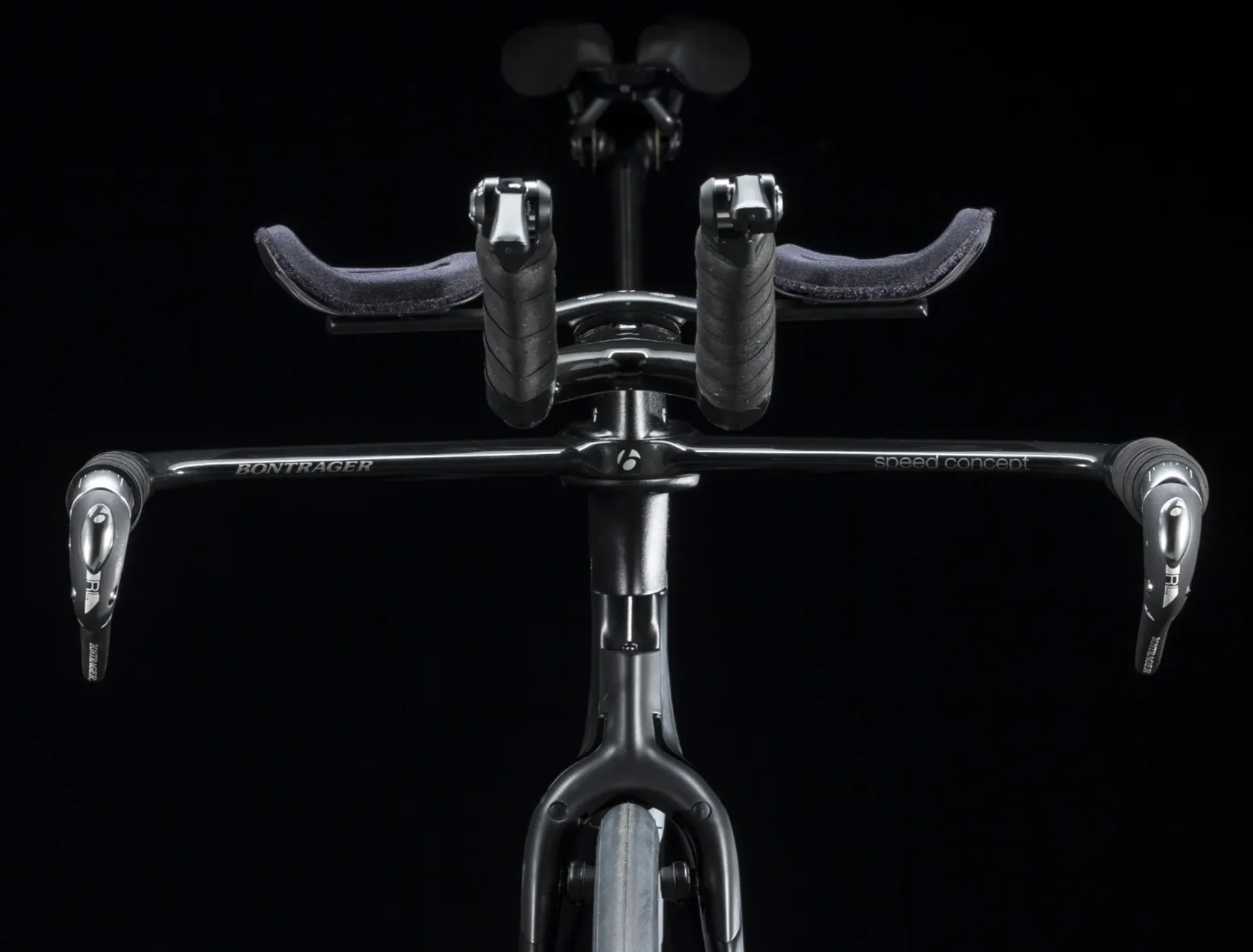

  • Handlebars:Bontrager Speed Concept KVF aero bar, carbon, direct mount, UCI legal
  • Handlebar Tape:Bontrager Gel Cork tape
  • Stem:Bontrager Speed Concept, direct mount

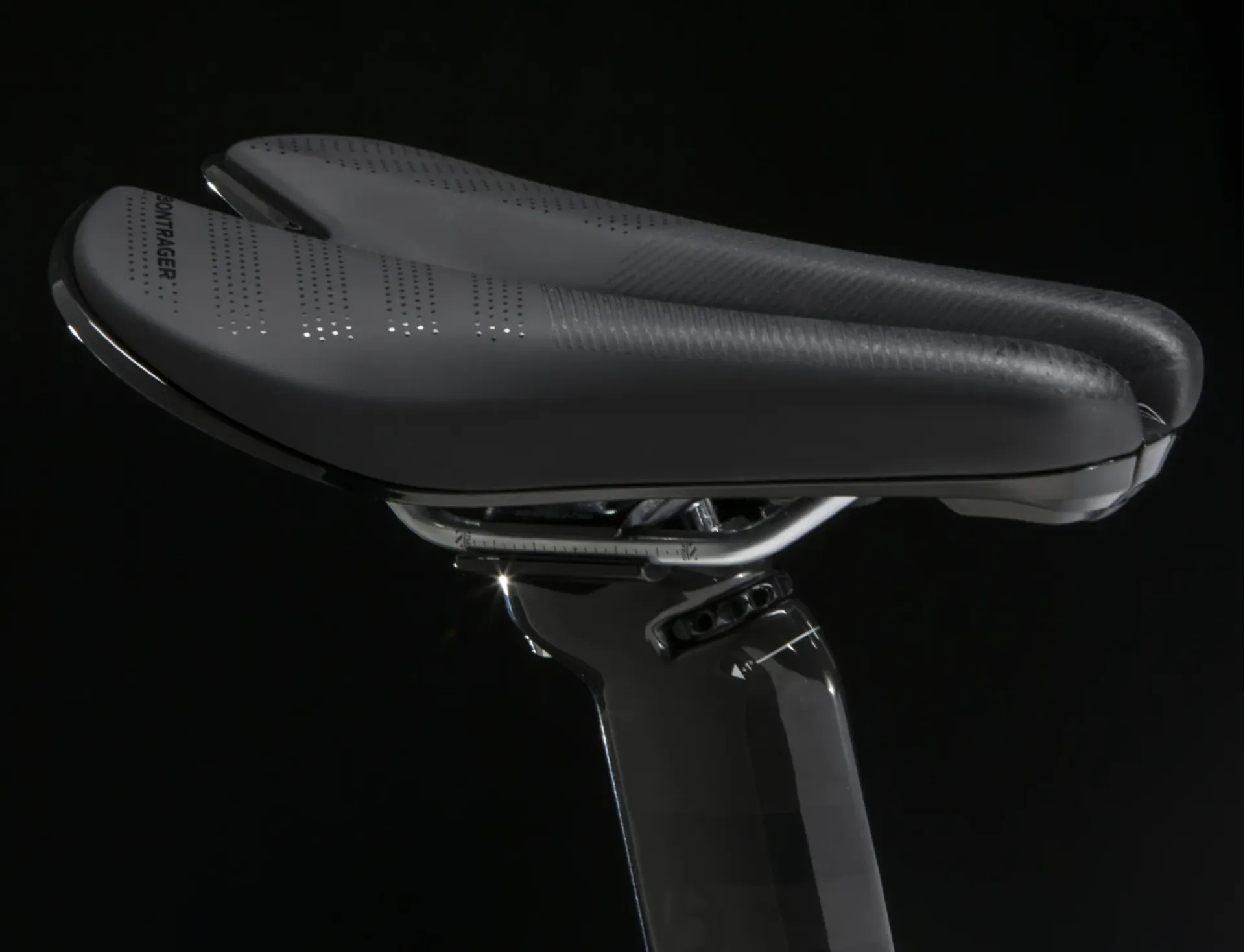

  • Saddle:Bontrager Hilo Comp, hollow chromoly rails
  • Seatpost:Bontrager Speed Concept Race Lite, alloy, +/-20 mm offset, 275 - 335 mm length
  • Weight:M- 9.09 kg / 20.05 lbs
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.


Size Guide for Trek Speed Concept

SizeRider HeightInseam
S154 - 167 cm5'1" - 5'6"72 - 80 cm28" - 31"
M167 - 175 cm5'6" - 5'9"77 - 83 cm30" - 33"
L175 - 186 cm5'9" - 6'1"82 - 88 cm32" - 35"
XL186 - 198 cm6'1" - 6'6"87 - 93 cm34" - 37"

Geometry Information for TrekSpeed Concept

Frame size letterSMLXL
Wheel size700c700c700c700c
A — Seat tube49.952.554.957.4
B — Seat tube angle78.0°78.0°78.0°78.0°
C — Head tube length6.5911.514
D — Head angle72.2°72.5°72.5°72.5°
E — Effective top tube49.551.854.156.5
G — Bottom bracket drop8888
H — Chainstay length41414141
I — Offset4.54.54.54.5
J — Trail6.1666
K — Wheelbase96.799.5102104.7
L — Standover7678.580.883.1
M — Frame reach3941.642.644.5
N — Frame stack49.251.754.156.5
Saddle rail height min (w/short mast)55.95860.462.8
Saddle rail height max (w/short mast)66.669.271.574
Saddle rail height min (w/tall mast)64.96769.471.8
Saddle rail height max (w/tall mast)75.678.280.583

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information
  • Frame
    500 Series OCLV Carbon, KVF (Kammtail Virtual Foil) tube shape, BB90, Speed Fin compatible, Duotrap-compatible, SC Draft Box 2 and SC Speed Box 2 compatible
  • Fork
    SC full foil carbon, integrated brake and stem
  • Frame fit
    Triathlon
  • Wheel front
    Bontrager Aeolus Comp, OCLV Carbon, Tubeless Ready, 100x5 mm QR
  • Wheel rear
    Bontrager Aeolus Comp, OCLV Carbon, Tubeless Ready, Shimano 11-speed freehub, 130x5 mm QR
  • Tyre
    Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x25 c
  • Max tyre size
    25 c Bontrager tyres (with at least 4 mm of clearance to frame)
  • Shifter
    Shimano Dura-Ace, bar end, 11-speed
  • Front derailleur
    Shimano Ultegra R8000, braze-on
  • Rear derailleur
    Shimano Ultegra R8000, short cage, 30T max cog
  • Crank
    Size: S, Shimano Ultegra R8000, 50/34 (compact), 165 mm length
    Size: M, Shimano Ultegra R8000, 50/34 (compact), 170 mm length
    Size: L, Shimano Ultegra R8000, 50/34 (compact), 172.5 mm length
    Size: XL, Shimano Ultegra R8000, 50/34 (compact), 175 mm length
  • Bottom bracket
    Trek BB90
  • Cassette
    Shimano Ultegra R8000, 11-28, 11-speed
  • Chain
    Shimano Ultegra HG701, 11-speed
  • Saddle
    Bontrager Hilo Comp, hollow chromoly rails
  • Seatpost
    Size: S, Bontrager Speed Concept Race Lite, alloy, +/-20 mm offset, 275 mm length
    Size: M/L/XL, Bontrager Speed Concept Race Lite, alloy, +/-20 mm offset, 335 mm length
  • Handlebar
    Bontrager Speed Concept KVF aero bar, carbon, direct mount, UCI legal
  • Handlebar tape
    Bontrager Gel Cork tape
  • Stem
    Size: S, Bontrager Speed Concept, direct mount, 69 mm rise, 67 mm reach
    Size: M/L/XL, Bontrager Speed Concept, direct mount [p]
    Size: M/L/XL, Bontrager Speed Concept, direct mount, 61 mm rise, 110 mm reach
  • Brake
    Bontrager Speed Limit integrated brakes
  • Brake lever
    Bontrager Race Lite aero
  • Weight
    M - 9.09 kg / 20.05 lbs
  • Weight limit
    This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb)
