The Shimano XT BR-M8220/BL-M8200 4-piston hydraulic disc brake set is engineered for enduro and trail riders demanding power, control, and reliability. Featuring a short-stroke Servo-Wave mechanism with SIL-TEC rollers, these brakes provide fast pad engagement and consistent stopping force, even on steep, technical descents.
Dual-diameter calipers maximise braking power while lightweight forged two-piece construction enhances rigidity and reduces weight. Ergonomically designed up-swept alloy levers with a closer pivot ensure efficient finger motion and comfortable grip. Fully adjustable on the fly—reach, free stroke, and contact point—these brakes offer complete customisation. Paired with Shimano Deore XT SM-RT86 Ice Tech 203mm 6-bolt rotors, which combine a stainless steel/aluminium/stainless steel sandwich construction for exceptional heat management, this setup provides quieter braking, less fade, and longer pad life, even under aggressive riding conditions.
Bundle Features:- Shimano XT BR-M8220/BL-M8200 hydraulic 4-piston disc brakes (rear left/front right)
- Short-stroke Servo-Wave mechanism with SIL-TEC rollers for fast, smooth pad engagement
- Dual-diameter 4-piston calipers for maximum braking power and modulation
- Lightweight forged two-piece caliper and alloy lever design for strength and reduced weight
- Forged up-swept levers with textured finish for optimal grip and ergonomics
- Free-stroke, reach, and contact point adjustable on the fly
- I-Spec EV compatible
- Shim-less post style mounting system; adapters optional
- Only for use with Shimano Low Viscosity Oil
- Kit includes pads, spare olives, and 1700/1000mm cuttable hoses
- Hose length: 1700/1000mm
- Includes 2 x Shimano Deore XT SM-RT86 Ice Tech 203mm 6-bolt rotors
- Ice Tech sandwich construction for superior heat management and reduced fade
- Large forged alloy spider increases rigidity and reduces weight
- Rotor surface optimised for pad clearing, cooling, long pad life, and low noise

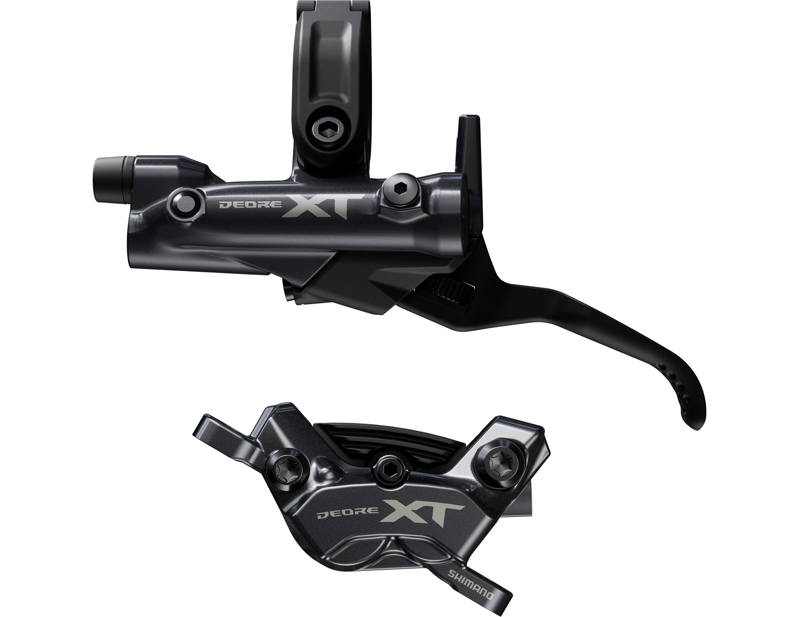

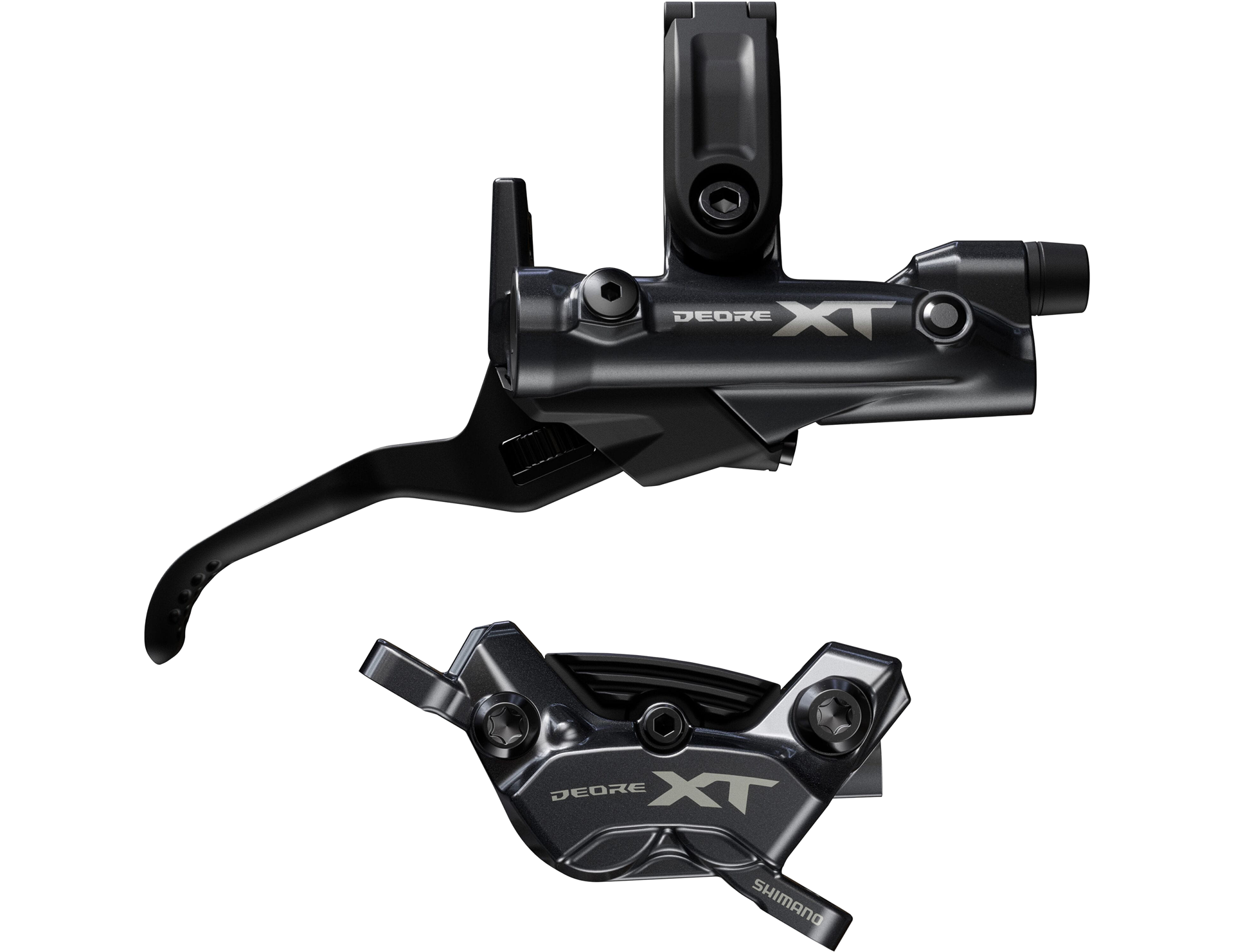

Shimano BR-M8220/BL-M8200 XT 4 Pot Bled Brake Lever/Post Mount Calliper Rear Left and Front RightThe Shimano XT 4-piston Enduro/Trail brakes are engineered for aggressive mountain biking, delivering high power and precise modulation for enduro and trail riders. Featuring a short-stroke Servo-Wave mechanism with SIL-TEC rollers, these brakes provide quick, smooth pad engagement and consistent stopping force, even on demanding descents.
Dual-diameter 4-piston calipers optimise control and power, while a lightweight forged two-piece design improves rigidity and reduces weight. The evolved ergonomic lever design with a closer pivot ensures efficient finger motion and comfortable grip for long rides. Fully adjustable on the fly, including free-stroke, reach, and contact point, the system is compatible with I-Spec EV and Shimano Low Viscosity Oil for consistent performance. Supplied with pads, spare olives, and a 1700/1000mm cuttable hose, these brakes allow full customisation to suit your bike and riding style.
Features:
- Calliper comes without adapters or rotors giving you the freedom to customise and suit your bike
- Recommended for use with Ice Tech Center Lock rotors for optimum braking performance in a choice of 160, 180 and 203 mm
- Short stroke Servo-Wave mechanism with SIL-TEC roller for a quick, smooth pad engagement and more power for aggressive riding
- Free-stroke adjustment
- Second braced bar contact point for increased master cylinder and lever rigidity
- Dual diameter 4 pistons design optimised for high power and control
- Lightweight forged two piece design that increases rigidity and reduces weight
- Forged alloy short up-swept brake lever with textured finish for optimum strength, grip and ergonomics
- Evolved ergonomic lever design for trail/enduro with a closer pivot and natural finger motion provides efficient and powerful braking
- Only for use with Low Viscosity Oil. For consistent viscosity over a wide temperature range ensuring stable piston movement within the brake system and always provides the necessary braking force with a constant lever stroke
- Shim-less post style mounting system can be used with adapters
- Hinged clamp and reach adjustment for quick installation and the perfect custom fit
- I-spec-EV compatible
- Kit also contains pads, spare olives and insert should you wish to adjust the length of the cuttable hoses
- Hose length 1700/1000 mm

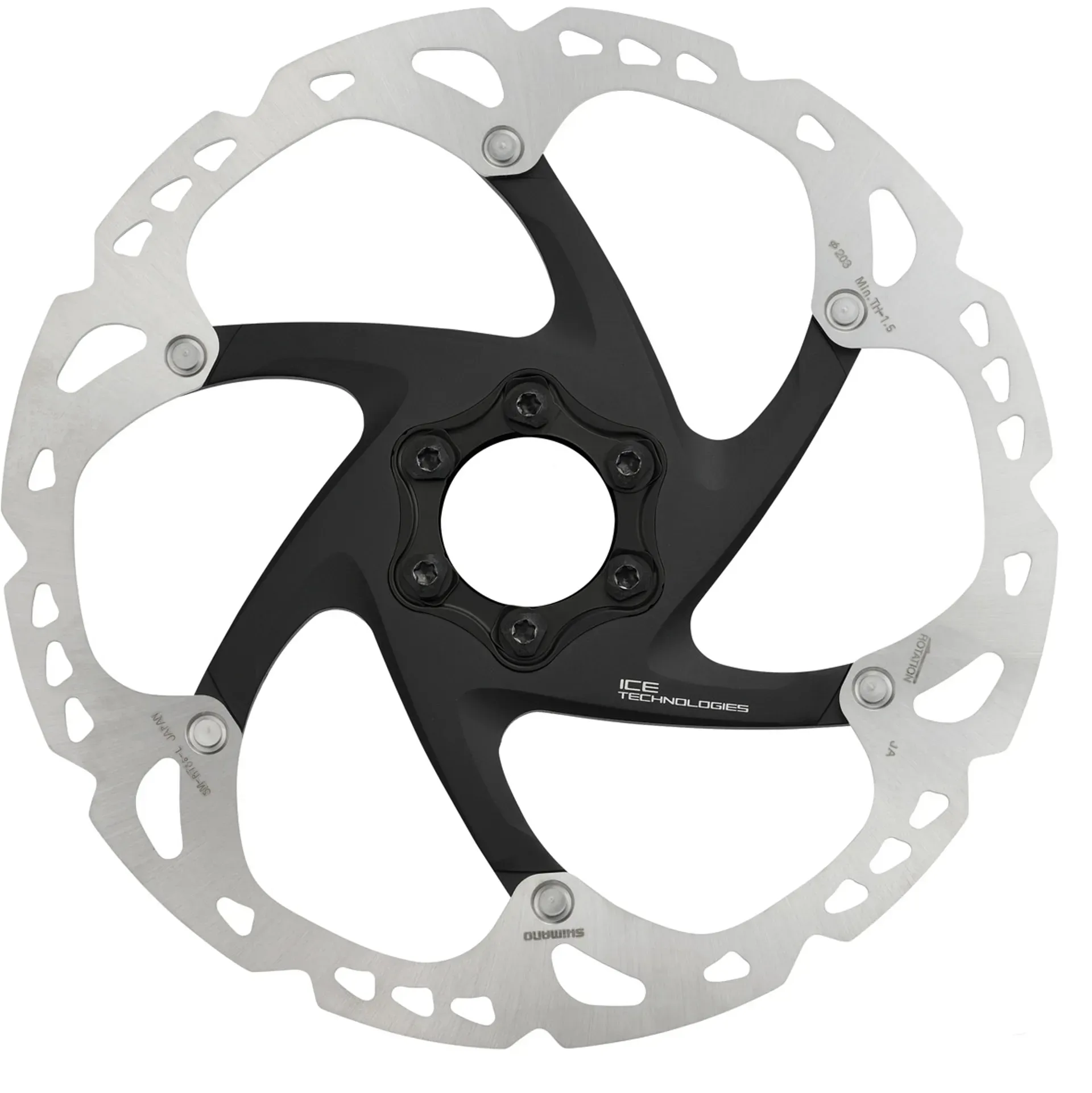

2 x Shimano Deore XT SM-RT86 Ice Tech 6-bolt Disc Rotor 203mm
SM-RT86 Ice Tech rotors give excellent performance made from a stainless steel/alloy 3-layer sandwich construction that manages heat while riding.
The clad steel/alloy / steel rotor construction allows heat generated from braking to radiate quickly through the aluminium core achieving surface temperature drops of around 50 deg C. When used with Ice Tech pads surface temperatures can drop from around 400 to 300 deg C, this provides great improvements in performance all round
Ice Tech rotors achieve long pad life, less noise and less fade due to improved heat dispersion
Features:- 6-bolt mounting system
- Rotor contact surface has been developed for excellent pad clearing and cooling which increases pad performance and life
- Large forged alloy spider supports rotor surface, increasing rigidity and reducing weight
