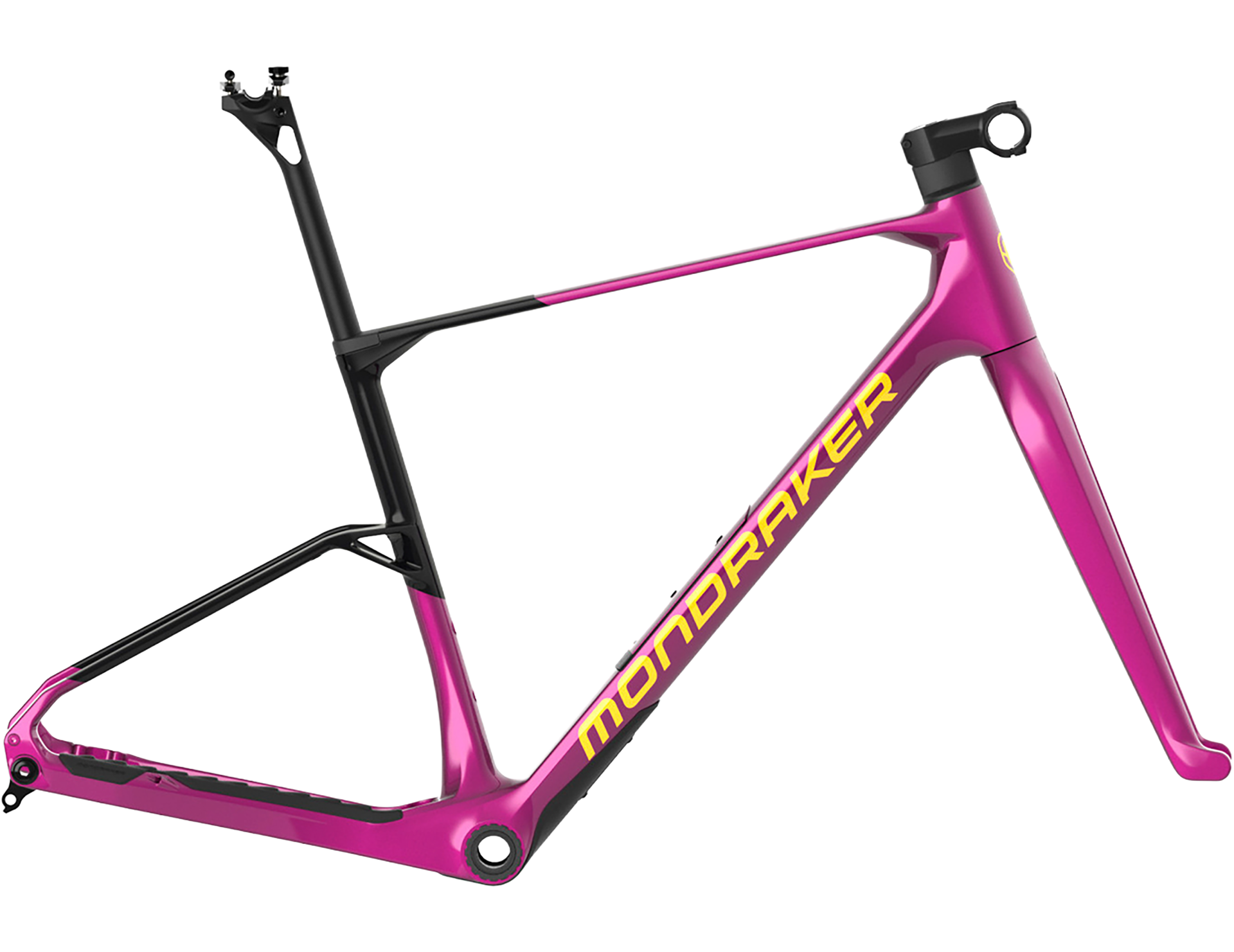

Mondraker Arid Carbon Gravel Bike Frameset 2027 in Fangsia

Season:2027

Brand:Mondraker

Code:ARID CARBON FRAMESET Pink

The Mondraker Arid Carbon Frameset is designed for riders who want to build a high-performance gravel bike capable of tackling everything from fast gravel racing to multi-day adventure rides. Built around Mondraker’s Stealth Air Carbon construction and Forward Geometry philosophy, the Arid combines impressive efficiency, comfort and control across mixed terrain.

The lightweight carbon frame features integrated in-tube storage, generous tyre clearance and multiple mounting points, giving riders the flexibility to tailor the bike for racing, bikepacking or long-distance exploration. Internal HHG cable routing keeps the bike looking clean while reducing cable noise and maintenance concerns.

Matched with a full carbon fork and premium carbon seatpost, the Arid Carbon Frameset delivers excellent vibration damping and ride comfort without sacrificing responsiveness when putting the power down on rough gravel tracks and technical terrain.

Key Features & Benefits:

  • Stealth Air Carbon Construction: Lightweight and compliant carbon frame engineered for efficiency, comfort and durability.
  • Integrated In-Tube Storage: Built-in storage system keeps ride essentials secure without external bags cluttering the frame.
  • Adventure-Ready Gravel Platform: Designed for fast gravel riding, endurance events and bikepacking versatility.

Full Specification:

  • Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1x drivetrain design, Flatmount brake compatible.
  • Fork: Stealth Air Carbon tapered steerer tube, HHG internal routing, Flatmount integrated fork.
  • Headset: Onoff IS52/IS52, 1-1/8" to 1.5" head tube, sealed bearings, internal cable routing.
  • Stem: Onoff Semi-Integrated, 31.8mm bar bore, -7° rise, S: 60mm, M: 70mm, ML: 70mm, L: 80mm, XL: 90mm.
  • Seatpost: Onoff S9 Carbon 15-R, 27.2mm diameter, S/M/ML: 400mm, L/XL: 450mm.
  • Bottom Bracket: T47 threaded bottom bracket.
  • Rear Axle Standard: 12x142mm.
  • Brake Mount: Flatmount disc compatible.
  • Drivetrain Compatibility: 1x drivetrain design.
  • Sizes: S, M, ML, L, XL.
  • Derailleur Hanger: SRAM UDH compatible.

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.


Sizing Chart for Mondraker Arid

Mondraker Arid Size Guide

Geometry Information for Mondraker Arid

Arid Frame Geometry

Frame size
SMM/LLXL
ASeattube length410 mm450 mm480 mm510 mm540 mm
BToptube length520 mm550 mm580 mm600 mm630 mm
CBottom bracket drop-75-75-75-75-75
DBottom bracket height269 mm269 mm269 mm269 mm269 mm
EChainstay length425 mm425 mm425 mm425 mm425 mm
FSeat tube angle73°73°73°73°73°
GEffective seattube angle74°74°74°74°74°
HHeadtube angle70°70°70°70°70°
IFork Offset45 mm45 mm45 mm45 mm45 mm
JWheelbase1003 mm1035 mm1067 mm1089 mm1121 mm
KHeadtube length100 mm125 mm145 mm175 mm200 mm
LReach363 mm386 mm411 mm423 mm446 mm
MStack548 mm572 mm591 mm619 mm642 mm
NStem Length60 mm70 mm70 mm80 mm90 mm
OFork Height420 mm420 mm420 mm420 mm420 mm

Warranty Information for Mondraker:

Mondraker offers an extended lifetime warranty for all its frames against defects in materials or manufacturing. Exclusions and terms apply.
It should be emphasised that each bicycle/frame has a life-cycle which will vary depending on the type of material and its construction. This life-cycle may be shortened by the form and type of use, or lack of appropriate maintenance and care. The lifetime warranty will therefore be entirely dependent on the optimal life-cycle determined by Mondraker for each specific Product.

The Avinox drive system (motor, battery, display, and charger) comes with a 2-year warranty starting from the activation date, covering up to 500 charge cycles. Exclusions and terms apply.

All warranty claims for Mondraker components or original parts will be handled through an authorised Mondraker distribution point, and the original commercial invoice must be provided.

Mondraker points of sale will handle the warranty of third-party manufacturers' components, with each manufacturer being responsible for the warranty of its components used in the product.

For Full Terms and Conditions Visit Mondrakers Website
