Trek Rail 9.8 GX AXS Eu Full Suspension Electric MTB 2023 in Black

Season:2024

Brand:Trek

Code:35679PrismaticBLK

The Rail 9.8 GX AXS is a long-travel carbon e-MTB that rips like our beefiest trail rigs and powers you right back up the mountain. You get upgraded everything, including the frame for maximum fun on the gnarliest runs. Bosch's latest tech with the new smart system Performance Line CX that has a longer-range 750 Wh battery and cool features that take your ride to the next level like activity tracking, navigation and Bluetooth connectivity.

You’re looking for a long-travel carbon e-MTB with wireless electronic shifting and a lot of battery power. You want the stability of a longer reach, the plush feel of high-end suspension and the very latest e-bike tech with the new Bosch smart system.

An upgraded OCLV Mountain Carbon frame with longer reach and oversized head tube and seat tube for maximum strength. An extra-long-range 750 Wh battery, a super responsive RockShox ZEB Select+ fork and RockShox Super Deluxe Ultimate Thru Shaft shock. You get SRAM GX AXS wireless electronic shifting and the latest from Bosch with smart system Performance Line CX, including the new Bluetooth® LED remote for easy connectivity and all-in-one navigation and activity tracking through the eBike Flow app.

This bike features across-the-board upgrades that make it a serious ripper – especially the AXS drivetrain. It's built for hammering gnarly descents, then flying right back up again thanks to the powerful Bosch motor, 750 Wh battery and parts that can keep up with all that rowdy riding.

Key Features:

  • SRAM1x12 drivetrain:Simplicity combined with wide gear range
  • 750Wh Battery:a bit of extra power for long days in the saddle
  • OCLV Mountain Carbon Frame:light and durable frame for a responsive ride

Full Specifications:

  • Frame:NEW OCLV Mountain Carbon main frame, 1.8" lower head tube, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru axle, 150 mm travel
  • Rear Suspension:NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5mm
  • Fork:RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel
  • Motor:Bosch Performance CX, magnesium motor body, 250 watt, 85 Nm, 25km/h
  • Battery:Bosch PowerTube 750
  • Controller:Bosch Kiox with Anti-theft solution
  • Number of Gears:12
  • Gear Shifters:SRAM GX Eagle AXS, 12-speed
  • Chainset:SRAM X1 1000, 34T, 165 mm length
  • Chainrings:34T
  • Rear Cassette:SRAM Eagle XG-1275, 10-52, 12-speed
  • Chain:SRAM GX Eagle, 12-speed

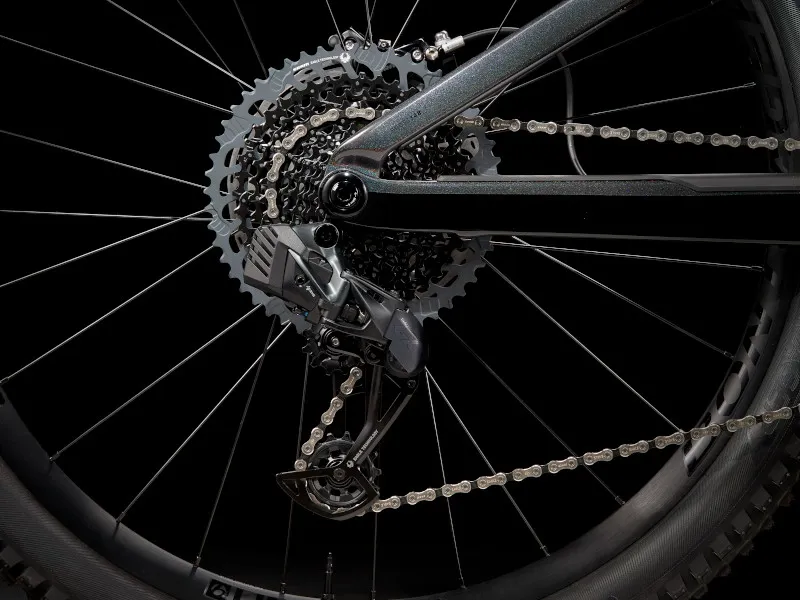

  • Rear Derailleur:SRAM GX Eagle
  • Pedals:VP-536 nylon platform
  • Rims:Bontrager NEW Line Comp 30, G609 alloy, Tubeless Ready, 6-bolt, Boost110, 15 mm thru-axle
  • Front Hub:Bontrager Boost110
  • Rear Hub:Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru axle
  • Front Tyre:Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 120 tpi, 29x2.50"

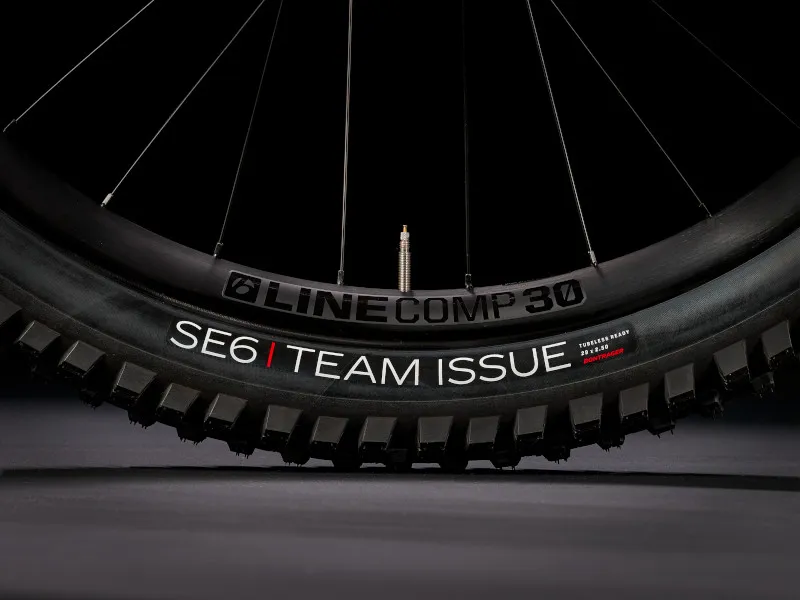

  • Rear Tyre:Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewall, aramid bead, 120 tpi, 29x2.50"
  • Brakes:SRAM Code R hydraulic disc
  • Handlebars:Bontrager Line Pro, OCLV Carbon, 35mm, 27.5mm rise
  • Grips:Bontrager XR Trail Elite, alloy lock-on
  • Headset:Knock Block Integrated, 58-degree radius, cartridge bearing, 1-1/8" top, 1.5" bottom
  • Stem:Bontrager Line Pro, 35mm, Knock Block, Blendr compatible, 0 degree
  • Saddle:Bontrager Arvada, austenite rails, 138mm width
  • Seatpost:Bontrager Line Elite Dropper, internal routing, 31.6mm

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Rail Electric Bike

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S153 - 1675'0.0" - 5'6.0"72 - 7928.3 - 30.7
M161 - 1755'3.0" - 5'8.9"76 - 8230.3 - 32.7
L174 - 1885'8.9" - 6'2"82 - 8832.3 - 34.6
XL186 - 1966'1.2" - 6'5.6"87 - 9234.3 - 36.6

Geometry Information for Trek Rail with Bosch Smart System

Frame size letterMMLLXLXL
Geometry positionLowHighLowHighLowHigh
Wheel size29"29"29"29"29"29"
A — Seat tube424245455050
B — Seat tube angle70.8°71.2°70.8°71.2°70.8°71.2°
Effective seat tube angle76.7°77.1°76.7°77.1°76.7°77.1°
C — Head tube length111112.512.51414
D — Head angle64.2°64.6°64.2°64.6°64.2°64.6°
E — Effective top tube60.16063.963.867.367.1
F — Bottom bracket height34.134.634.134.634.134.6
G — Bottom bracket drop3.32.73.32.73.32.7
H — Chainstay length44.844.744.844.744.844.7
I — Offset4.34.34.34.34.34.3
J — Trail13.31313.31313.313
K — Wheelbase123.6123.6127.8127.7131.4131.3
L — Standover76.877.376.57776.376.8
M — Frame reach45.245.648.749.151.752.1
N — Frame stack63.362.964.664.36665.6

Geometry Information for Trek Rail Gen 2

Frame size number15.515.517.517.519.519.521.521.5
Frame size letterSSMMLLXLXL
Geometry positionLowHighLowHighLowHighLowHigh
Wheel size29"29"29"29"29"29"29"29"
A — Seat tube4141424245455050
B — Seat tube angle67.6°68.0°67.6°68.0°67.6°68.0°67.6°68.0°
Effective seat tube angle75.0°75.4°75.0°75.4°75.0°75.4°75.0°75.4°
C — Head tube length10.510.510.510.511111212
D — Head angle64.5°64.9°64.5°64.9°64.5°64.9°64.5°64.9°
E — Effective top tube58.858.761.361.163.463.366.666.5
F — Bottom bracket height33.934.433.934.433.934.433.934.4
G — Bottom bracket drop3.52.93.52.93.52.93.52.9
H — Chainstay length44.844.744.844.744.844.744.844.7
I — Offset4.34.34.34.34.34.34.34.3
J — Trail13.112.713.112.713.112.713.112.7
K — Wheelbase119.6119.5122.1122124.3124.3127.8127.7
L — Standover74.374.877.377.876.276.777.578
M — Frame reach4242.544.54546.54749.549.9
N — Frame stack62.662.362.662.26362.763.963.6

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.
