The Trek Procaliber 9.5 gives you the advantages of a carbon race bike with IsoSpeed at a wallet-friendly price and it gives you solid tech where it matters most.
The Trek Procaliber 9.5 gives you the advantages of a carbon race bike with IsoSpeed at a wallet-friendly price and it gives you solid tech where it matters most.
Trek

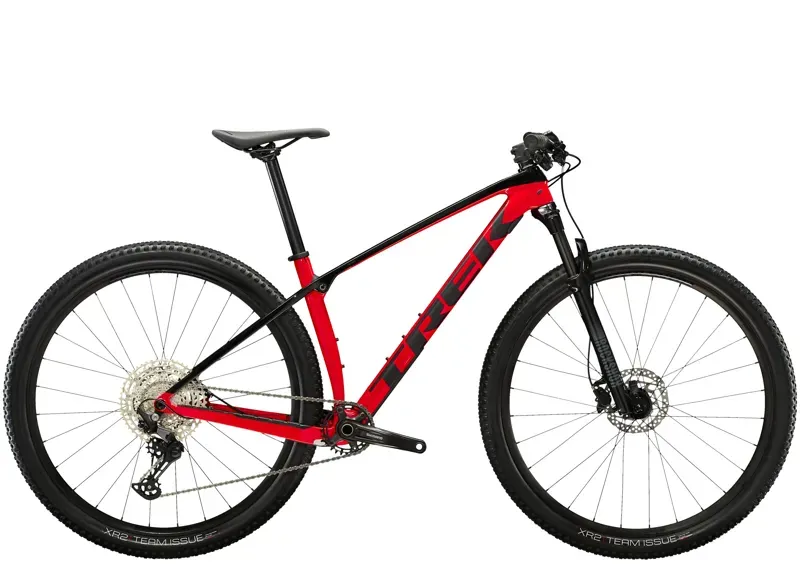

ONE OFF Trek Procaliber 9.5 Hardtail Mountain Bike Medium/Large 2024 in Radioactive Red

£1,195.00 £1,675.00 29% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

ONE OFF Trek Procaliber 9.5 Hardtail Mountain Bike Medium/Large 2024 in Radioactive Red

Season:2024

Brand:Trek

Code:SD5260253

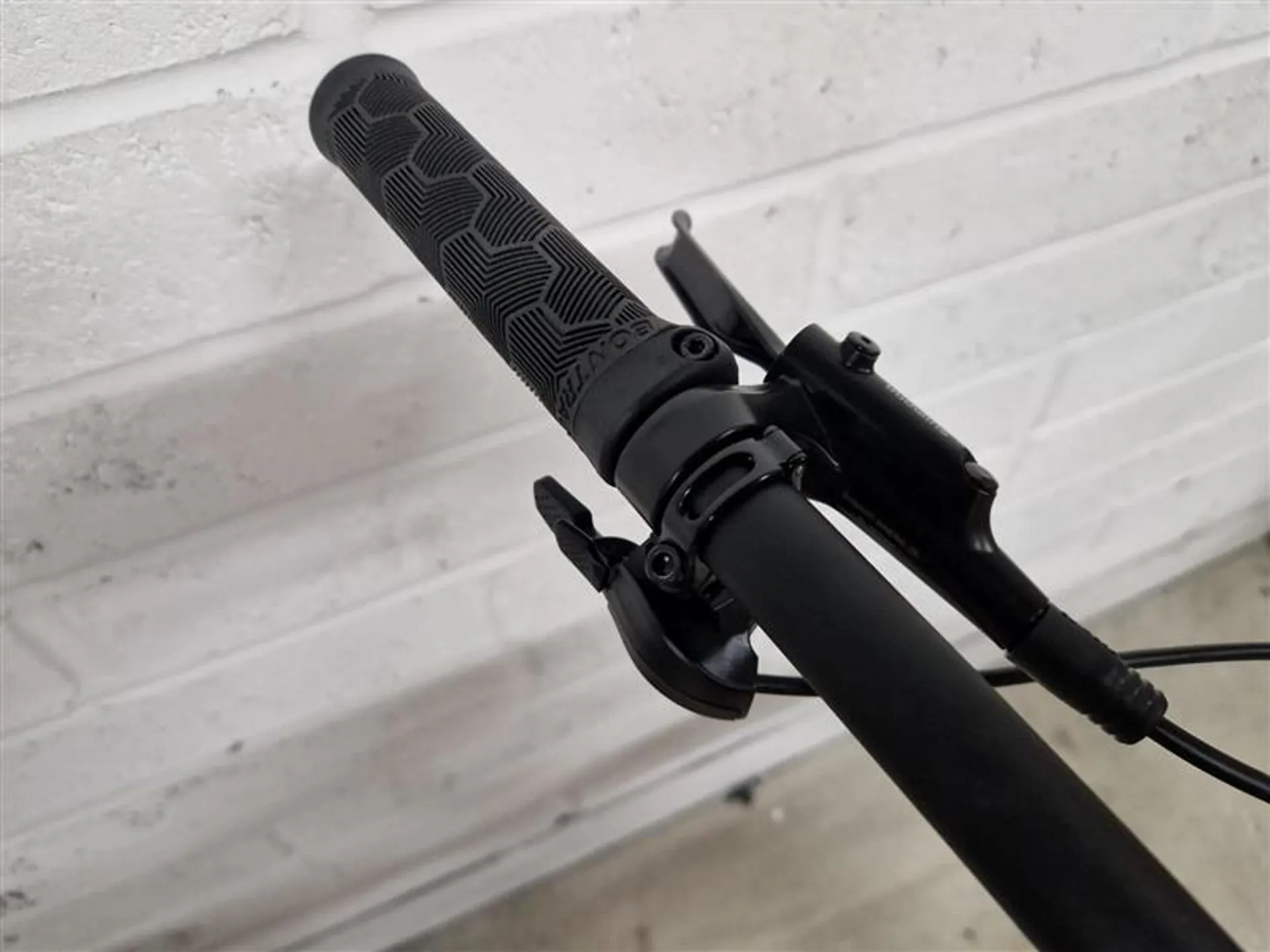

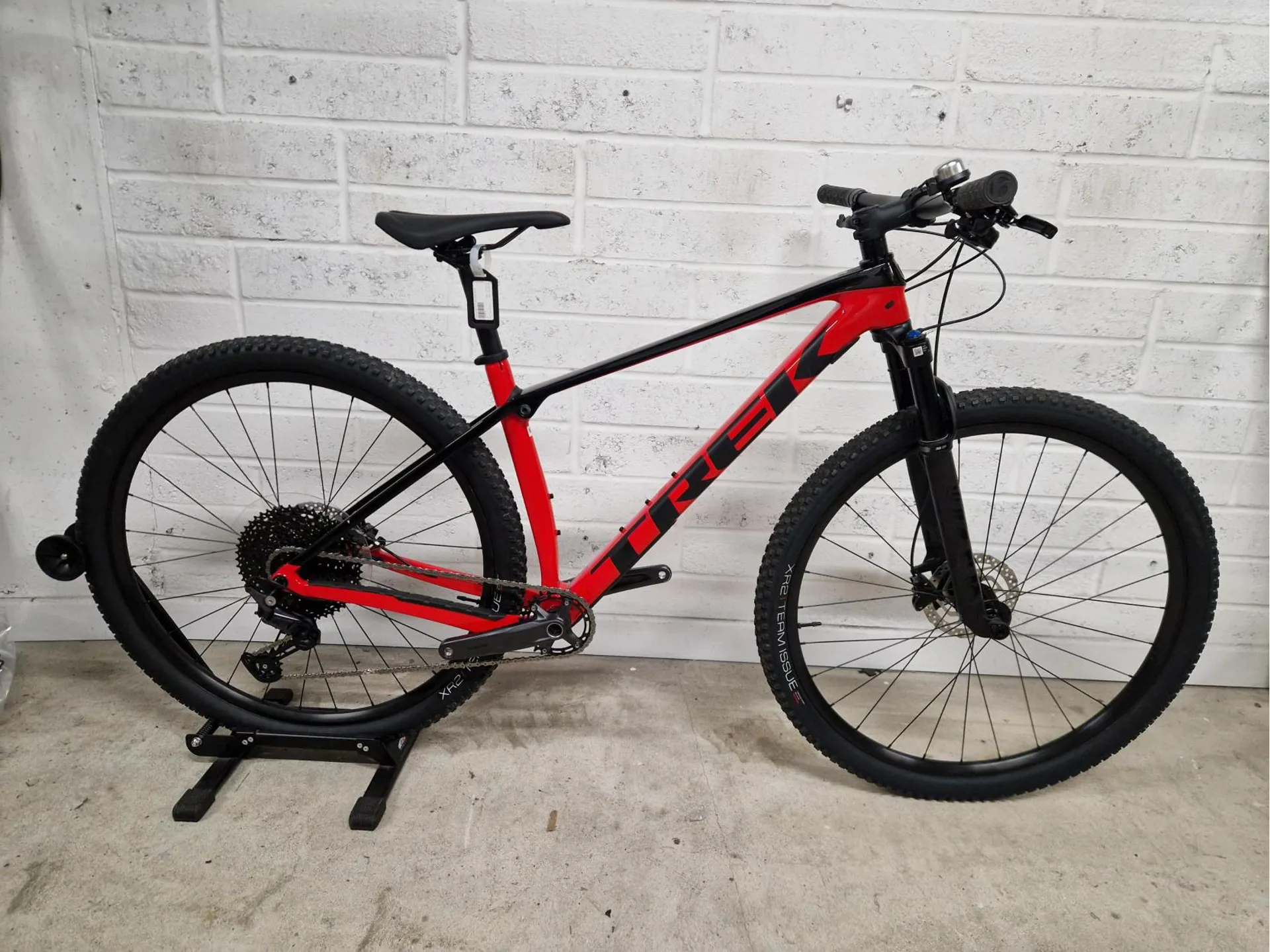

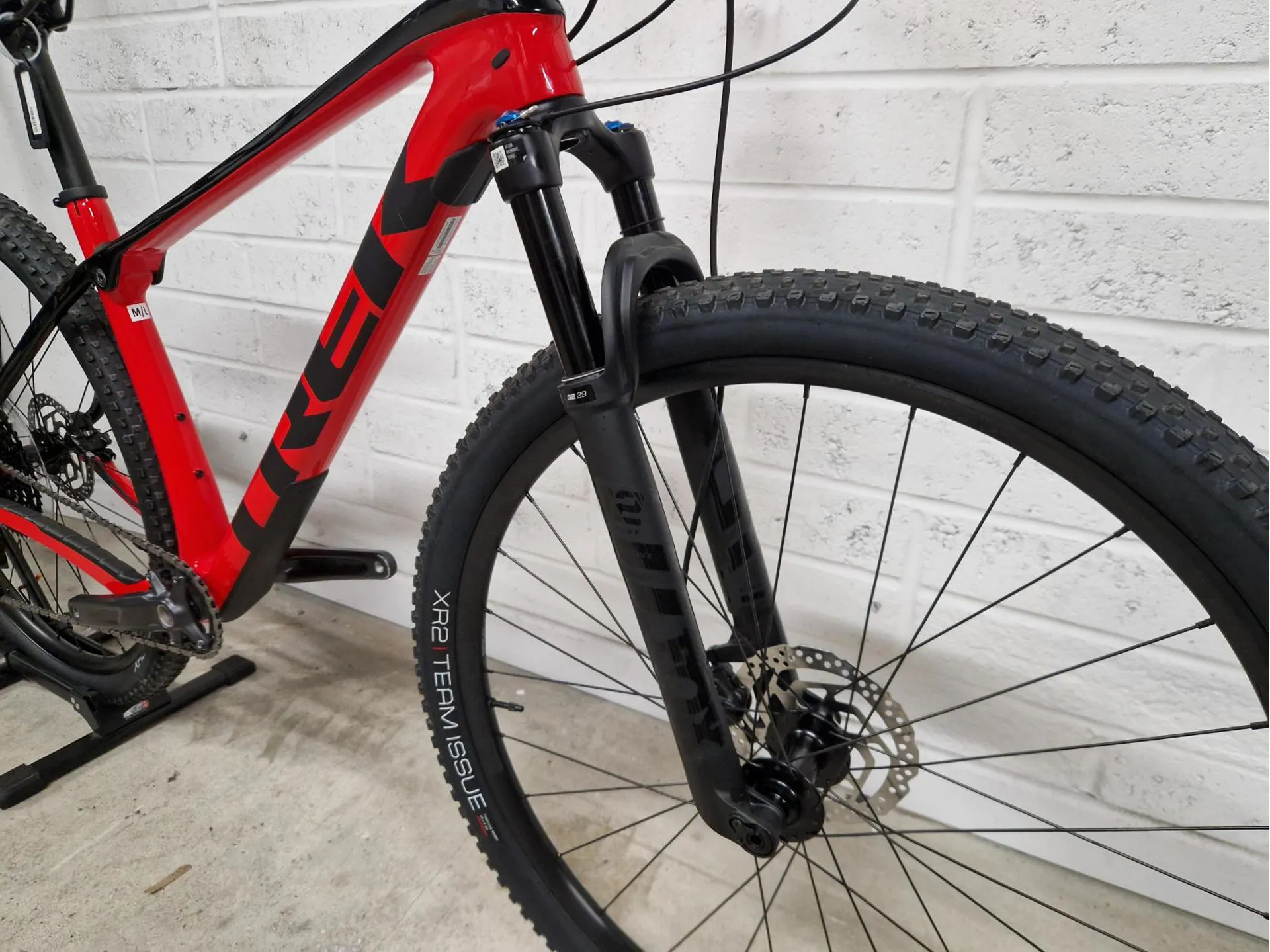

This Trek Procaliber 9.5 in Size Medium/Large is a ONE OFF bike, this bike comes fitted with a FOX 32 Preformance SC fork with remote lockout, rather than original Rockshox. This bike is offered at a special deal price, which may be for a limited time only and is applicable to this exact model and size only. The bike is brand new and unused.

All bikes are fully inspected to ensure they are free of any damage, and we offer full manufacturer's warranty on all ONE OFF bikes.

The Trek Procaliber 9.5 is a lightweight carbon hardtail with the unique advantage of Trek’s trail-smoothing IsoSpeed decoupler. It's the most affordable carbon model in the Procaliber mountain bike family, and it's built for speed and efficiency on singletrack.
The Procaliber 9.5 comes fitted with a 100mm RockShox Judy SL fork with Solo Air spring and a TurnKey lockout, which is lighter than a coil spring & can be easily adjusted for specific rider weight. Plus, you get a Straight Shot downtube for extra-stiff, responsive handling without added weight and a Knock Block headset that protects against spinning bars and fork crowns.
This is a solid carbon bike, ideal for XC races, at an affordable price. Featuring a wide-range Shimano Deore 1x12 drive train, hydraulic disc brakes and fast, tubeless-ready 29” wheels, this smoothing-rolling hardtail has all the spec you need to win your next race!

Key Features & Benefits:

  • Carbon Fibre Frame: Super lightweight & dampens road chatter for a smoother ride.
  • Hydraulic Disc Brakes:Consistent & powerful braking performance for better control and confidence in race conditions.
  • 12 Shimano Deore Gears:Wide range of gears suitable for all-terrain, with the lightweight advantage of a single shifter.

Full Specifications:

  • Frame: OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post-mount brake, Boost148
  • Fork: RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15 mm Maxle Stealth, 100 mm travel
  • Number of Gears: 12
  • Gear Shifters: Shimano Deore M6100, 12-speed
  • Chainset: TBC
  • Chainrings: Max 36T
  • Rear Cassette: Shimano Deore M6100, 10-51, 12-speed
  • Chain: Shimano Deore M6100
  • Rear Derailleur: Shimano Deore M6100, long cage
  • Bottom Bracket: Shimano MT500, 92 mm, PressFit
  • Pedals: Not supplied:Shop pedals here
  • Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
  • Front Hub: Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru-axle
  • Rear Hub: Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle
  • Front Tyre: Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 TPI, 29x2.20"
  • Rear Tyre: Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 TPI, 29x2.20"
  • Brakes: Shimano MT200 hydraulic disc
  • Handlebars: Bontrager Comp, alloy, 5 or 15 mm rise
  • Handlebar Grips: Bontrager XR Trail Comp, nylon lock-on
  • Stem: Bontrager Rhythm Comp, Knock Block
  • Saddle: Bontrager Arvada, steel rails, 138 mm width
  • Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset
  • Weight: M- 12.36 kg / 27.25 lbs (with TLR sealant, no tubes)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.


Size Guide for Trek Procaliber

SizeRider HeightRider HeightInseamInseam
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
M/L173 - 180 cm5'8" - 5'11"81 - 86 cm32" - 34"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"
2XL195 - 203 cm6'5" - 6'8"91 - 97 cm36" - 38"

Geometry Information for Trek Procaliber


Frame size number15.5"17.5"18.5"19.5"21.5"23.0"
Frame size letterSMMLLXLXXL
Wheel size29"29"29"29"29"29"
A — Seat tube39.341.944.4475154.5
B — Seat tube angle72.8°72.8°72.8°72.8°72.8°72.8°
Effective seat tube angle73.8°73.8°73.8°73.8°73.8°73.8°
C — Head tube length999910.512
D — Head angle68.8°68.8°68.8°68.8°68.8°68.8°
E — Effective top tube5759.56162.565.968.3
F — Bottom bracket height31.331.331.331.331.331.3
G — Bottom bracket drop666666
H — Chainstay length43.243.243.243.243.243.2
I — Offset4.24.24.24.24.24.2
J — Trail101010101010
K — Wheelbase107.8110.3111.8113.3116.8119.4
L — Standover71.575.576.578.481.484.1
M — Frame reach39.54243.5454850
N — Frame stack6060606061.462.3

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information

Geometry for Trek Procaliber 9.5 Hardtail Mountain Bike

All measurements provided in cm unless specified otherwise.

Trek Procaliber 9.5 Hardtail Mountain Bike Geometry Chart

Frame Size Number 15.5 17.5 18.5 19.5 21.5 23.0
Frame Size Letter S M ML L XL XXL
Wheel Size 29" 29" 29" 29" 29" 29"
A - Seat Tube 39.3 41.9 44.4 47.0 51.0 54.5
B - Seat Tube Angle  72.8° 72.8° 72.8° 72.8° 72.8° 72.8°
Effective Seat Tube Angle  73.8° 73.8° 73.8° 73.8° 73.8° 73.8°
C - Head Tube Length 9.0 9.0 9.0 9.0 10.5 12.0
D - Head Angle 68.8° 68.8° 68.8° 68.8° 68.8° 68.8°
E - Effective Top Tube 57.0 59.5 61.0 62.5 69.5 68.3
F - Bottom Bracket Height 31.3 31.3 31.3 31.3 31.3 31.3
G - Bottom Bracket Drop 6.0 6.0 6.0 6.0 6.0 6.0
H - Chainstay Length 43.2 43.2 43.2 43.2 43.2 43.2
I - Offset  4.2 4.2 4.2 4.2 4.2 4.2
J - Trail  10.0 10.0 10.0 10.0 10.0 10.0
K - Wheelbase 107.8 110.3 111.8 113.3 116.8 119.4
L - Standover 71.5 75.5 76.5 78.4 78.4 84.1
M - Frame Reach 39.5 42.0 43.5 45.0 48.0 50.0
N - Frame Stack 60.0 60.0 60.0 60.0 61.4 62.3



Trek Hardtail Mountain Bikes: Procaliber Series

Sizing Information

Specific Size Chart for Trek Procaliber 9.5 Hardtail Mountain Bike

Size Rider Height (cm) Rider Height (') Inseam (cm) Inseam (")
S  153.0 - 166.5 5.0" - 5'5" 72 - 79 28" - 31"
M 161.0 - 172.0 5'3" - 5'8"  76 - 81 30" - 32"
ML  165.5 - 179.0 5'5" - 5'10"  77 - 84 30" - 33"
L 177 - 188 5'9" - 6'2" 83 - 88 32" - 35"
XL 186 - 196 6'1" - 6'5"  87 - 92 34" - 36"
XXL 195 - 203 6'4" - 6'8" 92 - 95 36" - 38"
