The DMR Vault pedal has consistently been voted the number one platform pedal in mountain biking by the editorial staff of VitalMTB, year after year. It has outperformed countless new pedals from brands worldwide, all competing for the title of best MTB pedal on the market. In the quest for product evolution, the next logical step was to make a magnesium version.
The new Vault Mag MTB pedal is here, born from the quest for production methods that are more environmentally friendly and less wasteful. Thanks to the unique use of pressure die-casting technology, the Vault magnesium achieves these goals. Best of all, it is now available at a more obtainable price. When performance is paramount, the Vault Mag flat pedal delivers at just 404g.
Magnesium Casting Process Benefits:
- Extraction: Most of the magnesium used is extracted from seawater.
- Energy Efficiency (Material): Magnesium uses less energy to process the material than aluminium (bauxite).
- Energy Efficiency (Casting): Casting magnesium uses less energy to make the finished product than CNC aluminium.
- Waste Reduction: The casting process wastes very little material.
- Recycling: Any waste material is recycled on site (zero waste).
- Safety: Magnesium is non-toxic and is very safe for manufacture and use.

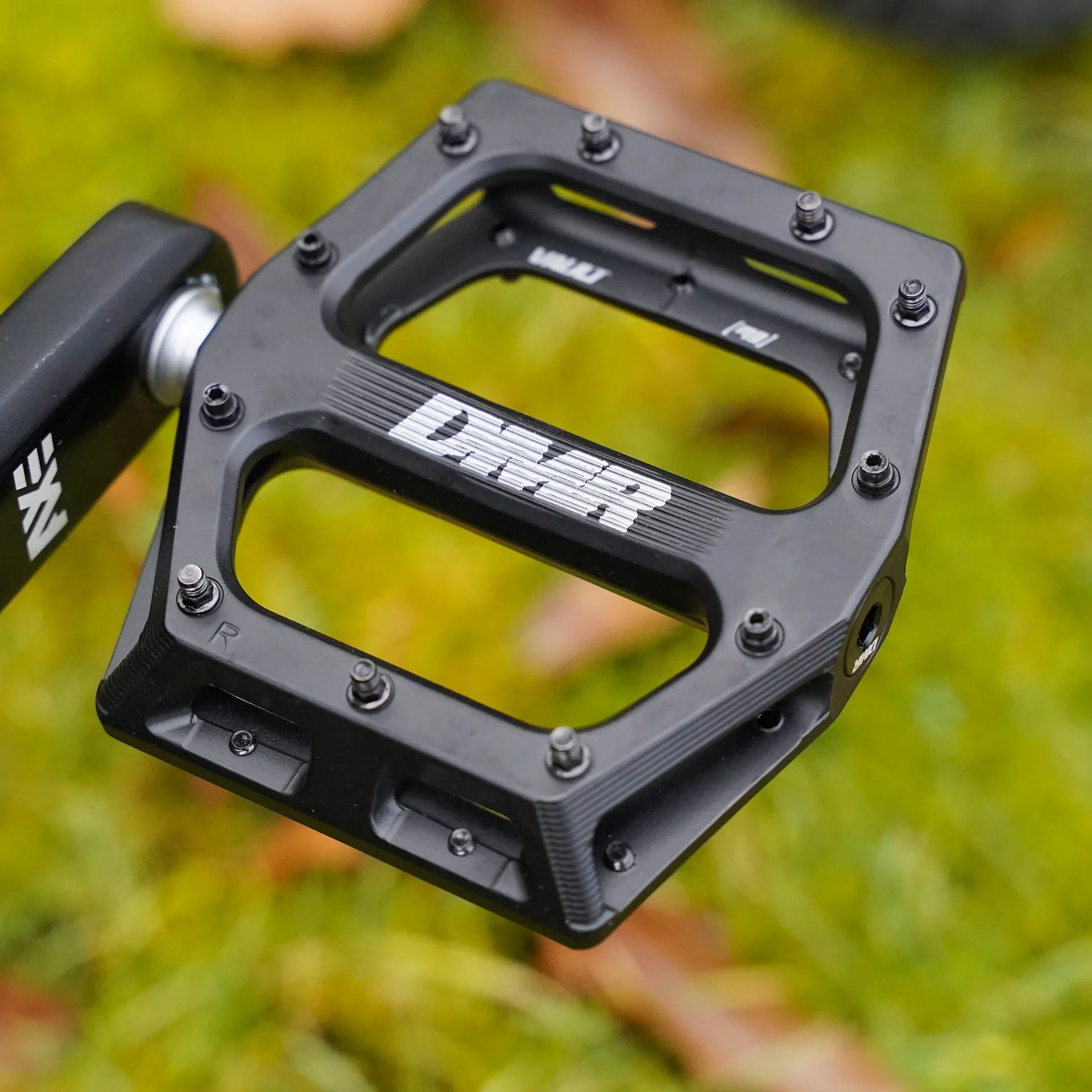

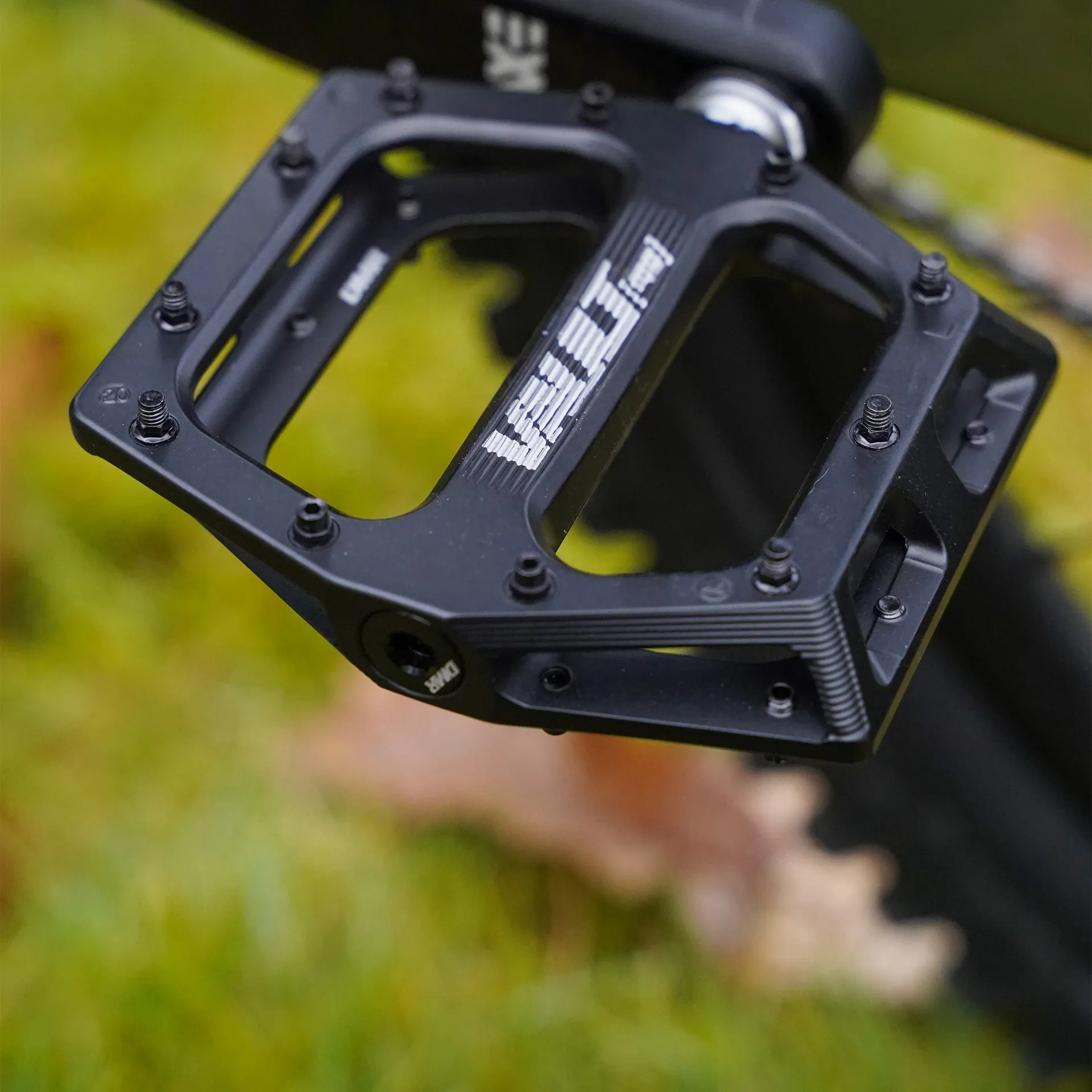

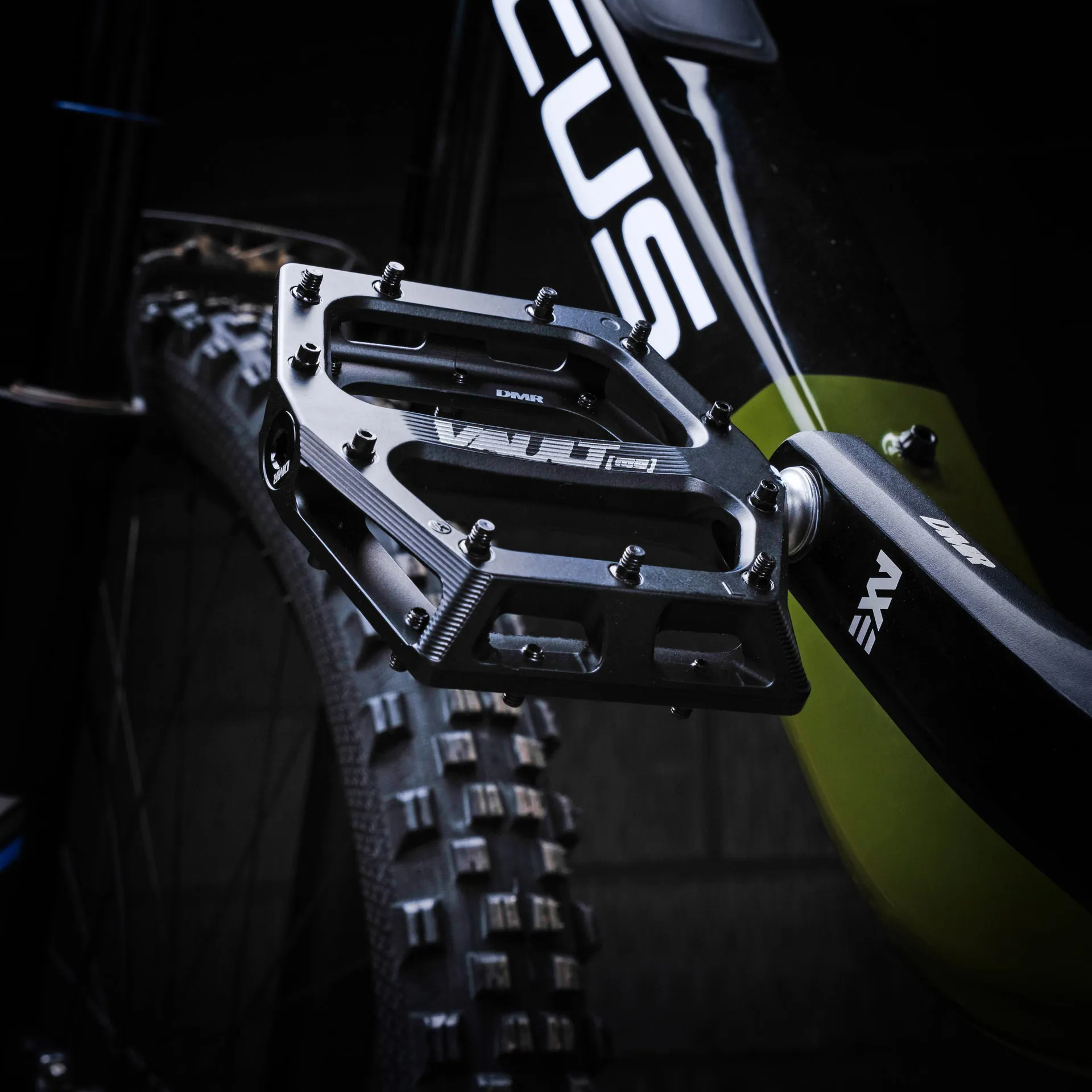

The DMR Vault is a tunable MTB flat pedal designed specifically for riders seeking a larger platform. Versatile enough to excel on trails, all-mountain routes, enduro, and downhill setups, the DMR Vault offers exceptional stability and grip, even on the roughest terrain. Its slimline, concave platform combined with DMR Traction pedal pins ensures the best grip among all platform pedals. The design of the DMR Vault pedal was developed with input and testing from Brendan Fairclough back in 2010, and it has proven itself repeatedly by winning multiple group tests and receiving perfect 5/5 reviews.
As Shred Magazine concluded, these are the ultimate, no compromise flat pedal. Beautifully finished. Light. Super smooth bearing action and a thin profile that could not be made to hit the deck even on low slung XC bikes.
Features:

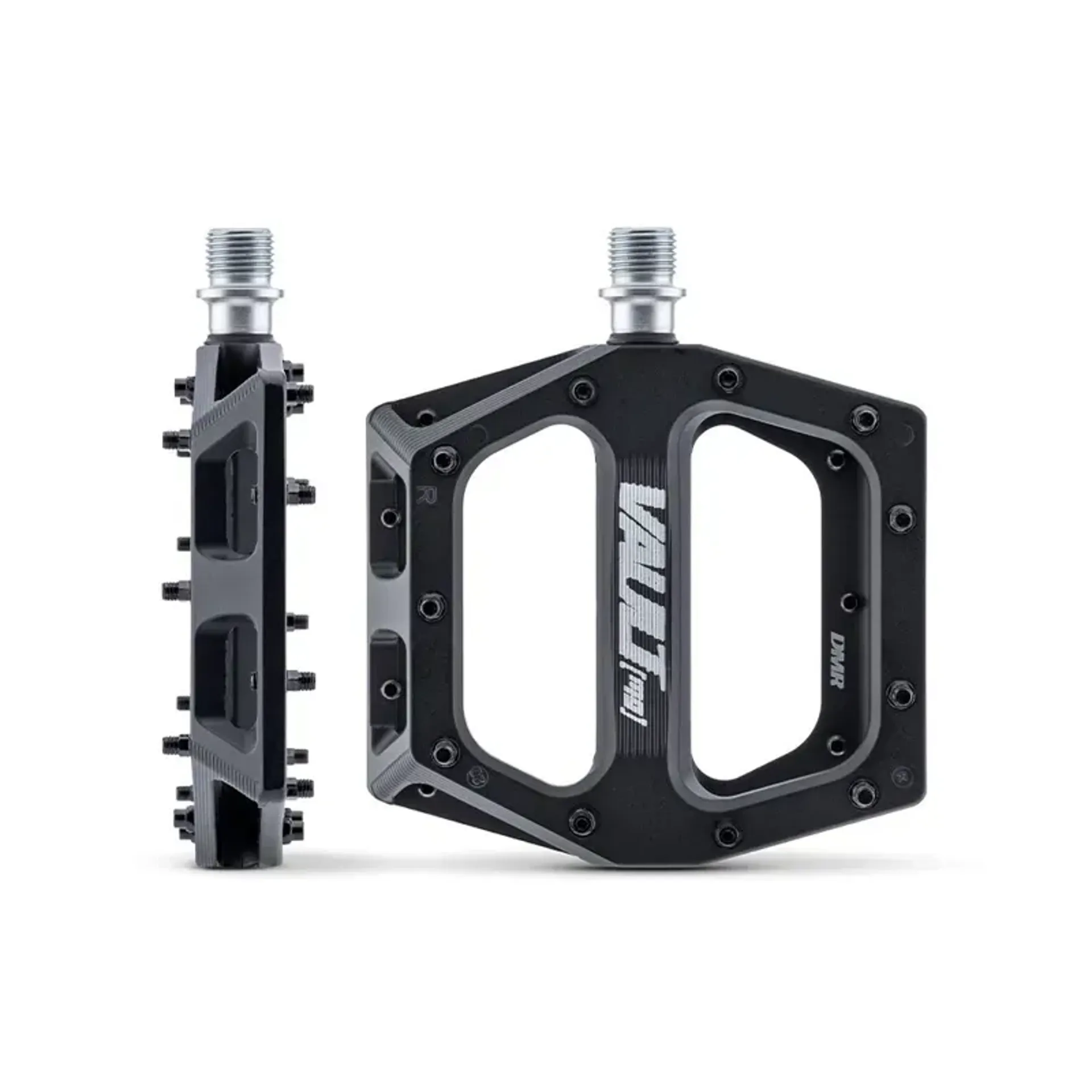

- Platform Size: 105mm x 105mm concave platform – increased foot-placement, all grip, no slip.
- Slimline Body: 17mm concave foot bed.
- Low Profile: For increased ground clearance and less pedal strikes.

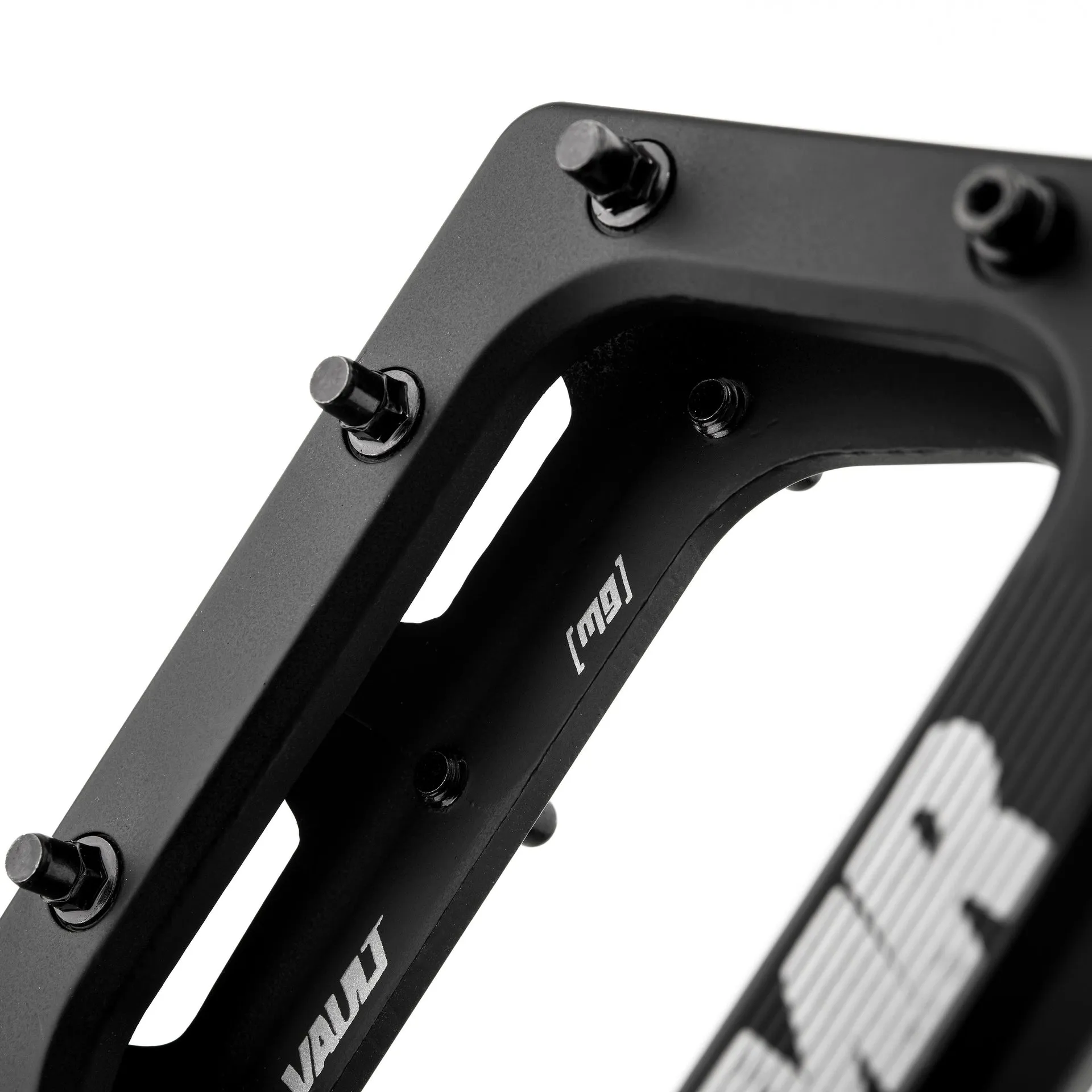

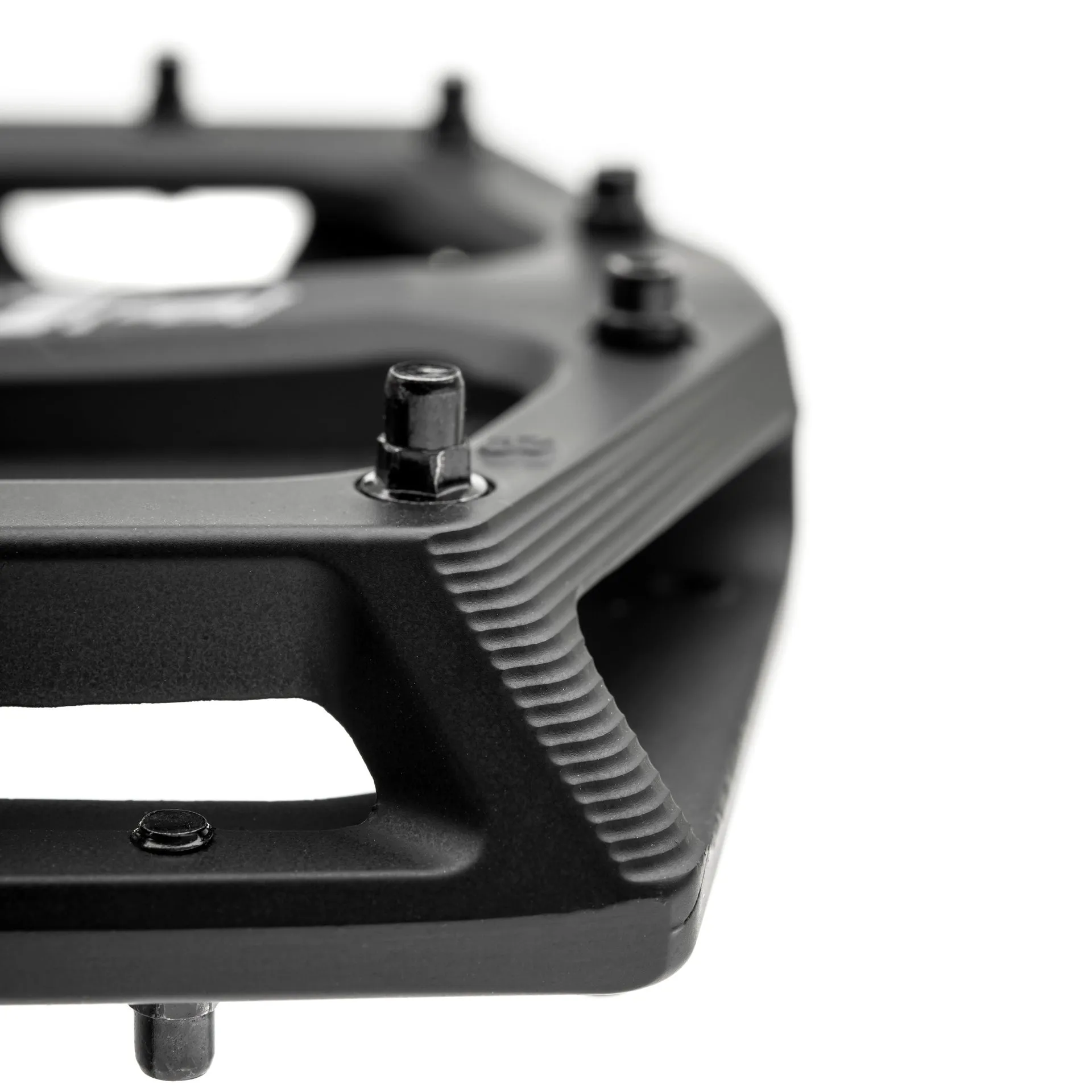

- Tuneable Grip Design: 11 pins per DMR Vault pedal. Flip the pins to fine-tune the grip, or swap to longer DMR pedal pins for even more grip.

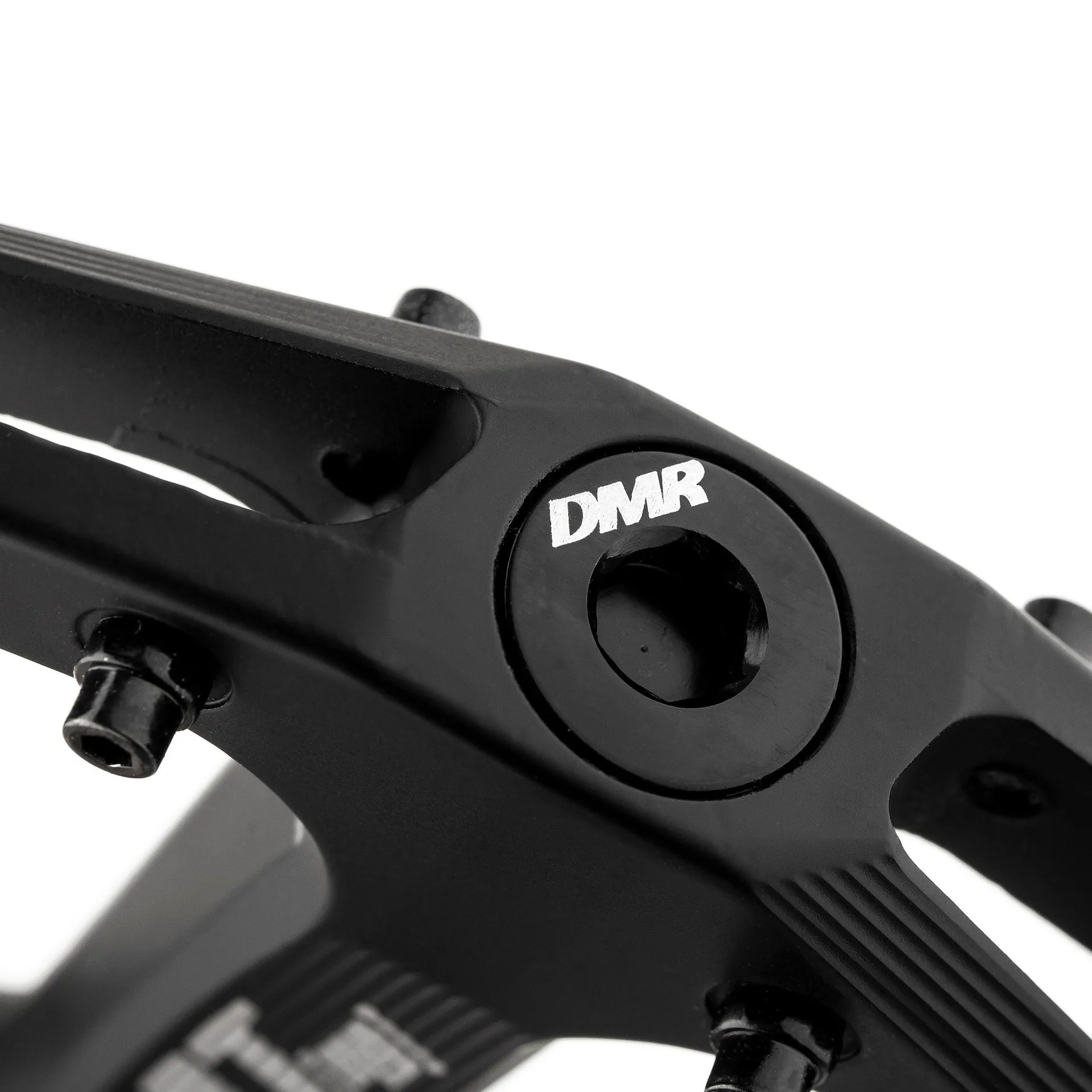

- Fully Serviceable: High load DU bush and sealed cartridge bearing system.
- Construction: Pressure-cast Magnesium platform, and 4140 CroMo Steel axles.
- Finish: ED Painted black finish only.
- Testing: Tried and tested at pro level.
Specifications:

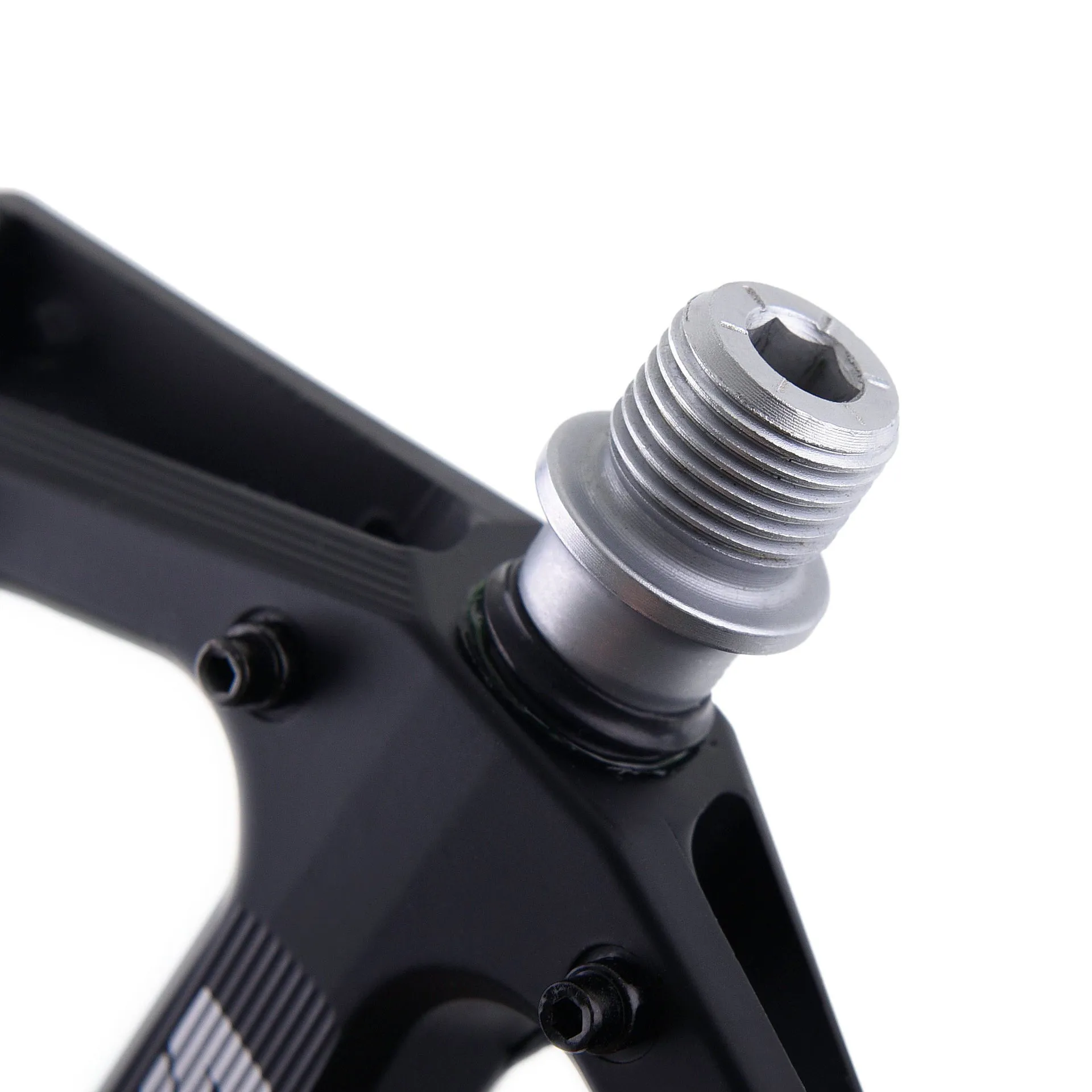

- Axle Material: Cro-Mo Axle.
- Bearings: Cartridge Bearings.
- Bush System: High Load DU bush system.
- Weight: 404g per pair.
- Pins: Replaceable steel pins.
- Torque Setting: 40-55Nm (at the Axle to Crank).
Included Accessories:
- Spare Pins: 2 spare DMR V-Grip Pins.
- Tool: 5mm spanner.
