The Kinesis UK Tripster AT Plus is a high-capability adventure frameset featuring 700c x 50mm tyre clearance, a geometry optimised for rough terrain, and extensive mounting points for bike-packing. Designed for versatility, it supports one-by drivetrains and both electronic and mechanical groupsets.
The Kinesis UK Tripster AT Plus is a high-capability adventure frameset featuring 700c x 50mm tyre clearance, a geometry optimised for rough terrain, and extensive mounting points for bike-packing. Designed for versatility, it supports one-by drivetrains and both electronic and mechanical groupsets.
Kinesis Uk

Kinesis Tripster AT Plus Frameset in Black

£900.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

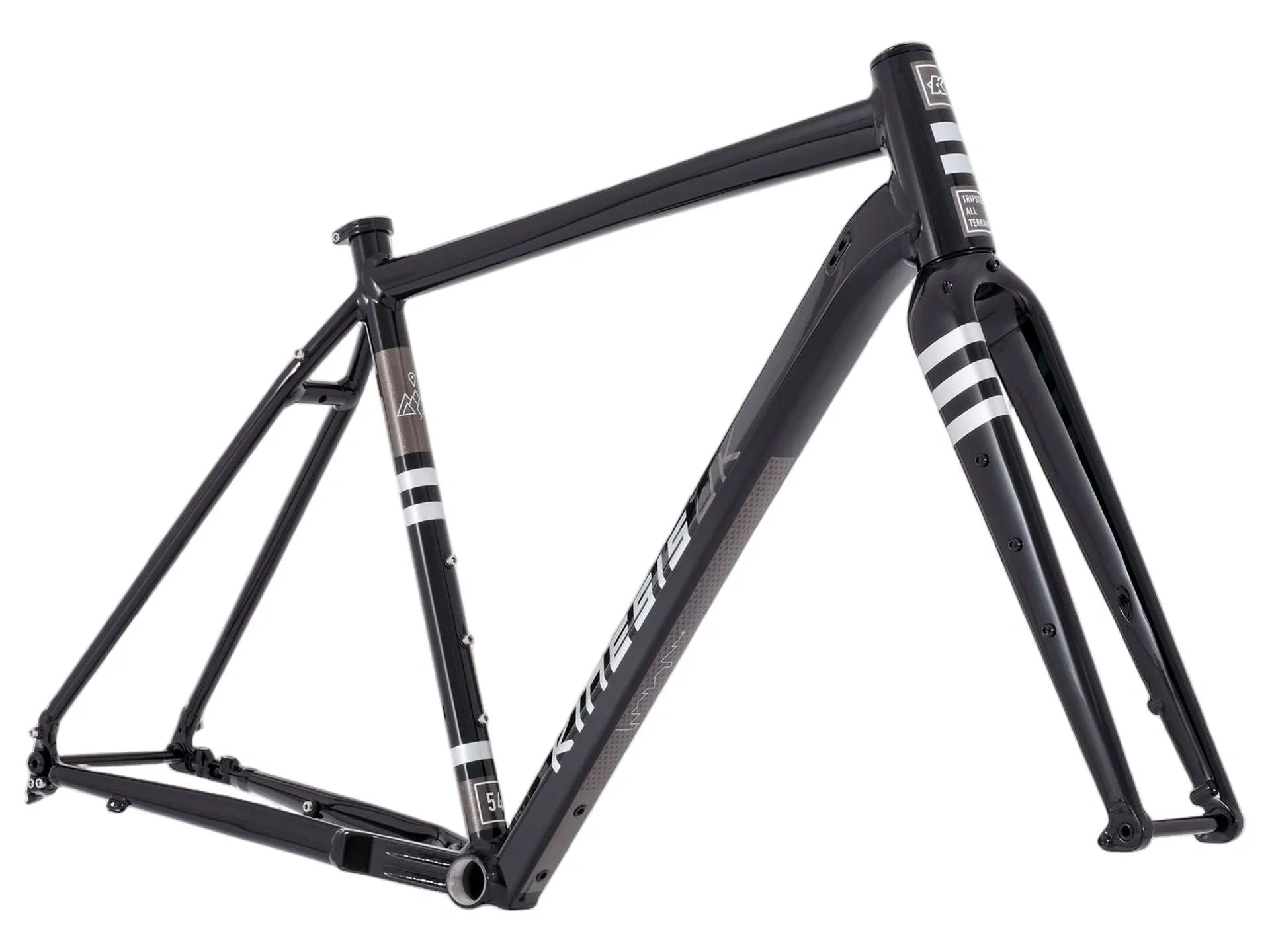

Kinesis Tripster AT Plus Frameset in Black

Season:2026

Brand:Kinesis Uk

Code:7801BLK

The Kinesis UK Tripster AT Plus is an adventure frameset designed for maximum capability. Building on the foundation of the Tripster AT, this model offers increased tyre clearance and enhanced versatility for gravel and bike-packing adventures. The frame features a sloping top tube to improve manoeuvrability in rough terrain and a lower bottom bracket to maintain a low centre of gravity when fitted with larger tyres.

Key Features & Benefits:

  • Increased Tyre Clearance: Provides clearance for tyres up to 700c x 50mm, allowing for larger tyres without the rolling compromises associated with smaller diameter wheels.
  • Adventure-Ready Geometry: Features a sloping top tube for improved manoeuvrability and a lower bottom bracket for enhanced stability on rough surfaces.

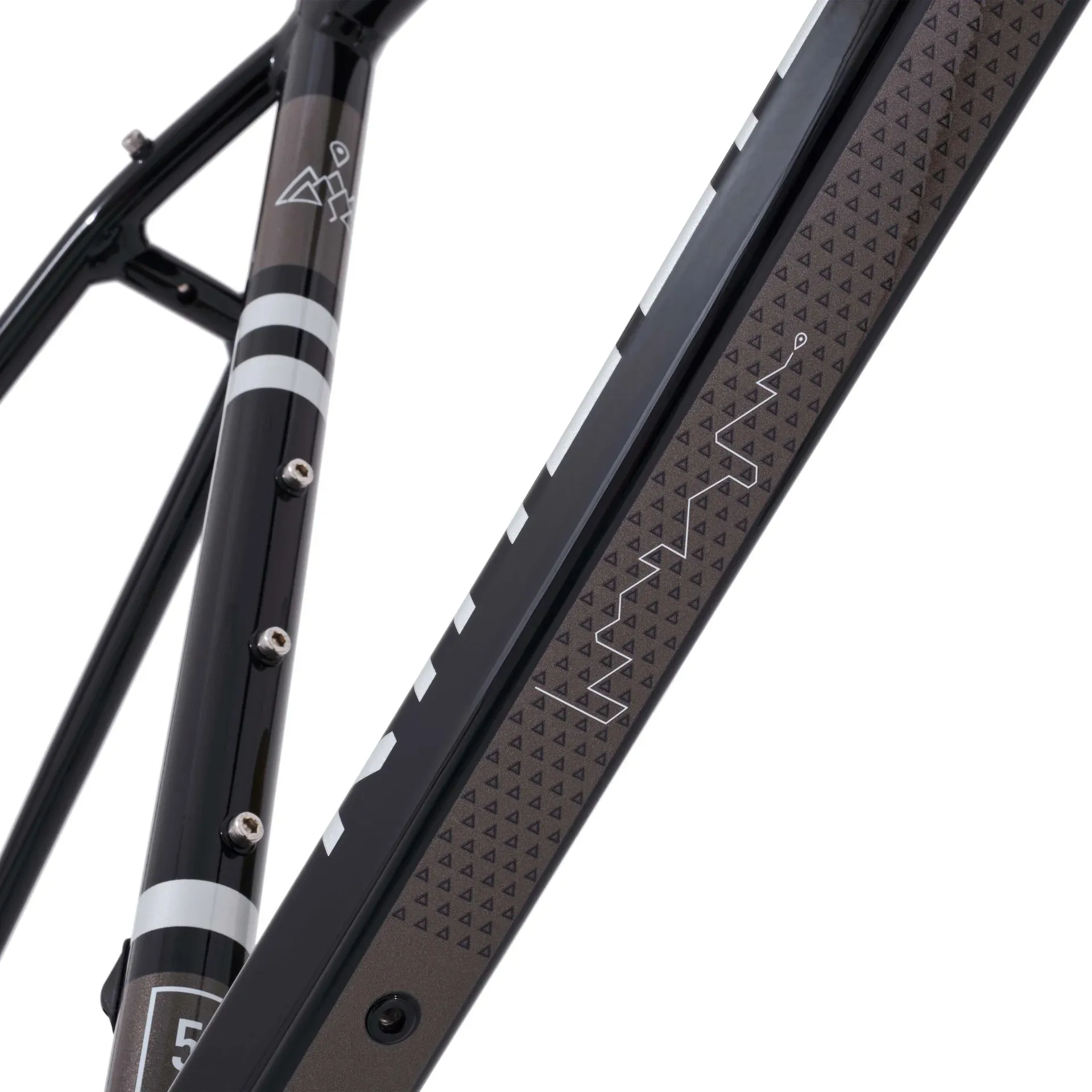

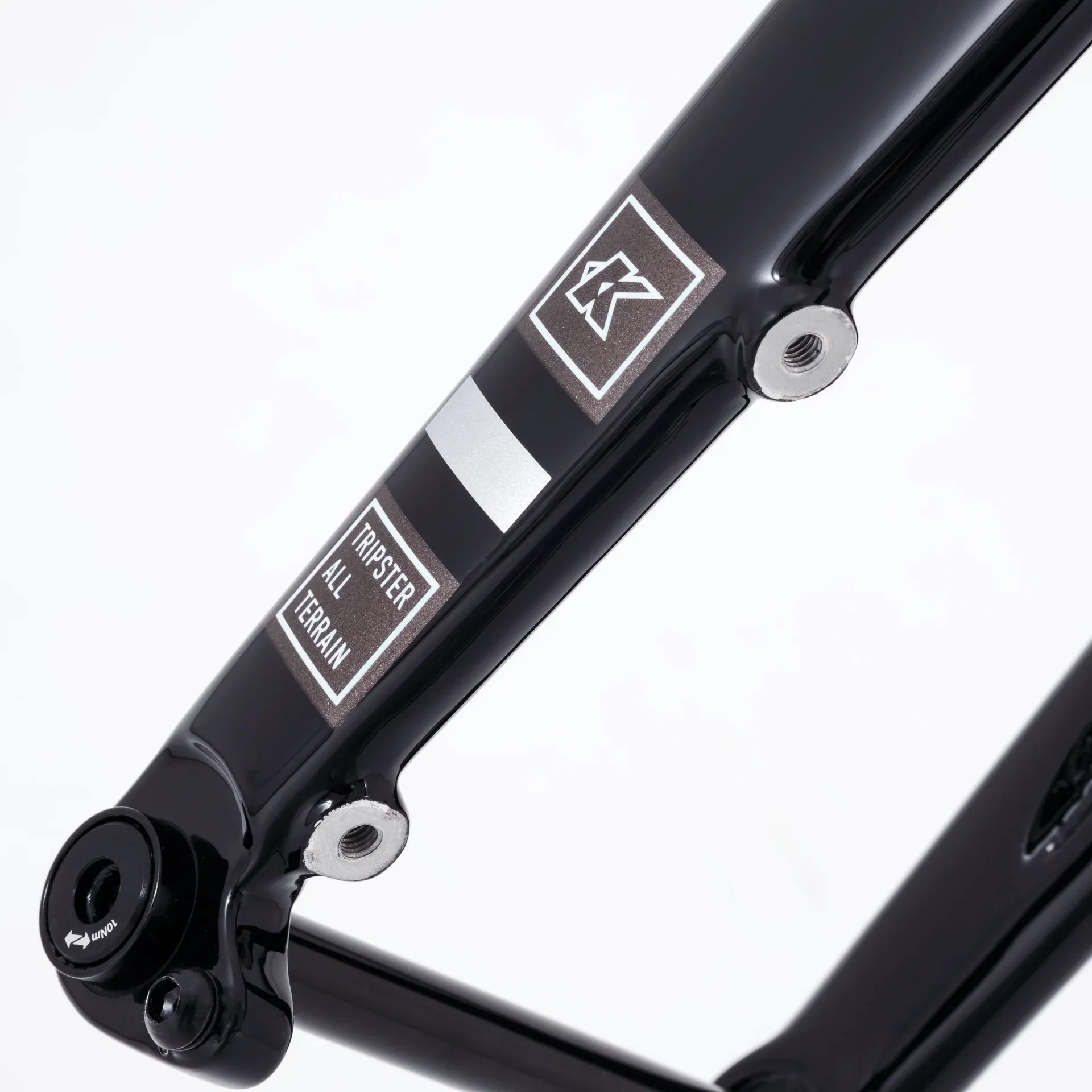

  • Versatile Mounting Options: Equipped with triple bottle mounts, top tube mounts, and fork cargo mounts to support extensive bike-packing setups.

Full Specification:

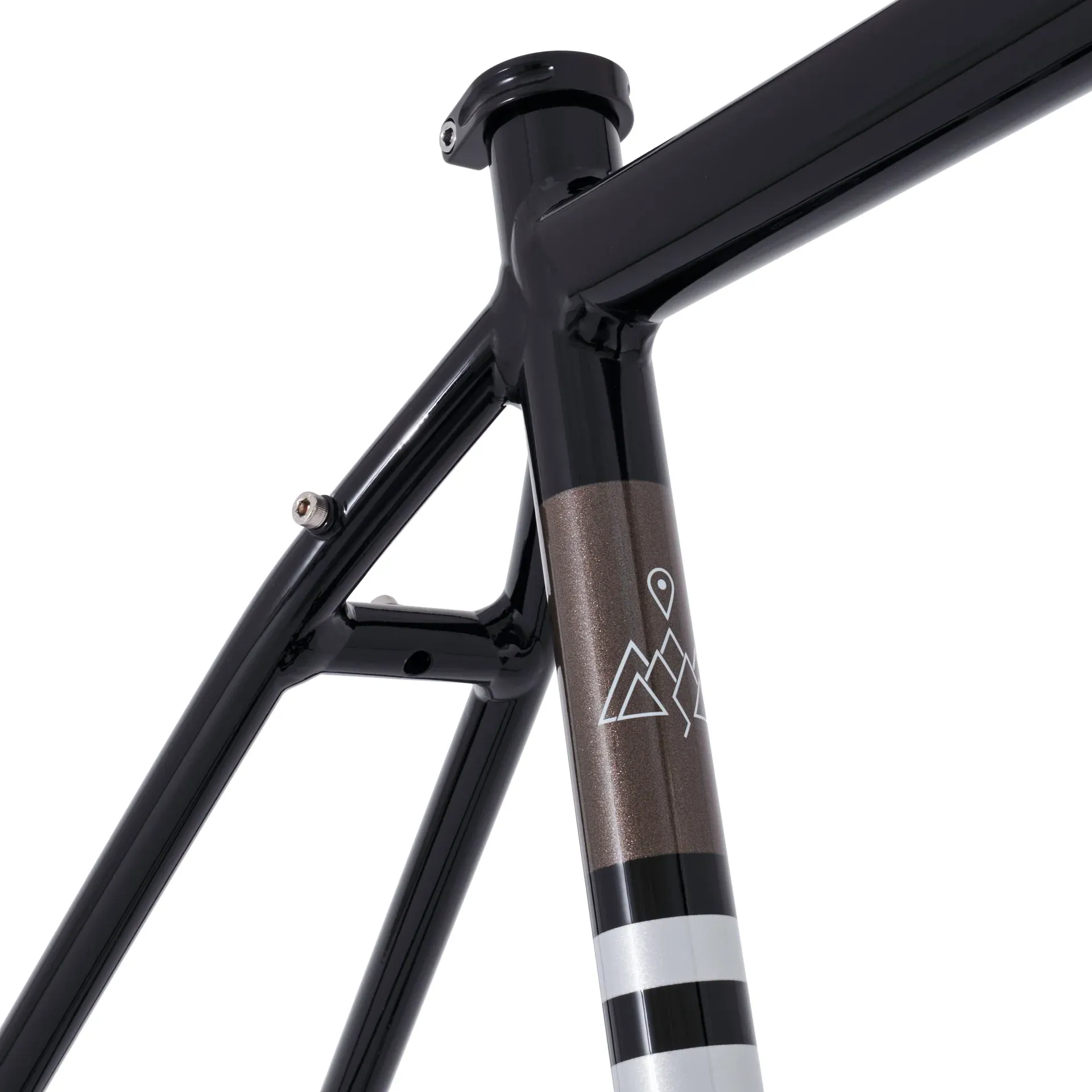

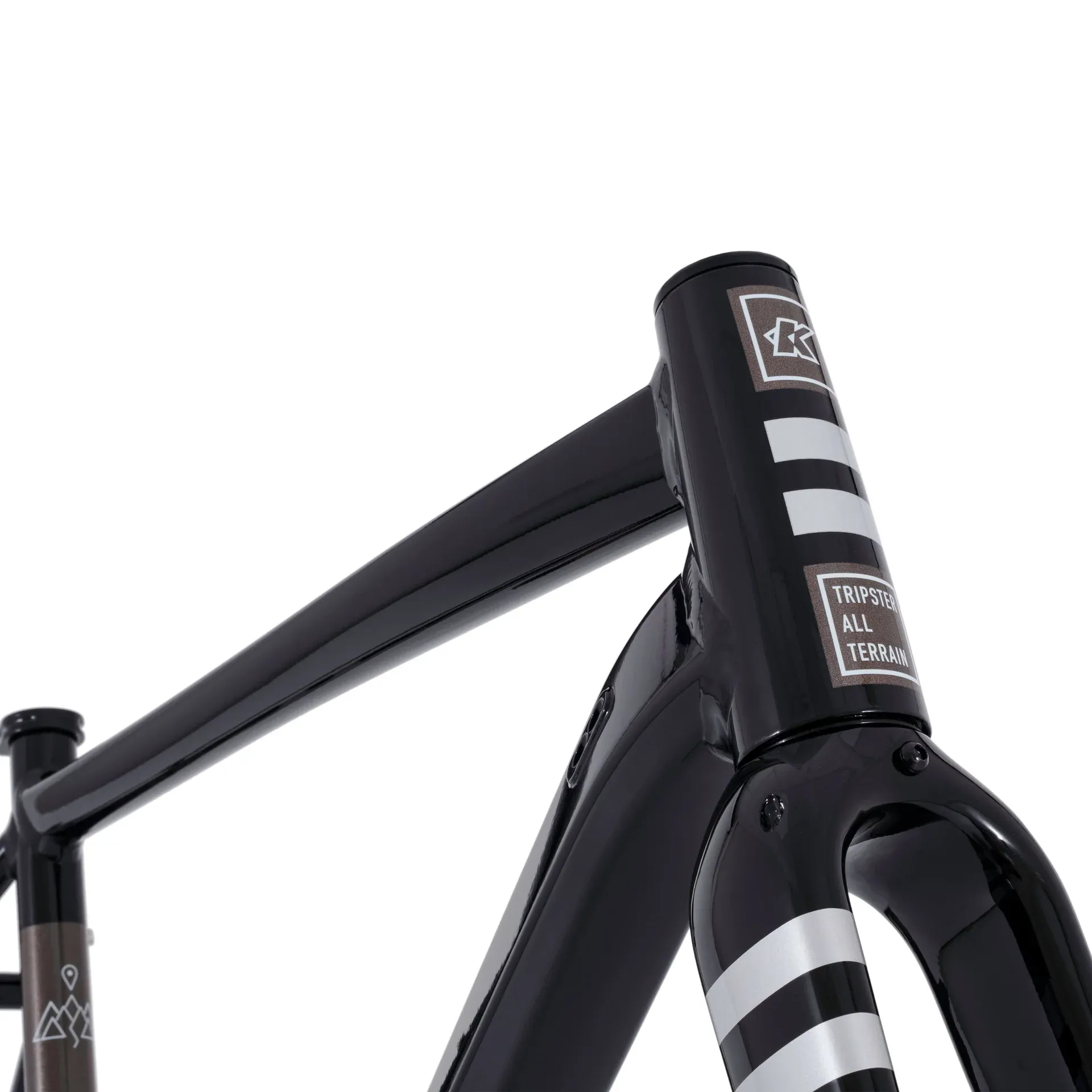

  • Frame: 6069 aluminium series tubeset with a tapered machined headtube.

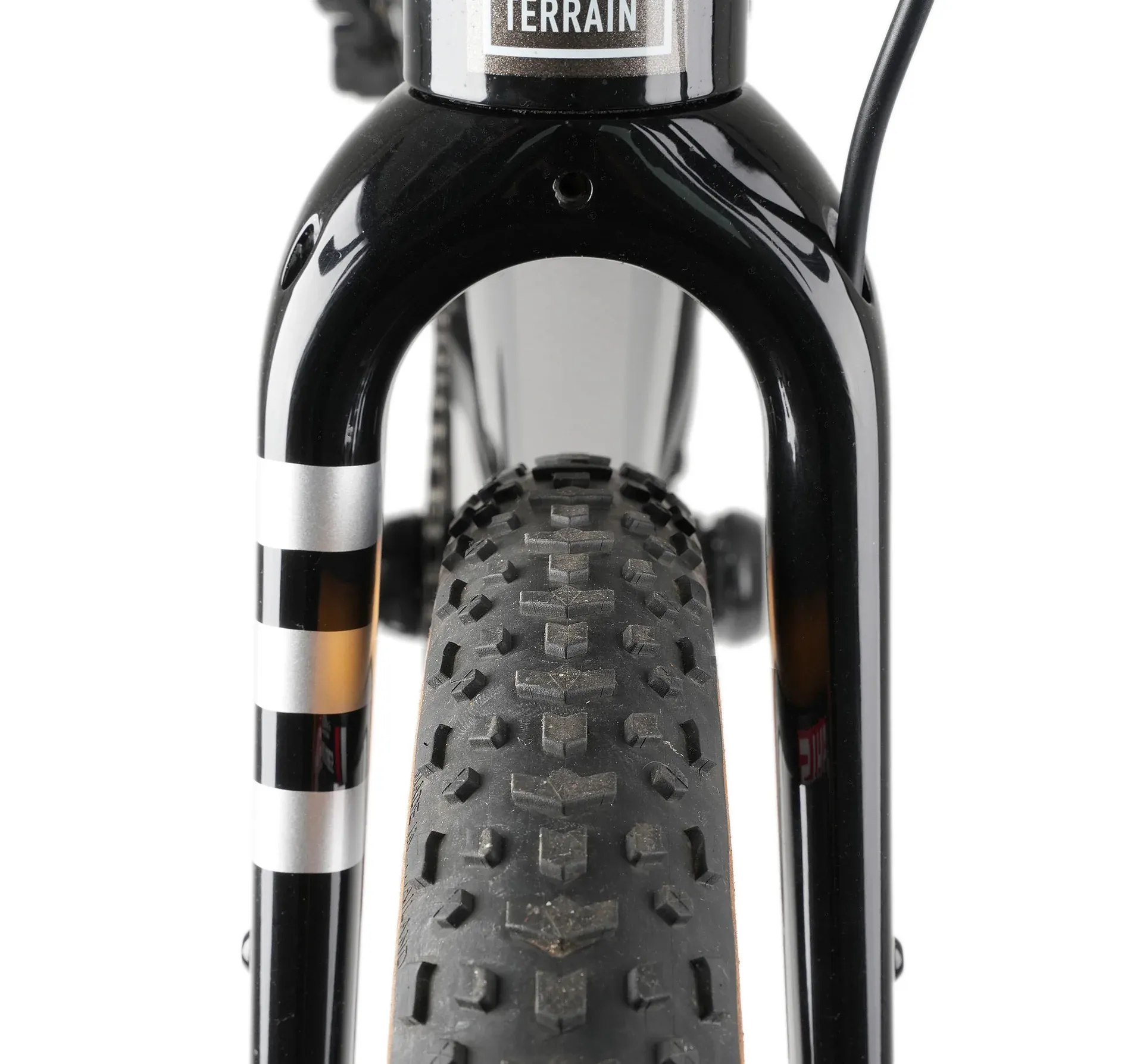

  • Fork: Kinesis All Terrain carbon fork with internal dynamo and brake routing.

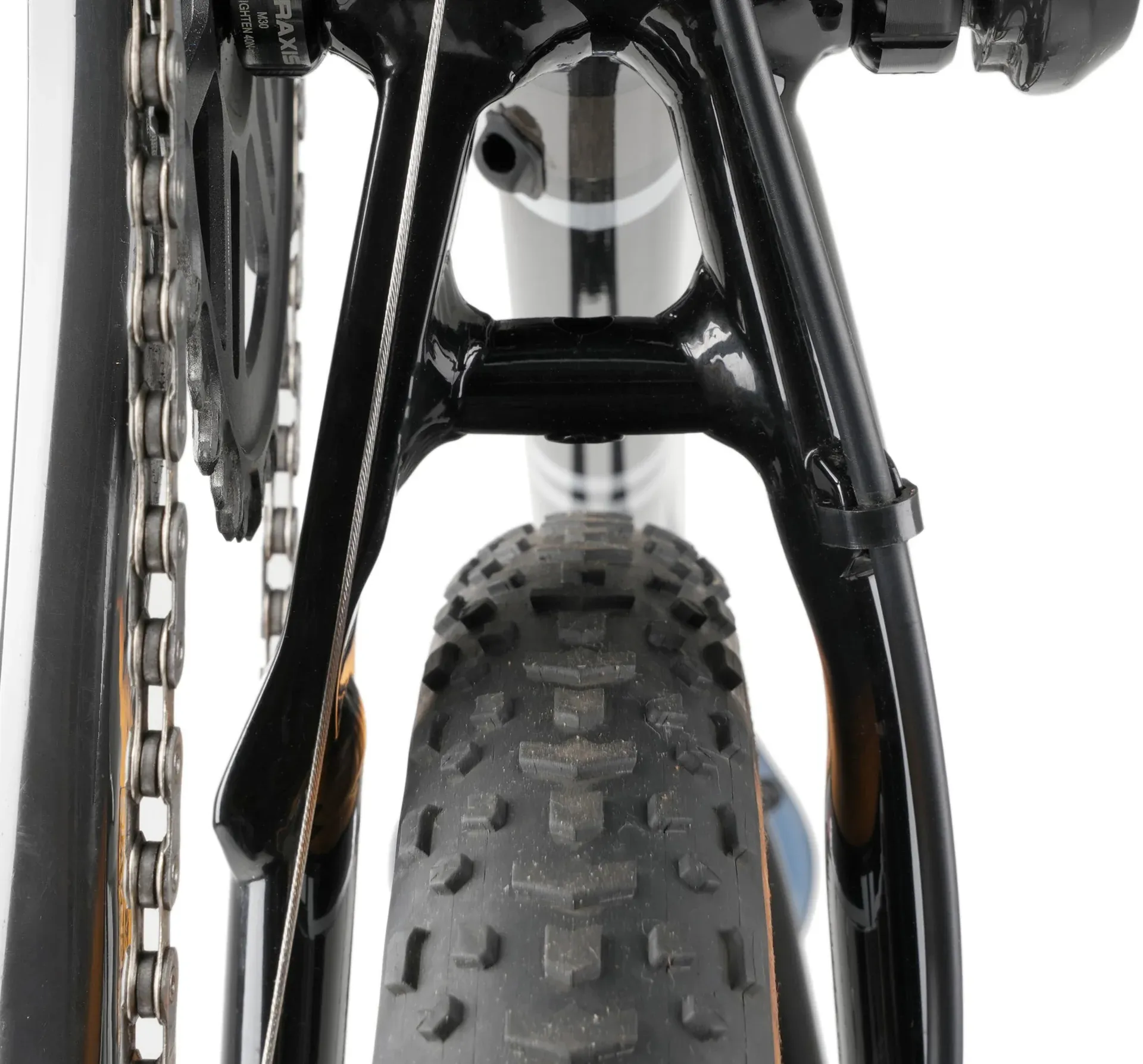

  • Tyre Clearance: Up to 700c x 50mm.
  • Bottom Bracket: BSA threaded for low-maintenance riding.
  • Axles: 142 x 12mm rear and 100 x 12mm front (GW Switch Lever Thru-axles included).
  • Seatpost: 27.2mm (31.8mm seat tube).
  • Drivetrain Compatibility: One-by optimised; compatible with electronic and mechanical groupsets.

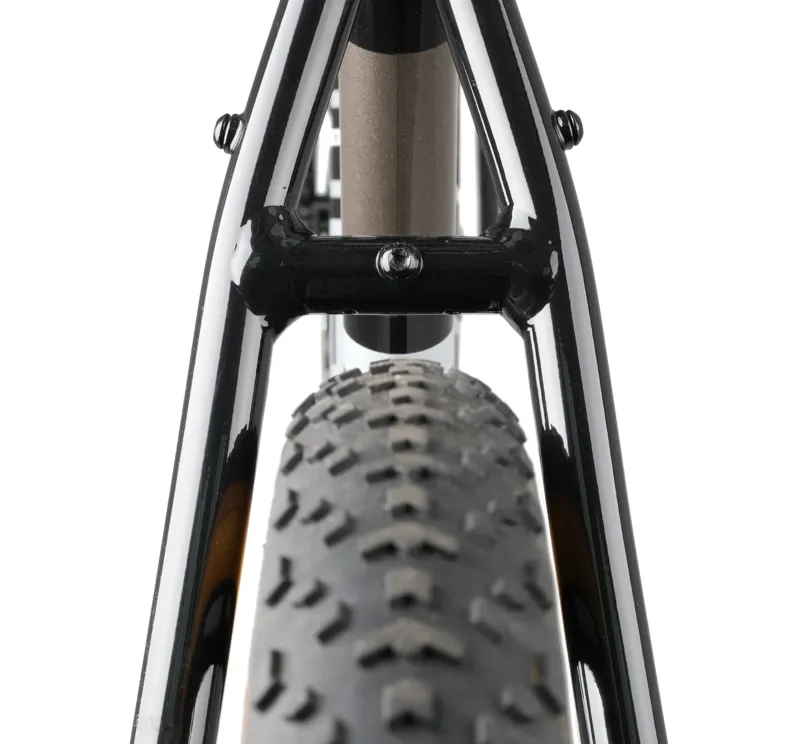

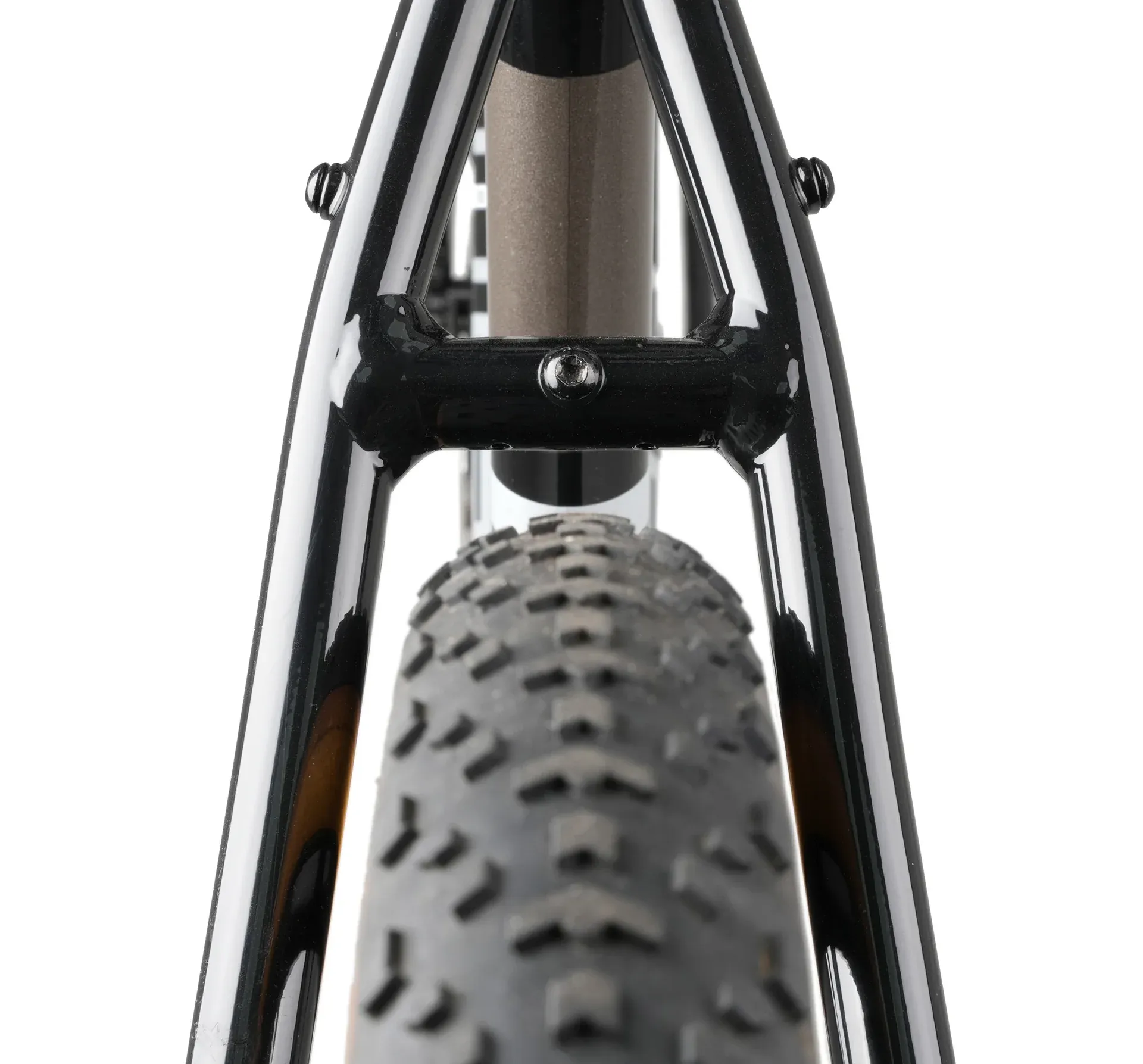

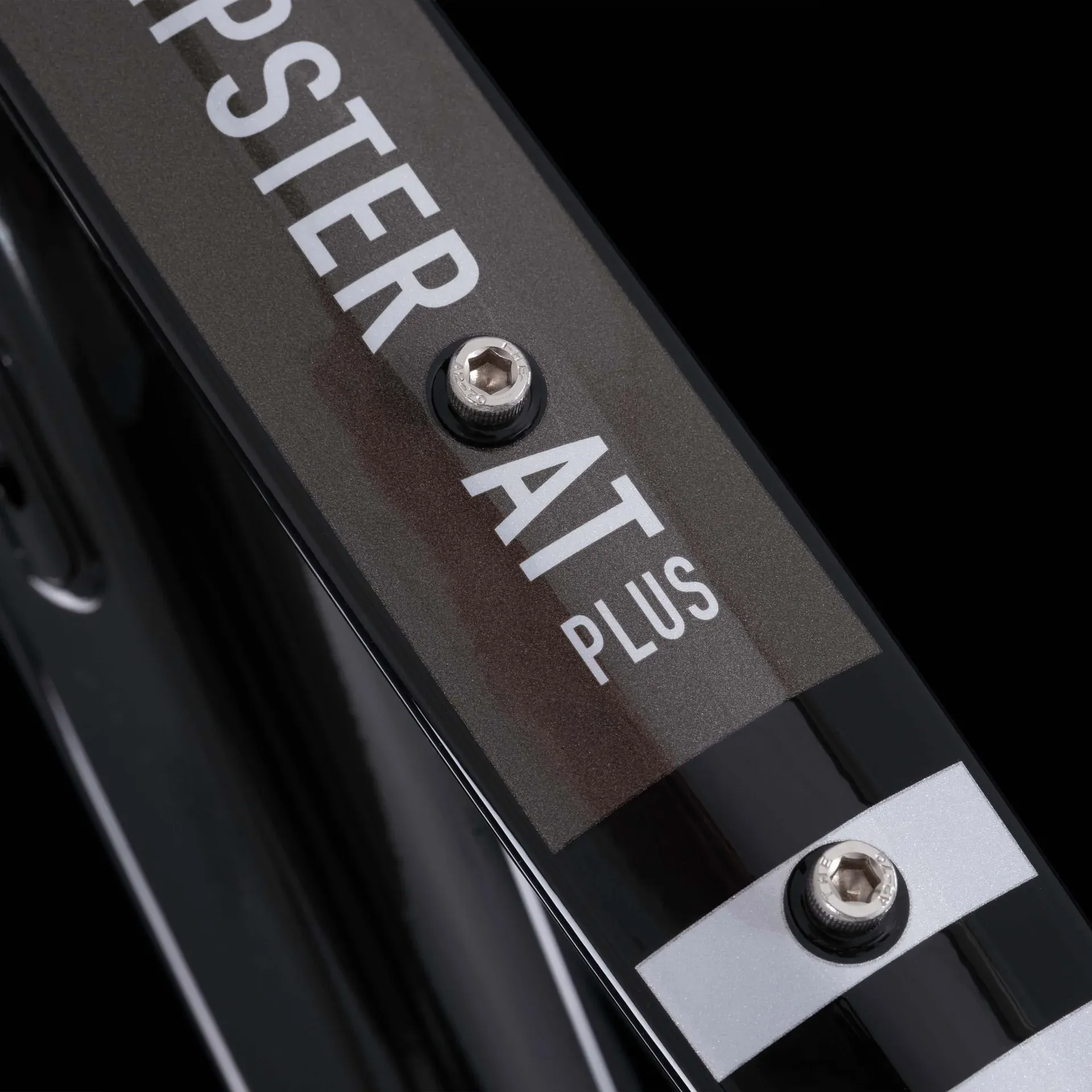

  • Mounts: Triple bottle mounts, top tube mount, fork cargo mounts, and seat stay mounts for mudguards and pannier racks.

Included Accessories:

  • Kinesis carbon fork
  • Kinesis headset with ACB bearings
  • Seat clamp
  • Front and rear axles

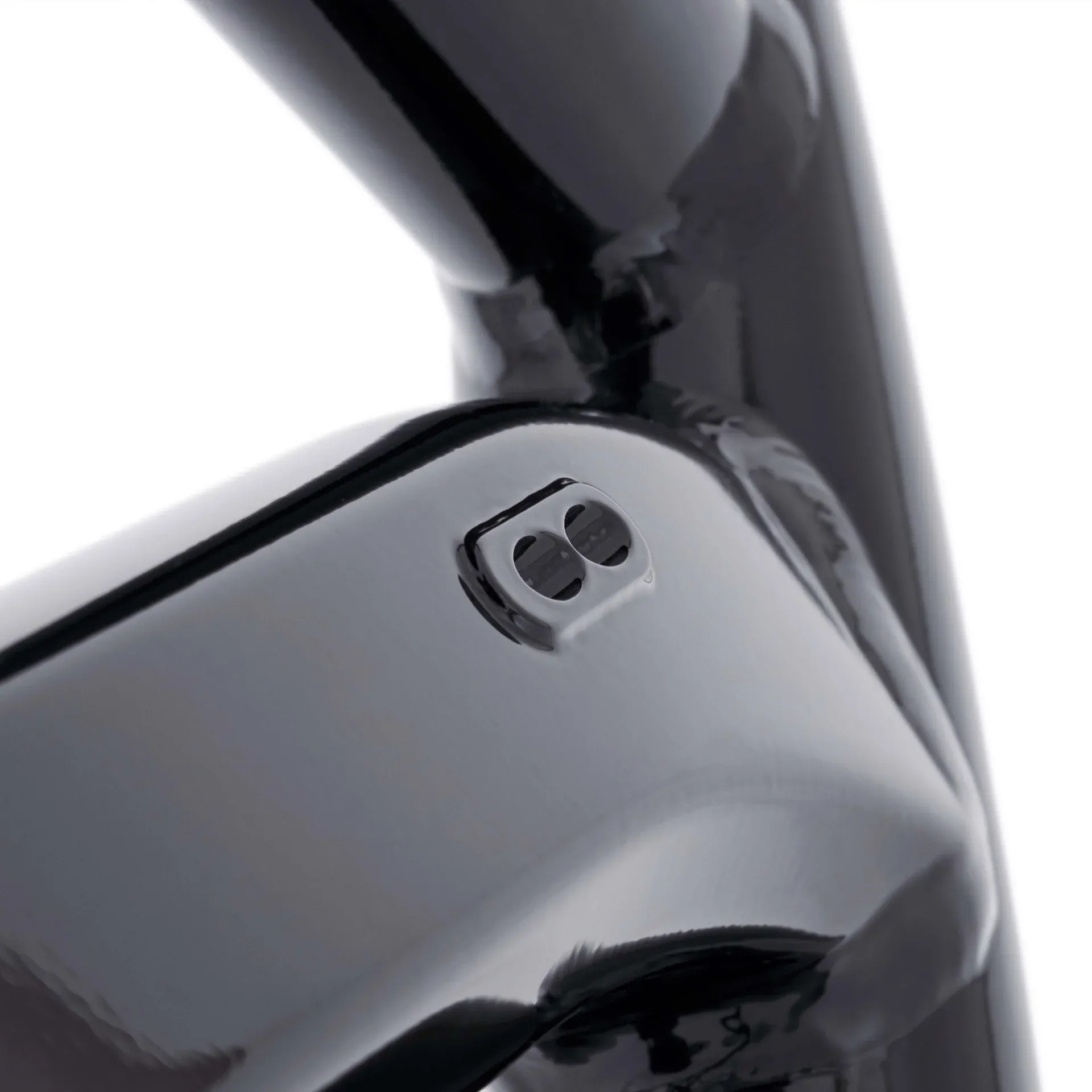

  • Cable port hardware
Sizing Information

Recommended Bike Size

Bike Size Cyclist Height (cm) Cyclist Height (ft)
XXSmall (48cm) 150 - 157 cm 4'11" - 5'2"
XSmall (50cm) 156 - 163 cm 5'1" - 5'4"
Small (52cm) 161 - 169 cm 5'3" - 5'7"
Medium (54cm) 169 - 176 cm 5'7" - 5'10"
Large (56cm) 174 - 181 cm 5'9" - 5'11"
XLarge (58cm) 181 - 186 cm 5'11" - 6'1"
XXLarge (60cm) 186+ cm 6'1"+

Geometry - AT Plus

Geometry Metric XXSmall (48cm) XSmall (50cm) Small (52cm) Medium (54cm) Large (56cm) XLarge (58cm) XXLarge (60cm)
Seat Tube Length C-T (mm) 430 460 490 530 550 570 590
Top Tube Length Effective (mm) 528 539 551 565 581 597 613
Head Length (mm) 100 110 130 150 170 190 210
Head Tube Angle (°) 70 70.5 70.5 70.5 70.5 71 71
Seat Tube Angle (°) 74 74 74 74 73.75 73.5 73.25
Bottom Bracket Drop (mm) 80 77 75 75 75 72 70
Chain Stay Length (mm) 450 450 450 450 450 450 450
Wheelbase (mm) 1038 1045 1060 1075 1090 1100 1115
Stack (mm) 552 560 577 596 614 632 649
Reach (mm) 370 378 386 394 402 410 418
Fork Axle to Crown (mm) 420 420 420 420 420 420 420
Fork Rake (mm) 50 50 50 50 50 50 50
Front Centre (mm) 600 607 621 636 650 660 674

Frameset Weights

Weights are provided for the frameset (Centre/Top):

  • 48cm: 1.69 kg
  • 50cm: 1.72 kg
  • 52cm: 1.75 kg
  • 54cm: 1.79 kg
  • 56cm: 1.83 kg
  • 58cm: 1.87 kg
  • 60cm: 1.91 kg
