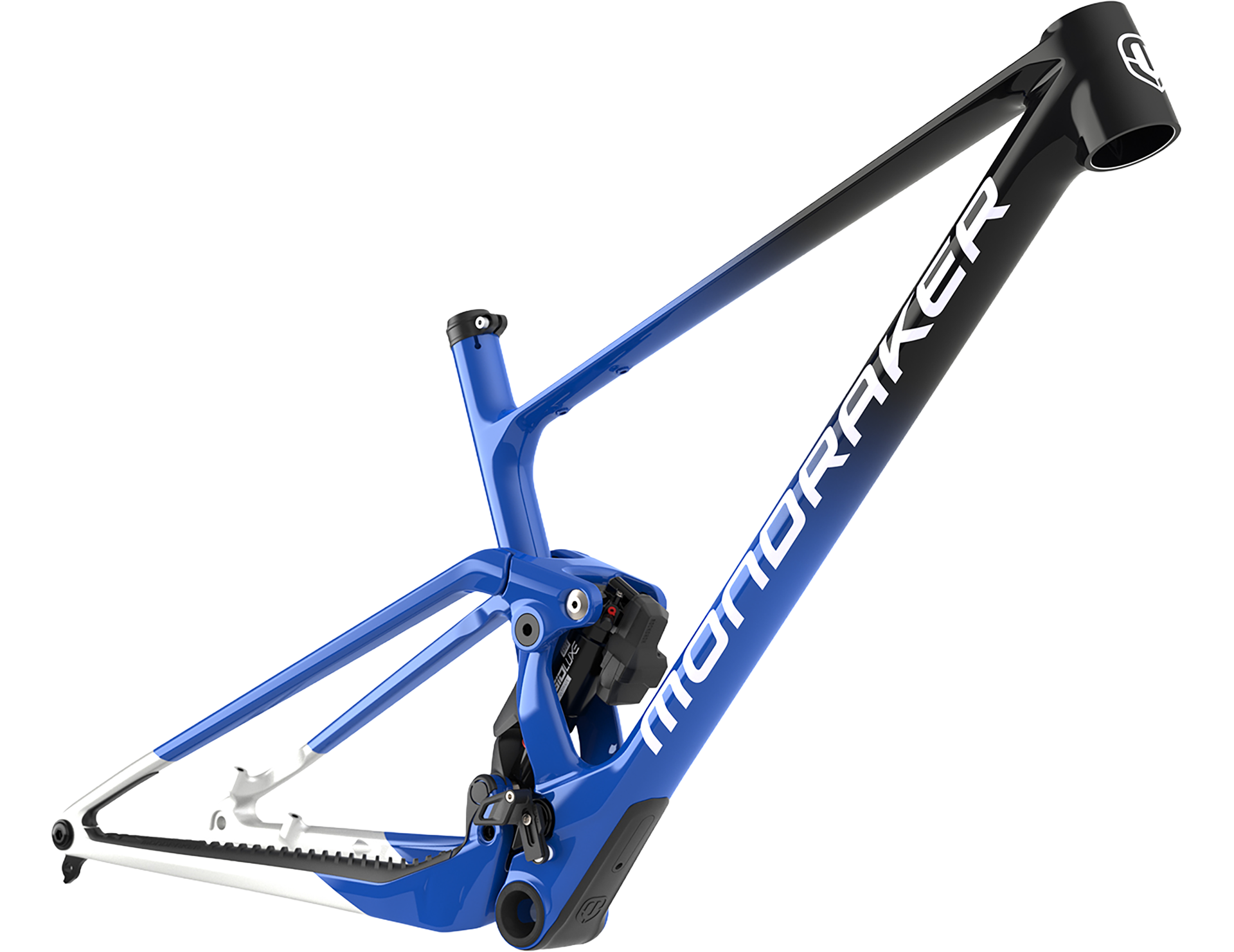

The Mondraker F-Podium Frameset is a race-focused cross-country platform built to deliver maximum efficiency, lightweight performance and modern XC capability. Developed around Mondraker’s Stealth Air Full Carbon construction and XCO Optimized Zero Suspension System, it provides a fast, responsive and highly capable foundation for premium custom XC builds.
With 110mm of rear travel and Mondraker’s XC Forward Geometry, the F-Podium balances explosive acceleration with impressive composure on technical race tracks and marathon terrain. The Carbon Monoblock upper link and refined suspension kinematics maximise pedalling efficiency while maintaining traction and control across demanding courses.
Internal cable routing, Boost spacing and UDH compatibility create a clean and future-ready chassis, while the included RockShox SID Luxe Ultimate rear shock ensures race-level suspension performance straight out of the box. Designed for riders chasing every advantage, the F-Podium Frameset is built for modern cross-country speed.
Key Features & Benefits:
- Race-Optimised Suspension: Zero Suspension System delivers efficient pedalling, responsive handling and excellent traction on technical XC terrain.
- Premium Carbon Construction: Stealth Air Full Carbon frame combines low weight, stiffness and modern race geometry.
- Future-Ready Design: UDH compatibility, Boost spacing and internal cable routing provide a clean and versatile build platform.
Full Specification:
- Frame: F-Podium 29 Stealth Air Full Carbon, XCO Optimized Zero Suspension System, 110mm travel, XC Forward Geometry, Carbon Monoblock upper link, BSA bottom bracket, tapered head tube, HHG internal cable routing, dedicated 1x drivetrain design, Boost 12x148mm rear axle, UDH, shock mudguard and postmount rear brake mount.
- Rear Shock: RockShox SID Luxe Ultimate 3P Remote in Pull DebonAir, 165x45mm with 3-position remote adjustment, low-speed rebound and air preload.
- Headset: Acros custom IS52/ZS56, 1-1/8" to 1.5" head tube with internal cable routing and sealing plugs with blocklock.
- Accessories: RockShox TwistLoc Ultimate FullSprint 125 A1 remote and SRAM UDH derailleur hanger included.
- Weight: Not specified.
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.
Sizing Chart for Mondraker F-Podium
Geometry Information for Mondraker F-Podium
| Frame size | S | M | L | XL |
|---|
| A | Seattube length | 410 mm | 440 mm | 470 mm | 500 mm |
|---|
| B | Toptube length | 576 mm | 601 mm | 629,4 mm | 657,8 mm |
|---|
| C | Bottom bracket drop | -40 mm | -40 mm | -40 mm | -40 mm |
|---|
| D | Bottom bracket height | 335 mm | 335 mm | 335 mm | 335 mm |
|---|
| E | Chainstay length | 435 mm | 435 mm | 435 mm | 435 mm |
|---|
| F | Seat tube angle | 72,5° | 72,9° | 73,2° | 73,5° |
|---|
| G | Effective seattube angle | 76,2° | 76,2° | 76,2° | 76,2° |
|---|
| H | Headtube angle | 66,5° | 66,5° | 66,5° | 66,5° |
|---|
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
|---|
| J | Wheelbase | 1152 mm | 1177 mm | 1208 mm | 1239 mm |
|---|
| K | Headtube length | 90 mm | 90 mm | 105 mm | 120 mm |
|---|
| L | Reach | 430 mm | 455 mm | 480 mm | 505 mm |
|---|
| M | Stack | 594,6 mm | 594,6 mm | 608,3 mm | 622,1 mm |
|---|
