Race-ready downhill frameset with 200mm travel, mullet setup and extensive geometry adjustment for elite-level descending performance.
Race-ready downhill frameset with 200mm travel, mullet setup and extensive geometry adjustment for elite-level descending performance.
Mondraker

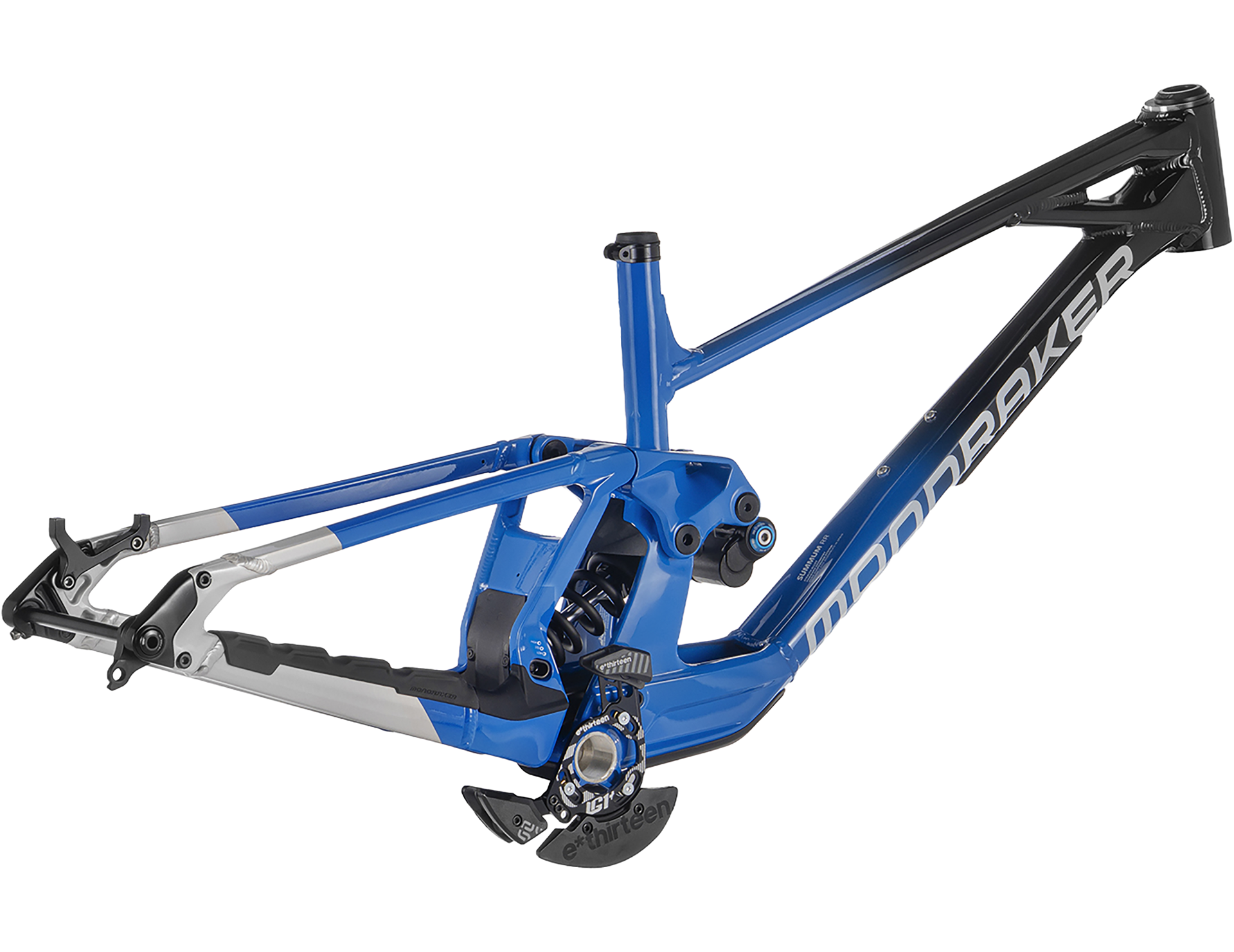

Mondraker Summum RR Mullet Full Suspension Mountain Bike Frameset 2027 in Black/Blue/Alloy

£2,799.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Mondraker Summum RR Mullet Full Suspension Mountain Bike Frameset 2027 in Black/Blue/Alloy

Season:2027

Brand:Mondraker

Code:SUMMUM RR MULLET FRAMESET

The Mondraker Summum RR Mullet Frameset is a World Cup-inspired downhill chassis built for maximum speed, adjustability and control on the toughest tracks and biggest bike park lines.

Key Features & Benefits:

  • Updated Zero Suspension System: Delivers exceptional bump absorption, mid-stroke support and traction for faster, more controlled downhill riding.
  • Mullet Wheel Platform: Combines the rollover confidence of a 29er front wheel with the agility and responsiveness of a 27.5in rear wheel.
  • Advanced Geometry Adjustment: Included geometry kit allows riders to fine-tune reach, bottom bracket height and chainstay length for different tracks and riding styles.

Full Specification:

  • Frame: Summum MX 6061 Alloy Stealth Evo, Mullet, hydroformed tubing, Updated Zero Suspension System, 200mm travel, Forward Geometry, alloy upper link with shock eyelet bearings, 12x157mm rear axle, UDH, 83mm BSA bottom bracket, MAX capacity dual row Enduro bearings, HHG internal cable routing, ISCG 05
  • Rear Shock: FOX DHX2 FACTORY K 2POS 225X75 TRUNNION 30X8 450LBS SLS BLACK
  • Shock Settings: Medium compression, linear rebound. Spring rate: M size 450 lbs, L size 500 lbs, XL size 550 lbs
  • Headset: Onoff DH ARS (Adjustable Reach System) 1-1/8", sealed bearings, reach geometry kit cups (+-5mm)
  • Derailleur Hanger: SRAM UDH
  • Other Features: Geometry kit included: +-5mm headset cups, lower shock mount flip chip, +5mm dropout, -5mm dropout
  • Sizes: M / L / XL

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Mondraker Summum

Frame SizeRider Height (cm)Rider Height (')
SmallUnder 170 cmUnder 5'7"
Medium167.5–177.5 cm5'6"–5'10"
Large175–187.5 cm5'9"–6'2"
X-Large185–197 cm6'1"–6'6"

Geometry Information for Mondraker Summum


Frame size
SMLXL
ASeattube length400 mm400 mm400 mm400 mm
BToptube length576 mm596 mm621 mm646 mm
CBottom bracket drop-5 mm-5 mm-5 mm-15 mm
DBottom bracket height350 mm350 mm350 mm350 mm
EChainstay length450 mm450 mm450 mm450 mm
FSeat tube angle69°69°69°69°
GEffective seattube angle77°77°77°77°
HHeadtube angle63.5°63,5º63,5º63,5º
IFork Offset58 mm58 mm58 mm58 mm
JWheelbase1256 mm1270 mm1301 mm1326 mm
KHeadtube length112 mm112 mm112 mm112 mm
LReach430 mm450 mm475 mm500 mm
MStack632 mm632 mm632 mm632 mm

Warranty Information for Mondraker:

Mondraker offers an extended lifetime warranty for all its frames against defects in materials or manufacturing. Exclusions and terms apply.
It should be emphasised that each bicycle/frame has a life-cycle which will vary depending on the type of material and its construction. This life-cycle may be shortened by the form and type of use, or lack of appropriate maintenance and care. The lifetime warranty will therefore be entirely dependent on the optimal life-cycle determined by Mondraker for each specific Product.

The Avinox drive system (motor, battery, display, and charger) comes with a 2-year warranty starting from the activation date, covering up to 500 charge cycles. Exclusions and terms apply.

All warranty claims for Mondraker components or original parts will be handled through an authorised Mondraker distribution point, and the original commercial invoice must be provided.

Mondraker points of sale will handle the warranty of third-party manufacturers' components, with each manufacturer being responsible for the warranty of its components used in the product.

For Full Terms and Conditions Visit Mondrakers Website
