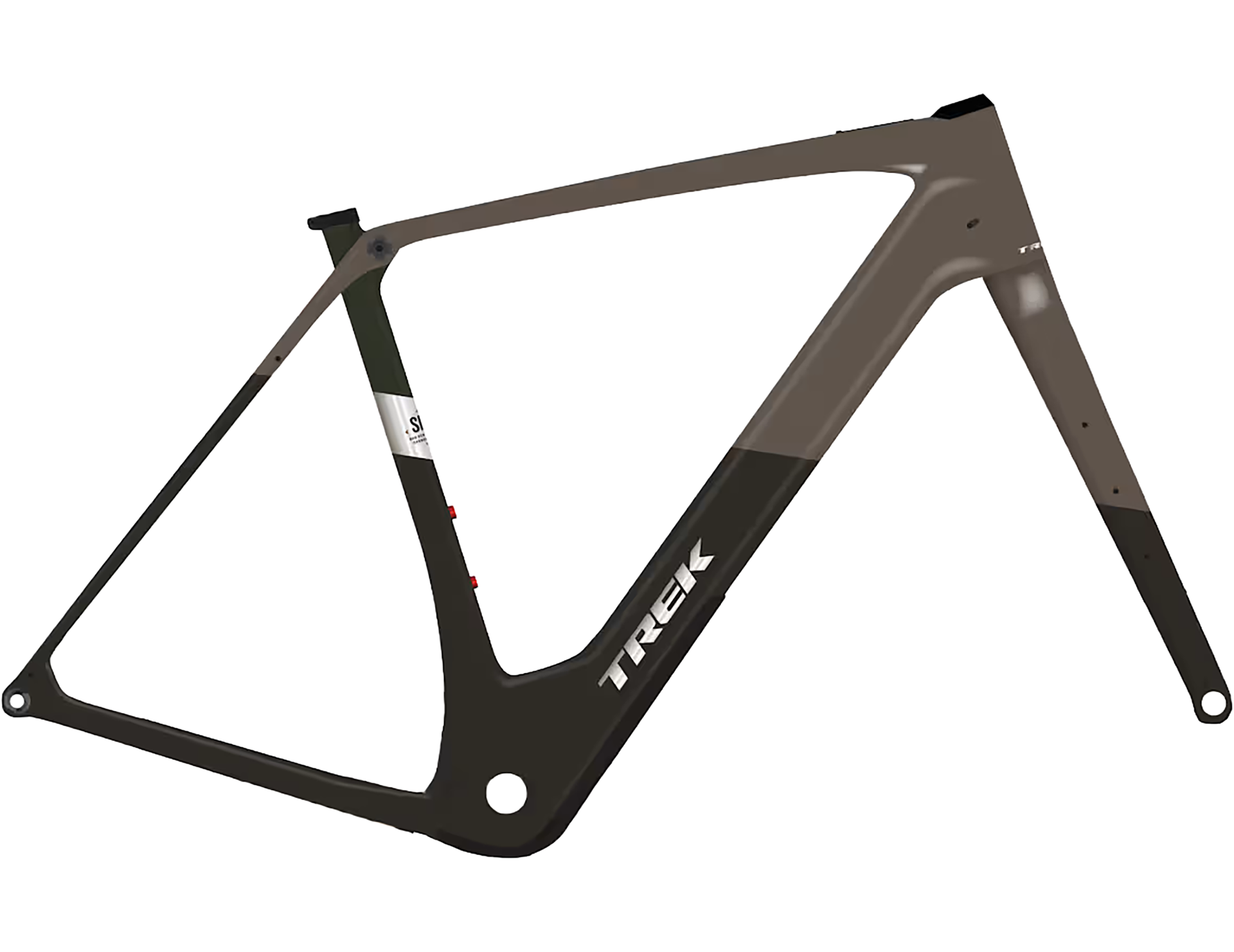

Trek Checkpoint+ SL Electric Gravel Bike Frameset 2026 in Matte Bronze Age/Dark Web

Season:2026

Brand:Trek

Code:59975BZ-BK

Checkpoint+ SL Frameset is an electric gravel bike frame ready for far out adventures. Its OCLV Carbon frame is designed to pair with TQ's HPR60 motor for a smooth and quiet boost up to 15.5 mph, while mounts for racks and bags let you load up to get way, way out there.

The frame comes ready to build with a full carbon Checkpoint fork. Motor, battery, and display not included.

Full Specification:

  • Frame:500 Series OCLV Carbon, TQ drive system, tapered head tube, IsoSpeed, internal routing, flat-mount disc, mudguard mounts, UDH, 142x12 mm chamfered thru axle
  • Fork:Checkpoint full carbon, tapered carbon steerer, mudguard mounts, triple rack mounts, flat-mount disc, 12x100 mm chamfered thru axle
  • Max Chainring Size:1x:44
  • Front Skewer:Bontrager Switch chamfered thru axle
  • Rear Skewer:Bontrager Switch chamfered thru axle, removable lever
  • Max Tyre Size:50 mm without mudguards, 42 mm with mudguards
  • Max Brake Rotor Size:Max brake rotor sizes: 180mm front and rear
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Checkpoint+

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.
SizeRider Height (cm)Rider Height (")Inseam (cm)Inseam (")
XS143 - 158 cm4'8" - 5'2"67 - 74 cm26" - 29"
S (49cm)158 - 164 cm5'2" - 5'5"74 - 77 cm29" - 30"
M (52-54cm)164 - 177 cm5'5" - 5'10"77 - 83 cm30" - 33"
ML (56cm)177 - 188 cm5'10" - 6'2"83 - 88 cm33" - 35"
L (58cm)188 - 194 cm6'2" - 6'4"88 - 91 cm35" - 36"
XL (61cm)194 - 203 cm6'4" - 6'8"91 - 95 cm36" - 37"

Geometry for Trek Checkpoint Gen 3


Frame size letterWheel sizeA —Seat tubeB —Seat tube angleEffective seat tube angleC —Head tube lengthD —Head angleE —Effective top tubeG —Bottom bracket dropH —Chainstay lengthI —OffsetJ —TrailK —WheelbaseL —StandoverM —Frame reachN —Frame stack
S700c48.074.0°73.0°10.671.4°54.77.644.04.96.8103.277.238.655.6
M700c50.573.3°72.8°13.071.6°56.67.644.04.96.8104.479.939.157.9
ML700c53.073.3°72.8°15.172.0°57.87.644.04.96.4105.281.339.760.1
L700c55.073.3°72.8°17.172.1°58.97.644.04.96.4106.383.740.262.0
XL700c57.573.3°72.8°19.172.4°60.17.644.04.96.2107.286.140.864.0

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
