A Bosch-powered trekking e-bike with 800Wh battery, Shimano XT 12-speed gearing, ABS braking, Fox suspension and integrated touring equipment.
A Bosch-powered trekking e-bike with 800Wh battery, Shimano XT 12-speed gearing, ABS braking, Fox suspension and integrated touring equipment.
Cube

Cube Kathmandu Hybrid EXC 800 Electric Aluminium bike 2027 in Slategrey/Chrome

£3,699.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Cube Kathmandu Hybrid EXC 800 Electric Aluminium bike 2027 in Slategrey/Chrome

Season:2027

Brand:Cube

Code:1112401SLATEGREYCHROMET

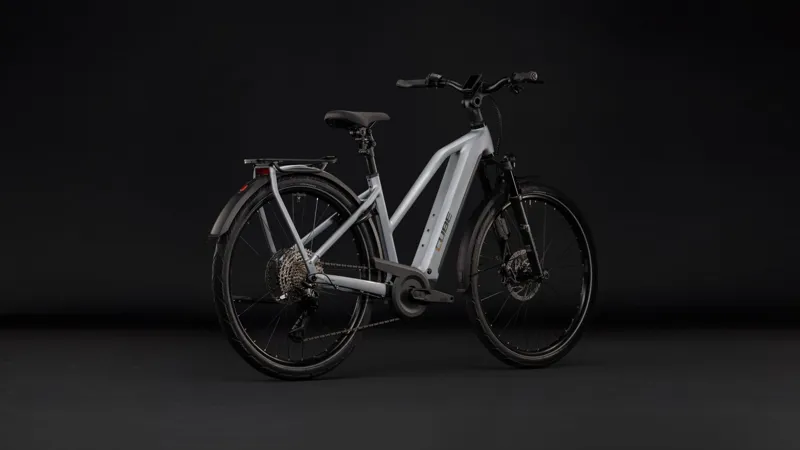

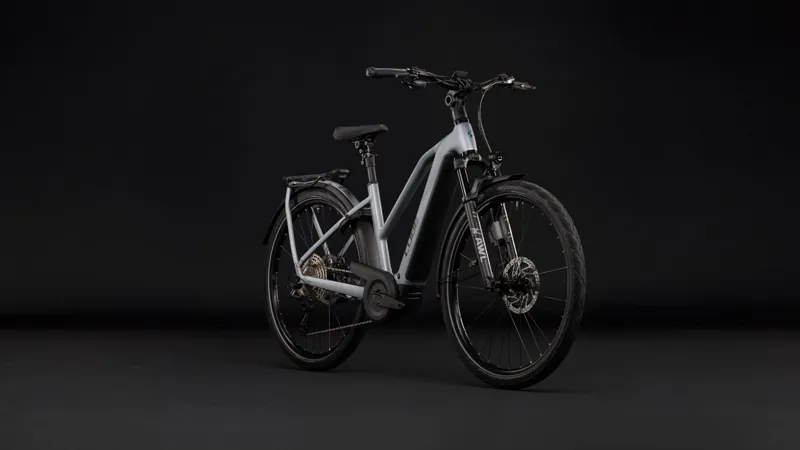

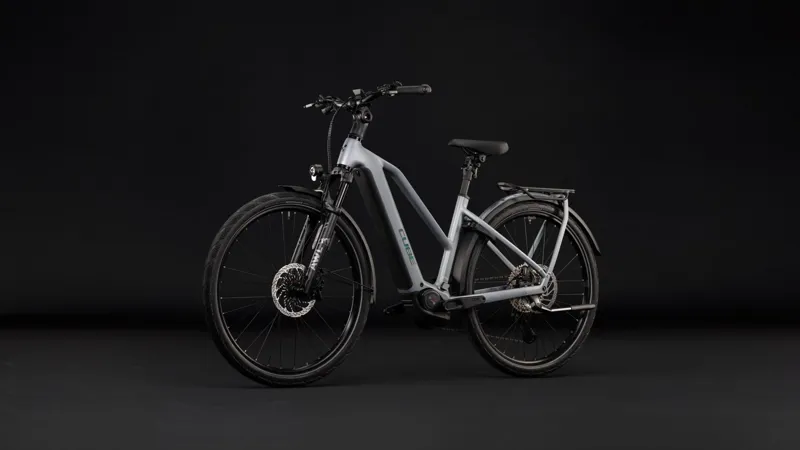

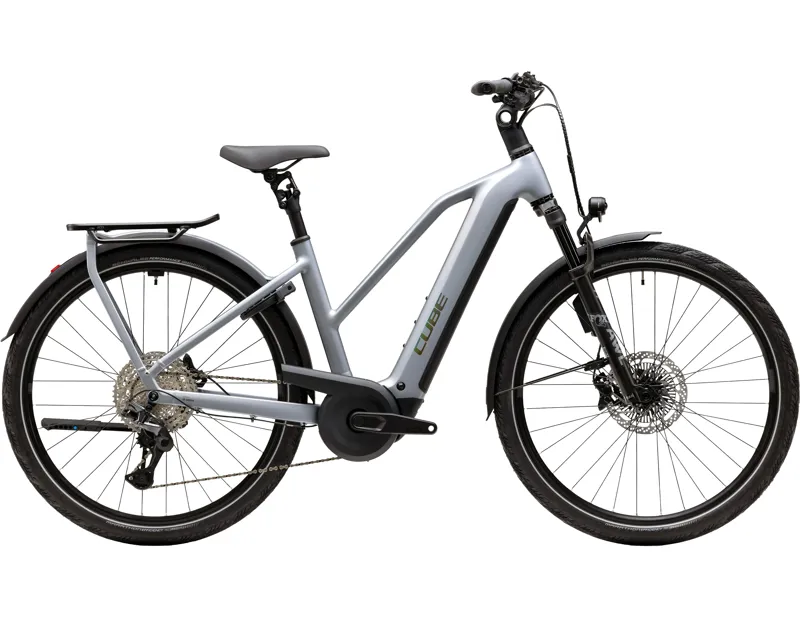

The Cube Kathmandu Hybrid EXC 800 is built to go places, combining powerful Bosch assistance, dependable Shimano components and a comprehensive touring setup in a comfortable Trapeze-frame package.

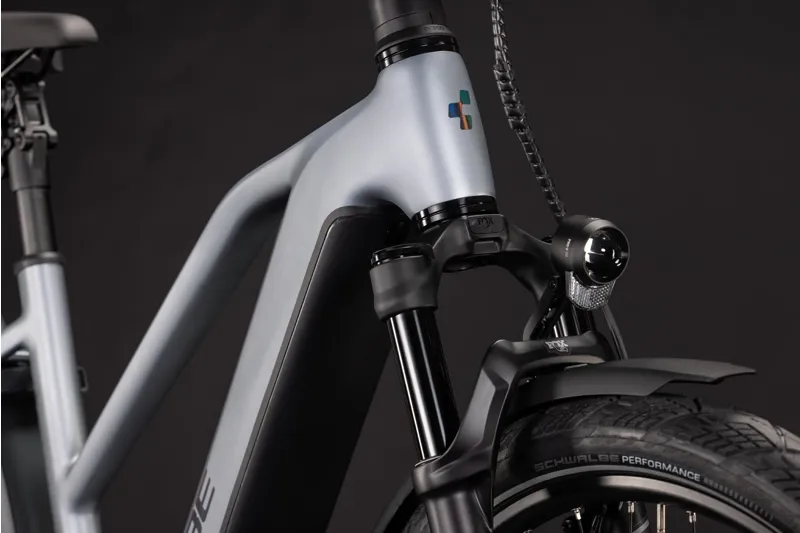

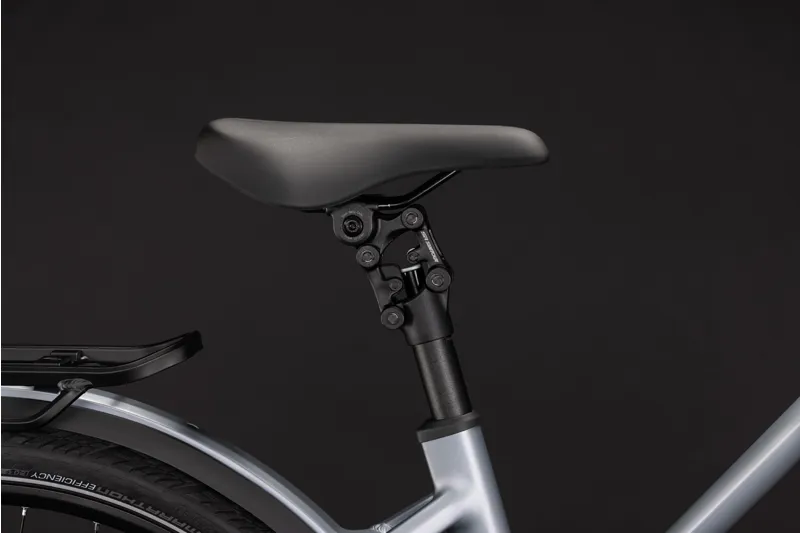

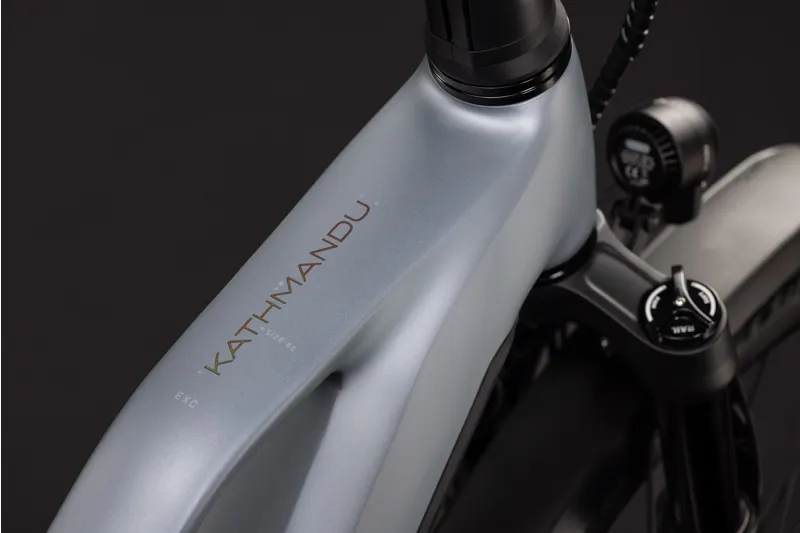

Its Aluminium Superlite frame uses Efficient Comfort Geometry and neatly integrates the Bosch drive system and 800Wh PowerTube battery. A 100mm Fox 34 Float AWL suspension fork helps improve comfort and control when surfaces become rough, while an adjustable stem and parallelogram suspension seatpost further enhance comfort.

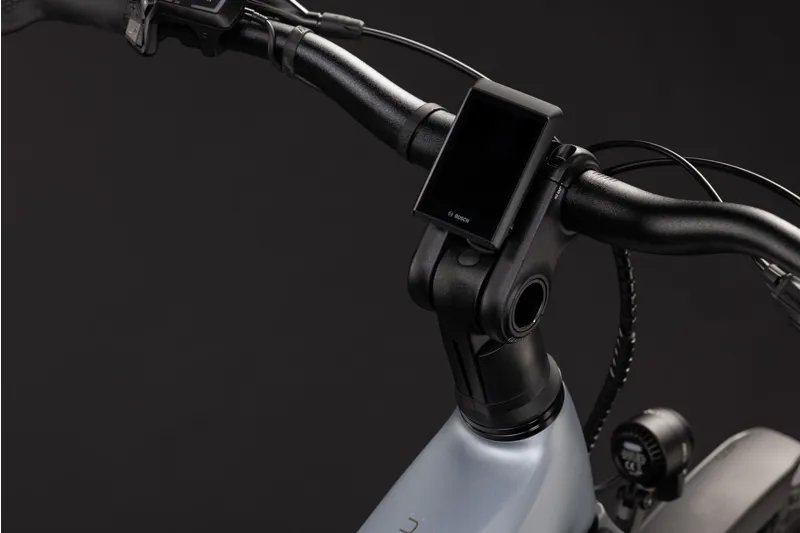

Bosch's Performance Line CX motor delivers up to 120Nm of torque, backed by the large-capacity 800Wh PowerTube battery. A Kiox 500 display keeps essential ride information clearly visible, while Shimano XT 1x12 gearing combines a 40T chainring with a wide-ranging 10-51T cassette.

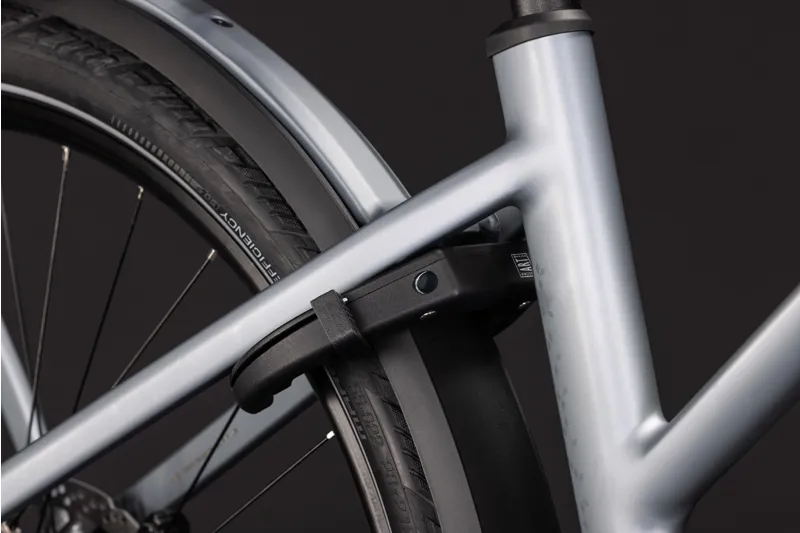

Four-piston Shimano hydraulic disc brakes with ABS provide powerful, controlled braking. Tubeless-ready ACID SLX 25 wheels, 55mm Schwalbe Marathon Efficiency tyres, integrated lighting, mudguards, a kickstand and Cube's Integrated Carrier 3.0 complete the adventure-ready package.

Key Features & Benefits:

  • Bosch CX with 800Wh Battery: The Performance Line CX motor delivers up to 120Nm of torque, backed by a large-capacity 800Wh PowerTube battery and Kiox 500 display.
  • Shimano XT 12-Speed: An XT rear derailleur and wide 10-51T cassette provide dependable shifting and plenty of range for varied terrain.
  • ABS Braking and Touring Equipment: Four-piston Shimano ABS brakes, Integrated Carrier 3.0, lights, mudguards and kickstand create a capable, fully equipped touring package.

Full Specification:

  • Frame: Aluminium Superlite, Gravity Casting Technology, Efficient Comfort Geometry, Boost148, UDH™, Fully Integrated Battery, Integrated Carrier 3.0, Advanced Internal Cable Routing, Integrated Seatclamp
  • Fork: Fox 34 Float AWL, 2-Position Sweep-Adjust RAIL Damper, Tapered, 15x110mm, E-Bike Optimized, 100mm
  • Motor: Bosch Drive Unit Performance Line CX max. 120Nm (BDU38)
  • Battery: Bosch PowerTube 800
  • Controller: Bosch LED Remote, Bosch Kiox 500
  • Charger: Bosch 2A
  • Number of Gears: 12
  • Gear Shifters: Shimano Deore SL-M6210, Single Click
  • Chainset: ACID MTB Hybrid Pro, 40T
  • Chainrings: 40T
  • Rear Cassette: Shimano Deore CS-M6100, 10-51T
  • Chain: KMC e12
  • Rear Derailleur: Shimano XT RD-M8200-SGS, ShadowPlus, 12-Speed
  • Pedals: ACID PP Trekking
  • Wheelset: ACID SLX 25, 32/32 Spokes, 15x110mm / 12x148mm, Tubeless Ready
  • Front Tyre: Schwalbe Marathon Efficiency, Performance, 55-622
  • Rear Tyre: Schwalbe Marathon Efficiency, Performance, 55-622
  • Brakes: Shimano BR-MT420 ABS, Hydraulic Disc Brake
  • Rotors: 203mm Front / 203mm Rear
  • Handlebar: CUBE Comfort Trail Bar HD, 720mm
  • Stem: CUBE Comfort Stem Pro, 35mm, Adjustable
  • Seatpost: SR Suntour NVX, 31.6mm
  • Saddle: ACID Sequence 180 Pro Plus Ultra Gel
  • Front Light: ACID Front Light PRO-E 150 X-Connect, 12V, DC
  • Rear Light: ACID Mudguard Rear Light PRO-E, 12V, DC
  • Mudguards: ACID 65 Integrated Carrier 3.0
  • Kickstand: ACID FM Pure Silent
  • Carrier: ACID Integrated Carrier 3.0 CSR, CUBE Adapter Compatible
  • Bell: Ring Bell
  • Weight: 28.6kg
  • Maximum System Weight: 160kg
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

If you are unsure which size Cube bike would be best for you, Cube do provide an online sizing calculator on each bike product page, which requires you to enter your height and inside leg. This can give a recommendation on which size may be best for you, however for the best results, please visit your local Balfe’s store for a personal consultation and test ride.

Geometry for Cube Kathmandu Trapeze Hybrid

Size:46cm50cm54cm58cm
Seat tube420460510560
Top Tube Horizontal590590610630
Seat angle73.5°73.5°73°73°
Head tube angle68°68°68.5°68.5°
Chainstays499499499499
Head tube110110125140
Wheelbase1173117311821204
BB-Height to Hub68686868
Protrusion height - 80mm769777817850
Reach401401410426
Stack638638654668
Length seat post300300300300
Diameter seatpost31.631.631.631.6
Crank length175175175175
Diameter tire maximum750750750750
Width tire maximum56565656
Stem length65658080
Handlebar width700700700700

Warranty Information for Cube:

Your CUBE bike is warranted to be free from manufacturing defects for 2 years with effect from the date of sale. In addition, we provide our customers with the following warranty in the event of frame breakage outside the statutory warranty period as follows:
For all frames and rigid forks from model year 2012 and onwards Cube guarantee from the date of sale from the dealer:
Aluminium: 6-year guarantee
Carbon fibre, aluminium-carbon fibre: 3-year guarantee
If a break occurs during this period (from date of sale), Cube will replace the item with the same or similar.
BOSCH Warranty (E-Bikes): The warranty period is 24 months.
For full warranty policy please visit cube.eu
