The Mondraker Crafty Carbon R is a powerful full-suspension electric enduro mountain bike built for technical trails, challenging climbs and demanding descents. Combining a Stealth Air Carbon front triangle with a Stealth Alloy rear triangle, 150mm of Zero Suspension System rear travel and a 160mm Fox 38 Performance fork, it delivers confident handling across varied mountain terrain. A Bosch Performance Line CX motor, removable 800Wh battery, SRAM S1000 Eagle AXS wireless drivetrain and SRAM Maven Base four-piston brakes complete a capable, trail-focused build.
The Mondraker Crafty Carbon R is a powerful full-suspension electric enduro mountain bike built for technical trails, challenging climbs and demanding descents. Combining a Stealth Air Carbon front triangle with a Stealth Alloy rear triangle, 150mm of Zero Suspension System rear travel and a 160mm Fox 38 Performance fork, it delivers confident handling across varied mountain terrain. A Bosch Performance Line CX motor, removable 800Wh battery, SRAM S1000 Eagle AXS wireless drivetrain and SRAM Maven Base four-piston brakes complete a capable, trail-focused build.
Mondraker

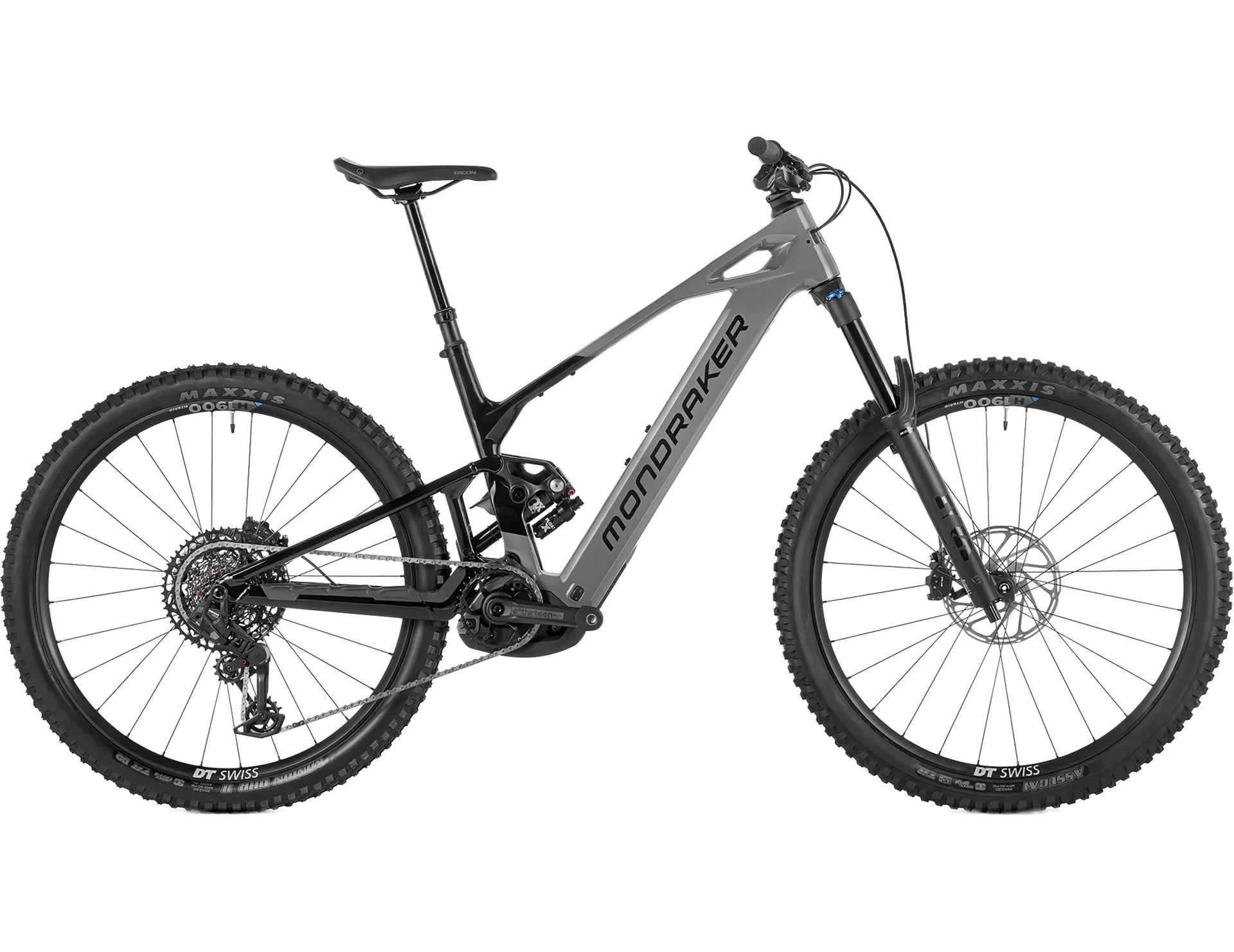

EX DISPLAY Mondraker XL Crafty Carbon R Electric Full Suspension Mountain Bike 2027 in Grey Black

£5,299.00 £6,799.00 22% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

EX DISPLAY Mondraker XL Crafty Carbon R Electric Full Suspension Mountain Bike 2027 in Grey Black

Season:2027Sale

Brand:Mondraker

Code:SD010.27315

This Mondraker Crafty Carbon R in size X-Large is an ex-display bike, this bike has been built up on the shop floor, the bike is brand new and unused.

All bikes are fully inspected to ensure they are free of any damage, and we offer full manufacturer's warranty on all bikes.

The Mondraker Crafty Carbon R Carbon Electric Mountain Bike combines advanced frame technology, capable suspension and powerful electric assistance for riders looking to conquer demanding mountain trails. Built around a Stealth Air Carbon front triangle and Stealth Alloy aluminium rear triangle, the Crafty Carbon R delivers a responsive and robust platform designed for challenging off-road conditions. Mondraker's updated Zero Suspension System provides 150mm of rear travel, working alongside a 160mm Fox 38 Performance suspension fork to deliver traction, comfort and control over rough terrain. Forward Geometry, 29-inch wheels and a two-position geometry flip chip create a stable and confidence-inspiring ride, whether tackling steep descents, rocky trails or technical singletrack.

At the heart of the Crafty Carbon R is the fifth-generation Bosch Performance Line CX Smart System motor, delivering smooth and responsive pedal assistance for demanding climbs and extended off-road adventures. The integrated Bosch PowerTube 800Wh battery provides substantial energy capacity for longer rides and can be removed from the frame for convenient charging. A Bosch Kiox 400C colour display is neatly integrated into the top tube, offering essential riding information at a glance, while the Bosch Mini Remote allows easy control of assistance levels from the handlebars. Compatibility with the optional Bosch PowerMore 250Wh range extender provides additional flexibility for riders looking to extend their journeys. Combined with Mondraker's refined suspension kinematics, the Bosch drive system helps riders tackle challenging terrain while maintaining excellent climbing traction and control.

Carefully selected components make the Crafty Carbon R a highly capable electric enduro mountain bike. The Fox 38 Performance fork features 160mm of travel with GRIP damping and adjustable compression and rebound, while the Fox Float X Performance rear shock provides controlled suspension performance with a two-position compression lever and rebound adjustment. SRAM's S1000 Eagle AXS T-Type 12-speed wireless electronic drivetrain delivers precise shifting across a wide-range 10-52T cassette, while SRAM Maven Base four-piston hydraulic disc brakes with 200mm rotors provide dependable stopping power. DT Swiss Hybrid H 1900 SPLINE wheels combine with a Maxxis Assegai front tyre and Minion DHR II rear tyre for excellent traction and durability across demanding terrain. An Onoff Pija dropper seatpost, wide Onoff handlebars and Ergon saddle complete a trail-focused build ready for technical climbs, challenging descents and longer mountain adventures.

Key Features & Benefits:

  • Stealth Air Carbon Front Triangle:Premium carbon fibre construction provides a responsive and refined front-end chassis for demanding electric mountain biking.
  • Stealth Alloy Rear Triangle:Durable aluminium rear construction provides a robust platform for challenging off-road conditions.
  • Updated Zero Suspension System:150mm of rear travel helps maintain traction, comfort and control across rough and technical terrain.
  • Mondraker Forward Geometry:Modern trail-focused geometry promotes stability, precise handling and confidence on steep descents.
  • Adjustable Geometry Flip Chip:Standard and Low settings allow riders to fine-tune the bike's geometry to suit different terrain and riding preferences.
  • Size-Specific Chainstay Lengths:455mm chainstays on S, M and ML frames and 465mm chainstays on L and XL frames help maintain balanced handling across the size range.
  • Bosch Performance Line CX Gen 5 Motor:Powerful Smart System drive unit delivers smooth, responsive electric assistance for steep climbs and longer adventures.
  • Removable 800Wh Bosch PowerTube Battery:High-capacity integrated battery supports extended rides and can be removed for convenient charging.
  • Bosch Kiox 400C Display:Integrated colour display provides essential riding information in an easy-to-read format.
  • Bosch Mini Remote:Allows convenient control of electric assistance without removing a hand from the handlebars.
  • Bosch PowerMore Compatibility:Supports an optional 250Wh range extender, available separately, for additional battery capacity.
  • Fox 38 Performance Suspension Fork:160mm of travel and e-bike-specific tuning provide controlled suspension performance across challenging terrain.
  • Adjustable GRIP Damping:Three-position compression adjustment with micro-adjustment, low-speed rebound adjustment and air preload allow riders to tailor fork performance.
  • Fox Float X Performance Rear Shock:Air-sprung rear shock with a two-position compression lever and rebound adjustment provides controlled suspension performance.
  • SRAM S1000 Eagle AXS T-Type Drivetrain:Wireless electronic 12-speed shifting delivers precise, consistent gear changes across demanding terrain.
  • SRAM Eagle AXS Pod Controller:Ergonomic wireless shift controller provides intuitive gear selection from the handlebars.
  • Wide-Range 10-52T Cassette:Provides climbing-friendly ratios for steep gradients alongside suitable gearing for faster trail sections.
  • SRAM Maven Base Hydraulic Disc Brakes:Powerful four-piston brakes with 200mm rotors deliver confident stopping performance on demanding descents.
  • DT Swiss Hybrid H 1900 SPLINE Wheels:Durable tubeless-ready 29-inch wheels with 30mm internal rim width are designed for the demands of electric mountain biking.
  • DT Swiss 370 Hubs:Reliable Boost hubs with an 18-tooth Ratchet LN rear engagement system provide dependable power transfer.
  • Maxxis Assegai Front Tyre:3C MaxxGrip compound and EXO+ protection provide excellent traction and confidence when cornering and descending.
  • Maxxis Minion DHR II Rear Tyre:3C MaxxTerra compound and DoubleDown casing deliver braking traction and durability on demanding terrain.
  • Onoff Pija Dropper Seatpost:Internally routed dropper with adjustable travel allows riders to lower the saddle for improved freedom of movement and control.
  • Onoff S6 Aluminium Handlebars:800mm-wide handlebars provide confident steering control across demanding terrain.
  • Internal Cable Routing:HHG routing keeps cables neatly integrated within the frame for a clean appearance and added protection.
  • Universal Derailleur Hanger:SRAM UDH compatibility simplifies derailleur hanger replacement and supports modern drivetrain integration.
  • Five Frame Sizes:Available in S, M, ML, L and XL to accommodate a wide range of riders.

Full specification:

  • Frame:Mondraker Crafty Stealth Air Carbon front triangle, Stealth Alloy aluminium rear triangle, updated Zero Suspension System, 150mm rear travel, Forward Geometry, integrated removable battery, Boost 12x148mm rear axle, SRAM Universal Derailleur Hanger, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversized 15mm axles and protective motor covers
  • Rear Shock:Fox Float X LV Performance, 185x55mm, Trunnion upper mount, 30x8mm lower bushings, two-position compression lever, low-speed rebound adjustment and air preload; CS50 compression tune, RL70 rebound tune, 1.1 bleed, Rezi B60, LML, MCU and 0.2 volume spacer
  • Fork:Fox 38 29 Float GRIP Performance, 160mm travel, e-bike tuned, tapered steerer tube, Boost 15x110mm axle, 44mm offset; three-position compression with micro-adjustment, low-speed rebound adjustment and air preload
  • Motor:Bosch Performance Line CX Smart System, fifth generation, BDU384Y, pedal assistance up to 25km/h
  • Battery:Bosch PowerTube 800Wh, integrated and removable
  • Controller:Bosch Kiox 400C integrated colour display with Bosch Mini Remote
  • Number of Gears:12
  • Gear Shifters:SRAM Eagle AXS Pod MMX, 12-speed wireless electronic shifting
  • Chainset:E*thirteen Helix Core E*Spec Plus, 155mm crank arms across all sizes
  • Chainrings:SRAM Eagle 34T T-Type, direct mount, steel, 55mm chainline
  • Rear Cassette:SRAM XS-1270, 10-52T, T-Type, 12-speed
  • Chain:SRAM GX Eagle T-Type Flattop, 12-speed, PowerLock
  • Rear Derailleur:SRAM S1000 Eagle AXS T-Type, 12-speed wireless electronic
  • Pedals:Not supplied:Shop pedals here
  • Wheelset:DT Swiss Hybrid H 1900 SPLINE, 29-inch, tubeless-ready aluminium rims, 30mm internal width, 28 DT Swiss Hybrid I Straightpull spokes
  • Rims:DT Swiss Hybrid H 1900 SPLINE, hooked aluminium, tubeless-ready, 30mm internal width, 28 spokes
  • Front Hub:DT Swiss 370, Boost 15x110mm, IS six-bolt disc fitting
  • Rear Hub:DT Swiss 370, 18T Ratchet LN System, Boost 12x148mm, IS six-bolt disc fitting, HG freehub
  • Front Tyre:Maxxis Assegai 29x2.5WT, 3C MaxxGrip compound, EXO+ protection, 60 TPI, tubeless-ready, folding bead
  • Rear Tyre:Maxxis Minion DHR II 29x2.5WT, 3C MaxxTerra compound, DoubleDown casing, 2x120 TPI, tubeless-ready, folding bead
  • Brakes:SRAM Maven Base hydraulic disc brakes, four-piston front and rear calipers with 18mm pistons, SRAM Centerline 200mm front and rear six-bolt one-piece rotors, steel-backed organic pads, DirectLink lever actuation, lever pivot bushings and tool-free reach adjustment
  • Handlebars:Onoff S6 1.0, 7050 aluminium, 800mm width, 8-degree backsweep, 5-degree upsweep, 31.8mm clamp; 25mm rise on S/M/ML and 38mm rise on L/XL
  • Grips:Onoff Desert Pro, CNC lock-on, 135mm; thicker grip diameter on L/XL
  • Headset:Acros Custom ZS56/ZS56, 1-1/8-inch to 1.5-inch tapered head tube, internal cable routing, sealing plugs, without BlockLock
  • Stem:Onoff S6, 30mm length, 0-degree rise, forged and CNC-machined 6061 aluminium, 31.8mm handlebar clamp
  • Saddle:Ergon SM-10
  • Seatpost:Onoff Pija internally routed dropper, 31.6mm diameter, 1x remote lever with bearing; S: 115-140mm adjustable travel, M: 135-160mm, ML: 155-180mm, L: 185-210mm, XL: 185-210mm
  • Weight:24.5kg

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.


Size Guide for Mondraker Crafty

Frame SizeRider Height (cm)Rider Height (')
SmallUnder 165 cmUnder 5'5"
Medium165–175 cm5'5"–5'9"
Medium/Large170–185 cm5'7"–6'1"
Large180–190 cm5'11"–6'3"
X-Large190–195 cm6'3"–6'5"

Geometry Information for Mondraker Crafty


Frame size
S [Std/Low]M [Std/Low]M/L [Std/Low]L [Std/Low]XL [Std/Low]
ASeattube length380 mm410 mm435 mm460 mm490 mm
BToptube length581 mm/582 mm596 mm/597 mm618 mm/619 mm640 mm/641 mm662 mm/663 mm
CBottom bracket drop-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm-25 mm/-30 mm
DBottom bracket height350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm350 mm/345 mm
EChainstay length455 mm/456 mm455 mm/456 mm455 mm/456 mm465 mm/466 mm465 mm/466 mm
FSeat tube angle73°/72.65°73°/72.65°73°/72.65°73°/72.65°73°/72.65°
GEffective seattube angle77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°77.95°/77.6°
HHeadtube angle64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°64.5°/64.15°
IFork Offset44 mm44 mm44 mm/44 mm44 mm44 mm/44 mm
JWheelbase1240 mm/1241 mm1255 mm/1256 mm1280 mm/1281 mm1314 mm/1315 mm1338 mm/1339 mm
KHeadtube length120 mm120 mm130 mm140 mm150 mm
LReach445 mm/441 mm460 mm/456 mm480 mm/476 mm500 mm/496 mm520 mm/516 mm
MStack638 mm/641 mm638 mm/641 mm647 mm/650 mm656 mm/659 mm665 mm/668 mm

Warranty Information for Mondraker:

Mondraker offers an extended lifetime warranty for all its frames against defects in materials or manufacturing. Exclusions and terms apply.
It should be emphasised that each bicycle/frame has a life-cycle which will vary depending on the type of material and its construction. This life-cycle may be shortened by the form and type of use, or lack of appropriate maintenance and care. The lifetime warranty will therefore be entirely dependent on the optimal life-cycle determined by Mondraker for each specific Product.

The Avinox drive system (motor, battery, display, and charger) comes with a 2-year warranty starting from the activation date, covering up to 500 charge cycles. Exclusions and terms apply.

All warranty claims for Mondraker components or original parts will be handled through an authorised Mondraker distribution point, and the original commercial invoice must be provided.

Mondraker points of sale will handle the warranty of third-party manufacturers' components, with each manufacturer being responsible for the warranty of its components used in the product.

For Full Terms and Conditions Visit Mondrakers Website
