The Marin Alpine Trail E XR is a premium Bosch-powered enduro e-MTB with 170/160mm suspension, wireless SRAM GX Eagle AXS Transmission and an 800Wh battery.
The Marin Alpine Trail E XR is a premium Bosch-powered enduro e-MTB with 170/160mm suspension, wireless SRAM GX Eagle AXS Transmission and an 800Wh battery.
Marin

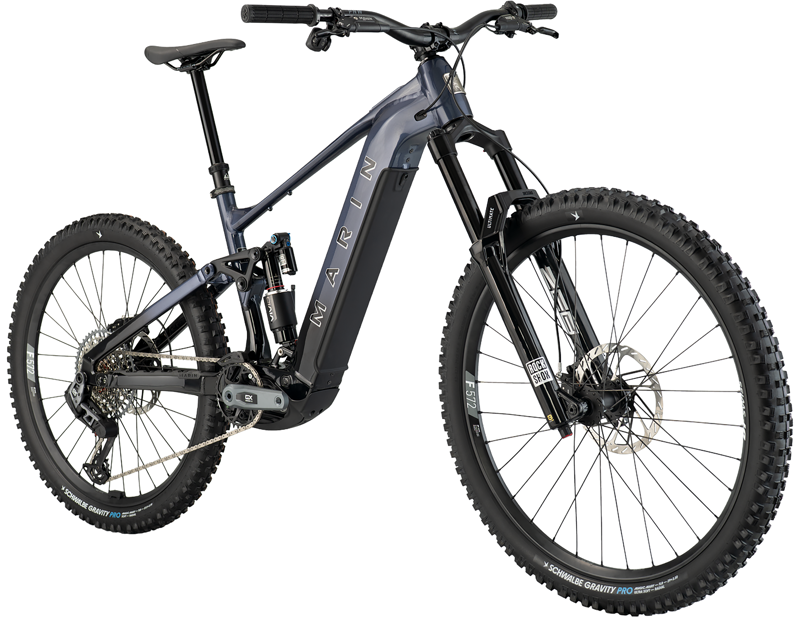

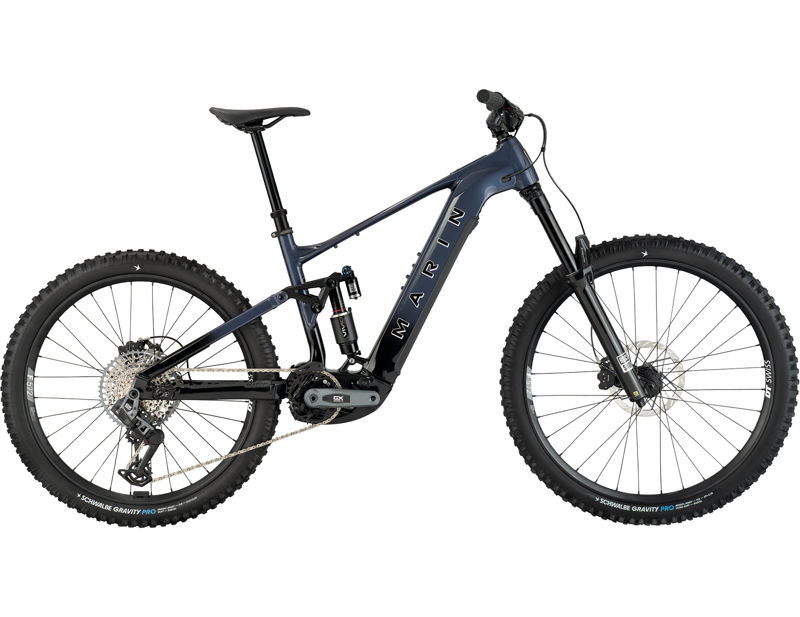

Marin Alpine Trail EXR Electric Full Suspension Mountain Bike 2027 in Black

£6,899.00
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.

Returning an item

Online or in-store purchases can be returned to any of our 12 stores free of charge or can be returned by post or courier at your cost after completing the online returns form below. If you are returning an item due to a fault, we will refund your postage costs.

Bikes & Bulky items

If you wish to return a bike or bulky item to us, please keep the box it arrived in and let us know by contacting our support team via our online webchat, email or by phone (020 45063856) and we will help arrange a collection.

Non Bike - Customer Returns Form

If you wish to return or exchange an item, please fill out the form below following the steps inside. Returns can be processed quicker if all required information is provided.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Marin Alpine Trail EXR Electric Full Suspension Mountain Bike 2027 in Black

Season:2027

Brand:Marin

Code:7390650BLK

The Marin Alpine Trail E XR is built for riders who demand uncompromising enduro performance with the power to ride further and climb faster. Featuring an all-new Series 4 aluminium frame, it's lighter, stronger and more refined than ever, with adjustable geometry, integrated battery design and Marin's proven MultiTrac LT suspension platform delivering 160mm of rear travel paired with a 170mm RockShox ZEB Ultimate fork.

Powered by Bosch's latest fifth-generation Performance Line CX motor, the Alpine Trail E XR delivers an incredible 120Nm of torque, up to 750 watts of peak power and support levels of up to 600%. The removable 800Wh battery provides exceptional range, while compatibility with Bosch's 600Wh battery and optional 250Wh PowerMore range extender lets you tailor the bike to every ride. The integrated Kiox 400C display and Bosch Flow App provide intuitive control and ride tracking.

Premium components complete the package, including RockShox Ultimate suspension, SRAM GX Eagle AXS Transmission wireless shifting, powerful Maven Silver four-piston brakes, DT Swiss wheels and Schwalbe Magic Mary radial tyres. Whether you're racing enduro stages or tackling all-day mountain adventures, the Alpine Trail E XR is ready for anything.

Key Features & Benefits

  • Bosch Gen 5 Performance: Bosch Performance Line CX motor delivers 120Nm of torque with an 800Wh battery for powerful climbing and outstanding range.
  • Ultimate Enduro Suspension: RockShox ZEB Ultimate and Vivid Air Ultimate suspension provide 170/160mm of highly tuned travel for maximum control on demanding descents.
  • Premium Wireless Drivetrain: SRAM GX Eagle AXS Transmission delivers precise wireless shifting with exceptional durability and minimal maintenance.

Full Specification:

  • Frame: Series 4 Aluminium for Bosch Gen 5 Performance Line CX Drive Unit, 160mm MultiTrac LT Suspension, Adjustable Headset & Chainstay Length/Bottom Bracket Height, Integrated Battery & Charging Port, 148x12mm Rear Thru Axle
  • Rear Shock: RockShox Vivid Air Ultimate, 205 x 65mm, Custom Tune
  • Fork: RockShox ZEB Ultimate, 170mm Travel, 29", 110x15mm Maxle Stealth, 44mm Offset
  • Motor: Bosch Performance Line CX Gen 5, 120Nm Torque, 750W Peak Power
  • Battery: Bosch PowerTube 800Wh (PT800) Integrated Removable Battery

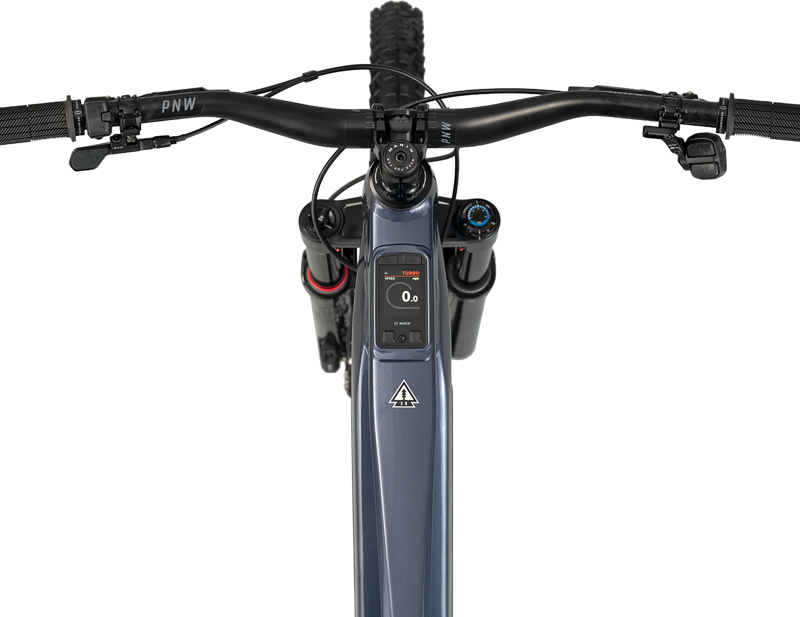

  • Controller: Bosch Kiox 400C Top Tube Display with Bosch BRC3300 Bluetooth Remote
  • Number of Gears: 12-Speed
  • Gear Shifters: SRAM AXS Pod Infinity Controller
  • Chainset: SRAM GX
  • Chainrings: 34T
  • Rear Cassette: SRAM XS-1275 T-Type, 10-52T
  • Chain: SRAM GX T-Type
  • Rear Derailleur: SRAM GX Eagle AXS T-Type
  • Pedals: Not Supplied – Shop Pedals Here
  • Wheelset: DT Swiss Hybrid Wheelset
  • Rims: DT Swiss M552, 29mm Internal Width, 32 Hole
  • Front Hub: DT Swiss 370 Hybrid, 110x15mm, 6-Bolt, 32 Hole
  • Rear Hub: DT Swiss 370 Hybrid, 148x12mm, 6-Bolt, Micro Spline Driver, 32 Hole
  • Front Tyre: Schwalbe Magic Mary Gravity Pro, Ultra Soft, Radial, 29 x 2.5"
  • Rear Tyre: Schwalbe Magic Mary Gravity Pro, Soft, Radial, 27.5 x 2.5"
  • Brakes: SRAM Maven Silver 4-Piston Hydraulic Disc Brakes with 200mm HSC Rotors
  • Handlebars: PNW Range Handlebar, 800mm Width, 38mm Rise, 35mm Clamp
  • Grips or Bar Tape: Marin Grizzly Lock-On Grips
  • Headset: FSA Custom Adjustable Headset
  • Stem: Marin CNC Stem, 35mm Length, 35mm Clamp
  • Saddle: WTB Devo Pick-Up
  • Seatpost: PNW Loam Dropper Post with Range Lever, 34.9mm (S: 150mm Travel, M: 170mm Travel, L-XL: 200mm Travel)
  • Other Accessories: Bosch eBike Flow App Compatible, Bosch Bluetooth Remote, ethirteen eSpec Chainguide
  • Range: Up to 55 miles (90km)

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Marin Alpine Trail

SizeRider height range
S5'3" - 5'6"
M5'6" - 5'10"
L5'10" - 6'2"
XL6'2" - 6'4"

Geometry for Marin Alpine Trail

With the integrated flip chips, adjustable headset and an aftermarket 29” rear wheel, riders can select 12 unique configurations to run their bikes. Head over to Marins page (opens in new tab) to have a play with their Geo charts

An example is given below:
Front/Rear Wheels:F: 29"/R: 27.5", BBand Chainstay:High BB/Short CS, Headtube Angle:0° Headset Cup
SMLXL
ASTACK620.08633.51642.6646.93
BREACH430460490520
CHEADTUBE ANGLE63.5°63.5°63.5°63.5°
DHEADTUBE LENGTH100115125130
ESEATTUBE ANGLE79.2°79°78.8°78.6°
FSEATTUBE LENGTH400420430460
GTOPTUBE EFFECTIVE556592626659
HBB HEIGHT352352352352
IBB DROP (REAR/FRONT)Jul-24Jul-24Jul-24Jul-24
JCHAINSTAY435435435435
KWHEELBASE1211.421248.111282.571317.8
LSTANDOVER HEIGHT683.3268 9.88695.6698.13
MFORK OFFSET44444444
SEATPOST DIAMETER34.934.934.934.9
HANDLEBAR WIDTH780780780780
STEM LENGTH35353535
CRANK LENGTH160160160160

Warranty Information for Marin:

Marin Mountain Bikes, Inc. ("Marin") warrants to the original retail purchaser ("you") that the Marin product for which you received this warranty is free from defects in material and workmanship for the periods below

FRAMES WARRANTY PERIOD (From date of purchase)
Carbon Fiber Frames and Forks: 5 Years
Rigid Frames and Forks: Lifetime
Full Suspension Frames: 5 Years
COMPLETE BICYCLE
The complete bicycle is warranted for one year (from date of purchase), including all original parts on the bicycle except tires, tubes, chains and other wear & tear items. Paint and decals are covered under this warranty.
This warranty does NOT cover suspension forks, and rear shocks on full suspension bikes. These items are covered by the suspension component manufacturer’s warranty. Please contact the suspension component manufacturer for any warranty needs.
For full warranty policy please visit marinbikes.com

Marin Alpine Trail XR AXS rear triangle detail.

MULTITRAC 2 LT

MultiTrac 2 LT debuts on the aluminum-framed Alpine Trail alloy models. MultiTrac 2 LT shifts from seatstay pivots to chainstay pivots, ensuring that the suspension performance matches our design goals, which are not achievable using pivots located on the seatstay once travel exceeds 150mm. With MultiTrac 2 LT, the benefits of relocating the rear pivot points from the seatstay to the chainstay become apparent, as it reduces anti-rise, allowing for better chassis control while braking, more mid-stroke support, and better feel at bottom out.

Marin Alpine Trail chainstay flip chip detail.

ADJUSTABLE GEOMETRY

With the integrated flip chips, adjustable headset and an aftermarket 29” rear wheel, Alpine Trail aluminum riders can select 12 unique configurations to run their bikes. These configurations allow the best fine-tuning of chassis to trail conditions available. Flip chips are easy to reconfigure trailside and easily done using a 6mm hex wrench, require no additional parts, and incorporate laser-etched graphics that indicate the position of the chips. The stock 27.5” rear wheel can be swapped out for a 29” rear wheel (not included) if desired, along with changing the position of the seatstay flip chips. Furthermore, the flip chips located at the seatstay pivots alter the bottom bracket height and chainstay length (low BB/long CS setting = 345/442mm, high BB/short CS setting = 352/435mm) so that riders can perfectly dial their bike in to match the terrain they are looking to conquer.

Marin Alpine Trail Bear Box downtube storage.

Bear Box Downtube Storage

The all-new Alpine Trail aluminum models now feature our Bear Box integrated downtube storage, complete with a custom nylon bag with a weather-sealed zipper. The hatch door is secure and double-sealed, with bottle bosses. Keep your riding essentials safe and protected from the elements during your big ride.

Marin Alpine Trail XR AXS headtube detail.

ADJUSTABLE HEADTUBE ANGLE

Using our proprietary headset cups and inserts, the headtube angle on Alpine Trail aluminum models can be adjusted to +0.75° or -0.75° from the standard 63° position, giving the rider three options.

Marin Alpine Trail protection details.

PROTECTION

Chainstay and seatstays are protected with durable rubber guards that minimize noise and protect paint finishes, and integrated downtube guards helps deflect errant rocks, logs, or anything else riders may encounter on the trail.

Additionally, all aluminum frame models include a gasket around the cable exit hole reduces noise and prevents the brake hose and derailleur cable from marring the frame, and a mudflap positioned over the lower suspension pivot keeps spray and muck off the bearings. Cable ports are of an all-new design and keep the frame innards sealed. These ports use rubber membranes punctured during initial assembly and seal around the housing or hose once inserted. They will be available as a service part for when riders make changes to their components.

Marin Alpine Trail one piece rocker link detail.

ONE PIECE ROCKER LINK

The Alpine Trail Carbon utilizes a stout one piece rocker link for maximum frame rigidity and suspension performance, while also allowing for bridgeless seatstays for enhanced clearance.

Marin Alpine Trail downtube protector detail.

DOWNTUBE PROTECTION

Alpine Trail Carbon models have an integrated and replaceable downtube protector to fend off inevitable log/rock/whatever strikes that may occur when out on a rowdy ride.

Marin Alpine Trail chainstay protector detail.

CHAINSTAY PROTECTION

The chainstays on Alpine Trail Carbon models feature an aggressive chainstay protector that not only protect your frame from chain slap, but also quiet the ride.
