Marin Lombard E1 Electric Gravel Bike 2026 in Blue Charcoal

Season:2026

Brand:Marin

Code:7398070BLUTAN

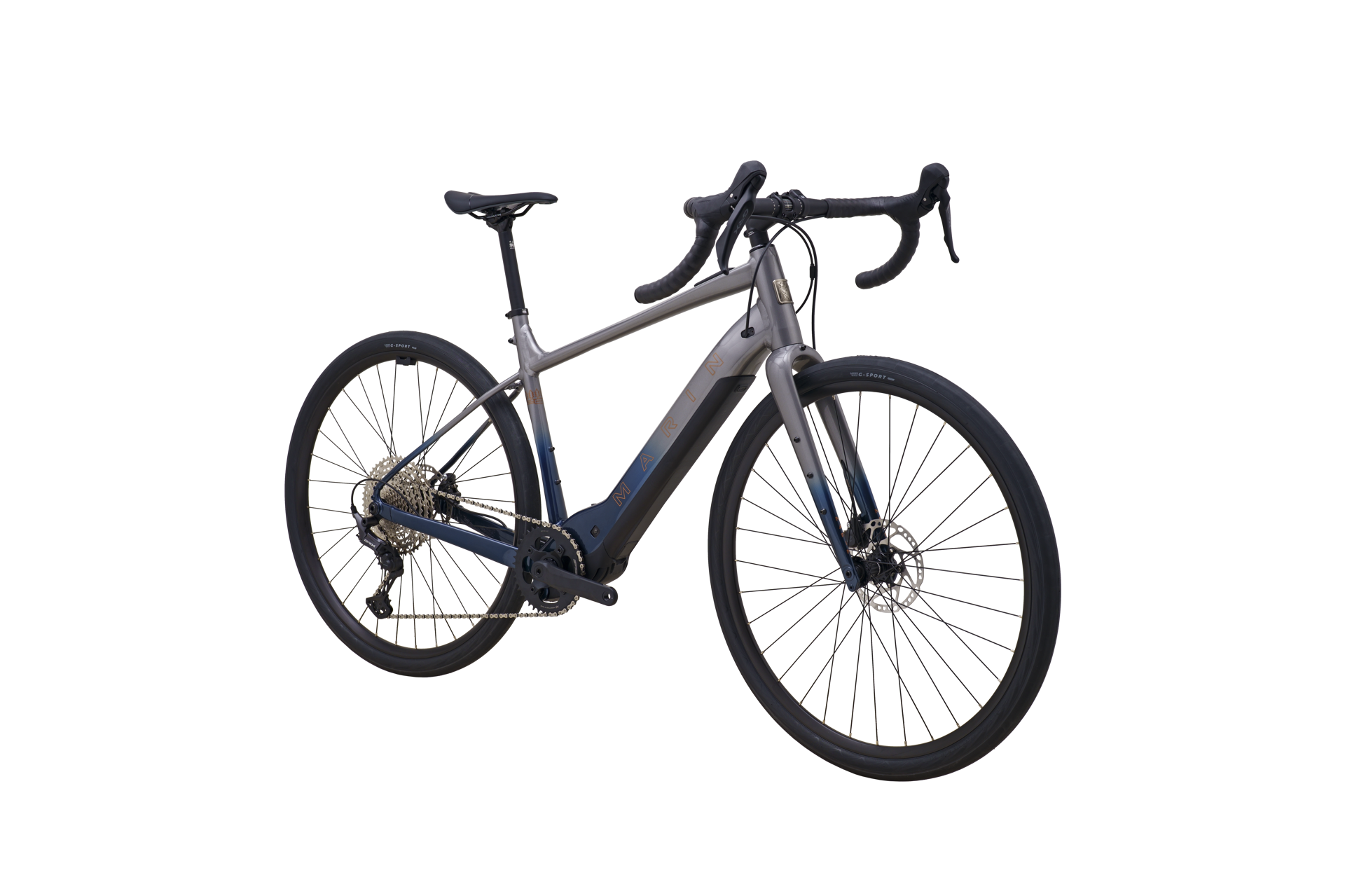

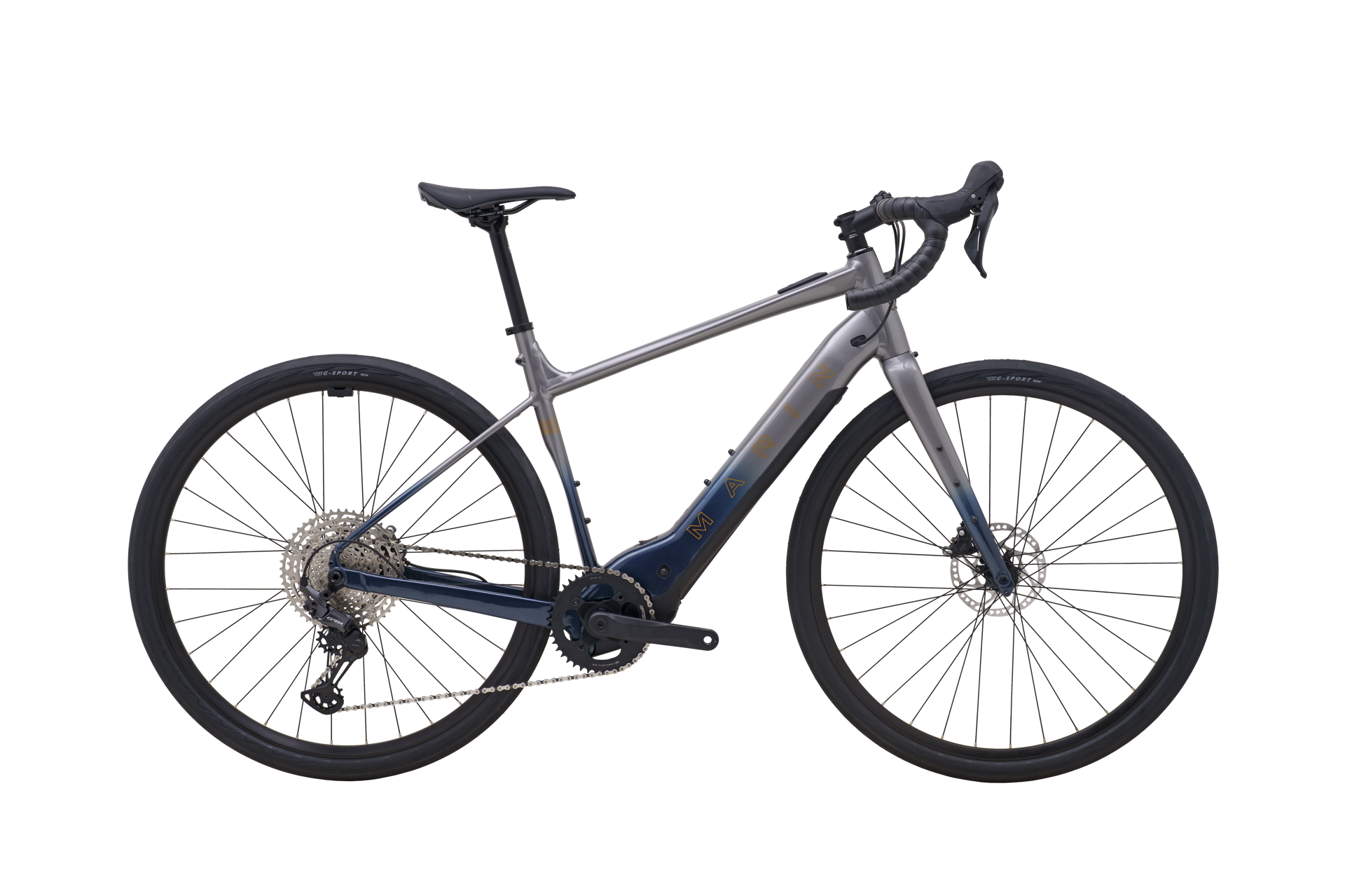

The Marin Lombard E1 is a versatile electric drop-bar bike designed for city commutes and country adventures alike. Powered by the lightweight Bosch SX drive unit and a 400Wh CompactTube battery, it blends natural-feeling pedal assist with a durable Series 4 aluminum frame and full carbon fork. Hydraulic disc brakes, Shimano GRX 12-speed gearing, and tubeless-ready tyres deliver confident performance in all conditions.

Key Features & Benefits

  • Powerful efficiency: Bosch SX motor and 400Wh battery for smooth, natural-feeling pedal assist.
  • Everyday versatility: Rack and mudguard mounts plus dropper-ready frame for adaptable commuting or touring.
  • Confident control: Shimano GRX hydraulic brakes and wide 700x44 tyres for grip on any surface.

Full Specification

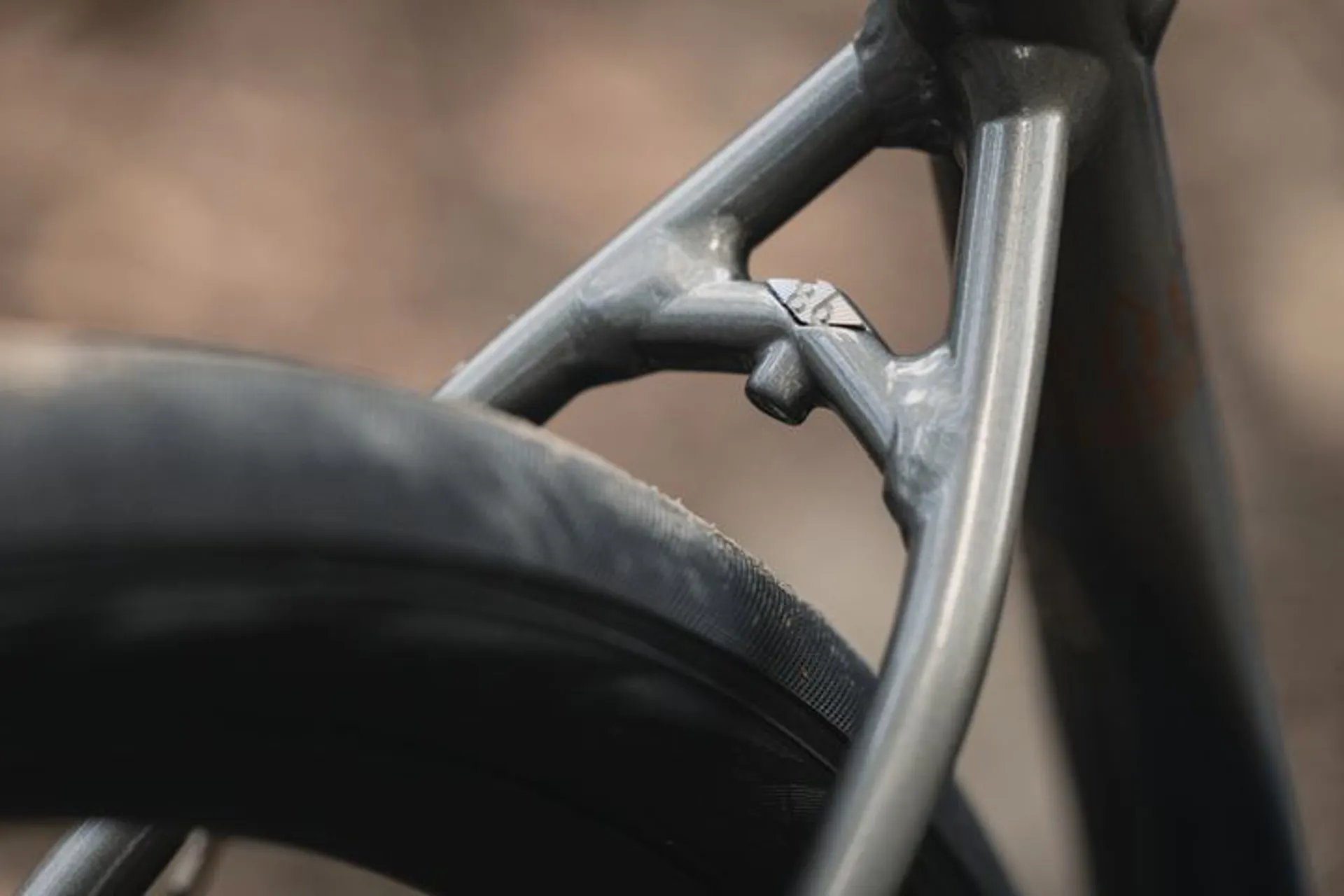

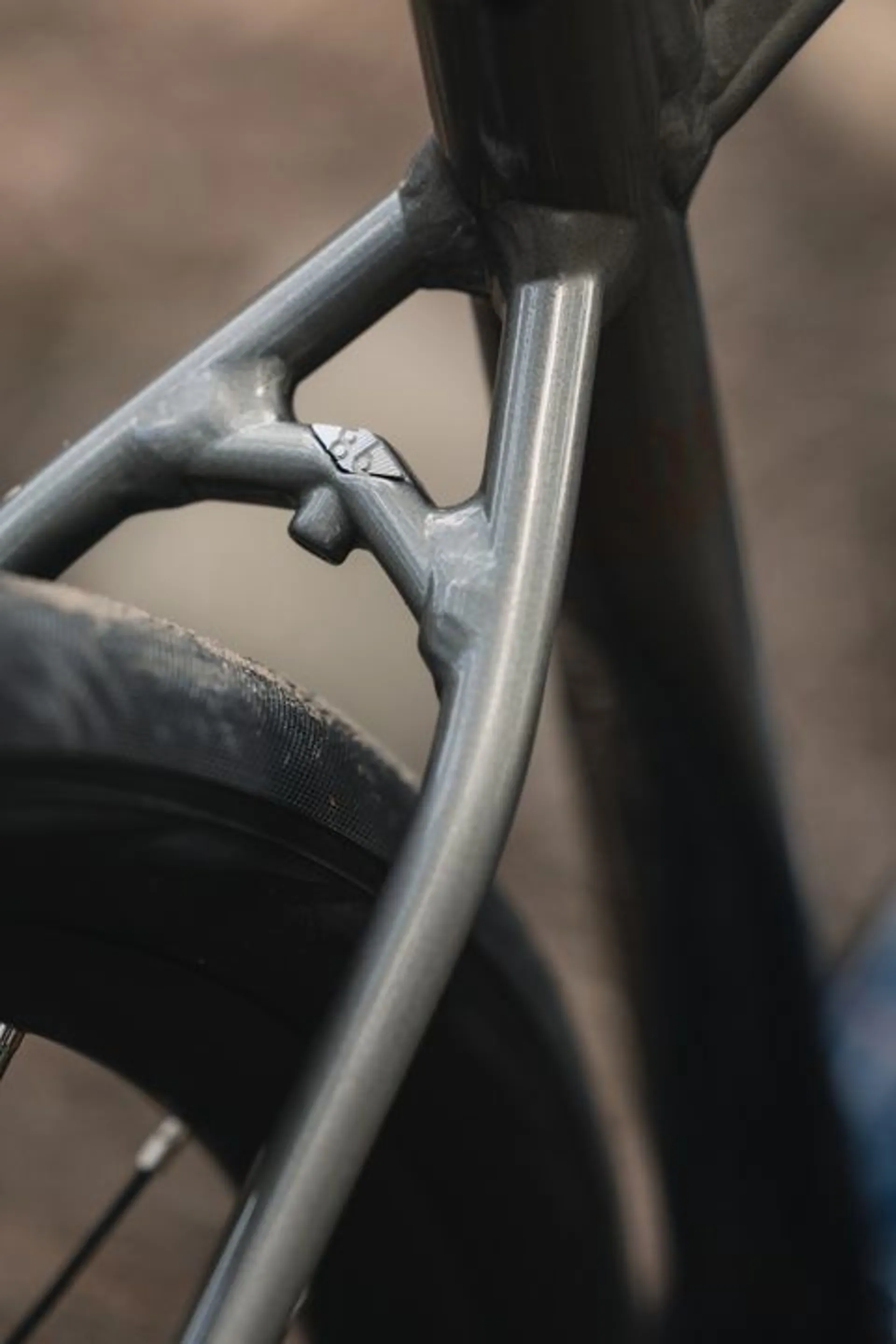

  • Frame: Series 4 Beyond Road E, 6061 Aluminum, One-Piece Hydroformed Downtube & Motor Mount, Internal Cable Routing, Mudguard and Rack Mounts, Flat Mount Disc, 142x12mm Thru-Axle
  • Fork: Marin Full Carbon, Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets

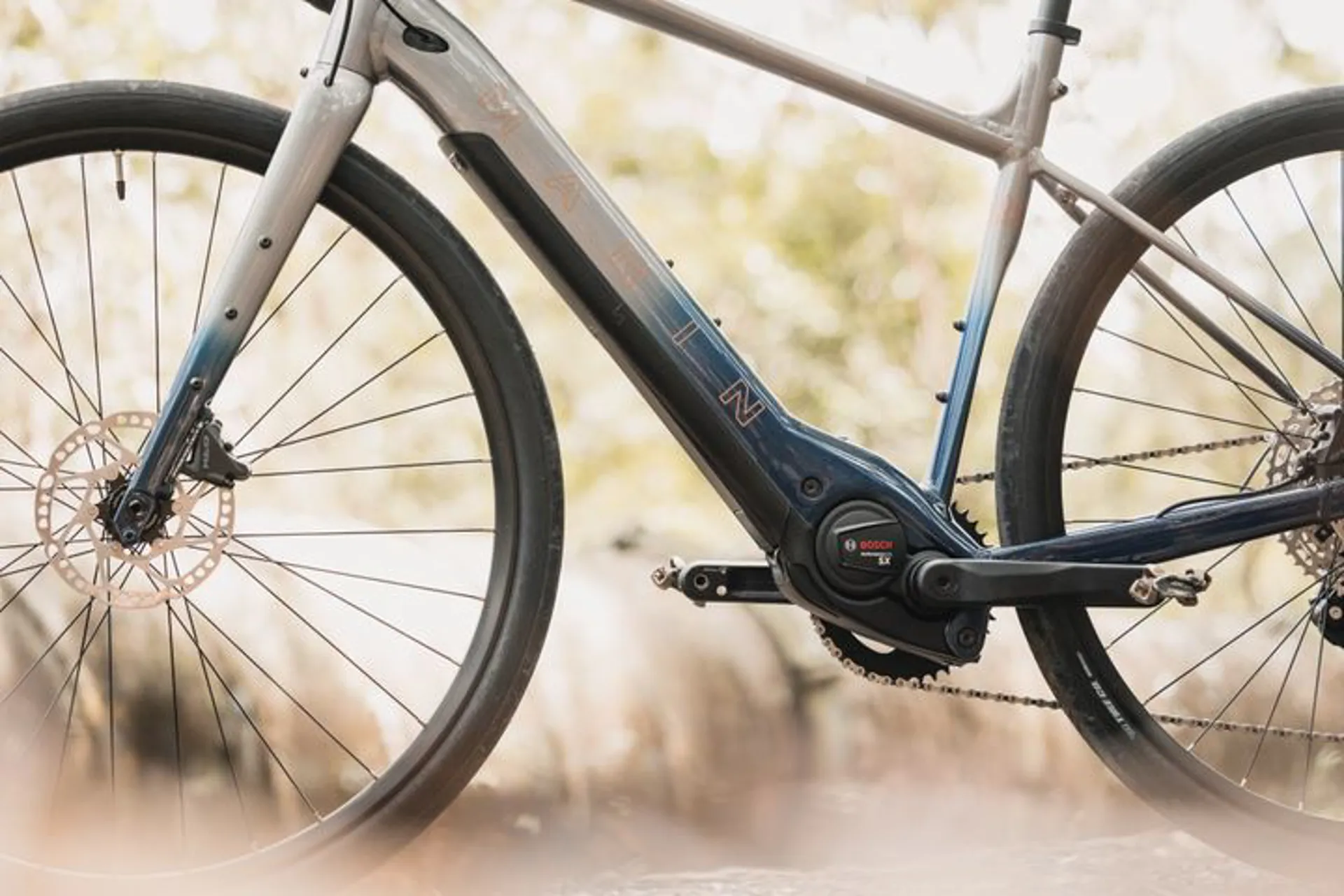

  • Motor: Bosch SX, 250W, 55Nm, Class 1 (25km/h assist limit)

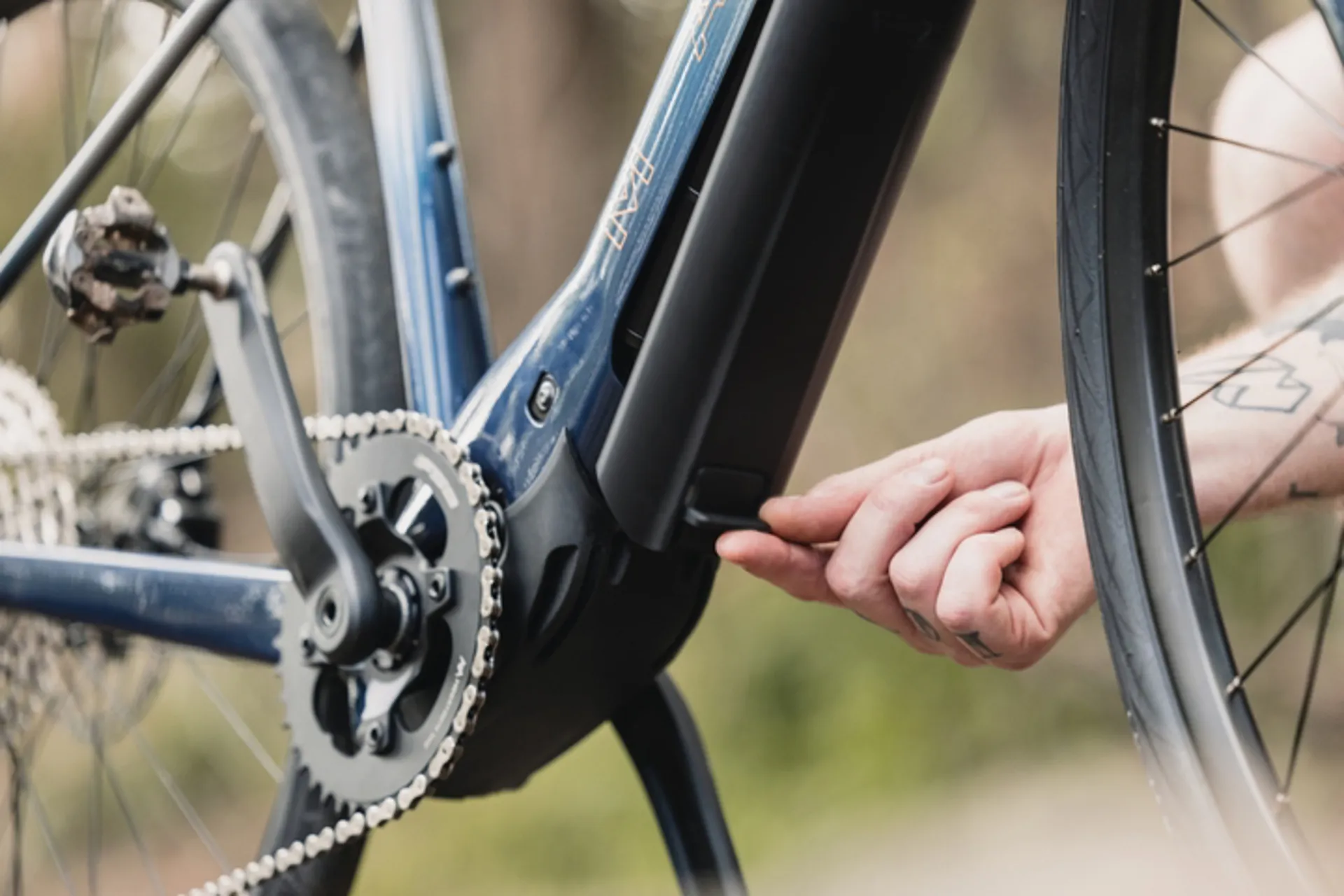

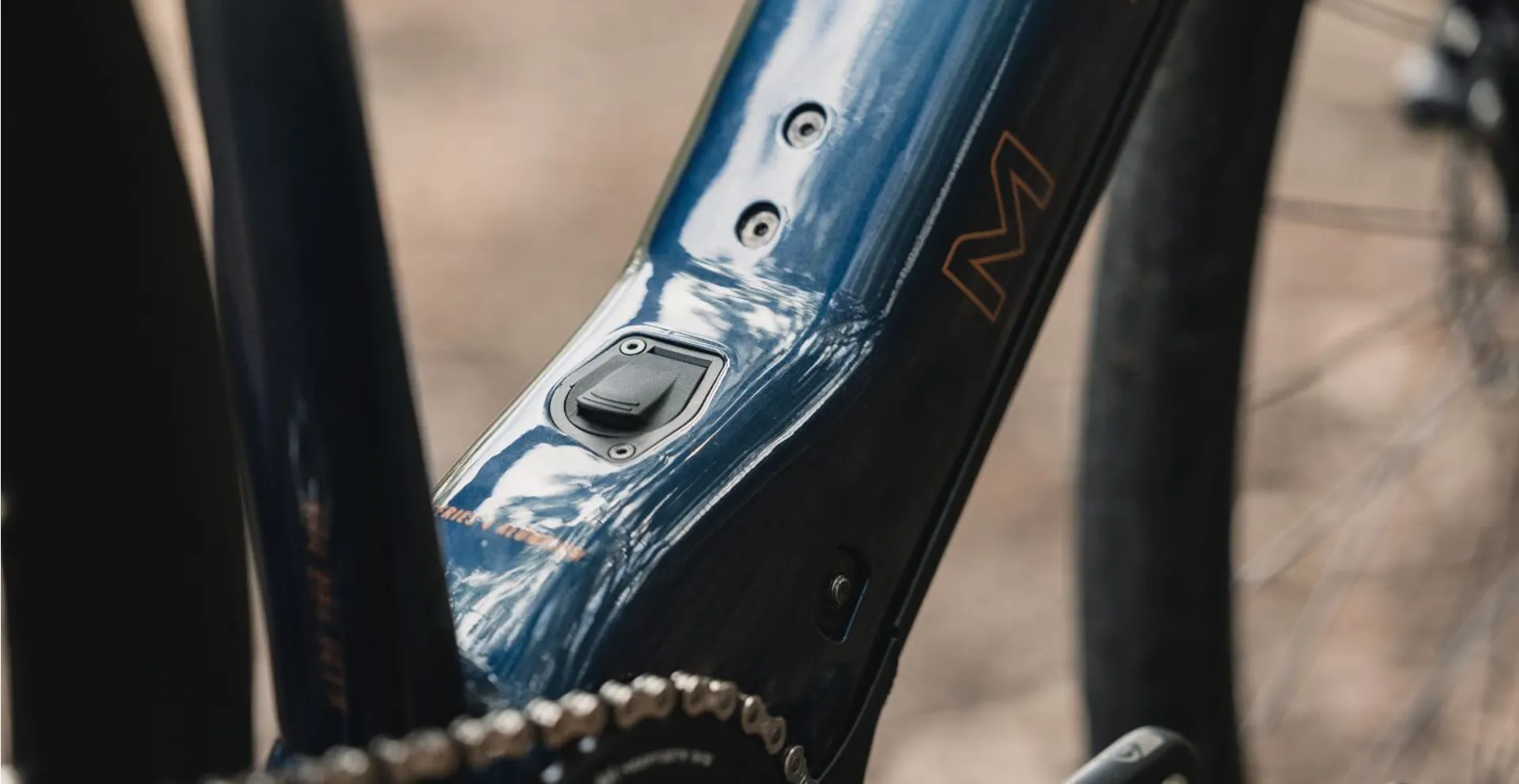

  • Battery: Bosch CompactTube 400, 400Wh

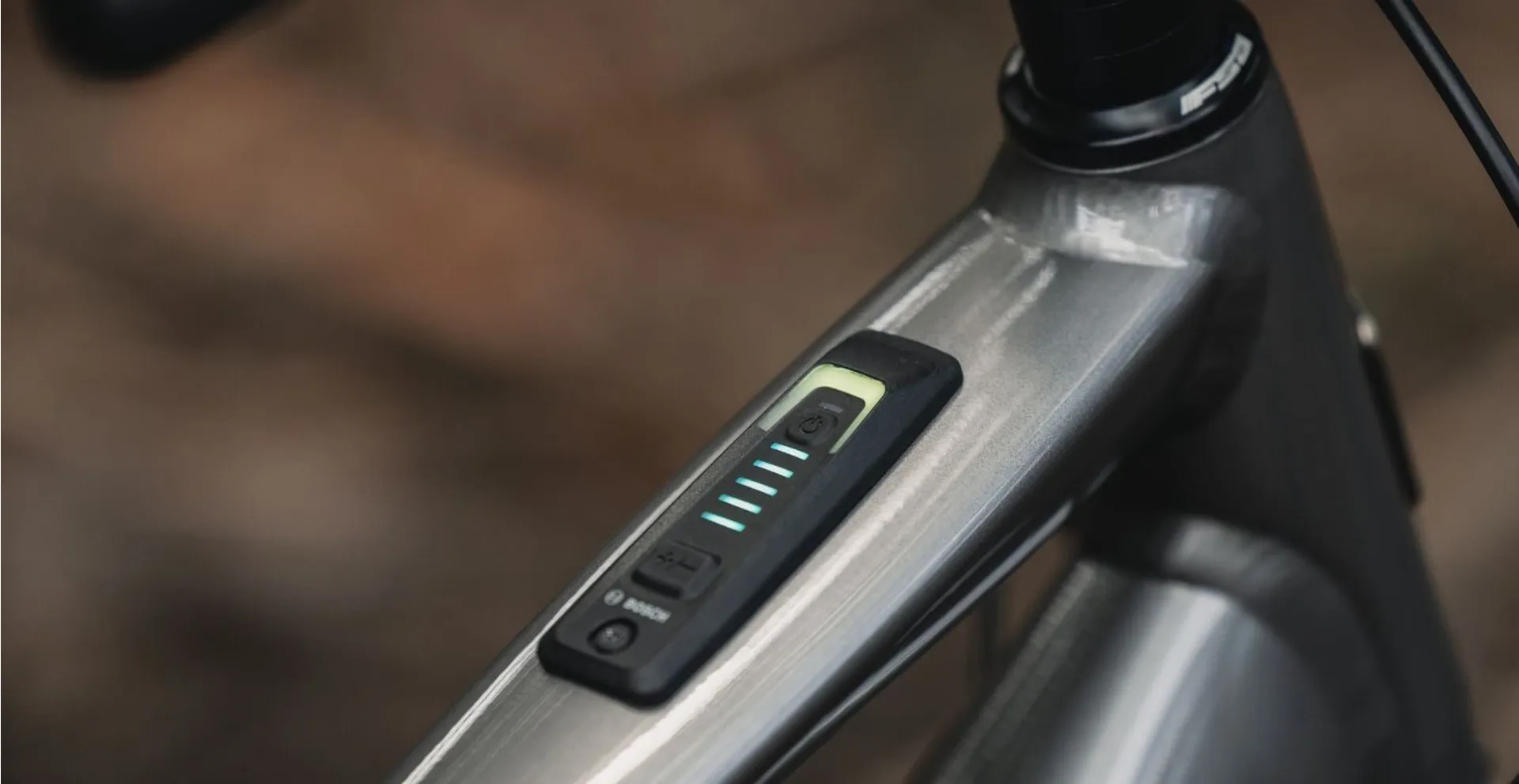

  • Controller: Bosch System Controller with LED display & Bluetooth Mini Remote
  • Number of Gears: 12
  • Gear Shifters: Shimano GRX STRX610, 12-speed
  • Chainset: Forged Alloy crankset
  • Chainrings: 42T Steel

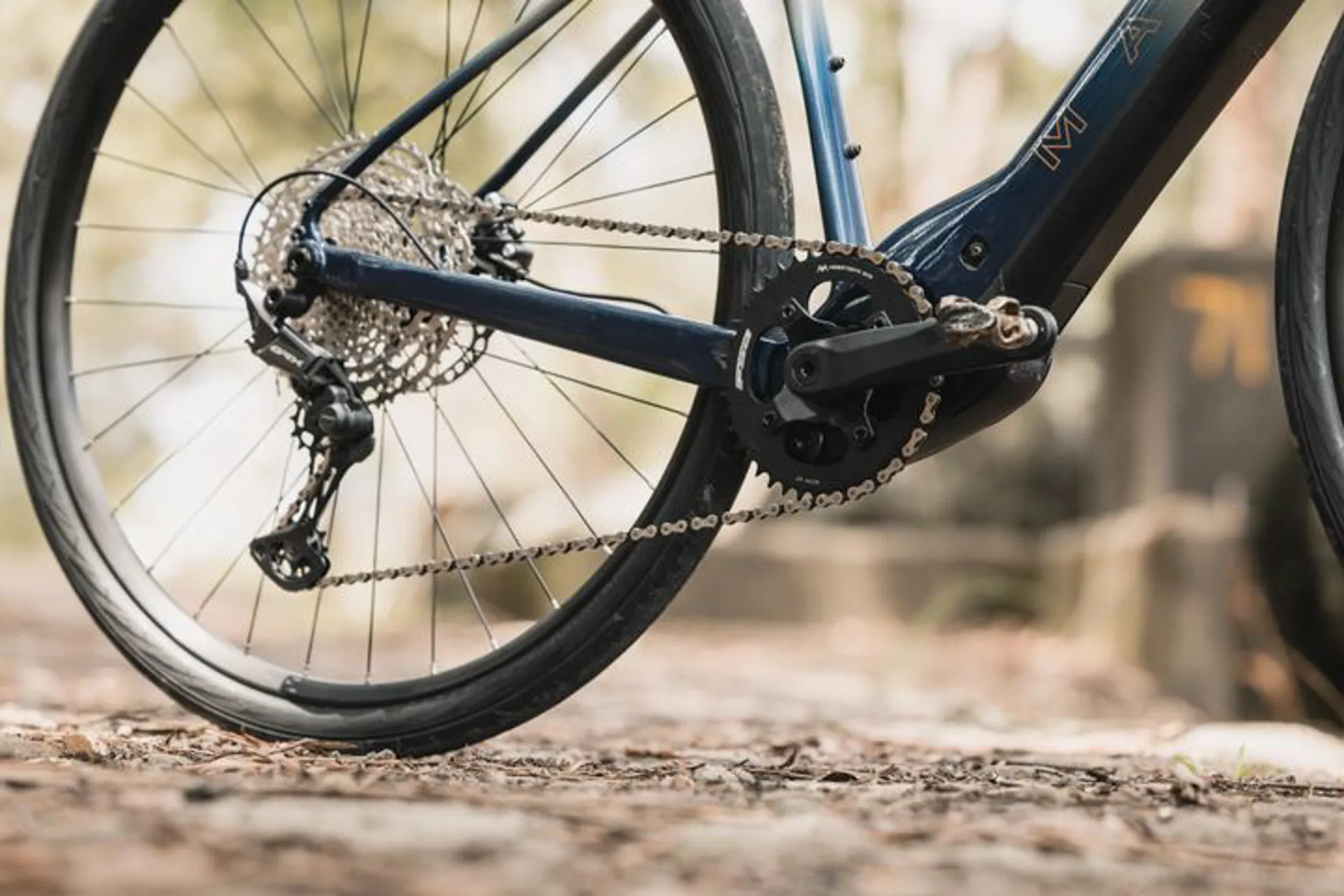

  • Rear Cassette: Shimano CS-M6100, 10-51T
  • Chain: KMC E12S
  • Front Derailleur:

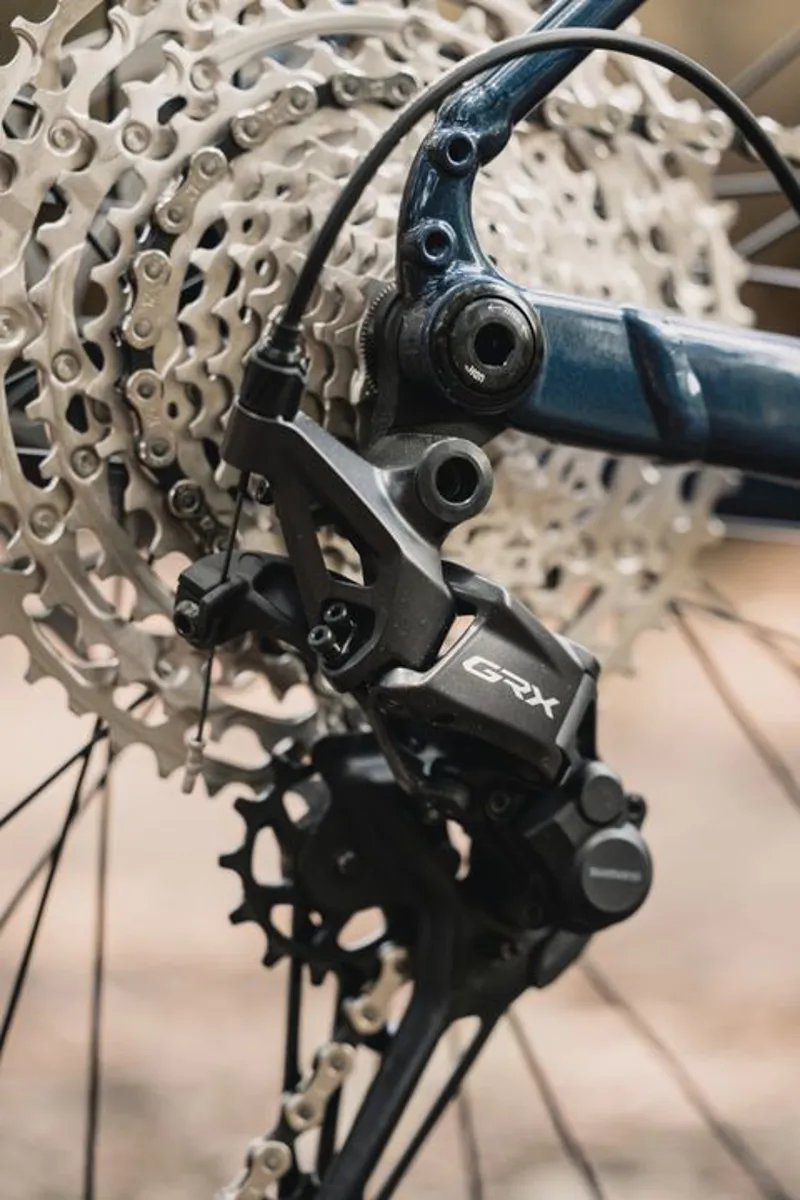

  • Rear Derailleur: Shimano GRX RD-RX822, 12-speed, Clutch
  • Bottom Bracket: Integrated (Motor Mount)
  • Pedals: Not Supplied — Shop Pedals Here
  • Rims: Marin Aluminum Double Wall, 25mm Inner, 18mm Tall, Tubeless Compatible
  • Front Hub: Forged Aluminum Alloy, 100x12mm, 32H, Disc
  • Rear Hub: Forged Aluminum Alloy, 142x12mm, 32H, Disc
  • Front Tyre: Vee Tire Co. G-Sport, 700x44, Tubeless Compatible
  • Rear Tyre: Vee Tire Co. G-Sport, 700x44, Tubeless Compatible
  • Brakes: Shimano GRX RX400, Flat-Mount Hydraulic Disc, 160mm Rotors

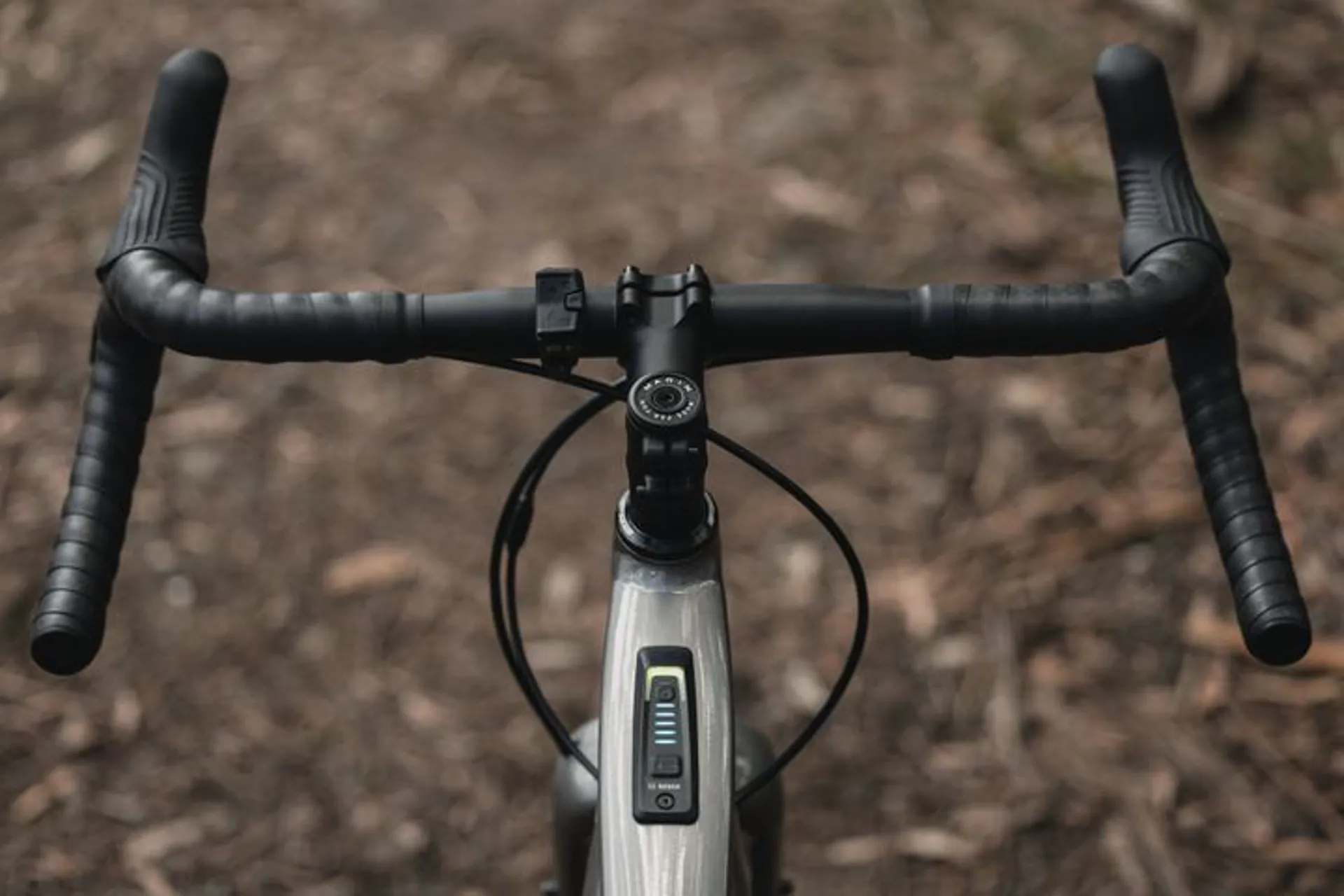

  • Handlebars: Marin Butted Alloy, Compact 16º Flared Drop
  • Handlebar Tape: Marin Adventure Tape
  • Headset: FSA No.42 ACB, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
  • Stem: Marin 3D Forged Alloy
  • Saddle: Marin Beyond Road Concept Elite
  • Seatpost: Marin Alloy, 27.2mm

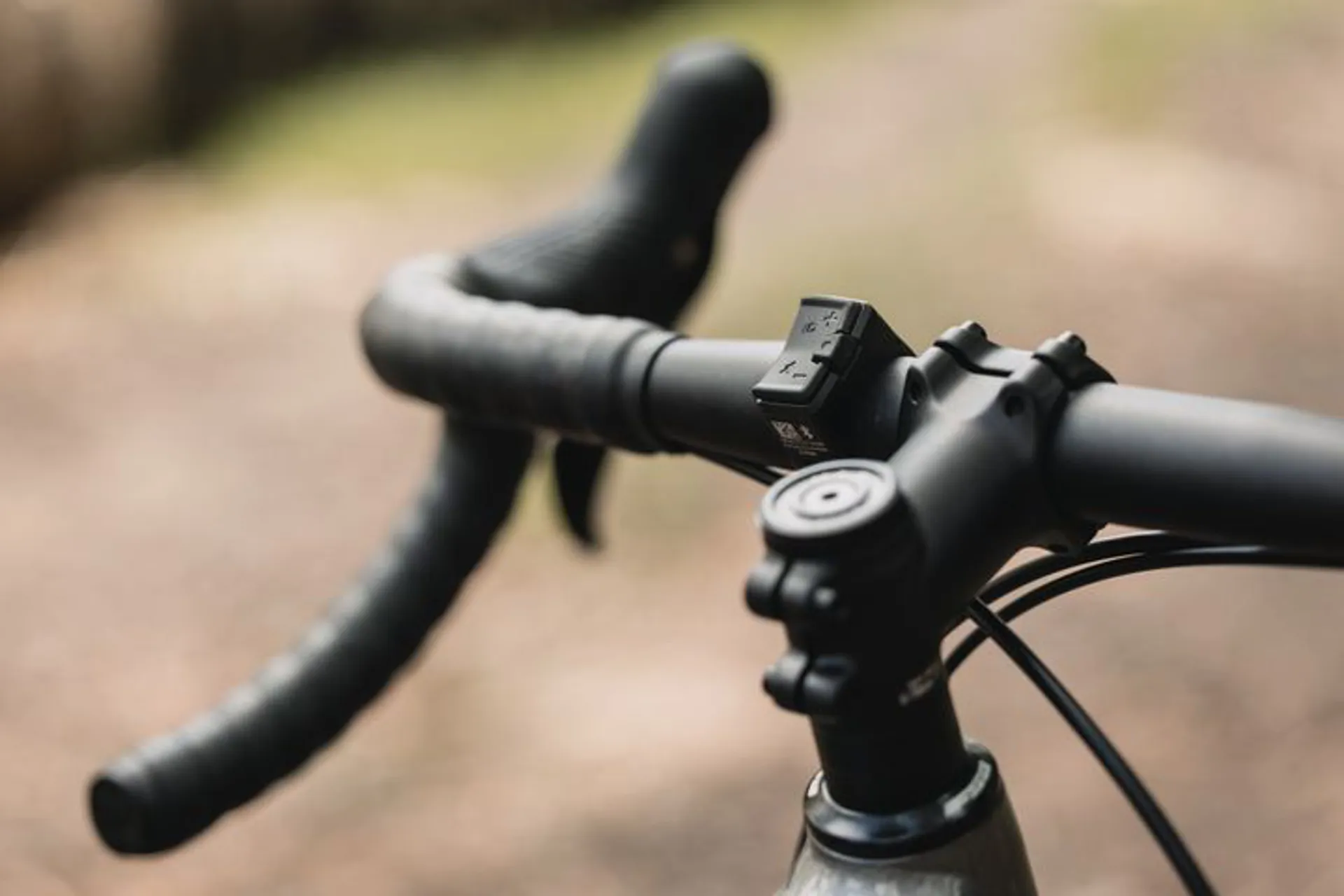

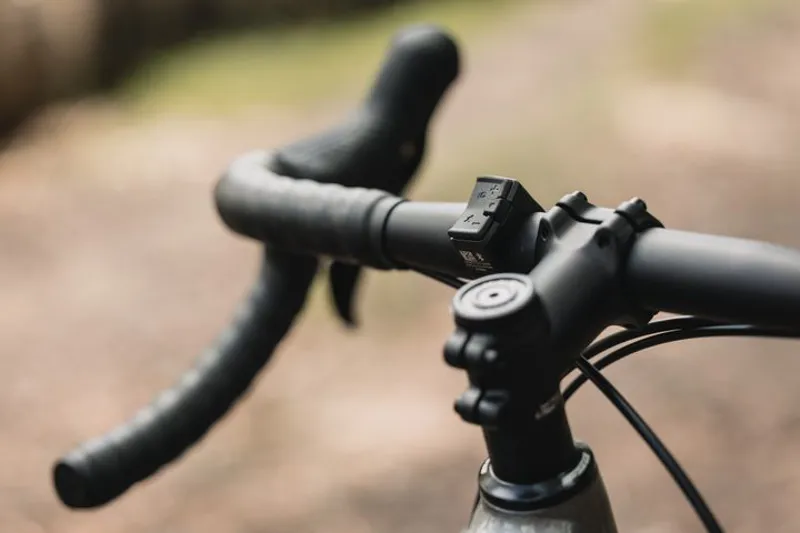

  • Accessories: Bosch MiniRemote HMI (Bluetooth), Removable Kickstand Mount
  • Weight: 17.6kg (Max system weight: 120kg)

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Geometry Information for Marin Lombard



SMLXL
Stack
Reach385405415425
Headtube Angle70°70°70°70°
Headtube Length130150175210
Seattube Angle73.5°73.5°73.5°73.5°
Seattube Length460485505530
Toptube Effective
BB Height
BB Drop80808080
Chainstay435435435435
Wheelbase
Standover Height
Fork Offset50505050
Seatpost Diameter27.227.227.227.2
Handlebar Width440460460480
Stem Length70707070
Crank Length170170175175

Warranty Information for Marin:

Marin Mountain Bikes, Inc. ("Marin") warrants to the original retail purchaser ("you") that the Marin product for which you received this warranty is free from defects in material and workmanship for the periods below

FRAMES WARRANTY PERIOD (From date of purchase)
Carbon Fiber Frames and Forks: 5 Years
Rigid Frames and Forks: Lifetime
Full Suspension Frames: 5 Years
COMPLETE BICYCLE
The complete bicycle is warranted for one year (from date of purchase), including all original parts on the bicycle except tires, tubes, chains and other wear & tear items. Paint and decals are covered under this warranty.
This warranty does NOT cover suspension forks, and rear shocks on full suspension bikes. These items are covered by the suspension component manufacturer’s warranty. Please contact the suspension component manufacturer for any warranty needs.
For full warranty policy please visit marinbikes.com
