Zendit RR with Avinox motor, Fox Factory suspension, SRAM X0 AXS Transmission, and DT Swiss wheels delivers premium electric enduro performance.
Zendit RR with Avinox motor, Fox Factory suspension, SRAM X0 AXS Transmission, and DT Swiss wheels delivers premium electric enduro performance.
Mondraker

Mondraker Zendit RR S Electric Full Suspension Mountain Bike 2027 in Vortex Grey

£9,299.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

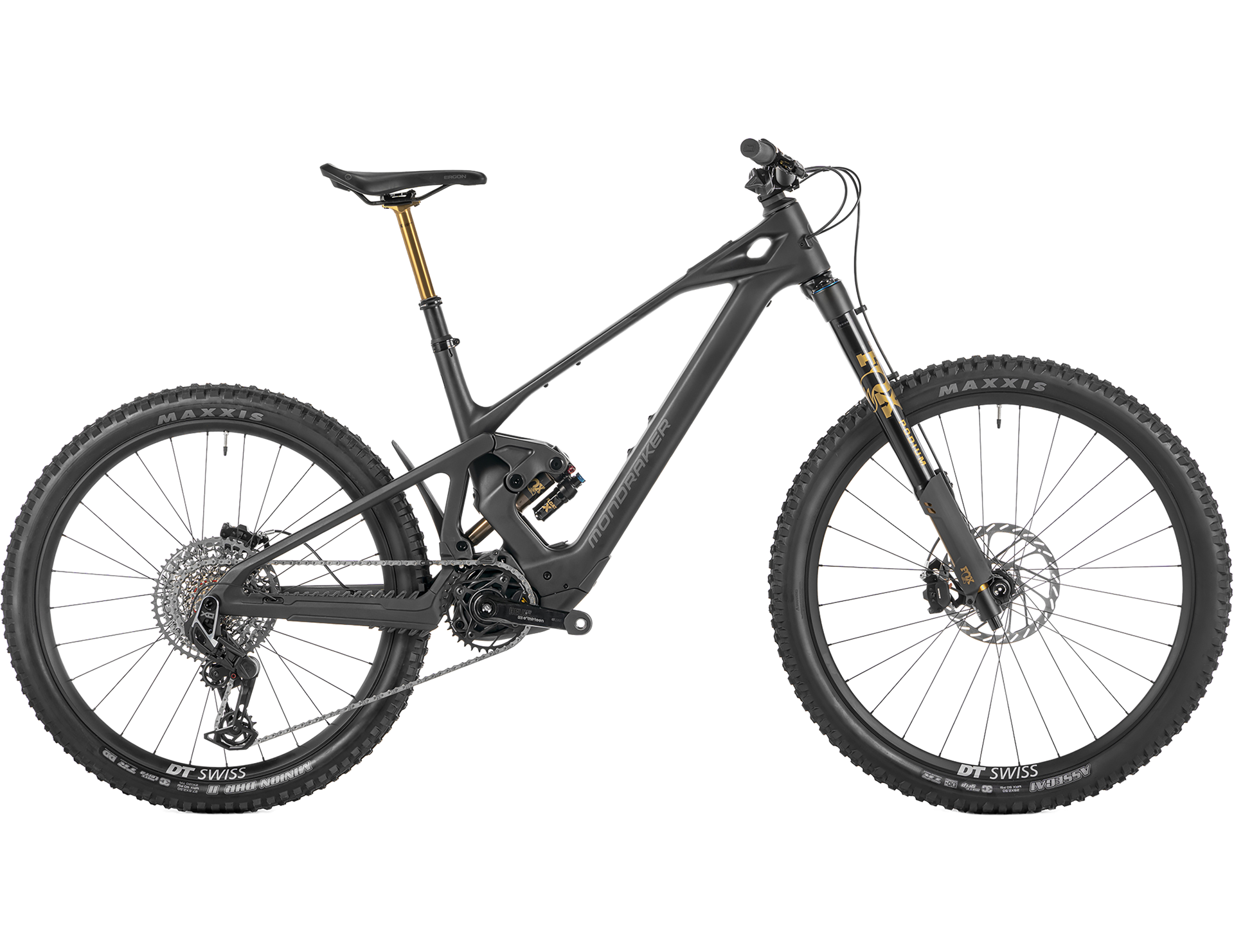

Mondraker Zendit RR S Electric Full Suspension Mountain Bike 2027 in Vortex Grey

Season:2027

Brand:Mondraker

Code:ZENDIT RR S Vortex Grey

The Mondraker Zendit RR is a premium electric enduro bike engineered for aggressive riders demanding maximum performance on steep and technical terrain. Its Stealth Air full carbon frame with 165mm Zero Suspension travel combines Mondraker’s Forward Geometry with a lightweight, highly capable chassis for exceptional control at speed. Powered by the Avinox M2S motor and 800Wh battery, it delivers powerful assistance for demanding climbs and long mountain rides. Fox Factory suspension, SRAM X0 Eagle AXS Transmission, and DT Swiss wheels complete a high-performance package built for modern enduro riding.

Key Features & Benefits:

  • Premium Carbon Enduro Frame: Stealth Air full carbon frame with Zero Suspension and Forward Geometry delivers stability and precise handling.
  • Powerful E-Enduro System: Avinox M2S motor and 800Wh battery provide strong support and long-range capability for demanding rides.
  • High-Performance Components: Fox Factory suspension and SRAM X0 Eagle AXS Transmission deliver smooth, responsive performance on technical terrain.

Full Specification:

  • Motor: Avinox M2S
  • Battery: Avinox 800Wh
  • Charger: Avinox 4A charger
  • Controller: Avinox BC100 wireless controller
  • Display: Avinox DP100 display
  • Frame: Zendit Stealth Air full carbon, 165mm Zero Suspension, Forward Geometry, Boost 12x148mm, UDH, internal routing
  • Fork: Fox Podium 29 Float GRIP X2 Factory Kashima, 170mm travel, 20x110mm Boost, 44mm offset
  • Rear Shock: Fox Float X Factory Kashima Evol LV, 205x65mm, adjustable compression and rebound
  • Handlebars: Onoff S9 1.0 carbon, 800mm width, 25mm rise (L/XL: 38mm), 8° backsweep, 5° upsweep
  • Stem: Onoff S9 CNC, 30mm, 0°
  • Seatpost: Fox Transfer Factory Kashima dropper, size-specific travel (S: 95–120mm / M: 125–150mm / ML: 155–180mm / L/XL: 185–210mm)
  • Saddle: Ergon SM10 E-Mountain
  • Pedals: Not Supplied — Shop Pedals Here
  • Shifters: SRAM Eagle AXS Pod Controller Rocker Paddle, 12-speed
  • Rear Derailleur: SRAM X0 Eagle AXS T-Type, 12-speed
  • Front Derailleur: None
  • Brakes: SRAM Maven Silver hydraulic disc, 4-piston, 200mm rotors
  • Brake Levers: SRAM Maven Silver
  • Cassette: SRAM XS-1275 T-Type, 10-52T
  • Chain: SRAM GX Eagle T-Type Flattop
  • Crankset: ethirteen Helix Race espec alloy, 155mm
  • Rims: DT Swiss Hybrid HX 1700 Spline, welded aluminium, 30mm internal width, tubeless ready
  • Hubs: DT Swiss 350 (Front: 20x110mm / Rear: 12x148mm, 24T Ratchet, XD freehub)
  • Spokes: DT Swiss Straightpull Hybrid III
  • Tyres: Front: Maxxis Assegai 29x2.5WT, 3C MaxxGrip, EXO+ / Rear: Maxxis Minion DHR II 27.5x2.5WT, 3C MaxxTerra, DD
  • Extras: Internal cable routing, sealed MAX bearings, motor protection covers
  • Weight: 22.9 kg

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.


The Avinox Motor System

The Mondraker Avinox M2S motor system represents a new benchmark in high-performance e-MTB technology, delivering the power, responsiveness and control that modern riders demand from a premium electric mountain bike. Developed for the all-new Mondraker ZENDIT range, the Avinox Drive System combines exceptional torque, intelligent sensor technology and seamless connectivity in one compact and lightweight package.

Designed specifically for aggressive trail and enduro riding, the Avinox M2S motor produces an impressive 130Nm of torque, rising to a huge 150Nm in Boost Mode, alongside a remarkable 1300W peak power output. Whether tackling steep technical climbs, rough descents or demanding alpine terrain, the system delivers instant and predictable assistance exactly when it’s needed. Thanks to its advanced Multi Sensor Fusion Algorithm and integrated traction-style speed sensor, riders benefit from smooth power transfer and outstanding rear wheel control across all trail conditions.

Despite its immense power, the Avinox M2S remains remarkably compact at just 2.65kg, helping the ZENDIT maintain agile handling and balanced ride characteristics. Paired with a high-capacity 800Wh integrated battery, the system is built for long days in the mountains, offering reliable performance and excellent battery longevity with advanced State of Health management technology.

Connectivity is another standout feature of the Avinox system. A sleek touchscreen interface, wireless handlebar controllers and full compatibility with the Avinox Ride app allow riders to fully customise assistance modes, record ride data, connect with apps like Strava and even control compatible action cameras directly from the cockpit. Features such as digital motor locking, alarm functionality and GPS tracking add extra security and convenience for everyday use.

With fully customisable Eco, Auto, Trail, Turbo and Boost riding modes, the Avinox Drive System is engineered to adapt to everything from all-day adventures to full-gas enduro riding. For riders seeking cutting-edge e-bike performance without compromise, the Avinox M2S sets a powerful new standard in the world of electric mountain biking.

Key Features:

  • Powerful Avinox M2S motor with 130Nm torque (2.65kg)
  • Boost Mode delivers up to 150Nm torque and 1300W peak power
  • 800% maximum assistance level for steep and technical terrain
  • Lightweight and compact motor design weighing just 2.65kg
  • Advanced Multi Sensor Fusion Algorithm for intelligent power delivery
  • Integrated IMU with torque, cadence and wheel speed sensors
  • Traction-style speed sensor for smooth and predictable assistance
  • High-capacity 800Wh integrated battery (Approx: 3.77kg)
  • Battery maintains 80% capacity after 500 charge cycles
  • IP66-rated water resistance for all-weather riding
  • Fully customisable Eco, Auto, Trail, Turbo and Boost modes
  • Intuitive touchscreen display with wireless handlebar controllers
  • Compatible with the Avinox Ride app for complete customisation
  • USB-C 65W PD fast charging output
  • Integration with ride tracking apps including Strava
  • Digital motor lock, alarm and tracking functions
  • Compatible action camera control from the cockpit
  • Optimised for aggressive enduro and technical trail riding

Size Guide for Mondraker Zendit

Frame SizeRider Height (cm)Rider Height (')
SmallUnder 165 cmUnder 5'5"
Medium165–175 cm5'5"–5'9"
Medium/Large170–185 cm5'7"–6'1"
Large180–190 cm5'11"–6'3"
X-Large190–195 cm6'3"–6'5"

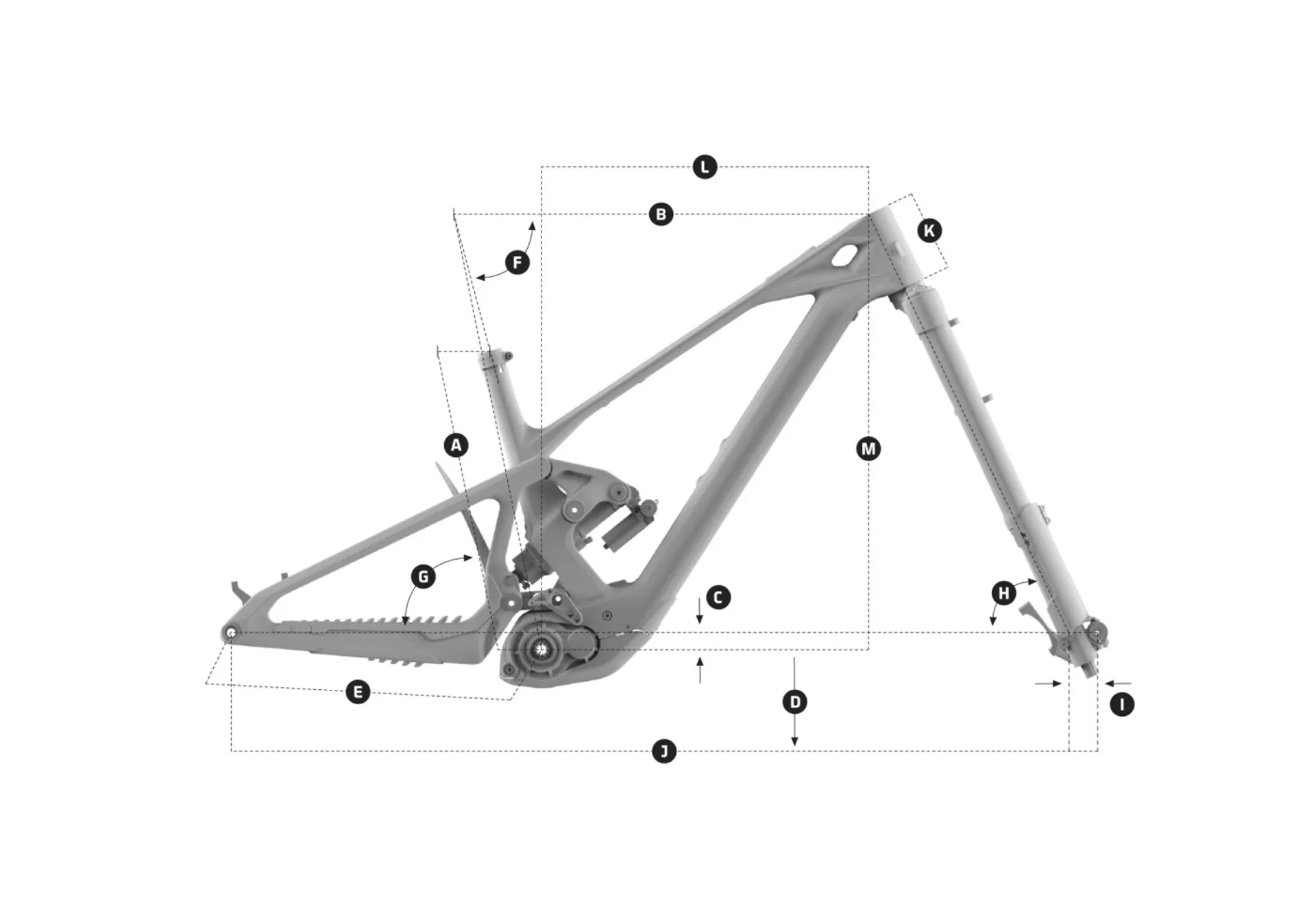

Geometry Information for Mondraker Zendit


Frame sizeSMM/LLXL
ASeattube length380mm410mm435mm460mm490mm
BToptube length586mm606mm628mm650mm672mm
CBottom bracket drop6mm6mm6mm6mm6mm
DBottom bracket height345mm345mm345mm345mm345mm
EChainstay length450mm450mm450mm455mm455mm
FSeat tube angle73.5°73.5°73.5°73.5°73.5°
GEffective seattube angle77°77°77°77°77°
HHeadtube angle63.5°63.5°63.5°63.5°63.5°
IFork Offset44mm44mm44mm44mm44mm
JWheelbase1241mm1261mm1286mm1315mm1339mm
KHeadtube length110mm110mm120mm130mm140mm
LReach440mm460mm480mm500mm520mm
MStack631mm631mm640mm649mm658mm

Warranty Information for Mondraker:

Mondraker offers an extended lifetime warranty for all its frames against defects in materials or manufacturing. Exclusions and terms apply.
It should be emphasised that each bicycle/frame has a life-cycle which will vary depending on the type of material and its construction. This life-cycle may be shortened by the form and type of use, or lack of appropriate maintenance and care. The lifetime warranty will therefore be entirely dependent on the optimal life-cycle determined by Mondraker for each specific Product.

The Avinox drive system (motor, battery, display, and charger) comes with a 2-year warranty starting from the activation date, covering up to 500 charge cycles. Exclusions and terms apply.

All warranty claims for Mondraker components or original parts will be handled through an authorised Mondraker distribution point, and the original commercial invoice must be provided.

Mondraker points of sale will handle the warranty of third-party manufacturers' components, with each manufacturer being responsible for the warranty of its components used in the product.

For Full Terms and Conditions Visit Mondrakers Website
