Scott Passage 10 Belt Wave Electric Hybrid Bike 2026 in Midnight Grey

Season:2026

Brand:Scott

Code:425615794

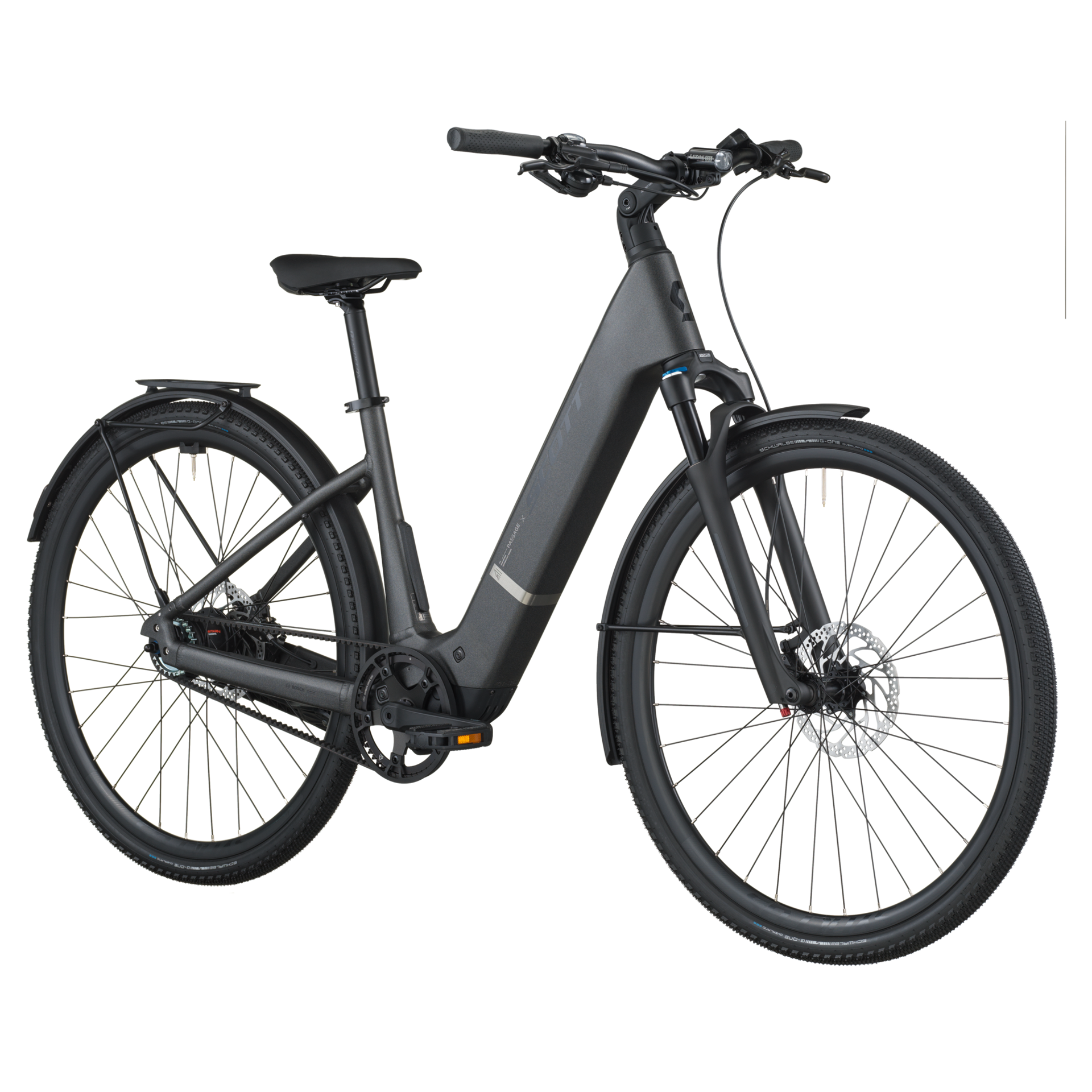

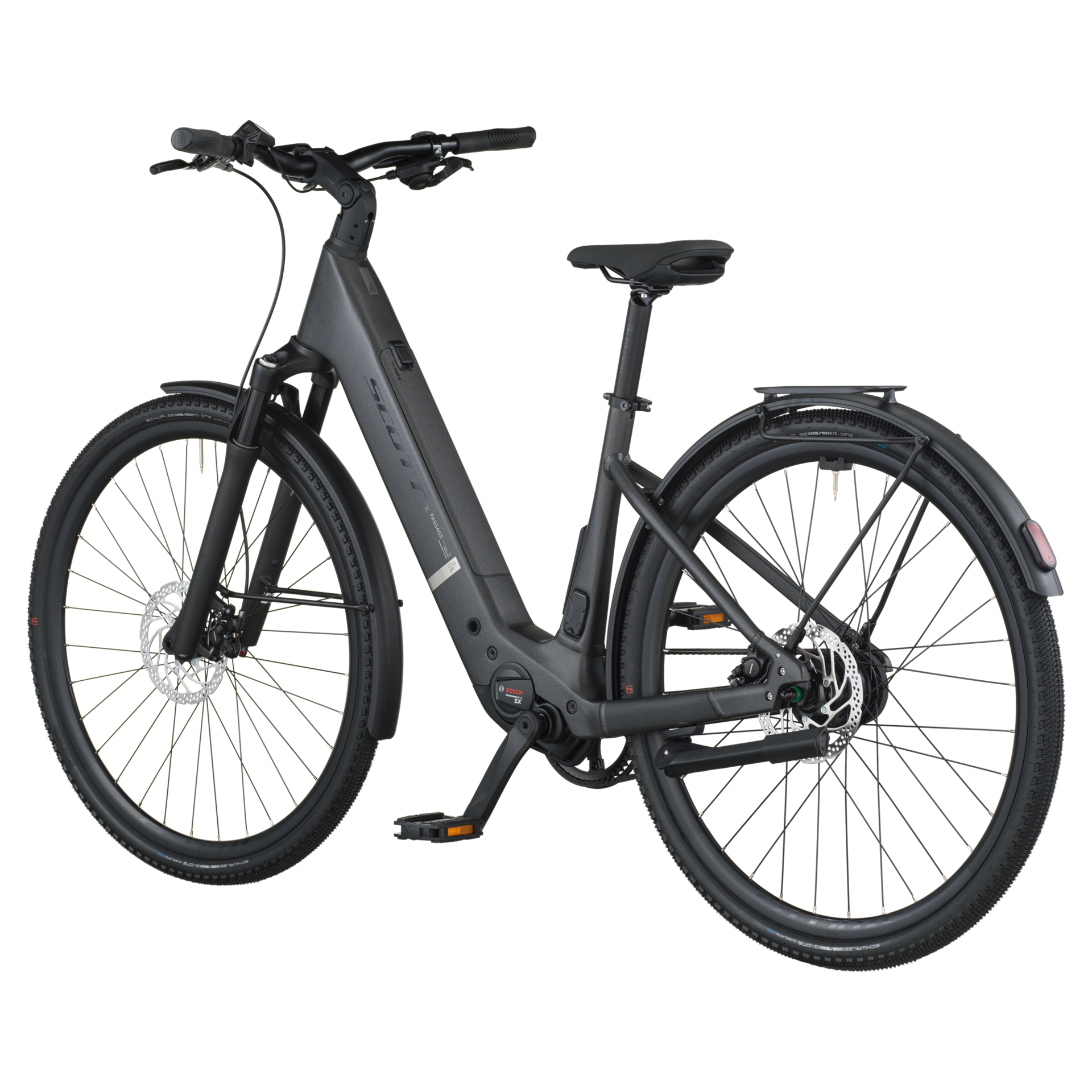

The Passage 10 Wave Bike is Scott's e-URBAN machine that’s easy to ride, thanks to its low standover height, making it a cinch for everyone in the family to get on and enjoy riding in the city.

At first glance, you may not even register Passage 10 as an E-Bike, with its trim lines and non-intimidating stance. That’s thanks to Bosch’s SX motor (which weighs just 2kg) and slim 400Wh battery. It’s a powerful combo that keeps the bike light, agile, and balanced while delivering power whenever you need it and the range to handle a long commute easily.

In addition to being easy to mount, Passage 10 is nicer to ride than larger E-Bikes. The Bosch SX motor features a narrower Q-factor that lets you have a natural pedaling style and handling you may be used to feeling on lightweight bikes. Out front is a 75mm suspension fork that cushions your ride from rougher pavement as you zip around town. And if taking the scenic route or packing extra for the commute in, the rear rack sets you up to stow the day’s essentials.

Scott equipped this Passage 10 with Shimano’s 8-speed drivetrain for plenty of gearing to enjoy your city streets and 45mm tires to add stability and comfort to navigate any surprises on the route. There’s also a kickstand for easy parking at your destination.

Key Features & Benefits:

  • Alloy Frame:Lightweight and strong.
  • Hydraulic disc brakes:For reliable stopping in all conditions.

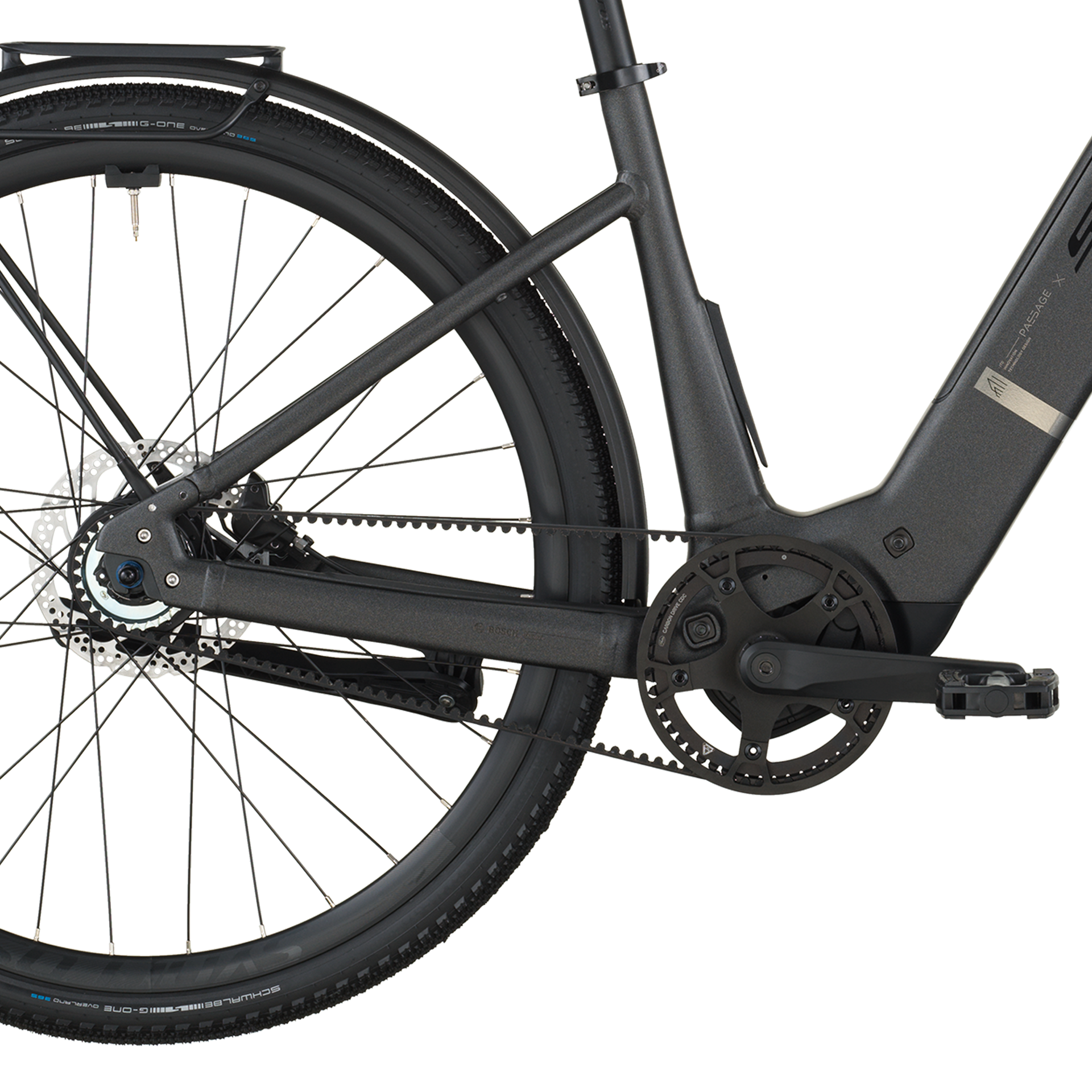

  • Belt Drive:Cleaner with less maintenance requirements than chains

Full Specification:

  • Frame: Alloy S-XL=29" / 6061 Alloy custom butted tubing Top extraction battery
  • Rear Suspension: N/A
  • Fork: SR Suntour NRX32-E Air LO R, Tapered , 15x100 bolt Axle, Remote Lock Out , Alloy Steerer, 75mm Travel
  • Motor: Bosch Performance Line SX
  • Battery: Compact Tube 400Wh
  • Controller: Bosch Purion 200
  • Number of Gears: 8
  • Gear Shifters: Shimano Alfine SL-S503 Rapid Fire Plus
  • Chainset: FSA CK-220 170mm
  • Chainrings: Gates CDC 52T w/Guard
  • Rear Cassette: Gates CDC 26T
  • Chain: N/A
  • Rear Derailleur: N/A
  • Pedals: Marwi SP-827
  • Rims: Syncros X15 Disc
  • Front Hub: Shimano HBTC50015B CL, 15x100mm
  • Rear Hub: Shimano Nexus 8 Speed
  • Front Tyre: Schwalbe G-One Overland 365 Performance, 700x45C
  • Rear Tyre: Schwalbe G-One Overland 365 Performance, 700x45C
  • Brakes: Shimano BR-MT200 Disc, Front: SM-RT30 CL 180mm, Rear: SM-RT30 CL 160mm
  • Handlebars: Syncros Welded Alloy Combo 680mm, Backsweep 9°, Upsweep 8°, 70mm, with front Light mount
  • Handlebar Grip: Syncros
  • Headset: Acros / 1.5"- 1.5"semi integ. OD 50/61mm / ID 44/55mm
  • Saddle: Syncros Capilano
  • Seatpost: Syncros M3.0 / 31.6
  • Accessories: Racktime Micro Rack SnapIt 2.0 8KG, Alumee alloy profile Fender, Passage Kickstand, Lezyne Fusion E550SM front light,Rear Supernova TL3Z
  • Weight: 22.5 kg
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Geometry Guide for Scott Passage

Passage Slope

S / 900M / 900L / 900XL / 900
Ahead tube angle67.0 °67.5 °67.0 °67.5 °
Bhead tube length140.0 mm140.0 mm160.0 mm160.0 mm
Ctop tube horizontal570.0 mm590.0 mm610.0 mm630.0 mm
Dstandover height420.0 mm420.0 mm420.0 mm420.0 mm
EBB offset-60.0 mm-60.0 mm-60.0 mm-60.0 mm
FBB height302.0 mm302.0 mm302.0 mm302.0 mm
Gwheel base1,163.9 mm1,178.3 mm1,206.8 mm1,221.0 mm
HBB center to toptube center
IBB center to top of seattube410.0 mm450.0 mm500.0 mm550.0 mm
Jseat angle75.0 °75.0 °75.0 °75.0 °
Kchainstay475.0 mm475.0 mm475.0 mm475.0 mm
Lreach401.9 mm421.2 mm436.9 mm456.3 mm
Mstack627.5 mm630.0 mm645.9 mm648.5 mm
Nstem length90.0 mm90.0 mm90.0 mm90.0 mm
Otrail103.7 mm100.2 mm103.7 mm100.2 mm


Warranty Information for Scott:

The manufacturer's guarantee is only granted to the first-time buyer of a SCOTT bicycle who has purchased it from an authorized SCOTT dealer. The manufacturer's guarantee only applies if the bicycle is registered to the first buyer at www.scott-sports.com within ten days of purchase.
The manufacturer's guarantee is granted from the date of purchase for a period of five years on bicycle frames and rear ends. The guarantee period is reduced to three years, if the SCOTT bicycle is not serviced at least once a year by an authorized SCOTT dealer.
For frames and rear ends of Category 5 bicycle models and for rigid forks manufactured by SCOTT, the duration of the manufacturer's guarantee is limited to two years.
For full warranty policy please visit scott-sports.com
