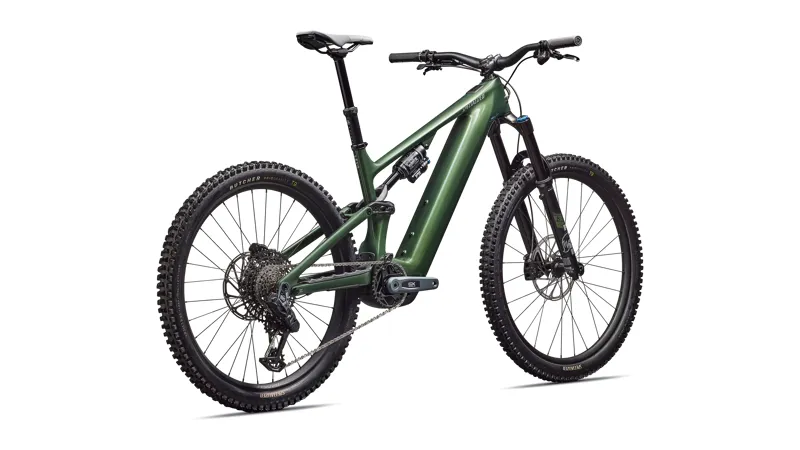

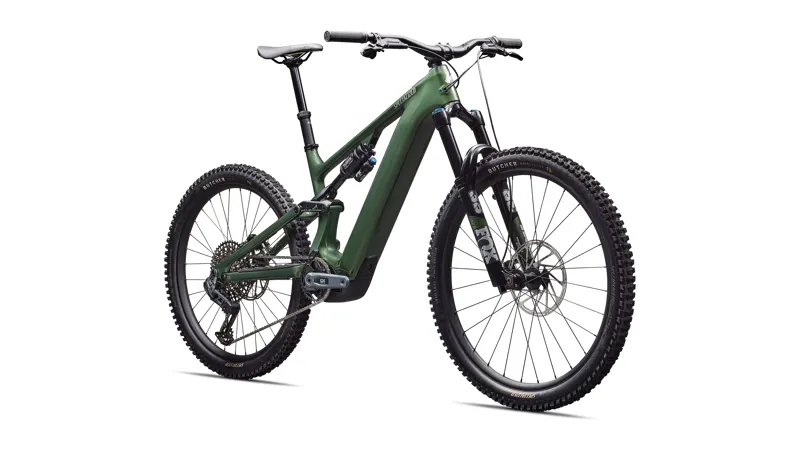

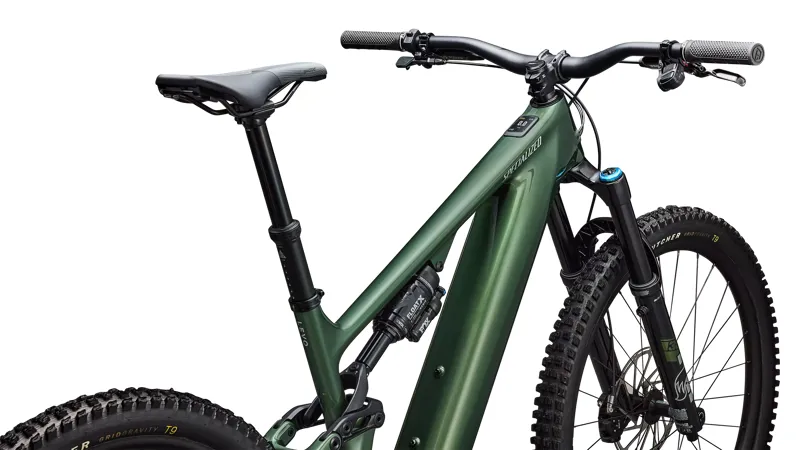

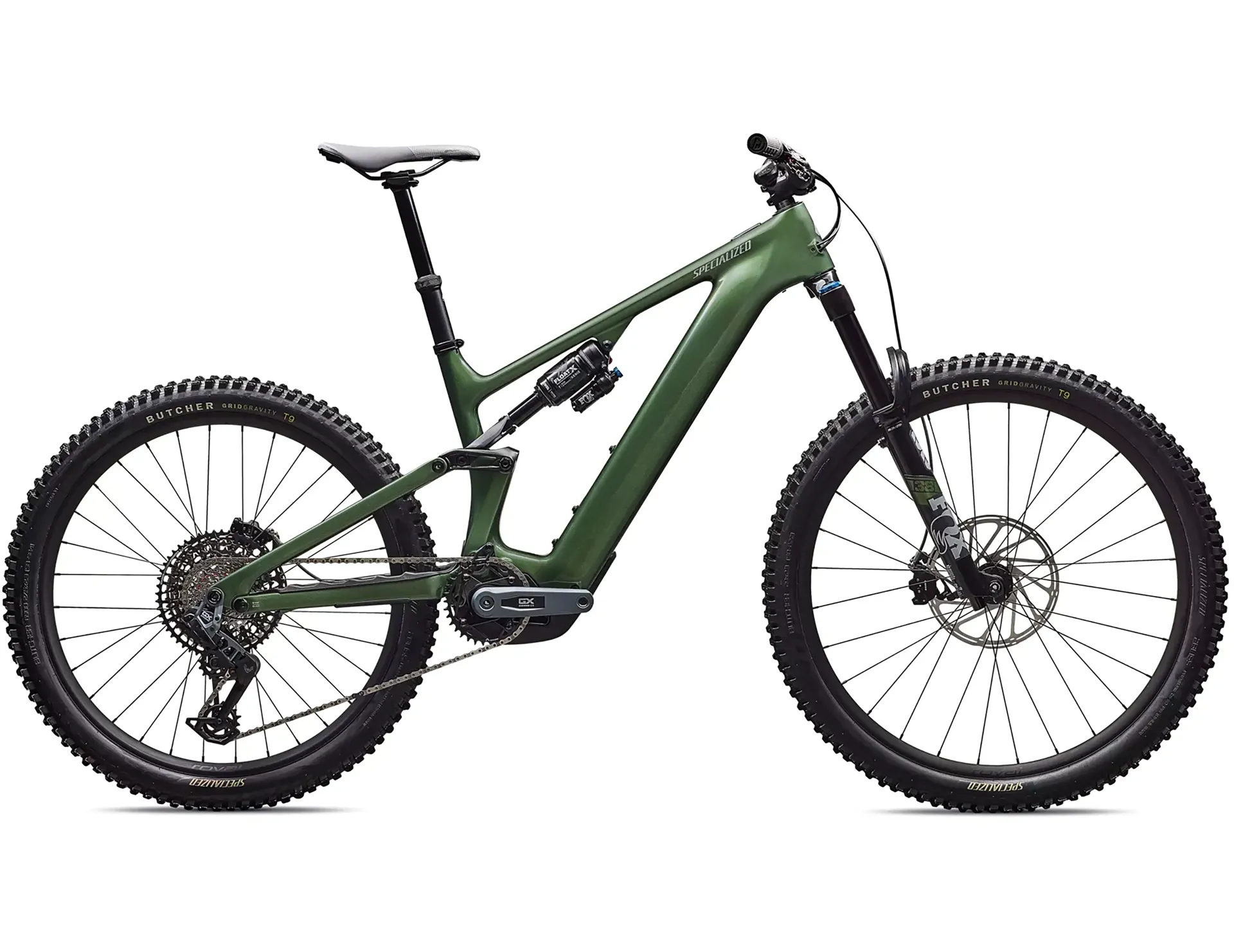

The Specialized Science Club introduces the Levo 4, an electric mountain bike so advanced it transforms you into a cycling cyborg. Together you're SuperNatural, fortified with super power, traction, control, and range to conquer any off-road terrain. Levo 4, Where Super Meets Natural.
Up to 101 Newton meters of torque and 666 watts of power amplifying your mortal muscles, granting you Super Power and Super Speed that bends space and time to your will. All channelled through a frame with 150mm of futuristic suspension and honed geometry, granting Super Control while traversing extreme terrain at mach speed. With SuperNatural power delivery for Super Traction to conquer climbs where others spin out. And while you’re an exemplar of human endurance, you’ll tire before the bike does thanks to the Super Range of the Turbo Levo 4. After you get off, you return to being your earthly self. But together, you are SuperNatural.
If anyone asks, "How?" Just say it's magic.
Super Power Best in Class Combined Power and Torque - with 666 Watts & 101 Nm, nothing beats the power and torque of the Specialized 3.1 Motor, served up through Specialized's Super Natural power delivery
Super Frame 150mm of Ride Dynamics tuned rear suspension and first-of-its-kind SWAT e-MTB downtube storage
Super Control Specialized patent-pending GENIE suspension in a FOX FLOAT X rear shock, dialled geo out of the box (with Specialized's 6-way adjustable geometry to further tune), and mixed wheel capability
Super Range Up to 5.33 hours of ride time to go farther, faster with up to 1,120Wh of on-bike battery capacity from the 840Wh downtube battery and optional 280Wh Range Extender
Super Charger Charge from 0-80% in under an hour with the aftermarket Fast Smart Charger (included w/ S-Works models)
Key Features & Benefits:
- Carbon frame:Designed for 1,120Wh of on-bike battery capacity from the 840Wh downtube battery and optional 280Wh Range Extender
- Specialized 3.1 Motor:Specialized 3.1 Motor w/ 666 Watts & 101 Nm, 840 Wh battery, up to 5.33 hour range
- GENIE suspension:150mm of Ride Dynamics tuned rear suspension and first-of-its-kind SWAT e-MTB downtube storage
Full Specification:
- Frame:All new SW Levo 4 frame with carbon shock extension, 150mm travel, w/SWAT storage, side entry battery, fork travel up to 180mm

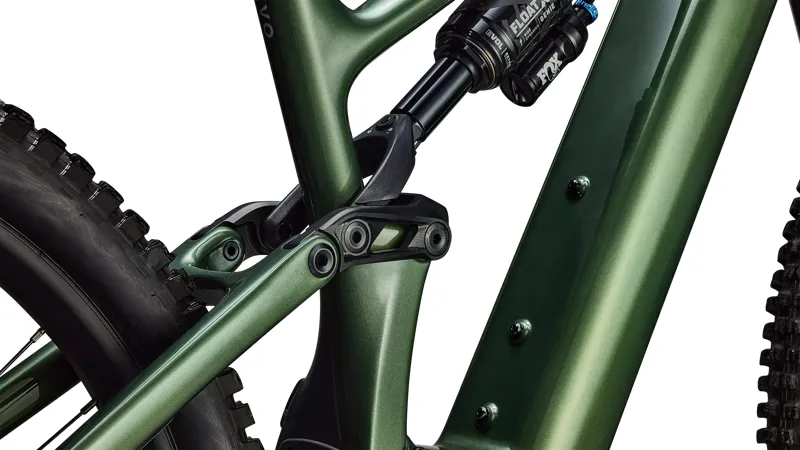

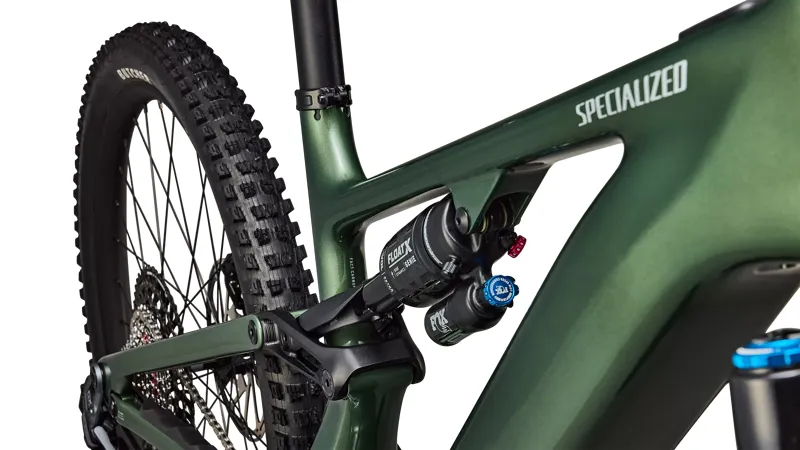

- Rear Suspension:Fox Float X Factory with Specialized GENIE Shock Tech, Ride Dynamics Trail Tune, 2-position lever w/3 setting Open mode tuning range, LSR adjustment, 210x55mm
- Fork:Fox 38 Performance Elite series, 29", Grip X2 damper,15x110mm axle, 44mm offset, 160mm of travel

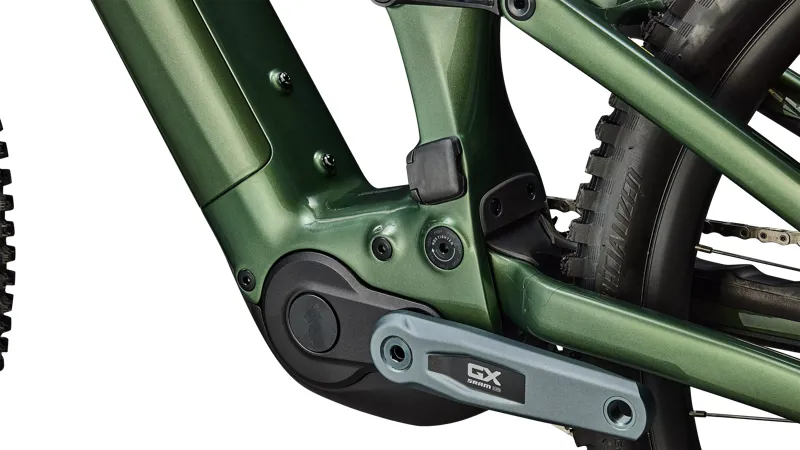

- Motor:All New Specialized 3.1 Motor, 101Nm torque, 666W power
- Battery:840wh battery

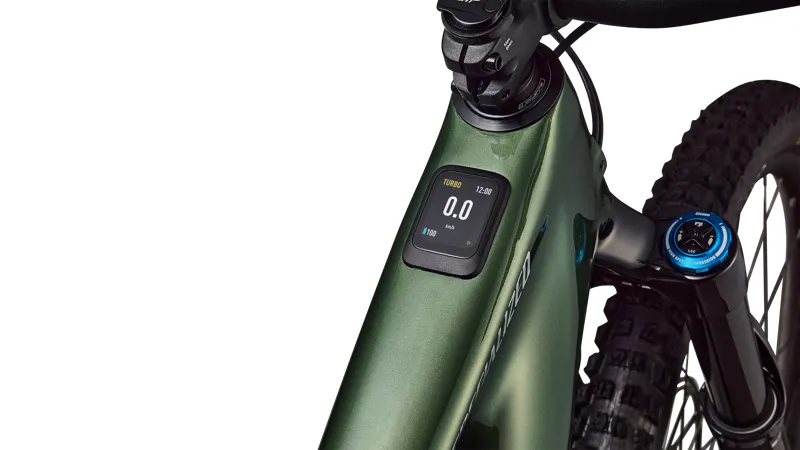

- Controller:Mastermind TCU, 2.2" highres screen, fully customizeable with Specialized app, Apple Find My integrated in display
- Charger:Specialized 4amp charger
- Number of Gears:12
- Gear Shifters:SRAM AXS POD Controller
- Chainset:SRAM GX Eagle Crankset, Integrated Guard, 55mm Chainline, 155mm
- Chainrings:SRAM T-type ring, 34T
- Rear Cassette:SRAM GX Eagle Transmission Cassette, 12spd, 10-52t
- Chain:SRAM GX Eagle Transmission Flattop Chain
- Rear Derailleur:SRAM GX Eagle Transmission Derailleur
- Pedals:Not supplied:Shop pedals here
- Rims:Roval Traverse Alloy 29", DT Swiss 370
- Front Hub:DT Swiss 370, 15x110mm, 28h
- Rear Hub:DT Swiss 370 XD freehub body, 12x148mm, 32h
- Front Tyre:Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 29x2.3"
- Rear Tyre:Butcher, GRID GRAVITY casing, GRIPTON® T9 compound, TLR, 27.5x2.3"
- Brakes:SRAM Maven Silver, 4-piston caliper, hydraulic disc, 220/200mm HS2 Rotor

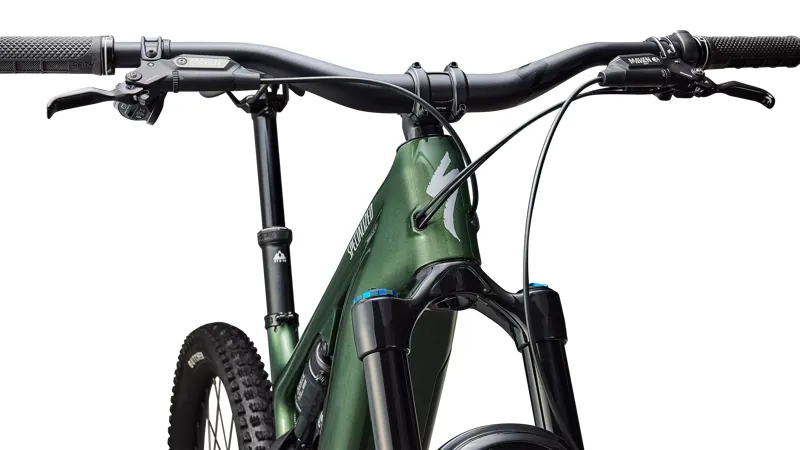

- Handlebars:Specialized, 6000 series alloy, 6-degree upsweep, 8-degree backsweep. S2: 780 width, 30mm rise: S3-S4: 800 width, 35mm rise: S5-S6: 800 width, 50mm rise
- Grips:Deity Grips
- Stem:Alloy Trail Stem, 35mm bar bore
- Saddle:Bridge Comp, Hollow Cr-mo rails, 155/143mm
- Seatpost: PNW Loam post w/travel adjust S2: 150mm, S3: 170mm, S4/S5/S6: 200mm
- Accessories:SWAT internal downtube storage
- Weight:24.41kg (53 lb, 13.0 oz) Size: S4
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.
This bike is compatible with
optional 280Wh Range Extender which is available to purchase separately - Code: 98924-5680There are some assocaited accesories required to run the extender, they are:
98924-5660 3.1 Full Power Range Extender Cable for X2-280 battery, 210mm length
S249900016 MSC SPECIALIZED FULL POWER 3.1 SYSTEM, ZEE CAGE FOR RANGE EXTENDER
S246800006 ELE BATTERY, SPECIALIZED FULL POWER 3.1 SYSTEM, RANGE EXTENDER, LOWER MOUNTING BRACKET
S240500012 BLT SPECIALIZED FULL POWER 3.1 SYSTEM, RANGE EXTENDER, DOWNTUBE ANCHOR BOLT
Size Guide for Specialized Levo Gen 4
Tip:
Size down for More Manoeuvrability
Size up for More Stability
| Frame Size | Height (cm) | Height (Inches) |
| S1 - XS | 150 - 160 | 4'11" - 5'3" |
| S2 - S | 157 - 173 | 5'2" - 5'8" |
| S3 - M | 165 - 180 | 5'5" - 5'11" |
| S4 - L | 173 - 188 | 5'8" - 6'2" |
| S5 - XL | 178 - 193 | 5'10" - 6'4" |
| S6 - XXL | 188 - 203 | 6'2" - 6'8" |
Geometry Information for Specialized Levo Gen 4
| Frame Size: | S2 | S3 | S4 | S5 | S6 |
| Stack (mm) | 618 | 626 | 638 | 652 | 667 |
| Reach (mm) | 435 | 455 | 480 | 505 | 535 |
| Headtube Length (mm) | 95 | 103 | 117 | 132 | 149 |
| Headtube Angle (degrees) | 64.5 | 64.5 | 64.5 | 64.5 | 64.5 |
| BB Height (mm) | 350 | 350 | 350 | 350 | 350 |
| BB Drop (mm) | 29.5 | 29.5 | 29.5 | 29.5 | 29.5 |
| Trail (mm) | 132 | 132 | 132 | 132 | 132 |
| Fork Length (full) (mm) | 577 | 577 | 577 | 577 | 577 |
| Fork Rake/Offset (mm) | 44 | 44 | 44 | 44 | 44 |
| Front Center (mm) | 765 | 789 | 820 | 851 | 888 |
| Chainstay Length (mm) | 435 | 435 | 435 | 435 | 435 |
| Wheelbase (mm) | 1200 | 1223 | 1254 | 1286 | 1323 |
| Top-tube Length (horizontal) (mm) | 578 | 599 | 627 | 655 | 689 |
| Bike Standover Height (mm) | 753 | 754 | 753 | 758 | 761 |
| Seat Tube Length(mm) | 390 | 405 | 425 | 445 | 465 |
| Seat Tube Angle (degrees) | 77 | 77 | 77 | 77 | 77 |
| Saddle Height for Effective ST Angle (mm) | 690 | 735 | 780 | 825 | 870 |
| Max Seatpost Insertion (mm) | 274 | 289 | 313 | 337 | 357 |
| Min Seatpost Insertion (mm) | 80 | 80 | 80 | 80 | 80 |
| Crank Length (mm) | 160 | 160 | 160 | 160 | 160 |
| Handlebar Width (mm) | 800 | 800 | 800 | 800 | 800 |
| Stem Length (mm) | 40 | 40 | 40 | 40 | 40 |
| Saddle Width (mm) | 155 | 143 | 143 | 143 | 143 |
| Seatpos Length (mm) | 125 | 175 | 200 | 200 | 200 |
Check out our Blog Post here for our guide for which type of e-bike is best!
Warranty Information for Specialized Bikes and Wheels
| Policy Term | Coverage for Registered Products | Coverage if Not Registered |
Lifetime warranty* to the original owner against structural defects in material or workmanship on ALL models of Specialized-branded frames and forks • Includes seatstays and chainstays on full-suspension bikes
• Does not include suspension forks and suspension parts
• Does not include paint and graphics (these are covered below) | Lifetime | 2 Years |
| Lifetime warranty* on Roval wheels | Lifetime | 2 Years |
Other Specialized-branded products are covered by a two-year warranty • Paint and graphics on frames and frame set
• Specialized branded components
• Co-branded suspension (BRAIN)
• Motors & Drive systems components on e-bikes
• Equipment
• Helmets
• Shoes | 2 Years | 2 Years |
Turbo batteries have a warranty for 2 years or 300 charge cycles— whichever comes first. | 2 years | 2 years |
*Register your bike, frameset, or Roval wheels within the first 90 days of purchase for a lifetime warranty to the original owner. For Full warranty policy please visit specialized.com
