Trek Marlin+ 8 an electric hardtail with Bosch motor, 120 mm fork, 12-speed Shimano Deore, and 2.6" tubeless tyres - powerful, smooth, and trail-ready.
Trek Marlin+ 8 an electric hardtail with Bosch motor, 120 mm fork, 12-speed Shimano Deore, and 2.6" tubeless tyres - powerful, smooth, and trail-ready.
Trek

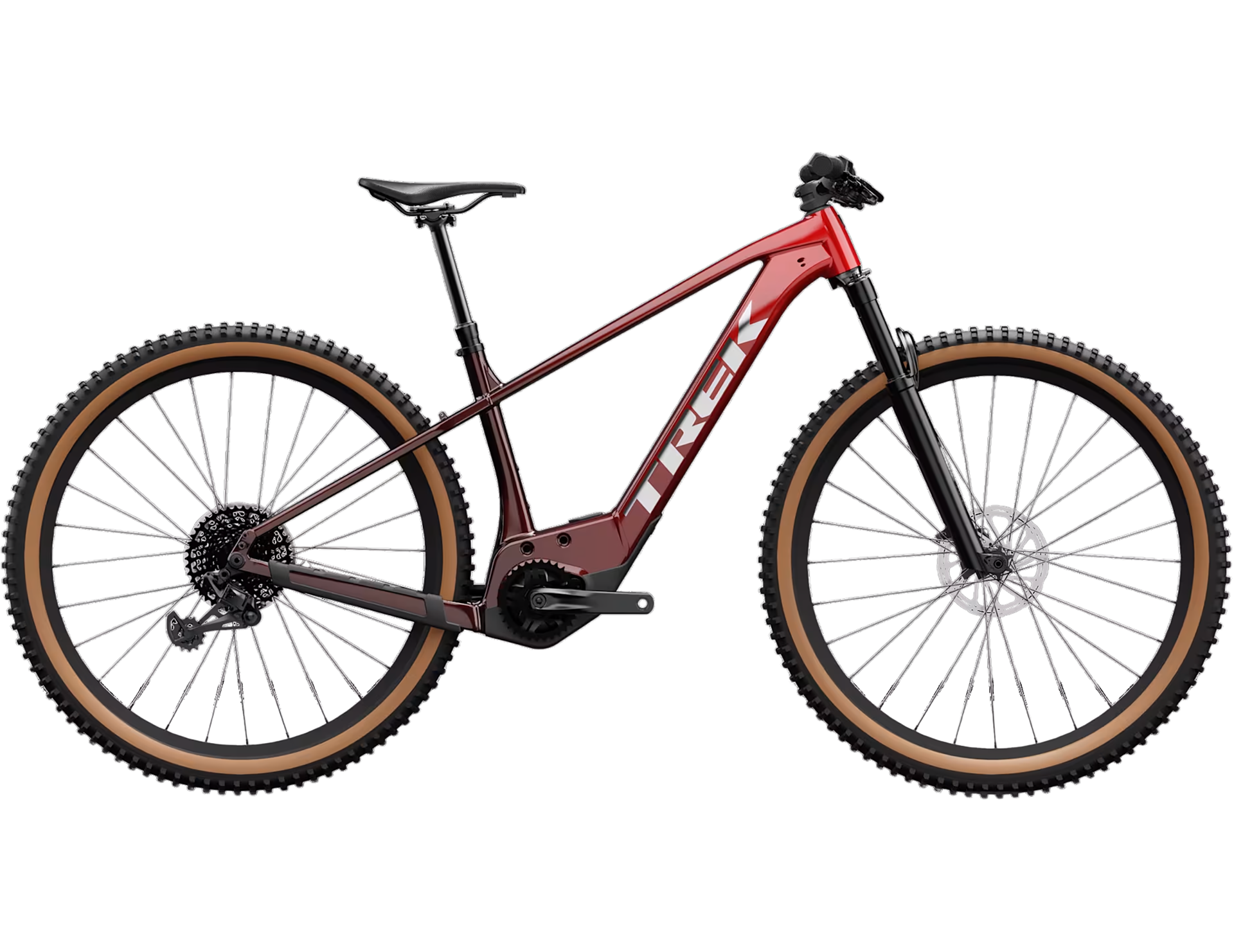

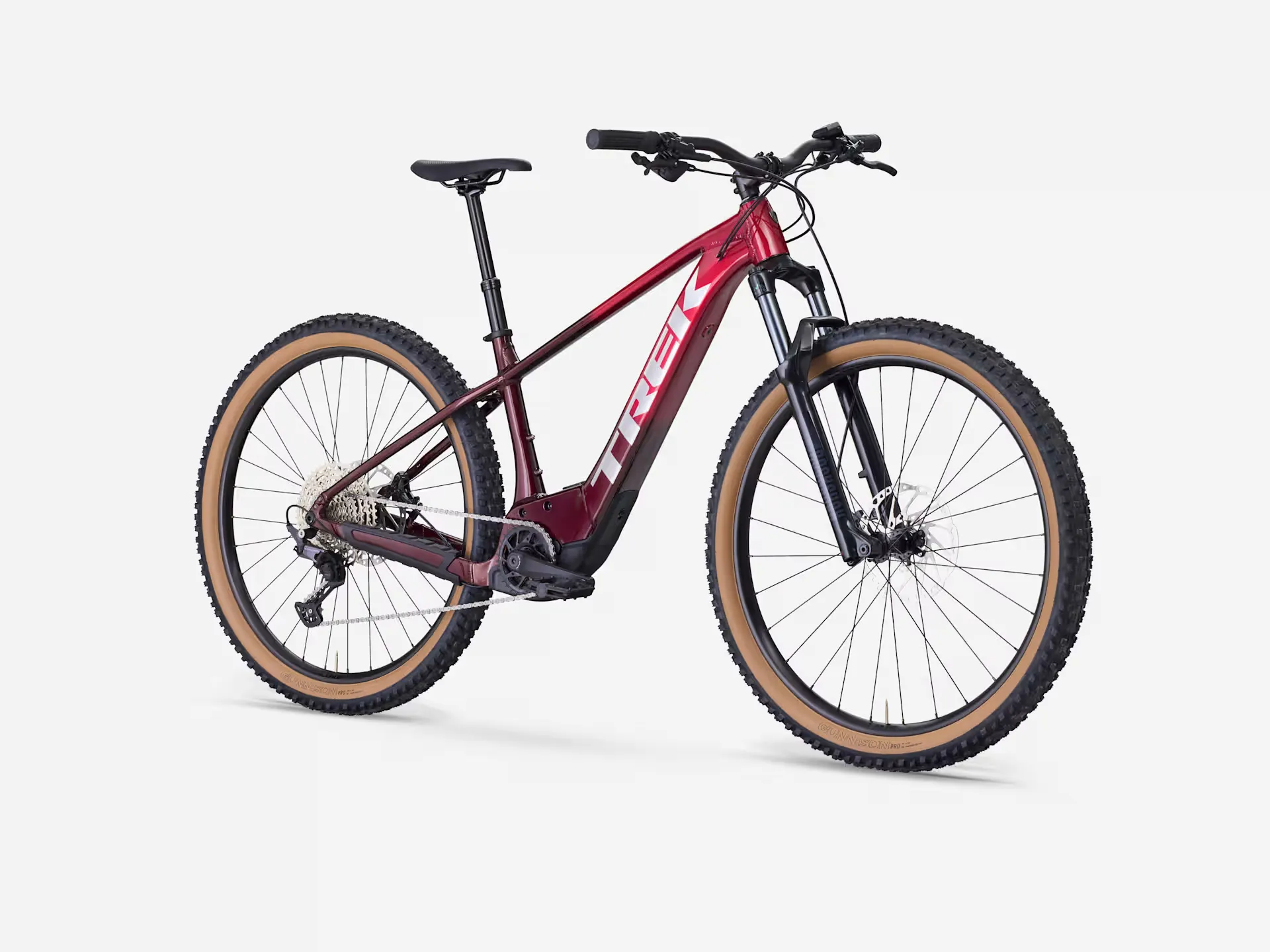

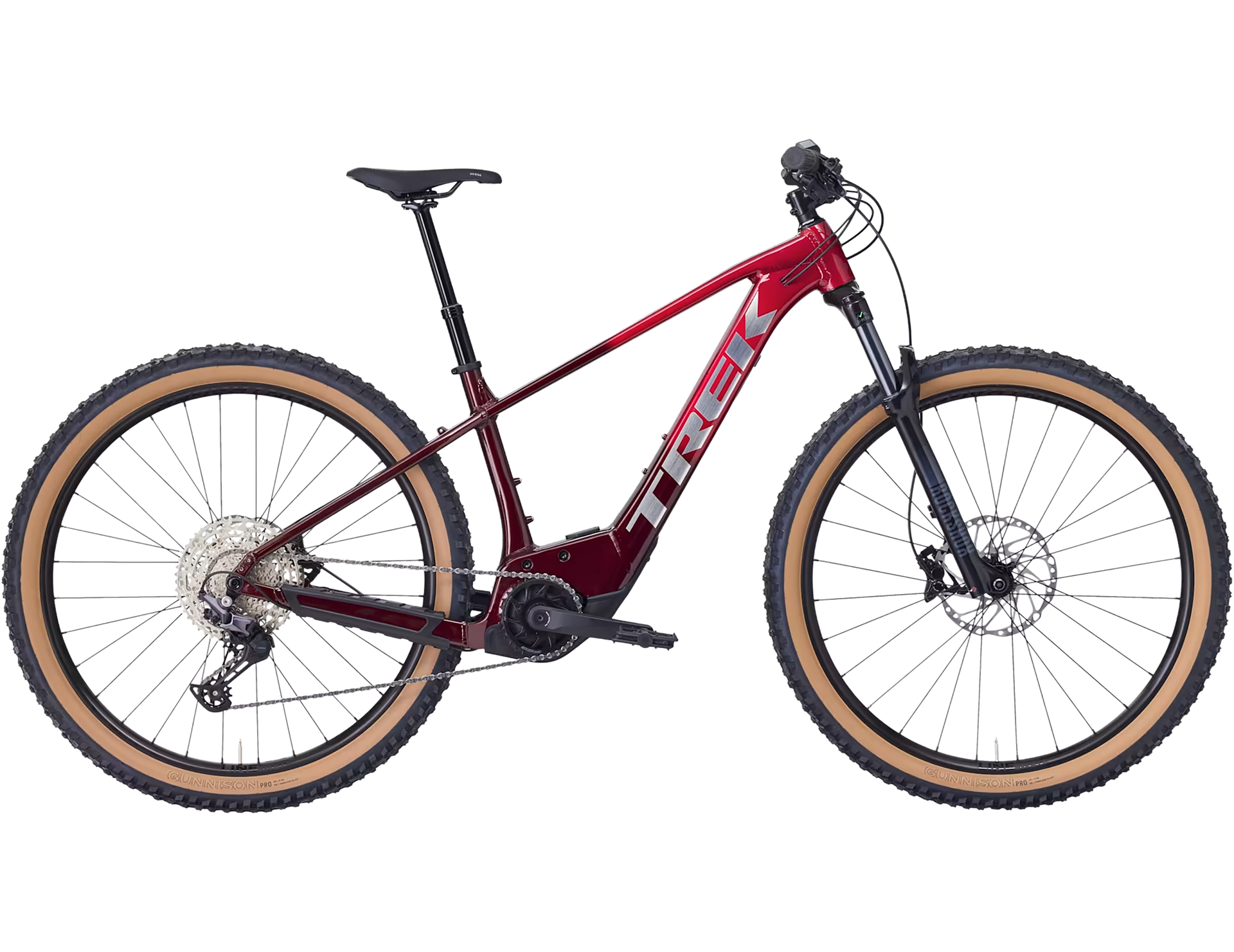

Trek Marlin+ 8 Electric Hardtail Mountain Bike 2026 in Fury Red

£2,650.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Marlin+ 8 Electric Hardtail Mountain Bike 2026 in Fury Red

Season:2026

Brand:Trek

Code:56627RD-CH

The Marlin+ 8 is an electric mountain bike that's ready to up your game on the trail. Its Bosch Active Line Plus motor gives you just the boost you need for getting up steep climbs and riding further, and doesn't break the bank, and a 120 mm suspension fork keeps handling smooth through the rough stuff. Upgraded components, like wide tubeless-ready wheels and tyres and a 12-speed Shimano drivetrain make this a trail-savvy ride that's ready to go anywhere.

A boost of power is just what you're after, but you don't drain the bank account. You want plenty of gears for riding all kinds of trails, and the flat protection offered by wide 2.6 in tubeless-ready wheels and tyres.

An Alpha Platinum Aluminium frame with real mountain bike geometry and a coil-sprung 120 mm fork. A reliable Bosch Active Line Plus 50 Nm drive system capable of assisting you to speeds of 15.5 mph. A compact Purion 200 remote with built in display and 400 Wh Powertube battery. You get 12-speed Shimano Deore shifting, hydraulic disc brakes and wide, 2.6 in tubeless-ready wheels that boost grip and help prevent flats.

The Marlin+ is the go-to for riders looking to dip their toes into the electric mountain bike world. Its trail-savvy frame gives you confident control, and a Bosch Active Line Plus motor offers enough power to take the burn out of long climbs.

Key Features & Benefits:

  • Bosch Active Line Plus Motor:With AUTO mode adaptive motor support which recognises speed reductions and adjusts assistance automatically
  • 120 mm suspension:Keeps your ride feeling smooth through bumps, roots and rough stuff.
  • Shimano Deore 12 Speed Drivetrain:Quality shifting with a wide range of gears to help tackle the hills.

Full Specifications:

  • Frame:Alpha Platinum Aluminium, tapered head tube, internal routing, rack, mudguard and kickstand mount, UDH, Boost148, 12 mm thru axle. Size XS features curved Top Tube

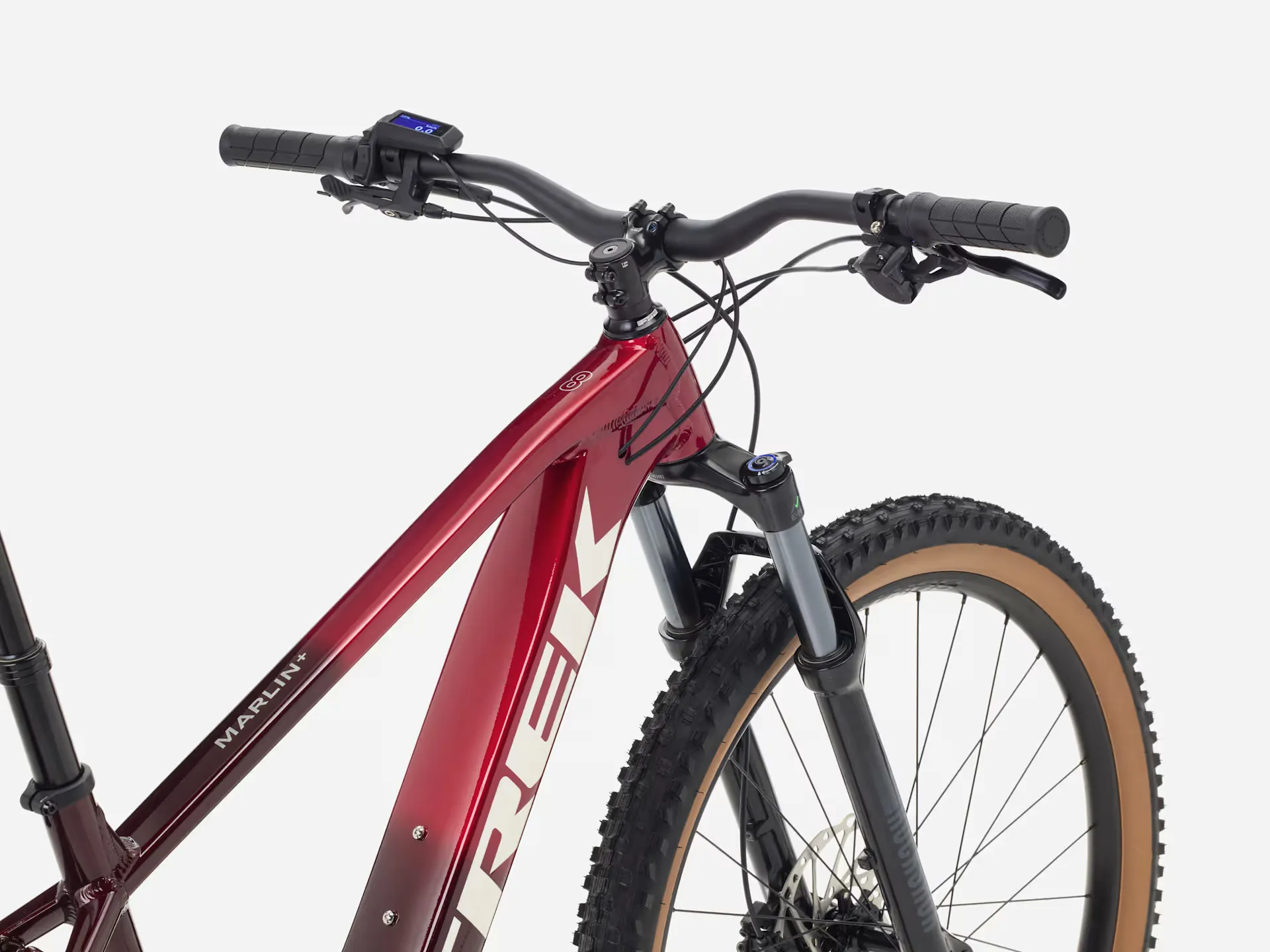

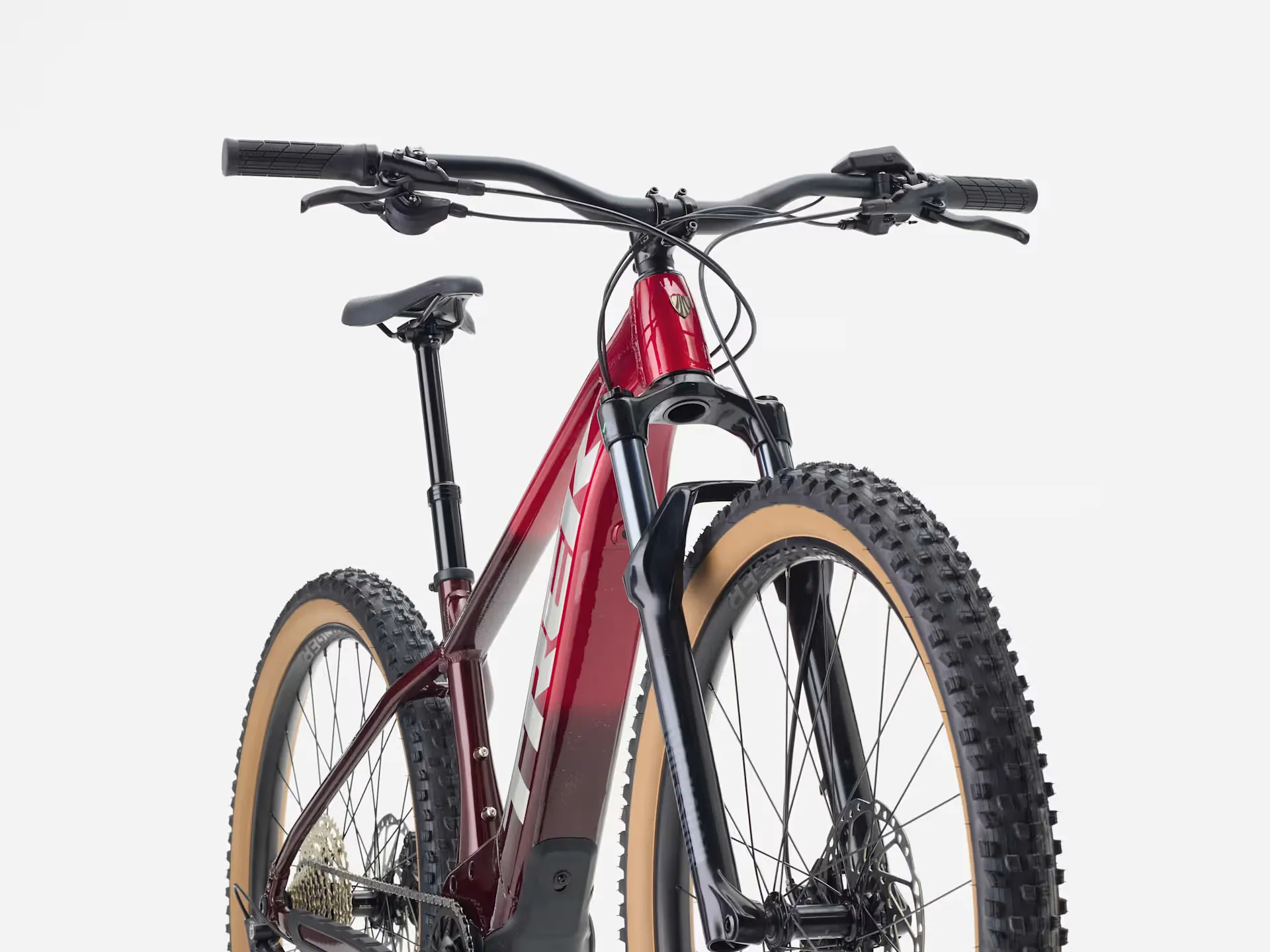

  • Fork:RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 46 mm offset, Boost110, Maxle Stealt. Size XS 100mm Travel, S 120mm. Sizes M/L/XL 42mm offset with 120mm Travel.

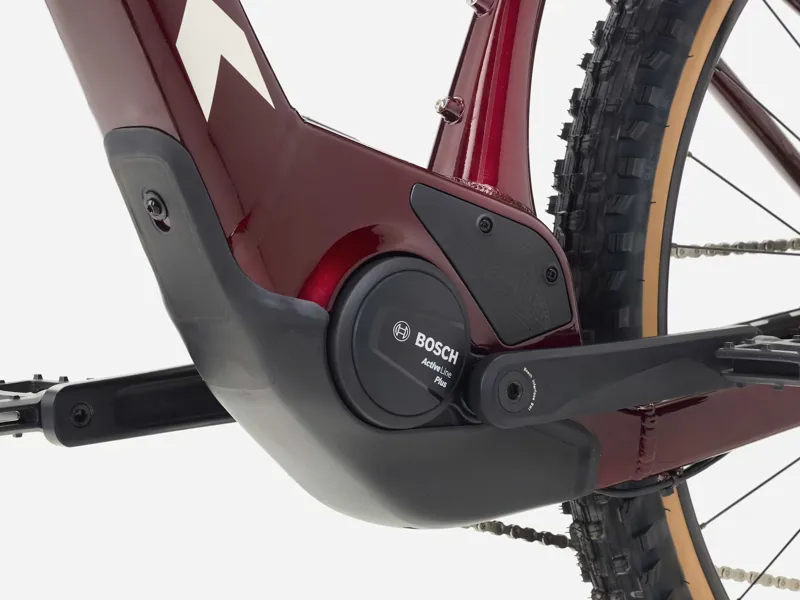

  • Motor:Bosch Active Line Plus, 50Nm
  • Battery:Bosch CompactTube 400 Wh
  • Controller:Bosch Purion 200
  • Charger:Bosch standard 2A, 230V, smart system
  • Number of Gears:12

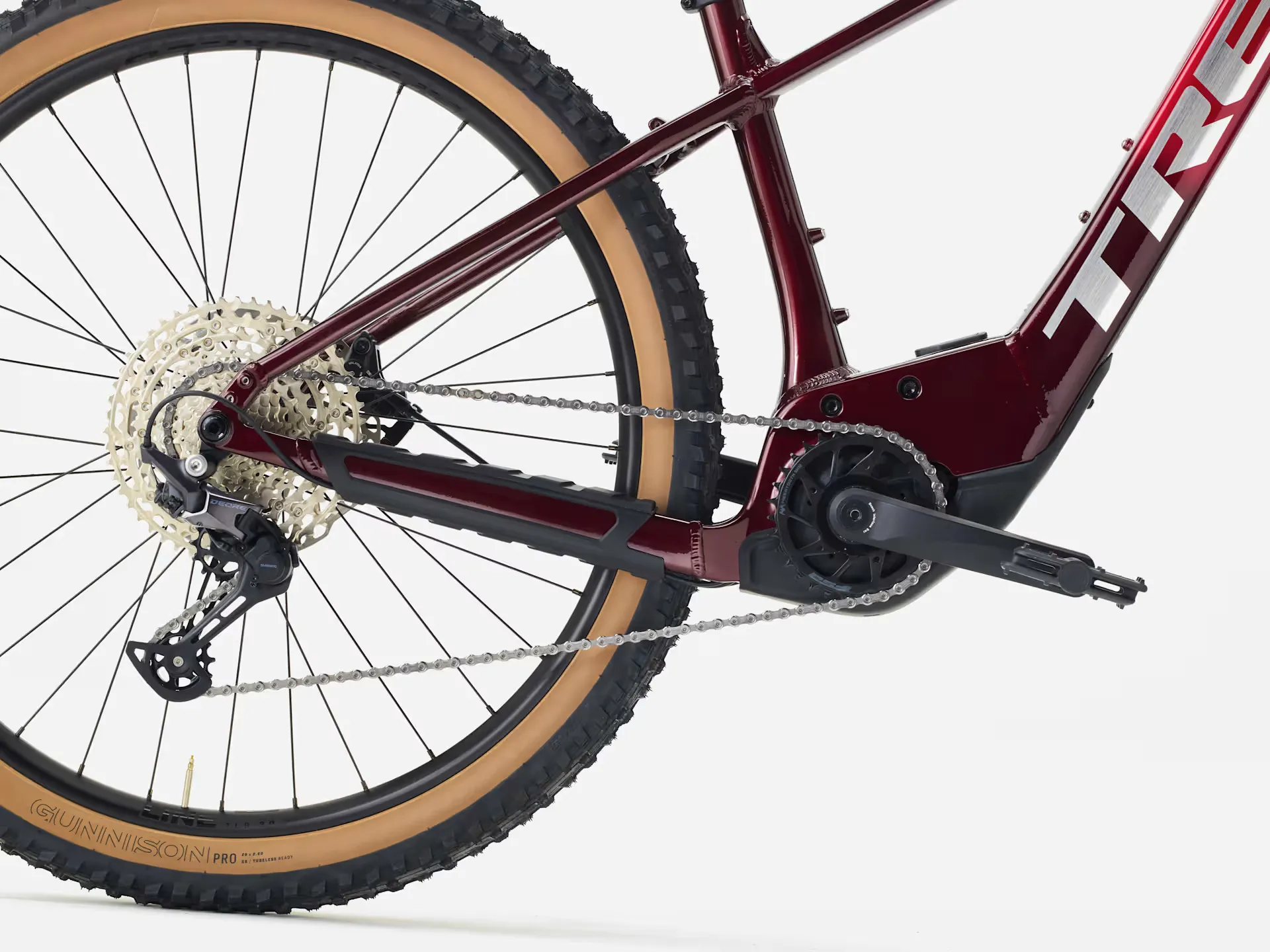

  • Gear Shifters:Shimano Deore M6100, 12-speed
  • Chainset:FSA CK-220, 165 mm length
  • Chainrings:32T
  • Rear Cassette:Shimano Deore M6100, 10-51, 12-speed
  • Chain:Shimano Deore M6100, 12-speed
  • Front Derailleur:N/A
  • Rear Derailleur:Shimano Deore M6100, long cage
  • Pedals:VP-536 nylon platform
  • Rims:Bontrager Line TLR 30, Tubeless-Ready, 28/32-hole, Presta valve
  • Front Hub:Shimano TC500 alloy, CentreLock, 110x15 mm thru axle
  • Rear Hub:Shimano TC500 alloy, CentreLock, 148x12 mm thru axle
  • Front Tyre:Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi (size XS/S 27.5x2.6, size M/L/XL 29x2.6)
  • Rear Tyre:Bontrager Gunnison Pro XR, Tubeless Ready, dual compound, aramid bead, 60 tpi (size XS/S 27.5x2.6, size M/L/XL 29x2.6)
  • Brakes:Shimano 4-piston hydraulic disc, MT4100 lever, MT420 calliper. Shimano RT64, CentreLock, 203 mm
  • Handlebars:Size XS/S Bontrager alloy, 31.8 mm, 15 mm rise, 720 width. Size M/L/XL Bontrager Comp alloy, 31.8mm, 40mm rise, 780 width
  • Grips:Trek Line Comp, Nylon Lock On
  • Headset:Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom
  • Stem:Bontrager Comp 31.8mm, 7 Degree. XS/S 35mm length, M/L 50mm, XL 60mm
  • Saddle:Bontrager Verse P3, steel rails
  • Seatpost:TranzX JD-YSP18 Size XS/S 100mm travel 361mm length. M/L/XL 150/470
  • Accessories:Bosch standard 2A Charger, 230V, smart system
  • Weight:
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Marlin+

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
XS145 - 1554'9" - 5'1"69 - 7327 - 29
S155 - 1655'1" - 5'5"74 - 7829 - 31
M165 - 1765'5" - 5'9"79 - 8331 - 33
L177 - 1885'10" - 6'2"84 - 8933 - 35
XL188 - 1956'2" - 6'5"89 - 9135 - 36

Geometry Information for Marlin+

Frame Size LetterXSSMLXL
Wheel Size27.5"27.5"29"29"29"
A - Seat Tube3437424550
B - Seat Tube Angle73.8°73.8°73.8°73.8°73.8°
Effective Tube Angle74.0°74.0°74.0°74.0°74.0°
C - Head Tube Length91010.511.513.5
D - Head Angle66.5°66.5°66.5°66.5°66.5°
E - Effective Top Tube55.158.46265.268.2
F - Bottom Bracket Height31.331.331.831.831.8
G - Bottom Bracket Drop4.54.5666
H - Chainstay Length474748.548.548.5
I - Offset4.24.24.64.64.6
J - Trail111111.411.411.4
K - Wheelbase112.9116.6121.8125.1128.4
L - Standover36.639.844.345.445.8
M - Frame Reach3941.5444749.5
N - Frame Stack56.35962.663.565.3

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
