Trek Powerfly 5 Gen 4 Electric Mountain Bike 2024 in Prismatic Black

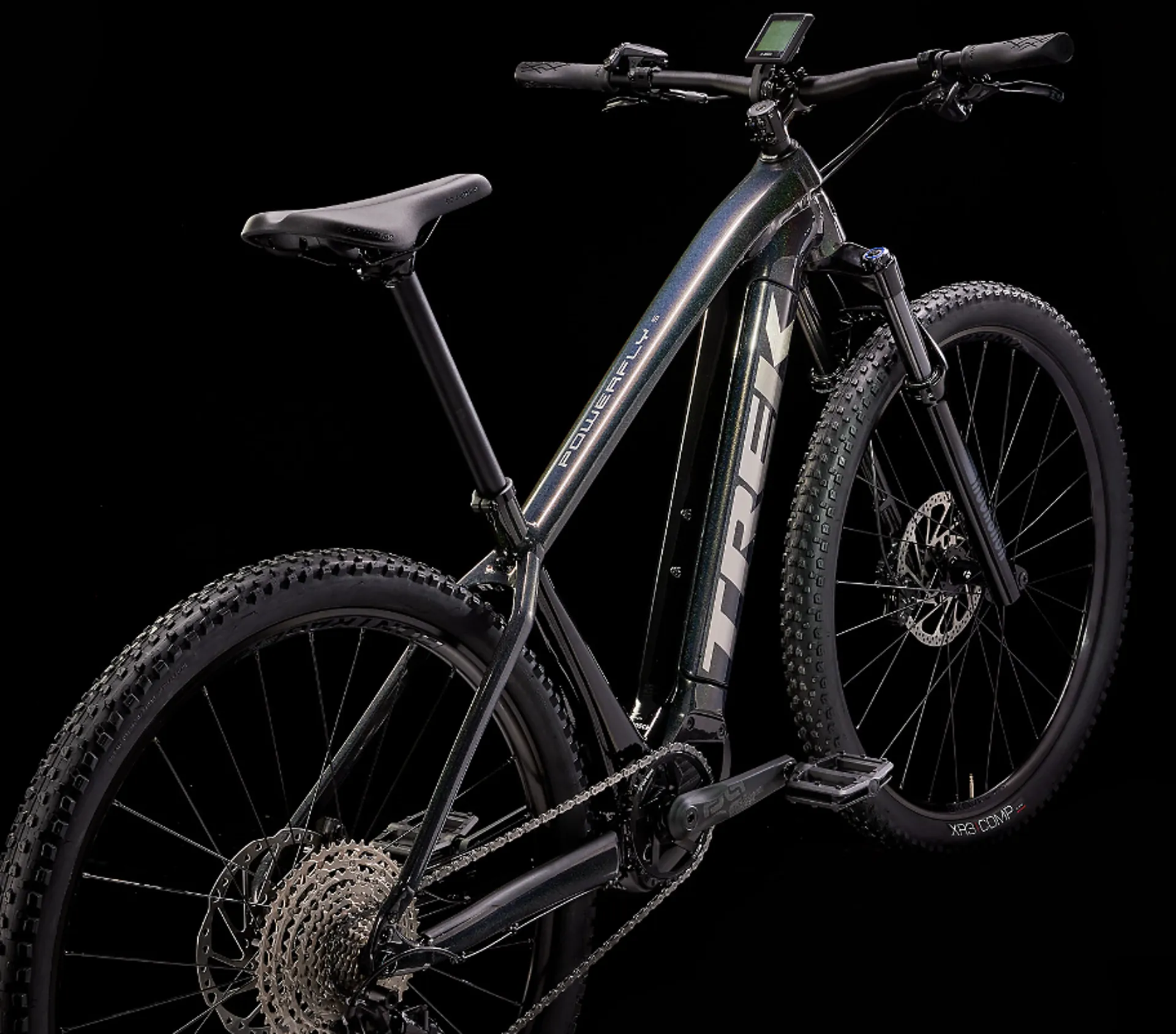

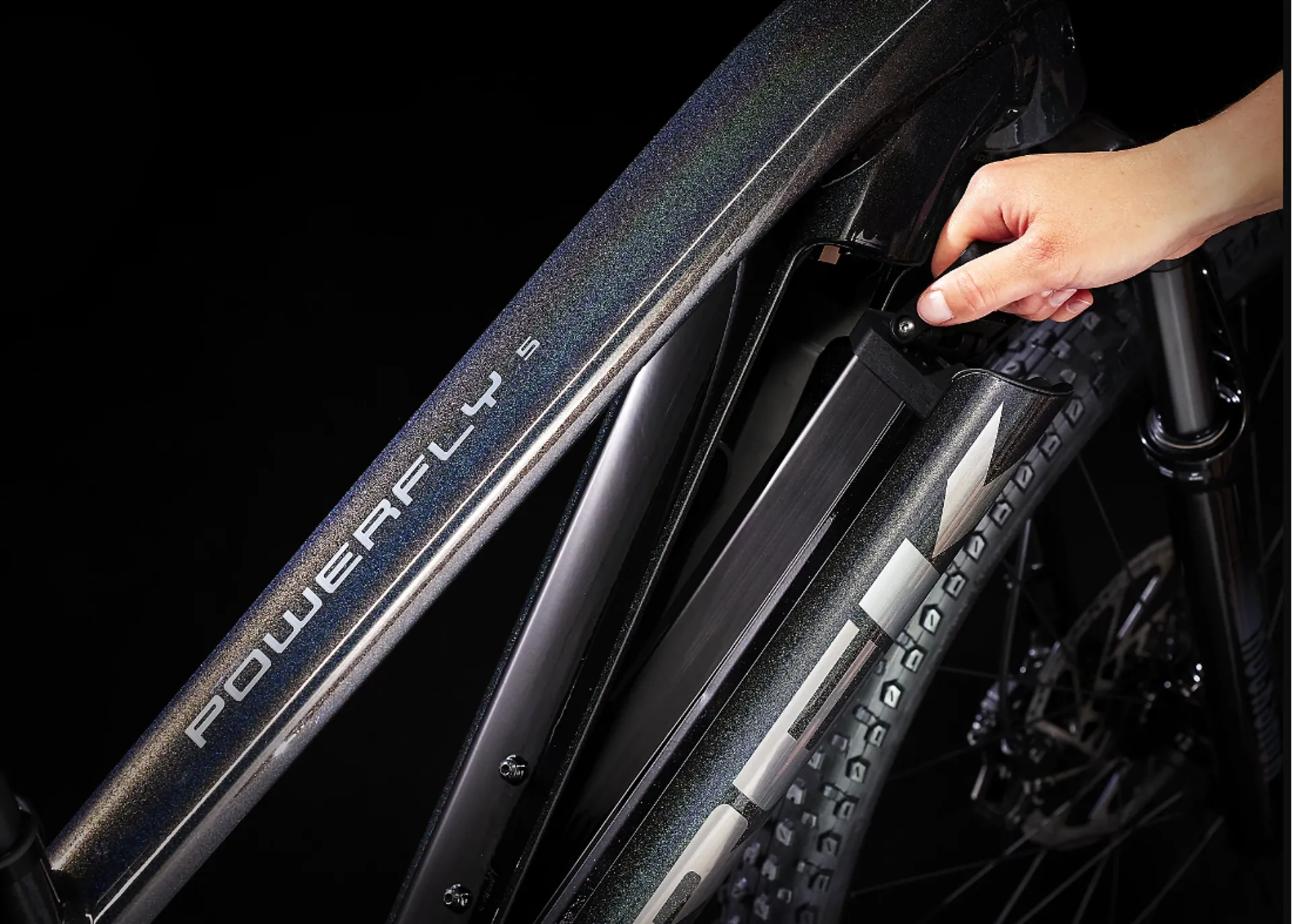

The Powerfly 5 is a highly capable electric mountain bike that balances performance and price. It pairs a high-end Bosch e-MTB drive system with durable mountain bike components built to stand up to the trail. Plus, it features Trek's user-friendly Removable Integrated Battery (RIB) system that fully encases the battery in the frame, yet doesn't require tools for removal. This bike is versatile, capable and ready for adventure.

You've seen the e-bike light and want to expand your boundaries. Like Trek, you believe that nothing should stand between you and your next great ride, including big climbs, headwinds and rugged trails that you wouldn't otherwise be able to explore.

A lightweight and durable aluminium frame that fully encases a 625 Wh battery for sleek looks and protection on the trail, a Bosch Performance CX motor that assists up to 20 mph (25 km/h in Europe) and an ergonomic Bosch Intuvia smart system controller. A RockShox Recon Silver RL fork, a Shimano 1x12 drivetrain and Bontrager Kovee Comp 23 tubeless-ready wheels.

With Powerfly 5, you get parts upgrades that make a big difference riding off-road, like an air-spring fork that's smooth and adjustable for your own weight, plus more powerful 4-piston brakes and wheels that make it easy to ditch the tubes for better traction and flat protection.

Please note: the XS and Small sizes have a curved top tube to help with standover height.

Key Features & Benefits:

  • Bosch Performance CX motor:With smart system, perfect for tackling the climbs.
  • Intelligent e-MTB mode:Automatically delivers the right amount of power based on your terrain.
  • Shimano Deore 1x12 Drivetrain:Simplicity combined with a wide gear ratio.

Full Specifications:

  • Frame:Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, Motor Armour, Boost148, 12 mm thru axle (XS-S have curved top tube)
  • Rear Shock:N/A
  • Fork:RockShox Recon Silver RL, Solo Air spring, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, Maxle Stealth, 120 mm travel (XS 80mm travel)

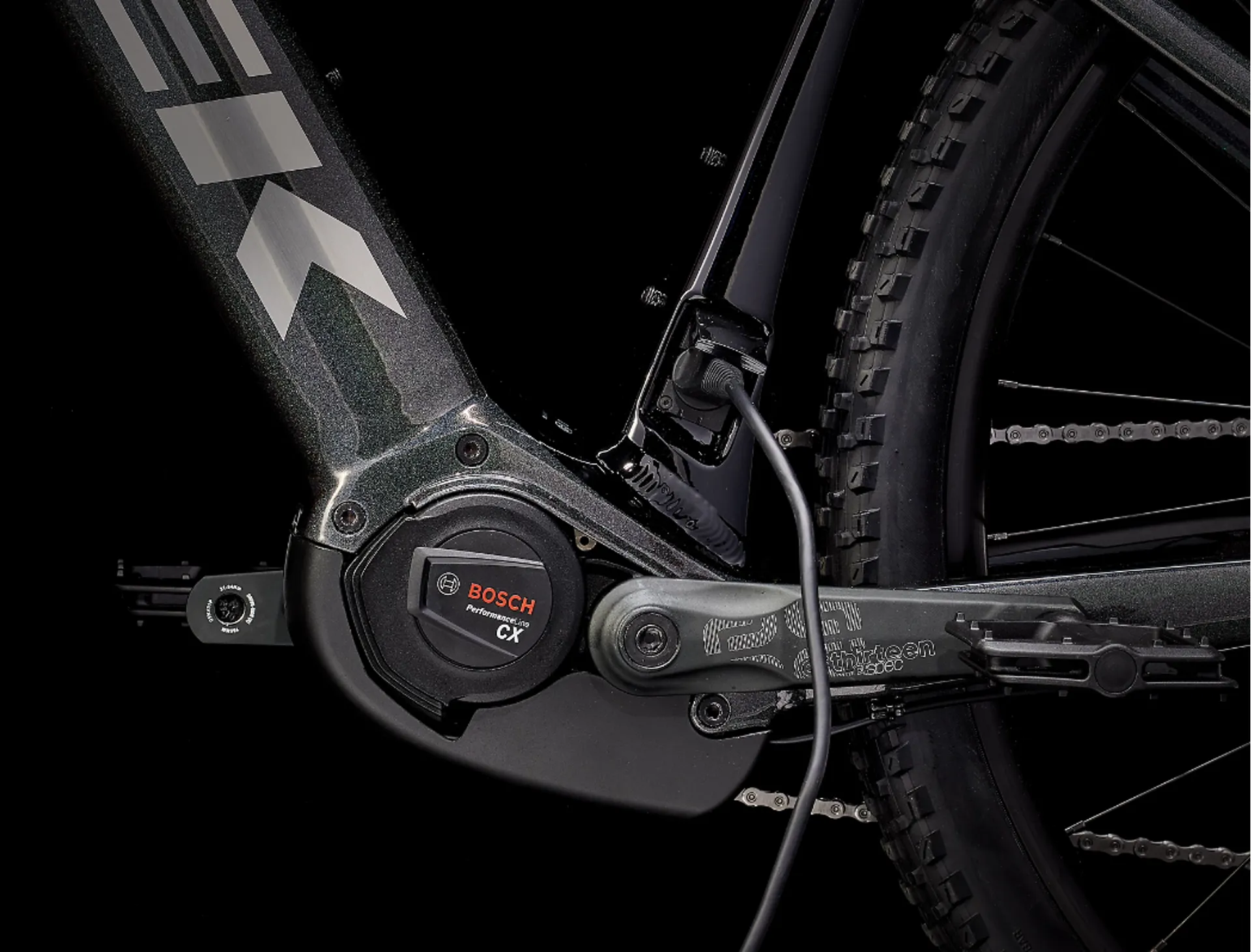

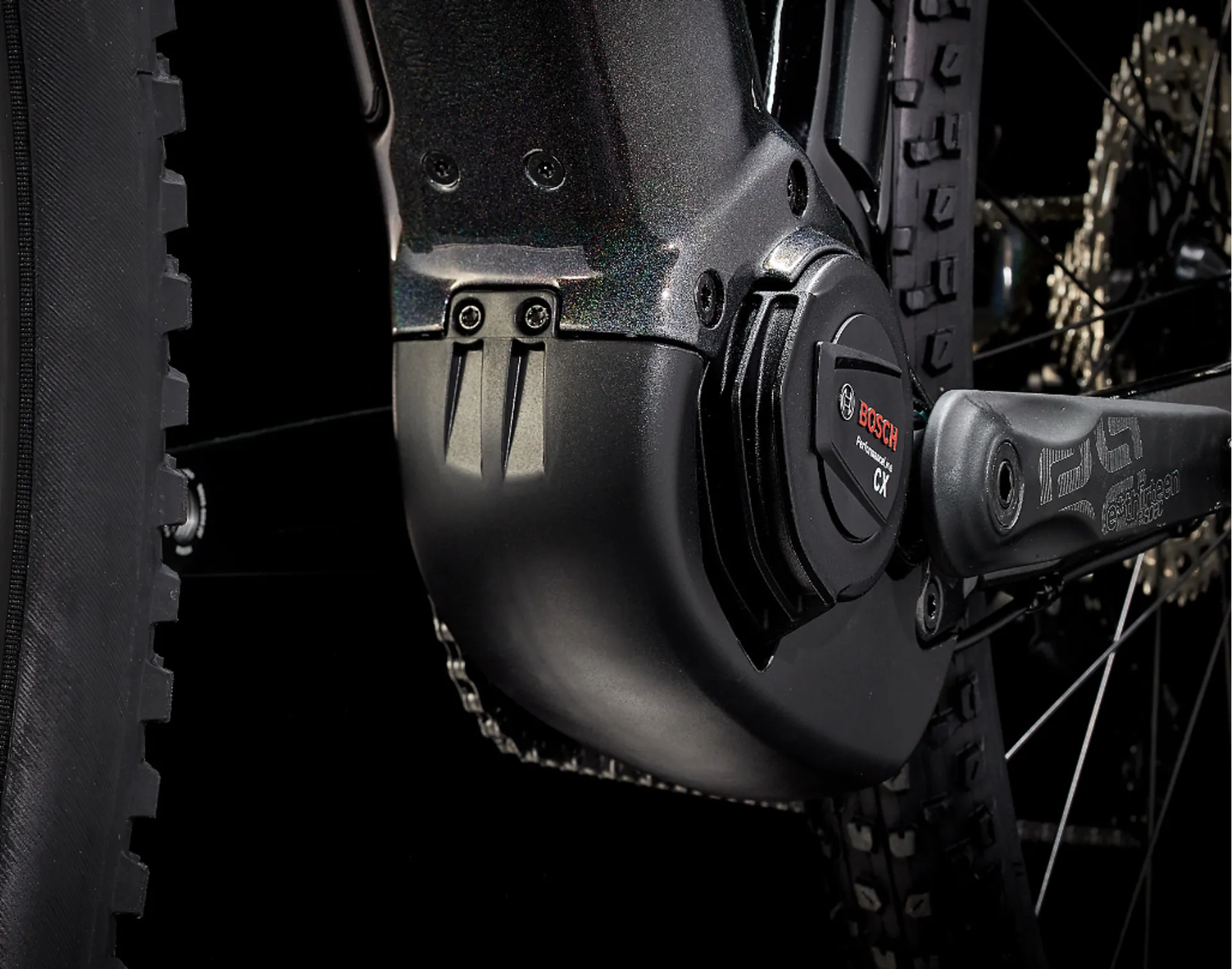

  • Motor:Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 15.5 mph max assist

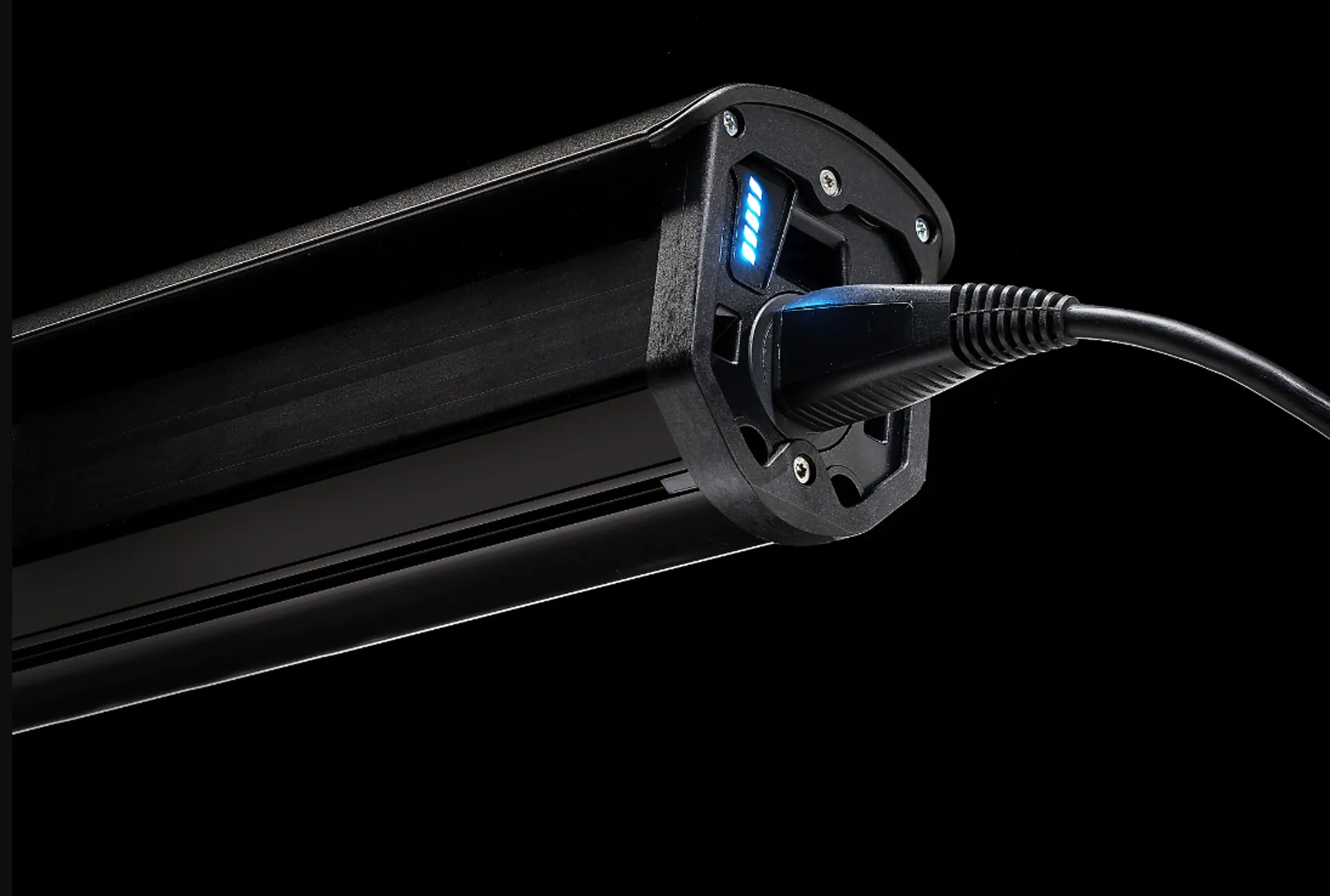

  • Battery:Bosch PowerTube 625, smart system

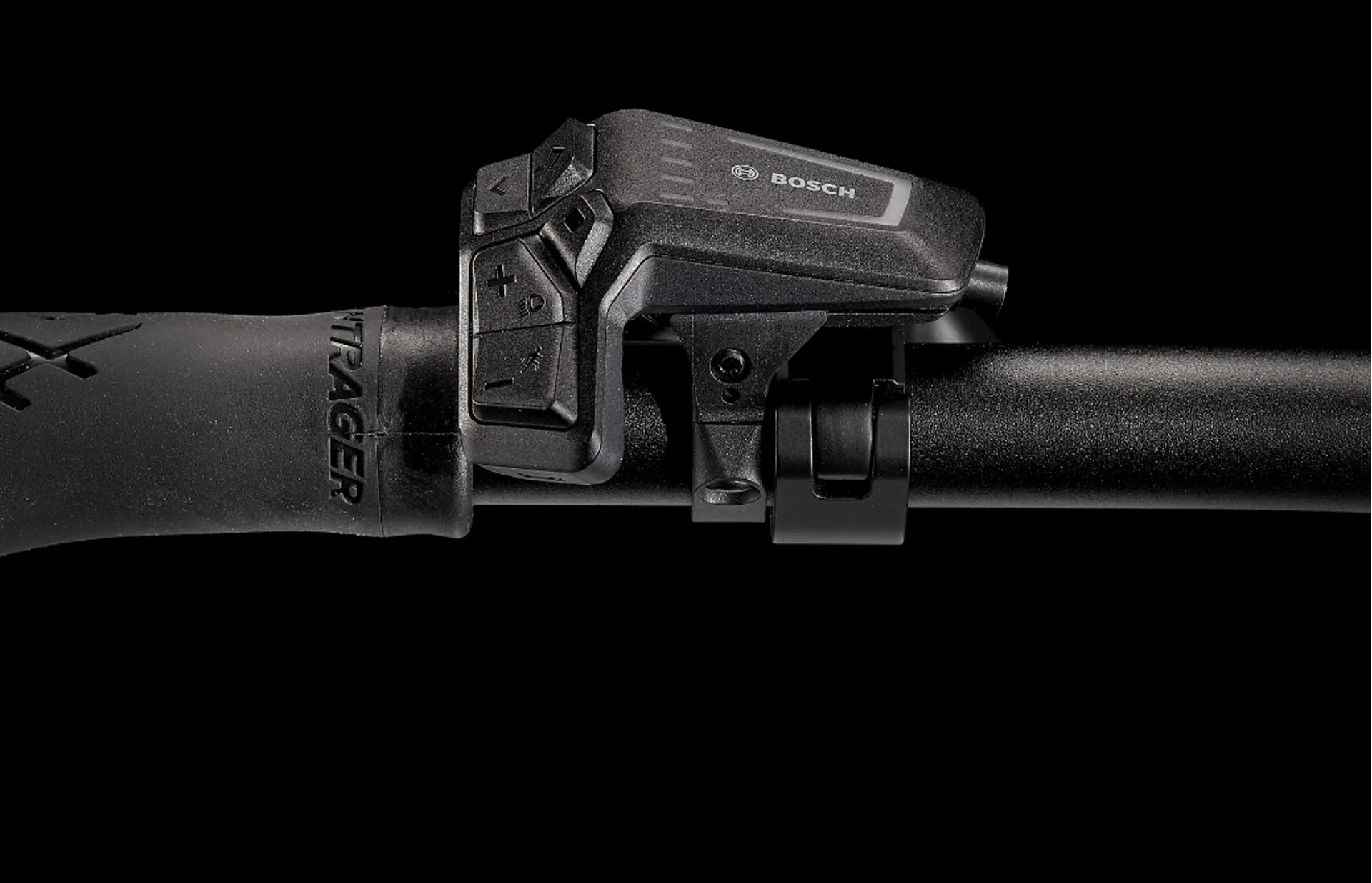

  • Controller:Bosch LED remote, smart system, Bosch Intuvia 100, smart system
  • Charger:Bosch standard 4A, 230V, smart system
  • Number of Gears:12
  • Gear Shifters:Shimano Deore 6100, 12 speed
  • Chainset:E*thirteen E*spec Plus, 34T, 165 mm length
  • Chainrings:34T

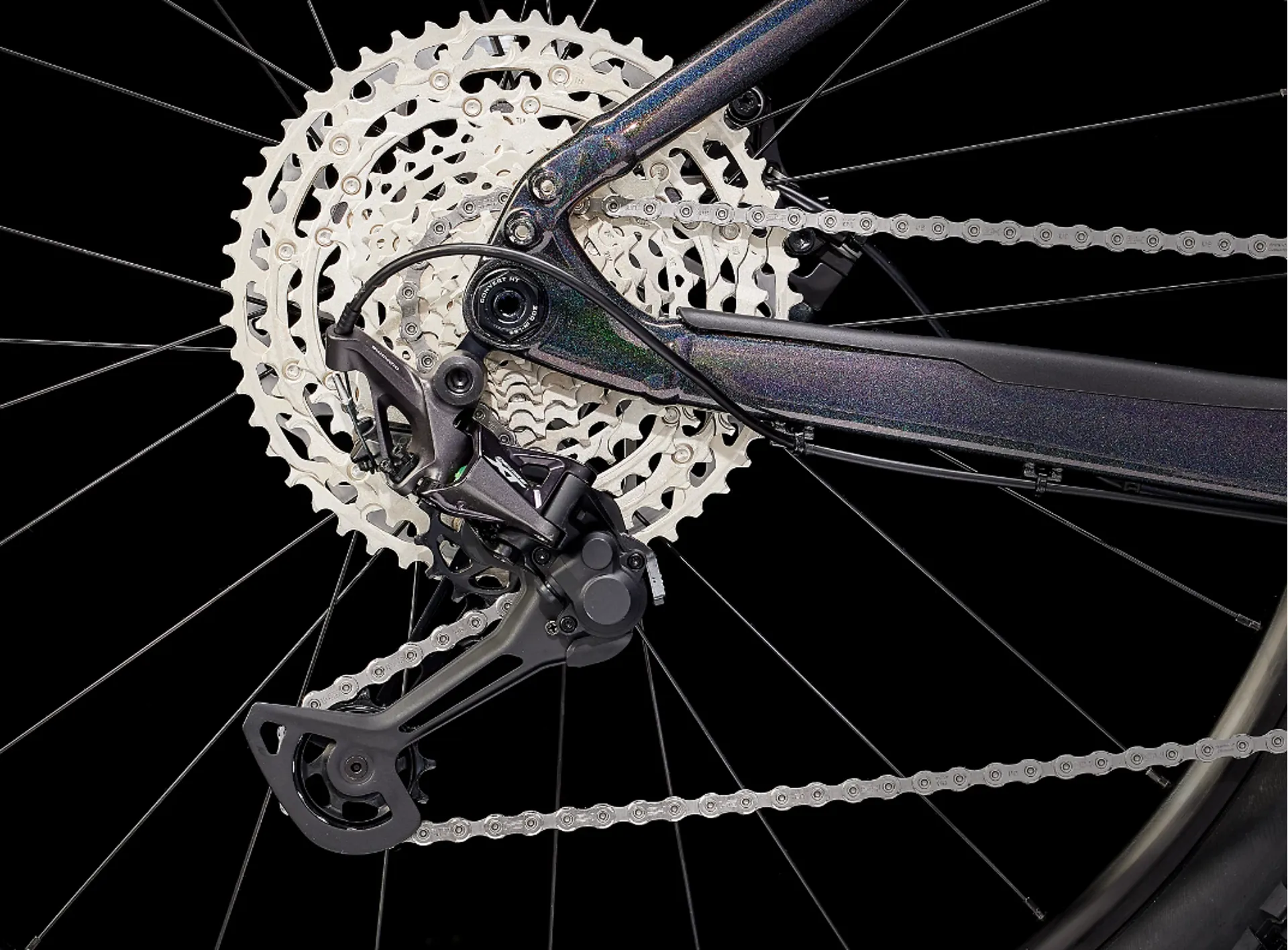

  • Rear Cassette:Shimano Deore 6100, 10-51, 12 speed
  • Chain:Shimano Deore 6100, 12 speed
  • Front Derailleur:N/A
  • Rear Derailleur:Shimano XT M8100, long cage
  • Bottom Bracket:N/A
  • Pedals:VP-536 nylon platform
  • Rims:Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23 mm width, Presta valve
  • Front Hub:ShimanoMT400, CenterLock, Boost110, 15 mm thru-axle
  • Rear Hub:Shimano MT510, CenterLock, Boost148, 12 mm thru-axle

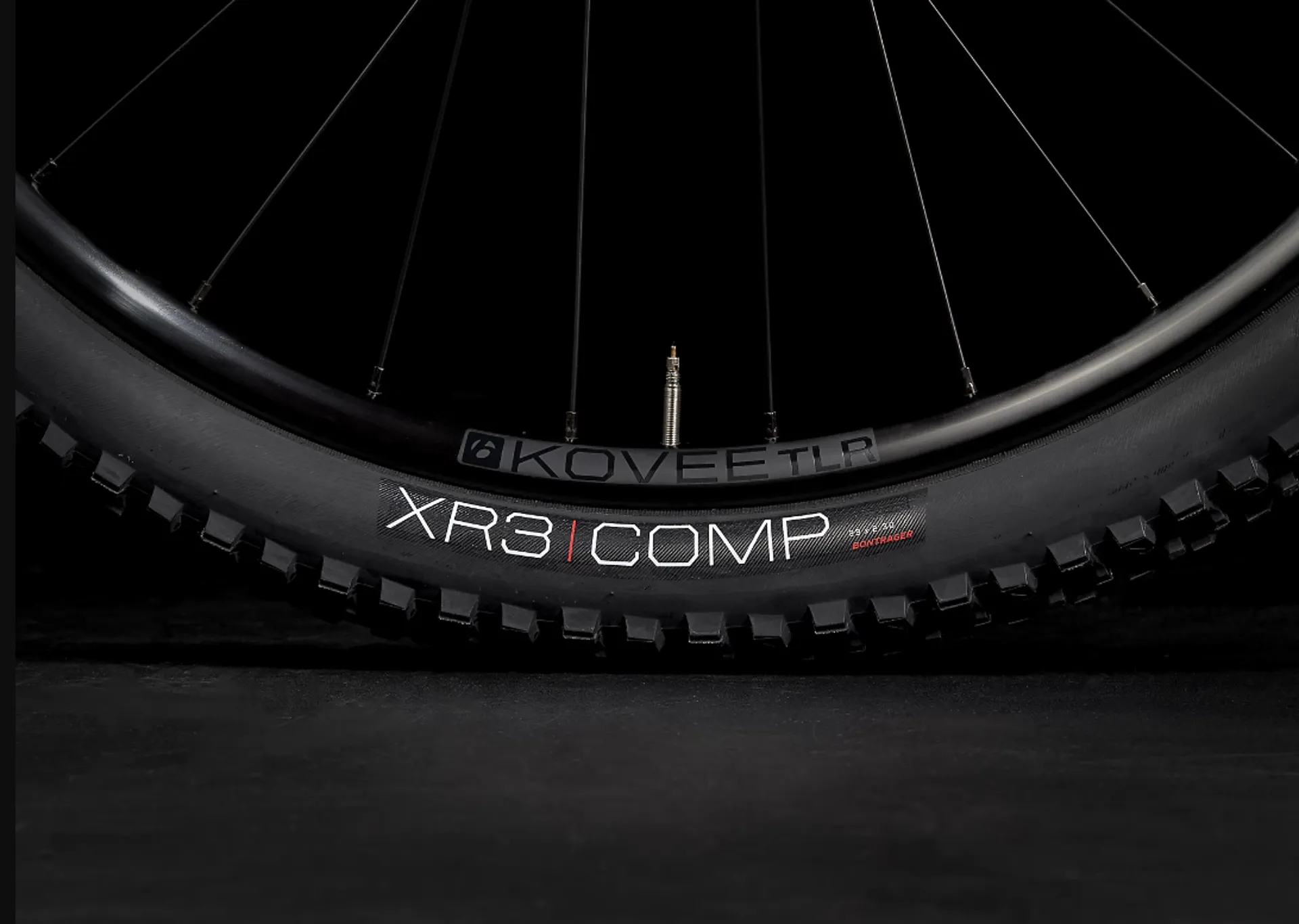

  • Front Tyre:Bontrager XR3 Comp, 29x2.30? (XS - SM: 27.5x2.35?)
  • Rear Tyre:Bontrager XR3 Comp, 29x2.30? (XS - SM: 27.5x2.35?)
  • Brakes:Shimano 4-piston hydrauilc disc, MT4100 lever, MT420 caliper or Tektro HD-M745 4-piston hydraulic disc, Tektro, CentreLock, 180-203 mm size dependent
  • Handlebars:Bontrager alloy, 31.8mm, 15mm rise, 750mm width
  • Grips:Bontrager XR Endurance Comp, lock-on
  • Headset:FSA IS-2, 1-1/8" top, 1.5" bottom
  • Stem:Bontrager comp, 31.8mm, Blendr compatible, 7 degree, 50-70mm length
  • Saddle:Bontrager Commuter Comp, 165mm width
  • Seatpost:Bontrager alloy, 31.6mm, 12mm offset, 330-400mm length
  • Accessories:Bosch standard 4A Charger, 230V, smart system
  • Weight:M - 22.91 kg / 50.5 lbs (with tubes)
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Powerfly Gen 4

SizeRider HeightRider HeightInseamInseam
XS145 - 155 cm4'9" - 5'1"69 - 73 cm27" - 29"
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"

Geometry Information for Powerfly

Frame size number13.515.517.519.521.5
Frame size letterXSSMLXL
Wheel size27.5"27.5"29"29"29"
A — Seat tube36.339.441.94752.1
Effective seat tube angle70.0°71.5°71.7°71.7°71.7°
C — Head tube length1213131416
D — Head angle65.0°67.6°67.7°67.7°67.7°
E — Effective top tube57.959.861.764.167.2
F — Bottom bracket height32.830.732.432.432.4
G — Bottom bracket drop3.74.94.955
H — Chainstay length45.545.545.545.545.5
I — Offset5.
J — Trail11.410.
K — Wheelbase113.5112.5115.5118121.2
L — Standover70.672.179.481.681.8
M — Frame reach35.23940.642.745.2
N — Frame stack62.162.363.964.866.7

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.
