The Trek Rail 9 is Trek's top-of-the-line alloy electric mountain bike with long-travel suspension. It features a suspension set-up and parts worthy of the gnarliest enduro runs.
The Trek Rail 9 is Trek's top-of-the-line alloy electric mountain bike with long-travel suspension. It features a suspension set-up and parts worthy of the gnarliest enduro runs.
Trek

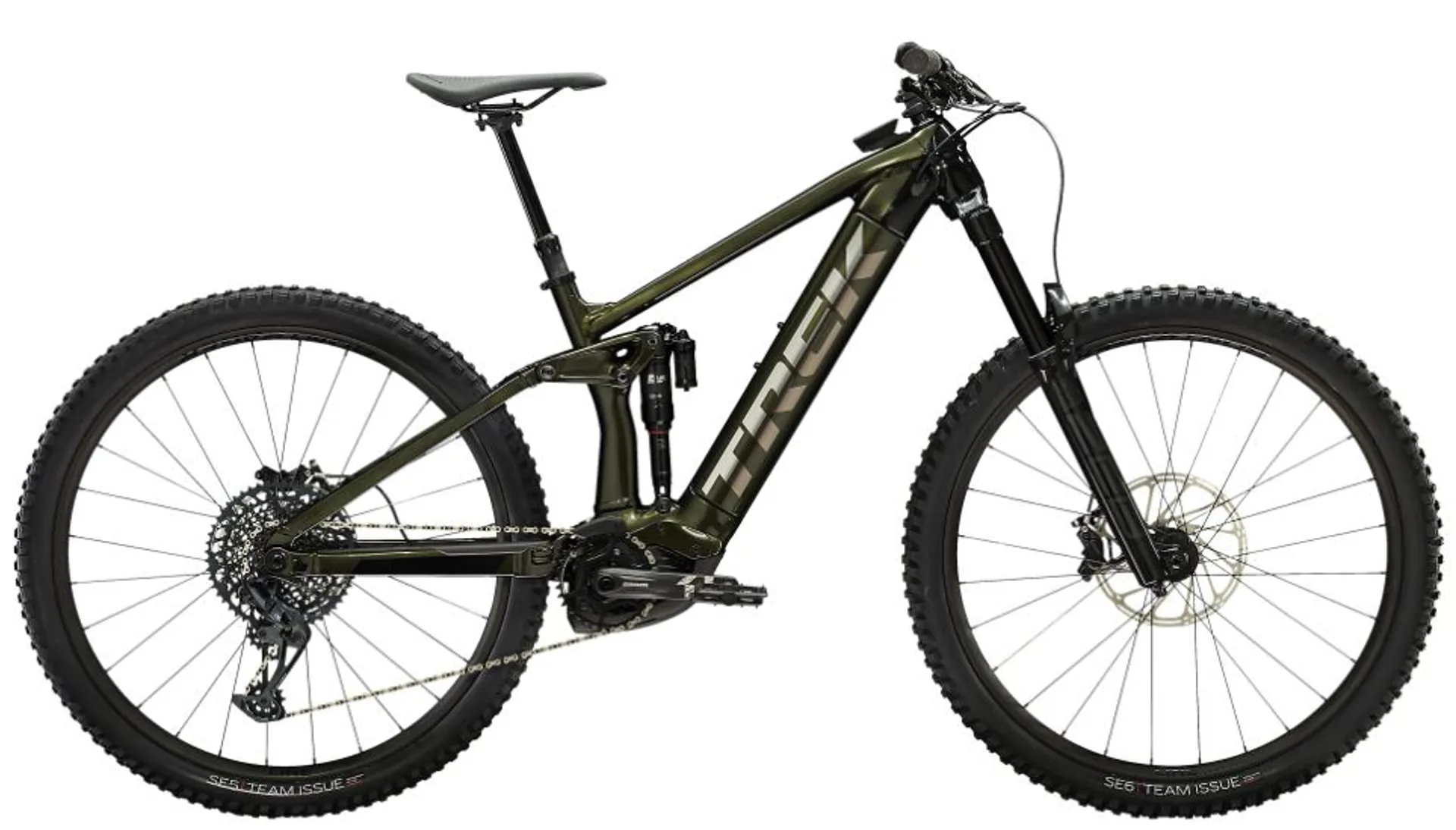

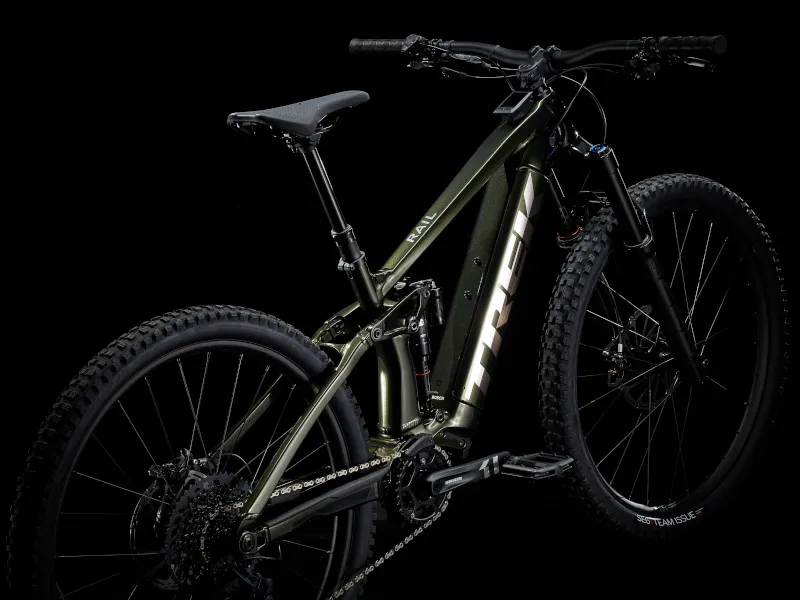

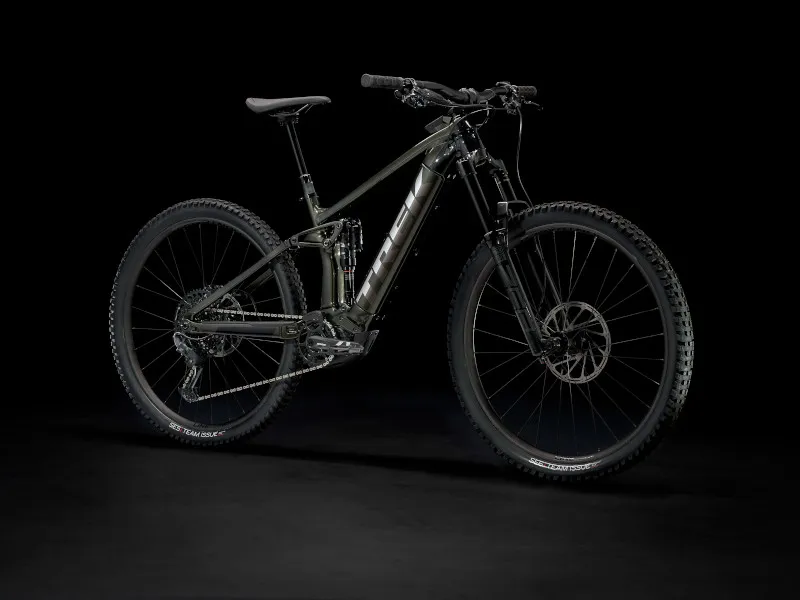

Trek Rail 9 GX 625wh Full Suspension Electric MTB 2022 in Black Olive/Trek Black

£4,145.00 £6,600.00 37% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Rail 9 GX 625wh Full Suspension Electric MTB 2022 in Black Olive/Trek Black

Season:2024

Brand:Trek

Code:35356BLKOLIBLK

The Trek Rail 9 is our top-of-the-line alloy electric mountain bike with long-travel suspension. It features a suspension set-up and parts worthy of the gnarliest enduro runs, and the powerful new Bosch drive system will get you back up the mountain faster than you ever thought possible.

A burly alloy frame that fully encases a 625 Wh battery, a super responsive RockShox ZEB fork with extra-beefy 38 mm stanchions and loads of adjustability, a RockShox Super Deluxe Ultimate shock with an updated Thru Shaft damper, a Bosch Performance Line CX (250 W, 85 Nm) motor that assists up to 20 mph (25 km/h in Europe) and a Kiox controller. An SRAM GX Eagle drive train with extra-low 52-tooth climbing gear, downhill-rated 4-piston brakes for unflinching descents and Bontrager Line Comp 30 29er wheels with robust Bontrager SE5 Team Issue tyres that come completely tubeless-ready, including sealant.

The Rail 9 is Treks top-shelf alloy Rail and features major upgrades to the suspension, drivetrain, dropper and more. If you’re looking for an e-MTB that’s spec’d like our best long-travel trail bikes and shreds just as hard, look no further.

Key Features & Benefits

  • 160mm front and 150mm rear suspension: eats up the rough stuff.
  • New Bosch Performance Line CX motor: is lighter and more powerful.
  • 625Wh integrated battery: will keep you riding for longer.

Full Specification

  • Frame: Alpha Platinum Aluminium, Removable Integrated Battery (RIB), tapered head tube, Control Freak internal routing, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel

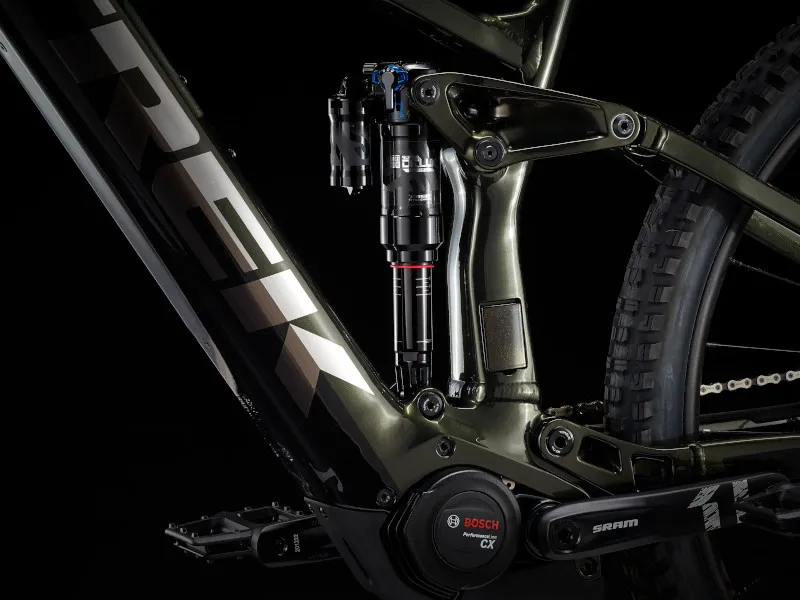

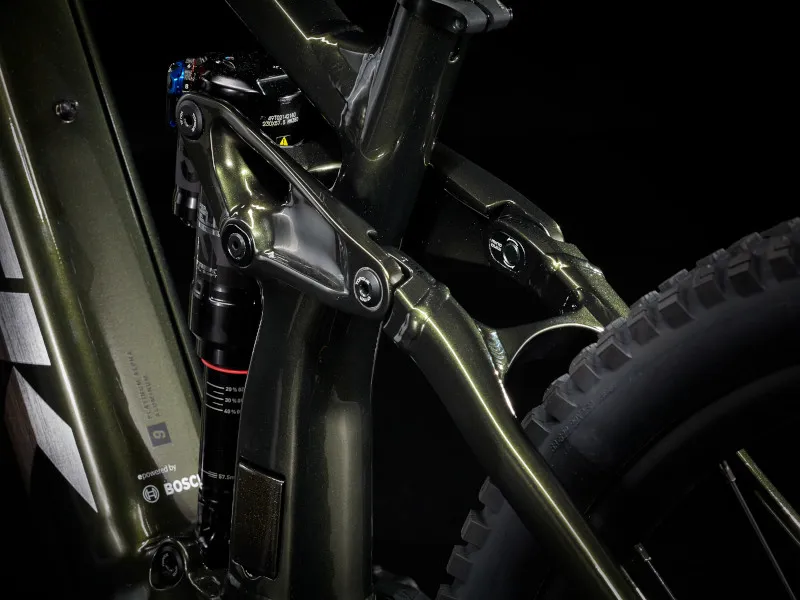

  • Rear Suspension: NEW RockShox Super Deluxe Ultimate RT3, DebonAir spring, Thru Shaft 3-position damper, 230x57.5 mm
  • Fork: RockShox ZEB Select+, DebonAir spring, Charger 2.1 RC damper, eMTB optimised crown, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 160 mm travel

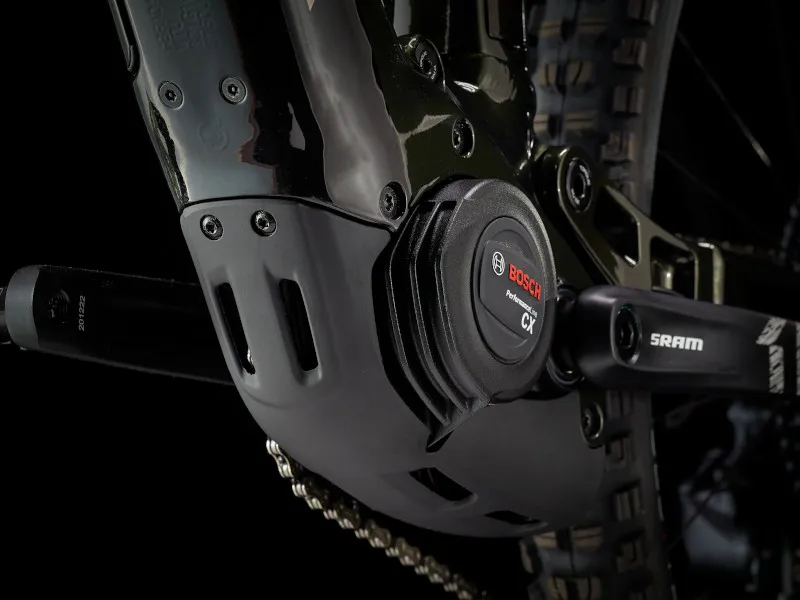

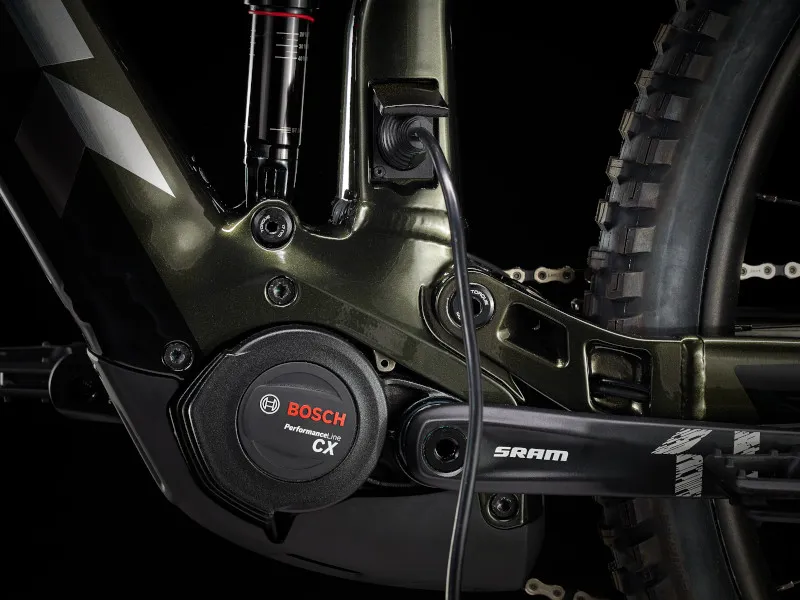

  • Motor: NEW Bosch Performance Line CX, 250 Watt, 85Nm, magnesium body, 15.5 mph / 25 km/h max assist

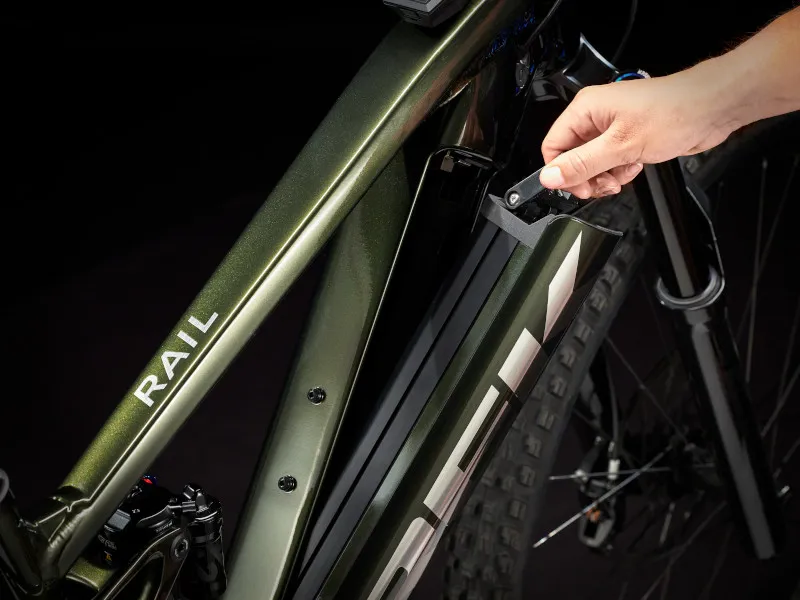

  • Battery: Bosch PowerTube, vertical, 625 wh

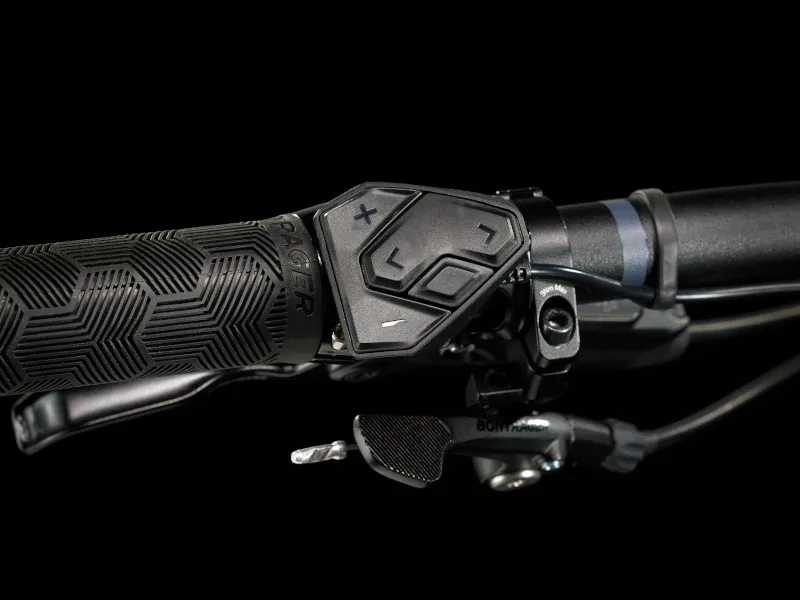

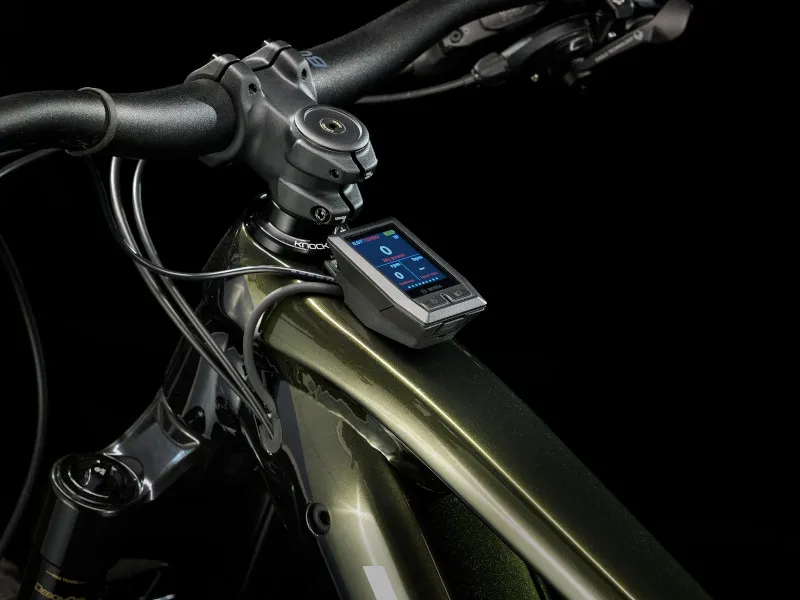

  • Controller: Bosch Kiox
  • Number of Gears: 12
  • Gear Shifters: SRAM GX Eagle, 12-speed
  • Chainset: SRAM X1 1000, 34T, 165 mm length
  • Chainrings: 34T
  • Rear Cassette: SRAM Eagle XG-1275, 10-52, 12-speed
  • Chain: SRAM GX Eagle, 12-speed
  • Front Derailleur: N/A

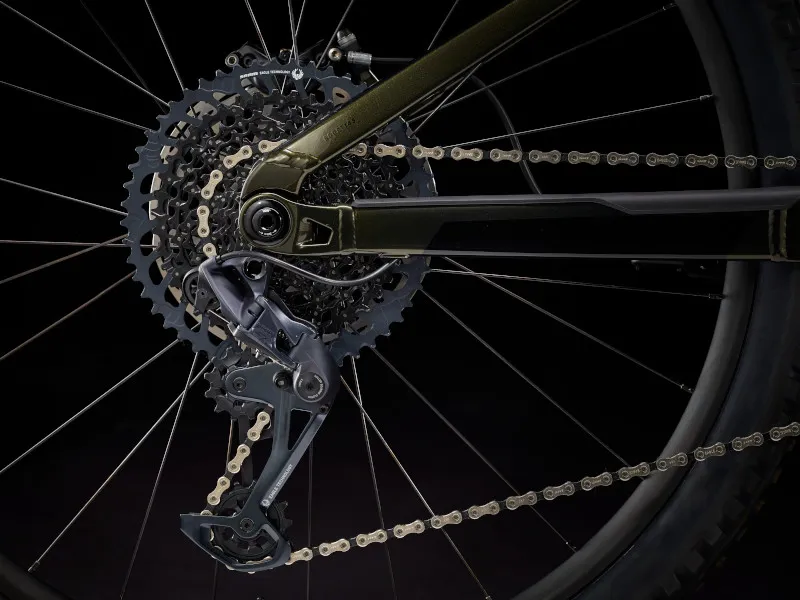

  • Rear Derailleur: SRAM GX Eagle
  • Bottom Bracket: N/A
  • Pedals: VP-536 nylon platform
  • Rims: Bontrager Line 30, Tubeless Ready, 28-hole, Presta valve
  • Front Hub: Bontrager sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru-axle
  • Rear Hub: Bontrager alloy, sealed bearing, 6-bolt, 108T Rapid Drive, SRAM XD driver, Boost148, 12 mm thru-axle

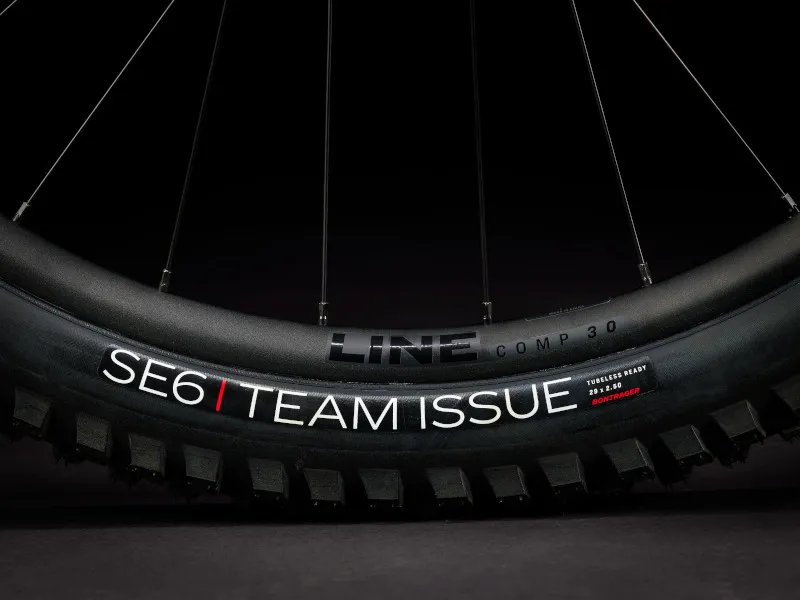

  • Front Tyre: Bontrager SE6 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 TPI, 29x2.50"
  • Rear Tyre: Bontrager SE5 Team Issue, Tubeless Ready, Core Strength sidewalls, aramid bead, 120 TPI, 29x2.50"
  • Brakes: SRAM Code R 4-piston hydraulic disc
  • Handlebars: Bontrager alloy, 35 mm, 15 mm rise 780mm
  • Handlebar Tape: Bontrager XR Trail Comp, lock-on
  • Headset: Knock Block Integrated, cartridge bearing, 1-1/8" top, 1.5"
  • Stem: Bontrager Rhythm Comp, 35 mm, Knock Block, 0-degree
  • Saddle: Bontrager Arvada, steel rails, 138 mm width
  • Seatpost: Bontrager Line Elite Dropper, 100-170 mm travel, MaxFlow, internal routing, 31.6 mm, 340-480 mm length
  • Accessories: N/A
  • Weight: M - 51.63 lbs / 23.42 kg (with TLR sealant, no tubes)

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Trek Rail Electric Bike

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S153 - 1675'0.0" - 5'6.0"72 - 7928.3 - 30.7
M161 - 1755'3.0" - 5'8.9"76 - 8230.3 - 32.7
L174 - 1885'8.9" - 6'2"82 - 8832.3 - 34.6
XL186 - 1966'1.2" - 6'5.6"87 - 9234.3 - 36.6

Geometry Information for Trek Rail with Bosch Smart System

Frame size letterMMLLXLXL
Geometry positionLowHighLowHighLowHigh
Wheel size29"29"29"29"29"29"
A — Seat tube424245455050
B — Seat tube angle70.8°71.2°70.8°71.2°70.8°71.2°
Effective seat tube angle76.7°77.1°76.7°77.1°76.7°77.1°
C — Head tube length111112.512.51414
D — Head angle64.2°64.6°64.2°64.6°64.2°64.6°
E — Effective top tube60.16063.963.867.367.1
F — Bottom bracket height34.134.634.134.634.134.6
G — Bottom bracket drop3.32.73.32.73.32.7
H — Chainstay length44.844.744.844.744.844.7
I — Offset4.34.34.34.34.34.3
J — Trail13.31313.31313.313
K — Wheelbase123.6123.6127.8127.7131.4131.3
L — Standover76.877.376.57776.376.8
M — Frame reach45.245.648.749.151.752.1
N — Frame stack63.362.964.664.36665.6

Geometry Information for Trek Rail Gen 2

Frame size number15.515.517.517.519.519.521.521.5
Frame size letterSSMMLLXLXL
Geometry positionLowHighLowHighLowHighLowHigh
Wheel size29"29"29"29"29"29"29"29"
A — Seat tube4141424245455050
B — Seat tube angle67.6°68.0°67.6°68.0°67.6°68.0°67.6°68.0°
Effective seat tube angle75.0°75.4°75.0°75.4°75.0°75.4°75.0°75.4°
C — Head tube length10.510.510.510.511111212
D — Head angle64.5°64.9°64.5°64.9°64.5°64.9°64.5°64.9°
E — Effective top tube58.858.761.361.163.463.366.666.5
F — Bottom bracket height33.934.433.934.433.934.433.934.4
G — Bottom bracket drop3.52.93.52.93.52.93.52.9
H — Chainstay length44.844.744.844.744.844.744.844.7
I — Offset4.34.34.34.34.34.34.34.3
J — Trail13.112.713.112.713.112.713.112.7
K — Wheelbase119.6119.5122.1122124.3124.3127.8127.7
L — Standover74.374.877.377.876.276.777.578
M — Frame reach4242.544.54546.54749.549.9
N — Frame stack62.662.362.662.26362.763.963.6

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.
