Marin Headlands 1 Gravel Road Bike 2026 in Black
Marin Headlands 1 Gravel Road Bike 2026 in Black
Marin

Marin Headlands 1 Gravel Road Bike 2026 in Silver Red

£2,499.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

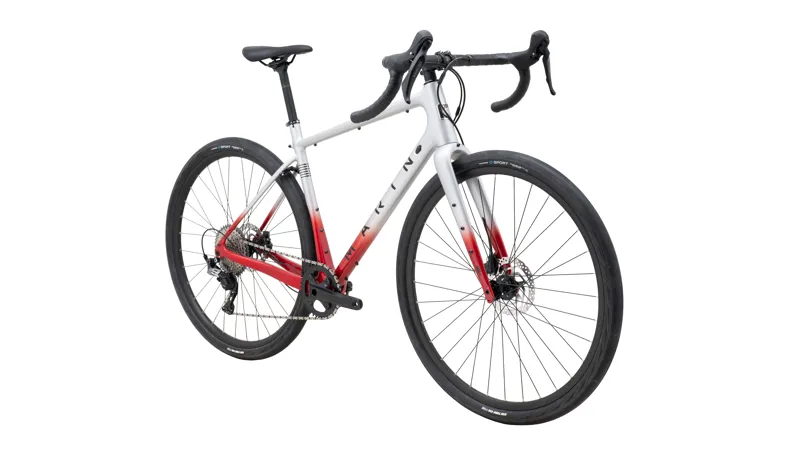

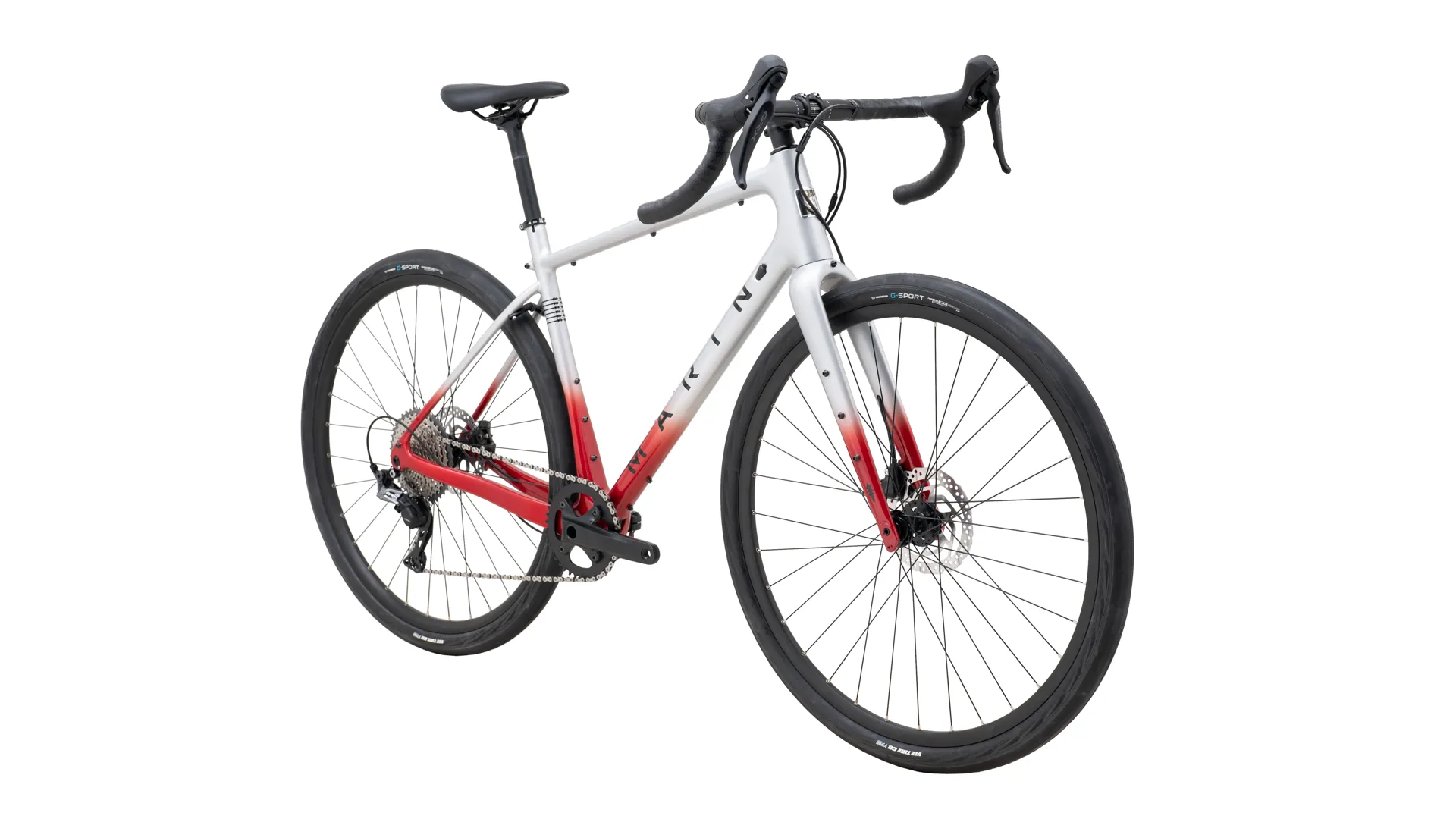

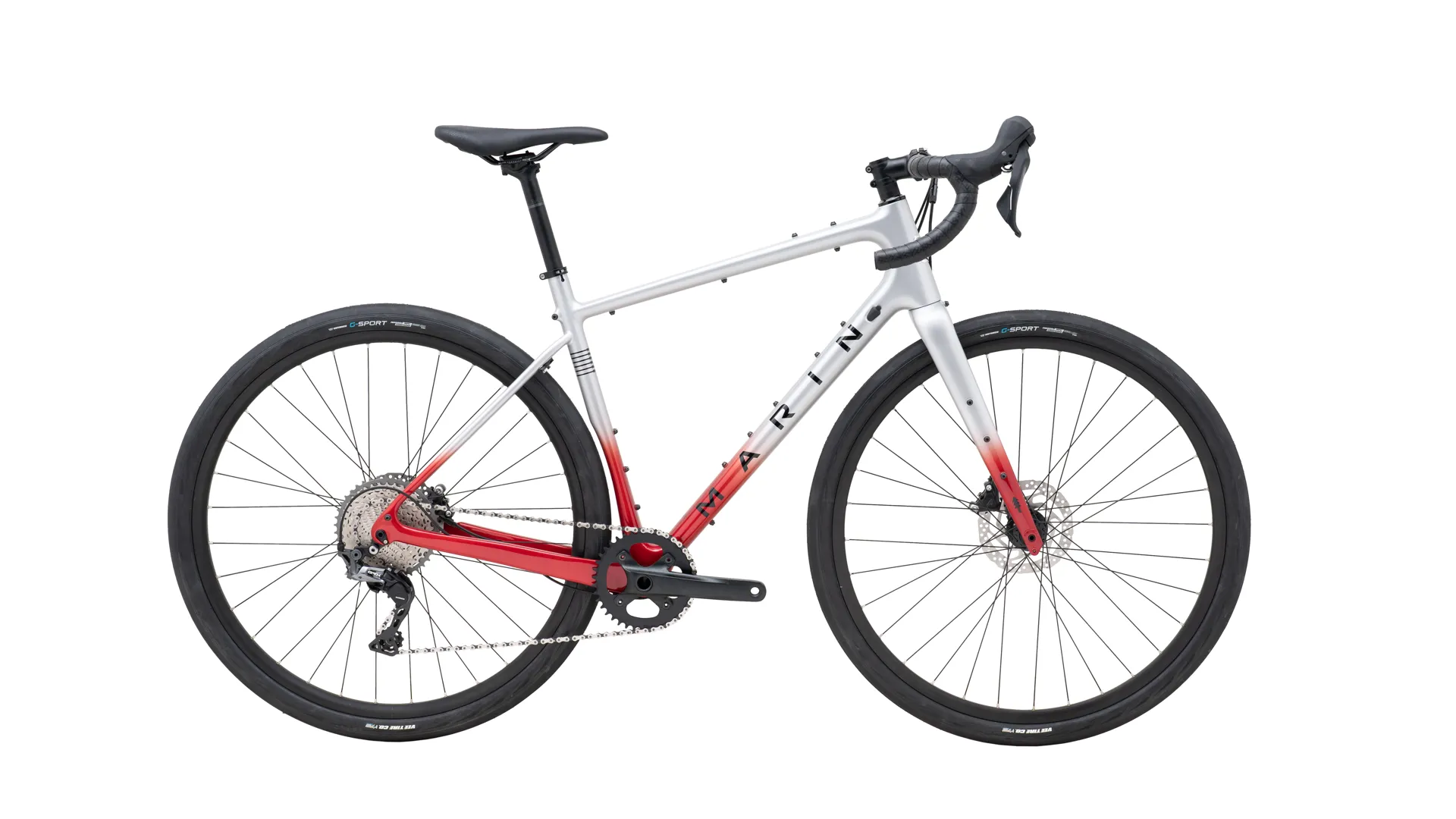

Marin Headlands 1 Gravel Road Bike 2026 in Silver Red

Season:2026

Brand:Marin

Code:2024 - HEADLANDS 1 700C

Fully loaded bikepacking, fast and light off-road adventures, gravel and CX racing… or simply exploring your favorite tracks and trails. The Marin Headlands is a high tech, high-spec carbon fiber gravel and adventure bike that’s made to be lightning-fast, confidence-inspiring and super comfortable on all surfaces.

We’ve taken our own unidirectional carbon fiber frame, added mountain bike-inspired geometry, loads of tire clearance and a whole heap of mounting points for gear and fenders to create a super versatile, super capable all-terrain dart of a bike. Go 700c with room for up to 45mm tires or 650b up to 47mm.

The Marin Headlands 1 offers bags of fun, adventure and performance without the loftier price point of the mighty Headlands 2. Gravel-specific Shimano GRX groupset, GRX hydraulic brakes, Vee Tire Co tires and Marin wheels and finishing kit all add up to a whole mountain of fun and adventure.

ADVENTURE ON AND OFF-ROAD RIDING

LONG DISTANCE COMMUTING

GRAVEL RIDING

Key Features & Benefits

  • Unidirectional carbon fiber frame:With a 42x12mm thru-axle, and multiple frame eyelets for customized hydration and frame bag needs.
  • Powerful Disc brakes:For minimal maintenance and all-conditions stopping power.
  • Adventure ready tyre clearance:The Headlands was designed with clearance for up to 700Cx45 or 650Bx50 tires to handle even the roughest “roads.”

Full Specification

  • Frame:Unidirectional Carbon Beyond Road Platform, 1x Drivetrain Specific, 700c x 45mm/650B x 50mm Compatible, Flat Mount Disc, 142x12mm Thru-Axle, Internal Dropper Post Routing, Internal Housing Routing, Mudguard and Rear Carrier Mounting, Plentiful Gear Mounts
  • Fork:Marin Full Carbon w/ Tapered Steerer, 12mm Thru-Axle, Flat-Mount Disc, Fender Eyelets
  • Number of Gears:11
  • Gear Shifters:Shimano GRX RX600
  • Chainset:Forged Alloy 1x11, Hollow CrMo Spindle, Narrow Wide 40T
  • Chainrings:40T
  • Rear Cassette:Shimano CS-M700 11-Speed, 11-42T
  • Chain:KMC X11
  • Front Derailleur:N/A
  • Rear Derailleur:Shimano GRX RDX812 Shadow Plus w/ Clutch
  • Bottom Bracket:External Sealed Cartridge Bearings
  • Pedals:Not supplied:Shop pedals here
  • Rims:Marin Aluminum Double Wall, 21mm Inner, 21mm Tall, Disc Specific, Tubeless Compatible
  • Front Hub:Forged Aluminum Alloy, 32H
  • Rear Hub:ForgedAluminum Alloy, 32H
  • Front Tyre:Vee Tire Co., G-Sport, 700Cx44, Tubeless Compatible
  • Rear Tyre:Vee Tire Co., G-Sport, 700Cx44, Tubeless Compatible
  • Brakes:Shimano GRX Hydraulic Disc, 160mm Rotors
  • Handlebar Grips:Marin Shock Absorbing Tape
  • Handlebar:Marin Butted Alloy, Compact 16º Flared Drop
  • Headset:FSA Orbit IS, Sealed Cartridge Bearings, 1 1/8” x 1 1/2”
  • Stem:Marin 3D Forged Alloy
  • Saddle:Marin Beyond Road Concept Elite
  • Seatpost:Marin Alloy, 27.2mm
  • Accessories:Bolt-On Thru-Axles F and R
  • Weight:N/A

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Sizing Chart for Marin Headlands

SizeRider height range
49cm4'11" - 5'3"
52cm5'3" - 5'6"
54cm5'6" - 5'9"
56cm5'9" - 6'
58cm6' - 6'2"
60cm6'2" - 6'5"

Geometry Information for Marin Headlands

495254565860
ASTACK550.3565.7581.8600.8619.7638.7
BREACH370372.8372.7386.4411.4425.8
CHEAD TUBE ANGLE70.5°71°71.5°71.5°71.5°71.5°
DHEAD TUBE LENGTH120135150170190210
ESEAT TUBE ANGLE74.5°74°73.5°73.5°73.5°73.5°
FSEAT TUBE LENGTH440470490510530550
GTOP TUBE EFFECTIVE522535545565595615
HBB HEIGHT283.5272272272272272
IBB DROP767676767676
JCHAIN STAY420420420420420420
KWHEEL BASE1010.21007.41007.71028.51059.21079.9
LSTAND OVER HEIGHT711725741758775792
MFORK OFFSET505050505050
SEATPOST DIAMETER27.227.227.227.227.227.2
HANDLEBAR WIDTH420420420440440440
STEM LENGTH606060607070
CRANK LENGTH170170175175175175

Warranty Information for Marin:

Marin Mountain Bikes, Inc. ("Marin") warrants to the original retail purchaser ("you") that the Marin product for which you received this warranty is free from defects in material and workmanship for the periods below

FRAMES WARRANTY PERIOD (From date of purchase)
Carbon Fiber Frames and Forks: 5 Years
Rigid Frames and Forks: Lifetime
Full Suspension Frames: 5 Years
COMPLETE BICYCLE
The complete bicycle is warranted for one year (from date of purchase), including all original parts on the bicycle except tires, tubes, chains and other wear & tear items. Paint and decals are covered under this warranty.
This warranty does NOT cover suspension forks, and rear shocks on full suspension bikes. These items are covered by the suspension component manufacturer’s warranty. Please contact the suspension component manufacturer for any warranty needs.
For full warranty policy please visit marinbikes.com
