Mondraker Arid Carbon RR gravel bike with SRAM Force XPLR AXS 13-speed drivetrain and Zipp 303 XPLR carbon wheels.
Mondraker Arid Carbon RR gravel bike with SRAM Force XPLR AXS 13-speed drivetrain and Zipp 303 XPLR carbon wheels.
Mondraker

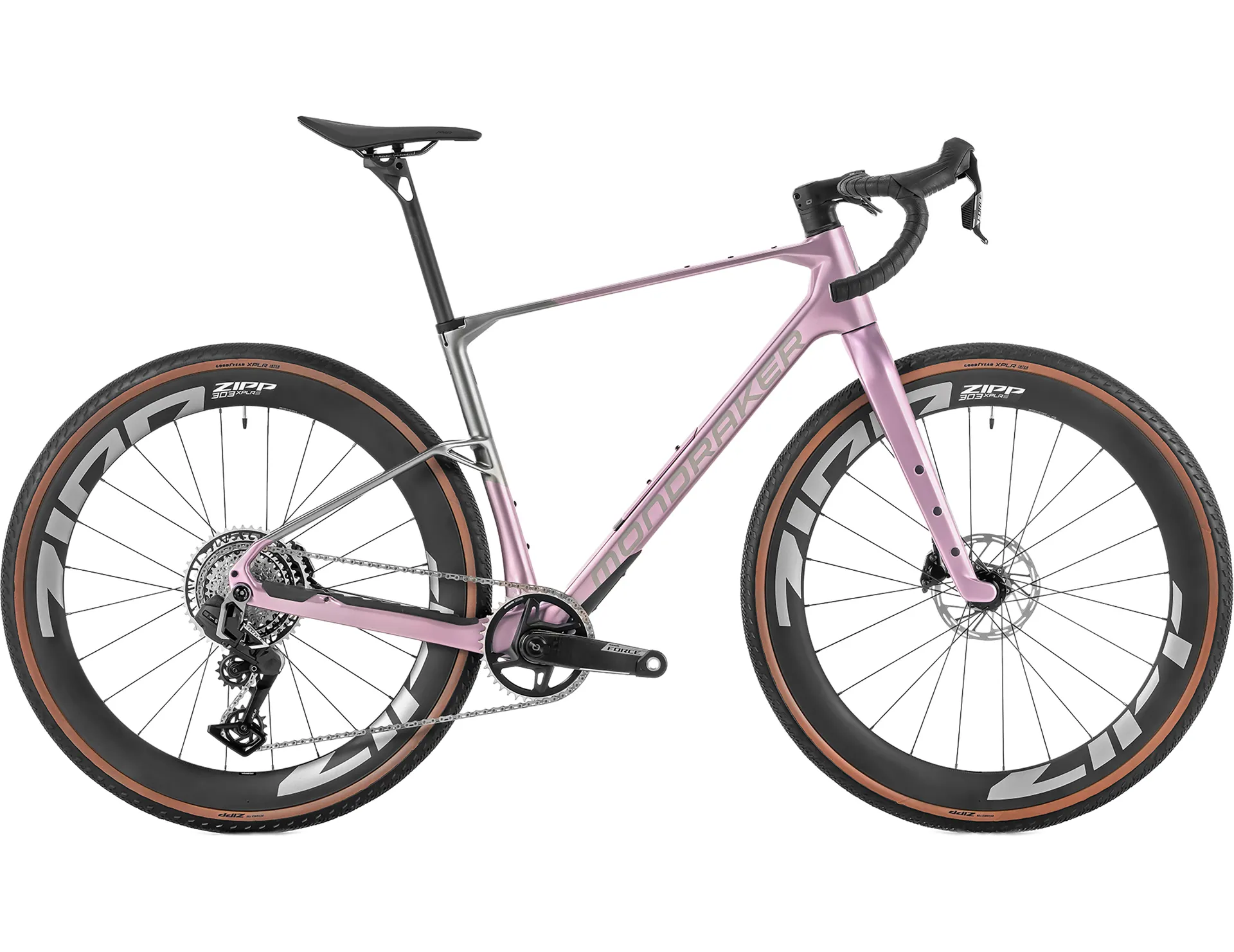

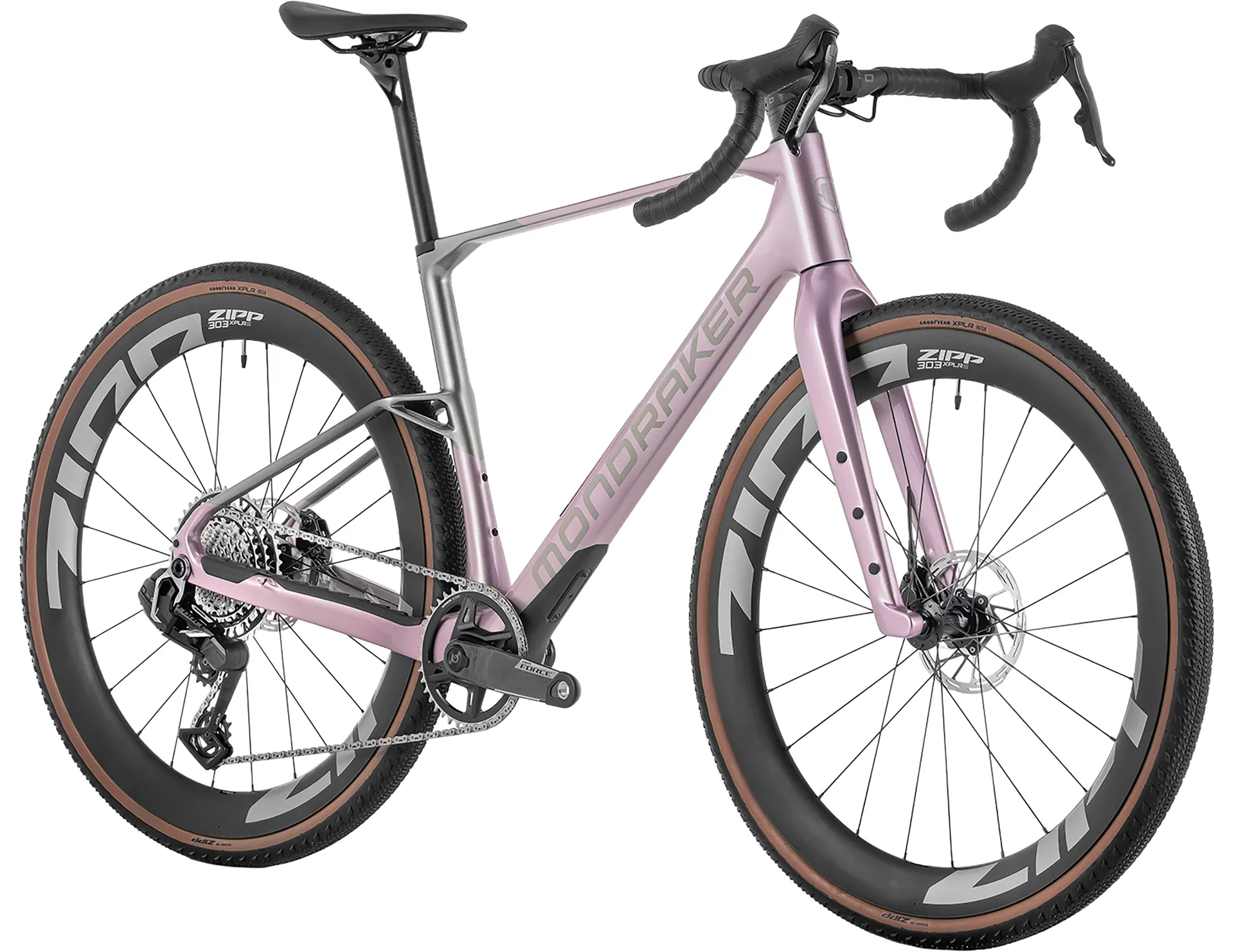

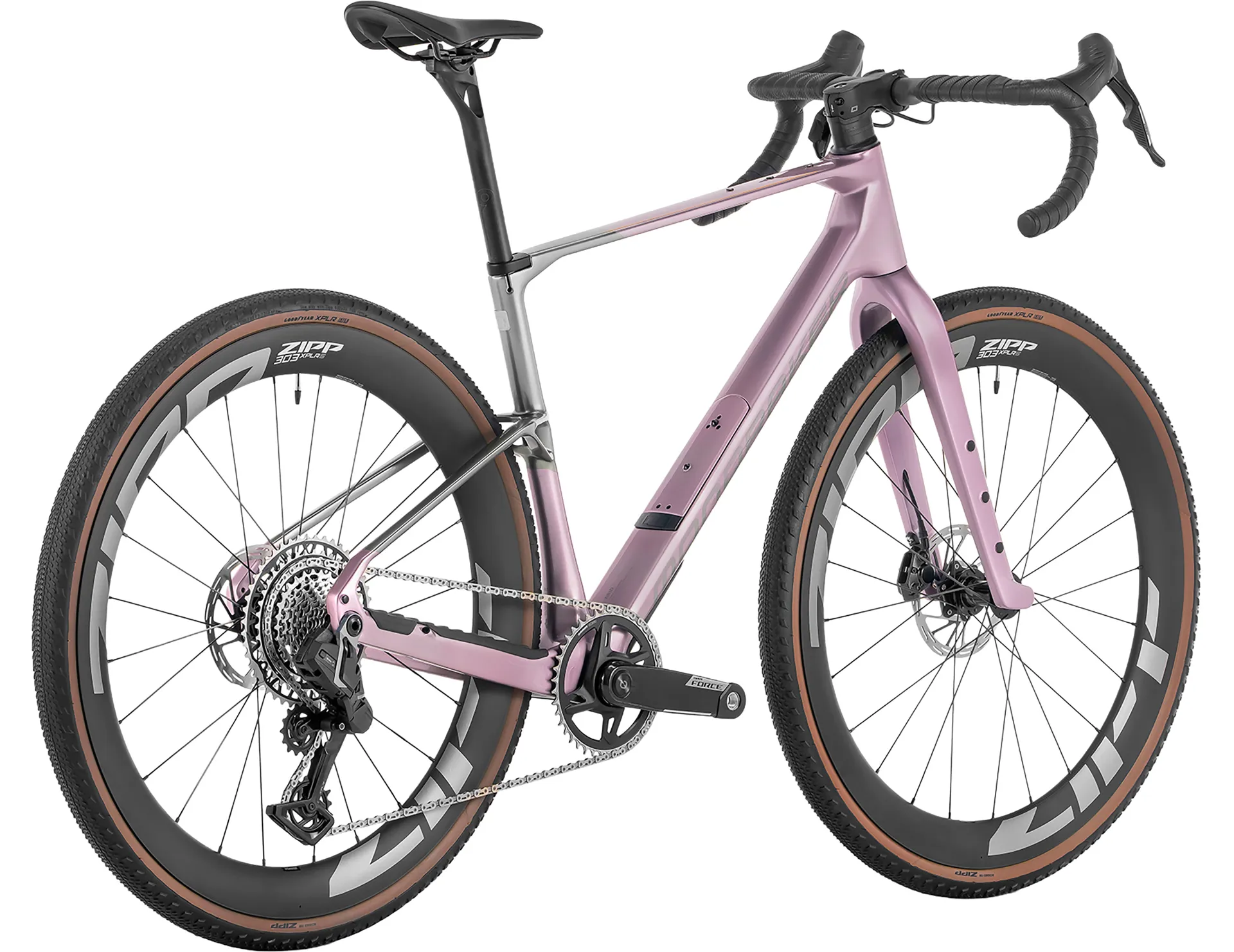

Mondraker ARID CARBON RR Carbon Gravel Bike 2027 in Mirage Silver

£5,799.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Mondraker ARID CARBON RR Carbon Gravel Bike 2027 in Mirage Silver

Season:2027

Brand:Mondraker

Code:ARID CARBON RR Pink/Grey

The Mondraker Arid Carbon RR is a high-performance gravel bike designed to combine race-level speed with exceptional comfort and versatility across demanding terrain. Built around Mondraker’s elite Stealth Air Carbon frame, it delivers an impressive balance of stiffness, compliance, and control for riders tackling everything from fast gravel races to long-distance adventure rides.

Its advanced carbon construction has been carefully engineered to maximise pedalling efficiency while increasing vertical compliance for improved comfort and traction on rough terrain. Combined with Mondraker’s Forward Geometry, the Arid Carbon RR delivers stable handling and confident control at speed while remaining highly responsive under acceleration.

The SRAM Force XPLR AXS 13-speed wireless drivetrain with integrated power meter provides smooth electronic shifting and a huge gear range for steep climbs and fast gravel sections. Zipp 303 XPLR S carbon wheels, integrated in-frame storage, and generous tyre clearance for up to 50mm tyres complete a highly capable gravel bike built for riders who want premium performance and versatility without compromise.

Key Features & Benefits:

  • Advanced Carbon Gravel Frame: Stealth Air Carbon construction delivers lightweight efficiency, responsive handling, and impressive comfort.
  • Wireless Gravel Performance: SRAM Force XPLR AXS 13-speed drivetrain provides smooth electronic shifting and wide-range gearing.
  • Adventure Ready Versatility: Integrated storage, multiple mounting points, and clearance for up to 50mm tyres maximise capability.

Full Specification:

  • Frame: Arid Stealth Air Carbon, in-tube storage, T47 bottom bracket, tapered head tube, HHG internal cable routing, 12x142mm rear axle, UDH, 1x drivetrain design, Flatmount brake compatible
  • Fork: Stealth Air Carbon fork with tapered steerer tube, HHG internal cable routing, Flatmount integrated fork
  • Number of Gears: 13
  • Gear Shifters: SRAM Force AXS HRD, 13-speed
  • Chainset: SRAM Force XPLR AXS Carbon with power meter, DUB Wide axle. S/M: 165mm, ML: 170mm, L/XL: 172.5mm
  • Chainrings: SRAM 40T direct mount alloy narrow-wide
  • Rear Cassette: SRAM XG-1371, 10-46T, 13-speed
  • Chain: SRAM Force Flattop, 13-speed, PowerLock
  • Front Derailleur: None
  • Rear Derailleur: SRAM Force XPLR AXS, 13-speed
  • Bottom Bracket: SRAM DUB T47 BSA, sealed bearings, 85.5mm
  • Pedals: Not supplied — Shop Pedals Here
  • Rims: Zipp 303 XPLR S carbon, 32mm internal width, 54mm rim depth, hookless, 24 spokes
  • Front Hub: ZR1 Disc Brake, 12x100mm, Centre Lock
  • Rear Hub: ZR1 Disc Brake, 12x142mm, XDR 3-pawl leaf spring system, Centre Lock, XDR freehub
  • Front Tyre: Goodyear XPLR Inter 700x45
  • Rear Tyre: Goodyear XPLR Inter 700x45
  • Brakes: SRAM Force AXS HRD hydraulic disc brakes with Paceline 160mm Centre Lock rotors
  • Handlebars: Onoff S9 GR Carbon with 16º flare. S/M: 420mm, ML: 440mm, L/XL: 460mm
  • Handlebar Tape: Onoff HEX bartape
  • Stem: Onoff Semi-Integrated, -7º rise. S: 60mm, M/ML: 70mm, L: 80mm, XL: 90mm
  • Saddle: Fizik Vento Argo X5, 140mm
  • Seatpost: Onoff S9 Carbon 15-R, 27.2mm diameter. S/M/ML: 400mm, L/XL: 450mm
  • Accessories: Carry-On in-frame storage system, multiple bottle and cargo mounting points
  • Weight: 8.8kg

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.



Sizing Chart for Mondraker Arid

Mondraker Arid Size Guide

Geometry Information for Mondraker Arid

Arid Frame Geometry

Frame size
SMM/LLXL
ASeattube length410 mm450 mm480 mm510 mm540 mm
BToptube length520 mm550 mm580 mm600 mm630 mm
CBottom bracket drop-75-75-75-75-75
DBottom bracket height269 mm269 mm269 mm269 mm269 mm
EChainstay length425 mm425 mm425 mm425 mm425 mm
FSeat tube angle73°73°73°73°73°
GEffective seattube angle74°74°74°74°74°
HHeadtube angle70°70°70°70°70°
IFork Offset45 mm45 mm45 mm45 mm45 mm
JWheelbase1003 mm1035 mm1067 mm1089 mm1121 mm
KHeadtube length100 mm125 mm145 mm175 mm200 mm
LReach363 mm386 mm411 mm423 mm446 mm
MStack548 mm572 mm591 mm619 mm642 mm
NStem Length60 mm70 mm70 mm80 mm90 mm
OFork Height420 mm420 mm420 mm420 mm420 mm

Warranty Information for Mondraker:

Mondraker offers an extended lifetime warranty for all its frames against defects in materials or manufacturing. Exclusions and terms apply.
It should be emphasised that each bicycle/frame has a life-cycle which will vary depending on the type of material and its construction. This life-cycle may be shortened by the form and type of use, or lack of appropriate maintenance and care. The lifetime warranty will therefore be entirely dependent on the optimal life-cycle determined by Mondraker for each specific Product.

The Avinox drive system (motor, battery, display, and charger) comes with a 2-year warranty starting from the activation date, covering up to 500 charge cycles. Exclusions and terms apply.

All warranty claims for Mondraker components or original parts will be handled through an authorised Mondraker distribution point, and the original commercial invoice must be provided.

Mondraker points of sale will handle the warranty of third-party manufacturers' components, with each manufacturer being responsible for the warranty of its components used in the product.

For Full Terms and Conditions Visit Mondrakers Website
