Mahon Style Plus SO M Bronzit Metallic
Mahon Style Plus SO M Bronzit Metallic
Diamant

Diamant Mahon Style Plus Stepover Hybrid Bike 2026 in Bronze

£1,275.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Diamant Mahon Style Plus Stepover Hybrid Bike 2026 in Bronze

Season:2026

Brand:Diamant

Code:49638ORG

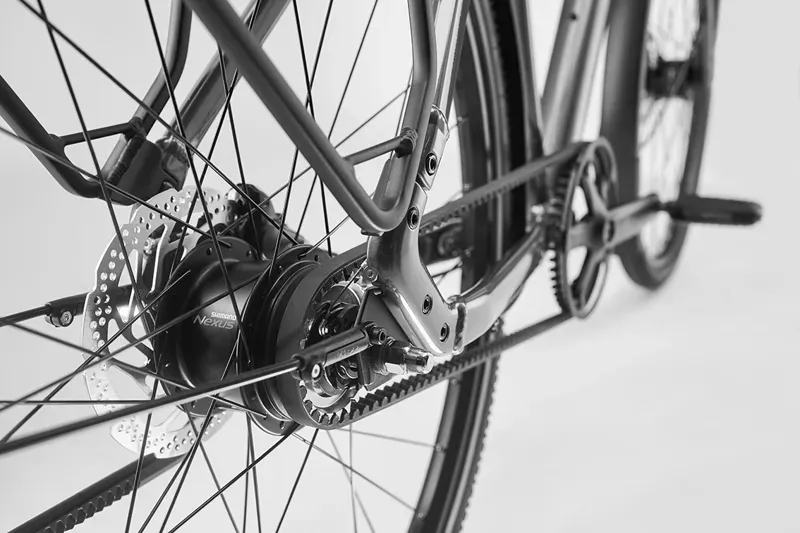

The Mahon is based on our Clever-Frame technology. This allows us to offer a variety of options with just one frame. Each Mahon is a complete trekking® bike for sporty riders that you can easily customize and upgrade. As Style Plus, the Mahon stands out with its particularly clean, modern look featuring a low-maintenance belt drive, weather-resistant hub gear, and the Clever Rack by Diamant.

Key Features & Benefits:

  • Equipped trekking Bike:The Mahon can be flexibly upgraded and customized throughout its life using Clever-Frame technology.
  • Hydraulic Disc Brakes:Reliable braking performance to keep you in control, whatever the weather.
  • 8-speed Nexus Gates Belt:Almost maintenance-free carbon belt drive with reliable Shimano Hub gears.

Full Specification:

  • Frame:Alpha Smooth Aluminum, internal cable routing, post-mount disc, replaceable dropouts, belt split, ringlock mount
  • Fork:Alloy disc touring with accessory mounts, 100x5 mm ThruSkew
  • Number of Gears:8
  • Gear Shifters:Shimano Nexus Revo, 8-speed
  • Chainset:Gates CDN for Belt, 50T, 170 mm length, L, XL, XXL: 175mm
  • Chainrings:Gates
  • Rear Cassette:Gates CDC CentreTrack, 24T
  • Chain:Shimano SLX M7100, 12-speed
  • Front Derailleur:N/A
  • Rear Derailleur:Shimano GRX RX822, long cage
  • Bottom Bracket:N/A
  • Pedals:Bontrager City pedals
  • Rims:Bontrager Connection, double-wall, 32-hole, 20 mm width, Presta valve
  • Front Hub:Shimano dynamo hub, DH-3D72, 6V, 3W, 100 mm QR
  • Rear Hub:Shimano Nexus, 8-speed, internal gear hub
  • Front Tyre:Bontrager Girona Comp, sub tread puncture protection, Black Sidewall, Reflective stripe, 700x42C, made with recycled content
  • Rear Tyre:Bontrager Girona Comp, sub tread puncture protection, Black Sidewall, Reflective stripe, 700x42C, made with recycled content
  • Brakes:Shimano MT200 hydraulic disc, Shimano SM-RT30, CentreLock, 160 mm
  • Handlebars:Alloy lowriser, 31.8 mm, 25 mm rise, 11-degree backsweep, 690 mm width
  • Handlebar Grips:Herrmans Clik, ergonomic, lock-on
  • Headset:FSA Integrated, sealed cartridge bearing, 1-1/8" top, 1.5" bottom
  • Stem:Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 - 100 mm length
  • Saddle:Selle Royal Vivo Moderate Ergo
  • Seatpost:Bontrager alloy, 31.6 mm, 12 mm offset, 330 mm length
  • Front Light:Herrmans Nordic MR5, 100 lumen, LED, with stand light function
  • Rear Light:Spanninga Pimento Large, with standard light function
  • Rack:MIK-compatible alloy rear rack, maximum load 25 kg
  • Mudguard:SKS plastic
  • Kickstand:Pletscher Comp Flex 40 kickstand
  • Weight:L - 14.70 kg / 32 lbs 6.56 oz
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Diamant Nhoma and Mahon

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
S155 – 1655’1″ – 5’5″72 - 7828 - 31
M165 - 1755’5″ – 5’9”77 - 8330 - 33
L175 – 1865’9” – 6’1″82 - 8832 - 35
XL186 – 1976’1” – 6’5″87 - 9334 - 37
XXL197 – 2036’6” – 6’8″92 - 9536 - 37

Geometry Information Diamant Nhoma and Mahon

Frame size number50cm54cm58cm62cm
Frame size letterMLXLXXL
Wheel size29"29"29"29"
A —Seat tube50545862
B —Seat tube angle73.0°73.0°73.0°73.0°
C —Head tube length14.5172020
D —Head angle69.0°69.0°69.0°69.0°
E —Effective top tube58.259.76263.3
F —Bottom bracket height29.129.129.129.1
G —Bottom bracket drop7777
H —Chainstay length46.846.846.846.8
I —Offset4.54.54.54.5
J —Trail9999
K —Wheelbase111.7113.4115.8117.1
L —Standover78.982.486.387.4
M —Frame reach38.539.340.742
N —Frame stack57.559.862.662.6

Geometry Information Diamant Mahon Mid-Step

Frame size number45cm50cm55cm
Frame size letterSML
Wheel size29"29"29"
A — Seat tube455055
B — Seat tube angle73.0°73.0°73.0°
C — Head tube length12.514.517
D — Head angle69.0°69.0°69.0°
E — Effective top tube57.358.259.8
F — Bottom bracket height29.129.129.1
G — Bottom bracket drop777
H — Chainstay length46.846.846.8
I — Offset4.54.54.5
J — Trail999
K — Wheelbase110.6111.7113.4
L — Standover63.564.565.1
M — Frame reach38.238.539.4
N — Frame stack55.657.459.8

Warranty Information for Diamant:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
