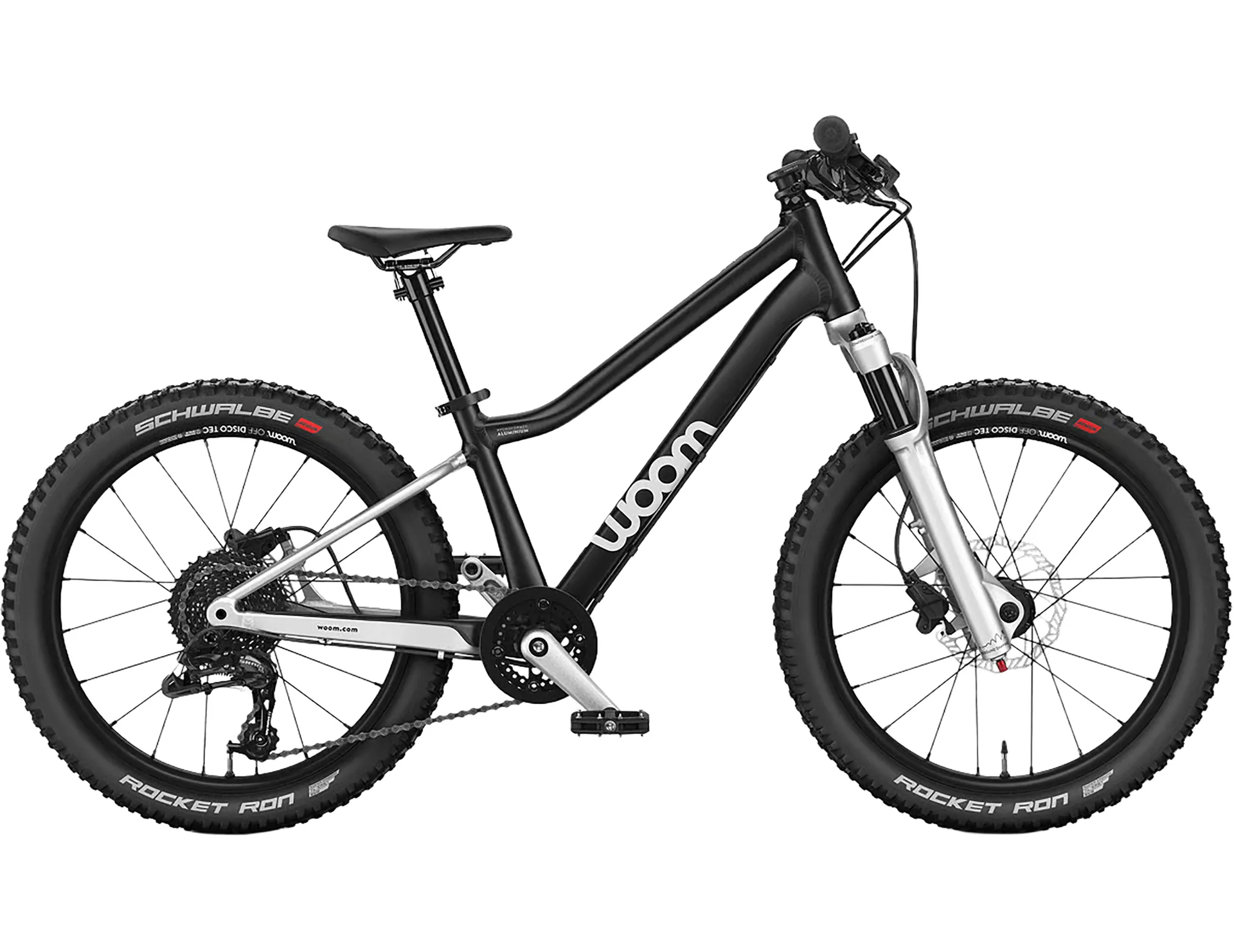

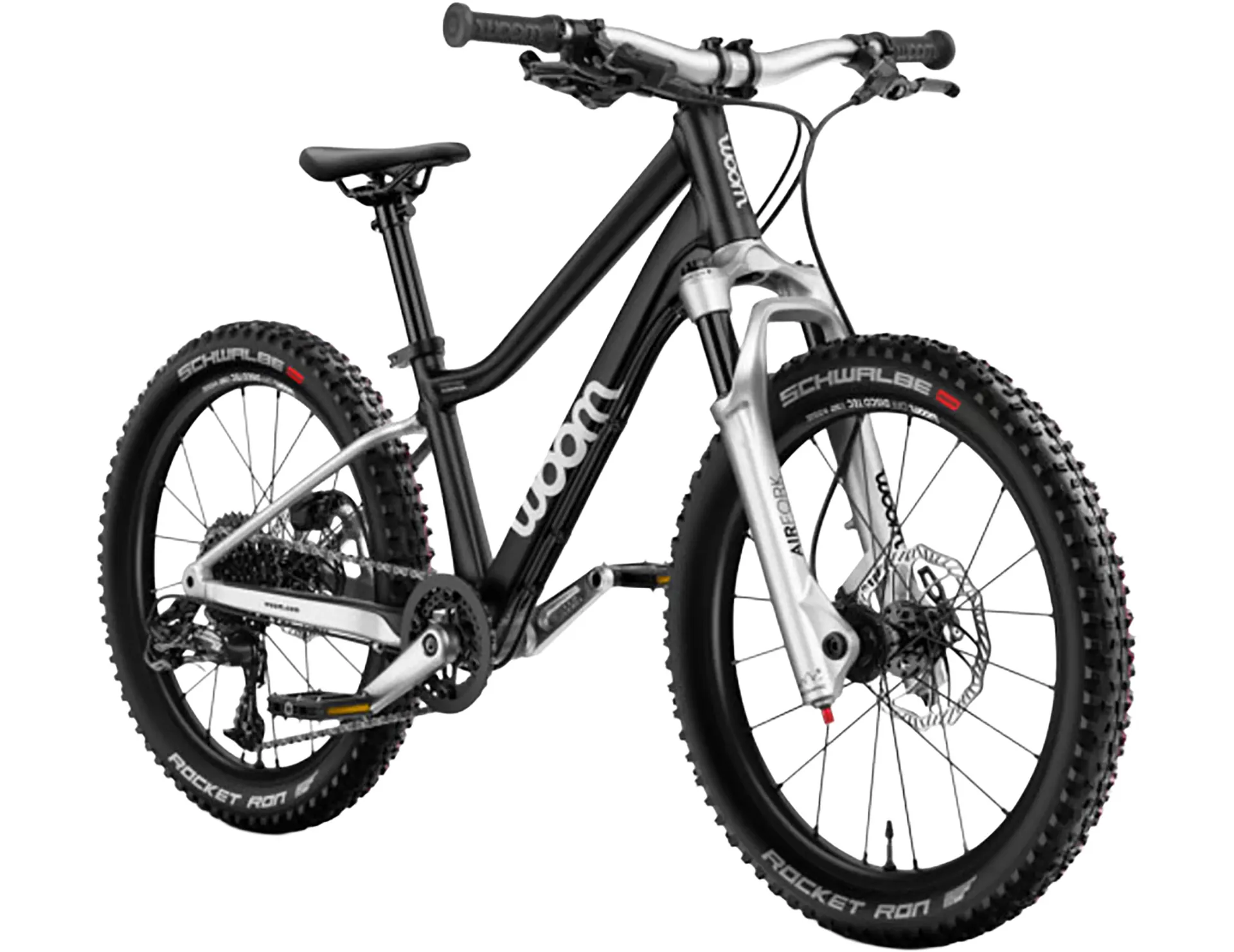

The woom OFF AIR 4 is built around child-specific trail geometry for young riders progressing beyond everyday paths and onto proper off-road terrain. Its lightweight 6061 T6 aluminium frame uses a low top tube, low centre of gravity and long wheelbase to promote confidence and control.
An RST air-sprung fork with 60mm of travel adds front suspension for rougher trails, with rebound and compression adjustment plus lockout. Nine-speed SRAM X5 gearing and a 11-32T cassette give useful range for climbing and changing terrain.
Promax hydraulic disc brakes use child-specific levers for controlled braking, while wide aluminium bars, a flip-flop stem and an MTB-specific saddle support a purposeful trail position. The tubeless-ready wheelset and durable platform pedals are designed for active off-road use.
Features & Benefits:
- Trail-Specific Handling: Child-specific geometry and 20in wheels are designed to balance stability, manoeuvrability and confidence off road.
- Adjustable Air Suspension: The RST air fork offers 60mm travel with rebound, compression and lockout adjustment for rougher trails.
- Controlled Gearing and Braking: Nine-speed SRAM X5 gearing pairs with Promax hydraulic disc brakes for dependable climbing range and speed control.
Full Specification:
- Frame: Lightweight 6061 T6 aluminium with butted and hydroformed tubes; 20in wheels
- Fork: RST aluminium air-sprung suspension fork; 60mm travel; rebound and compression adjustment; lockout; 100 x 15mm thru-axle
- Number of Gears: 9

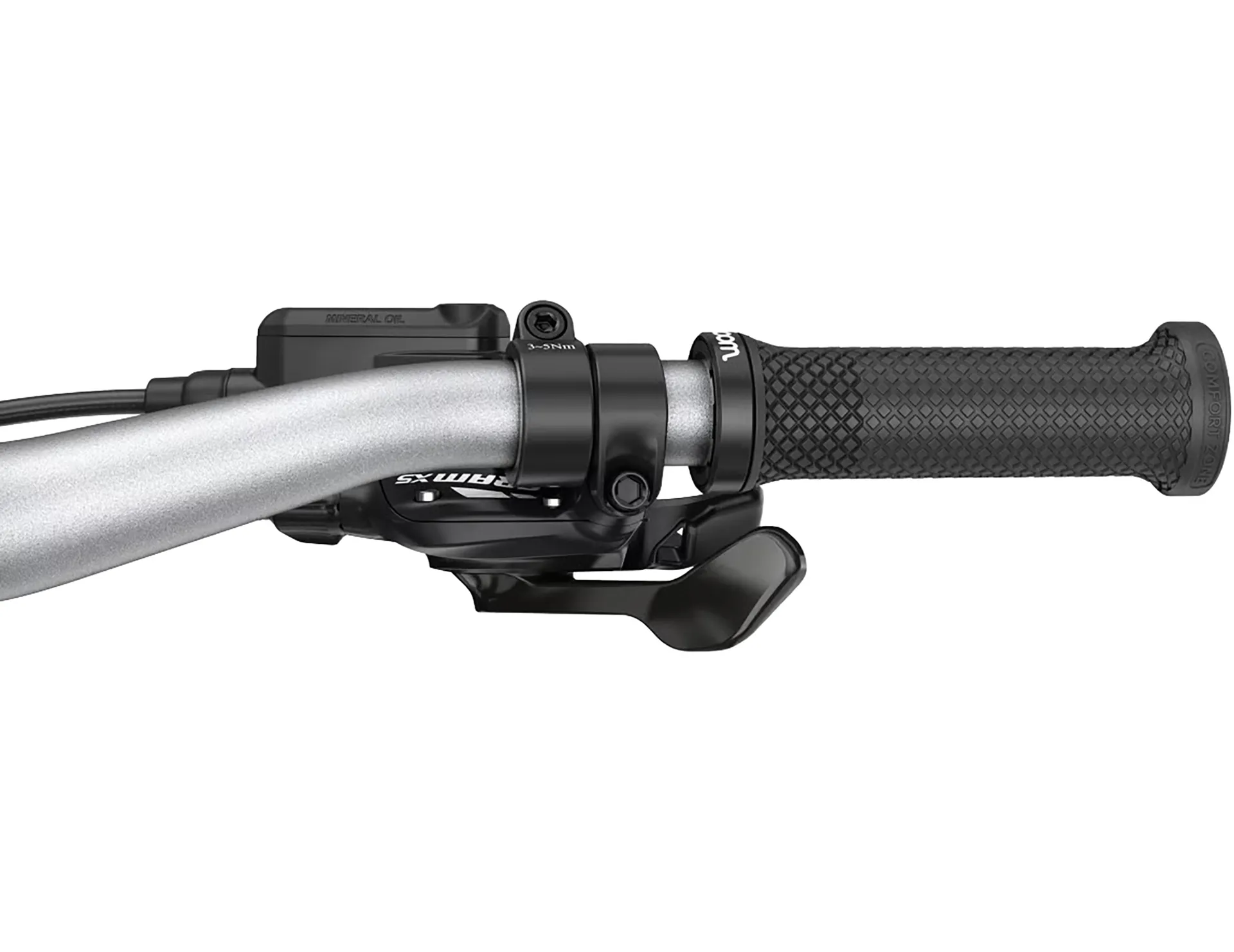

- Gear Shifters: SRAM X5 trigger shifter
- Chainset: Forged aluminium cranks; 110mm; narrow Q-factor
- Chainrings: 28T narrow-wide
- Rear Cassette: 11-32T

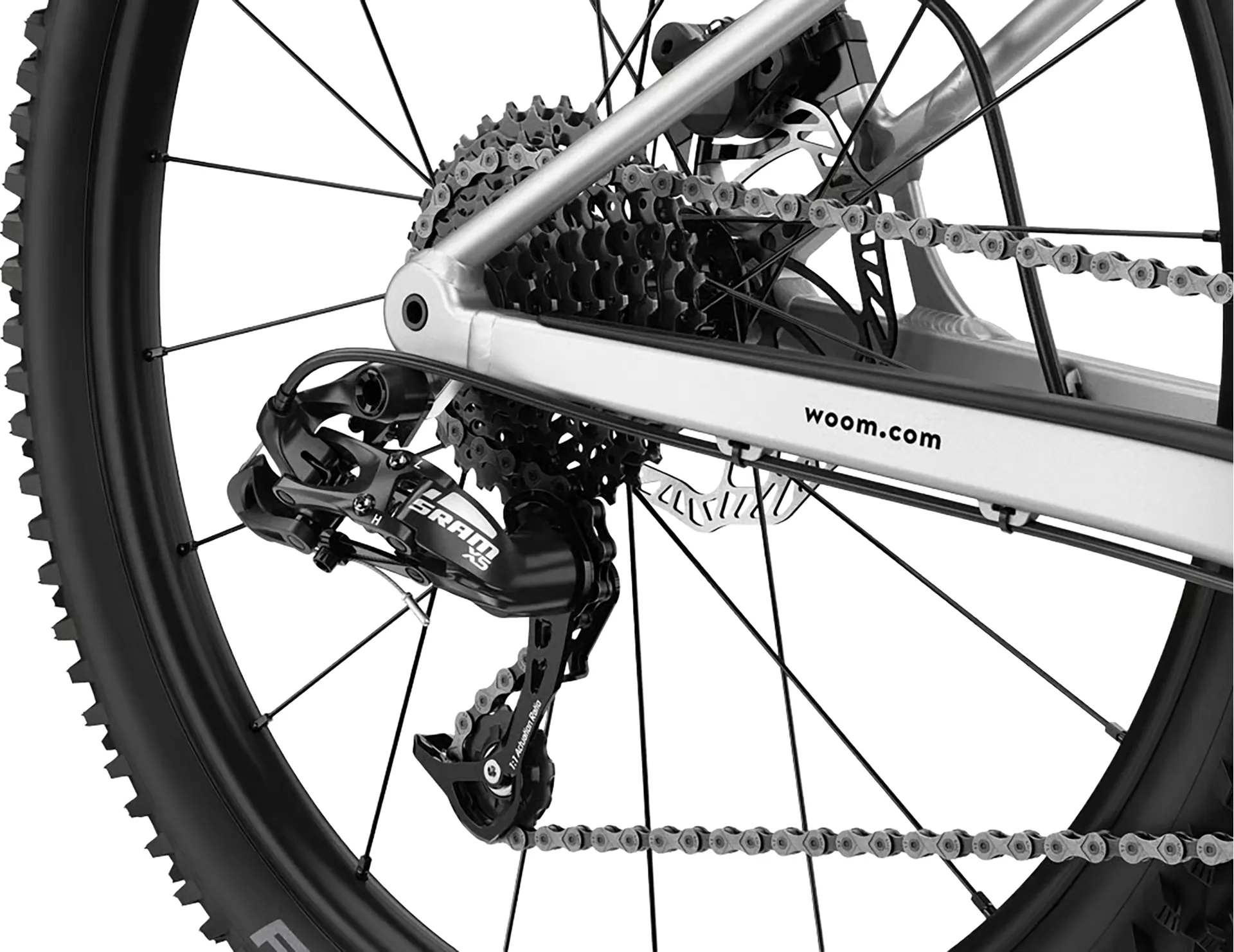

- Rear Derailleur: SRAM X5
- Pedals: Fibre-reinforced nylon platform pedals with metal pins
- Rims: Tubeless-ready Alexrims aluminium rims; 20 spokes
- Front Hub: Aluminium hub with sealed bearings; 100 x 15mm thru-axle
- Rear Hub: Aluminium hub with sealed bearings; 135 x 12mm thru-axle

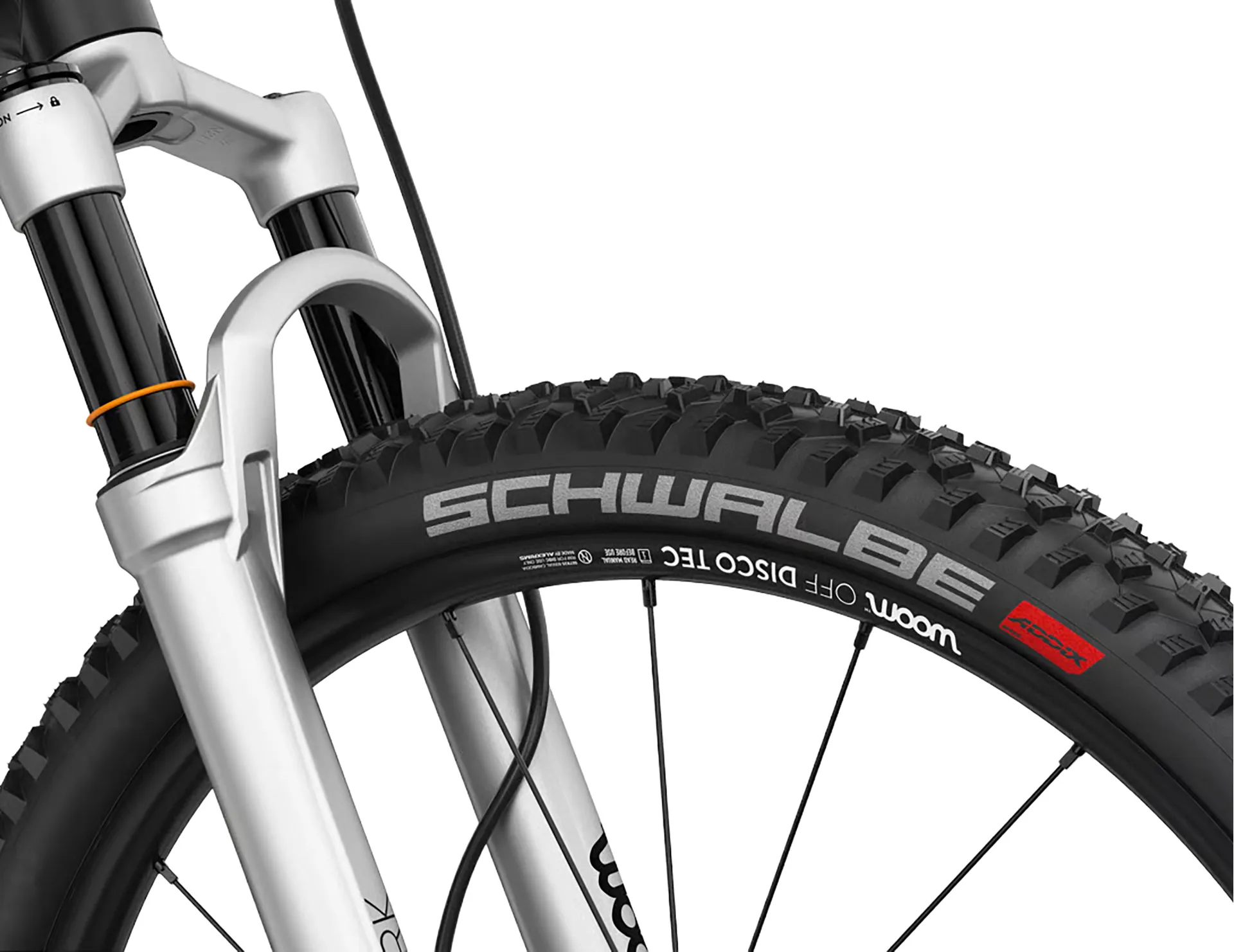

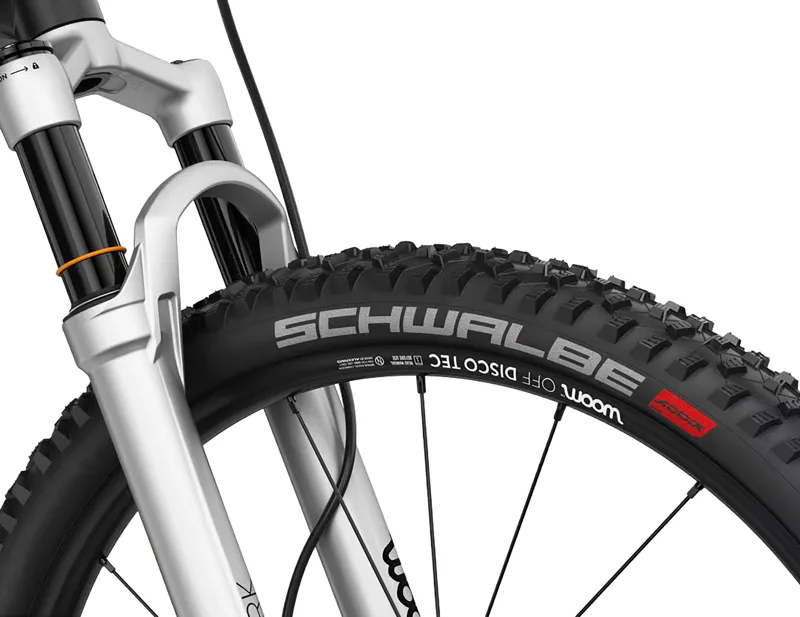

- Front Tyre: 20 x 2.25in Schwalbe Rocket Ron
- Rear Tyre: 20 x 2.25in Schwalbe Rocket Ron

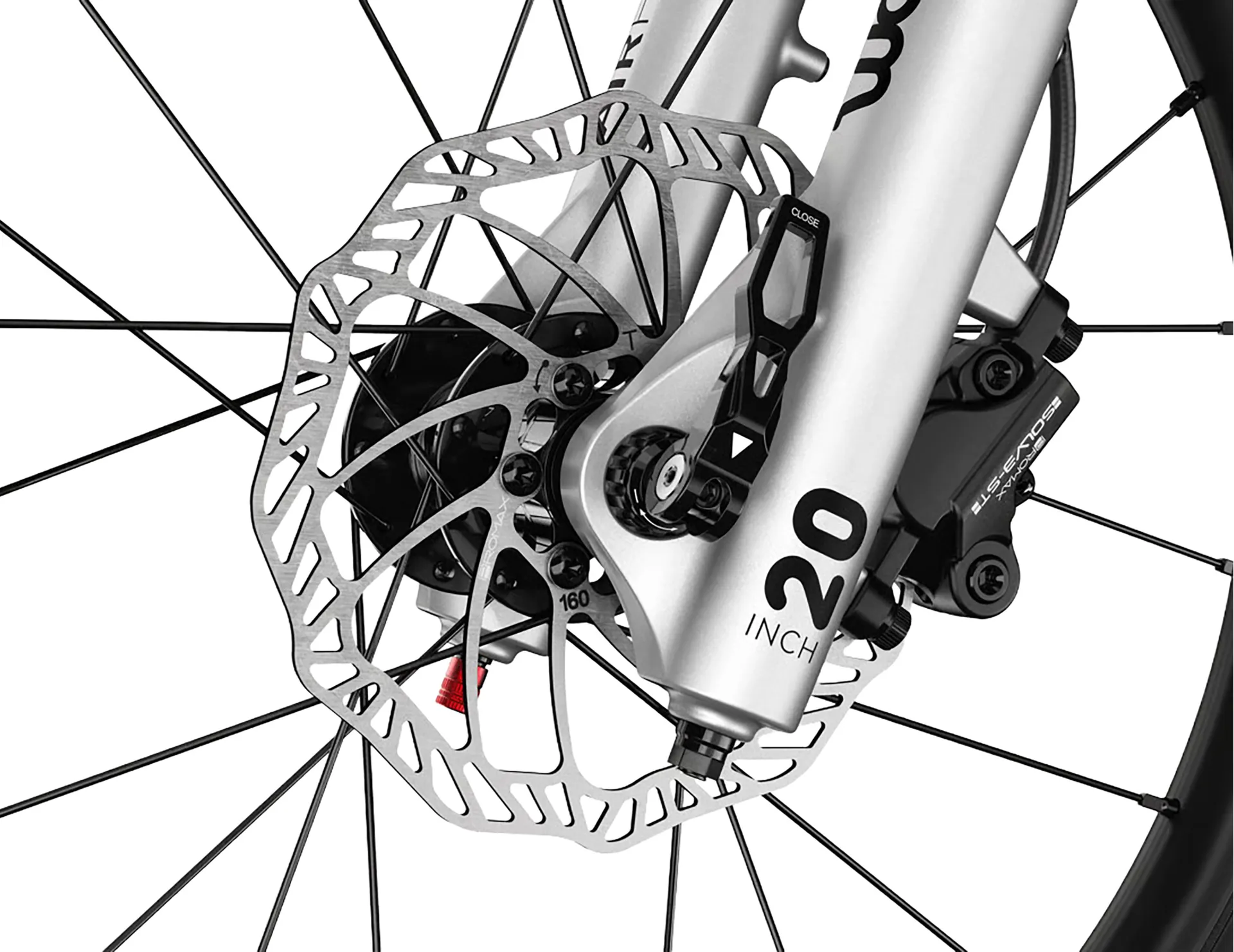

- Brakes: Promax hydraulic disc brakes; front/rear rotor diameter 160/140mm
- Handlebars: Wide lightweight aluminium bars; 570mm width; 20mm rise
- Grips or Bar Tape: Child-specific silicone lock-on grips
- Headset: Fully integrated 1 1/8in–1in headset with sealed bearings

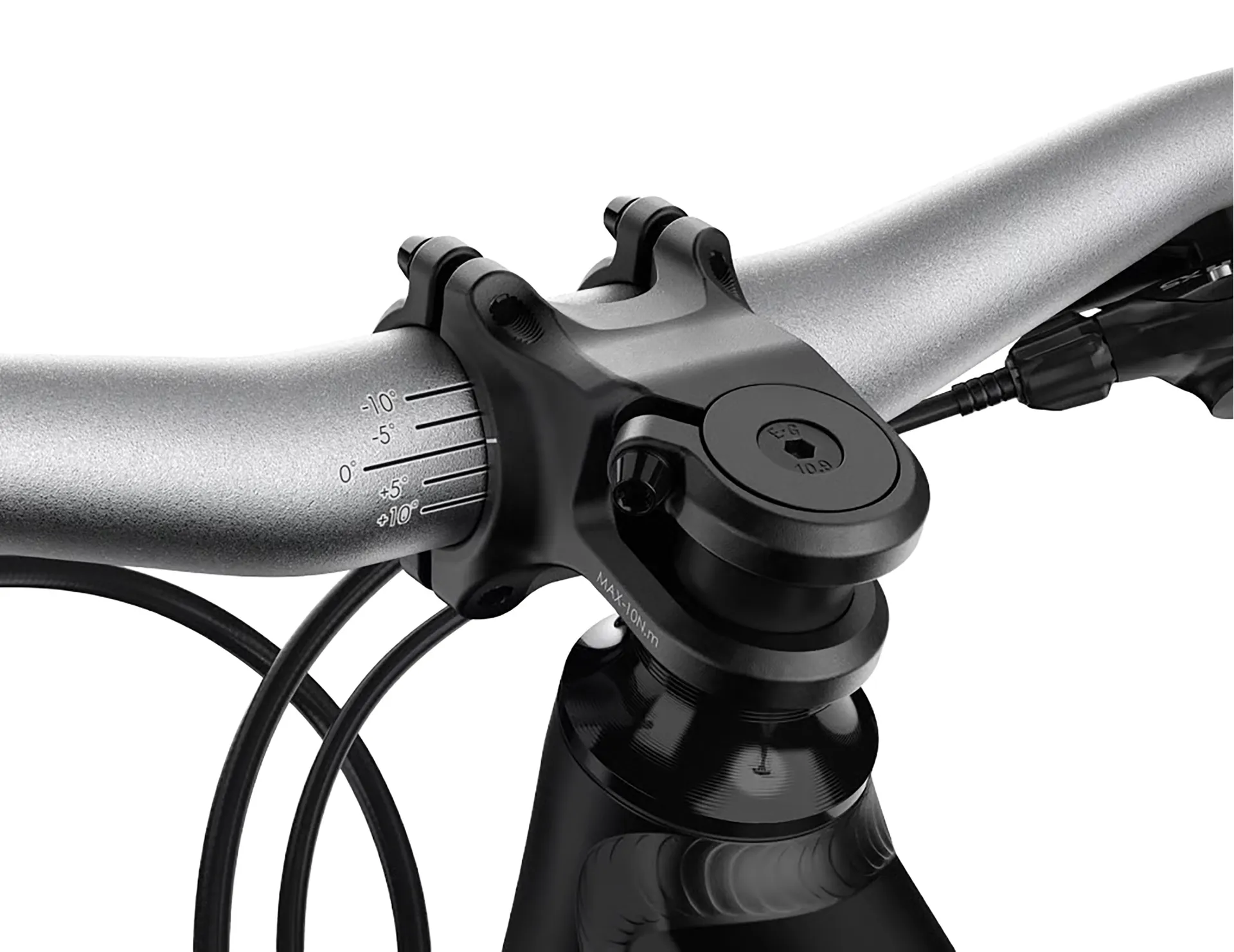

- Stem: Forged CNC-machined aluminium flip-flop stem; 50mm; +/-15 degrees

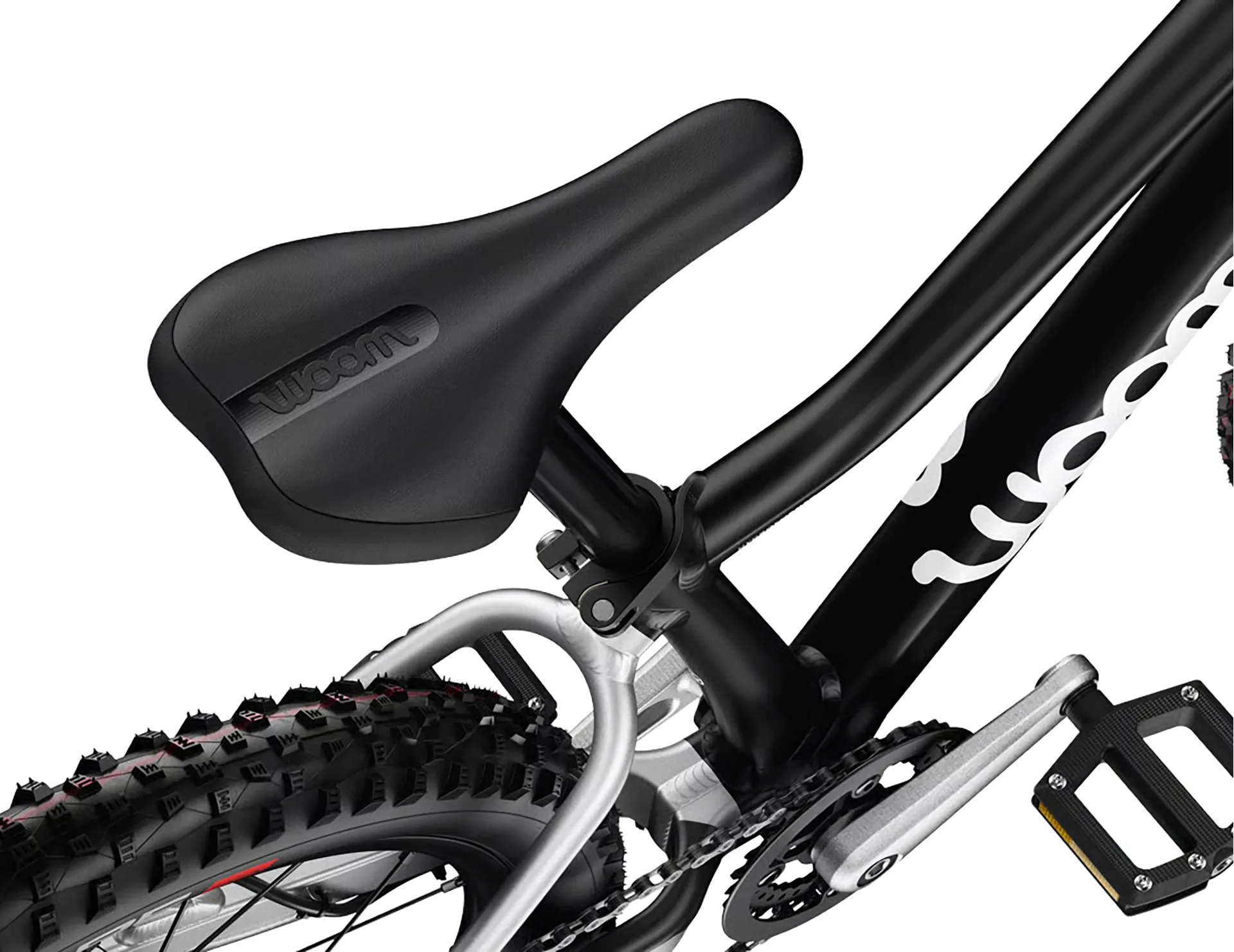

- Saddle: Ergonomic MTB-specific saddle with side protection
- Seatpost: 27.2 x 250mm anodised aluminium
- Inside Leg or Age Range: 6–8 years
- Weight: 9.2kg without pedals
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.
Information for woom kids' bike range:
Child-specific geometry – Lightweight frames, low riding positions and child-friendly geometry make woom bikes easy to handle, helping young riders feel stable and confident.
Child-specific cranks – Proportionally sized cranks and a narrow pedal position encourage a natural, comfortable and efficient pedalling motion.
Smaller grips – Slim ergonomic grips are designed specifically for smaller hands, providing comfortable and secure control.
Child-specific brakes – Easy-reach brake levers require little hand strength, making braking safer and easier for young riders.
Steering limiter [Selected smaller models] – Helps prevent the handlebars from turning too far, reducing the risk of over-steering while children develop their bike-handling skills.
Easy-to-use gears [Geared models] – Child-friendly shifting controls make changing gear simple and intuitive for developing riders.
Size Chart for woom Off Bikes
| Off 4 - Off Air 4 | Off 5 - Off Air 5 | Off 6 - Off Air 6 |
| Tyre/wheel size | 20" | 24" | 26" |
| Cockpit/handlebar height | 760mm (29.9") | 890mm (35") | 950mm (37.4") |
| Steering angle | 68º | 69º | 69º |
| Horizontal top tube length | 460mm (18.1″) | 525mm (20.7″) | 570mm (22.4″) |
| Wheelbase | 850mm (33.5″) | 970mm (38.2″) | 1060mm (41.7″) |
| Seat tube angle | 70º | 70º | 71º |
| Minimum saddle height | 575mm (20.6″) | 690mm (27.1″) | 765mm (29.1″) |
| Max. saddle height | 725mm (28.5″) | 845mm (33.3″) | 960mm (37.8″) |
| Crank arm length | 110mm (4.3″) | 130mm (5.1″) | 150mm (5.9″) |
| Handlebar adjustment | Angle +/-15° - Height+/-12° | Angle +/-15° - Height+/-12° | Angle +/-15° - Height+/-12° |
