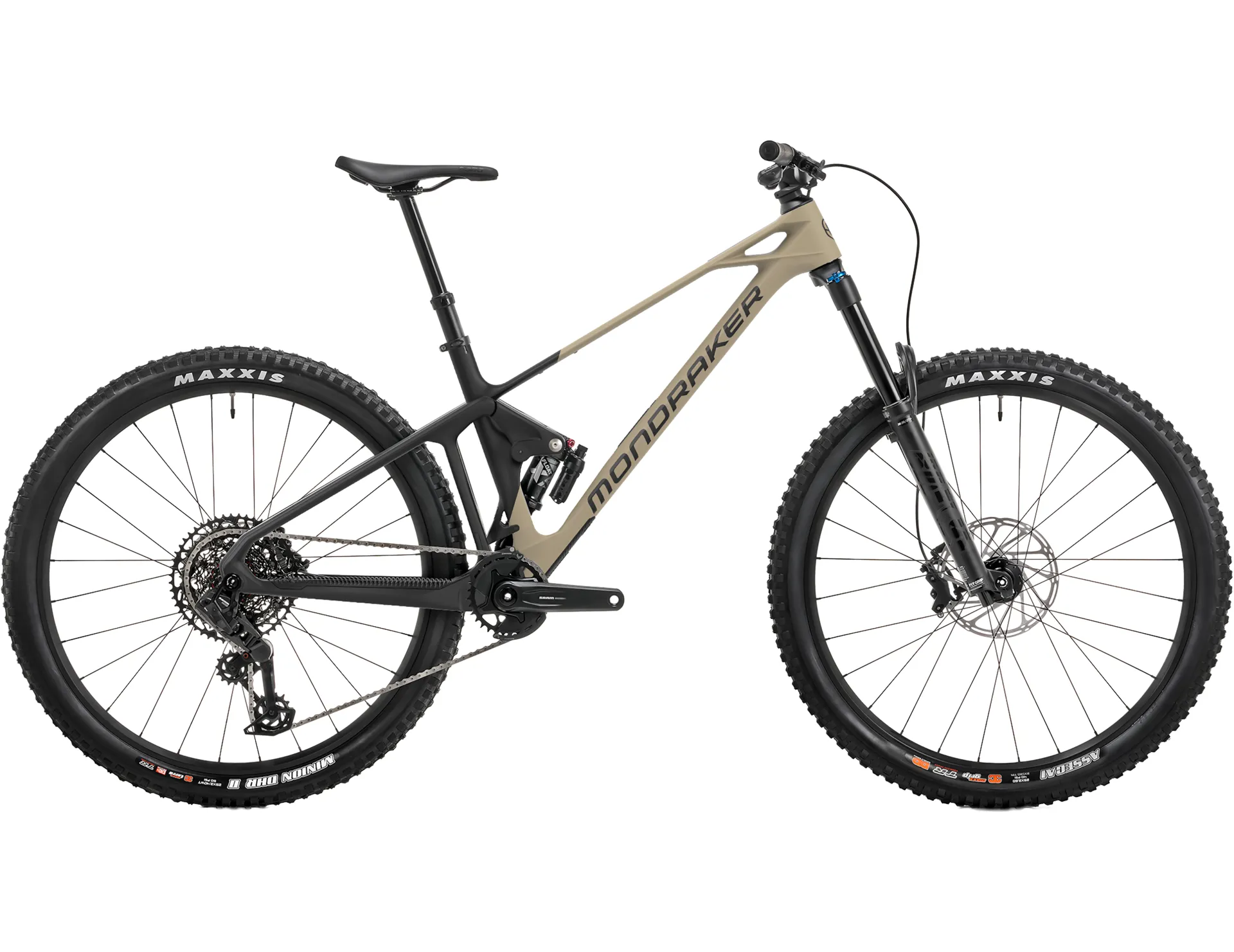

The Mondraker Foxy Carbon R is a hard-charging enduro bike built for riders who want confidence, speed, and control across demanding terrain. Combining Mondraker’s Stealth Air Carbon frame with 160mm front and 150mm rear suspension travel, the Foxy Carbon R delivers the composure and capability needed for aggressive trail riding, technical descents, and all-day mountain adventures.
Its Zero Suspension System provides exceptional sensitivity and support through rough terrain, while Forward Geometry creates a stable and confident ride feel at speed. The lightweight carbon frame keeps handling precise and responsive without compromising durability.
Fox Performance suspension front and rear keeps the bike composed through technical sections, while SRAM’s wireless T-Type drivetrain delivers crisp shifting under load and outstanding drivetrain durability. Powerful SRAM Maven brakes paired with aggressive Maxxis tyres ensure dependable control on steep and challenging trails.
Whether you're racing enduro stages, pushing deeper into alpine terrain, or riding your local technical loops harder and faster, the Foxy Carbon R is built to handle it all.
Key Features & Benefits:
- Stealth Air Carbon Frame: Lightweight and responsive carbon chassis delivers precise handling with excellent strength and stiffness.
- Enduro-Ready Suspension: Fox 36 Performance fork and Float-X rear shock provide confident control on technical terrain.
- Wireless SRAM Transmission: SRAM Eagle AXS T-Type drivetrain delivers precise electronic shifting and exceptional durability.
Full Specification:
- Frame: Foxy 29 Stealth Air full Carbon, Zero Suspension System, 150mm travel, Forward Geometry, Carbon Monoblock upper link, Boost 12x148mm rear axle, UDH, tapered head tube, 73mm BSA bottom bracket, dedicated 1x drivetrain design, HHG internal cable routing, Enduro MAX sealed bearings, shock mudguard, ISCG 05, custom frame protectors
- Rear Suspension: Fox Float-X LV Performance, 205x65mm with 2-position compression lever, low-speed rebound, and air preload
- Fork: Fox 36 Float Performance GRIP 29, 160mm travel, Boost 15x110mm axle, tapered steerer, 44mm offset
- Shock Settings: Light compression, light rebound, 0.6 air volume spacer
- Number of Gears: 12
- Gear Shifters: SRAM Eagle AXS Pod, 12-speed
- Chainset: SRAM S1000 Eagle T-Type, DUB axle, direct mount chainring. S/M: 165mm, L/XL: 170mm
- Chainrings: 32T CNC-machined alloy, T-Type
- Rear Cassette: SRAM XS-1270, 10-52T, T-Type, 12-speed
- Chain: SRAM GX Eagle T-Type, 12-speed, PowerLock
- Rear Derailleur: SRAM S1000 Eagle AXS T-Type, 12-speed
- Bottom Bracket: SRAM DUB BSA, sealed bearings, 73mm wide
- Front Brake: SRAM Maven Base 4-piston with 200mm Centerline rotor
- Rear Brake: SRAM Maven Base 4-piston with 180mm Centerline rotor
- Brake Levers: SRAM Maven Base with SwingLink and tool-free reach adjustment
- Rims: DT Swiss E1900 Spline 29, 30mm internal width, tubeless ready
- Front Hub: DT 370 Boost 15x110mm, IS 6-bolt
- Rear Hub: DT 370 Boost 12x148mm, 18T Ratchet LN system, HG freehub
- Front Tyre: Maxxis Assegai 29x2.5WT, 3C Maxx Grip, tubeless ready, 60TPI
- Rear Tyre: Maxxis Minion DHR II 29x2.4WT, 3C Maxx Terra, EXO+ protection, tubeless ready, 60TPI
- Handlebars: Onoff S6 alloy, 800mm width, 25mm rise, 8º backsweep, 5º upsweep. L/XL sizes feature 38mm rise
- Stem: Onoff S6 forged alloy stem, 30mm length, 0º rise
- Seatpost: Onoff Pija internal dropper post with travel matched to frame size
- Saddle: Ergon Enduro SPS20
- Grips: Onoff Desert Pro lock-on grips
- Weight: 14.8kg
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.
Sizing Chart for Mondraker Foxy
Geometry Information for Mondraker Foxy
| Frame size | S [Std/Low] | M [Std/Low] | L [Std/Low] | XL [Std/Low] |
|---|
| A | Seattube length | 375 mm | 415 mm | 445 mm | 500 mm |
|---|
| B | Toptube length | 600 mm | 620 mm | 650 mm | 670 mm |
|---|
| C | Bottom bracket drop | -23mm / -28 mm | -23/-28 mm | -23mm / -28 mm | -23mm / -28 mm |
|---|
| D | Bottom bracket height | 350 mm / 345 mm | 350 mm/345 mm | 350 mm / 345 mm | 350 mm / 345 mm |
|---|
| E | Chainstay length | 435 mm / 445 mm | 435 mm/445 mm | 435 mm / 445 mm | 435 mm / 445 mm |
|---|
| F | Seat tube angle | 70.5° / 70° | 70.5°/70° | 70.5° / 70° | 70.5° / 70° |
|---|
| G | Effective seattube angle | 76° / 75.5° | 76°/75.5° | 76° / 75.5° | 76° / 75.5° |
|---|
| H | Headtube angle | 65° / 64.5° | 65°/64.5° | 64.5° | 65° / 64.5° |
|---|
| I | Fork Offset | 44 mm | 44 mm | 44 mm | 44 mm |
|---|
| J | Wheelbase | 1203 mm / 1210 mm | 1227 mm/1233 mm | 1253 mm / 1260 mm | 1279 mm / 1286 mm |
|---|
| K | Headtube length | 90 mm | 100 mm | 115 mm | 130 mm |
|---|
| L | Reach | 445 mm / 440 mm | 465 mm/460 mm | 485 mm / 480 mm | 505 mm / 500 mm |
|---|
| M | Stack | 615 mm / 617 mm | 623 mm/627 mm | 637 mm / 641 mm | 651 mm / 656 mm |
|---|
Warranty Information for Mondraker:
GENERAL WARRANTY EXCLUSIONS
1. Damage or faults caused by accident, incorrect or improper usage, abuse or negligence.
2. Wear and tear. Both on the frame and those components subject to wear and tear through usage (transmission, tyres, bearings, axles, nuts, bolts, tyres, handle grips, chain, brake shoes/pads, chain guide, hubs, etc.).
3. Faults caused by inappropriate handling or maintenance, or through the installation of parts and accessories that are not compatible or do not comply with the specific usage conditions for this model of bicycle.
4. Any manipulation, modification or structural repair, or paintwork, performed by any person or company unconnected with Mondraker, or without the authorisation of Mondraker.
The warranty governed by Consumer and User protection legislation which applies if the Purchaser has such status, only covers a malfunction caused by proven manufacturing defects, in other words non-conformities which exist at the time of delivery of the product. Nonetheless, this warranty will not be valid for external damage suffered by the Product through any cause, wear and tear through usage, or because of culpable or negligent actions by the Purchaser, nor in the case of incidents caused by force majeure. In summary, the commercial warranty will not cover any damage resulting from any cause outside the responsibility of the manufacturer, in other words Mondraker.
Nonetheless, in the event that Consumer and User protection legislation establishes presumptions regarding the existence of non-conformities at the time of delivery of the product to the end Consumer, consideration will be given to whether the presumption is compatible with the nature of the product and the type of non-conformity arising.
For Full Terms and Conditions Visit Mondrakers Website
