Procaliber 9.7 AXS is an ultra-light carbon XC hardtail with IsoBow tech, carbon wheels, RockShox SID fork, and wireless SRAM GX AXS for top-level racing.
Procaliber 9.7 AXS is an ultra-light carbon XC hardtail with IsoBow tech, carbon wheels, RockShox SID fork, and wireless SRAM GX AXS for top-level racing.
Trek

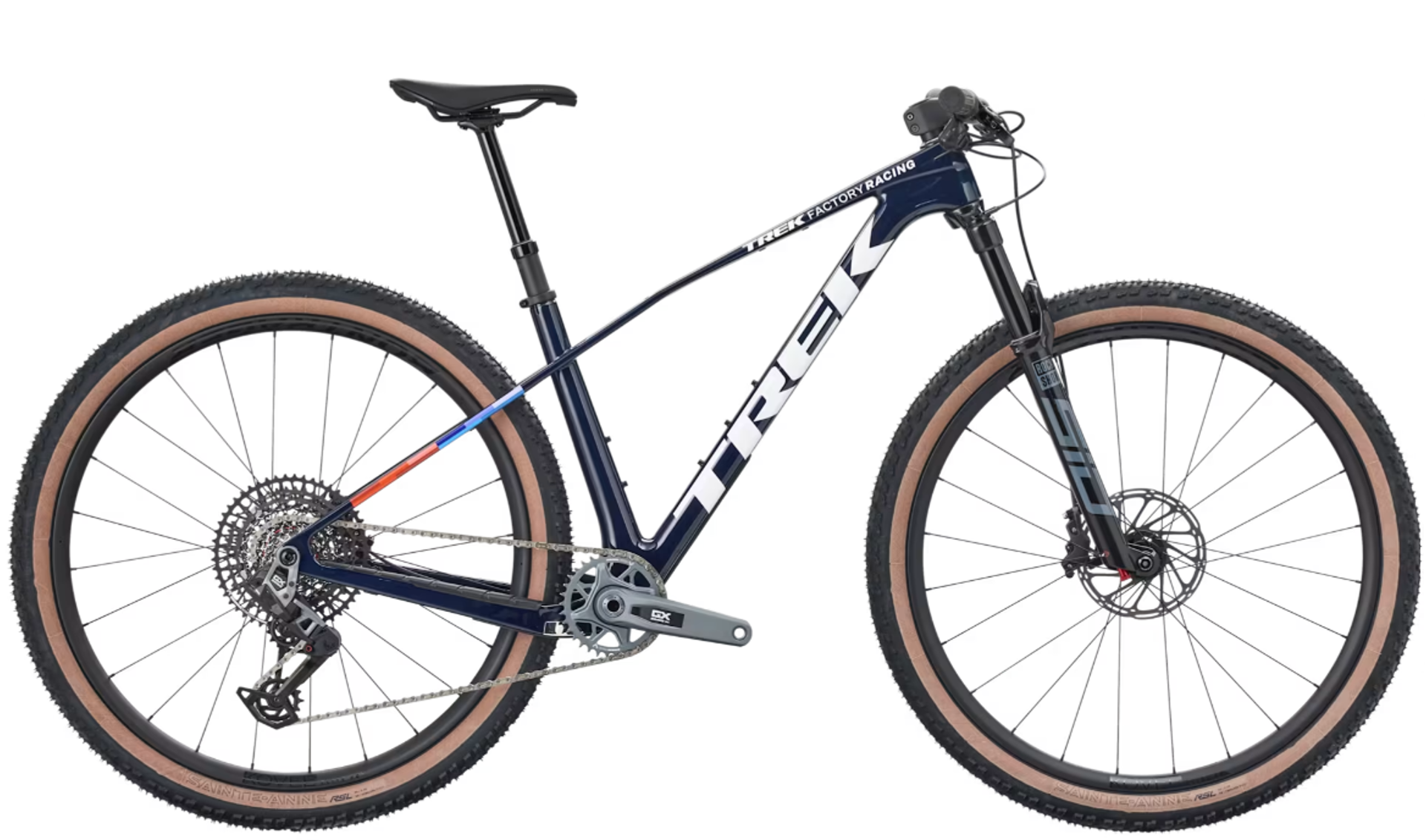

Trek Procaliber 9.7 AXS Gen 3 Hardtail Mountain Bike 2026 in Navy Smoke

£3,600.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Procaliber 9.7 AXS Gen 3 Hardtail Mountain Bike 2026 in Navy Smoke

Season:2026

Brand:Trek

Code:47245BL

The Procaliber 9.7 Gen 3 is a carbon XC hardtail that's built to race. It's crafted from OCLV Mountain Carbon fibre with IsoBow trail-smoothing tech that not only eats up chatter, but sheds weight too. It's built for speed, with carbon wheels, an upgraded RockShox fork and a wireless SRAM AXS transmission.

You're counting down the days to your next race and want a bike that's lightweight, efficient and comfortable enough for long miles. You want upgrades that make a difference, like a fully wireless SRAM transmission and carbon wheels.

An OCLV Mountain Carbon frame with IsoBow trail-smoothing tech. A RockShox SID fork with 120 mm of travel, a DebonAir spring, Rush RL damper and remote lockout. A fully wireless SRAM GX AXS 12-speed electronic transmission, 4-piston SRAM Level Bronze hydraulic disc brakes, 29" Bontrager Kovee Elite 30 carbon wheels and a carbon Bontrager RSL integrated Bar/Stem.

The Procaliber 9.7 AXS Gen 3 is an insanely light, fast and smooth XC hardtail. It packs in tech that keeps you feeling fresh through the roughest miles, and it's topped with carbon wheels, a carbon bar/stem combo and fully wireless shifting that stays precise, even under load.

Key Features & Benefits:

  • IsoBow:Provides added comfort that won't lose any efficiency as you rip cross-country.
  • OCLV Mountain Carbon Frame:Intensely light, stiff and responsive.
  • SRAM AXS 12-Speed Deore Drivetrain:A wide range of gears with a fully wireless transmission, so you can ease the ups in the big ring or stomp to the front in the flats.

Full Specification:

  • Frame:OCLV Mountain Carbon, IsoBow, tapered head tube, internal routing, balanced post-mount brake, Boost148
  • Rear Shock:N/A
  • Fork:RockShox SID, DebonAir spring, Rush RL damper, remote lockout, tapered steerer, 44mm offset, Boost110, 15mm Maxle Stealth, 120mm travel
  • Number of Gears:12
  • Gear Shifters:SRAM AXS POD
  • Chainset:SRAM GX Eagle, DUB, T-Type, 34T, 55 mm chain line, S/M/ML: 170 mm, L/XL: 175 mm length.
  • Chainrings:34T
  • Rear Cassette:SRAM Eagle XS-1275, T-Type, 10-52, 12-speed
  • Chain:SRAM GX Eagle, T-Type, 12-speed
  • Rear Derailleur:SRAM GX Eagle AXS, T-Type
  • Bottom Bracket:SRAM DUB, 92 mm, PressFit
  • Pedals: Not supplied:Shop pedals here
  • Rims:Bontrager Kovee, double-wall, Tubeless-Ready, 28-hole, 23 mm width, Presta valve
  • Front Wheel:Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle, 29"
  • Rear Wheel:Bontrager Kovee Elite 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, Boost148, 12 mm thru axle, 29"
  • Front Tyre:Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40"
  • Rear Tyre:Bontrager Sainte-Anne RSL XR, Tubeless Ready, dual compound, aramid bead, 220 tpi, 29x2.40"
  • Brakes:SRAM Level Bronze 4-piston hydraulic disc
  • Handlebars:Size: S , M , ML - Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 70 mm length, Size: L - Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 80 mm length, Size: XL - Bontrager RSL Integrated handlebar/stem, OCLV Carbon, 0 mm handlebar rise, 750 mm width, -13-degree stem rise, 90 mm length
  • Handlebar Grips:ESI Chunky
  • Headset:FSA IS-2, 1-1/8" top, 1.5" bottom
  • Stem:Integrated
  • Saddle:Verse Short Elite, hollow magnesium rails, 145 mm width
  • Seatpost:Size: S - Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length, Size: M, ML, L - Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length, Size: XL - Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length
  • Accessories:N/A
  • Weight:M - 10.58 kg / 23.33 lbs (with TLR sealant, no tubes), This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Procaliber

SizeRider HeightRider HeightInseamInseam
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
M/L173 - 180 cm5'8" - 5'11"81 - 86 cm32" - 34"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"

Geometry Information for Trek Procaliber


Frame size letterSMMLLXL
Wheel size29"29"29"29"29"
A — Seat tube39.042.044.446.051.0
B — Seat tube angle71.0°71.5°72.0°72.5°73.0°
Effective seat tube angle74.3°74.3°74.3°74.3°74.3°
C — Head tube length999912
D — Head angle67.0°67.0°67.0°67.0°67.0°
E — Effective top tube57.759.861.362.867.7
F — Bottom bracket height6.46.46.46.46.4
G — Bottom bracket drop43.043.043.043.043.0
H — Chainstay length4.34.34.34.34.3
I — Offset111.0113.5115.5117.1122.7
J — Trail74.774.975.876.379.1
K — Wheelbase40.543.044.546.050.0
L — Standover61.461.461.461.464.2

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Sizing Information
Professional Opinion
Question(s) answered about Trek Procaliber 9.7 AXS Gen 3 Hardtail Mountain Bike 2026 in Navy Smoke
Ask a question
Question(s) asked regarding Trek Procaliber 9.7 AXS Gen 3 Hardtail Mountain Bike 2026 in Navy Smoke

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close
  • Is it possible to fit a bike rack and panniers to this model?
    Question asked by Denis Hearn on 16/10/2025 15:04:51
    This bicycle does not have fitting points for a rack.

    Also due to the IsoBow within the frame I would not recommend retro fitting racks as it will likely conflict with this feature or worse contribute to an unexpected failure.
