Trek Top Fuel 9.9 XTR Di2 Gen 4 carbon trail bike with Shimano XTR Di2 wireless shifting, 120/130 mm Fox suspension & in-frame storage.
Trek Top Fuel 9.9 XTR Di2 Gen 4 carbon trail bike with Shimano XTR Di2 wireless shifting, 120/130 mm Fox suspension & in-frame storage.
Trek

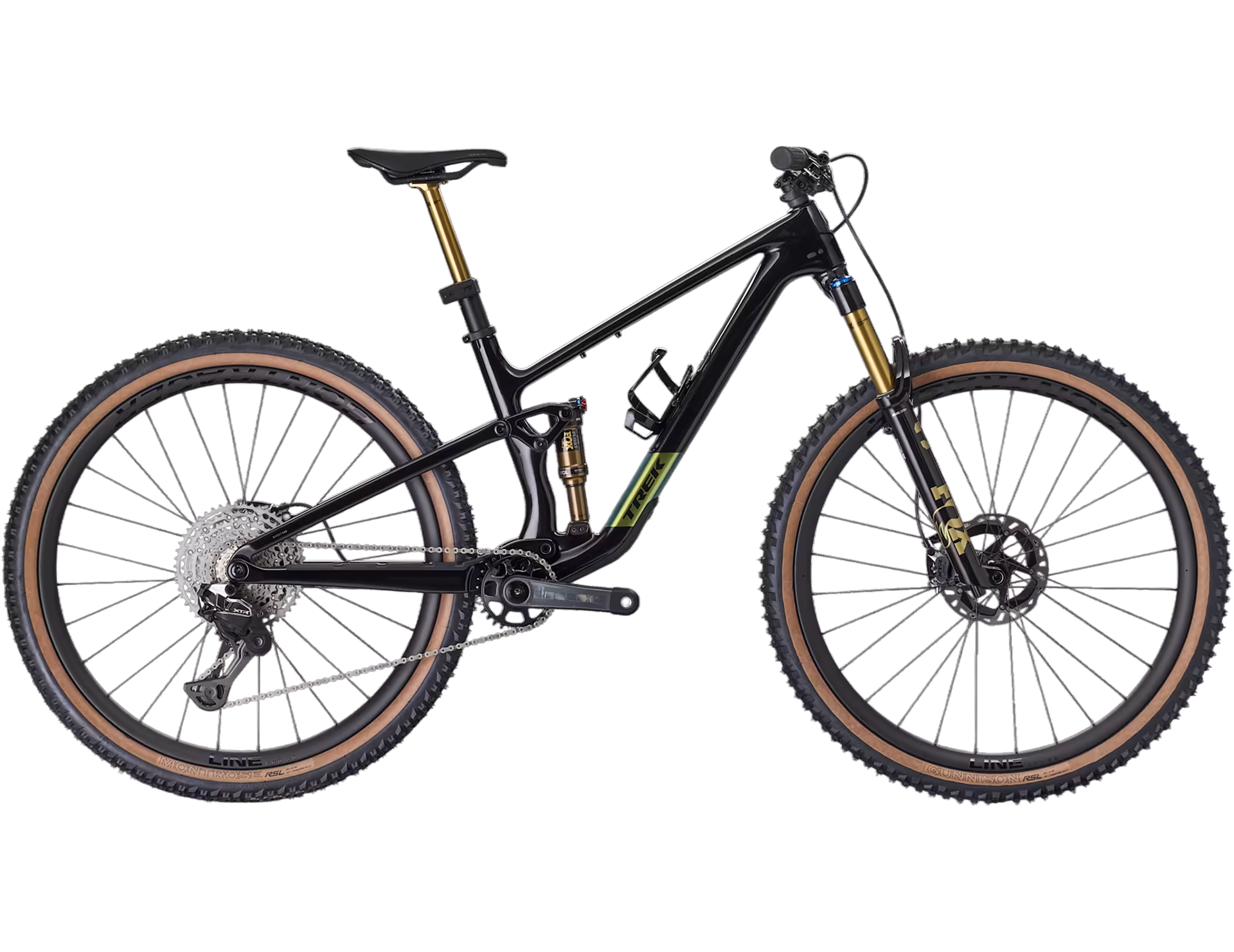

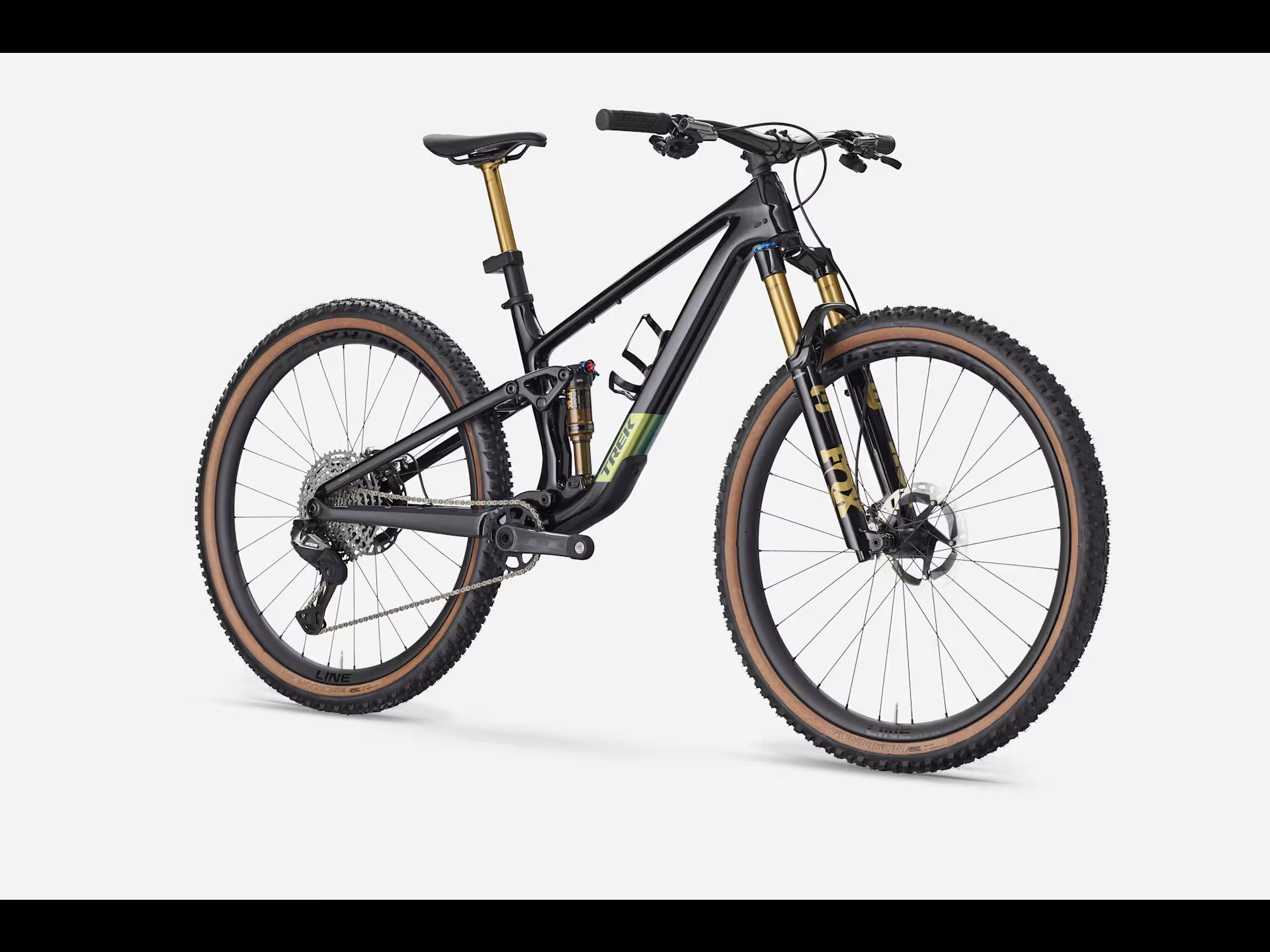

Trek Top Fuel 9.9 XTR Di2 Gen 4 2026 in Dark Star

£7,625.00
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Top Fuel 9.9 XTR Di2 Gen 4 2026 in Dark Star

Season:2026

Brand:Trek

Code:52232BK

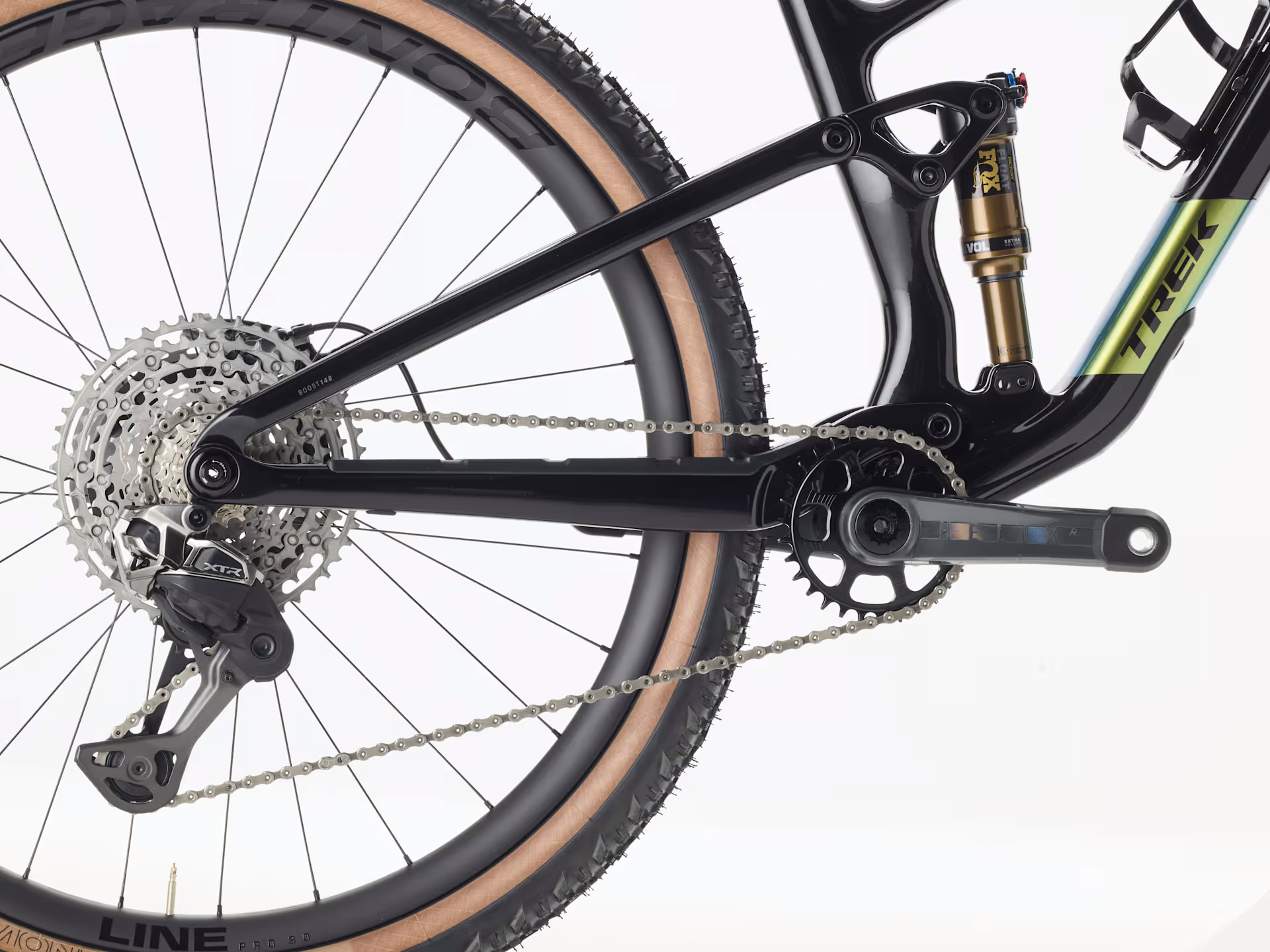

Top Fuel 9.9 is a lightweight carbon trail bike built to rip up climbs and stay playful on descents. It gives you the confidence you want through roots and rocks thanks to a 120 mm/130 mm (rear/front) suspension package with Fox Factory Float shock. Plus, you get confident lightning-fast shifting from Shimano’s all-new, iconic XTR Di2 wireless drivetrain.

It's right for you if...

You like to ride everything – long alpine climbs, rooty aspen slalom, fast XC singletrack and you want a bike that can keep up on the ups and hold its own on the downs. Keeping things light is critical, so you want a carbon frame and the cream-of-the-crop parts, like an all-new, ultra-smooth Shimano XTR Di2 drivetrain.

The tech you get

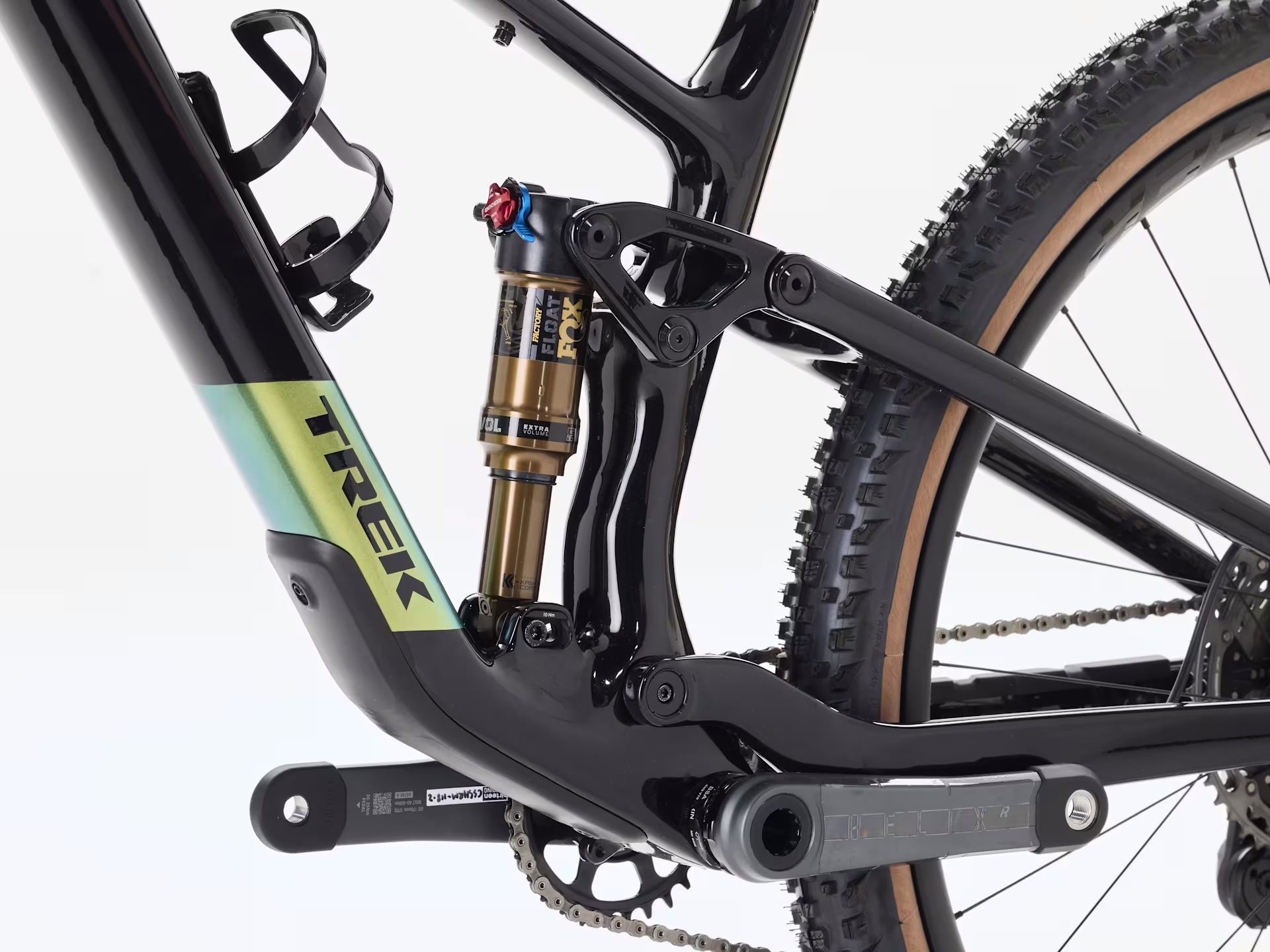

An OCLV Mountain Carbon frame with a 4-way Mino Link lower shock mount for tweaking geometry and suspension leverage rate. A 130 mm fork, plus 120 mm of rear travel from a Fox Factory Float shock. Shimano’s all-new XTR Di2 12-speed drivetrain, Shimano XTR M9220 hydraulic brakes, Bontrager Line dropper post and tubeless-ready Bontrager Line Pro 30 OCLV Carbon wheels.

The final word

If you're after a light carbon trail bike that balances a playful and capable ride, reach for the Top Fuel 9.8 XTR Gen 4. Its ultra-lightweight frame pairs with a 4-way Mino Link lower suspension mount for taking control of your geometry and suspension feel. Plus, you get clean shifts from Shimano’s new XTR Di2 wireless drivetrain and a sweet suspension package.

Key Features & Benefits:

  • Carbon Fibre Frame:Keeps weight to a minimum without compromising on capability.
  • Frame Storage:In-frame storage with an improved BITS bag system makes it easy to stash tools, tubes and snacks
  • Shimano Di2:Fast robust electronic shifting from Shimanos top tier groupset

Full Specification:

  • Frame:OCLV Mountain Carbon, internal storage, tapered head tube, internal guided routing, downtube guard, OCLV Next rocker link, Mino 4 link, ABP, Boost148, 120 mm travel
  • Rear Shock:Fox Factory Float, 2-position damper, 185 mm x 50 mm
  • Fork:Size:S
    RockShox Pike Ultimate, DebonAir spring, Charger 3.1 RC2 damper, 44 mm offset, Boost110, Maxle Stealth, 130 mm travel
    Size:M, ML, L, XL

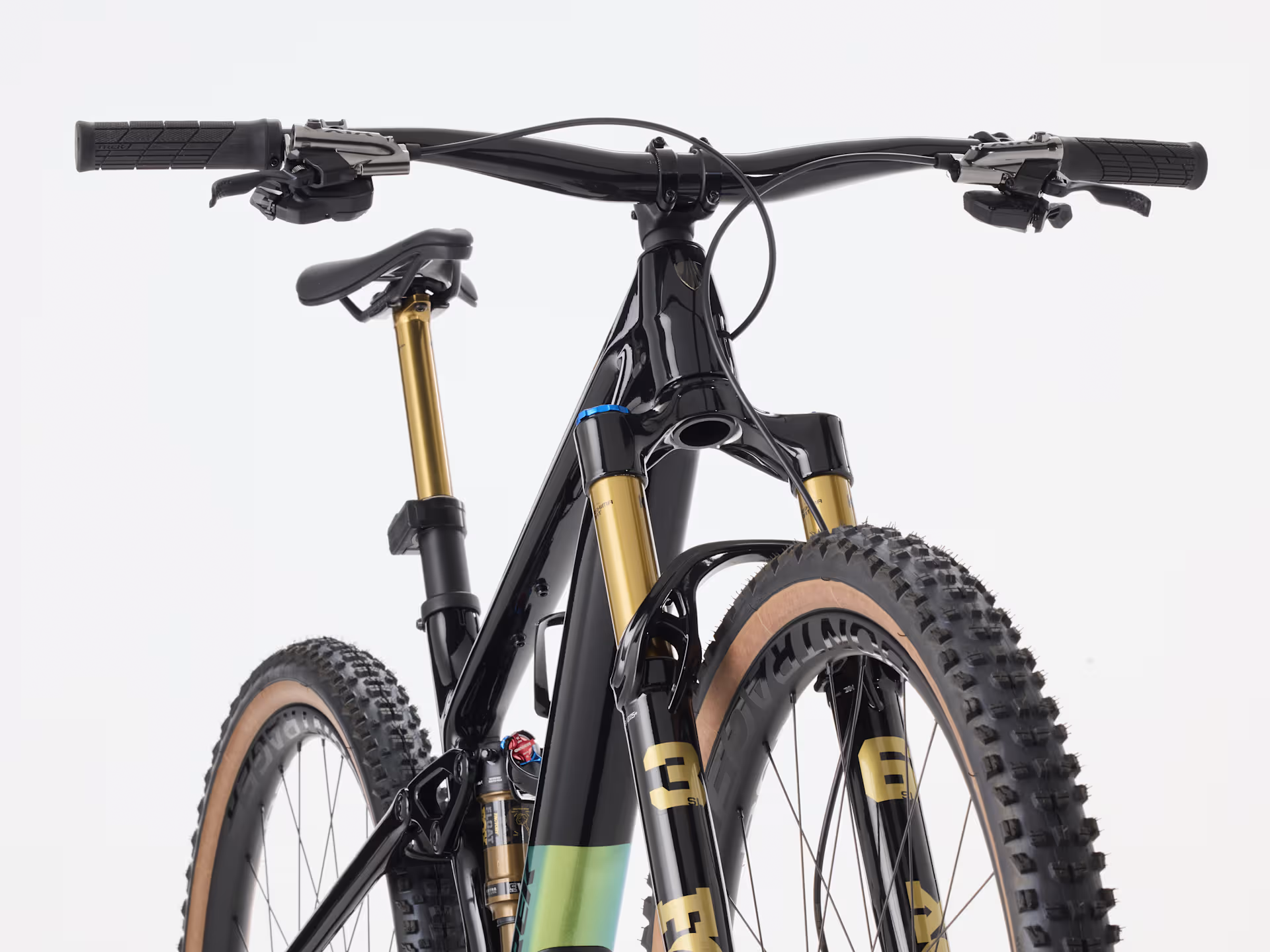

    Fox Factory 36 SL, Float EVOL air spring, GRIP X damper, 44 mm offset, Boost 110, 15 mm Kabolt X axle, 130 mm travel
  • Number of Gears:12
  • Gear Shifters:Shimano XTR Di2 M9250, 12-speed
  • Chainset:E*thirteen TRS Race Carbon, 30T, 55mm chain line, 170mm length
  • Chainrings:30T (max: 34T)
  • Rear Cassette:Shimano XTR M9200, 10-51, 12-speed
  • Chain:
  • Rear Derailleur:Shimano XTR Di2 M9250, long cage
  • Bottom Bracket:E*thirteen BB20-P, BSA threaded, 73mm width
  • Pedals:Not supplied:Shop pedals here
  • Rims:Bontrager Line Pro 30, OCLV Mountain Carbon, Tubeless Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle, 29" (size S 27.5 inch)
  • Front Tyre:Size: S - Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40", Size: M, ML, L, XL - Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"
  • Rear Tyre:Size: S - Bontrager Gunnison RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 27.5x2.40", Size: M, ML, L, XL - Bontrager Montrose RSL XT, Tubeless-Ready, triple compound, aramid bead, 120 tpi, 29x2.40"
  • Brakes:Shimano XTR M9220 4-piston hydraulic disc

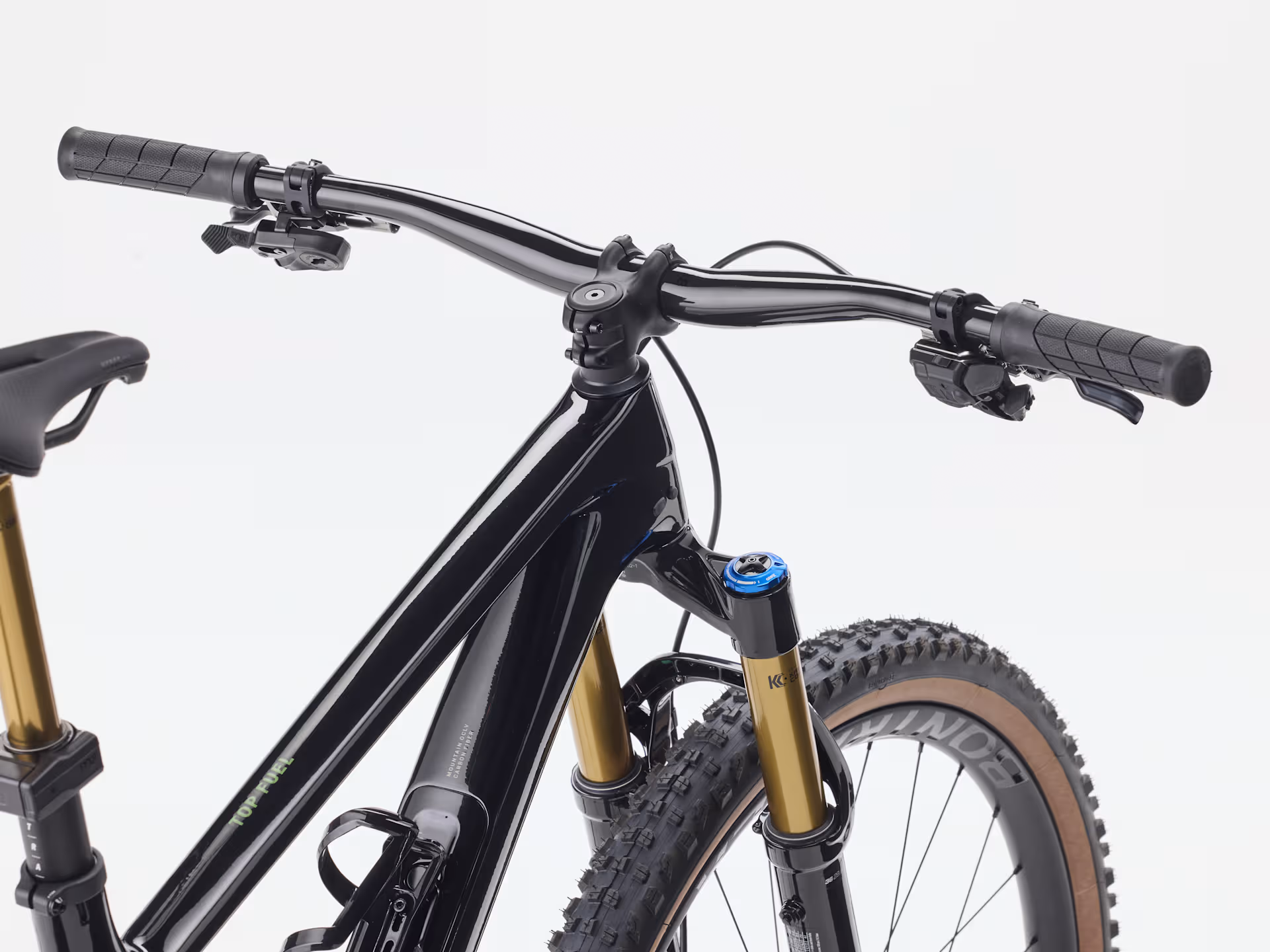

  • Handlebars:Bontrager Line Pro, OCLV Carbon, 35 mm, 27.5 mm rise, 780 mm width
  • Handlebar Grips: Trek Line Elite, Lock On
  • Stem:Bontrager Line Pro, 35 mm, Blendr-compatible, 0-degree, 35 mm length
  • Saddle:Verse Short Pro, carbon rails, 145 mm width
  • Seatpost:Fox Transfer NEO - S/M 150mm, ML 175mm. L/XL 200mm
  • Weight:M - 11.88 kg / 26.2 lbs (with TLR sealant, no tubes) This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Size Guide for Trek Top Fuel

SizeRider HeightRider HeightInseamInseam
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
M/L173 - 180 cm5'8" - 5'11"81 - 86 cm32" - 34"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"
2XL195 - 203 cm6'5" - 6'8"91 - 97 cm36" - 38"

Geometry Information for Trek Top Fuel Gen 4

Geometry Information for Trek Top Fuel Gen 4

Frame size letterSSMMMLMLLLXLXL
Geometry positionHighLowHighLowHighLowHighLowHighLow
Wheel size29"29"29"29"29"29"29"29"29"29"
A — Seat tube36364141424243.543.54747
B — Seat tube angle69.5°69.0°70.5°70.0°70.5°70.0°70.5°70.0°70.5°70.0°
Effective seat tube angle76.5°76.0°77.3°76.9°76.6°76.2°76.3°75.9°75.6°75.2°
C — Head tube length10.510.510.510.5111111.511.513.513.5
D — Head angle65.9°65.5°65.9°65.5°65.9°65.5°65.9°65.5°65.9°65.5°
E — Effective top tube55.855.958.758.861.161.26363.167.267.3
G — Bottom bracket drop11.62.63.22.63.22.63.22.63.2
H — Chainstay length43.443.543.443.543.94443.94444.444.5
I — Offset4.34.34.34.34.34.34.34.34.34.3
J — Trail11.111.512.112.512.112.512.112.512.112.5
K — Wheelbase115115.1118.8118.8121121122.7122.7127127.1
L — Standover70.57075.57575.5757675.576.576
M — Frame reach42.241.745.244.746.746.248.247.751.250.7
N — Frame stack56.65759.960.360.460.760.861.262.663

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
