The Trek X-Caliber 7 Hardtail Mountain Bike gets you into the world of cross-country riding and racing at a great price, and it's a bike that can grow with you as your skills advance.
The Trek X-Caliber 7 Hardtail Mountain Bike gets you into the world of cross-country riding and racing at a great price, and it's a bike that can grow with you as your skills advance.
Trek

Trek X-Caliber 7 Hardtail Mountain Bike 2021 in Factory Orange

£720.00 £900.00 20% off
Size Guide
Earn
in Customer Rewards when you buy this item today
Sign Up
Sign In
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

Any item, except food, face masks or e-gift vouchers (full e-gift vouchers T&Cs are listed on the respective product pages) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase. It is recommended that you use a recorded delivery service to ensure your items are received by us. We cannot assume responsibility for items that are lost in the post.

Online or in-store purchases can both be returned to any store free of charge or can be returned by post after completing the online returns form. If you are returning an item due to a fault, we will refund your postage.

If you wish to return your bike to us, please keep the box it arrived in and let us know using the returns form and we will arrange collection.


Customer Returns Form

If you wish to cancel, return or exchange an order please fill in the form below. Returns can be processed quicker if all required information is added.



Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the products have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:

1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £24.99 for collection. If you do not have the original box, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid receipt.

Trek X-Caliber 7 Hardtail Mountain Bike 2021 in Factory Orange

Season:2021

Brand:Trek

Code:YRGmuihtiLGROyrotcaF12024

The Trek X-Caliber 7 is the perfect entry point to fast cross-country riding and racing. It's a fully capable hardtail mountain bike with expert tech where it matters most, like in the lightweight and durable alloy frame, RockShox fork, Shimano drivetrain and hydraulic disc brakes. This is the perfect if you're new to mountain biking and want a high-value bike that's perfect for local XC trails and even racing.

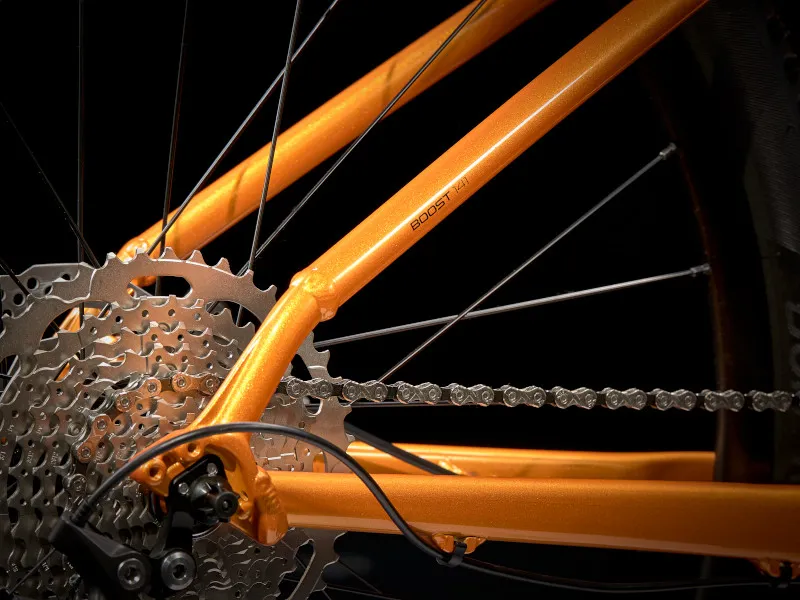

This bike has the same features found on higher-end bikes all on a platform that's easy to upgrade down the line. The X-Caliber 7 comes fitted with tubeless-ready wheels with wider Boost141 hubs for increased wheel strength and better tyre clearance, and the sleek internal cable routing gives you clean looks, protects your cables and makes it easy to upgrade to a dropper post for even more capability. The RockShox air fork has 100mm travel, rebound adjust and can be tuned to the rider’s weight, and it’s much higher quality than what you’d normally get on an MTB at this price.Overall, the Trek X-Caliber 7 is a great cross-country mountain bike at great value, that you won’t immediately outgrow as your skills advance.

Key Features & Benefits:

  • Aluminium Frame: Lightweight & Durable
  • Shimano 1x10 Drivetrain: Dependable, with a wide range of gears for easier climbing
  • Hydraulic Disc Brakes:Light action and accurate braking power.

​Full Specification:

  • Frame: Alpha Gold Aluminium, tapered head tube, internal derailleur and dropper post routing, rack and kickstand mount, Boost141, 5 mm QR
  • Rear Shock (If Applicable): N/A
  • Fork: RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, 42 or 46 mm offset, 100x5 mm QR, 100 or 120 mm travel
  • Number of Gears: 10
  • Gear Shifters: Shimano Deore M4100, 10 speed
  • Chainset: Shimano Deore M5100, Boost
  • Chainrings: 30T Steel
  • Rear Cassette: Shimano Deore M4100, 11-46, 10-speed
  • Chain: KMC X10, 10-speed
  • Front Derailleur: N/A
  • Rear Derailleur: Shimano Deore M5120, long cage
  • Bottom Bracket: Sealed
  • Pedals: VP-536 nylon platform
  • Rims: Bontrager Kovee, double-wall, Tubeless Ready, 28-hole front, 32 hole rear 23 mm width, Presta valve
  • Front Hub: Formula DC-20, alloy, 6-bolt, 100 mm ThruSkew
  • Rear Hub: Formula DC-2241, alloy, 6-bolt, Shimano 8/9/10 freehub, Boost141, 5 mm QR

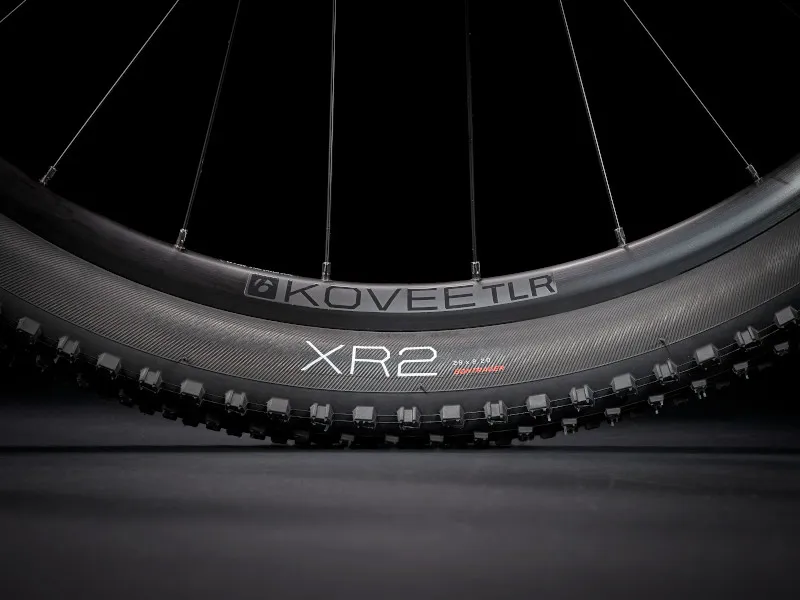

  • Front Tyre: Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20" (XS,S) 29x2.20" (M, ML, L, XL, XXL)
  • Rear Tyre: Bontrager XR2 Comp, wire bead, 30 tpi, 27.5x2.20" (XS,S) 29x2.20" (M, ML, L, XL, XXL)
  • Brakes: Shimano MT200 hydraulic disc
  • Handlebars: Bontrager alloy, 31.8 mm, 5 mm rise
  • Handlebar Grips: Bontrager XR Trail Comp, nylon lock-on
  • Headset: Semi-integrated, loose ball bearing, 1-1/8" top, 1.5" bottom
  • Stem: Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree
  • Saddle: Bontrager Arvada, steel rails, 138 mm width
  • Seatpost: Bontrager alloy, 31.6 mm, 12 mm offset
  • Accessories: N/A
  • Weight: Not Available
Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.


Size Guide for Trek X-Caliber

SizeRider HeightRider HeightInseamInseam
XS145 - 155 cm4'9" - 5'1"69 - 73 cm27" - 29"
S155 - 165 cm5'1" - 5'5"74 - 78 cm29" - 31"
M165 - 176 cm5'5" - 5'9"79 - 83 cm31" - 33"
M/L173 - 180 cm5'8" - 5'11"81 - 86 cm32" - 34"
L177 - 188 cm5'10" - 6'2"84 - 89 cm33" - 35"
XL188 - 195 cm6'2" - 6'5"89 - 91 cm35" - 36"
2XL195 - 203 cm6'5" - 6'8"91 - 97 cm36" - 38"

Geometry Information for Trek X-Caliber

Frame size number13.5"15.5"17.5"18.5"19.5"21.5"23.0"
Frame size letterXSSMMLLXLXXL
Wheel size27.5"27.5"29"29"29"29"29"
A — Seat tube34.336.841.944.44752.155.9
B — Seat tube angle73.5°73.5°71.9°71.9°71.9°71.9°71.9°
Effective seat tube angle73.5°73.5°73.0°73.0°73.0°73.0°73.0°
C — Head tube length9999101212
D — Head angle69.3°69.3°69.5°69.5°69.5°69.5°69.5°
E — Effective top tube54.455.560.161.763.765.867.2
F — Bottom bracket height29.230.231.131313131.1
G — Bottom bracket drop5.84.85.85.85.85.85.8
H — Chainstay length42.542.543.843.843.843.843.8
I — Offset4.24.24.24.24.24.24.2
J — Trail8.88.89.49.49.49.49.4
K — Wheelbase103.6105.3110.9112.5114.5116.7118.1
L — Standover69.872.474.875.775.776.880.4
M — Frame reach37.638.541.843.445.146.648
N — Frame stack56.557.459.859.860.862.762.7

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com

Technical Information

Geometry for Trek X-Caliber 7 Hardtail Mountain Bike



Trek X-Caliber 7 Hardtail Mountain Bike

All measurements in cm unless stated otherwise

Frame Size Number 13.5 15.5 17.5 18.5 19.5 21.5 23.0
Frame Size Letter XS S M ML L XL XXL
Wheel Size 27.5" 27.5" 29" 29" 29" 29" 29"
A - Seat Tube 34.3 36.8 41.9 44.4 47.0 52.1 55.9
B - Seat Tube Angle 73.5° 73.5° 71.9° 71.9° 71.9° 71.9° 71.9°
Effective Seat Tube Angle 73.5° 73.5° 73.0° 73.0° 73.0° 73.0° 73.0°
C - Head Tube Length 9.0 9.0 9.0 9.0 10.0 12.0 12.0
D - Head Angle 69.3° 69.3° 69.5° 69.5° 69.5° 69.5° 69.5°
E -Effective TT Length 54.4 55.5 60.1 61.7 63.7 65.8 67.2
F - BB Height 29.2 30.2 31.1 31.0 31.0 31.0 31.1
G - BB Drop 5.8 4.8 5.8 5.8 5.8 5.8 5.8
H -Chainstay length 42.5 42.5 43.8 43.8 43.8 43.8 43.8
I -Offset 4.2 4.2 4.2 4.2 4.2 4.2 4.2
J -Trail 8.8 8.8 9.4 9.4 9.4 9.4 9.4
K - Wheelbase 103.6 105.3 110.9 112.5 114.5 116.7 118.1
L - Standover 69.8 72.4 74.8 75.7 75.7 76.8 80.4
M - Frame Reach 37.6 38.5 41.8 43.4 45.1 46.6 48.0
N - Frame Stack 56.5 57.4 59.8 59.8 60.8 62.7 62.7



Sizing Information
Trek Sizing Guide
Professional Opinion
Question(s) answered about Trek X-Caliber 7 Hardtail Mountain Bike 2021 in Factory Orange
Ask a question
Question(s) asked regarding Trek X-Caliber 7 Hardtail Mountain Bike 2021 in Factory Orange

Ask a question

Your name
Your email address
Your phone number
Your question
Submit Question  Close
  • Is the Rockshox fork 100mm or 120mm travel for medium frame?
    Question asked by Jeremy on 14/04/2021 10:01:43
    I can confirm that the Medium size frame is supplied with a 100mm travel fork. Trek do confirm that this frame has a maximum travel compatibility of 120mm with the exception of the XS size (max 100mm)
  • I am 5:11 in height what size of bike do you recommend for me?
    Question asked by James on 07/04/2021 17:59:33
    We would suggest a Large size frame. This would be suitable for a rider 5'9.7"-6'2.0" (117.0-188.0cm) with an inseam measurement of 32.7"-34.6" (83.0-88.0cm)
  • What would be required to make this bike a tubeless setup?
    Question asked by Paul on 27/12/2020 21:24:15
    You would require tubeless specific tyres, tubeless rim tape, tubeless valves and of course the sealant. I have included a link to the appropriate products available on our website https://www.balfesbikes.co.uk/facetresults.aspx?Term=tubeless
