The Émonda ALR 5 Disc is a super light and responsive alloy road race bike.
The Émonda ALR 5 Disc is a super light and responsive alloy road race bike.
Trek

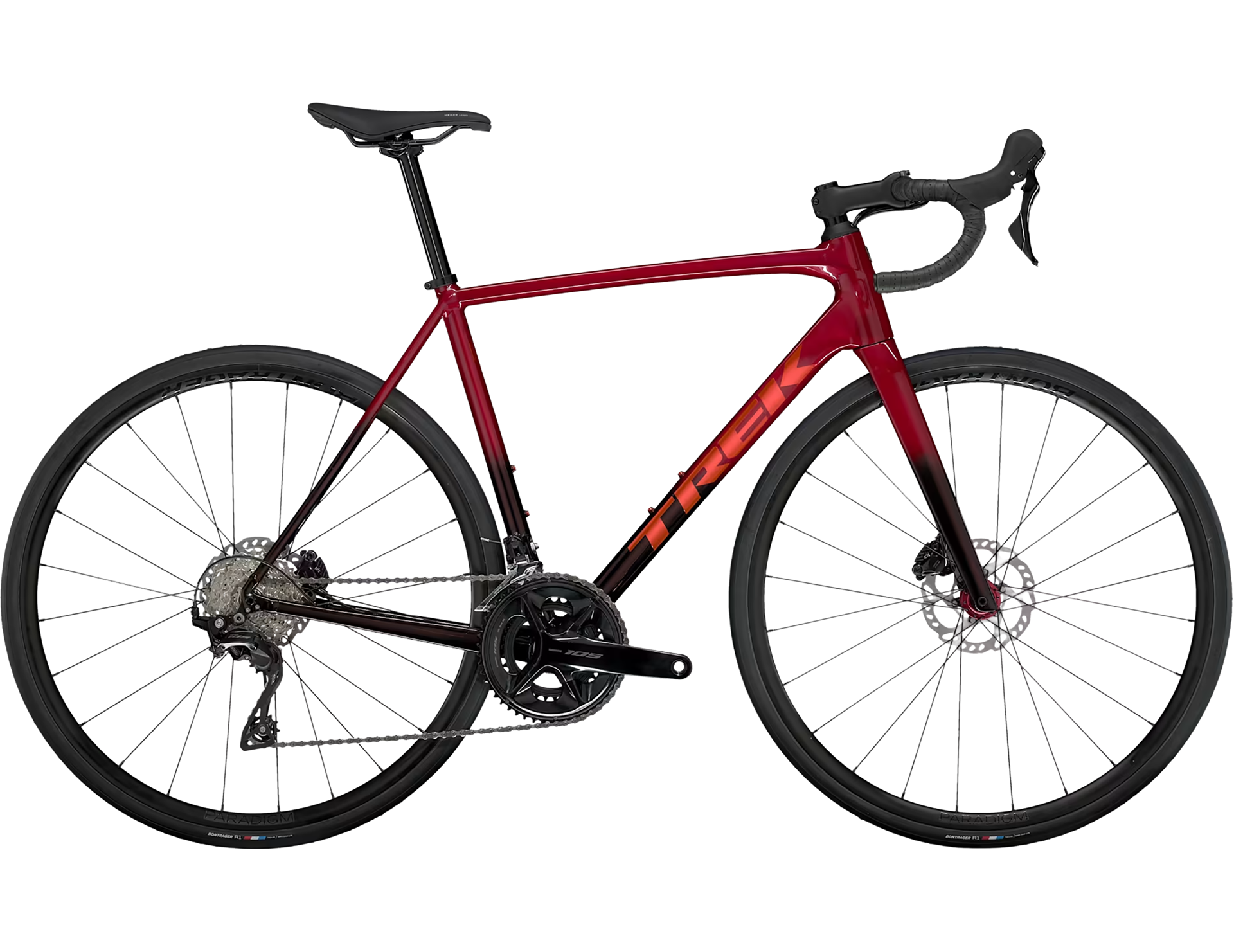

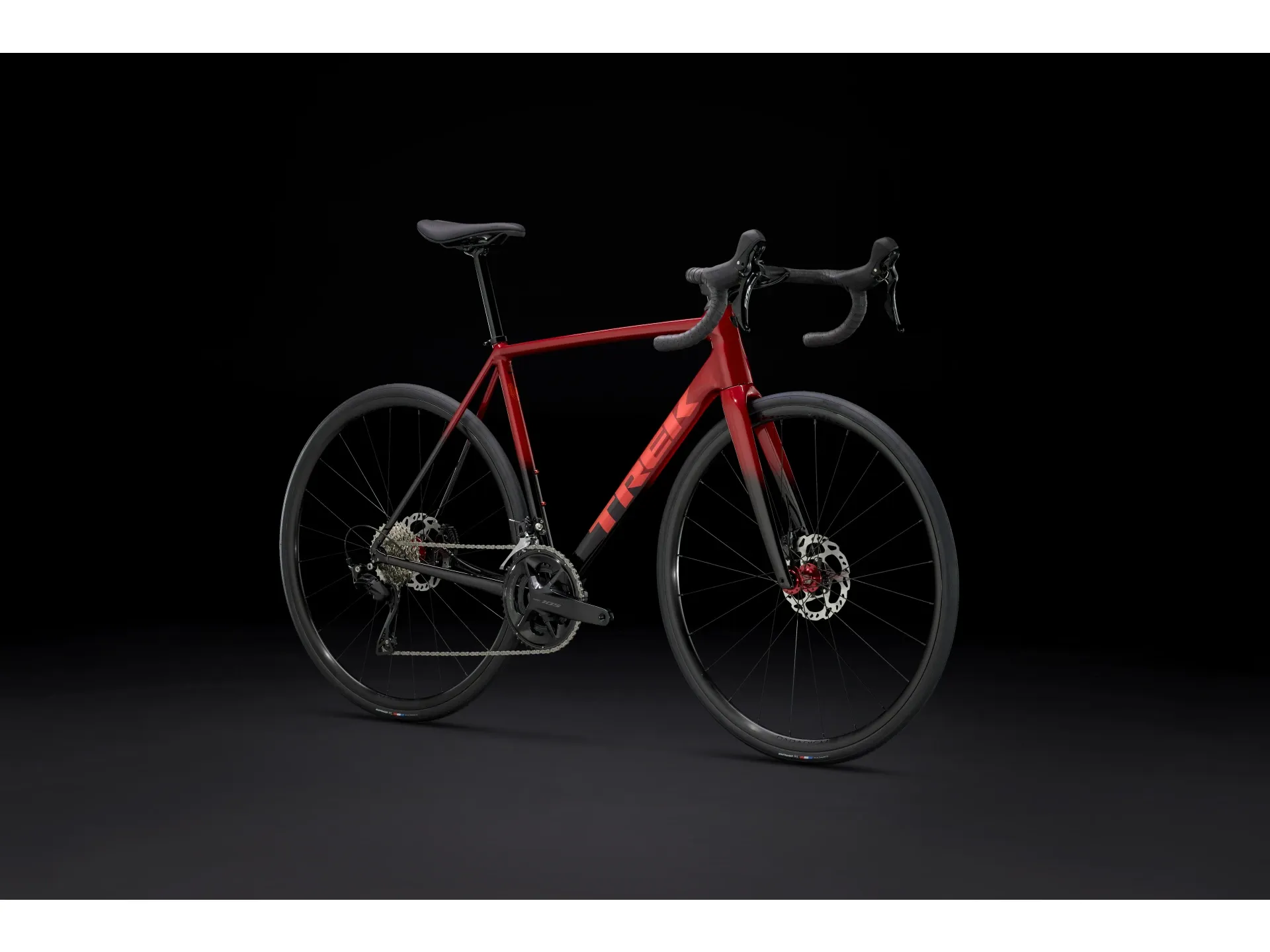

Trek Emonda ALR 5 Road Bike 2025 in Crimson to Carmine

£1,399.00 £2,100.00 33% off
Earn
in Customer Rewards when you buy this item today
Pre-Order

With Pre-Order, you can purchase the latest items added to our store in advance of them arriving with us.

Your Pre-Order is prioritised (at no additional charge); meaning that as soon as the product arrives with us, we can wrap it straight back up; ready for collection via Click & Collect or despatch to you — it often never even hits the stock room shelves!

Pre-Launch

With Pre-Launch, the date when we expect to receive the product ourselves is still a little too hazy to be confident in accepting Pre-Orders.

So, instead, you can submit your email address against the item you are interested in and we will email you as soon as stock arrives on the system.

Estimated Delivery & Collection Dates

Estimated Delivery & Collection Dates are given on Pre-Order and Pre-Launch products. They are for indication purposes only and can change at any time without notice.

The dates we provide are based on indications given by our suppliers. Whenever we get updated information from our suppliers we will endeavour to update the Estimated Delivery & Collection Dates provided on product pages.

We estimate this will be ready for despatch to you or collection via Click & Collect on Undetermined
Earn Rewards
When you purchase this item, you will earn of rewards points to spend on your next purchase from us. You can spend your Rewards balance in-store & online.

Hassle free returns

In the unlikely event that you are not satisfied with your purchase please feel free to return your items within 90 days of the purchase date for a full exchange or refund. Any item (excluding food, underwear or e-gift vouchers) can be returned to us for any reason within 90 days, provided that the item has not been used or fitted and is returned in its original packaging with valid proof of purchase.

It is recommended that you use a recorded delivery service or return to a store to ensure your items are received by us. We cannot assume responsibility for items that are lost in transit back to us.




Terms & Conditions

Items must be returned in their original packaging and unused. Refunds will be issued once the product(s) have been received and inspected.

Click & Collect customers can buy with confidence knowing that they can review the item before deciding whether it is right for you before leaving the store. Should you decide it's not right for you, it can be conveniently exchanged or refunded straight away, or you still have up to 90 days to return it if you are still unsure.

Please note:
1. If the items we have sent you are faulty, damaged or not as we described, we will cover the cost of collection and the delivery of the correct item.

2. If we have delivered the correct bike but upon inspection, you decide the bike is not the one for you, we will charge you £50 for collection (£100 from Northern Ireland). If you do not have the original box in usable condition, we will charge you an additional £15 to provide one.

Refunds will be processed using the same method of payment used for the original purchase. Credit & debit card refunds must be made to the card used for the original purchase.

We are unable to offer a refund without a valid proof of purchase.

Trek Emonda ALR 5 Road Bike 2025 in Crimson to Carmine

Season:2025Sale

Brand:Trek

Code:41426RED

The Émonda ALR 5 Disc is a super light and responsive alloy road race bike. Its advanced Kammtail alloy tube shapes and H1.5 race geometry give it the sleek looks and handling of a carbon bike and place it at an alloy price point.Paired with big upgrades on parts, like a dependable Shimano 105 drivetrain and powerful hydraulic disc brakes that stop in any weather, this bike is built to perform on club rides and races alike.

You want all the advantages of a bike built for featherweight performance in a wallet-friendly alloy frame that has the sleek looks and handling you'd expect only from a carbon frame, and the confident stopping power that disc brakes provide.

An ultra-light 300 Series Alpha Aluminium frame with Kammtail-shaped tubes for increased aerodynamics, Invisible Weld Technology, an Émonda SL carbon fork that absorbs vibration from the road, internal cable routing in both the frame and fork, a full 2x12 Shimano 105 drivetrain for dependable shifting, powerful flat-mount hydraulic disc brakes and tubeless-ready wheels.

An advanced alloy frame that looks and performs like carbon and a reliable Shimano 105 drivetrain give this race-ready ride an incredible amount of versatility.

Key Features & Benefits:

  • Aluminium Frame:Designed for racing, and packs in super tidy cable routing.
  • Kammtail Tube Shapes:Help make the Émonda ALR even faster than before.
  • Hydraulic Disc Brakes:To keep you in control, whatever the weather.

Full Specification:

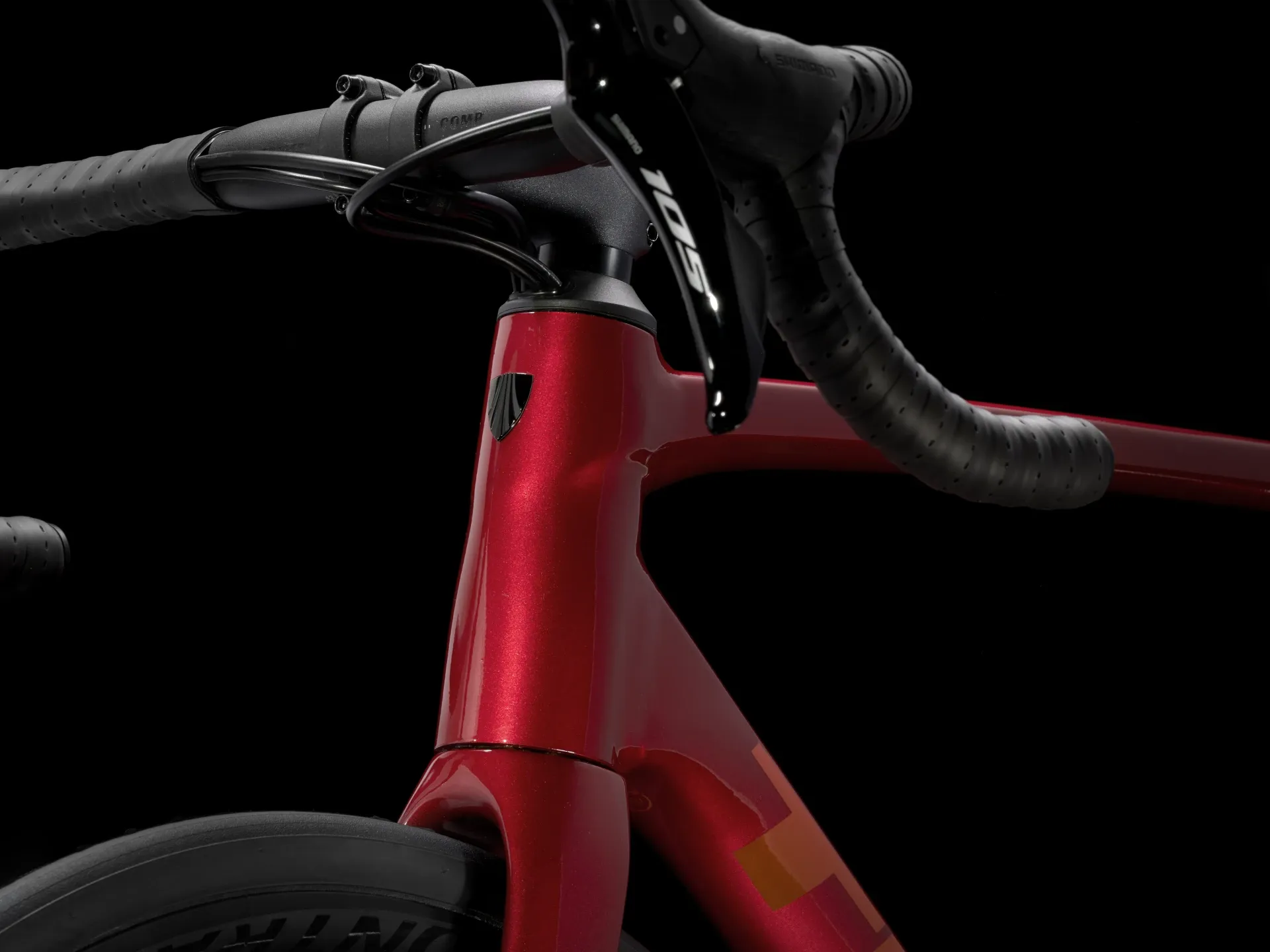

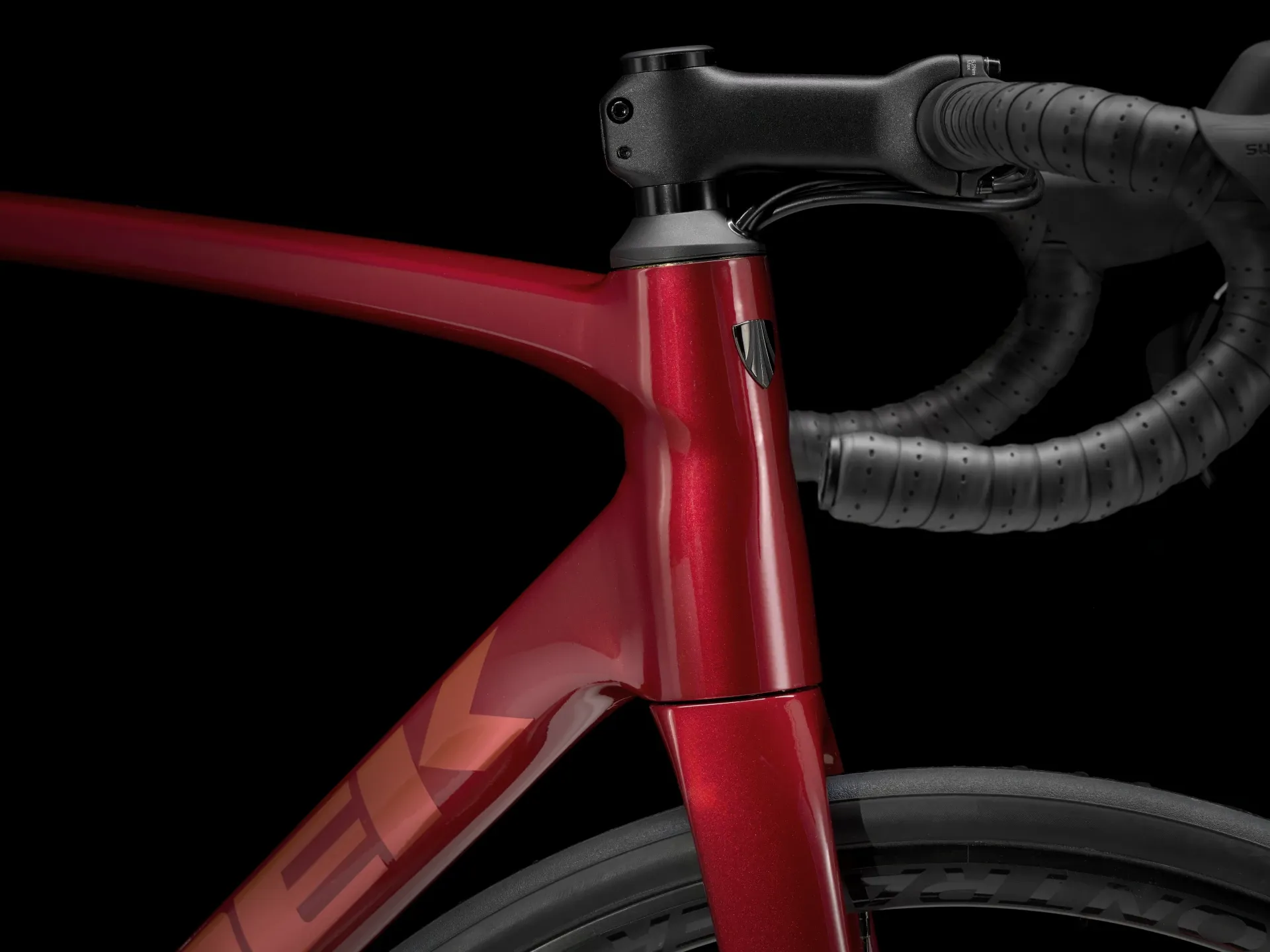

  • Frame:Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12mm thru axle
  • Fork:Ultralight 300 Series Alpha Aluminum, Invisible Weld technology, tapered head tube, internal cable routing, flat mount disc, 142x12mm thru axle
  • Number of Gears:24
  • Gear Shifters:Shimano 105 R7120, 12-speed

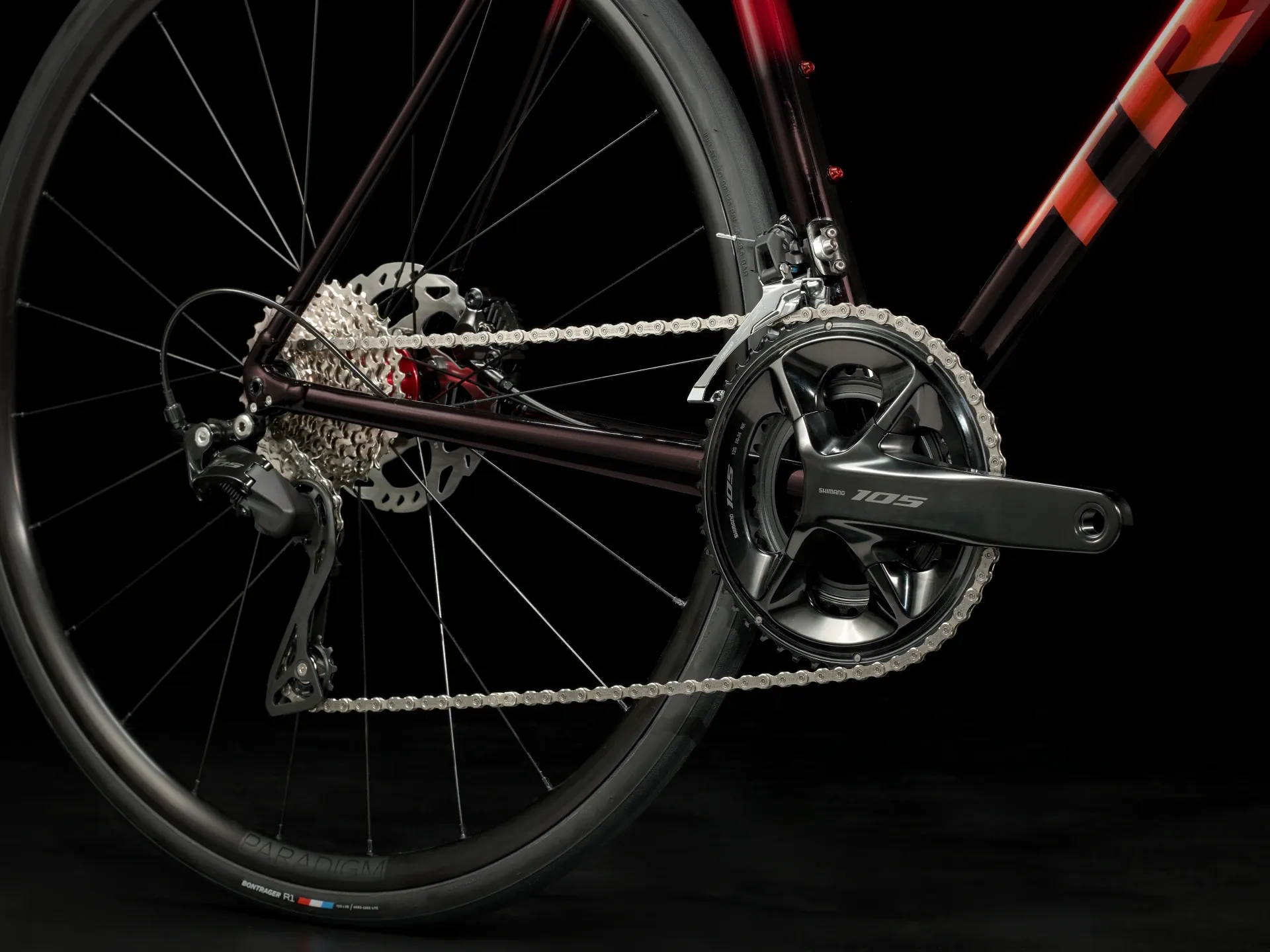

  • Chainset:Shimano 105 R7100, 50/34, 165 - 175 mm length
  • Chainrings:50/34T
  • Rear Cassette:Shimano 105 7101, 11-34, 12-speed
  • Chain:Shimano SLX M7100, 12-speed
  • Front Derailleur:Shimano 105 R7100, braze-on, down swing
  • Rear Derailleur:Shimano 105 R7100, 36T max cog
  • Bottom Bracket:Praxis, T47 threaded, internal bearing
  • Pedals:Not supplied:Shop pedals here
  • Rims:Bontrager Paradigm SL, Tubeless Ready, 24-hole, 21 mm width, Presta valve
  • Front Hub:Bontrager alloy, sealed bearing, CenterLock disc, 100x12 mm thru axle
  • Rear Hub:Bontrager alloy, sealed bearing, CenterLock disc, Shimano 11-speed freehub, 142x12 mm thru axle
  • Front Tyre:Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm
  • Rear Tyre:Bontrager R1 Hard-Case Lite, wire bead, 60 tpi, 700x28 mm

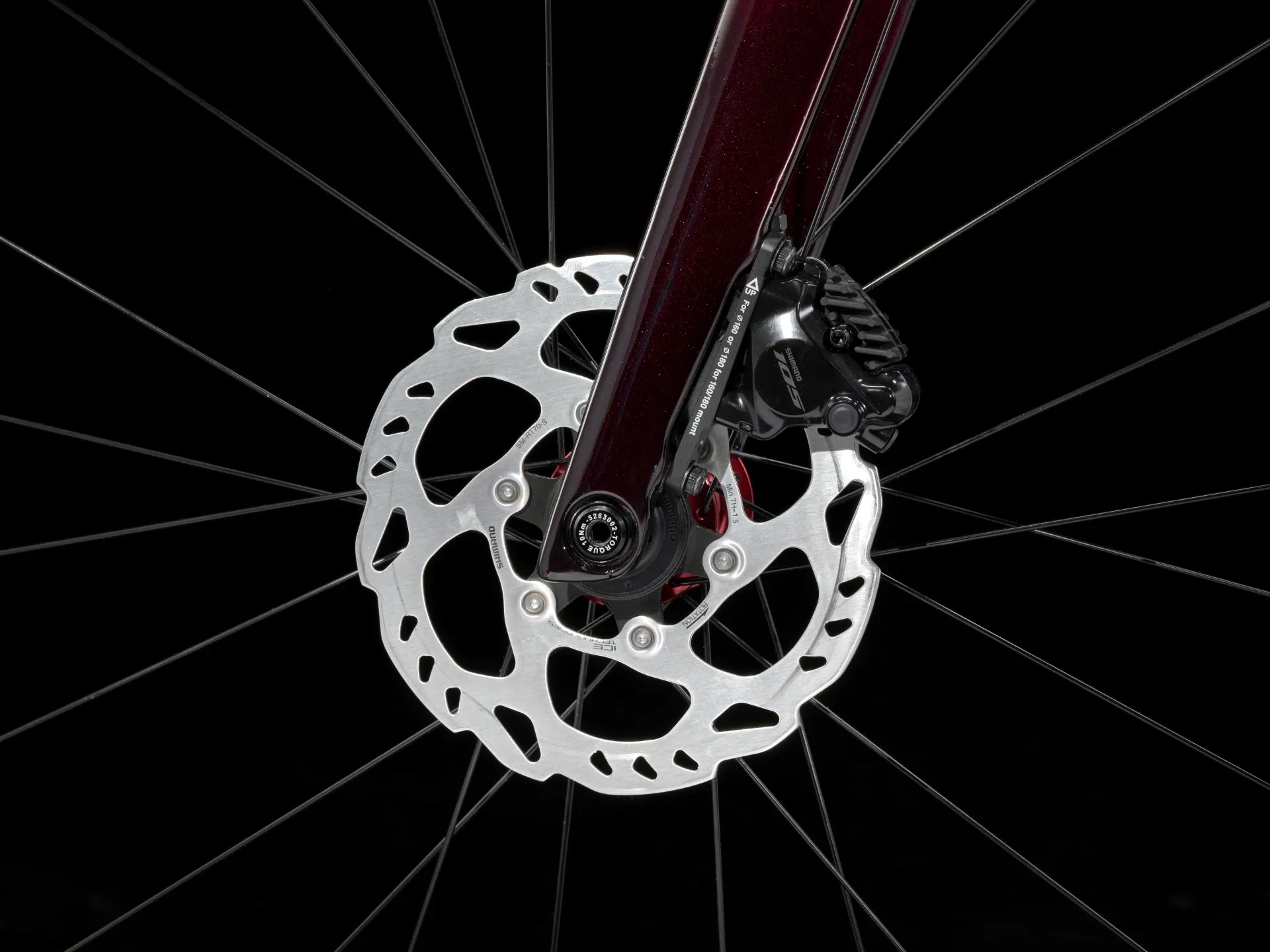

  • Brakes:Shimano 105 hydraulic disc

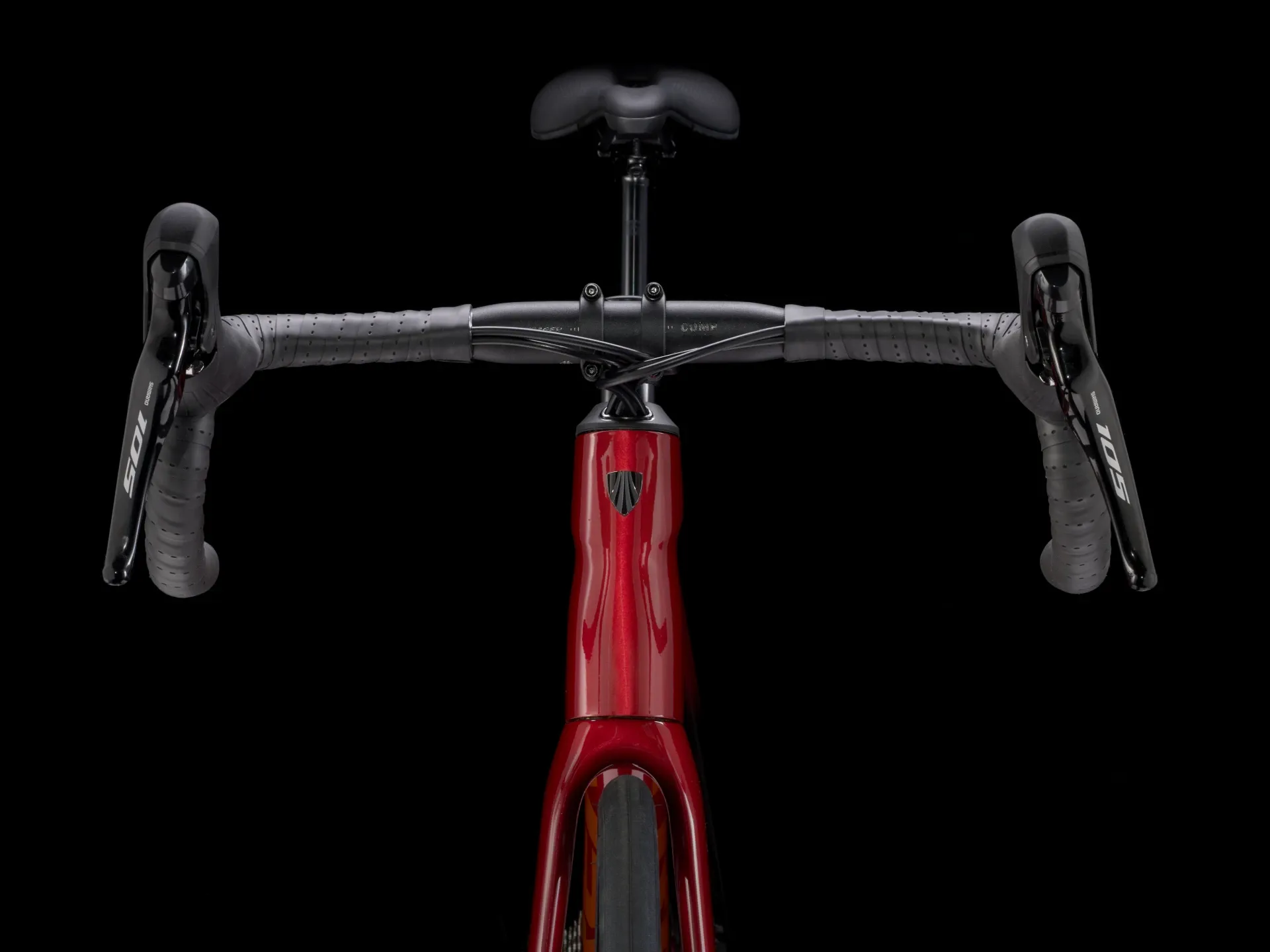

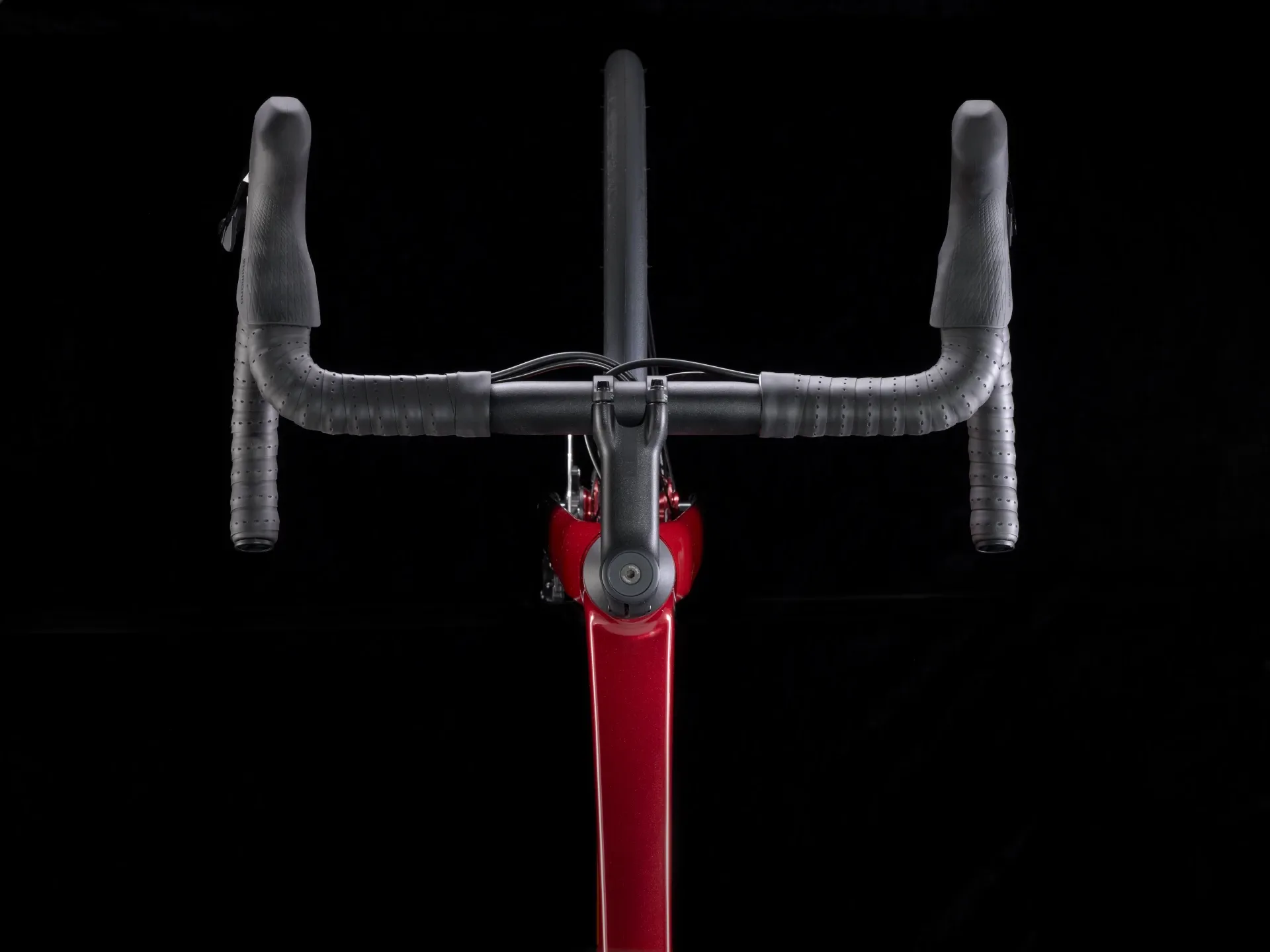

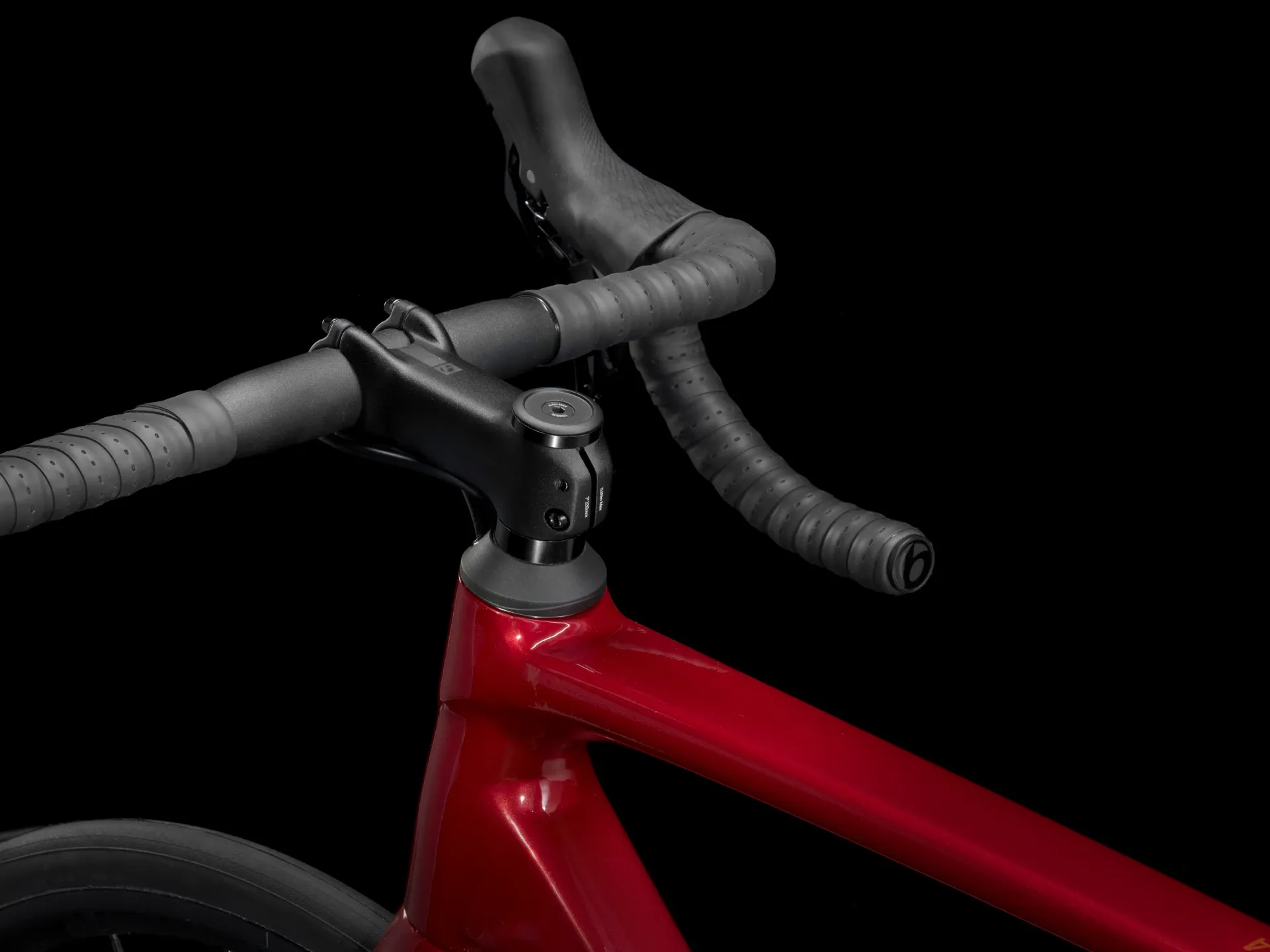

  • Handlebars:Bontrager Comp, alloy, 31.8 mm, 80 mm reach, 121 mm drop, 38 - 44 cm control width,42 - 48 cm drops width
  • Handlebar Tape:Bontrager Supertack Perf tape
  • Headset:Information not available
  • Stem:Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 - 110 mm length
  • Saddle:Bontrager Verse Short Comp, steel rails, 155 - 145 mm width
  • Seatpost:Bontrager Comp, 6061 alloy, 27.2 mm, 8 mm offset, 250-330 mm length
  • Accessories:Max Tyre Size 28c
  • Weight:N/A

Sizing Chart for Trek Emonda ALR Disc Unisex Road Bike

This chart can give a recommendation on which size may be best for you, however for the best results, please contact us or visit your local Balfe’s store for a personal consultation and test ride.

Frame SizeRider Height (cm)Rider Height (')Inseam (cm)Inseam (")
47152-1584'11.8" - 5'2.2"71-7528-29.5
50158-1635'2.2" - 5'4.2"74-7729.1-30.3
52163-1685'4.2" - 5'6.1"76-7929.9-31.1
54168-1745'6.1" - 5'8.5"78-8230.7-32.3
56174-1805'8.5" - 5'10.9"81-8531.9-33.5
58180-1855'10.9" - 6'0.8"84-8733.1-34.3
60185-1906'0.8" - 6'2.8"86-8933.9-35.4
62190-1956'2.8" - 6'4.8"89-9235.0-36.2

Geometry for Trek Emonda ALR Unisex Road Bike

Frame size number47 cm50 cm52 cm54 cm56 cm58 cm60 cm62 cm
Wheel size700c700c700c700c700c700c700c700c
A — Seat tube42.445.348.349.652.555.357.359.3
B — Seat tube angle74.6°74.6°74.2°73.7°73.3°73.0°72.8°72.5°
C — Head tube length1011.112.113.115.117.119.121.1
D — Head angle72.1°72.1°72.8°73.0°73.5°73.8°73.9°73.9°
E — Effective top tube51.252.153.454.355.957.458.659.8
G — Bottom bracket drop7.27.27.2776.86.86.8
H — Chainstay length414141414141.141.141.2
I — Offset4.54.54.54.54444
J — Trail6.86.25.85.65.85.75.65.6
K — Wheelbase97.297.497.798.198.399.2100.1101
L — Standover69.271.173.274.476.879.381.182.9
M — Frame reach37.337.838.338.639.139.639.940.3
N — Frame stack50.752.153.354.156.358.160.162
Stem length70809090100100110110

Manufacturers reserve the right to change specifications without notice based on availability at the point of assembly.

Warranty Information for Trek:

Lifetime warranty on Frame sets (frame and rigid fork), main frame and full suspension swing arms for the lifetime of the original owner, and Bontrager wheels with carbon rims.

2-year warranty on Rear suspension linkage components, including bearings, rocker link and accompanying hardware and components, Bontrager wheels with alloy rims, Paint and transfers.

For full warranty policy please visit trekbikes.com
